The Enterprise is ready for gRPC

Robust features for the enterprise

For the best experience (and most up-to-date)

https://slides.com/alexvanboxel/enterprise-is-grpc-ready

Almost 30 years in the sector



Mostly as Software Engineer

Web - 3D - Middleware - Mobile - Big Data



More recent as Architect

Data - SRE - Infrastructure

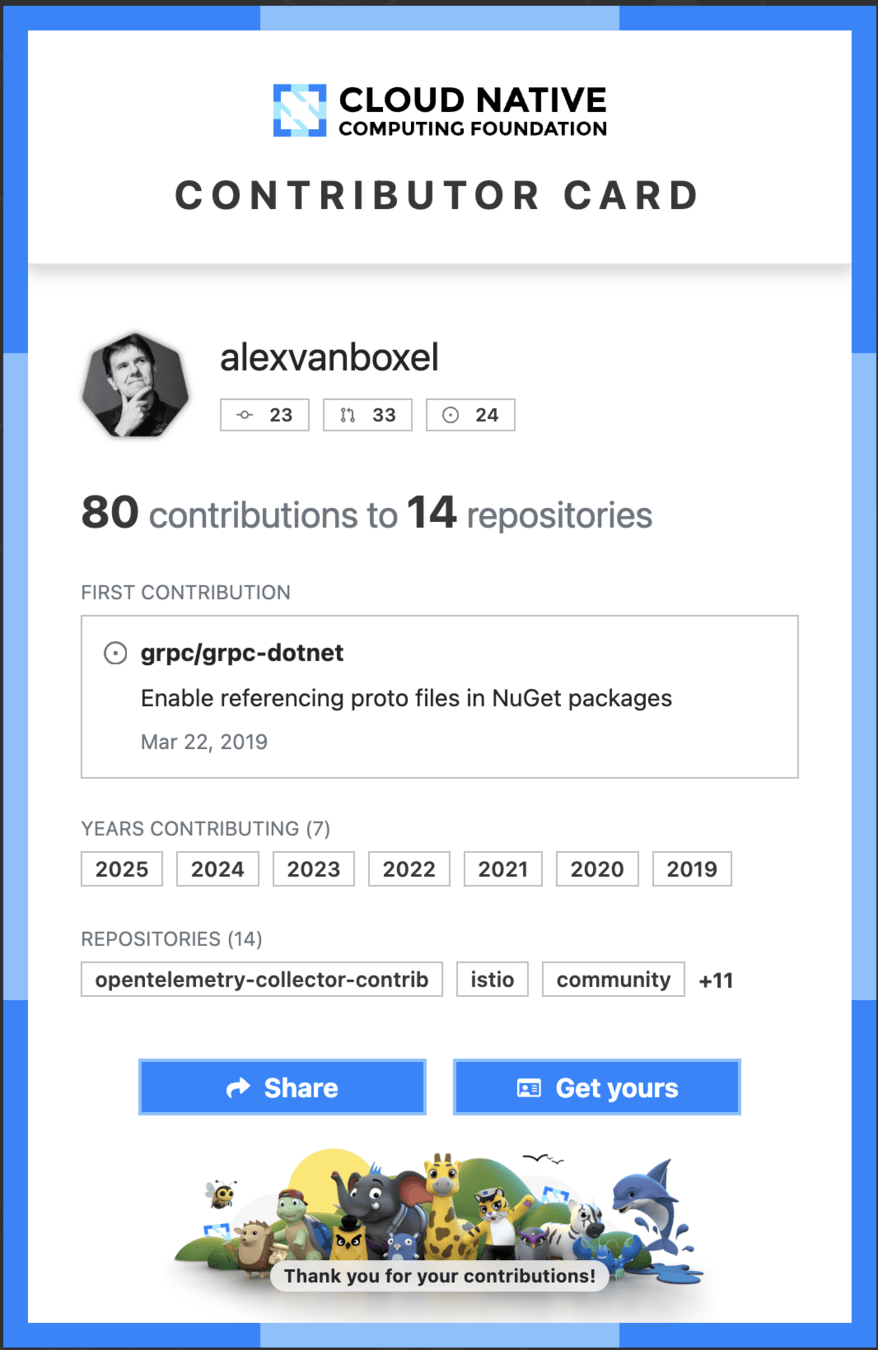

Community

Apache Beam contributor

OpenTelemetry Collector contributor



Collibra

Principal Systems Architect

Alex
Van Boxel

Alex
Van Boxel

Ceci n'est pas un gRPC talk

A high performance, open source universal RPC framework

Focus

Robust Binary Foundation

Domain Specific Language

Reuse and Integrations

Robust Binary Foundation

Base 128 Varints

0x96
150 =

Base 128 Varints

0x96
150 =

Base 128 Varints

continuation bit

0x96
150 =

Base 128 Varints

0x96
150 =

Base 128 Varints

0x96
150 =

Base 128 Varints

0x96
150 =
0x96
0x01

TLV

message Test1 {
  int32 a = 1;
}

TLV

message Test1 {
  int32 a = 1;
}

tag

wire-type

value

TLV - Tag

message Test1 {
  int32 a = 1;
}

tag

wire-type

value

  • tag ties to the schema
  • 4 bit tags are optimal
  • very large tags space

TLV - Wire Type (hint length)

message Test1 {
  int32 a = 1;
}

tag

wire-type

value

  • length hint, or type says how to interpreter the value
  • six wire types: LEN, VARINT, I32, I64, ...

TLV - Value

message Test1 {
  int32 a = 1;
}

tag

wire-type

value

0x96
0x01
0x08
=
150

TLV - Value (LEN wire type)

message Test1 {
  int32 a = 1;
  Test2 b = 2;
}

tag

wire-type

value

0x08

length

Unknown Fields

message Identity {
  string first_name = 1;
  string last_name = 2;
}
message Identity {
  string first_name = 1;
  string last_name = 2;
}
message Identity {
  string first_name = 1;
  string last_name = 2;
}

producer

consumer

filter (on last_name)

Unknown Fields

message Identity {
  string first_name = 1;
  string last_name = 2;
}
message Identity {
  string first_name = 1;
  string last_name = 2;
  string social_security_id = 3;
  SocialMedia social_media = 4;
}
message Identity {
  string first_name = 1;
  string last_name = 2;
}

producer

consumer

filter (on last_name)

Unknown Fields

message Identity {
  string first_name = 1;
  string last_name = 2;
  string social_security_id = 3;
  SocialMedia social_media = 4;
}
message Identity {
  string first_name = 1;
  string last_name = 2;
  string social_security_id = 3;
  SocialMedia social_media = 4;
}
message Identity {
  string first_name = 1;
  string last_name = 2;
}

producer

consumer

filter (on last_name)

Unknown Fields

message Identity {
  string first_name = 1;
  string last_name = 2;
  string social_security_id = 3;
  SocialMedia social_media = 4;
}
message Identity {
  string first_name = 1;
  string last_name = 2;
  string social_security_id = 3;
  SocialMedia social_media = 4;
}
message Identity {
  string first_name = 1;
  string last_name = 2;
}

producer

consumer

filter (on last_name)

FINAL

Descriptor

message Test1 {
  int32 a = 1;
}
google.protobuf.DescriptorProto
0x42 0xAB 0xFF 0x7C
0xD5 0x3E 0x11 0x00

Descriptor - Source Embedding

public final class TestOuterClass {

  static {
    java.lang.String[] descriptorData = {
      "\n8com/redacted/v1alpha1" +
      "/file.proto\022&com.example.file.v1alpha1\032\037google/protobuf/time" +
      "stamp.proto\1P\001b\006proto3"
    };
  }
}

Server Reflection

syntax = "proto3";
package grpc.reflection.v1;

service ServerReflection {

  // The reflection service is structured as a bidirectional stream, ensuring
  // all related requests go to a single server.
  rpc ServerReflectionInfo(stream ServerReflectionRequest)
      returns (stream ServerReflectionResponse);
}

Test/Demo it out with an public reflection server: https://grpcb.in/

Nice UI (bruno): https://docs.usebruno.com/send-requests/grpc/grpc-request

Popular CLI: https://grpcurl.com/

Robust Binary Foundation

TLV

  • Parsable without schema (no registry required)

  • Enables adding and removing fields without braking the contract

Unknown Fields

  • Schemas can rollout in different order without impact

(Server) Reflection

  • Descriptors enable standardized reflection across languages

  • Standard ways of discovering remove services (debugging)

Binary vs JSON

$$$

Domain Specific Language

No Tool - Schema/PM First

// Service that can be used to push spans between one ... [redacted for slide]
service TraceService {
  rpc Export(ExportTraceServiceRequest) returns (ExportTraceServiceResponse) {}
}

message ExportTraceServiceRequest {
  // An array of ResourceSpans.
  // For data coming from a single resource this array will typically contain one
  // ... [redacted for slide]
  repeated opentelemetry.proto.trace.v1.ResourceSpans resource_spans = 1;
}

message ExportTraceServiceResponse {
  // The details of a partially successful export request.
  //
  // If the request is only partially accepted ... [redacted for slide]

  ExportTracePartialSuccess partial_success = 1;
}

message ExportTracePartialSuccess {
  // The number of rejected spans. [redacted for slide]
  string error_message = 2;
}

YAML/JSON is not PM friendly

openapi: 3.0.1
info:
  title: OpenTelemetry OTLP Ingress, exposed through a tenant-environment host for ingesting telemetry from the front-end or edge.
  version: 1.0.0
servers:
- url: /otlp
paths:
  /v1/traces:
    post:
      description: Service that can be used to push spans between one Application instrumented with OpenTelemetry and a collector, or between a collector and a central collector (in this case spans are sent/received to/from multiple Applications).
      operationId: ingestTracesForTenantEnvironment
      responses:
        "200":
          description: The details of a export request.
      summary: Ingest traces for a tenant environment from front-end or edge.
      tags:
      - OpenTelemetry
tags:
- description: OpenTelemetry provides a single, open source standard and a set of technologies to capture and export metrics, traces, and logs from your cloud-native applications and infrastructure.
  name: OpenTelemetry

Diff friendly

File Structure

example/domain/service/v1

service.proto

service FooService {
  rpc Bar(BarRequest) returns (BarResponse) {}
}
message BarRequest {...}
message BarResponse {...}

baz.proto

message Baz {...}

waldo.proto

message Waldo {...}

example/domain

import

Common Messages

example/domain/service/v1

example/domain/common/v1

service.proto

service FooService {
  rpc Bar(BarRequest) returns (BarResponse) {}
}
message BarRequest {...}
message BarResponse {...}

baz.proto

message Baz {...}

waldo.proto

message Waldo {...}

quux.proto

message Quux {...}

corge.proto

message Corge {...}

example/domain

import

import

Versioning - Pre Release

example/domain/service/v1

service.proto

baz.proto

waldo.proto

example/domain

example/domain/service/v1alpha1

service.proto

baz.proto

plugh.proto

NEVER import

Versioning - Braking

example/domain/service/v1

service.proto

baz.proto

waldo.proto

example/domain

example/domain/service/v2

service.proto

baz.proto

garply.proto

NEVER import

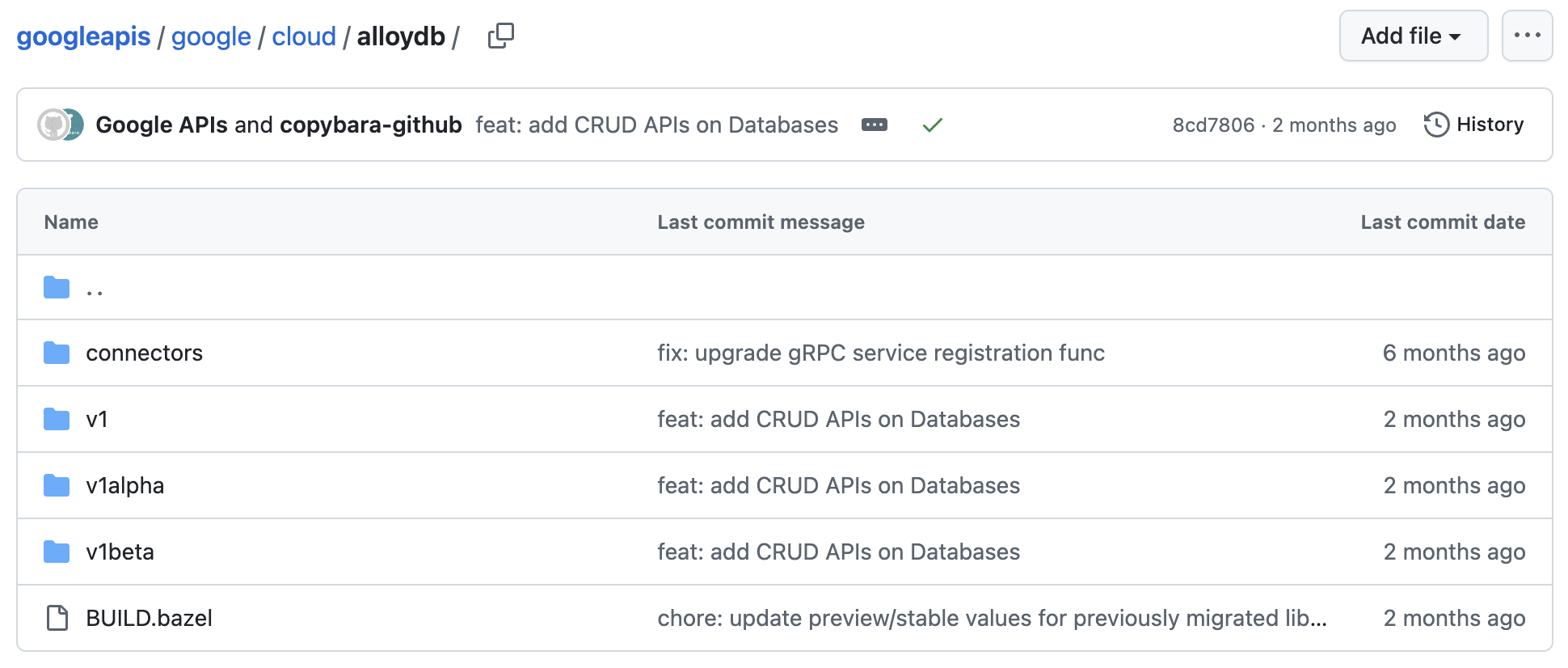

Versioning

Evolution by Tag

message Metric {
  string name = 1;
  string unit = 3;
  IntGauge int_gauge = 4;
  Gauge gauge = 5;
  IntSum int_sum = 6;
  Sum sum = 7;
}

Primitives

message Metric {
  string name = 1;
  string unit = 3;
  IntGauge int_gauge = 4;
  Gauge gauge = 5;
  IntSum int_sum = 6;
  Sum sum = 7;
}

Messages, Enums, ...

message Metric {
  string name = 1;
  string unit = 3;
  IntGauge int_gauge = 4;
  Gauge gauge = 5;
  IntSum int_sum = 6;
  Sum sum = 7;
}

Inline Documentation

message Metric {
  string name = 1;

  // unit in which the metric value is reported. Follows the format
  // described by http://unitsofmeasure.org/ucum.html.
  string unit = 3;

  IntGauge int_gauge = 4;

  Gauge gauge = 5;

  IntSum int_sum = 6;

  Sum sum = 7;
}

Deprecation

message Metric {
  string name = 1;

  // This field will be removed in ~3 months, on July 1, 2021.
  IntGauge int_gauge = 4 [deprecated = true]
  Gauge gauge = 5;
  // This field will be removed in ~3 months, on July 1, 2021.
  IntSum int_sum = 6 [deprecated = true]
  Sum sum = 7;
message Metric {
  reserved 4, 6;

  string name = 1;

  Gauge gauge = 5;
  Sum sum = 7;

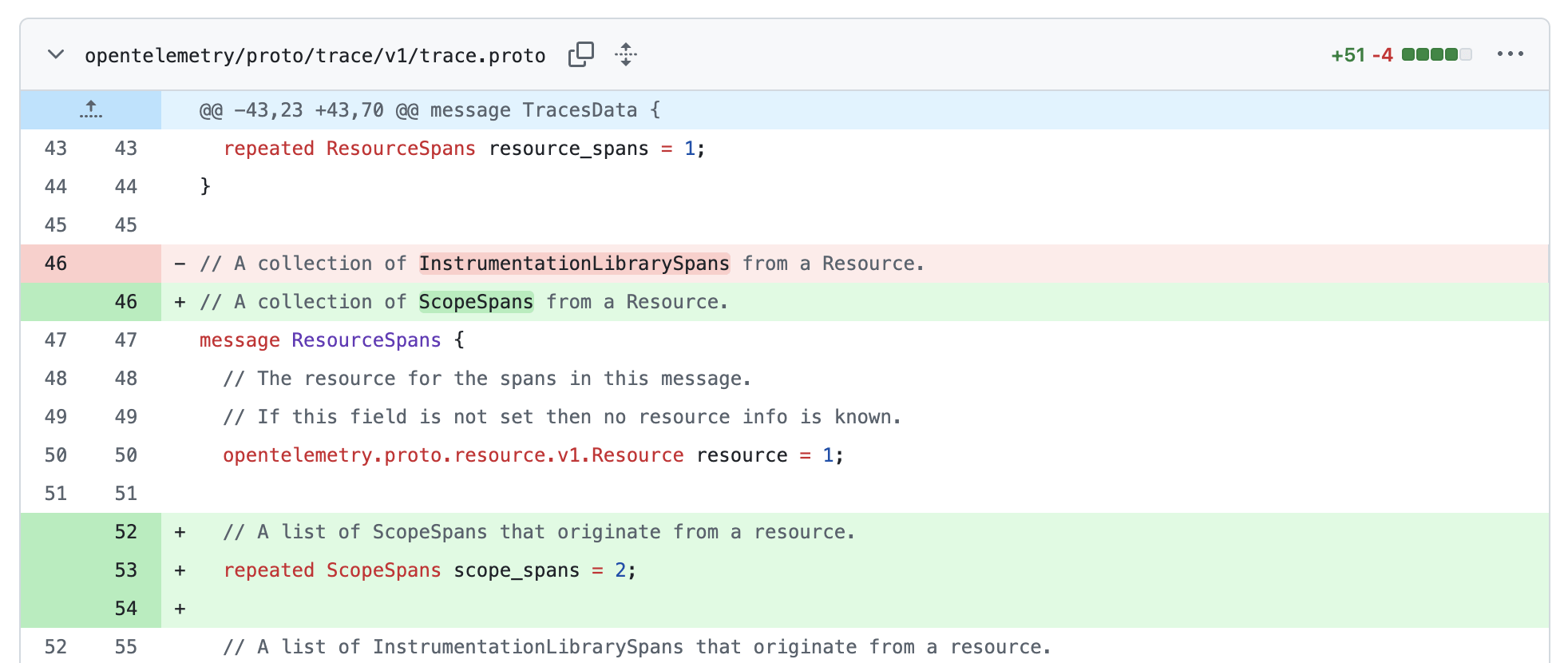

Semantic Rename

message ResourceLogs {
  opentelemetry.proto.resource.v1.Resource resource = 1;
  repeated InstrumentationLibraryLogs instrumentation_library_logs = 2;
}
message ResourceLogs {
  opentelemetry.proto.resource.v1.Resource resource = 1;
  repeated ScopeLogs scope_logs = 2;

  // This field is deprecated and will be removed after grace period expires
  repeated InstrumentationLibraryLogs instrumentation_library_logs = 1000 [deprecated = true];
}

API Guides

Google API Design Guide



Uber gRPC api guidelines



buf.build validator

Domain Specific Language

No tools required

  • Straightforward DSL enables technical program managers to drive the API

  • Any diffing UI will do (GitLab/GitHub)

Versioning Strategy

  • Common accepted versioning (package based) help define a versioning strategy

Evolution

  • Tagging (TLV) makes it easy to add and deprecated without breaking

  • Renaming field without braking binary compatibility

Reuse and Integration

Unified RPC and Messaging

example/domain/service/v1

example/domain/common/v1

service.proto

service FooService {
  rpc Bar(BarRequest) returns (BarResponse) {}
}
message BarRequest {...}
message BarResponse {...}

baz.proto

message Baz {...}

waldo.proto

message Waldo {...}

quux.proto

message Quux {...}

corge.proto

message Corge {...}

example/domain

Unified RPC and Messaging

example/domain/service/v1

example/domain/common/v1

service.proto

service FooService {
  rpc Bar(BarRequest) returns (BarResponse) {}
}
message BarRequest {...}
message BarResponse {...}

baz.proto

message Baz {...}

waldo.proto

message Waldo {...}

quux.proto

message Quux {...}

corge.proto

message Corge {...}

example/domain

Unified RPC and Messaging

example/domain/service/v1

example/domain/common/v1

service.proto

service FooService {
  rpc Bar(BarRequest) returns (BarResponse) {}
}
message BarRequest {...}
message BarResponse {...}

baz.proto

message Baz {...}

waldo.proto

message Waldo {...}

quux.proto

message Quux {...}

corge.proto

message Corge {...}

example/domain

thud.proto

message Thud {...}

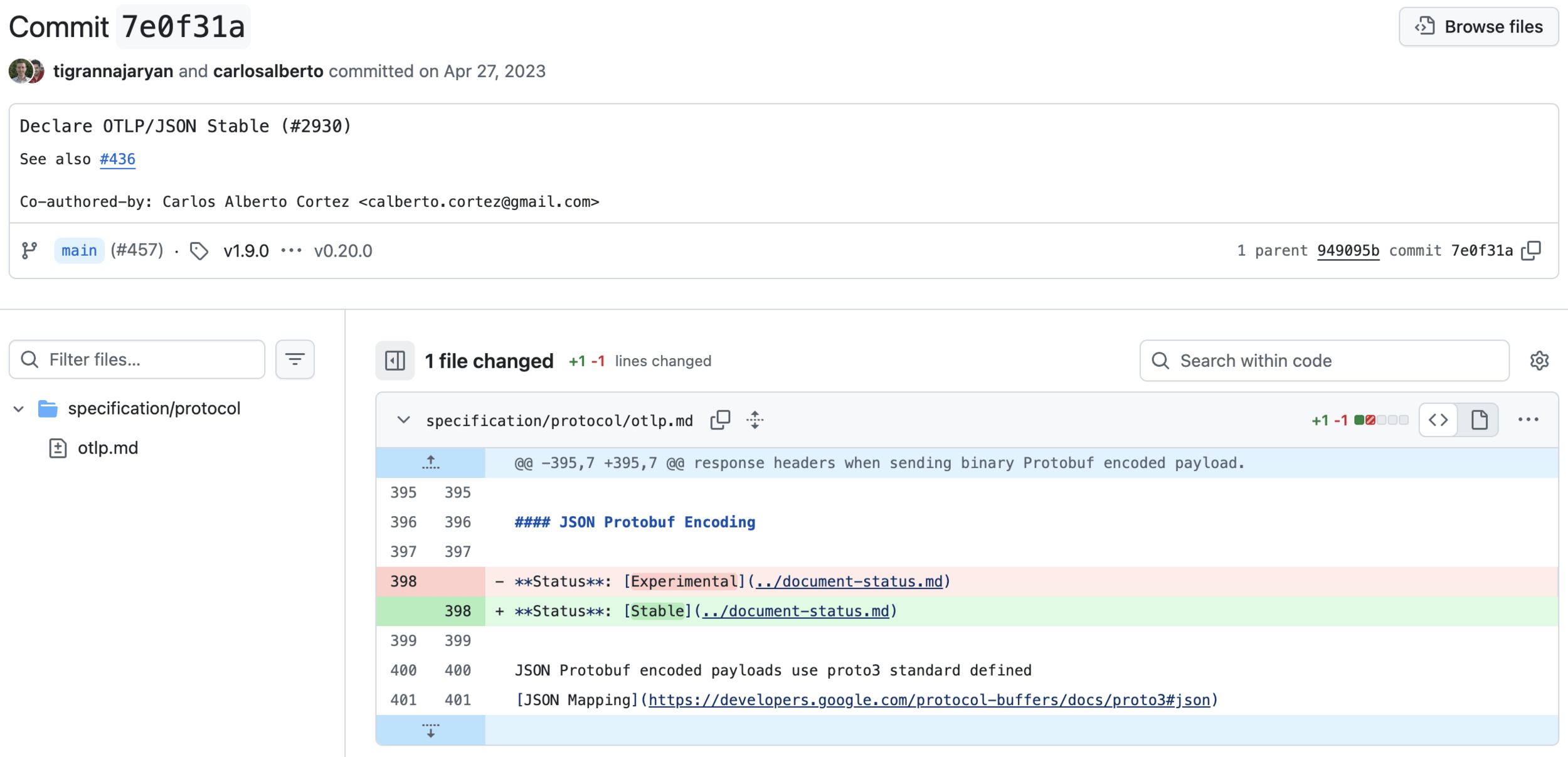

ProtoJSON

Protobuf supports a canonical encoding in JSON, making it easier to share data with systems that do not support the standard protobuf binary wire format.

ProtoJSON

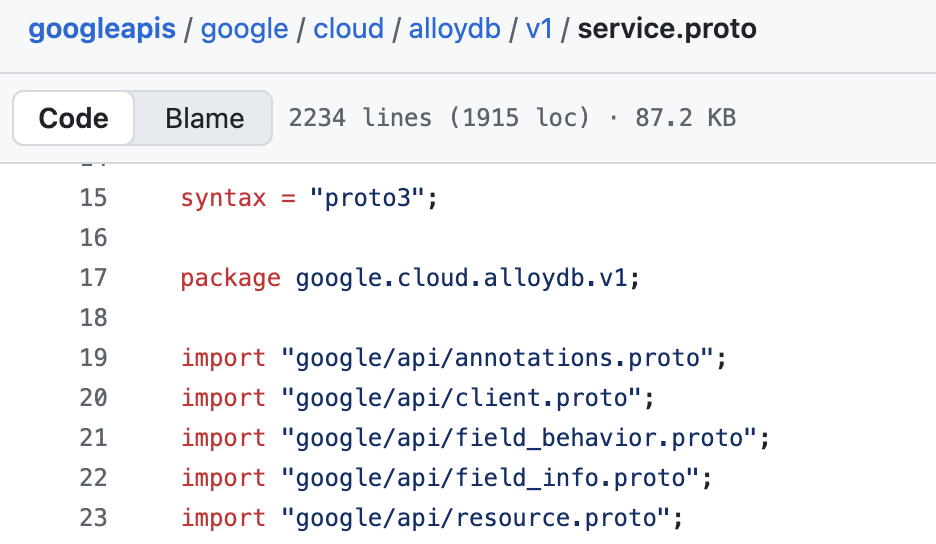

gRPC/JSON - reusable options

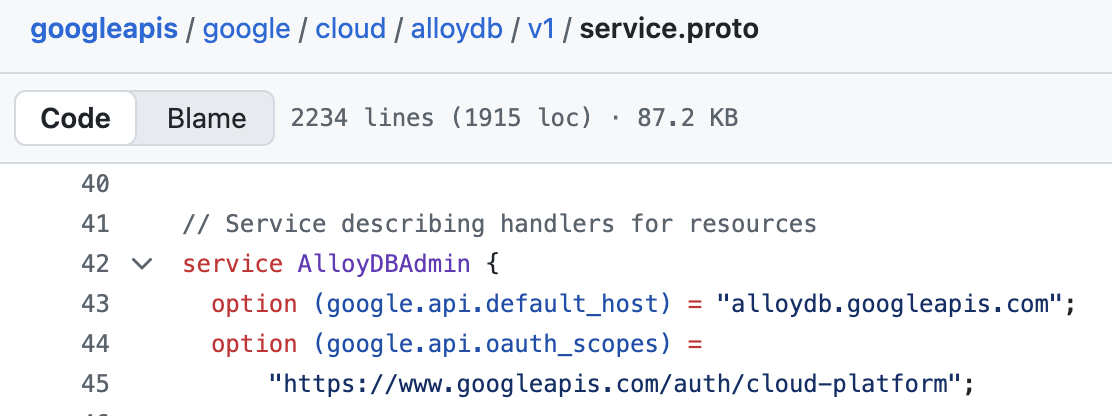

gRPC/JSON - service scoped

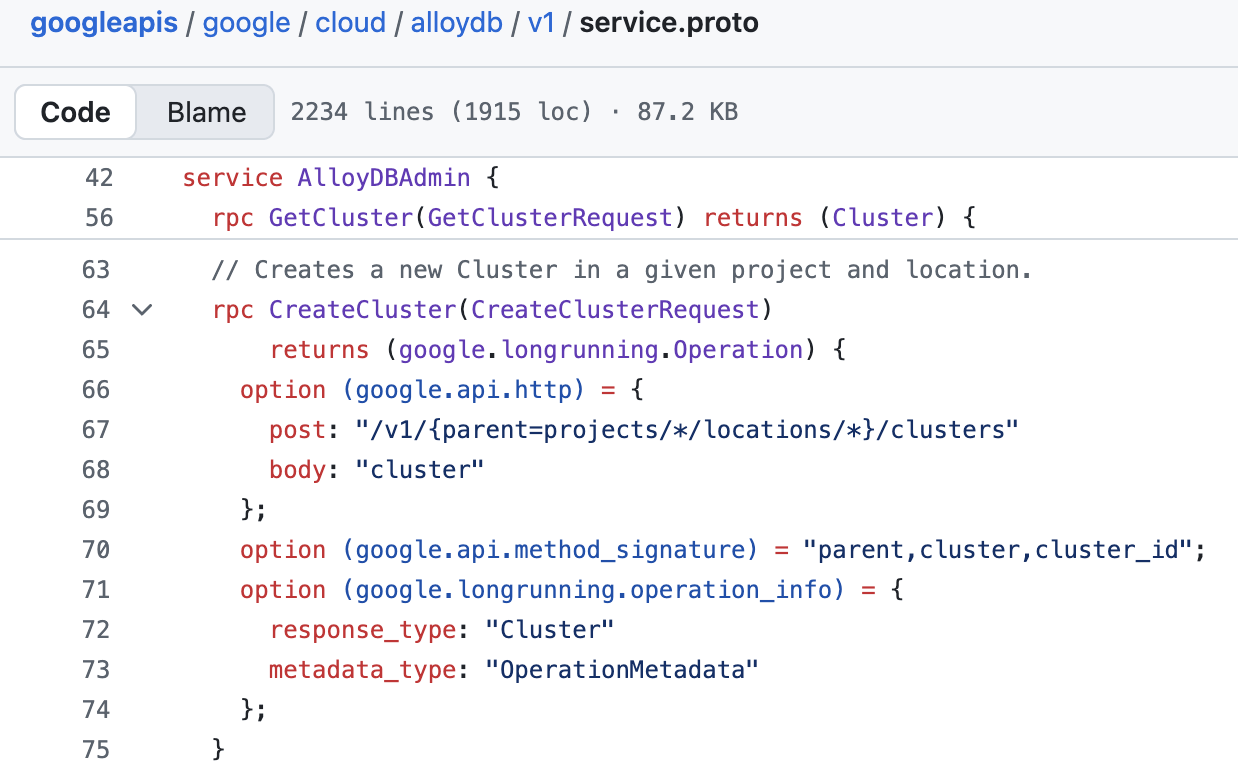

gRPC/JSON - method scoped

gRPC/JSON support

The Monolith is Back

The Monolith is Back

Modular Monolith

Fused gRPC

Keep you options open

Reuse and Integration

Unified RPC and Messaging

  • Same tooling, same Data Objects

  • Less context for teams

ProtoJSON - gRPC/JSON

  • Integrate with external parties

Fused gRPC

  • Keep the monolith, but keep options open

  • Guides you to modularisation

  • Easier to test
