Deep Dive into

JavaScript Asynchronous Process

JS Async process under the hood and performance enhancements

Goals

# JS Async
  • Aware of performance impact from a line of code
  • Produce a better performant code for the better application
  • Reduce potentially buggy code
  • Knowledge sharing culture
  • Study together

Plus

No, not these

What is asynchronous process

1.

2.

How to code Asynchronous programming

3.

Use cases and examples

# JS Async

Agenda

# JS Async
  • Browser mechanics & Thread
  • Event-Loop & callstack
  • Asynchronous types
  • Quiz and Q&A (discussion)
# Browser Mechanics

Browser Mechanics

# Browser Mechanics
# Browser Mechanics

Rendering Engines

  • WebCore: contains core layout functionality
  • JavaScriptCore: JavaScript interpreter lives

V8

Squirrelfish (Part of Webkit)

SpiderMonkey

Hermes, etc

Thread

# Thread
# Thread

Computer program

=>

memory

=>

process

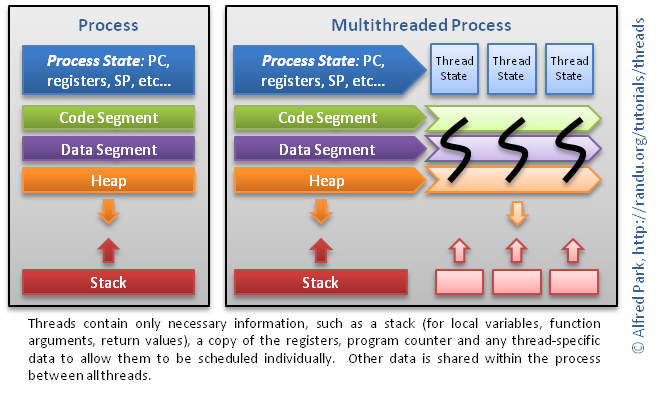

Process

  • program current position (pointers)
  • registers
  • variable
  • file handles
  • signals
  • etc

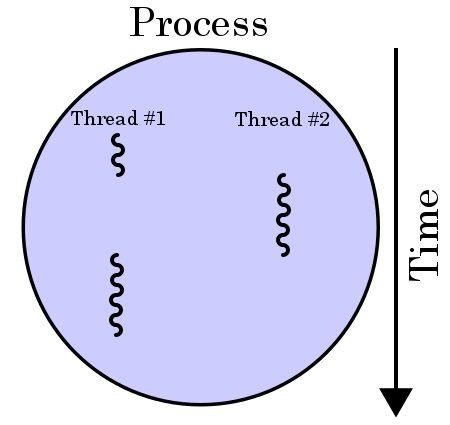

A thread is a sequence of such instructions within a program that can be executed independently of other code.

# Thread
# Thread

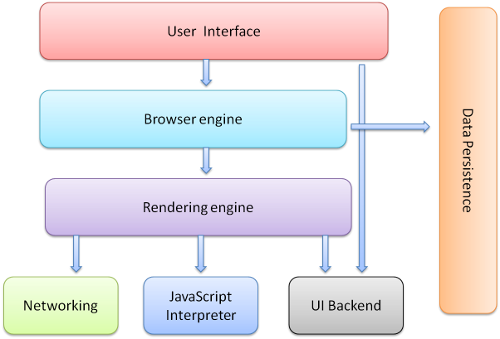

# Browser Mechanics

Browser

Thread

I/O

Main /

Rendering engine

  • Network
  • UI
  • JavaScriptCore
  • WebCore

Area control: browser

Area control: tab, window

# Browser Mechanics

JavaScriptCore

JavaScript interpreter lives

||

JavaScript process only exist in JSCore

||

JSCore only exist in main thread

||

JavaScript process is single threaded

# Thread

JavaScript process is single threaded

||

one thing at a time

Main Thread a.k.a

Event Loop

# Call Stack

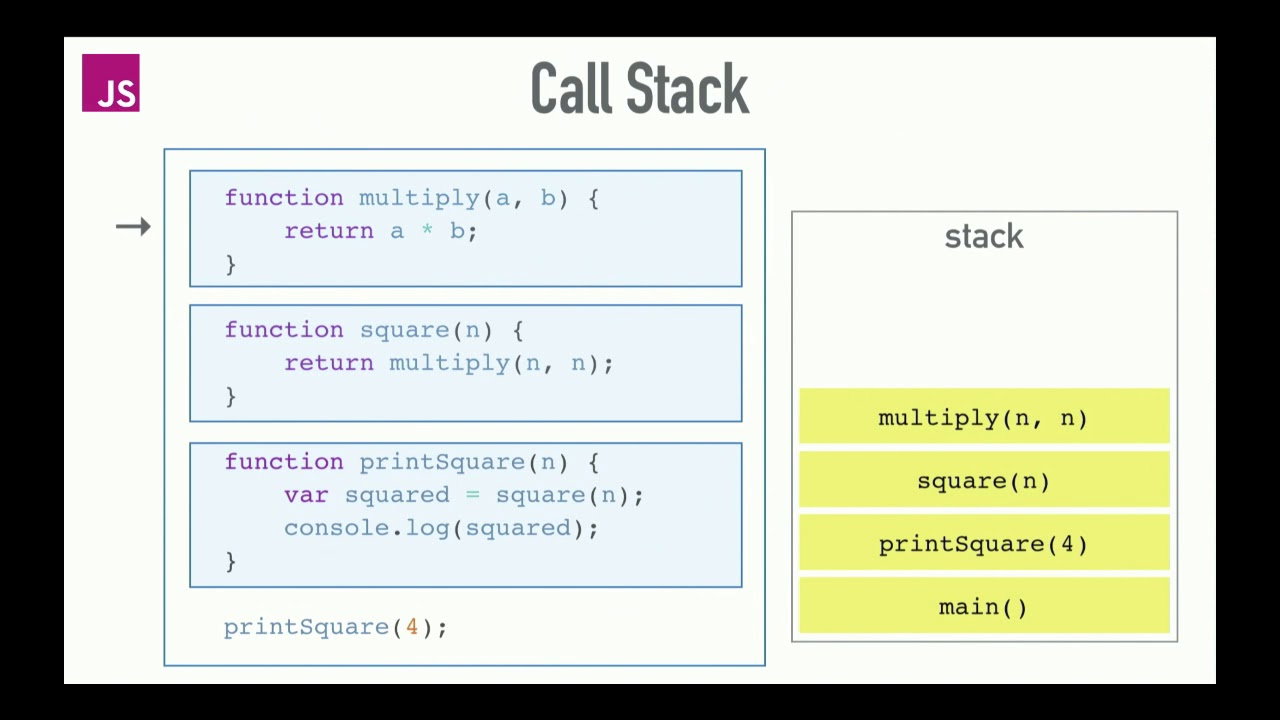

Call Stack

# Call Stack
function multiply(a, b) {
  return a * b;
}

function sqare(n) {
  return multiply(n, n);
}

function printSquare(n) {
  let squared = square (n);
  console.log(squared);
}

printSquare(5);

Call stack

run js

printSquare(5)

square(n)

multiply(n, n)

# Call Stack
function multiply(a, b) {
  return a * b;
}

function sqare(n) {
  return multiply(n, n);
}

function printSquare(n) {
  let squared = square (n);
  console.log(squared);
}

printSquare(5);

Call stack

run js

printSquare(5)

square(n)

multiply(n, n)

# Call Stack

Can we do something on the page(screen) while callstack is not empty?

Quiz

No

# Call Stack

Demo

 process = () => {
    console.log('process ...');
    this.process();
  }
# Call Stack

Demo 2

processAsync = () => {
    console.log('processAsync ...');
    setTimeout(this.processAsync, 0);
  }
# Call Stack

arrow function vs (normal) function

Quiz

The value of this inside an arrow function remains the same throughout the lifecycle of the function and is always bound to the value of this in the closest non-arrow parent function or class

# Call Stack

Let's take a look closer

 process = () => {
    console.log('process ...');
    this.process();
  }

Call stack

process()

process()

process()

process()

process()

process()

process()

process()

process()

process()

process()

# Call Stack

Let's take a look closer

Call stack

processAsync = () => {
    console.log('processAsync ...');
    setTimeout(this.processAsync, 0);
  }

processAsync()

# Call Stack

Let's take a look closer

Call stack

processAsync = () => {
    console.log('processAsync ...');
    setTimeout(this.processAsync, 0);
  }
# Event loop

Event Loop

# Event loop

Event Loop

The browser main thread is an event loop. It's an infinite loop that keeps the process alive.

# Event loop

Event Loop

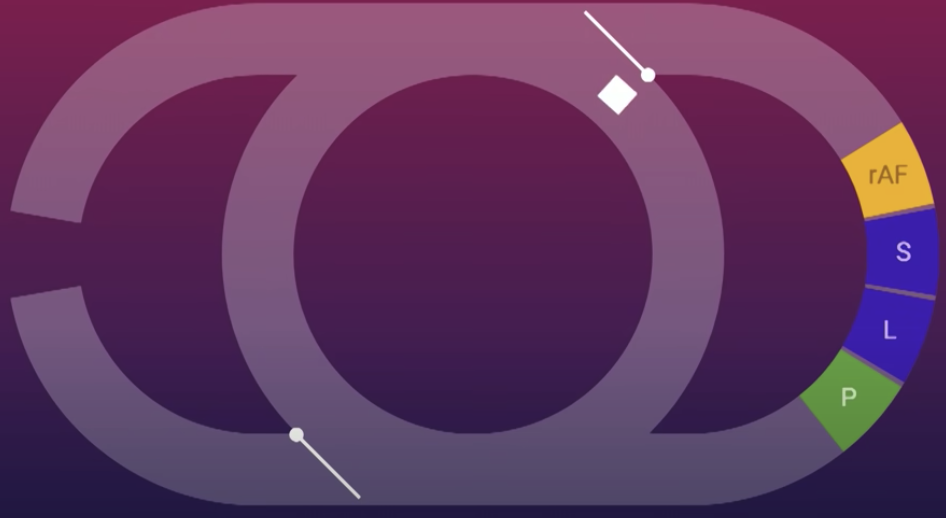

# Event loop

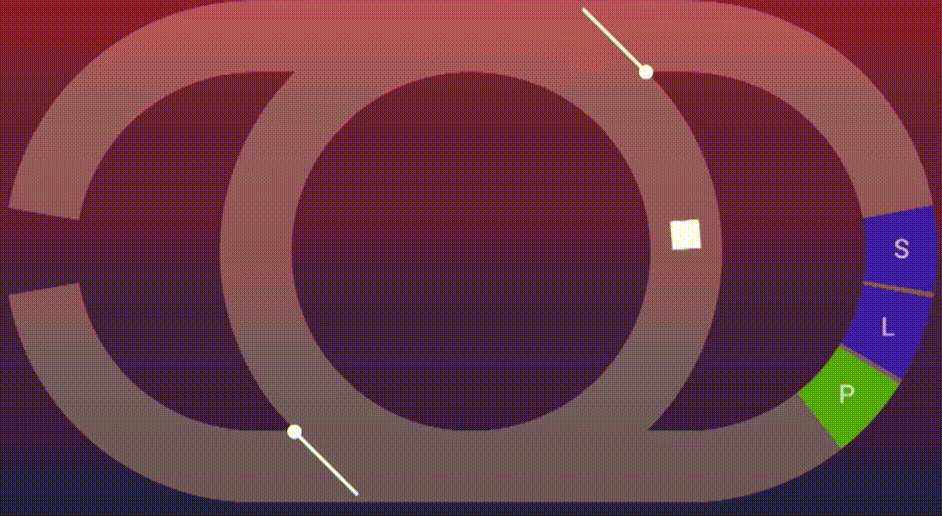

Event Loop

Task queue

Rendering

style

layout

layout

paint

# Event loop

Render blocking

Render-blocking resources are scripts, stylesheets, and HTML imports that block or delay the browser from rendering page content to the screen.

What cause render blocking in JavaScript?

  • non-empty callstack
  • A long or heavy process in task queue

What the effect of render blocking?

  • freeze screen
  • text can't be selected
  • html component not working
# Event loop

Can Promise cause render blocking?

Quiz

Yes, it can

# Event loop

Demo

processPromise = () => {
    Promise.resolve().then(this.processPromise);
  }
# Event loop

Demo 2

processRaf = () => {
  requestAnimationFrame(this.processRaf);
}
# Event loop

Promise is an async process,

why it cause render blocking?

# Async type

Asynchronous process types

# Async type

Time based

  • setTimeout
  • setInterval

Microtask

  • Promise
  • Async-await
  • Fetch
  • Function generator
  • etc

Request Animation Frame

CMIIW

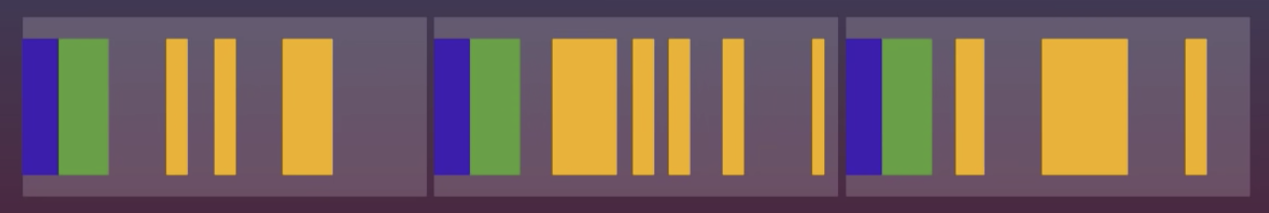

# Async type

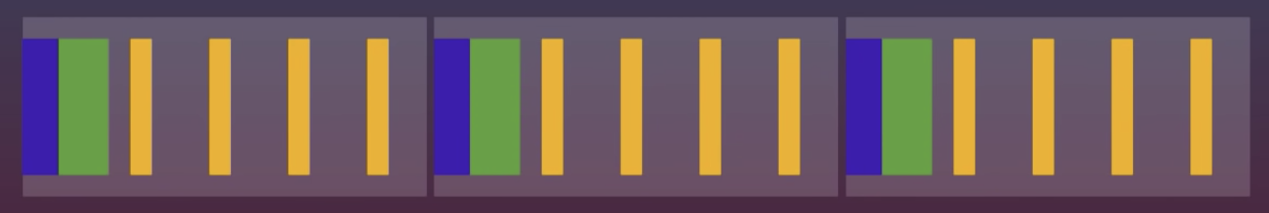

Time based

Paint

Layout

1 frame

setTimeout process

setTimeout process

1 seconds = 60 frame (60fps) - 60hz display

# Async type

Microtask

micro task can be execute anytime immediately

processPromise = () => {
  Promise.resolve().then(this.processPromise);
}
# Async type

Microtask

processPromise = () => {
  Promise.resolve().then(this.processPromise);
}

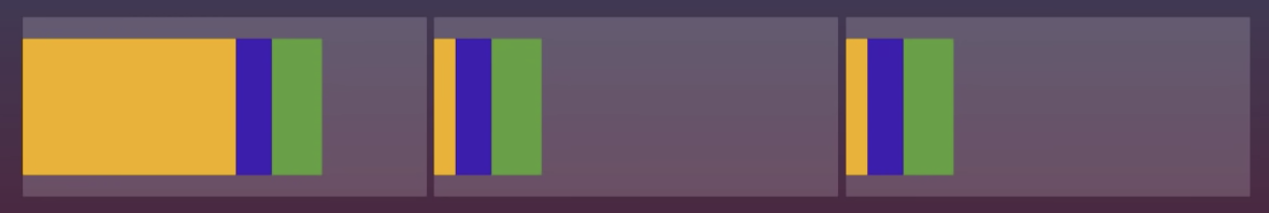

# Async type

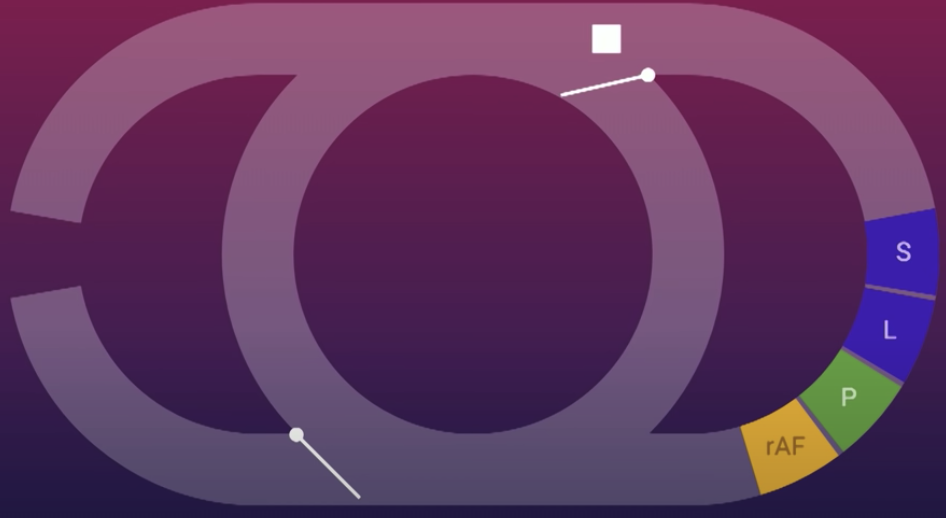

requestAnimationFrame (rAF)

long process in rAF will be deferred

# Async type

requestAnimationFrame (rAF)

# Async type

Demo

processPromiseRaf = () => {
  requestAnimationFrame(() => Promise.resolve().then(this.processPromiseRaf));
}

Quiz time

# Quiz
# Quiz
process = () => {
  console.log('one');
  setTimeout(() => console.log('two'),0);
  Promise.resolve().then(console.log('three'));
  requestAnimationFrame(() => console.log('four'));
  setTimeout(() => console.log('five'),0);
  Promise.resolve().then(console.log('six'));
  requestAnimationFrame(() => console.log('seven'));
}

What will the code below output to the console

a. one, two, three, four, five, six, seven

b. one, two, five, three, four, six, seven

c. one, two, five, four, seven, three, six

d. one, three, six, two, five, four, seven

e. one, three, six, four, seven, two, five

# Quiz

The answer is

d. one, three, six, two, five, four, seven

e. one, three, six, four, seven, two, five

  • Don't overuse Promise

  • Pick the most appropriate async process for your program

  • Use requestAnimationFrame for performance enhancements

  • Evaluate your code and write a better performant code

# conclusion

Conclusion

# End

Thank you
