Responsive web design

Andrei ANTAL

QUALITANCE

Tap That JOB 2017

CONTENTS

  • Intro
  • A bit of context
  • Responsive web design features (hands on)
  • Assignment

ABOUT ME

ANDREI ANTAL

Frontend Engineer @ QUALITANCE

  • Web technologies enthusiast
  • Community activist
  • Occasional speaker

antal.a.andrei@gmail.com

@andrei_antal

Angular Bucharest

https://www.facebook.com/groups/angularjs.bucharest/

https://www.meetup.com/AngularJS-Bucharest/

Next meetup - April 24th 2017 - TechHub

A bit of context

A bit of context

Responsive web design

https://alistapart.com/article/responsive-web-design

Responsive web design

Definition



Responsive web design means designing your website so that it responds to your users environment based on screensize, platform and orientation.

Responsive web design

Definition



It looks diferent and things jiggle around, scale, re-order, appear, and disappear so it works well in your browser size or whatever device you’re using to view it...

Responsive web design

Responsive web design

Responsive web design

Responsive web design

Responsive web design

Responsive web design

Responsive web design

Responsive web design

Mobile vs. Adaptive vs. Responsive

Responsive web design

New ways of thinking



  • Works on everything - Design for many sizes at once
  • Clean design - reduce clutter, essential content only
  • Design from the content out - Let content decide breakpoints
  • Less Graphic files - CSS gradients, font icons

Design patterns

Layouts

Mostly Fluid

Design patterns

Layouts

Column Drop

Design patterns

Layouts

Layout Shifter

Design patterns

Layouts

Off Canvas

Design patterns

Navigation

Toggle Navigation

Design patterns

Navigation

<select> Navigation

Design patterns

Navigation

Footer Navigation

Design patterns

Navigation

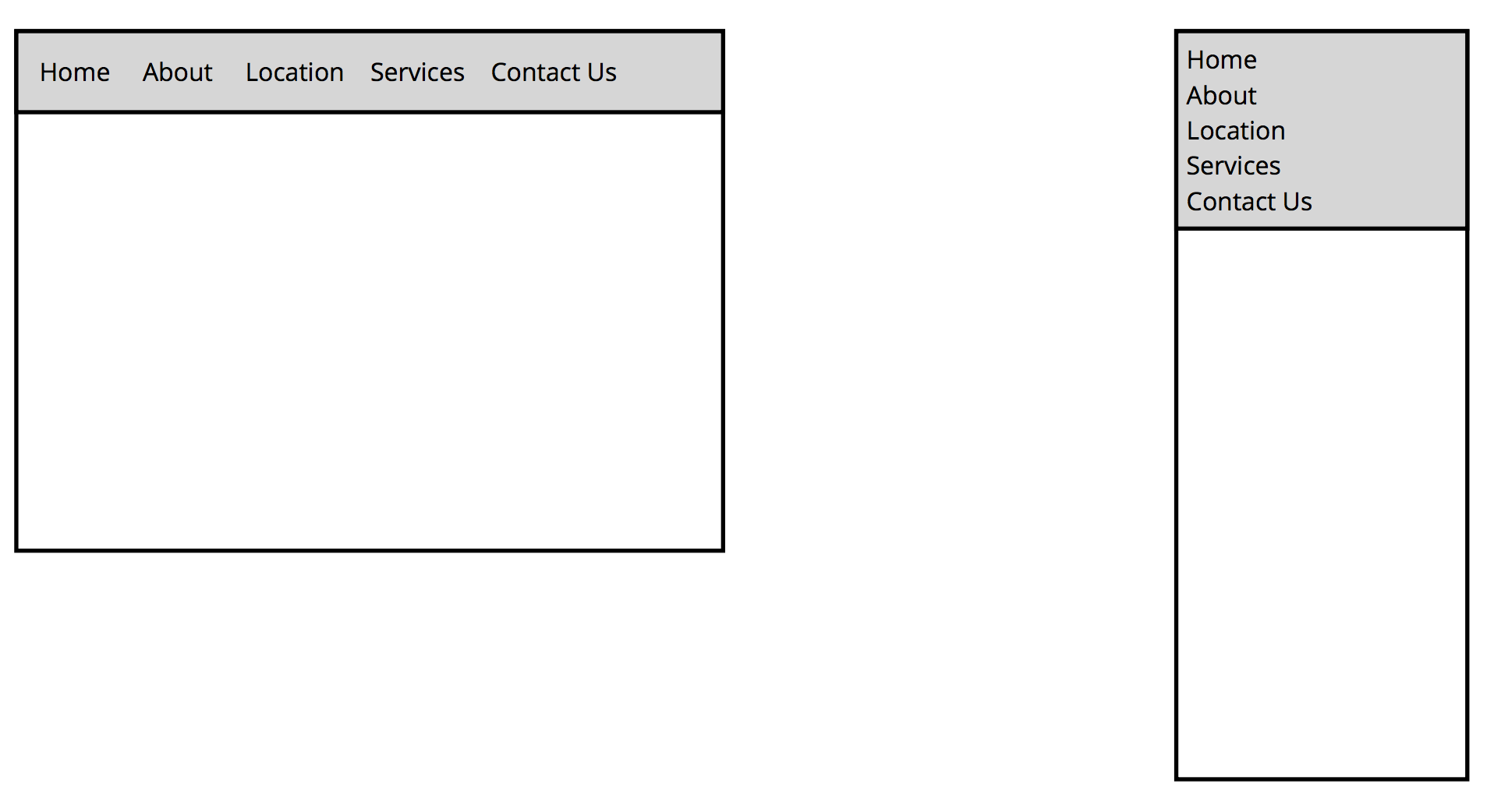

Stacked Top Links Navigation

Design patterns

Navigation

Left Nav Flyout - aka Hamburger menu

Design patterns

Navigation

Priority+ Navigation

Design patterns

Navigation

Priority+ Navigation

Design patterns

Source order shift

Design patterns

Source order shift

RWD Components

  • Flexible, grid based layouts
    •  % widths and em units, not fixed pixels



  • Flexible images and media
    • width/height not fixed



  • CSS3 Media Queries
    • @media rule

Flexible layouts

Building the layout of a website with a flexible grid, capable of dynamically resizing to any width

Flexible layouts

Relative Viewport Lengths

  • vw - Viewports width
  • vh - Viewports height
  • vmin - Minimum of the viewport’s height and width
  • vmax - Maximum of the viewport’s height and width
.container {
    width: 50vw;
    height: 100vh;
}

Flexible layouts

Flexible grids

// HTML

<div class="container">
  <section>...</section>
  <aside>...</aside>
</div>

// CSS

.container {
  width: 538px;
}
section,
aside {
  margin: 10px;
}
section {
  float: left;
  width: 340px;
}
aside {
  float: right;
  width: 158px;
}

Flexible layouts

Flexible grids

target ÷ context = result

Flexible layouts

Flexible grids

section,
aside {
  margin: 1.858736059%; /*  10px ÷ 538px = .018587361 */
}
section {
  float: left;
  width: 63.197026%;    /* 340px ÷ 538px = .63197026 */
}
aside {
  float: right;
  width: 29.3680297%;  /* 158px ÷ 538px = .293680297 */
}

Flexible layouts

Flexible grids

Flexible layouts

DEMO TIME

Flexible layouts

DOWNLOAD SOURCES:

goo.gl/mrbKGN

Flexible layouts

Choose your text editor:

Visual Studio Code

Atom

Sublime

Flexible layouts

Our application:

Flexible layouts

Flexible typeset

  • Font of 100% (generally) corresponds to 16px
.nav li a:link {
    color: #2b737a;
    text-decoration:none;
    font-size: 22px;
    font-weight:100;
}
target ÷ context = result

22px ÷ 16px = 1.375em​

Flexible layouts

Flexible typeset

.nav li a:link {
    color: #2b737a;
    text-decoration:none;
    font-size: 1.375em;
        /* 22px / 16px */
    font-weight:100;
}
h2   24px ÷ 16px = 1.5em
​h3   20px ÷ 16px = 1.25em
p    14px ÷ 16px = .875em

Flexible layouts

Flexible grid

Flexible layouts

Flexible grid

target ÷ context = result

___px ÷ 1280px = __%

Flexible layouts

Flexible grid

.site {
    width: 100%;
    /* 1280px / 1280px */
}

Flexible layouts

Flexible grid

Flexible layouts

Flexible grid

#heading {
	background-color: #fff;
	width: 960px;
	margin: 1.5em auto;
	text-align:right;

}
#heading {
	background-color: #fff;
	width: 75%;
        /* 960px / 1280px */
	margin: 1.5em auto;
	text-align:right;

}

Flexible layouts

Flexible grid

#promowrapper {
    margin: 0 auto;
    width: 960px;
}
#promowrapper {
    margin: 0 auto;
    width: 75%;
}

Flexible layouts

Flexible grid

#content {
    background-color: #fff;
    width: 960px;
    margin: auto;
}

.contentbox {
    width: 300px;
    float:left;
    padding: 2em 30px 2em 0;
}
#content {
    background-color: #fff;
    width: 75%;
    margin: auto;
}

.contentbox {
    width: 31.25%;
    float:left;
    padding: 2em 30px 2em 0;
}

Flexible layouts

Flexible grid

Flexible grids

.contentbox {
    width: 31.25%;
    float:left;
    padding: 2em 3.125% 2em 0;
        /* 30px / 1280px */
}

Flexible layouts

Flexible grids

Flexible layouts

Flexible grids

#footercontent {
    width: 75%;
    margin: auto;
    color: #fff;
}

Flexible layouts

Flexible images

Flexible layouts

Flexible images

#promo img {
    margin: 2em 0;
    max-width: 100%;
}

Flexible layouts

Media queries

Media queries provide the ability to specify different styles for individual browser and device circumstances -

apply uniquely targeted styles​

// HTML

<!-- Separate CSS File -->
<link href="styles.css" rel="stylesheet" media="all and (max-width: 1024px)">

// CSS

/* @media Rule */
@media all and (max-width: 1024px) {...}

/* @import Rule */
@import url(styles.css) all and (max-width: 1024px) {...}

Media queries

@media screen and ( min-width: 500px ) and ( max-width: 800px ) {

 /* CSS declarations */

}

This is for screen only (desktops, smartphones, not print)

media_type: all | aural | braille | handheld | print | projection | screen | tty | tv | embossed | speech

Media queries

@media screen and ( min-width: 500px ) and ( max-width: 800px ) {

 /* CSS declarations */

}

The width of the window must be AT LEAST 500px

The width of the window must ALSO be NO MORE THAN 800px

media_feature: width | min-width | max-width | height | min-height | max-height | aspect-ratio | min-aspect-ratio | max-aspect-ratio | color | min-color | max-color | color-index | min-color-index | max-color-index | monochrome | min-monochrome | max-monochrome | resolution | min-resolution | max-resolution | scan | grid

Media queries

@media screen and ( min-width: 500px ) and ( max-width: 800px ) {

    img {
        border: 5px solid #!f;
    }

}

Images will have a white border when the window is from 500px to 800px wide

Media queries

@media all and (max-width: 420px) {

    section, aside {
        float: none;
        width: auto;
    }
}

Media queries

DEMO TIME

Media queries

Media queries

@media screen and (max-width: 1100px) {
    #navbox {
        clear: left;
    }
}

Media queries

@media screen and (max-width: 1100px) {
    #navbox {
        clear: left;
        padding-top: 0;
    }
}

Media queries

@media screen and (max-width: 1100px) {
    #navbox {
        clear: left;
        padding-top: 0;
        text-align: center;
    }
}

Media queries

@media screen and (max-width: 500px) {
    .logo {
    }
    .nav li {
    }
    .contentbox {
    }
}

Media queries

@media screen and (max-width: 500px) {
    .nav li {
        display: block;
    }
}

Media queries

@media screen and (max-width: 500px) {
    .nav li {
        display: block;
        margin-left: 0;
        padding-bottom: 5px;
    }
}

Media queries

@media screen and (max-width: 500px) {

    ...

    .logo {
        float: none;
        text-align: center;
    }
}

Media queries

@media screen and (max-width: 500px) {

    ...

    .contentbox {
        width: 100%;
	float: none;
	padding: 1.5em 0 0 0;
    }
}

RWD approaches

Progressive enhancement



Graceful degradation

ASSIGNMENT

Get the slides:

https://slides.com/andreiantal/ttj_1_responsive/

Link 1

Link 2

Link 3

Link 4

Banner

Article 1

Article 2

Article 3

Article 4

Footer

max 1024px

1. Desktop ( > 900px)

12px

12px

12px

16px

16px

16px

8px

8px

Banner

Article 1

Article 2

Footer

2. Tablet ( between 900px and 500px )

16px

16px

16px

Article 3

Article 4

Link 1

Link 2

Link 3

Link 4

Banner

Article 1

Footer

3. Phone (bellow 500px)

Link 1

Article 2

Article 3

Article 4

Link 2

Link 3

Link 4

NOTE: The assignment is not mandatory for TTJ completion. It is just an opportunity for you to practice what you've learned and get feedback on your work.



Send assignments (and any other questions) to:

andrei.antal@qualitance.com

SUBJECT: [TTJ] Assignment (Your name)



DEADLINE: Friday, 7 april 2017
