Project OSRM

Open Source Routing Machine

Project OSRM API

  • HTTP API
  • Library API
  • NodeJS API

HTTP API

Request

http://{server}/{service}/{version}/{profile}/{coordinates}[.{format}]?option=value&option=value

Location of the server.

Example: 10.15.162.7:5000

Request

http://{server}/{service}/{version}/{profile}/{coordinates}[.{format}]?option=value&option=value

Service

Description

nearest

returns the nearest street segment for a given coordinate

route

shortest path between given coordinates

table

computes duration tables for given coordinates

match

matches given coordinates to the road network

trip

compute the shortest round trip between given coordinates

Request

http://{server}/{service}/{version}/{profile}/{coordinates}[.{format}]?option=value&option=value
  1. Version of the protocol implemented by the service.
  2. Default version is 1 (eg. v1)

Request

http://{server}/{service}/{version}/{profile}/{coordinates}[.{format}]?option=value&option=value
  1. Profiles mode, including car, bicycle and foot. (eg. driving, cycling or walking)

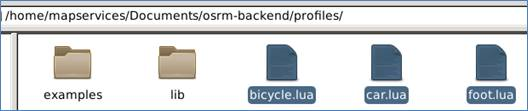

  1. Profile configuration files have a 'lua' extension, and are found under the 'profiles' subdirectory.

Request

http://{server}/{service}/{version}/{profile}/{coordinates}[.{format}]?option=value&option=value
  1. String of format {longitude},{latitude};{longitude},{latitude}[;{longitude},{latitude} ...] or polyline({polyline}).

Request

http://{server}/{service}/{version}/{profile}/{coordinates}[.{format}]?option=value&option=value
  1. Only json is supported at the moment.
  2. This parameter is *optional and defaults to json.

Request

http://{server}/{service}/{version}/{profile}/{coordinates}[.{format}]?option=value&option=value
  1.  General options can be used with all services.
  2. Refer to Additional options of each service for more options.
Option

Values

Description

bearings

{bearing};{bearing}[;{bearing} ...]

Limits the search to segments with given bearing in degrees towards true north in clockwise direction.

radiuses

{radius};{radius}[;{radius} ...]

Limits the search to given radius in meters.

hints

{hint};{hint}[;{hint} ...]

Hint to derive position in street network.

Response

{ "code": {code}, "message": {message} }

Code

Description

Ok

Request could be processed as expected.

InvalidUrl

URL string is invalid.

InvalidService

Service name is invalid.

InvalidVersion

Version is not found.

InvalidOptions

Options are invalid.

NoSegment

One of the supplied input coordinates could not snap to street.

TooBig

The request size violates one of the service specific request size restrictions.

Response

{ "code": {code}, "message": {message} }

*optional human-readable error message. (code Ok usually don’t come with any message)

Services

  • Nearest
  • Route
  • Table
  • Match
  • Trip

Nearest

Snaps a coordinate to the street network and returns the nearest and matches

Nearest

http://{server}/nearest/v1/{profile}/{coordinates}.json?{option}=value

single {longitude},{latitude}

number

code -  if the request was successful: Ok ,otherwise see the service dependent and general status codes above.

waypoints - array of Waypoint objects sorted by distance to the input coordinate. Each object has at least the following additional properties:

  • distance - Distance in meters to the supplied input coordinate.

Response:

Eg.

Route

Get the shortest path between given coordinates

Route

http://{server}/route/v1/{profile}/{coordinates}?{option}=value&{option}..

alternatives

steps

annotations

geometries

overview

continue_straight

code - if the request was successful: Ok ,otherwise see the service dependent and general status codes.

waypoints - Array of Waypoint objects representing all waypoints in order

routes - An array of Route objects, ordered by descending recommendation rank.

Response:

Eg.

Table

Computes duration tables for given coordinates

Table

http://{server}/table/v1/{profile}/{coordinates}?{option}=value&{option}..

code - if the request was successful: Ok ,otherwise see the service dependent and general status codes.

durations - array of arrays that stores the matrix in row-major order. Values are given in seconds.

sources - array of Waypoint objects describing all sources in order

destinations - array of Waypoint objects describing all destinations in order

Response:

Eg.

sources

destinations

Match

Map matching matches given GPS points to the road network in the most plausible way

Match

http://{server}/match/v1/{profile}/{coordinates}?{option}=value&{option}..

code - if the request was successful Ok otherwise see the service dependent and general status codes.

tracepoints - Array of Ẁaypoint objects representing all points of the trace in order. If the trace point was ommited by map matching because it is an outlier, the entry will be null. Each Waypoint object has the following additional properties:

  • matchings_index - Index to the Route object in matchings the sub-trace was matched to.
  • waypoint_index - Index of the waypoint inside the matched route.

matchings - An array of Route objects that assemble the trace. Each Route object has the following additional properties:

  • confidence - Confidence of the matching. float value between 0 and 1. 1 is very confident that the matching is correct.

Response:

Eg.

steps

geometries

annotations

overview

timestamps

radiuses

Trip

Compute the shortest round trip between given coordinates

Trip

http://{server}/trip/v1/{profile}/{coordinates}?{option}=value&{option}..

code - if the request was successful Ok otherwise see the service dependent and general status codes.

waypoints - Array of Waypoint objects representing all waypoints in input order. Each Waypoint object has the following additional properties:

  • trips_index - Index to trips of the sub-trip the point was matched to.
  • waypoint_index - Index of the point in the trip.

trips - An array of Route objects that assemble the trace.

Response:

Eg.

steps

annotations

geometries

overview

RouteStep

Consists of a maneuver such as a turn or merge, followed by a distance of travel along a single way to the subsequent step.

  • distance: The distance of travel from the maneuver to the subsequent step, in float meters.
  • duration: The estimated travel time, in float number of seconds.
  • geometry: The unsimplified geometry of the route segment, depending on the geometries parameter.

  • name: The name of the way along which travel proceeds.

  • pronunciation: The pronunciation hint of the way name. Will be undefined if there is no pronunciation hit.
  • destinations: The destinations of the way. Will be undefined if there are no destinations.
  • mode: A string signifying the mode of transportation.
  • maneuver: A StepManeuver object representing the maneuver.
  • intersections: A list of Intersections that are passed along the segment, the very first belonging to the StepManeuver

RouteStep Properties

Example

{"intersections":
[{"out":0,"in":2,"entry":[true,true,false,false],"bearings":[0,90,180,270],"location":[101.662552,3.115442]},
{"out":0,"in":1,"entry":[true,false,false],"bearings":[0,180,210],"location":[101.662549,3.116177]},
{"out":0,"in":2,"entry":[true,false,false],"bearings":[30,120,210],"location":[101.662865,3.1173]},
{"out":1,"in":2,"entry":[true,true,false],"bearings":[15,45,225],"location":[101.663481,3.118112]},
{"out":0,"in":1,"entry":[true,false,false],"bearings":[90,270,330],"location":[101.664188,3.118541]},
{"out":1,"in":2,"entry":[true,true,false],"bearings":[75,120,285],"location":[101.665164,3.11837]}],

"geometry":"on_R}}nkRsC?w@?iAQ}Am@oCkBQMw@u@O]K[A]B{@\\eCBI",

"maneuver":
{"bearing_after":360,"bearing_before":357,
"location":[101.662552,3.115442],
"modifier":"straight","type":"turn"},
"mode":"driving",
"duration":37.6,
"name":"Jalan Pantai Baru",

"distance":537.6},

Maneuver Type

turn: a basic turn into direction of the modifier

new name: no turn is taken/possible, but the road name changes. The road can take a turn itself, following modifier.

depart: indicates the departure of the leg

arrive: indicates the destination of the leg

merge: merge onto a street

on ramp: take a ramp to enter a highway (direction given my modifier)

off ramp: take a ramp to exit a highway (direction given my modifier)

fork: take the left/right side at a fork depending on modifier

end of road: road ends in a T intersection turn in direction of modifier

continue: Turn in direction of modifier to stay on the same road

roundabout: traverse roundabout, has additional field exit with NR if the roundabout is left

rotary: a larger version of a roundabout, can offer rotary_name in addition to the exit parameter.

roundabout turn: Describes a turn at a small roundabout that should be treated as normal turn. The modifier indicates the turn direciton. Example instruction: At the roundabout turn left.

notification: not an actual turn but a change in the driving conditions. For example the travel mode. If the road takes a turn itself, the modifier describes the direction

Maneuver Modifier

uturn: indicates reversal of direction

sharp right: a sharp right turn

right: a normal turn to the right

slight right: a slight turn to the right

straight: no relevant change in direction

slight left: a slight turn to the left

left: a normal turn to the left

sharp left: a sharp turn to the left

Intersections

  • location: A [longitude, latitude] pair describing the location of the turn.
  • bearings: A list of bearing values (e.g. [0,90,180,270]) that are available at the intersection. The bearings describe all available roads at the intersection.
  • entry: A list of entry flags, corresponding in a 1:1 relationship to the bearings. A value of true indicates that the respective road could be entered on a valid route. false indicates that the turn onto the respective road would violate a restriction.
  • in: index into bearings/entry array. Used to calculate the bearing just before the turn. Namely, the clockwise angle from true north to the direction of travel immediately before the maneuver/passing the intersection. Bearings are given relative to the intersection. To get the bearing in the direction of driving, the bearing has to be rotated by a value of 180. The value is not supplied for depart maneuvers.
  • out: index into the bearings/entry array. Used to extract the bearing just after the turn. Namely, The clockwise angle from true north to the direction of travel immediately after the maneuver/passing the intersection. The value is not supplied for arrive maneuvers.

{"intersections": [{"out":0,"in":2,"entry":[true,true,false,false],"bearings":[0,90,180,270],"location":[101.662552,3.115442]},

Data Format

only supports plaintext ASCII grid sources (.asc)

Profiles

Data must be tagged along with profiles (.lua)

Quiz

A salesman has 3 places to go by car and want to know where he needs to go first.

Please select the suitable service to use.

Trip

Nearest

Table

A

B

C

Match

D
