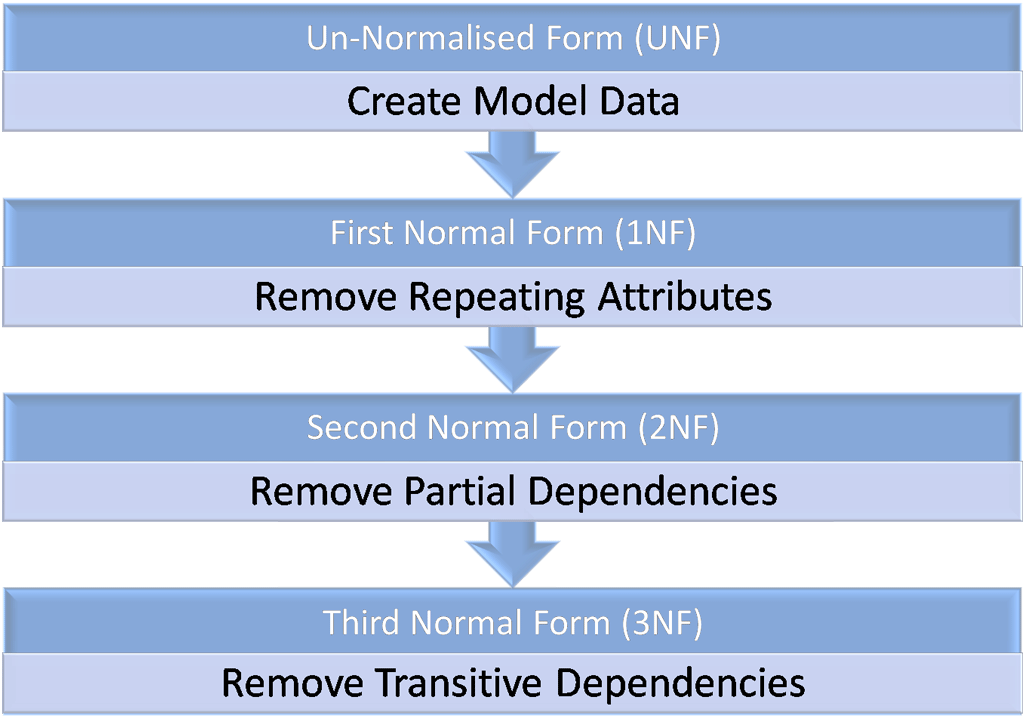

Normalization...

- First Normal Form

- Second Normal Form

- Third Normal Form

- Boyce-Codd Normal Form

Normalization...

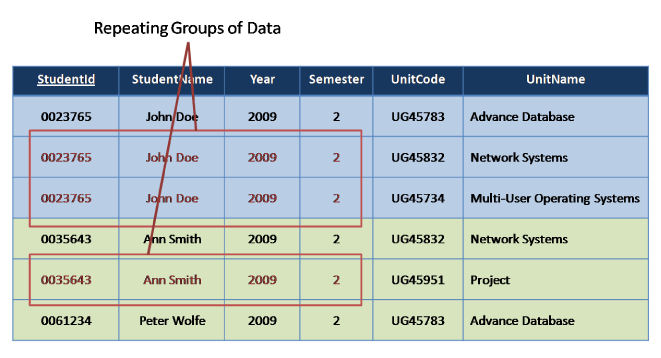

First Normal Form

• Each record should be unique
• Each cell contains a single value
• No duplicate fields

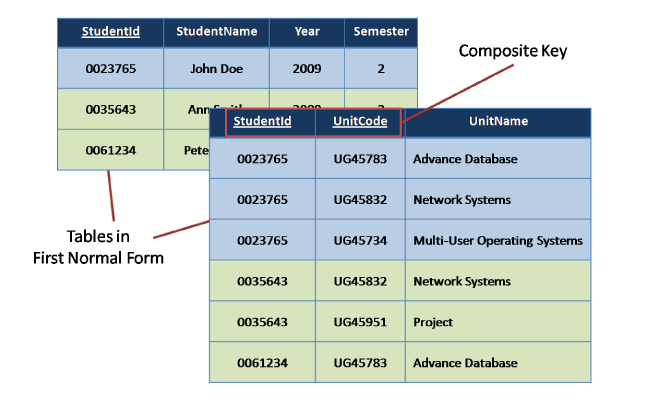

First Normal Form

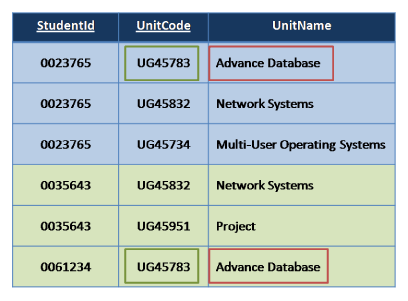

Second Normal Form

Remove repetitive rows associated directly to primary key (remove partial dependencies).

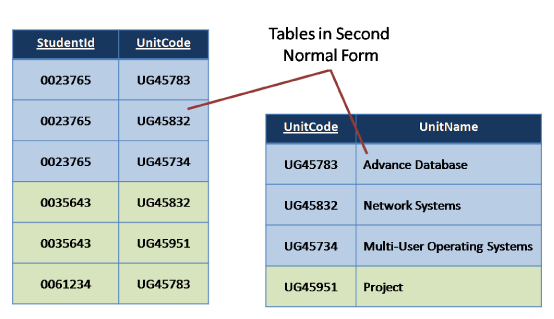

Second Normal Form

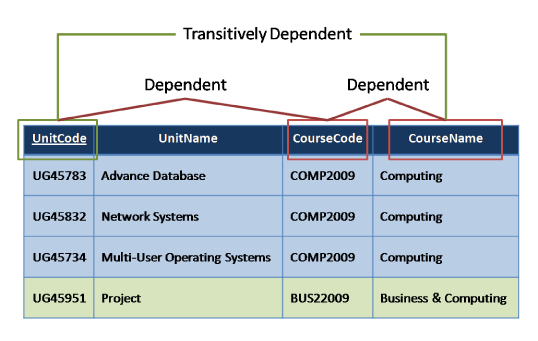

Third Normal Form

Non-key fields should depend only on primary key (remove transitive dependencies).

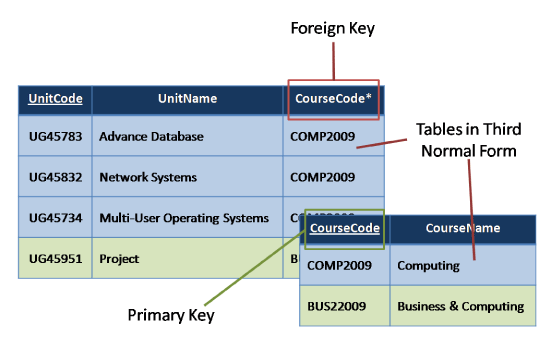

Third Normal Form

Boyce Codd Normal Form

Each attribute must represent a fact about the key, the whole key, and nothing but the key.

Boyce Codd Normal Form

Structured Query Language

1. Data Definition Language

2. Data Manipulation Language

3. Data Control Language

Data Definition Language

• CREATE

• ALTER

• DROP

• INDEX

Data Manipulation Language

• INSERT

• UPDATE

• DELETE

• SELECT

Data Control Language

• GRANT

• REVOKE

Other SQL clauses...

• FROM
• WHERE
• DISTINCT
• GROUP BY
• HAVING
• ORDER BY
• LIMIT OR TOP
• OFFSET
• Aggregate - COUNT, MIN, MAX, SUM etc

Joins

1. INNER JOIN
2. LEFT JOIN
3. RIGHT JOIN
4. OUTER JOIN
5. LEFT JOIN EXCLUDING INNER JOIN
6. RIGHT JOIN EXCLUDING INNER JOIN
7. OUTER JOIN EXCLUDING INNER JOIN

Refer -  SQL Joins

INNER JOIN

SELECT profiles.first_name,
       profiles.last_name,
       users.email
FROM users
INNER JOIN profiles
ON profiles.user_id = users.id

LEFT JOIN

SELECT profiles.first_name,
       profiles.last_name,
       users.email
FROM users
LEFT JOIN profiles
ON profiles.user_id = users.id

RIGHT JOIN

SELECT profiles.first_name,
       profiles.last_name,
       users.email
FROM users
RIGHT JOIN profiles
ON profiles.user_id = users.id

OUTER JOIN (FULL JOIN)

SELECT profiles.first_name,
       profiles.last_name,
       users.email
FROM users
FULL OUTER JOIN profiles
ON profiles.user_id = users.id

LEFT JOIN EXCLUDING INNER JOIN

SELECT profiles.first_name,
       profiles.last_name,
       users.email
FROM users
LEFT JOIN profiles
ON profiles.user_id = users.id
WHERE profiles.user_id IS NULL

RIGHT JOIN EXCLUDING INNER JOIN

SELECT profiles.first_name,
       profiles.last_name,
       users.email
FROM users
RIGHT JOIN profiles
ON profiles.user_id = users.id
WHERE users.id IS NULL

OUTER JOIN EXCLUDING INNER JOIN

SELECT profiles.first_name,
       profiles.last_name,
       users.email
FROM users
FULL OUTER JOIN profiles
ON profiles.user_id = users.id
WHERE users.id IS NULL
   OR profiles.user_id IS NULL

Subquery

Subquery or Inner query or Nested query is a query in a query. SQL subquery is usually added in the where clause of the SQL statement.

Can be used with following statements

- SELECT

- INSERT

- UPDATE

- DELETE

Note - Avoid using subqueries unless there is no other option.

Subquery - SELECT, UPDATE, DELETE

SELECT id, first_name
FROM profiles
WHERE first_name IN (SELECT first_name
FROM profiles
WHERE state = 5);

UPDATE profiles SET zip = '111111'
WHERE first_name IN (SELECT first_name
FROM profiles
WHERE state = 5);

DELETE FROM profiles
WHERE first_name IN (SELECT first_name
FROM profiles
WHERE state = 5);

Subquery - INSERT

INSERT INTO addresses(id, address)
SELECT id,
       address1 || ' ' || address2 || ', ' || city || ', ' || zip
FROM profiles WHERE state = 5

PL/SQL

PL/SQL is a combination of SQL along with the procedural features of programming languages.

Each PL/SQL program consists of SQL and PL/SQL statements which from a PL/SQL block.

PL/SQL Block consists of three sections:

  - The Declaration section (optional).

  - The Execution section (mandatory).

  - The Exception Handling (or Error) section (optional).

PL/SQL

DECLARE
   <declarations section>
BEGIN
   <executable command(s)>
EXCEPTION
   <exception handling>
END;

DECLARE
   a integer := 10;
   b integer := 20;
   c integer;
   f real;
BEGIN
   c := a + b;
   dbms_output.put_line('Value of c: ' || c);
   f := 70.0/3.0;
   dbms_output.put_line('Value of f: ' || f);
END;

Functions, Stored Procedures...

Just like any other language, to execute a piece of code later, PL/SQL have Functions and Stored Procedures.

Functions, Stored Procedures... differences

Refer: differences

1. Return value

2. Arguments (input, output values)

3. Call

4. SELECT, DML vs ONLY SELECT

5. Compilation

6. Use in where/having/select statements

.....

Functions, Stored Procedures... syntax

CREATE [OR REPLACE] PROCEDURE procedure_name
[(parameter_name [IN | OUT | IN OUT] type [, ...])]
{IS | AS}
BEGIN
  < procedure_body >
  < function_call >
END;

CREATE [OR REPLACE] FUNCTION function_name
RETURN return_data_type
{IS | AS}
DECLARE
   < declaration >
BEGIN
   < function_body >
   return return_data_type
EXCEPTION
   < exception handling >
END;

Triggers

A trigger  is a PL / SQL  block structure which is fired when a DML statements like Insert, Delete, Update is executed on a database table.

A trigger  is triggered  automatically when an associated DML statement is executed. Refer - Triggers

CREATE [OR REPLACE ] TRIGGER trigger_name
    {BEFORE | AFTER | INSTEAD OF }
    {INSERT [OR] | UPDATE [OR] | DELETE}
    [OF col_name]
    ON table_name
    [REFERENCING OLD AS o NEW AS n]
    [FOR EACH ROW]
    WHEN (condition)
    BEGIN
       ---sql statements
    END;

Triggers

• CREATE [OR REPLACE ] TRIGGER trigger_name - This clause creates a trigger with the given name or overwrites an existing trigger with the same name.

• {BEFORE | AFTER | INSTEAD OF } - This clause indicates at what time should the trigger get fired. i.e for example: before or after updating a table. INSTEAD OF is used to create a trigger on a view. before and after cannot be used to create a trigger on a view.

• {INSERT [OR] | UPDATE [OR] | DELETE} - This clause determines the triggering event. More than one triggering events can be used together separated by OR keyword. The trigger gets fired at all the specified triggering event.

• [OF col_name] - This clause is used with update triggers. This clause is used when you want to trigger an event only when a specific column is updated.

Triggers

• CREATE [OR REPLACE ] TRIGGER trigger_name - This clause creates a trigger with the given name or overwrites an existing trigger with the same name.

• [ON table_name] - This clause identifies the name of the table or view to which the trigger is associated.

• [REFERENCING OLD AS o NEW AS n] - This clause is used to reference the old and new values of the data being changed. By default, you reference the values as :old.column_name or :new.column_name. The reference names can also be changed from old (or new) to any other user-defined name. You cannot reference old values when inserting a record, or new values when deleting a record, because they do not exist.

• [FOR EACH ROW] - This clause is used to determine whether a trigger must fire when each row gets affected ( i.e. a Row Level Trigger) or just once when the entire sql statement is executed(i.e.statement level Trigger).

• WHEN (condition) - This clause is valid only for row level triggers. The trigger is fired only for rows that satisfy the condition specified.

Triggers.. example

CREATE TRIGGER update_user_modtime
BEFORE UPDATE
ON users
FOR EACH ROW
EXECUTE PROCEDURE
update_modified_column();

Cursors

Cursors are used to avoid repetitive usage of select statements  and facilitate a loop traversal of all the rows a desired select statement fetches in PL/SQL procedure.

CURSOR cursor_name AS select_statement;

DECLARE
    CURSOR delhi_users AS SELECT users.id,
                                 users.email,
                                 profiles.name,
                                 profiles.address
                        FROM users
                        INNER JOIN profiles ON profiles.user_id = users.id
                        WHERE profiles.city = "Delhi";
BEGIN
    OPEN delhi_users;
    FETCH delhi_users;
        -- sql statements
    CLOSE delhi_users;
END;

Cursors

A PL/pgSQL cursor allows us to encapsulate a query and process each individual row at a time. We use cursors when we want to divide a large result set into parts and process each part individually. If we process it at once, we may have a memory overflow error.

Cursors

• NEXT
• LAST
• PRIOR
• FIRST
• ABSOLUTE count
• RELATIVE count
• FORWARD
• BACKWARD

CREATE OR REPLACE FUNCTION get_film_titles(p_year INTEGER)
   RETURNS text AS $$
DECLARE
 titles TEXT DEFAULT '';
 rec_film   RECORD;
 cur_films CURSOR(p_year INTEGER)
 FOR SELECT
 FROM film
 WHERE release_year = p_year;
BEGIN
   -- Open the cursor
   OPEN cur_films(p_year);

   LOOP
    -- fetch row into the film
      FETCH cur_films INTO rec_film;
    -- exit when no more row to fetch
      EXIT WHEN NOT FOUND;

    -- build the output
      IF rec_film.title LIKE '%ful%' THEN
         titles := titles || ',' || rec_film.title || ':' || rec_film.release_year;
      END IF;
   END LOOP;

   -- Close the cursor
   CLOSE cur_films;

   RETURN titles;
END; $$

LANGUAGE plpgsql;
