React optimization
上次聽了Parker 的 slides
Why we use the client-side framework
覺得有點東西，深受啟發
想說也可以來講講關於這方面的東東
就這麼恰巧ㄉ看到了這個 tech talk
所以我們這次就來談談 react 及 angular
的底層優化吧！
monomorphic
bit fields
bloom filters
先來溫故知新談一下 react fiber
react fiber -> react v.16
解決什麼問題： 以往的更新機制會造成畫面卡頓
react fiber 重寫了 core 將更新的過程『切片化』，讓
更新可以以更有效率的方式被執行
recursive -> whileLoop
function workLoop(nextUnitOfWork) {
while (
!!nextUnitOfWork
// && 接下來的時間是否還夠用以及
// 是否有更高優先級的任務
) {
nextUnitOfWork = performUnitOfWork(nextUnitOfWork);
}
}
Link List + DFS
但還有一些不常被提及到的優化手段
也是今日的主題
shape(hidden class) & monomorphic
不過在此之前讓我們先聊聊框架
是怎麼處理更新 Node 這件事
function updateNode(node, ...) {
let value = node.property
....
}In framework, this function
is often called or used
Property Access
Locating of an object's property
in memory
is a complicated process
Why is complicated?
shape (hidden class)
const obj = {
x: 1,
y: 1,
};Because Javascript is a dynamic language,
V8 enginge need some hack to improve execution efficiency
const obj1 = {
x: 1,
y: 1,
};
const obj2 = {
x: 3,
y: 4,
};
const obj3 = {
x: 5,
y: 6,
};
shape helps reduce memory footprint
const obj1 = {
x: 1,
y: 1,
};
const obj2 = {};
obj2.x = 1;
obj2.y = 1;
console.log(%HaveSameMap(obj1, obj2));
//false

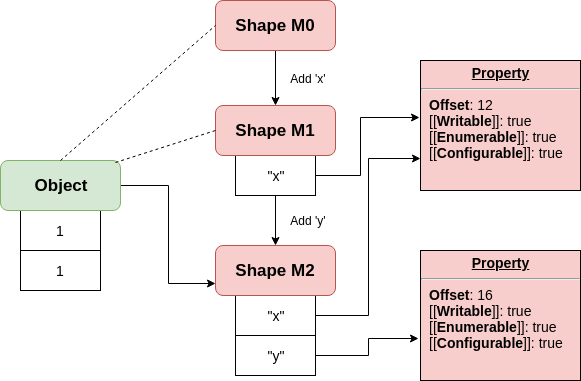

Transition chain
const obj2 = {};
// Shape M0
// add "x": Transition to M1, offset 12
obj2.x = 1;
// Shape M1
// "x": at offset 12
// add "y": Transition to M2, offset 16
obj2.y = 1;
// Shape M2
// "x": at offset 12
// "y": at offset 16Inline Cache
Inline Cache
function getX(o) => o.x;Every single Javascript function is represented internally by the object called closure
- Monomorphic: function has been called in one type of shape
- Polymorphic: 2~4 type
- Megamorphic: 5 ⬆️
Frameworks enforce the same shape(hidden class)
for fiber node to enable monomorphic property access
these frameworks merge everything into one data structure, one class
and use one tag to distinguish between types of node
monomorphic property access
function beginWork(fiberNode, ...) {
...
switch(fiberNode.tag) {
case FunctionalComponent: {...}
case ClassComponent: {...}
case HostComponent:
return updateHostComponent(fiberNode, ...);
case ...
}
}Bit fields
use case: permission, multiple select
Advantages of bit fields
- No need to allocate memory for JS objects and shapes
- Simplified garbage collection
- Smaller and contiguous memory usage
- Fast access using a single bitwise operator
Bloom Filter
data structure that answers the question
Is element in the set?
Definitely No
Maybe
Time & Space complexity O(1)
data
hash
mod

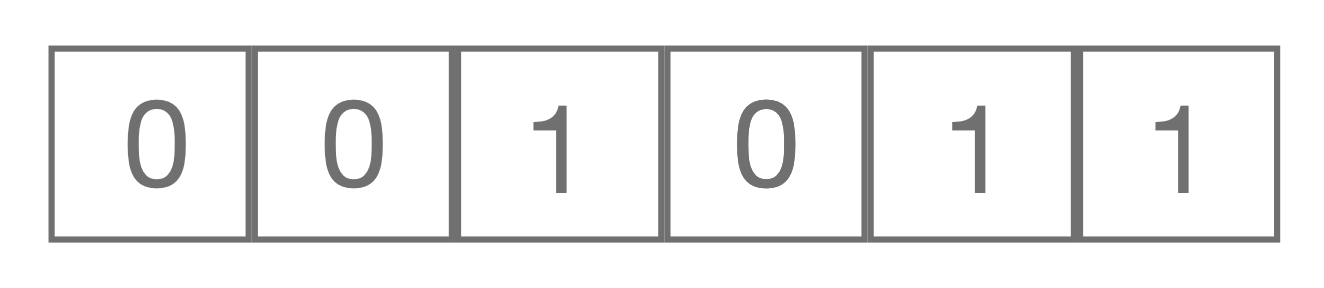

Bit Array
hashed data
get m position
["Jay", "Liz", "Ariel", "Ayo"]
let calculatBit1Value = (value) => value.charCodeAt(0) % 8

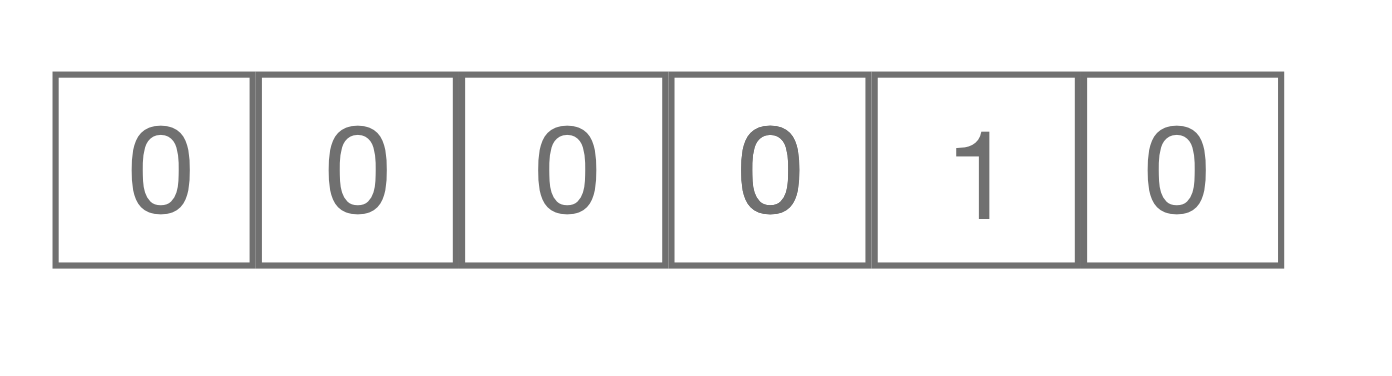

Set bits for "Jay"
const bitNumber = calculateBitValue('Jay');
bloomFilter = bloomFilter | bitNumber;
Check bits for "Jay"
Jay (2)
const bitNumber = calculateBitValue('Jay');
cosnt isInTheSet = (bloomFilter & bitNumber) !== 0;Jay (2)
Ariel (0)
Ayo (0)
Liz (4)
Collision
Less slots, more collision
Use case
React optimization
By Jay Chou
