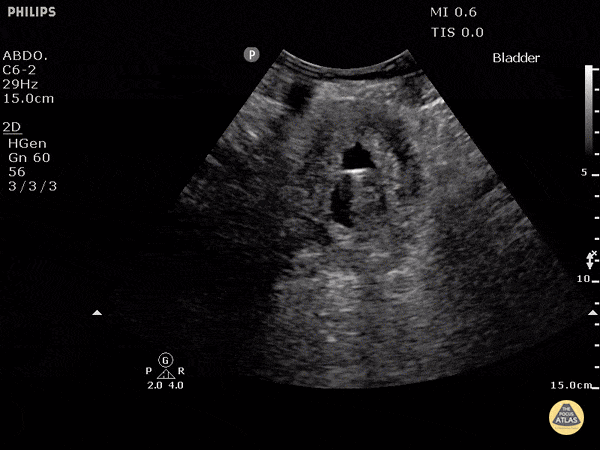

76M: Intubated Foley in, U/o dropped, ?dry

Prolate ellipsoid equation: Volume = Length x Width x Height x 0.52

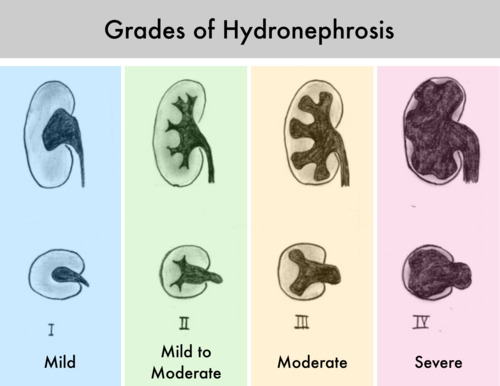

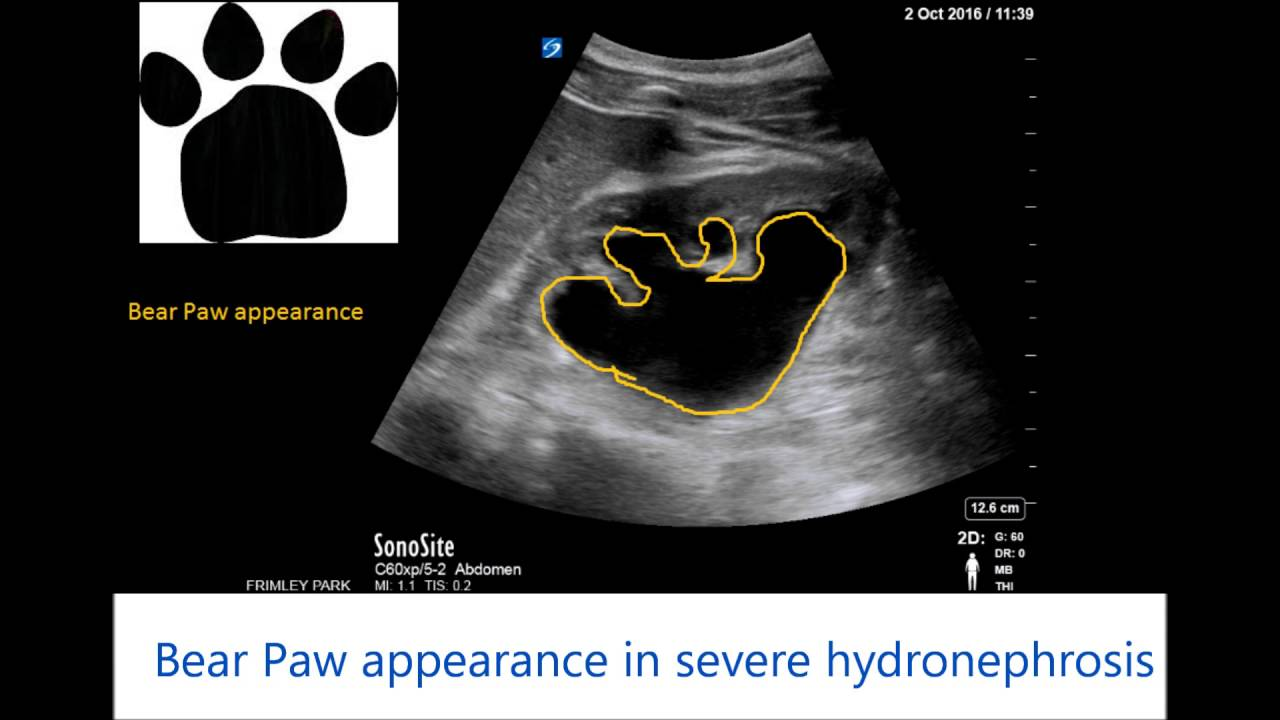

Hydronephrosis

Examples: http://www.thepocusatlas.com/hydro-and-obstruction/

Evidence: https://www.nejm.org/doi/pdf/10.1056/NEJMoa1404446

Tutorial: https://westernsono.ca/screencasts/miscellaneous/hydronephrosis-tutorial/

Start ABx and admit?

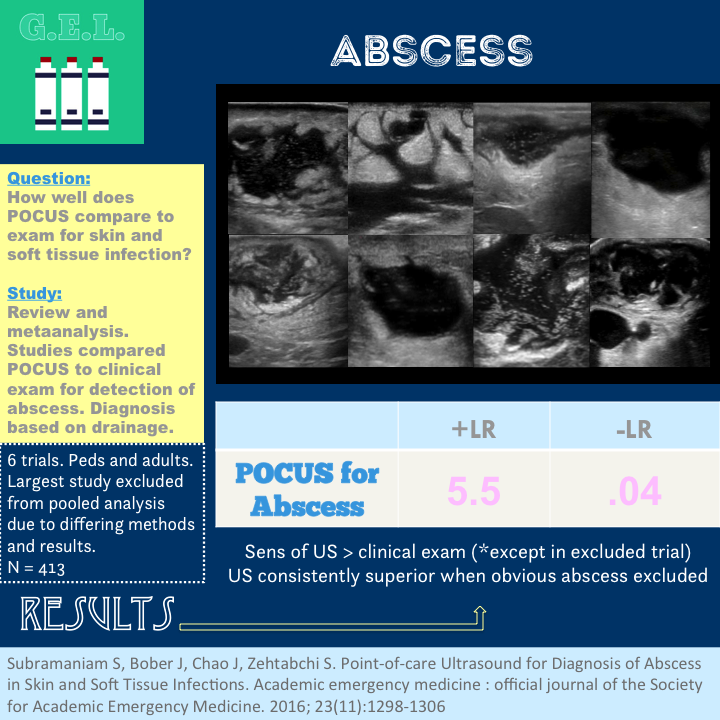

Abscess

Evidence: https://bmjopen.bmj.com/content/7/1/e013688

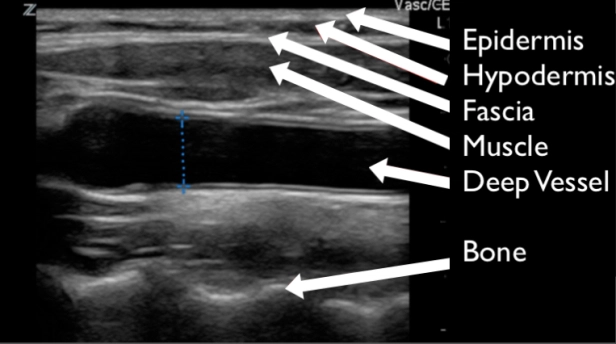

Tutorial: http://5minsono.com/softtissue/

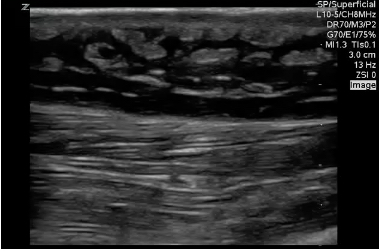

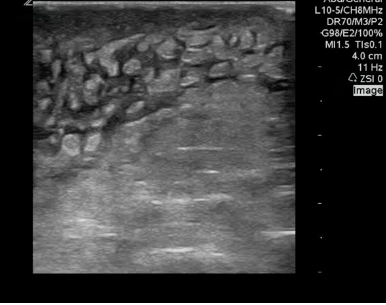

CEllulitis - CobbleStoning

82M BMI 53, SOB, WBC 7.6, Afebrile, ?CHF

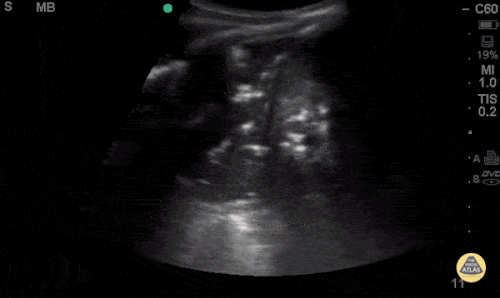

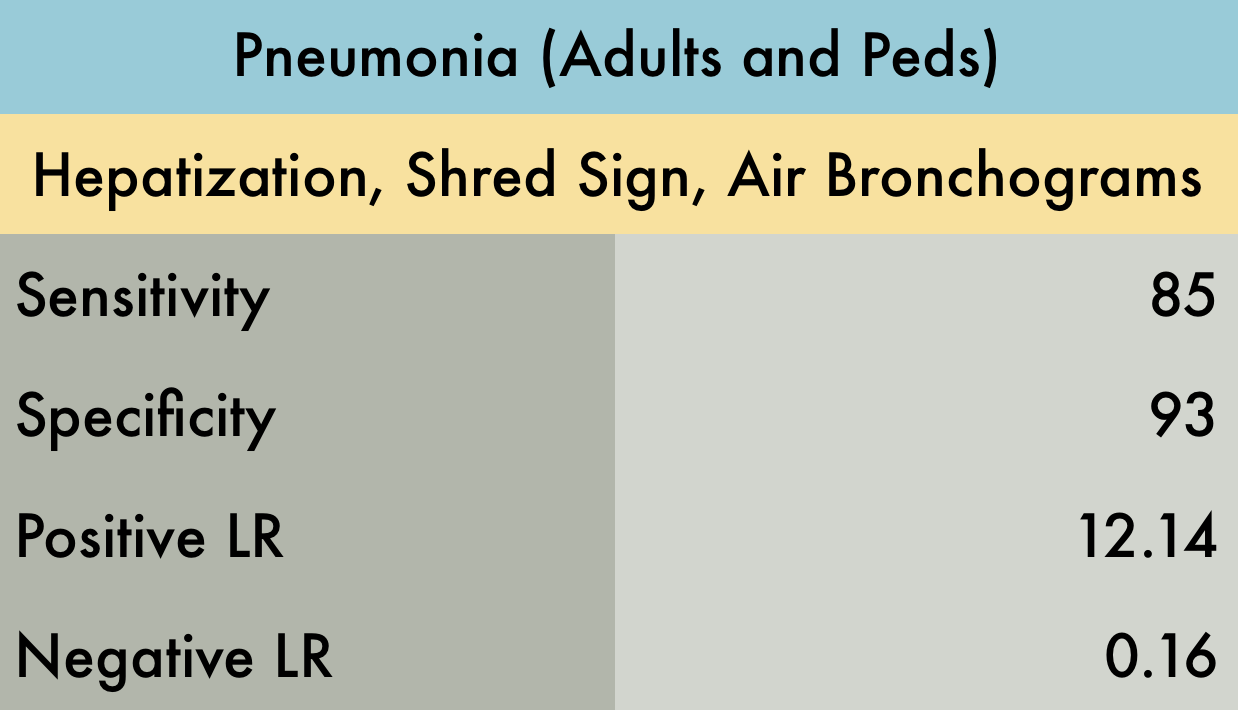

Air bronchogram

Evidence: http://www.ncbi.nlm.nih.gov/pubmed/28244009/

Tutorial: https://westernsono.ca/screencasts/lung-ultrasound/

Day 4 Not Improving, Spiking Fevers

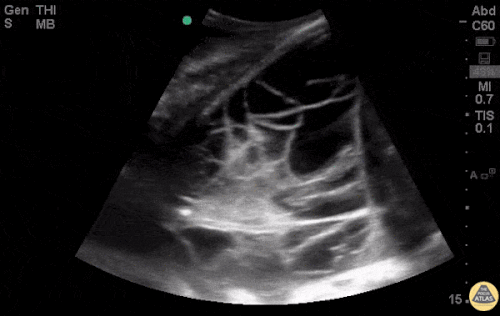

Complex Pleural Effusion

54M smoker + Exertional CP, ?ACS

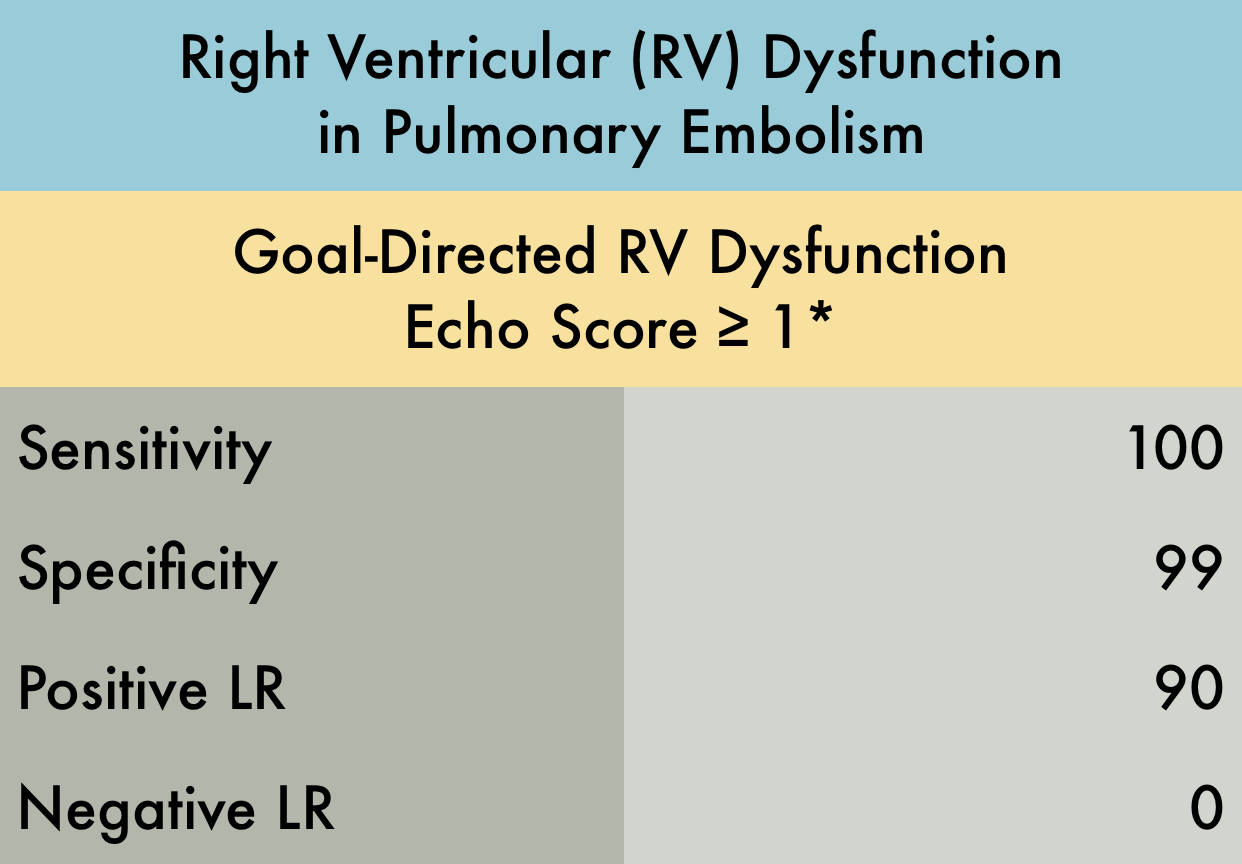

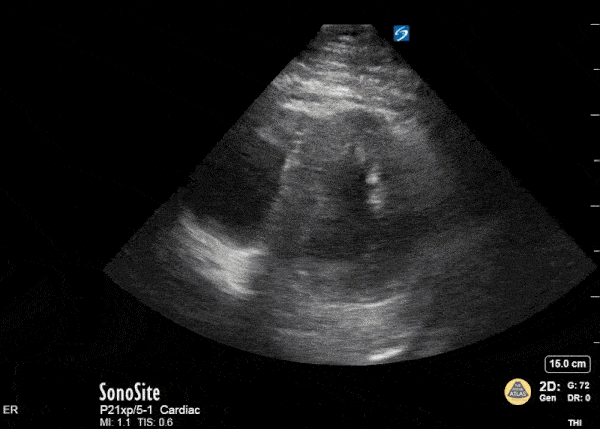

D Sign + McConnell's Sign

Evidence: https://www.ncbi.nlm.nih.gov/pubmed/26973178

Example: http://www.thepocusatlas.com/right-ventricle

Tutorial: https://westernsono.ca/screencasts/echo/mcconnells-sign-acute-pulmonary-embolism/

76F Prev Breast CA refer for cellulitis but ED +PCE, cardio for urgent ?tap

Which one are you not concerned about?

What's the pulsus?

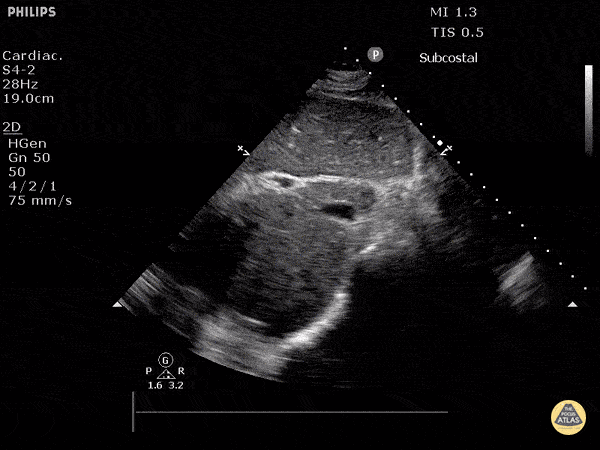

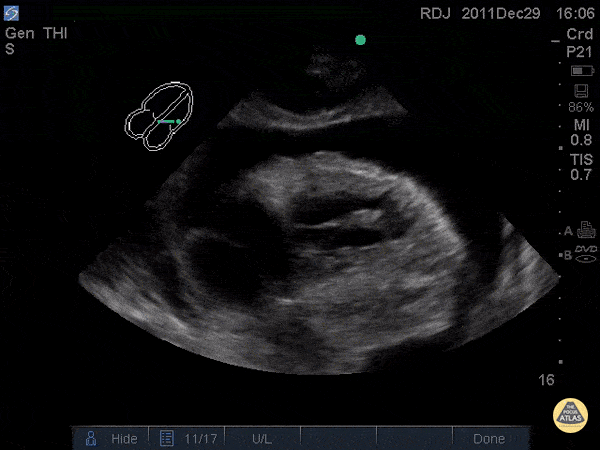

IVC and Pericardial Effusion

Evidence: http://pocusjournal.com/article/2016-01-03p12/

Example: http://www.thepocusatlas.com/pericardium

Tutorial: https://web.stanford.edu/group/ccm_echocardio/cgi-bin/mediawiki/index.php/Tamponade

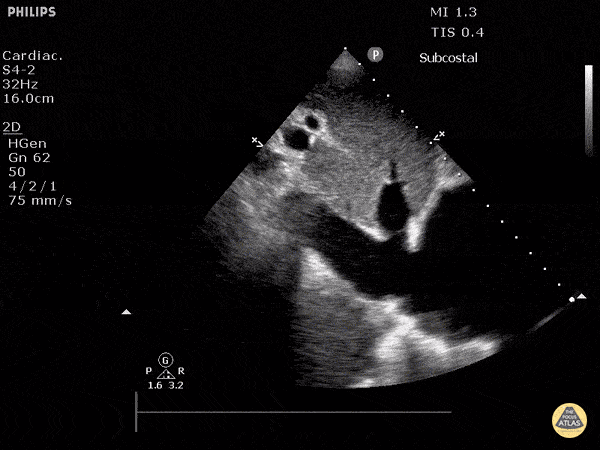

IVC plethora – Dilatation and less than a 50 percent reduction in the diameter of the dilated inferior vena cava (IVC) during inspiration, reflecting a marked elevation in central venous pressure, is frequently seen in patients with cardiac tamponade In one report, IVC plethora was associated with pulsus paradoxus and was present in 92 percent of those with pericardial effusion who required pericardial drainage.

It is highly sensitive but not at all specific for cardiac tamponade
