The API Spec

Even MORE lessons learned.

Where we left off...

  • MicroServices as the Architecture
  • Granularity, Scalability, Stability
  • Services should be externalizable

References

  • Steve Yegge: Amazon vs Google - Platforms

  • Heroku API Design Guide

  • The RESTed NARWHL

Let's communicate...

HTTP

  • Well-known concepts
  • Extremely well supported
  • Least Common Denominator

REST

  • Stateless req / res pattern
  • Endpoint = path, method
  • Request = path, method, headers, body
  • Response = statusCode, headers, body

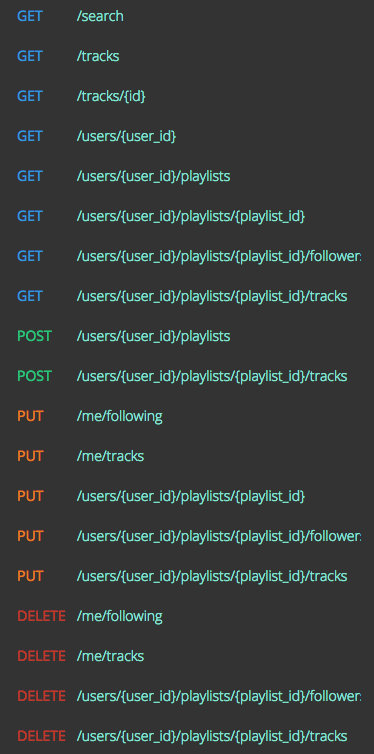

More Specifically

  • Paths are nouns, represent resources
  • Methods are verbs, represent actions
  • Status codes, headers have meaning

More MORE Specifically

  • I DONT KNOW STOP PRESSURING ME

THE API SPEC!

Secured!

  • Always HTTPS
  • Ship self-signed certs
  • Allow customers to provide

Style guide

  • All endpoints support JSON
  • CamelCase
  • Use GUIDS for IDs
  • Dates: ISO-8601
  • createdOn, modifiedOn, createdBy, updatedBy
  • Return full, unwrapped representations
  • No custom HTTP verbs
  • Custom actions always live under /actions

Headers

  • Authentication is required
  • Accepts for versioning. Default to v1.
  • Respect Content-Type. Default to JSON.
  • E-Tag for caching.
  • Request-Id
  • Request-Origin-Date

Protect Yourself

  • Input validation with useful feedback
  • Rate Limiting
  • Drop stale requests

Self-Documenting

  • OPTIONS requests on each endpoint
  • Protos for input / output
  • List supported methods & child routes

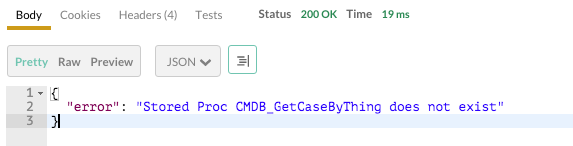

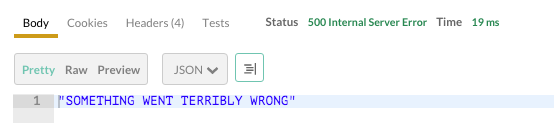

Errors!!!

The Well-Behaved Error

  • All Services return exactly one error format
    • statusCode
    • name
    • message
    • messageCode
    • source
    • details
    • upstreamError
  • ​Can strip technical details based on client ID

ZeroMQ

  • Dealer - Router pattern
  • Request / Response parts as frames
  • Separate routing logic from transport

I swear it's real! (Again)

This is a lot of work...

For Engineering

  • "The Public" vs "The Other Team"
  • Everything is an integration
  • Time reading & using vs writing

For the Business

  • Use your dev resources better
  • You can expose your APIs. So DO!
  • Interface possibilities

Wrap up
