Moving Code to Data

with workflow languages and containers

Context

Goals

My thesis project set out to test some things:

  • Feasibility of OpenStack for research.
  • Using common workflow language (CWL) on top of OpenStack.
  • Using Docker containers to provide tools for easy researcher pipeline execution.
  • Utilizing object storage on top of OpenStack to provide data for remote pipeline execution.

Data

  • Sharing of data is crucial in scientific community.

  • Increase of collaborative and reproducible work.

  • Data volumes are growing at substantial rates.

  • Storage devices are becoming considerably cheaper.

Cloud

  • Predominantly in the business field but reaching more and more into research.

  • More research oriented solutions popping up.

  • Still relatively expensive for high throughput.

  • More and more scientific data being held in cloud environments.

Justification

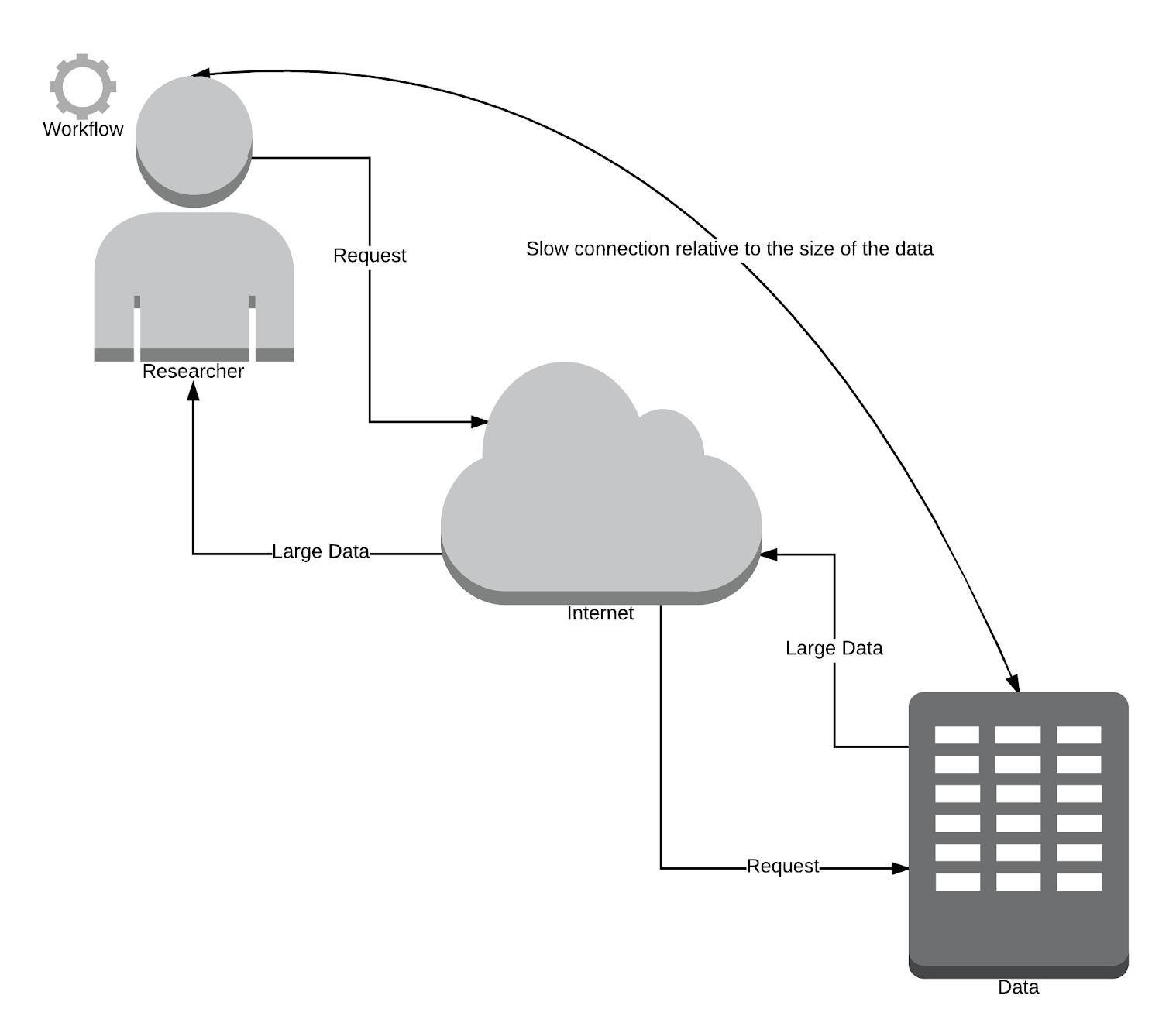

Traditional Way (vice versa)

Problems?

  • Data sizes grow faster than internet speeds (especially the case in developing countries).

  • Data governance issues with public clouds.

  • Researchers often need to know low level technical stuff, or work with someone who does.

Workflow Languages

  • Structured workflow definitions.

  • Reproducible code and workflows.

  • Easier sharing.

  • Many growing in support for containerization.

  • Easier to support from a systems perspective.

Masters Thesis

Assumptions

  • Data exists at the institute.

  • Institute provides a cloud environment.

OpenStack

  • Self-hosted cloud.

  • Open source and free (if not using commercial offering).

  • Gaining traction as an alternative to using commercial products.

  • South Africa has projects currently using or looking at utilizing OpenStack:

    • ARC - Now called SADIRC.

    • IDIA.

Software Containers

  • Light-weight alternative to virtualization.

  • Reproducible software environments.

  • Easily shareable code.

  • Write once, run anywhere.

  • Some container systems are build specifically for science.

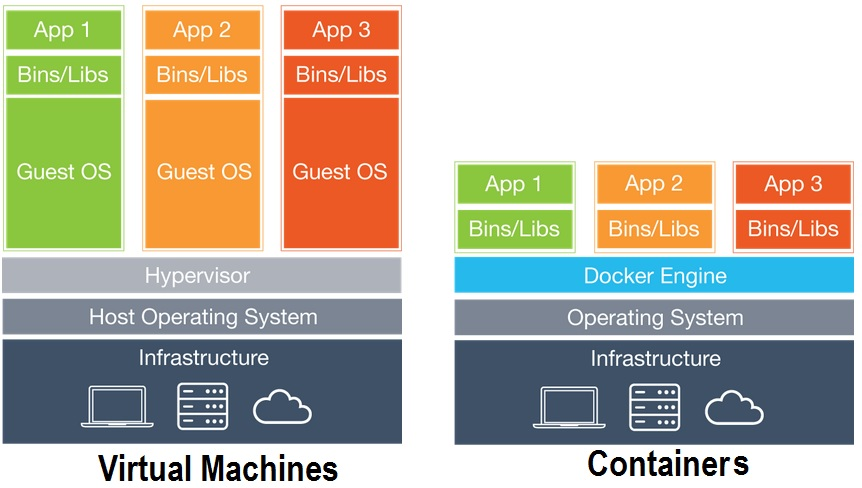

Quick Overview of Vitual Machines vs. Containers

(docker.io)

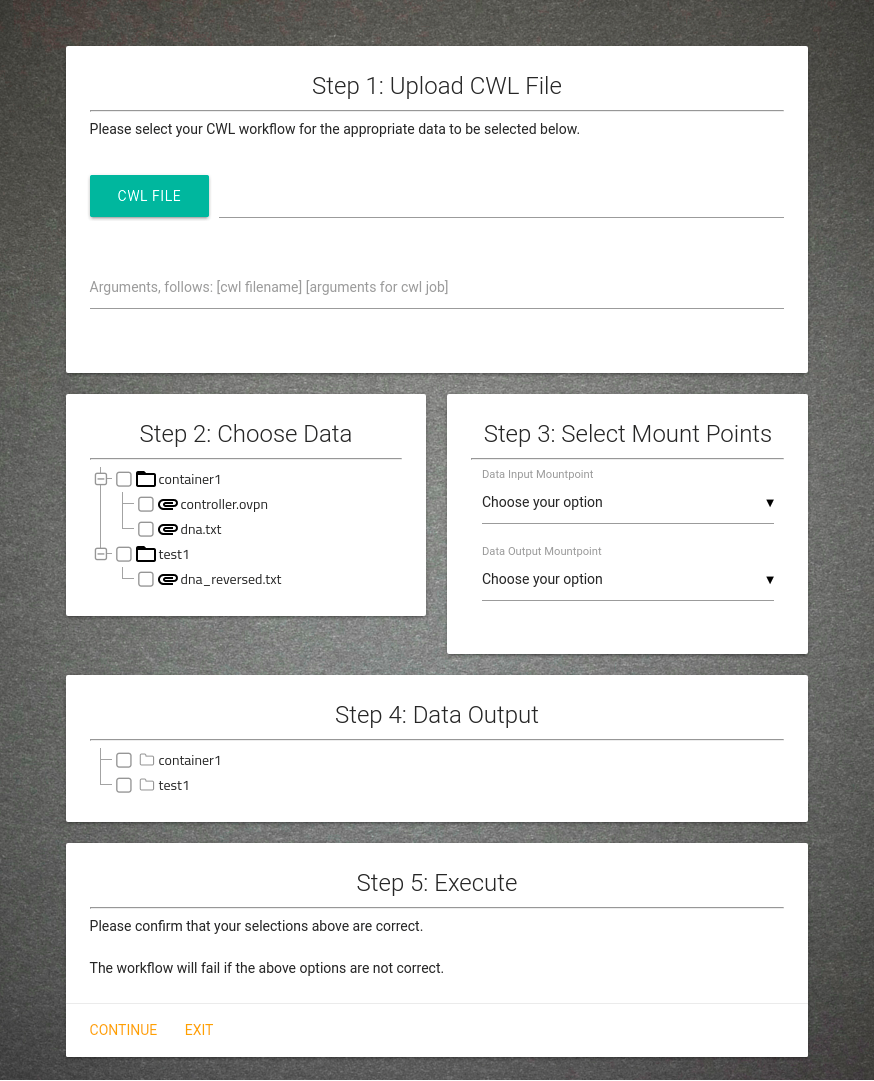

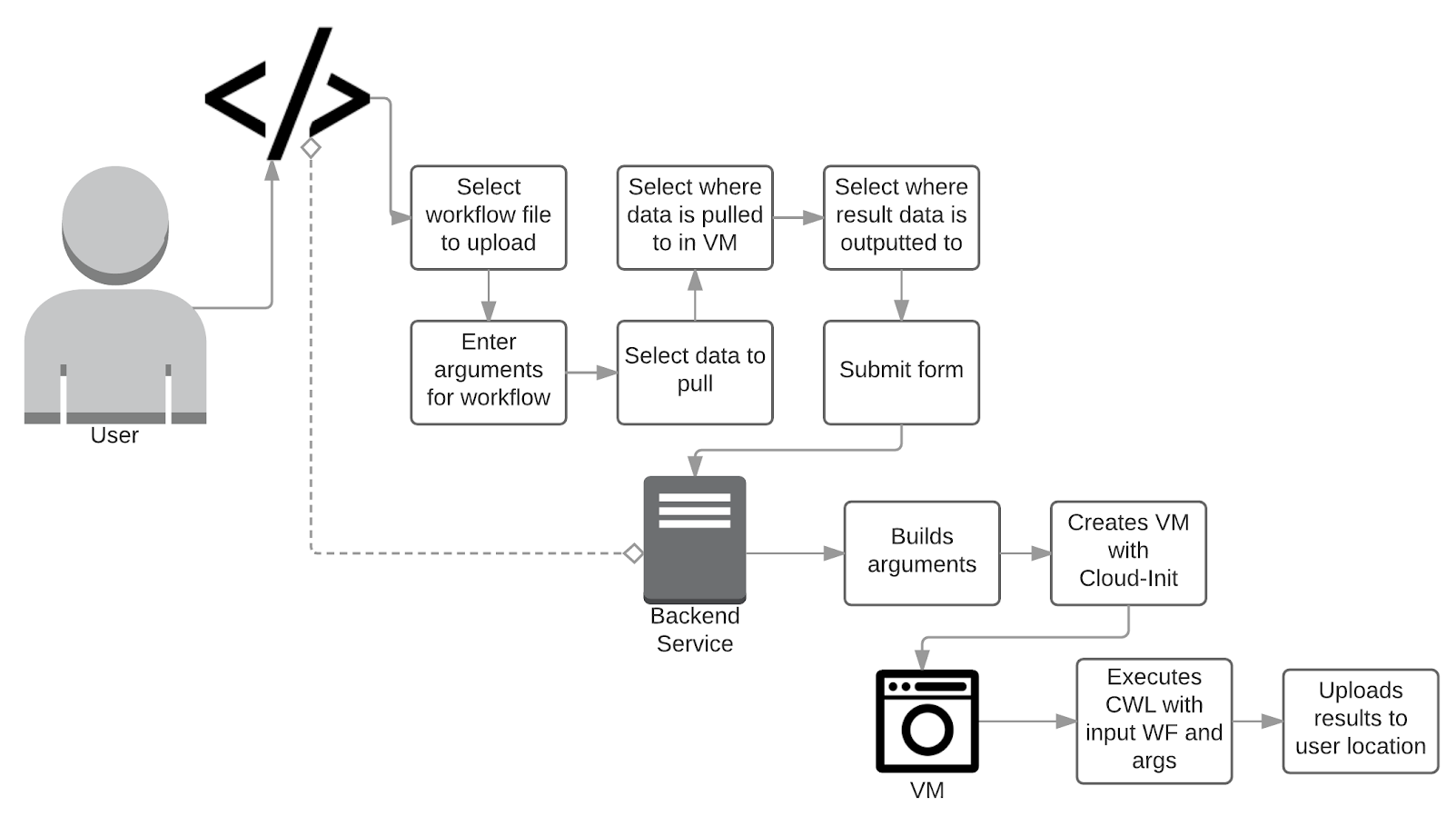

Proposed Solution

  • Submit workflow definitions.

  • Specify run-time arguments for workflow execution.

  • Select data from list of data authorized for their use.

  • Select where the resultant data is sent to.

  • Use the system without knowledge of back-end cloud infrastructure or use of said cloud environment.

  • Autonomously deploy containers from workflow definition and execute workflow.

Implementation

#!/usr/bin/env cwl-runner
cwlVersion: v1.0
requirements:
  - class: DockerRequirement
    dockerPull: quay.io/ncigdc/fastqc:1
  - class: InlineJavascriptRequirement
class: CommandLineTool
inputs:
  - id: adapters
    type: ["null", File]
    inputBinding:
      prefix: --adapters
  - id: casava
    type: ["null", boolean]
    default: false
    inputBinding:
      prefix: --casava
  - id: contaminants
    type: ["null", File]
    inputBinding:
      prefix: --contaminants
  - id: dir
    type: string
    default: .
    inputBinding:
      prefix: --dir
  - id: extract
    type: boolean
    default: false
    inputBinding:
      prefix: --extract
  - id: format
    type: string
    default: fastq
    inputBinding:
      prefix: --format
  - id: INPUT
    type: File
    format: "edam:format_2182"
    inputBinding:
      position: 99
  - id: kmers
    type: ["null", File]
    inputBinding:
      prefix: --kmers
  - id: limits
    type: ["null", File]
    inputBinding:
      prefix: --limits
  - id: nano
    type: boolean
    default: false
    inputBinding:
      prefix: --nano
  - id: noextract
    type: boolean
    default: true
    inputBinding:
      prefix: --noextract
  - id: nofilter
    type: boolean
    default: false
    inputBinding:
      prefix: --nofilter
  - id: nogroup
    type: boolean
    default: false
    inputBinding:
      prefix: --nogroup
  - id: outdir
    type: string
    default: .
    inputBinding:
      prefix: --outdir
  - id: quiet
    type: boolean
    default: false
    inputBinding:
      prefix: --quiet
  - id: threads
    type: int
    default: 1
    inputBinding:
      prefix: --threads
outputs:
  - id: OUTPUT
    type: File
    outputBinding:
      glob: |
        ${
          function endsWith(str, suffix) {
            return str.indexOf(suffix, str.length - suffix.length) !== -1;
          }
          var filename = inputs.INPUT.nameroot;
          if ( endsWith(filename, '.fq') ) {
            var nameroot = filename.slice(0,-3);
          }
          else if ( endsWith(filename, '.fastq') ) {
            var nameroot = filename.slice(0,-6);
          }
          else {
            var nameroot = filename;
          }
          var output = nameroot +"_fastqc.zip";
          return output
        }

baseCommand: [/usr/local/FastQC/fastqc]
  • Ran a CWL file with a Dockerized Fastqc tool.

  • Short read data file from NCBI was used as example (NA12878).

    • Input data was 2.77 GB, preloaded on cloud environment.

    • Resultant data was 650 KB, generated on cloud environment.

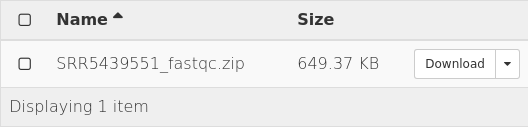

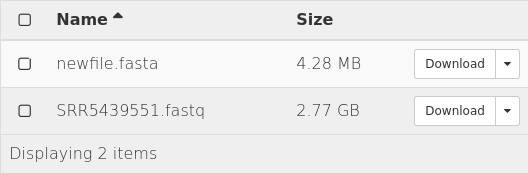

Result

test data

result data

Findings

This project was a simple proof of concept

This concept has a bright future

Thanks

Prof. A Christoffels, Peter van Heusden

UWC Astrophysics and ICS departments
