Digital Switching System

RTU RAE472 Fa22

Wai Yan Kyaw
17.10.2022

HW : Ping, ARP and Tracert

Index

• Topology
• Ping
• ARP
• Tracert

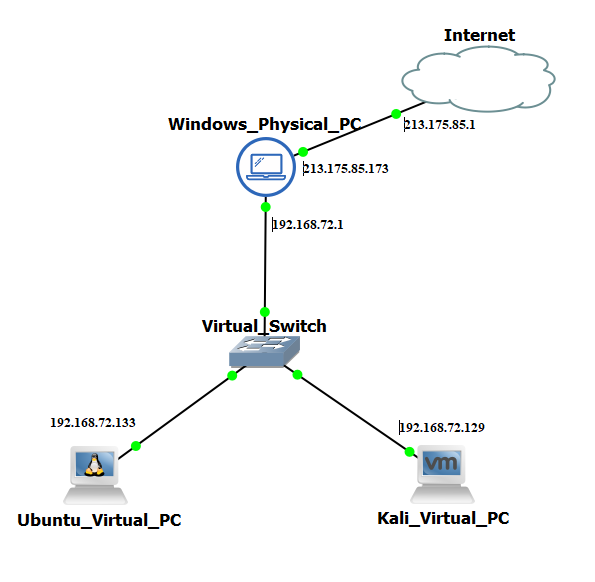

Topology

Ping

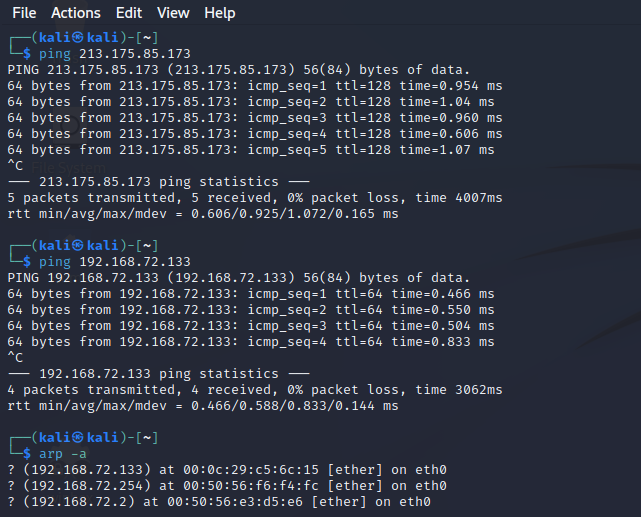

Successful ping from one virtual pc to another virtual pc

Ping

Ping from physical pc to virtual pcs

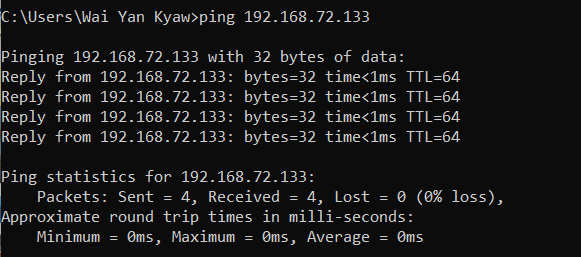

Successful ping to one virtual pc (Ubuntu) from my computer

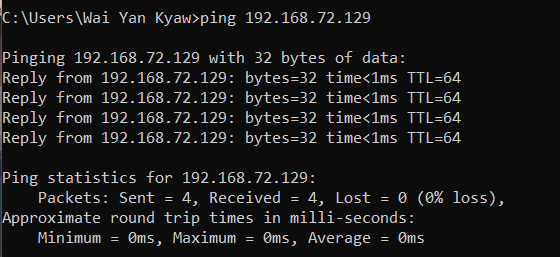

Successful ping to one virtual pc (Kali) from my computer

ARP Tables

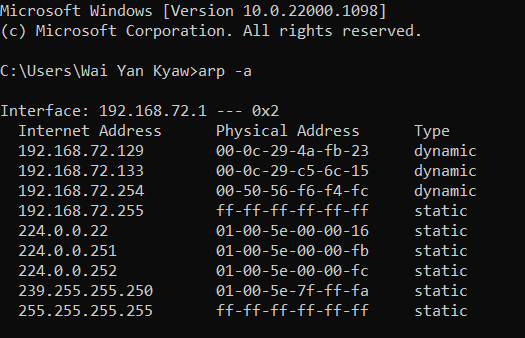

ARP Table for Local -->

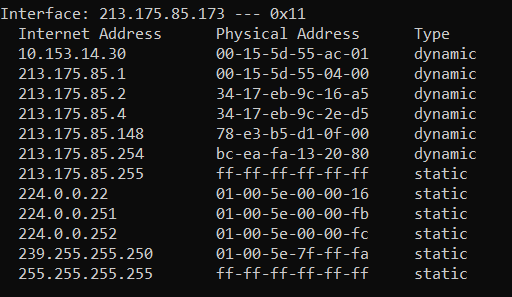

<-- ARP Table for GLobal

Traceing the Routes in WAN (Tracert)

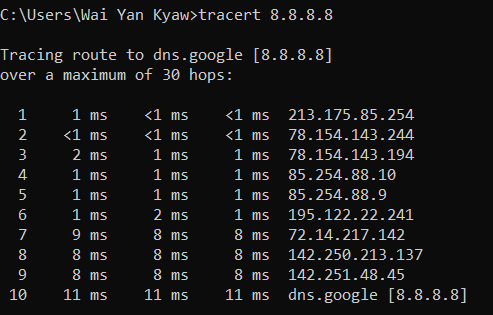

<-- Tracert Google IP (8.8.8.8)

Thank You!
