How to access real MikroTik routers from GNS3

Week-9 Report

Wai Yan Kyaw

211AEM007

Agenda

• Network Topology

• Virtual Topology

• Xpra

• How to run xpra

• Accessing Xpra remotely

• Static routes in Linux

• GRE Tunnel

• How to configure GRE Tunnel

• References

Network Topology

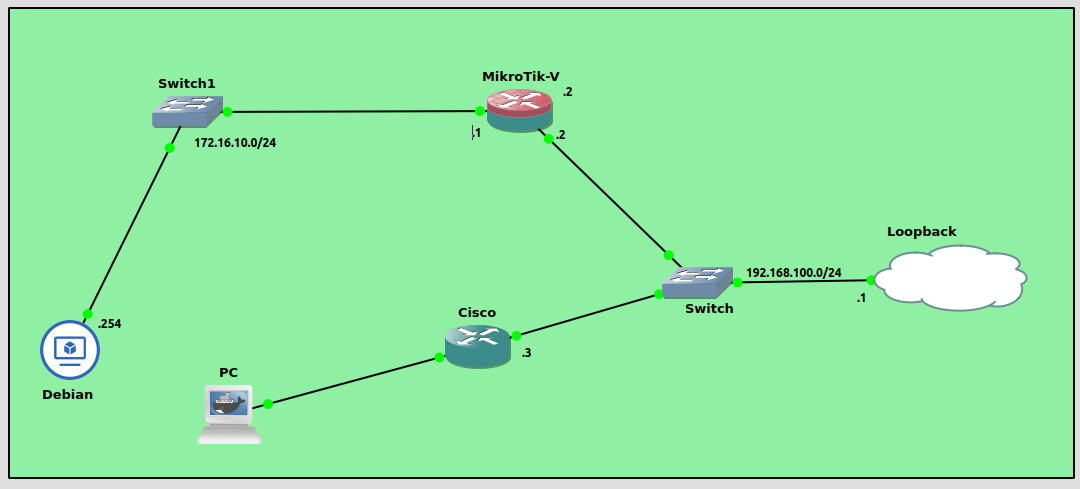

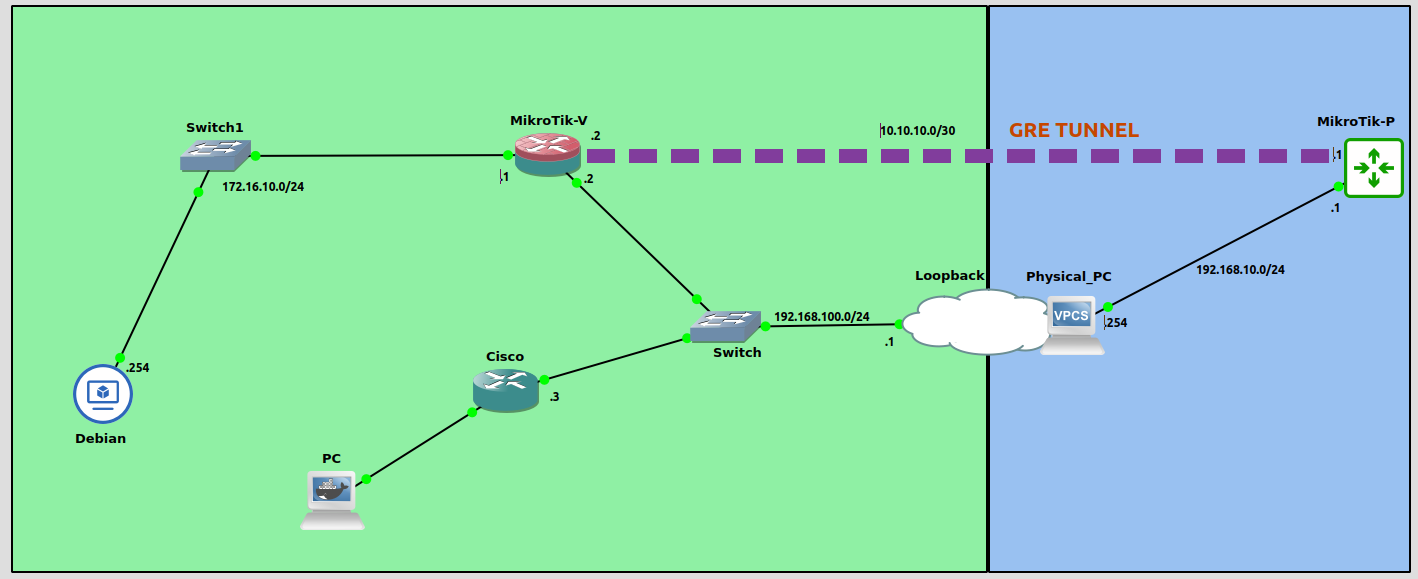

Virtual Topology

Xpra

• Xpra is an open-souce muti-platform persistent remote display server and client for forwarding application and desktop screens.

• It gives you remote access to individual applications or full desktopls.

How to run Xpra on your PC

Running Xpra with ssh

• xpra start :50 --start=xterm --speaker=off (Server)

• xpra attach ssh://USERNAME@HOST/50 (Client)

• xpra attach :50 (Locally)

Running Xpra without ssh

• xpra start --start=xterm --bind-tcp=0.0.0.0:10000 --html=on (S)

• http://HOST:10000 (Web such as Firefox or Chrome on Client)

• xpra attach tcp://Host:10000/ (terminal on Client)

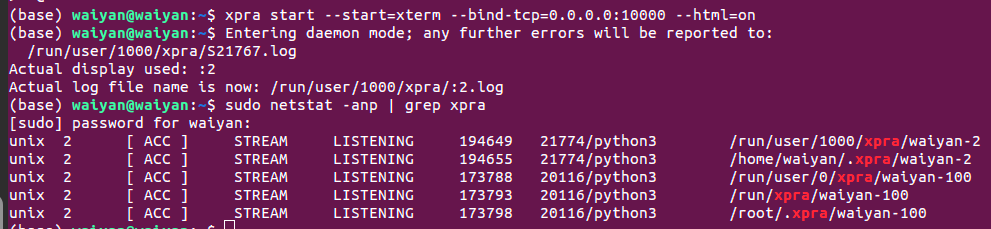

Running Xpra server

• sudo netstat -anp | grep xpra

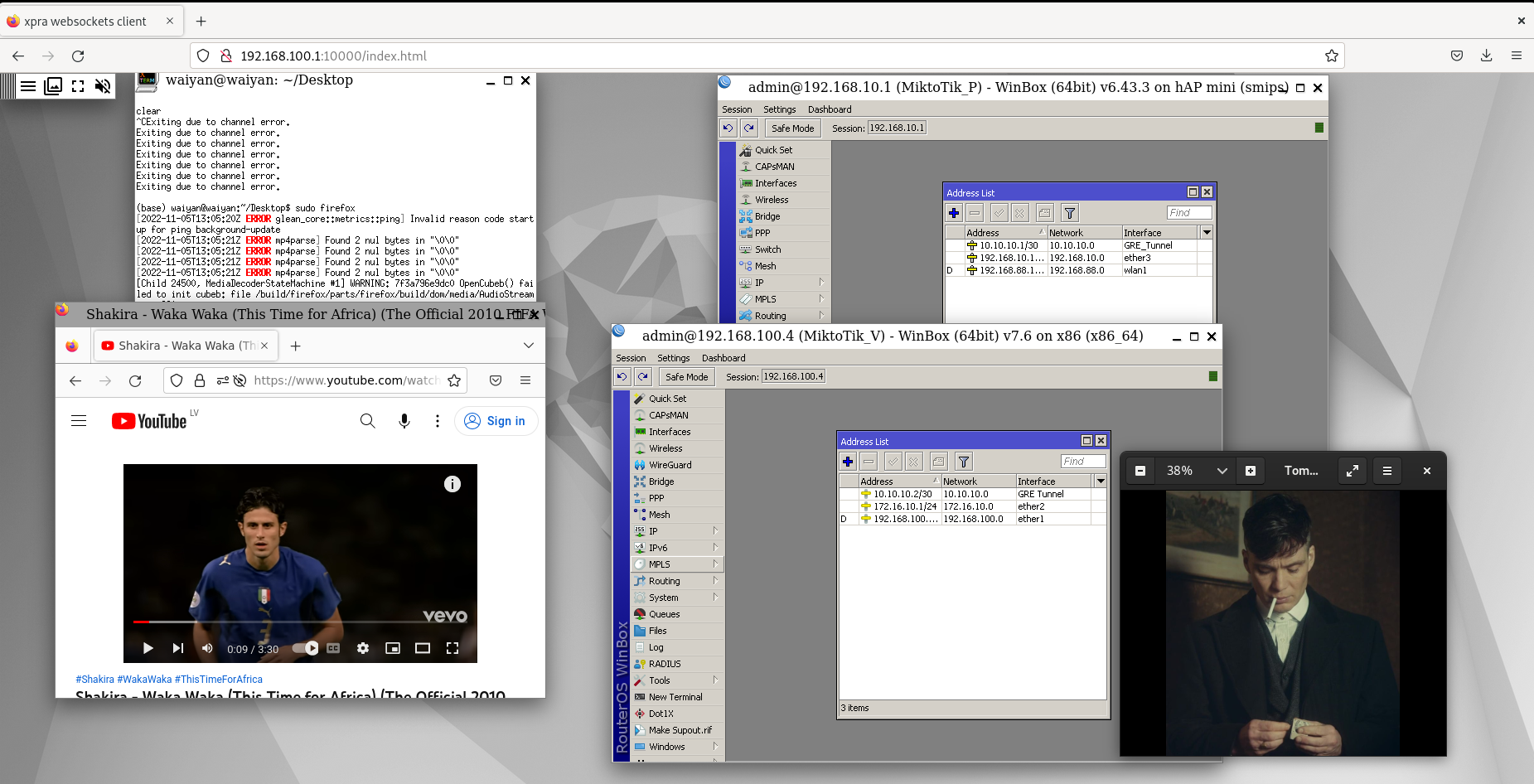

Accessing Xpra with web on client

• http://192.168.100.1:10000 (on Debian VM )

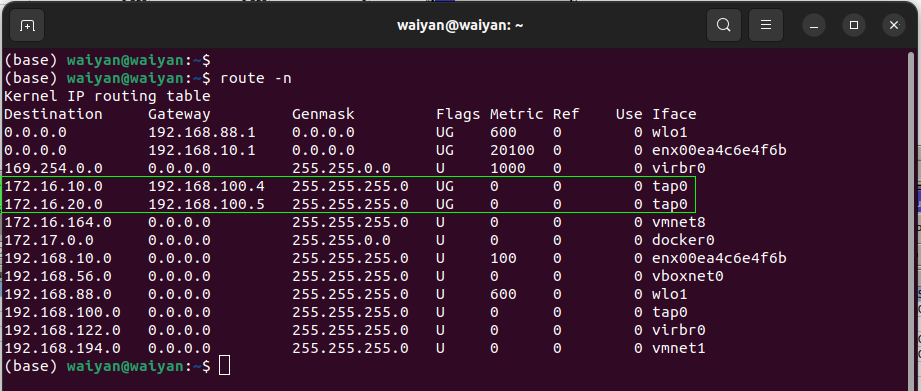

Creating routes in Ubuntu

• Consider your physical pc as a router between real MikroTik and Virtual MikroTik

• Create static routes to get rechability between MikroTik routers

GRE Tunneling

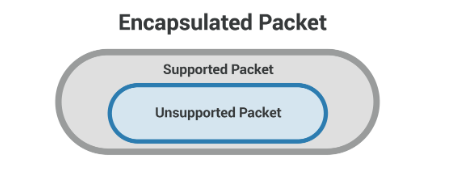

• Generic Routing Encapsulation or GRE is a protocol for encapsulating data packets that use one rouing protocol such as RIP, EIGRP, OSPF inside the packets of another protocol.

OSPF or RIPv2

GRE

• How to configure GRE Tunnel between MikroTik Routers

• Check rechability between two mikroTik routers (Real and Virtual )

• Create GRE Tunnel

• Assign Local Address and Remote Address correctly

• Assign GRE Tunnel IP between two routers

• Create routes on both MikroTik routers

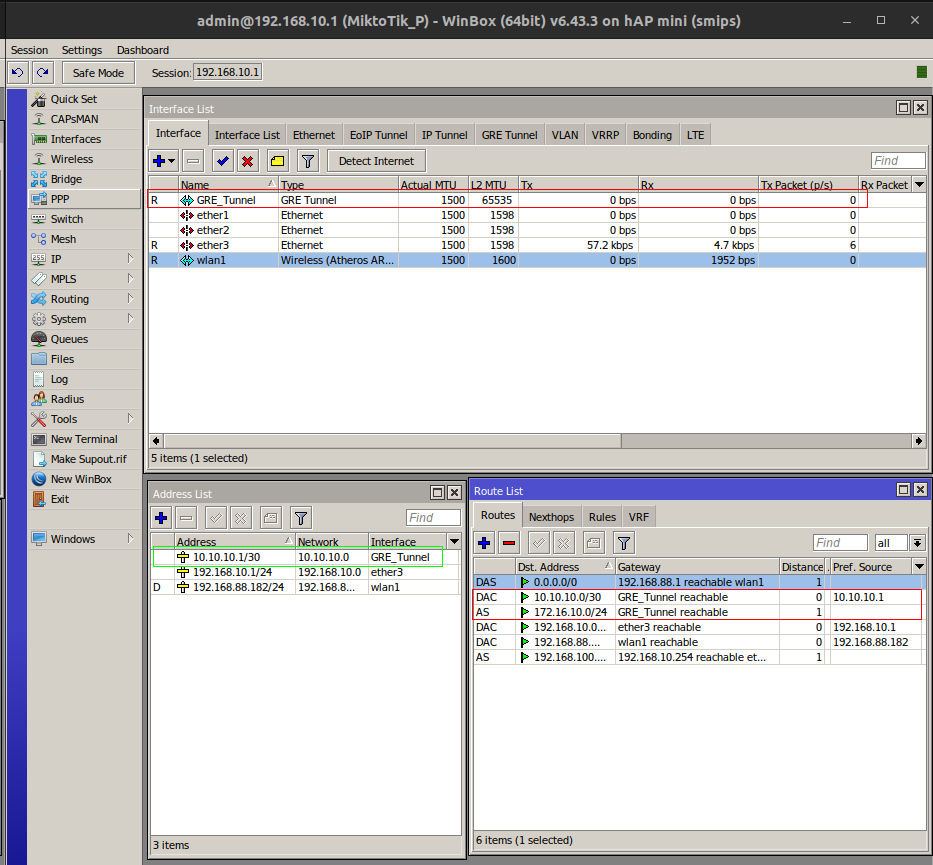

Configuring GRE Tunnel on Real MikroTik Router

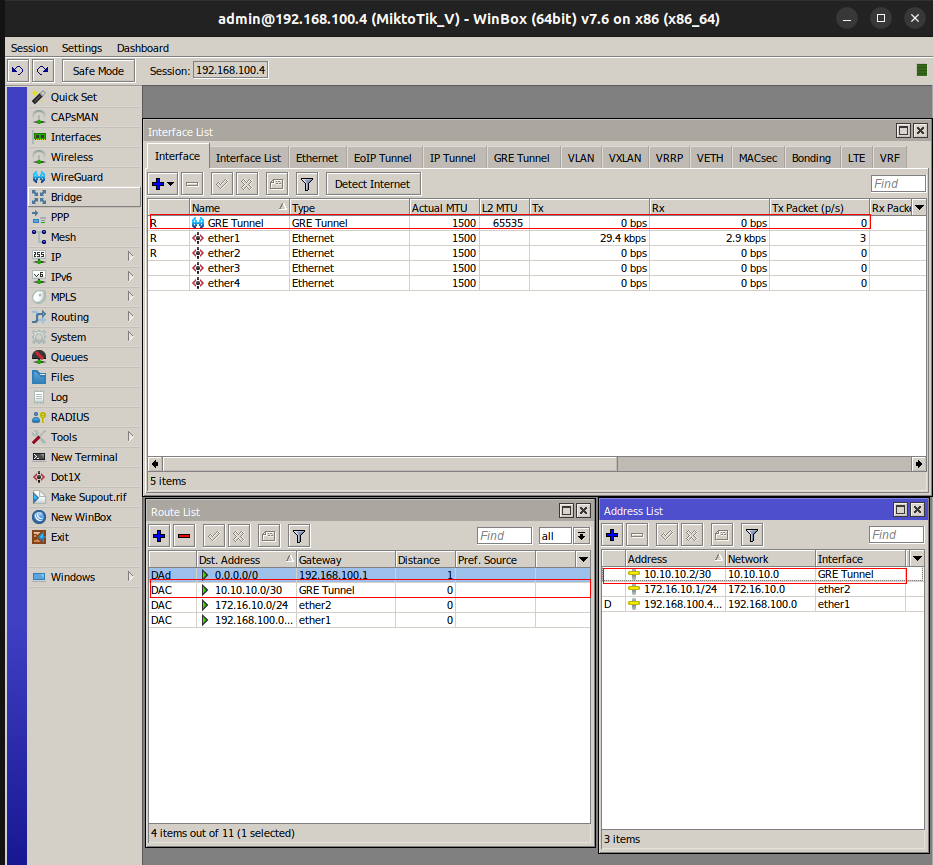

Configuring GRE Tunnel on Virtual MikroTik Router

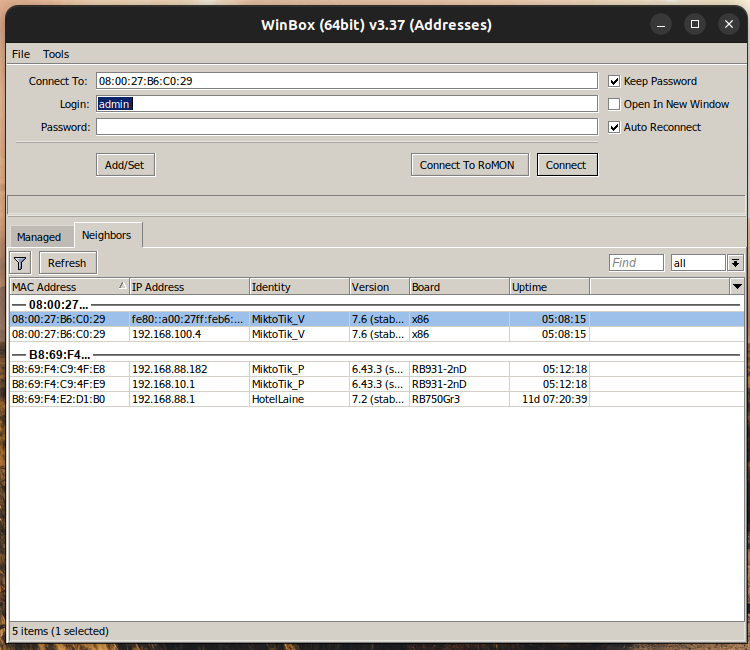

Checking MikroTik Routers from Real PC

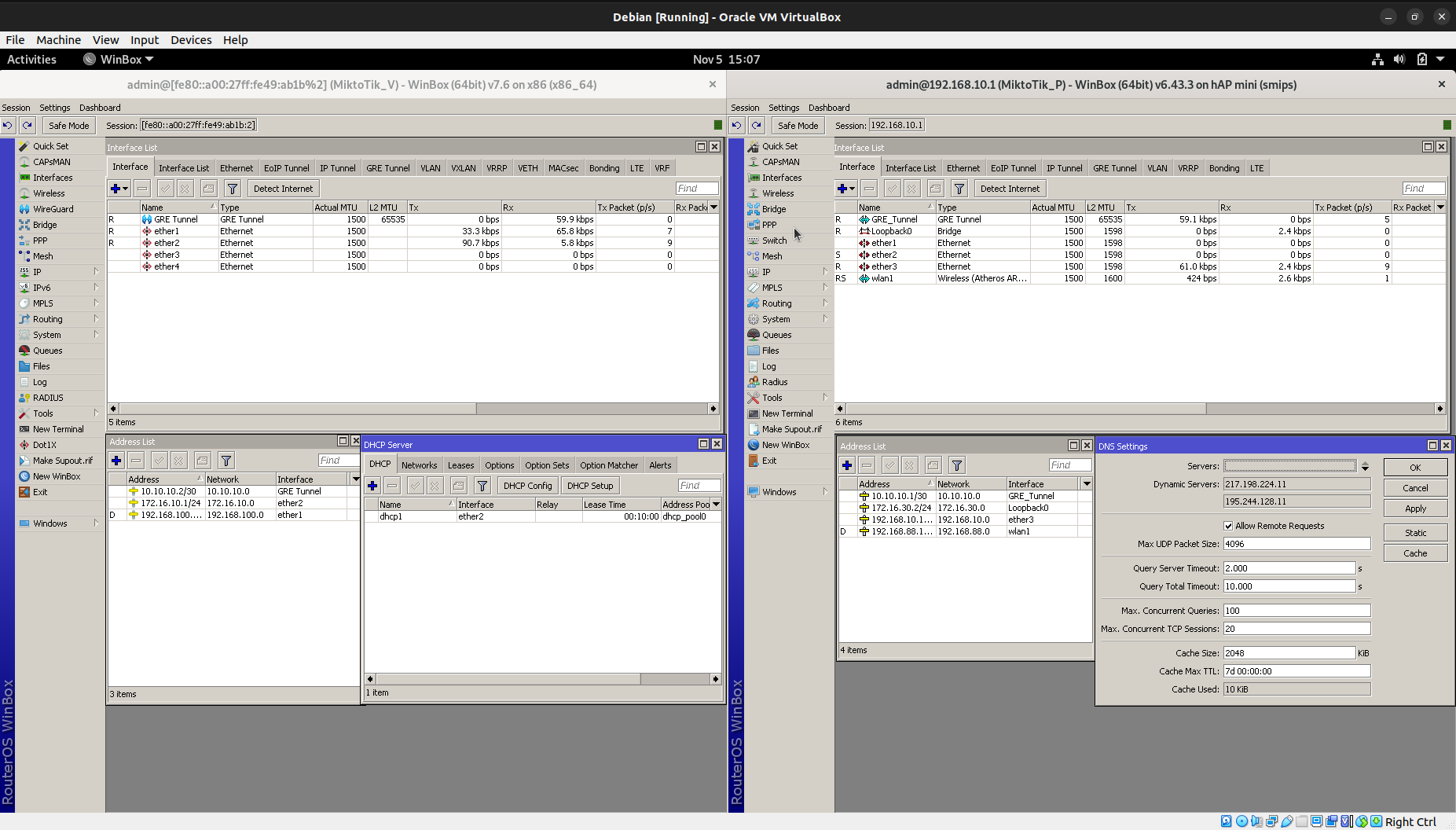

Accessing Real and Virtual MikroTik Routers from Debian

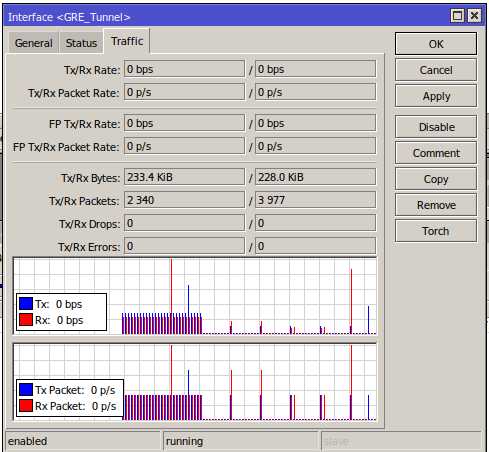

Traffic Testing in GRE Tunnel

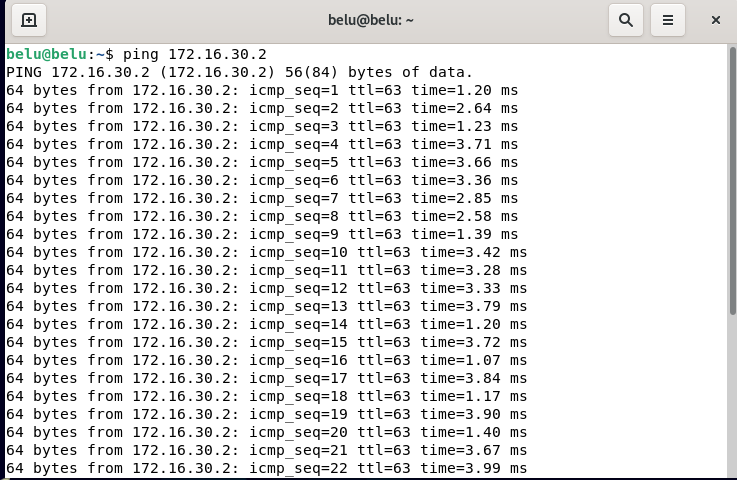

• ICMP testing from Debian VM to Loopback Interface in Real MikroTik router

References

• https://xpra.org/
• https://github.com/Xpra-org/xpra/blob/master/docs/Usage/README.md
• https://www.cloudflare.com/en-gb/learning/network-layer/what-is-gre-tunneling/
• https://www.cyberciti.biz/faq/ping-using-specific-gateway-interface-or-source-ip-address/
• https://devconnected.com/how-to-change-ip-address-on-linux/

Thank You for your attention!
