GIT

introduction

Who know about Git?

Who is confortable undoing a mistake in git?

What i'm gonna talk about?

  • Git history

  • What is a commit

  • Git local workflow

  • Commit history

  • The time machine

  • What do rebase

  • Stash what you can't finish

  • Tag / Cherry-pick / Diff

  • External resources

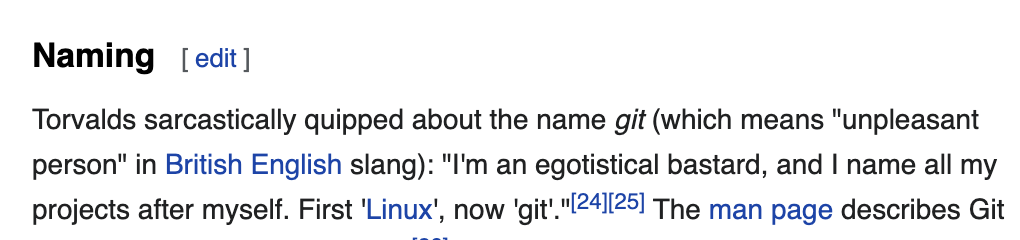

Git history

 Linus Torvalds

Source

Git definition

  • Decentralized ( repo clone localy)
  • File system manager
  • Two datastructure
    • mutable index for working directory and staging
    • database which can contain 5 objects
      • blob (binary large object)
      • tag
      • tree
      • commit
      • packfile (gzip=compressed version of other items)

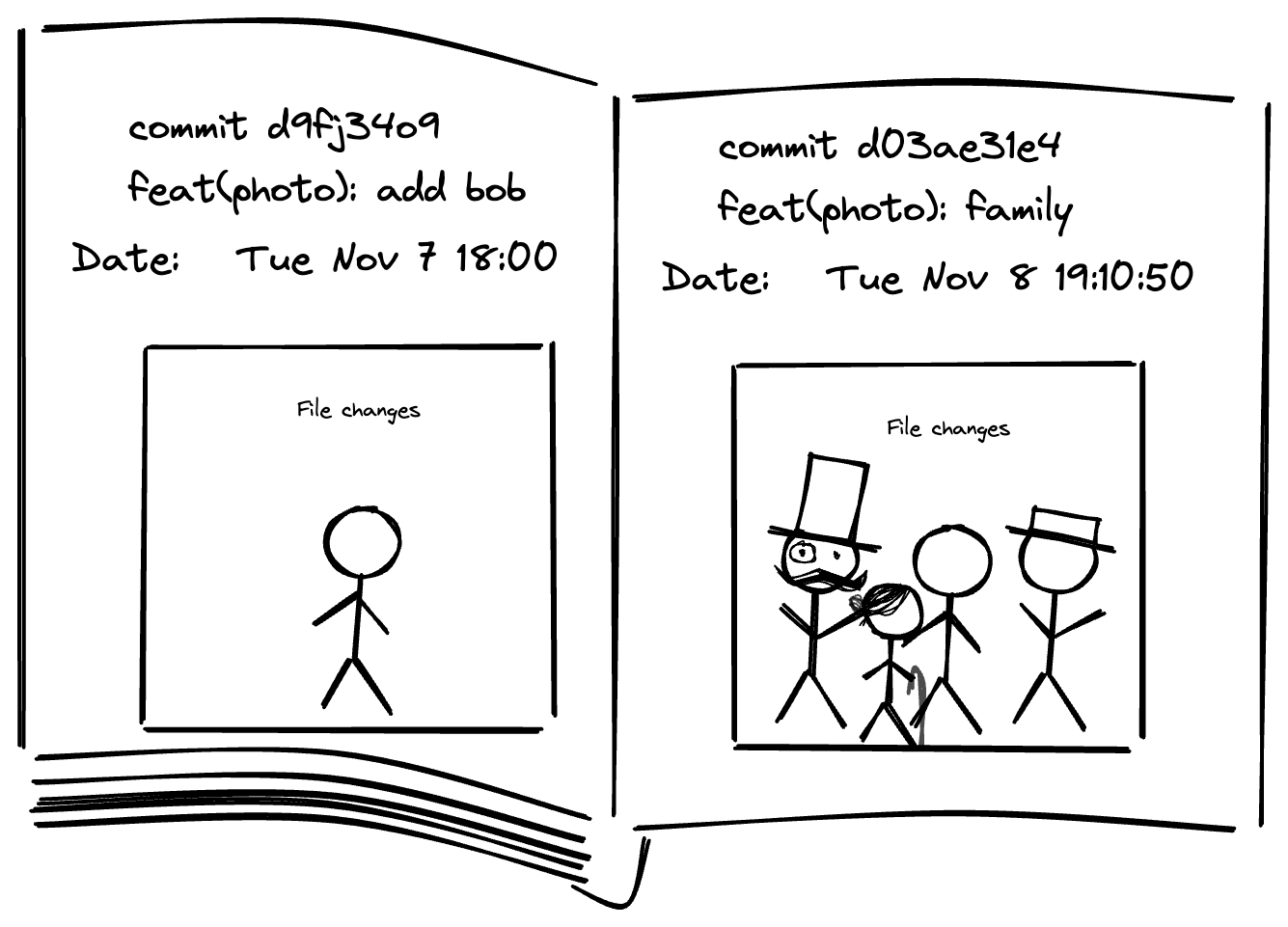

What is a commit

It's a snapshot of files modifications

Git local workflow

Modify file ->
                 Declare modification of the file ->
                                         Give context on modification ->
                                                                                                Save modification

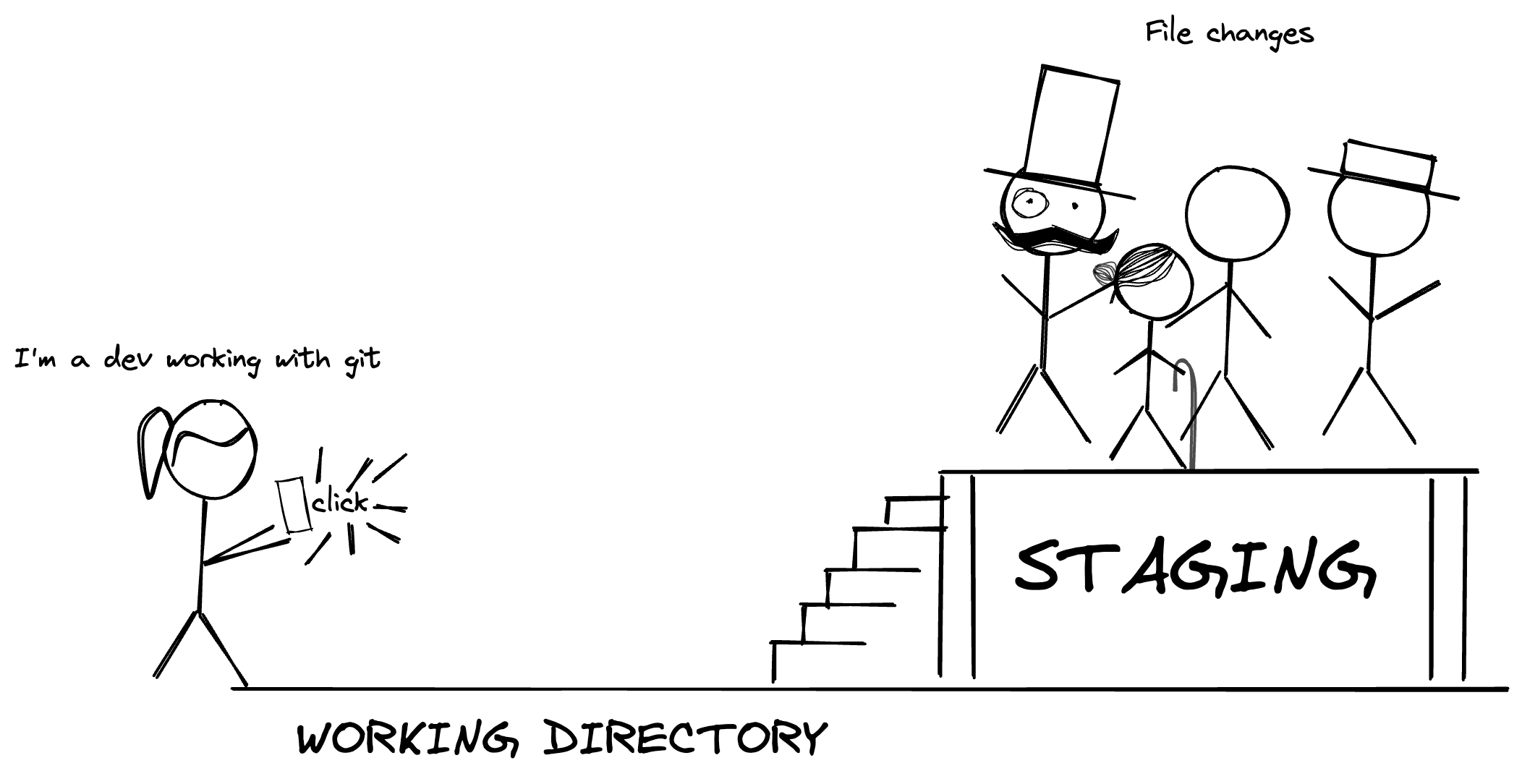

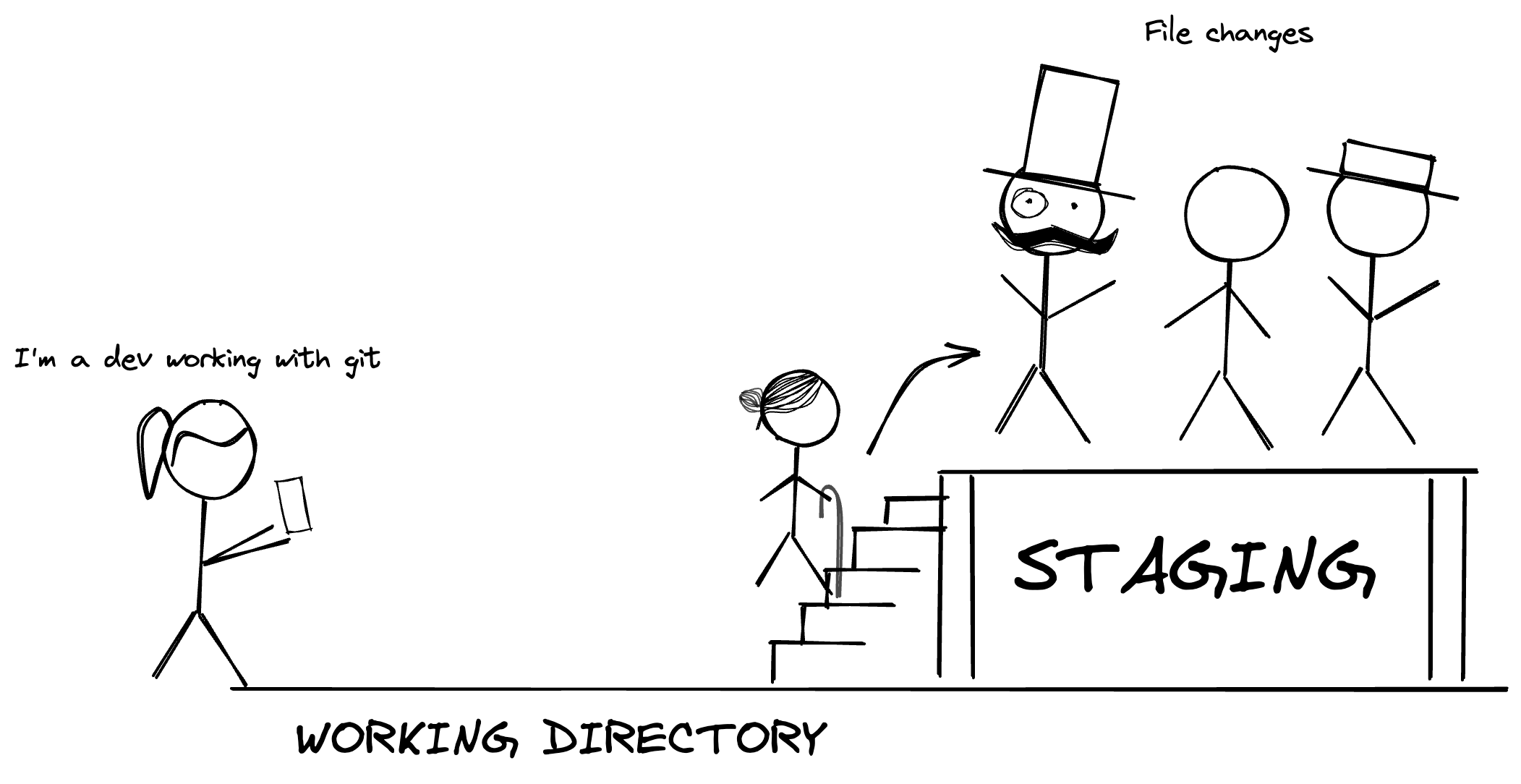

Simple dev workflow

- Working directory

- Staging

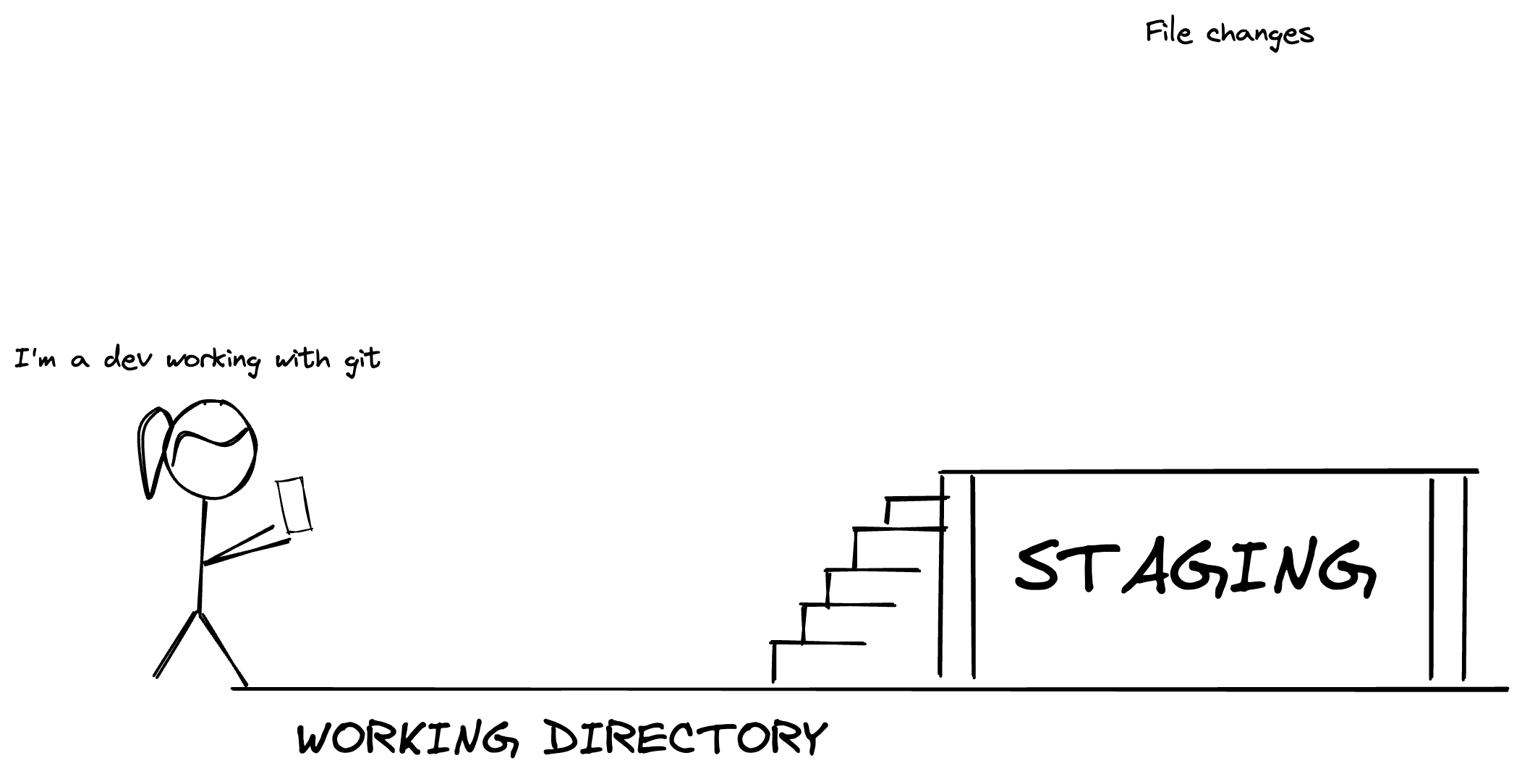

Simple dev workflow

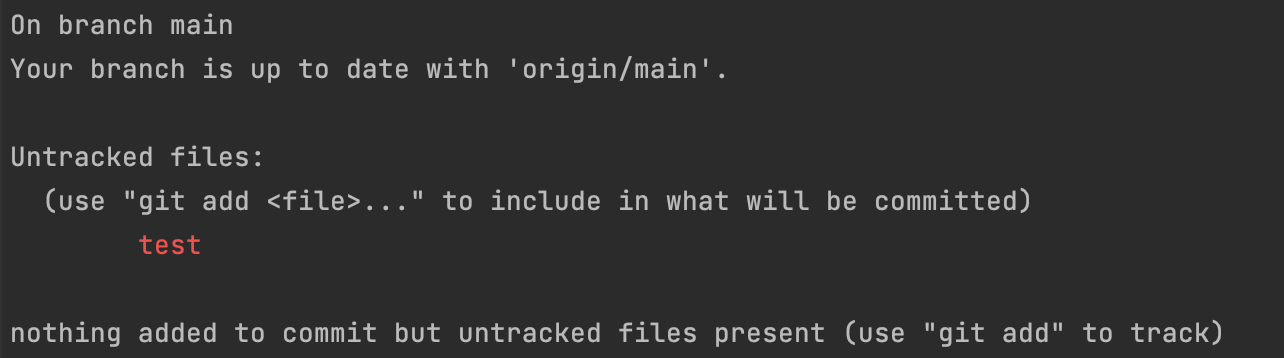

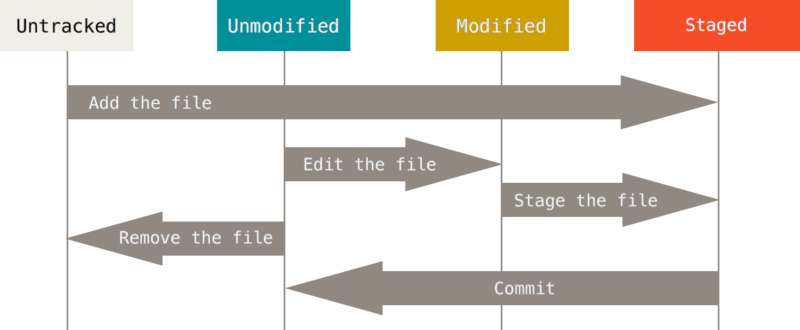

File status

Simple dev workflow

git add <new files>

Git add good to know options

git add -u

add all modified file to staging

git add -p

Will select lines modifications from files (help crafting atomic commit)

git add test*.ts

Will add all files prefixed by test and finishing by .ts to staging

git add -A

Will add everything pending in your working directory into staging

git add *

git commit -m 'feat(photo): blablabla'

Git commit good to know options

git commit -m  'blabla'

Create commit with message blabla and file staged

git commmit -m 'blabla' --allow-empty

Create commit with message blabla and no modifications from staging

git commit --amend

Will add to previous commit staged files and allow you to edit it's message

git commmit -am "blabla"

Will add all modifications (not new files) pending in your working directory into staging and create a commit with it

Main git actions

git status

display actual working directory and staged files or both modified files

git diff

diff between working directory and staged files

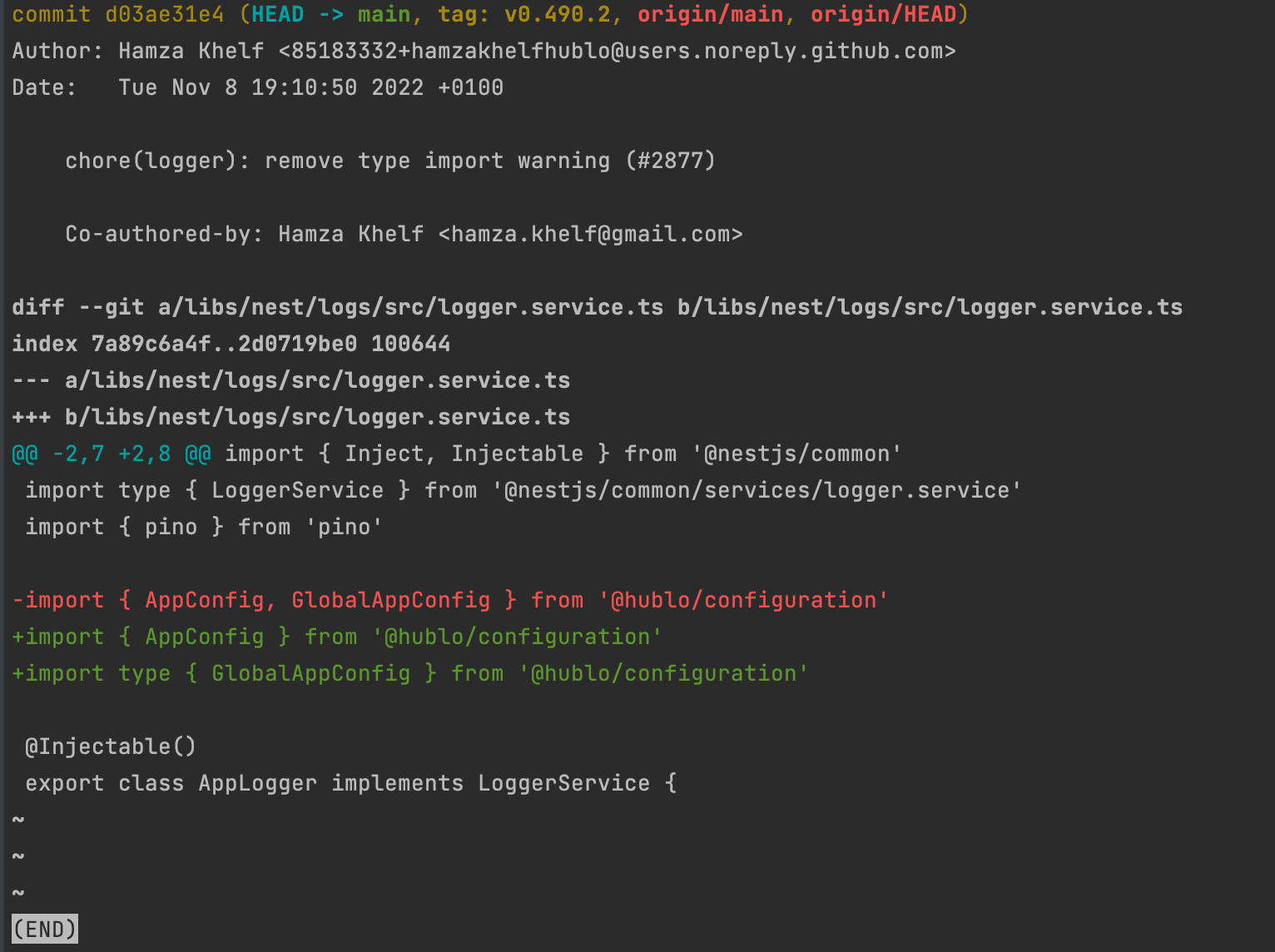

git show
<SHA-1 commit|tag|blob>

Display message + diff of commit | tag details + commit SHA-1 related id | content of a blob

diff between staged file and HEAD

git diff --staged

Main git actions

git reset

Will allow you to reset your git repository to a specific state ( and decide to keep or not diff between current state and reset state)

git checkout
<branch |commit|tag >

Move your HEAD to specific commit or tag or branch (lot of options)

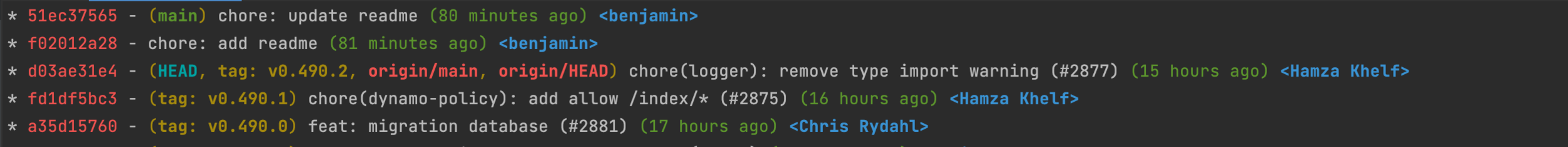

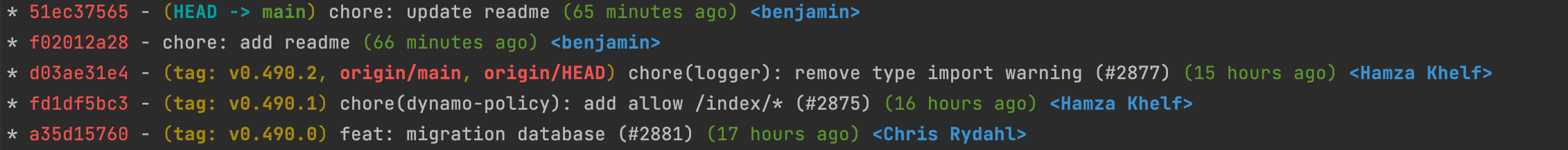

Git log

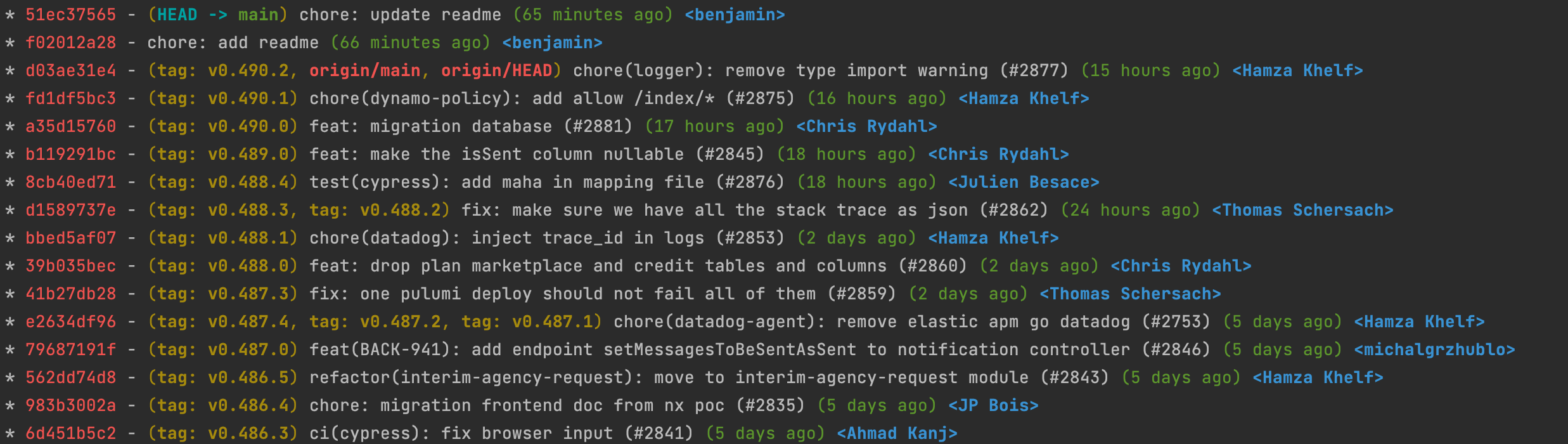

Git log

Git project modification historic

Git log important notions

Contain all the commits made on all branch and is able to display it through graph

  • Each commit can have only one parent commit
  • A tag can point toward a commit
  • A branch name is a specific tag always at the tip of a branch

gog='git log --pretty=tformat:'\''%Cred%h%Creset -%C(auto)%d%Creset %s %Cgreen(%cr) %C(bold blue)<%an>%Creset'\'' --branches --graph'

The time machine

Git log know when you are

You can move back in time if needed thank to HEAD

HEAD is a pointer which can move through git objects

Edit the past

Create a new commit with your fix

git reset --soft HEAD^

git reset --soft HEAD~1

git commit --amend

Shit i made a mistake in my previous commit

Undo the present

i pulled branch and failed a merge conflict which i validated

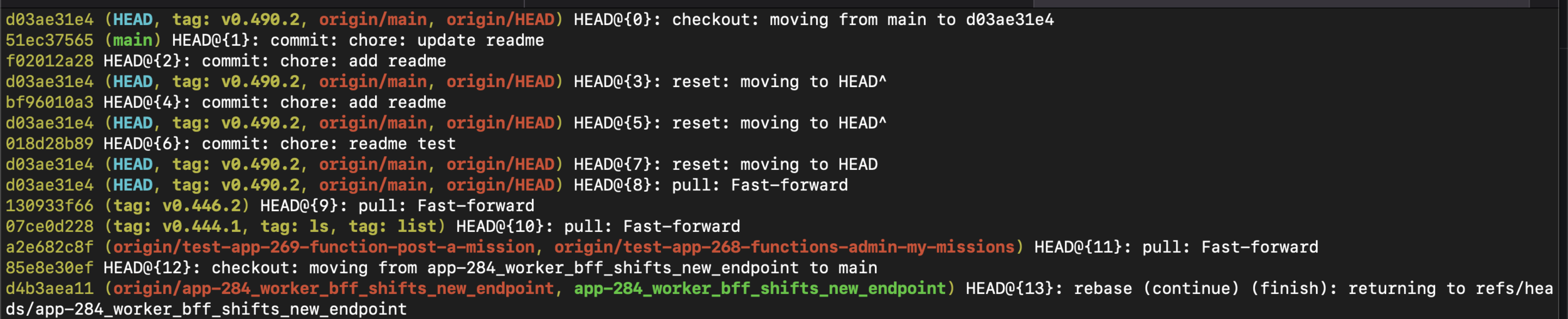

git reflog

  • Each git action has it's own SHA-1 identifier
  • Use git reset --<soft|mixed|keep|hard> <SHA-1 number>
  • Git is now back to this last action

What do rebase

<WIP>

So let's demo

Stash what you can't finish

<WIP>

So let's demo

Tag / Cherry-pick / Diff
<WIP>

So let's demo

Resources
<WIP>

i will add them!

Thanks for you time
