bdd In 2019

cypress & cucumber

bene@theodo.co.uk
Ben Ellerby

Unit

Integration

End to End

Domain-Driven
DESIGN



DDD

Evans, E., 2004. Domain-driven design: tackling complexity in the heart of software. Addison-Wesley Professional.

Ubiquitous Language

GIVEN, WHEN, THEN

BDD

Given some context
When some action
Then some result

GIVEN, WHEN, THEN

BDD

Given the account has £10
When the customer requests £20
Then cash is not dispensed
And an error message is displayed
And the card is returned

Narrative

BDD

Story: One line description

As a ROLE
In order to GOAL
I want to BENEFIT

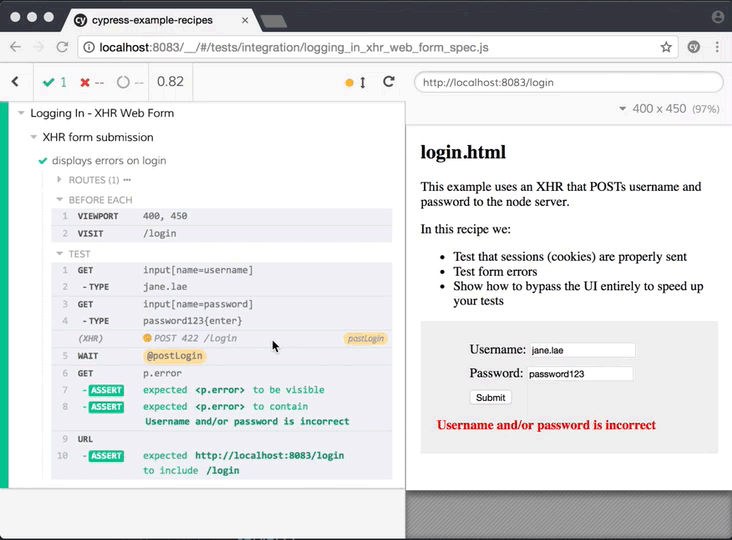

Cypress

Cypress

Text

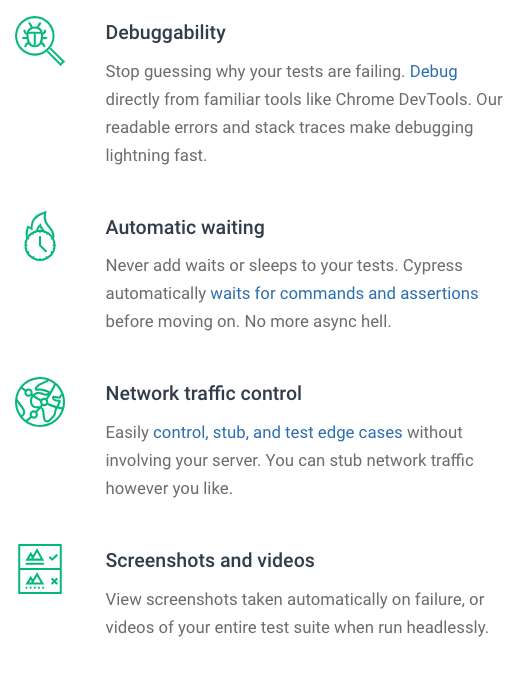

Cypress

Cypress

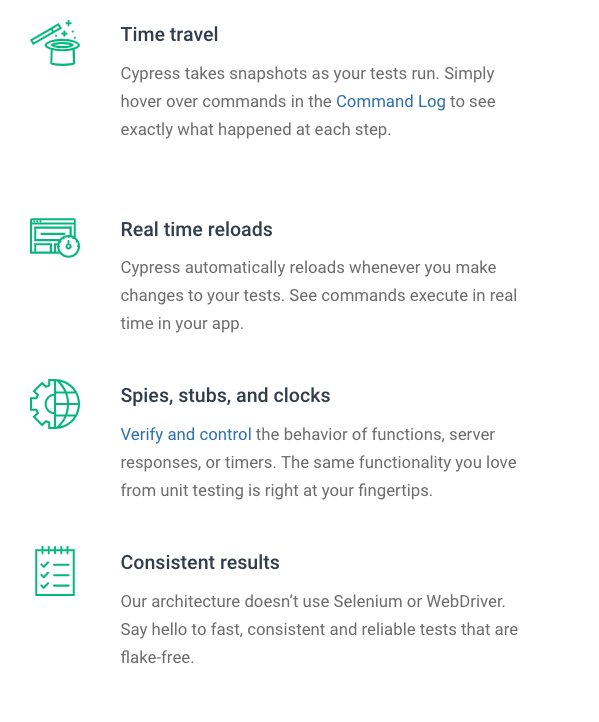

Cypress

Cypress does not use Selenium

Cypress

describe('My First Test', function() {
  it('Does not do much!', function() {
    expect(true).to.equal(false)
  })
})

Cypress

describe('My First Test', function() {
  it('Does not do much!', function() {
    expect(true).to.equal(false)
  })
})

Cucumber

www.cucumber.io

Provides the DSL for writing scenarios with the Gherkin syntax

Helping to provide living documentation

Cypress + Cucumber

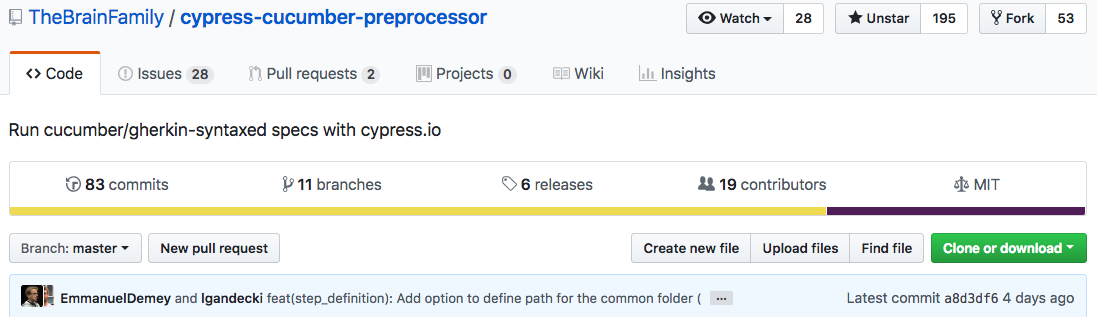

https://github.com/TheBrainFamily/cypress-cucumber-preprocessor

+

Cypress + Cucumber

import { Then } from "cypress-cucumber-preprocessor/steps";

Then(`I see {string} in the title`, title => {
  cy.title().should("include", title);
});
https://github.com/TheBrainFamily/cypress-cucumber-example

Cypress + Cucumber

FIXTURES

To stub or not to stub, that is the question....

Cypress + Cucumber

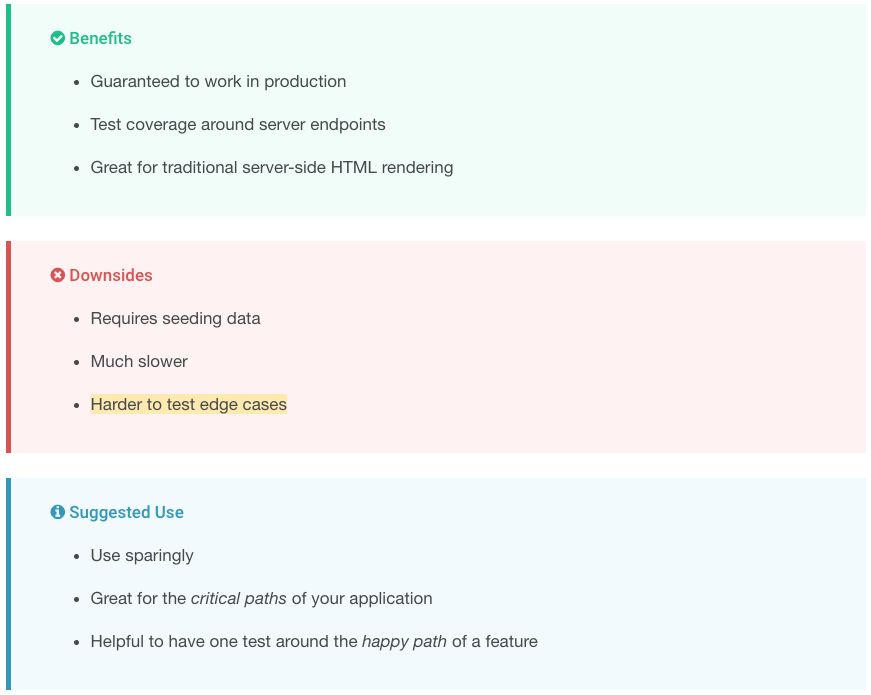

Not Stubbing

Cypress + Cucumber

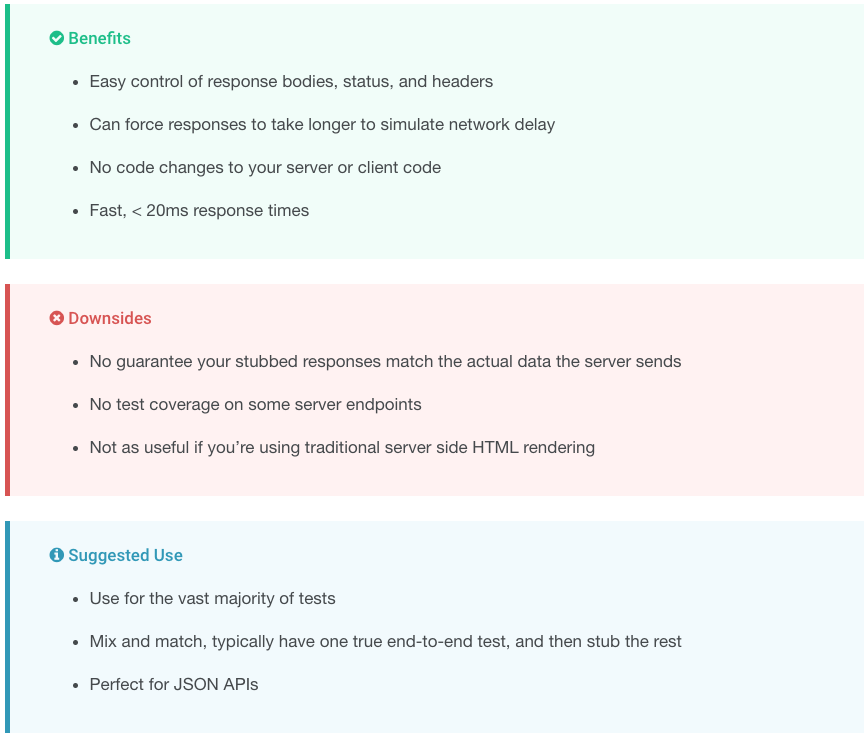

Stubbing

Cypress + Cucumber

NOT Stubbing

Cypress + Cucumber

NOT Stubbing

Cypress + Cucumber

Stubbing

  1. Start a cy.server() (Allows stubbing)
  2. Provide a cy.route() (Makes a stub)

Cypress + Cucumber

cy.server()           // enable response stubbing
cy.route({
  method: 'GET',      // Route all GET requests
  url: '/users/*',    // that have a URL that matches '/users/*'
  response: []        // and force the response to be: []
})

Stubbing

Cypress + Cucumber

Stubbing

"A fixture is a fixed set of data located in a file that is used in your tests."

Fixture:

Cypress + Cucumber

cy.server()

/// define the fixture
cy.fixture('activities.json').as('activitiesJSON')

// use the fixture, via alias (advanced concept of Cypress)
cy.route('GET', 'activities/*', '@activitiesJSON')

Stubbing

Cypress + Cucumber

iNTERCEPT dELAY

Cypress

Tests

API

Stub

Cypress + Cucumber

cy.server()
cy.route('tagdefs/*', 'fixture:tagedefs').as('getTagDefs')
cy.route('users/*', 'fixture:users').as('getUsers')

// page reauires routes via HOCs
cy.visit('http://localhost:3333/user/list')

// wait on routes via aliases
cy.wait(['@getTagDefs', '@getUsers'])

// will only run after network requests
cy.get('h1').should('contain', 'User List Page')


cy.get('li').should('contain', 'User Name 1')

Stubbing

Cypress + Cucumber

Scenario: #471 - /user/list - Filter by non-existing user
    When I type "BobMarley" into the list filter search bar
    Then I do see "No results" in the list filter items
    And I do not see "Bob Marley" in the list filter items

Scenario

Cypress + Cucumber

    Background: I am on /user/list
        Given I have an API with users
        And I have an API with tag defs
        And I am on "/user/list"
        And I wait for "getUsers"
        And I wait for "getTagDefs"

Scenario Background

Cypress + Cucumber

Given("I have an API with users", () => {
  cy.server()
  cy.fixture("users.json").as("users")
  cy.route("**/user/list", "@users").as("getUsers")
})

API Step Def

Cypress + Cucumber

Given("I wait for {string}", alias => {
  cy.wait(`@${alias}`)
})

Waiting step Def

Cypress + Cucumber

cy.server()
cy.route('search/*', [{ item: 'Book 1' }, { item: 'Book 2' }]).as('getSearch')

cy.get('#autocomplete').type('Book')

// this yields us the XHR object which includes
// fields for request, response, url, method, etc
cy.wait('@getSearch')
  .its('url').should('include', '/search?query=Book')

ASSERTIONS ON STUB

ANy quESTIONS

BDD Workshop (Cypress Fixtures)

By Ben Ellerby

BDD Workshop (Cypress Fixtures)

The talk was given at the QE-Roundabout Meetup in London 12/02/19.
