Speech Recognition

An introduction

Benjamin Akera

What is Speech

• Speech is a continuous signal ( No explicit word boundaries)

• Speech usually conveys a linguistic message that can be reduced to a transcript

• Can also be used for paralingustics: Speaker Identity, Speaker mood, speaker health condition, speaker accent etc

• Can be decomposed into elementary units of sound (phonemes) that distinguish one word from another in a particular language

Main Speech Tasks

• Speaker compression
• Speaker recognition (strong progress over the last 10 yrs but still poor compared to bio-metrics)
• Text to Speech Synthesis (can still gain in naturalness but new progress with Deep Learning
• Speech Para-linguistics (early days): Gender detection,age, deception, emotion etc
• Keyword spotting

Speech Recognition

Given speech audio, generate a transcript

Speech Recognizer

H

e

l

l

o

w

o

r

l

d

Important goal of AI: Historically hard for machines, easy for people

Traditional ASR pipeline

Traditional systems break the problem into several key components:

Traditional ASR pipeline

Usually represent words as a sequence of  "phonemes"

Challenges of Traditional ASR

• Highly tweak-able but hard to get working well
• Additional need for a pronunciation dictionary and  language model
• Historically, each part of the system has its own set of challenges.
  • eg. Choosing feature representation

Deep Learning in ASR

Where to apply deep learning to make ASR better?

• Good start: Improve acoustic model

• Introduction of pre-training/DBN

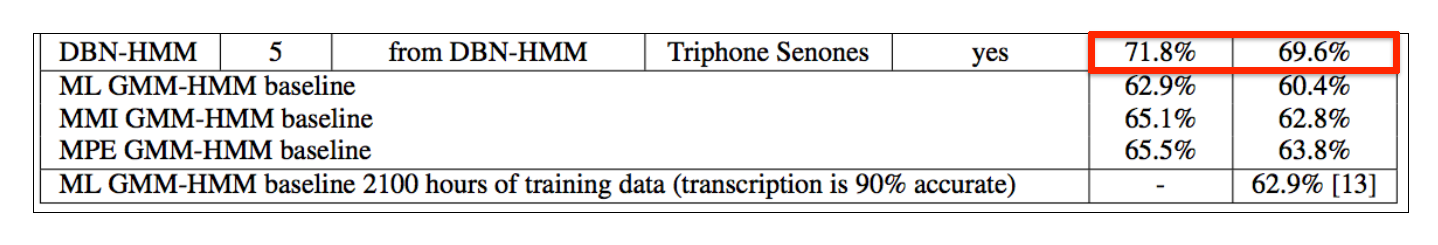

Dahl et al. 2011

Sound Data

Sound is transmitted as waves. How do we turn waves into numbers?

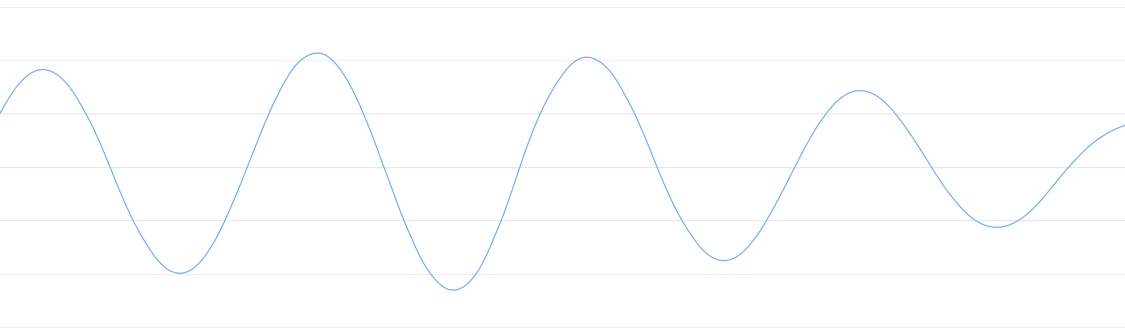

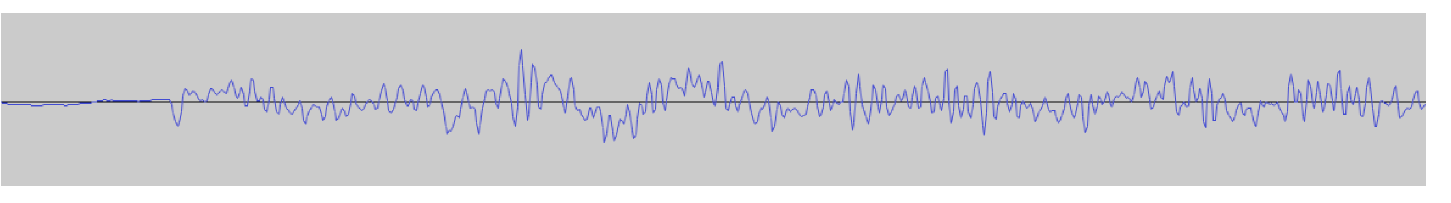

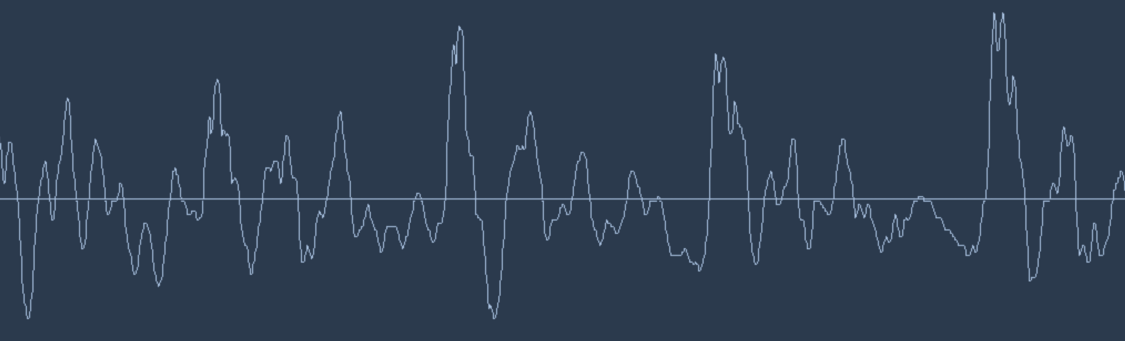

A wave form of "Hello"

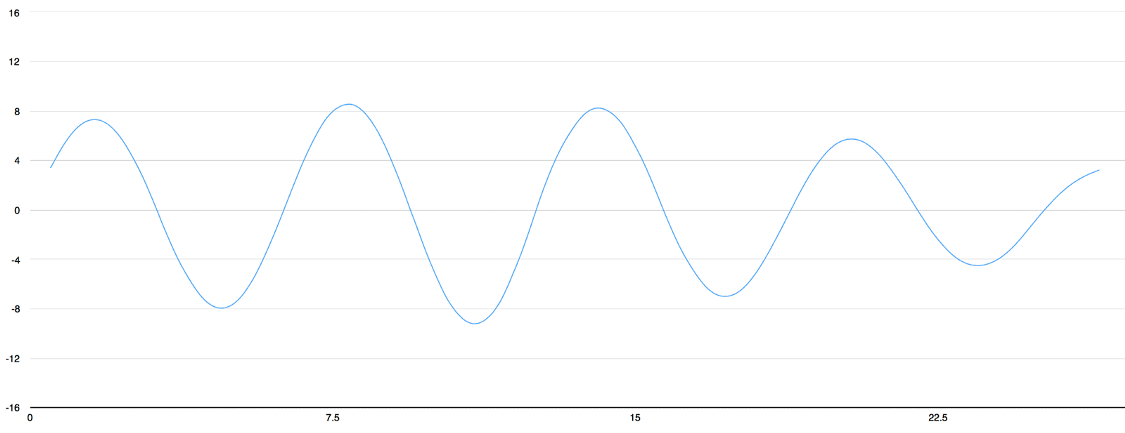

To turn this sound wave into numbers, we just record of the height of the wave at equally-spaced points:

Pre-processing

Two ways to start:

• Minimally pre-process (e.g simple spectogram)

• Train model from raw audio wave

• We will use this

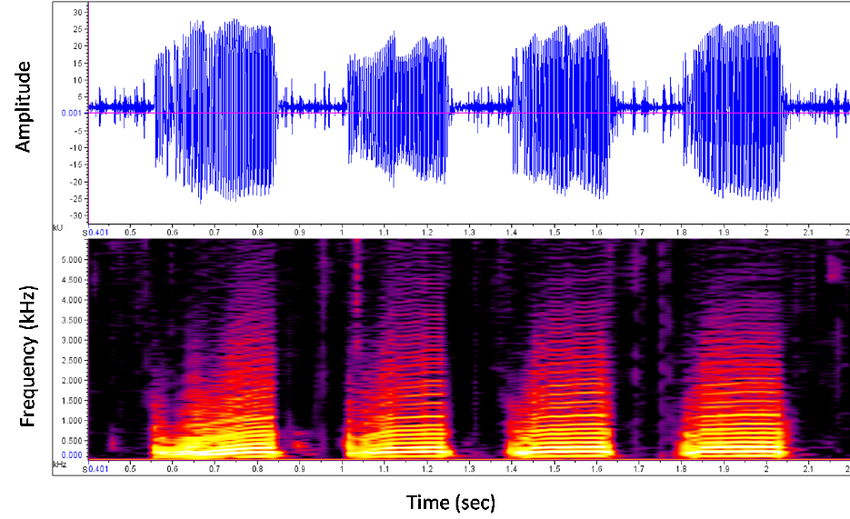

A spectrogram is a visual representation of the spectrum of frequencies of a signal as it varies with time

Fourier Transform

Breaks apart the complex sound wave into the simple sound waves that make it up. Once we have those individual sound waves, we add up how much energy is contained in each one.

The end result is a score of how important each frequency range is, from low pitch (i.e. bass notes) to high pitch

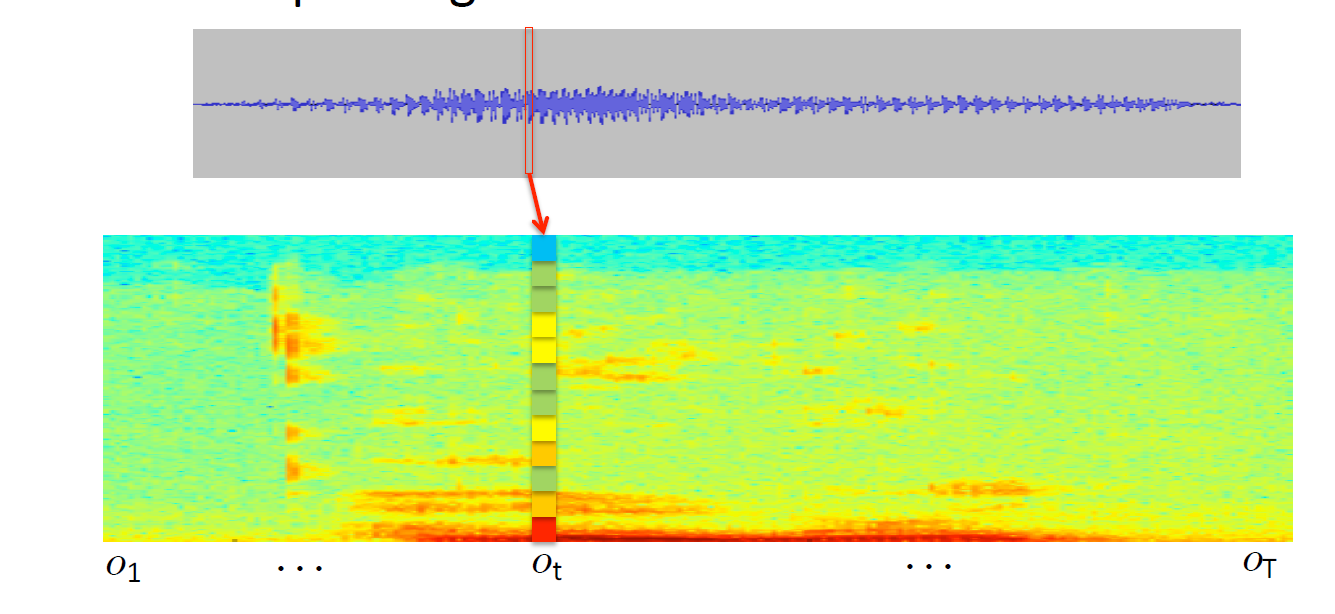

Spectogram

• Take a small window (e.g 20ms) of waveform
  • Compute FFT and take magnitude (ie Power)
  • Describes frequency content in local window

Concatenate frames from adjacent windows to form a "spectogram"

Acoustic models

• Goal: Create a neural network from which we can extract transcription, y.
  • Train from labelled pairs (x, y*)

• Main Issue: length(x) != length(y)
  • We dont know how symbols in y map to frames of audio
  • Traditionally, try to bootstrap alignment (painful)

• Ways to resolve
  • Use attention, Sequence 2 Sequence models, etc [Chan et al. 2015, Bahdanu et al.2015)
  • Connectionist Temporal Classification (Graves et al 2016)

Applying techniques to Radio Surveillance

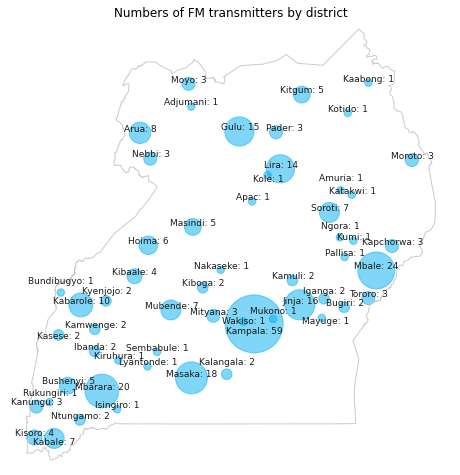

Over 300 radio stations are registered in Uganda.

In its 2015 third quarter report, the regulator, UCC

 revealed that 292 FM stations were operational

Goal:

To build an iterable Keyword spotting model for Automated Crop Disease and Pest Surveillance in Uganda from radio data

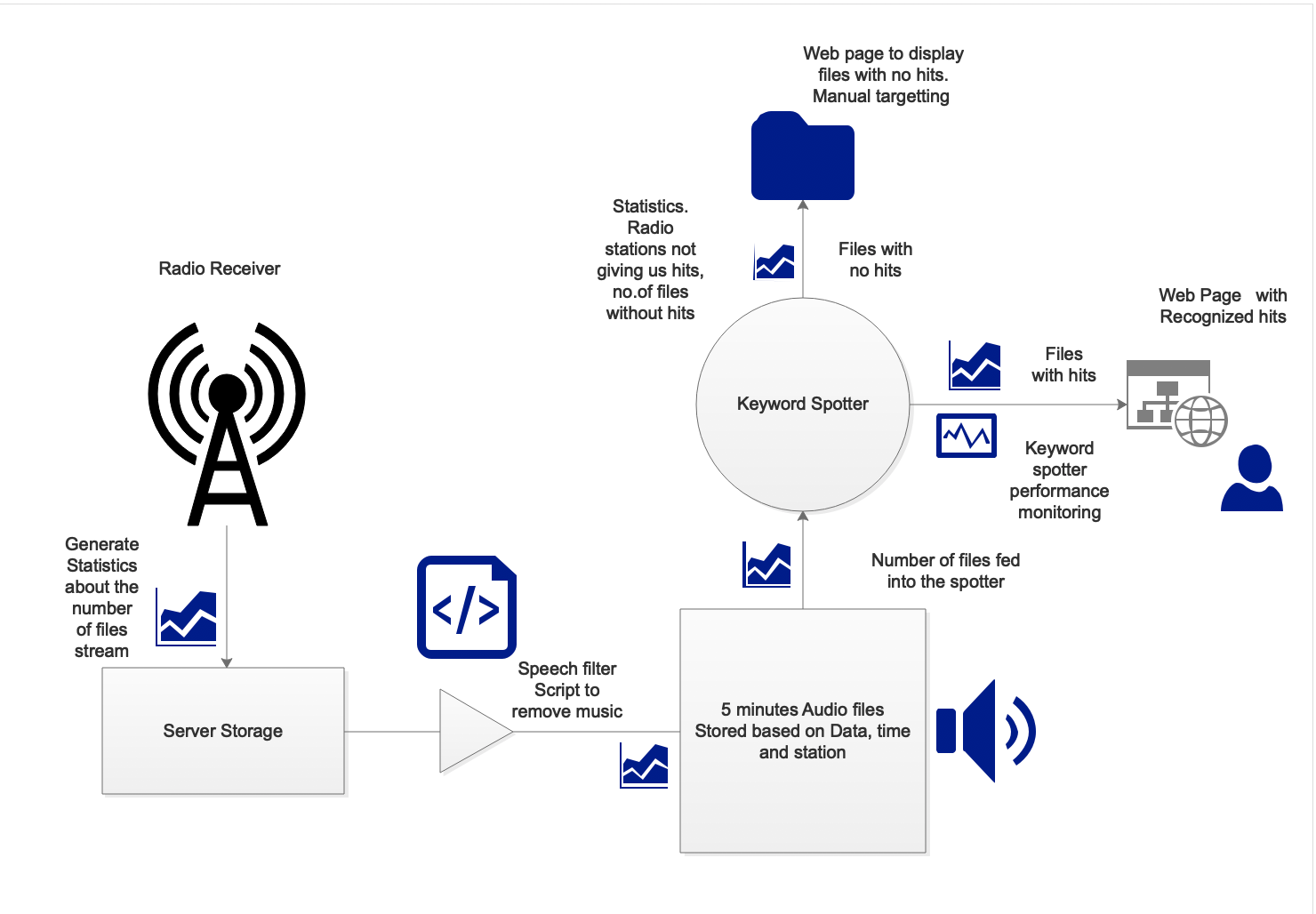

Pipeline

Dataset consists of keywords that occur often in Agricultural talkshows

Next step is to Obtain Audio waveforms of Each Keyword

If you'd like to Donate your voice:

https://rcrops.github.io

Conclusion

• A lot of ways we can use speech technology for local problems
• Data is key to speech, the technology is available
• Reading groups?

Thank you
