ThunderBolt
![](https://s3.amazonaws.com/media-p.slid.es/uploads/bhushansonawane/images/1237464/mac.jpg)
-
Developed by Intel with collaboration of Apple

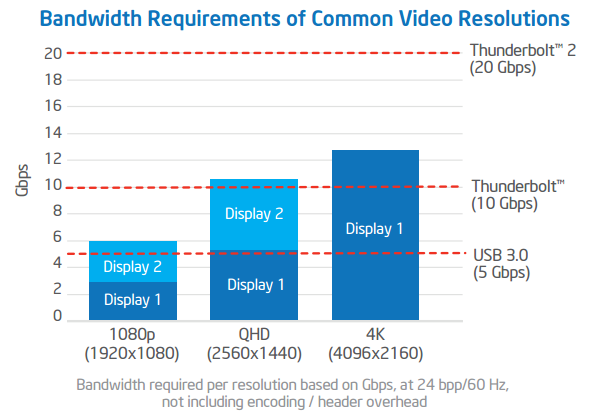

Why ThunderBolt?
-
Large data loads on set and in post production
-
4K Display
-
-
Massive data movement requirements
-
Data transfers for backup, sharing, and editing
-
![](https://s3.amazonaws.com/media-p.slid.es/uploads/bhushansonawane/images/1237483/4k.jpg)

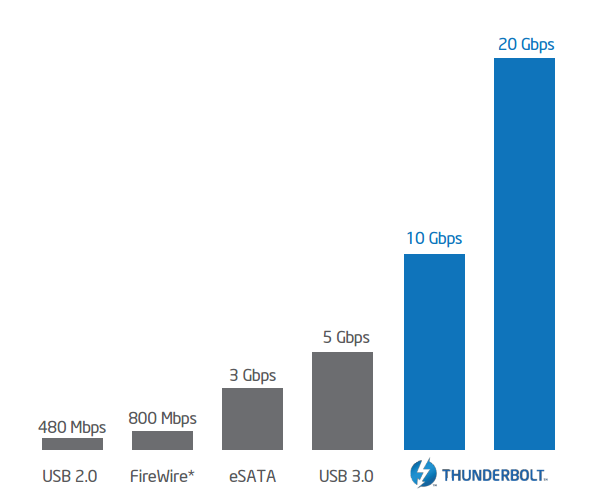

How fast is ThunderBolt?
Working
![](https://s3.amazonaws.com/media-p.slid.es/uploads/bhushansonawane/images/1237486/cable_hero.jpg)
one simple port and a cable that carries
DisplayPort
PCI Express data
![](https://s3.amazonaws.com/media-p.slid.es/uploads/bhushansonawane/images/1237487/thunderbolt_muxing_600px.png)
Working
![](https://s3.amazonaws.com/media-p.slid.es/uploads/bhushansonawane/images/1237935/Protocol.jpg)
Protocol Architecture
Protocol Architecture
-
Based on switched fabric architecture with full duplex link
Protocol Architecture
-
Full bandwidth of the link in both direction
-
Cables
-
Uses an active cable
-
boost the power of the signal
-
error checking of the incoming transmissions
-
-
Electrical
-
Connections upto 3 meters
-
Up to 10W of power deliverable to a bus-powered device
-
-
Optical
-
Longer Range
-
-
Electrical/ Optical Layer
Controller Architecture
![](https://s3.amazonaws.com/media-p.slid.es/uploads/bhushansonawane/images/1237963/Protocol.jpg)
Frame Format
![](https://s3.amazonaws.com/media-p.slid.es/uploads/bhushansonawane/images/1242744/4812820_orig.gif)

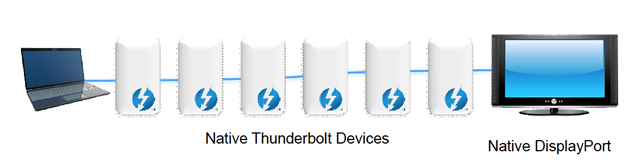

Works in Daisy Chain
-
Supports up to seven chained devices
-
Five devices and two Thunderbolt-based displays
-
Six devices and one Thunderbolt-based display
-
Six devices and one display via mini-DisplayPort adapter
-
Five devices, one Thunderbolt-based display, and one display via mini-DisplayPort adapter
Features Summary
-
10Gbps bi-directional, dual channel data transfer
-
Data & Video on single cable with Dual-protocol (PCI Express and DisplayPort)
-
Daisy chain up to six devices
-
Compatible with existing DisplayPort devices
-
Low latency with highly accurate time synchronization
-
Uses native PCIe and DisplayPort protocol software drivers
-
Power over cable for bus-powered devices (electrical cables only)
What Next?
ThunderBolt 2
![](https://s3.amazonaws.com/media-p.slid.es/uploads/bhushansonawane/images/1242758/Thunderbolt_2.jpg)
Vulnerability
DMA attacks
-
If users extend the PCI Express bus
-
Allows very low-level access to a computer system
-
-
System-bus devices usually have unlimited access to memory
-
Could be used to compromise security by performing DMA attacks
Option ROM attacks
-
When a system with Thunderbolt boots,
-
It loads and executes Option ROMs from attached devices.
-
Malware can begin execution before OS.
-
-
Unless The BIOS or UEFI firmware has some sort of Trusted Boot protection.
-
Such as
-
Enforcing signatures on Option ROMs
-
Whitelisted hashes for known good ROMs
-
What is ThunderBolt
By Bhushan Sonawane
