PyGPlates workshop

Deployment

with Docker image

docker pull brmather/pygplates-course
docker run --name pygplates -p 8888:8888 brmather/pygplates-course

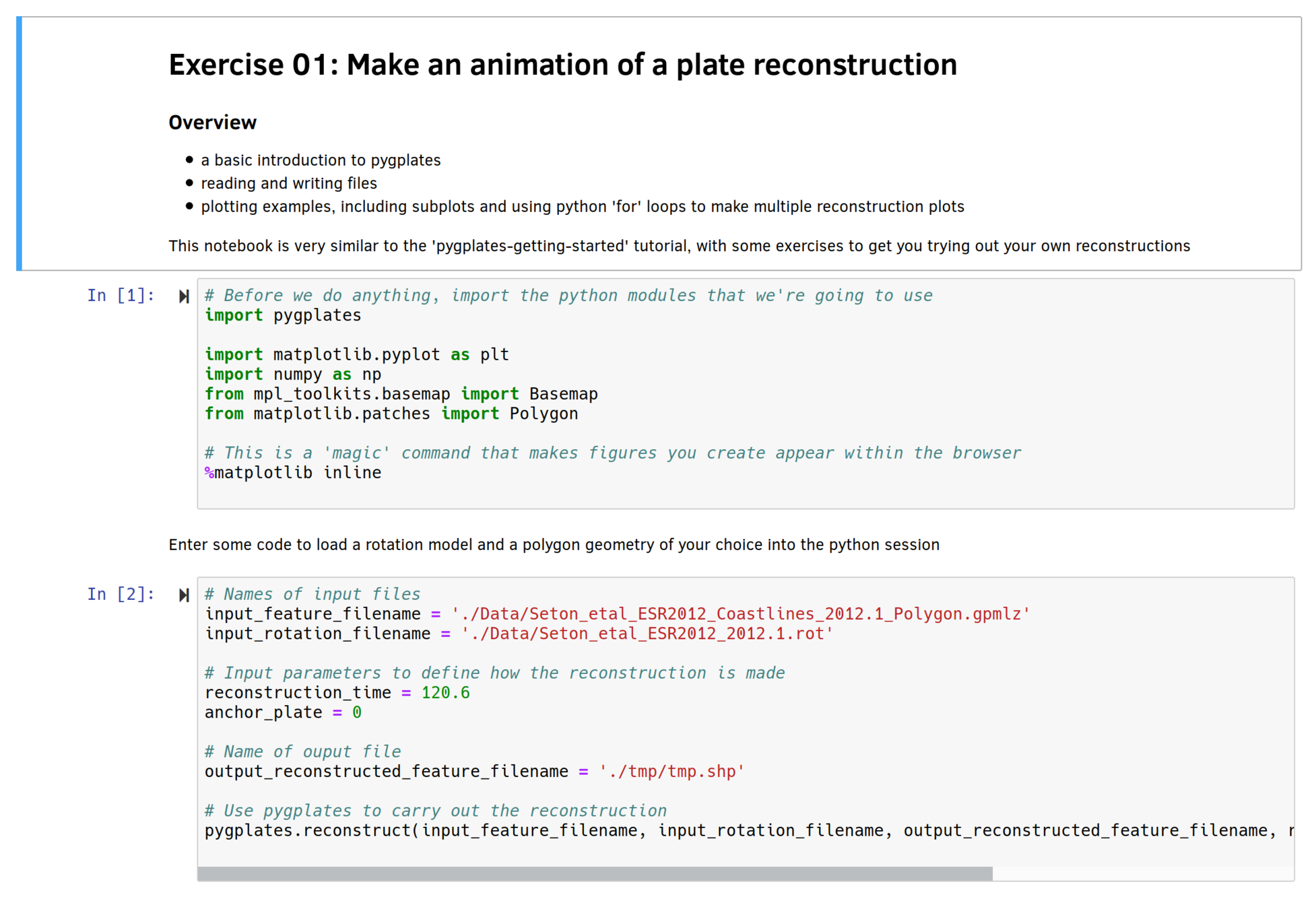

Example 1

  • Using rotation models
  • Accessing GPlates features

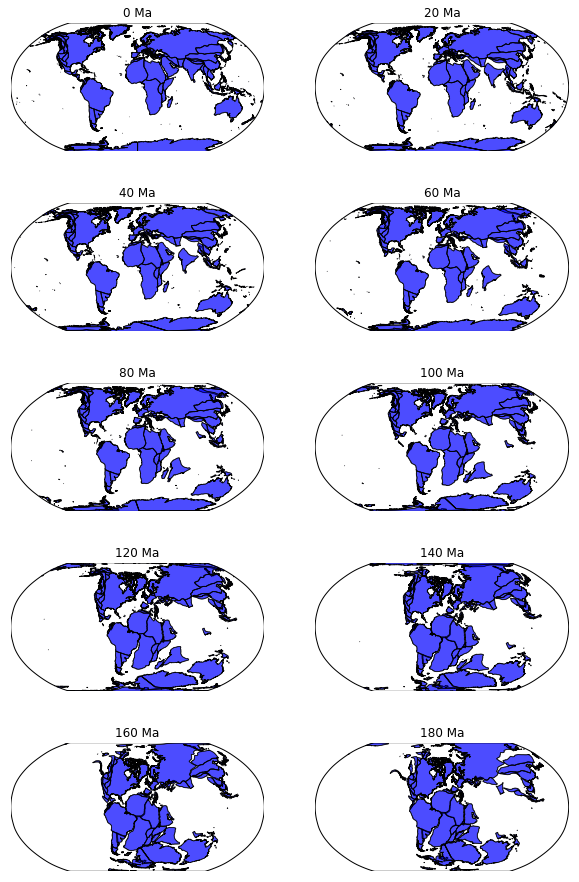

  • Reconstructing features back in time
  • Mapping with Basemap
# Names of input files
input_feature_filename = './Data/Seton_etal_ESR2012_Coastlines_2012.1_Polygon.gpmlz'
input_rotation_filename = './Data/Seton_etal_ESR2012_2012.1.rot'

# Input parameters to define how the reconstruction is made
reconstruction_time = 120.6
anchor_plate = 0

# Name of ouput file
output_reconstructed_feature_filename = './tmp/tmp.shp'

# Use pygplates to carry out the reconstruction
pygplates.reconstruct(input_feature_filename,
                      input_rotation_filename,
                      output_reconstructed_feature_filename,
                      reconstruction_time,
                      anchor_plate)

Code snippet for making a reconstruction

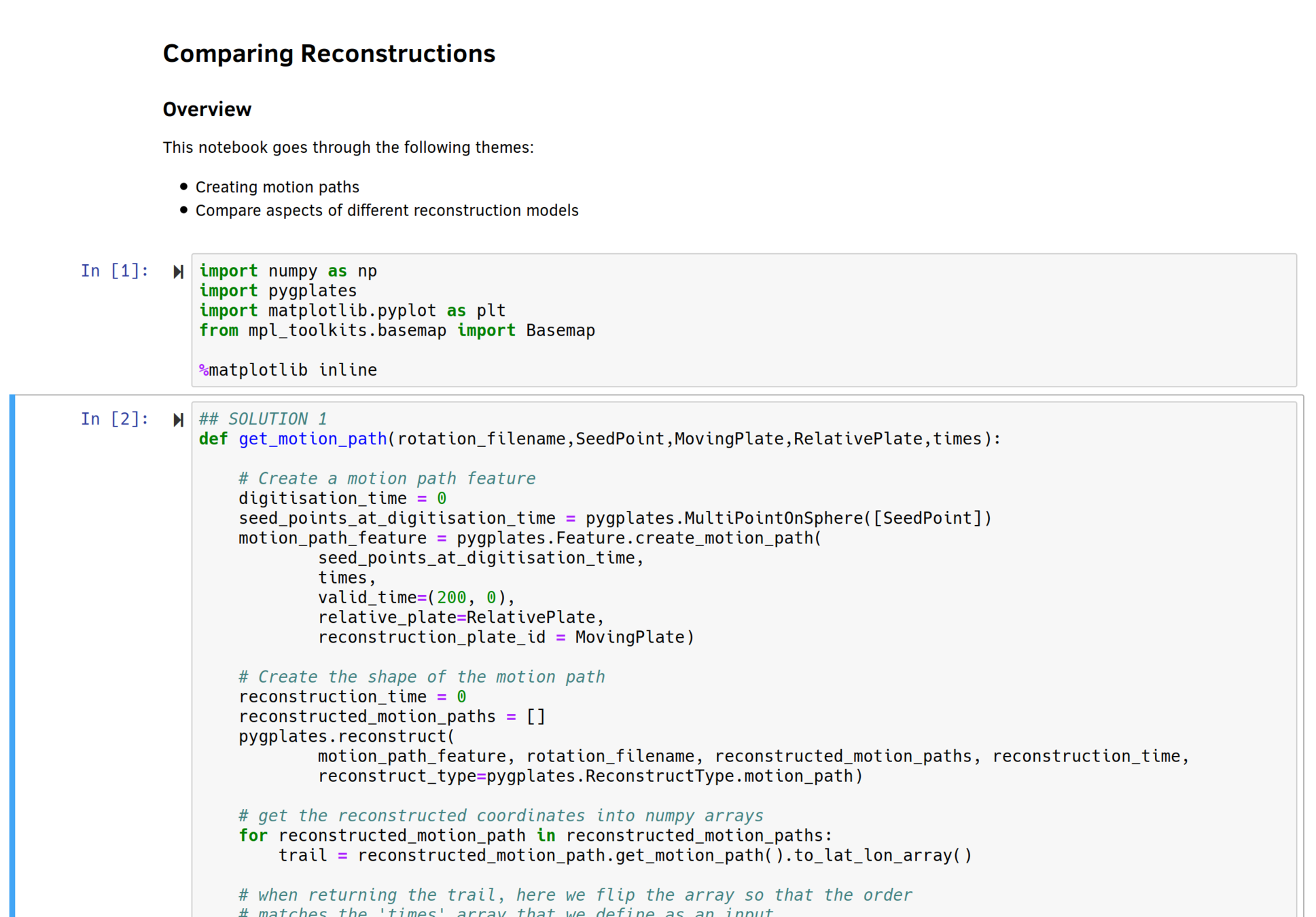

Example 2

  • Create motion paths
  • Compare rotation models
# Plot curves for three seed points on Africa
rotation_filename = 'Data/Seton_etal_ESR2012_2012.1.rot'
MovingPlate = 701
RelativePlate = 0
times = np.arange(0,130,10)

# get motion paths for three different points in Africa, at the same latitude but
# different longitudes
trail_1 = get_motion_path(rotation_filename,
                          (-20,0),
                          MovingPlate,
                          RelativePlate,
                          times)

Retrieving a motion path

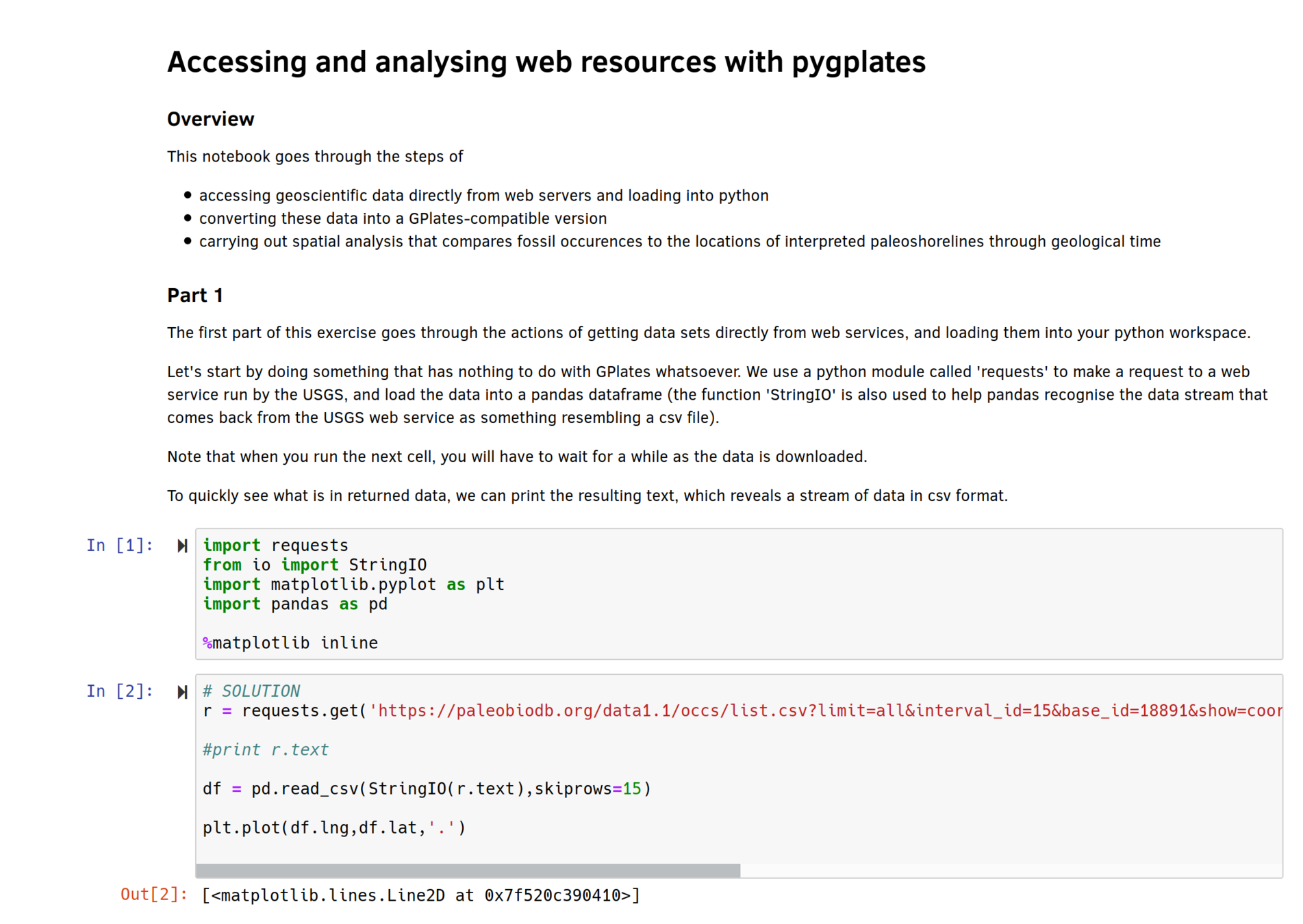

Example 3

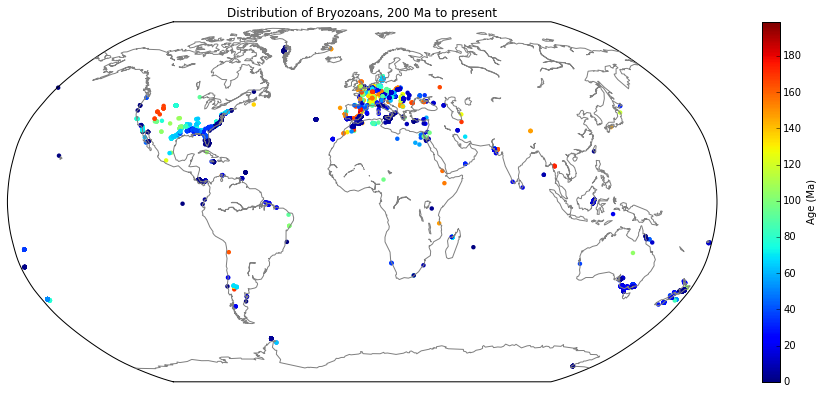

  • Downloading palaeodata
  • Filtering specific keywords
  • Export to GPlates feature
import pygplates

fossil_point_features = []
for index,row in df.iterrows():
    point = pygplates.PointOnSphere(float(row.lat),float(row.lng))
    point_feature = pygplates.Feature()
    point_feature.set_geometry(point)
    fossil_point_features.append(point_feature)

# Save a feature collection to file
# can be *.gpml, *.gmt or *.shp
output_feature_collection = pygplates.FeatureCollection(fossil_point_features)
output_feature_collection.write('my_fossils.gpml')

Exporting feature collections

Roadmap

  • Deforming plate margins
  • Move from Python2 to Python3
  • Replace Basemap (depreciated) with Cartopy
  • GitHub repository

BGH pyGPlates workshop

By Ben Mather

BGH pyGPlates workshop

13th February 2019

  • 120
