Making Immune Repertoire Sequence Analysis Accessible to Anyone via Galaxy

Brad Langhorst

New England Biolabs

Immunology in 30 seconds...

Immune challenge

Images: RSV: CDC/ Dr. Erskine Palmer -Public Health Image Library (PHIL), #276.

ebola: CDC/ Dr. Frederick A. Murphy - Public Health Image Library (PHIL),  #1833

cocksackie virus: Public Domain, wikimedia commons


Heavy Chain

Light Chain

Hypervariable regions

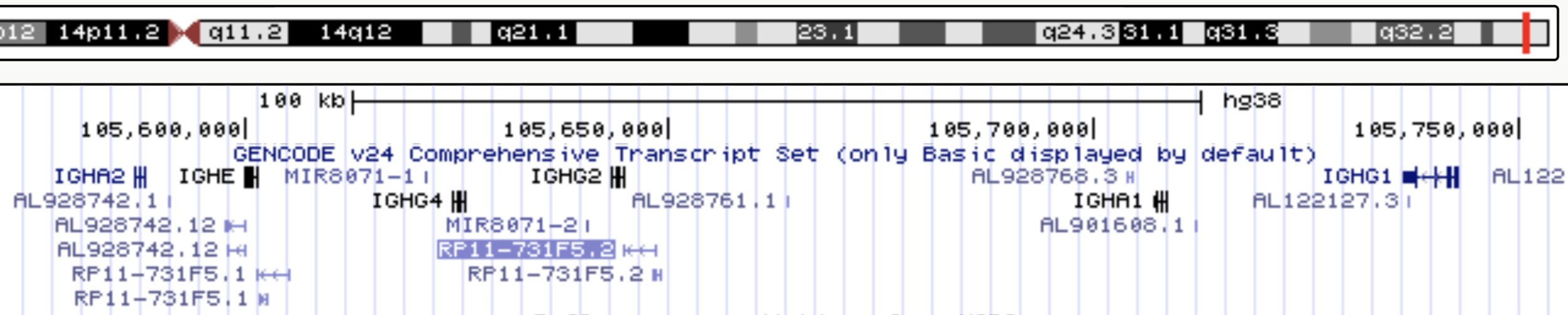

5 heavy chain (γ, δ, α, μ and ε)

2 light chain(κ, λ)

 each with 3 hypervariable regions

e.g. 44 V 27D 6J

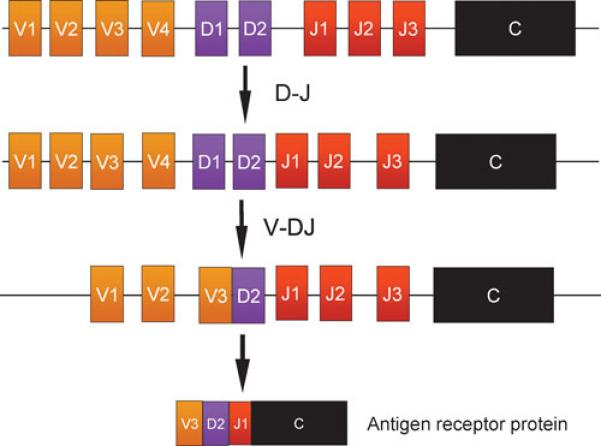

VDJ recombination

VDJ recombination + hypermutation = Tremendous Diversity


Residues interact with

target protein

Purpose of AbSeq: Identify these residues


  • Vaccine development
  • Viral response
  • Auto-immune disorders
  • Treatment selection
  • Cancer response
  • ...



Most NEBNext Products


  • Ultra II RNA
  • Ultra II DNA
  • Small RNA

standard adapter sequences, open source analysis methods

Innovative Enzymes,

Standard Analysis


Unique Method,

Complex Analysis

Customers may not be sequencing experts

Others in this space bundle analysis as a service

Abseq Workflow

300-500 bp

Data Analysis Challenges

  • Need to stitch reads to span variable regions (2x300)
  • Cannot align to reference DB, need to discover new
  • Significant amplification -> need UMIs
  • Customers should see details of analysis

pRESTO + Galaxy to the Rescue

Analysis steps

  • filter for full length reads
  • identify primers and UMI
  • build consensus from UMI clusters
  • stitch paired reads for single "long" read
  • tag C regions (identify isoforms)
  • generate QC report
  • MigMAP for annotation

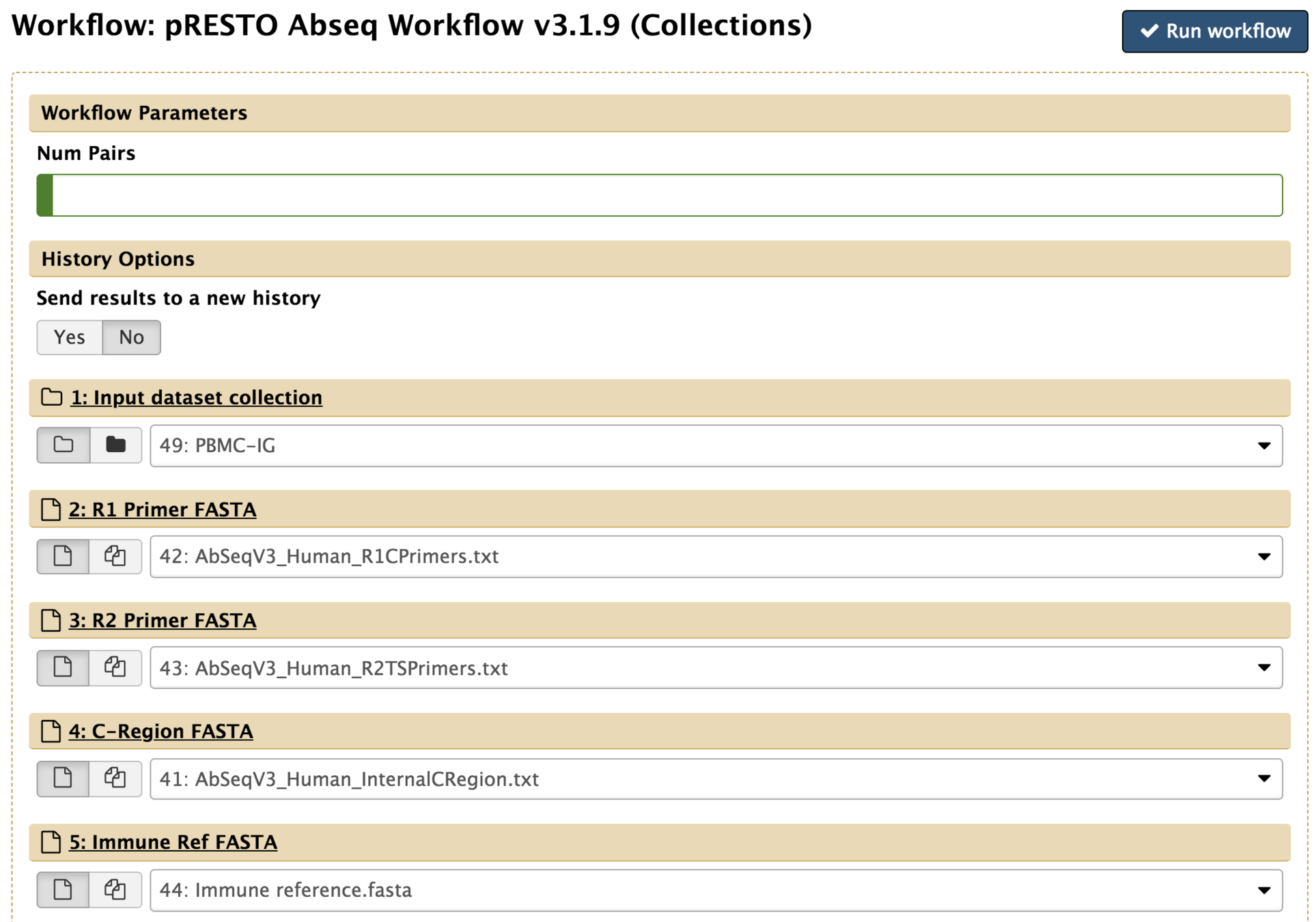

User interface

Example output: Reads

Example output: Isoforms

Example output: Clean seqs


Abseq Analysis

Initial analysis of immune system sequence data (T-cell and B-cell) is now far simpler thanks to Galaxy.

Tools are available now on


pRESTO team - modular tools

Anton, Dave B. - availablity at

Tim Fennel - bulk of wrapper work

Chen Song - method development

Abvitro - initial method development

I'm hiring soon...

Analysis of Immune Sequence Data in Galaxy

By Brad Langhorst

Analysis of Immune Sequence Data in Galaxy

We have made the pRESTO suite of tools available in Galaxy for use with the NEBNext AbSeq immune sequencing kit
