Introduction to APIs

Understanding how to leverage 3rd party API's in Amtelco environments

Presented by Patrick Labbett

What is an API?

Explaining why you should care.

API

Application Programming Interface

The term API can be used pretty generically for hardware and software technologies - any specification for how two systems interact would be an API.

middleware, adapter, bus, controller, interface, intermediate layer, middle-layer, router, SDK, API, specification, blueprints, instructions, parameters, schema, protocol

Everything is cake...

The T-Shirt Analogy

An API is a lot like a T-Shirt because...

  • You can get T-shirts from many places
  • T-shirts are made of different materials
  • There are different colors, styles, and  sizes

Despite all the different ways that T-shirts are made, there is a mutual understanding of what a T-shirt is: cloth or similar material to cover your chest, abdomen, arms, and/or back.



You can be reasonably sure that if you follow the size and material information, that you'll be able to wear the T-Shirt when it arrives. The same principle holds true for most APIs.

The Address Analogy

How to mail a letter:

  1. Write your address (street number and name)
  2. Write your city, the state, and the zip code.
  3. The zip code should be 5 characters (US non-specific)

These specifications are similar to how an API would be documented. The API provides information on who you are trying to reach. The Post Office knows what the format is that you wrote. They deliver your letter - and for the most part how they achieve that doesn't matter - as long as the letter gets where it's going on time.

What's under the hood?

API's hide complexity

Let's use the IS Web REST API and the Intelligent database as an example!

Problem: Clear old dispatch jobs

Intelligent Database



Delete the records from the dispatch table. They don't disappear until you restart IS service. Or do it manually by hand.

ISWeb REST API



Call the REST API to delete the jobs and remove them from the dispatch list.

Amtelco handles the logic of clearing the dispatch list cache when this method is called, something they can't do easily at the database level.

Types of APIs

"This is my API.

There are many like it, but this one is mine."

web, rest, SOAP, XML, JSON, webhooks, hl7, HTTP, graphql, and many, many more.

Our focus (the most popular you will run across):

HTTP Web-based RESTful APIs using JSON/XML

Let's go learn what this all means.

There's an app API for that.

https://github.com/public-apis/public-apis

https://apilist.fun/

https://rapidapi.com/blog/most-popular-api/

https://www.programmableweb.com/apis/directory

https://api.data.gov/list-of-apis/

https://any-api.com/

https://public-apis.xyz/





Always vet your sources.

HTTP, REST,

and CRUD

The language of the web

https://developer.mozilla.org/en-US/docs/Web/HTTP/Overview

What is HTTP?

Web-Browser

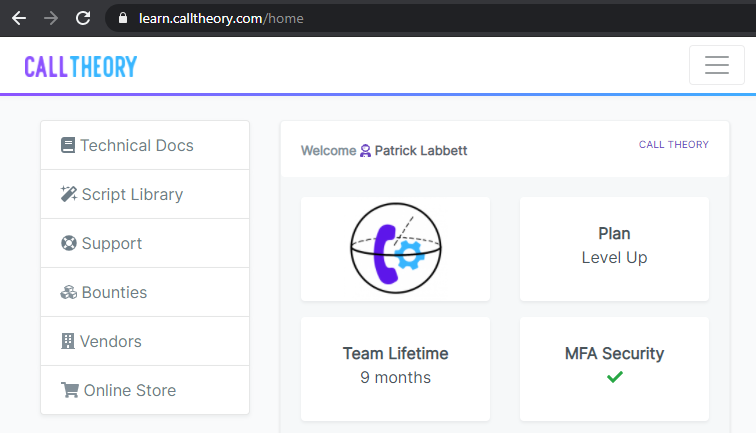

  • GET a web page like, callltheory.com
  • POST a contact form, like notifi.us/contact

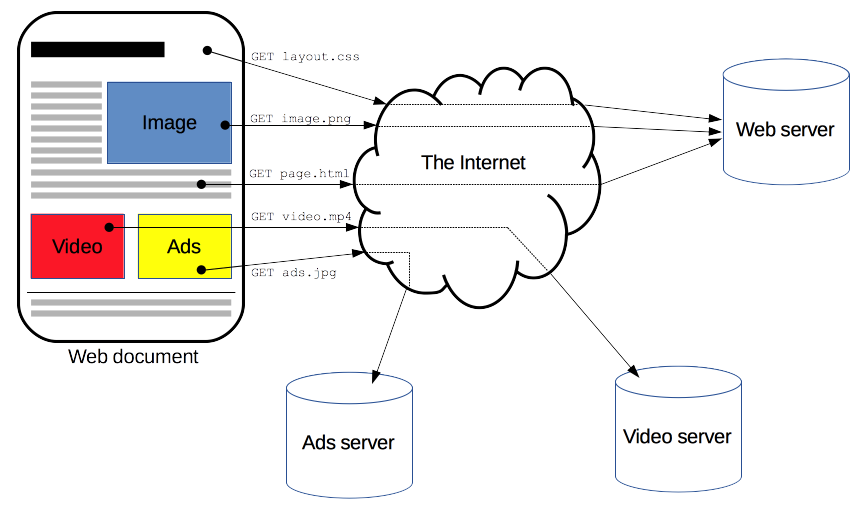

Web browsers implement the HTTP protocol (or, API) and requests web pages from servers across the internet.

You already know http.

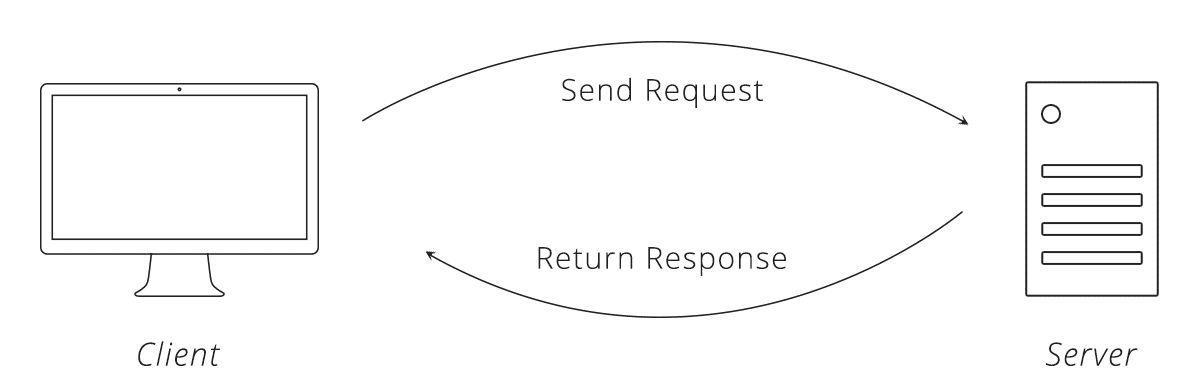

How it works:

https://zapier.com/learn/apis/chapter-2-protocols/

Your web browser sends a request for a website, like GET calltheory.com

The web server returns a response and status code to tell your browser the result.

An HTTP

GET request

Why HTTP?

  • Stateless
  • Cacheable
  • Availability

HTTP VERBS

  • GET
  • POST
  • PUT
  • DELETE
  • PATCH
  • HEAD
  • OPTIONS
  • TRACE

Retrieve resource

Create resource

Replace resource

Delete resource

Update or create resource

Same as GET, without body

Get communications options

A message loop-back test (out of scope)

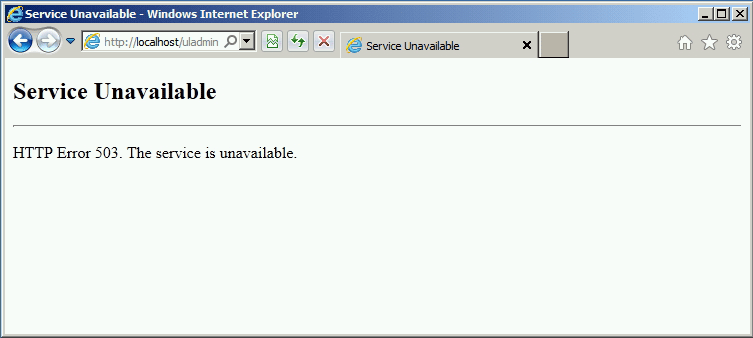

HTTP Status Codes

Responses to the browser's request

Status codes tell the browser if the request they sent was successful. In general, 2XX means things went okay, 4XX means you did something wrong, and 5XX means the server did something wrong.

Status Code Status Text Description
200 OK Everything is good

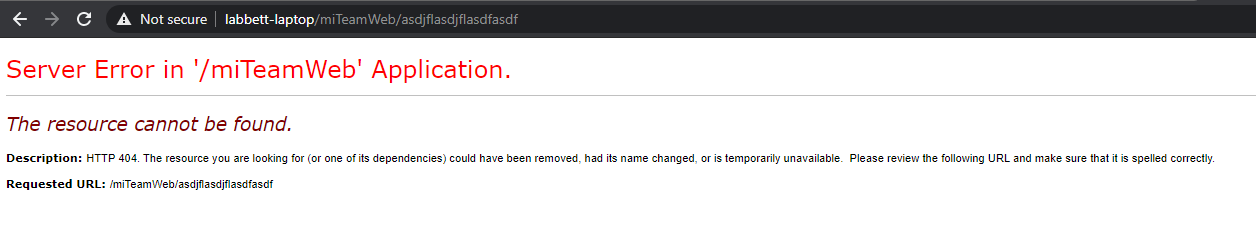

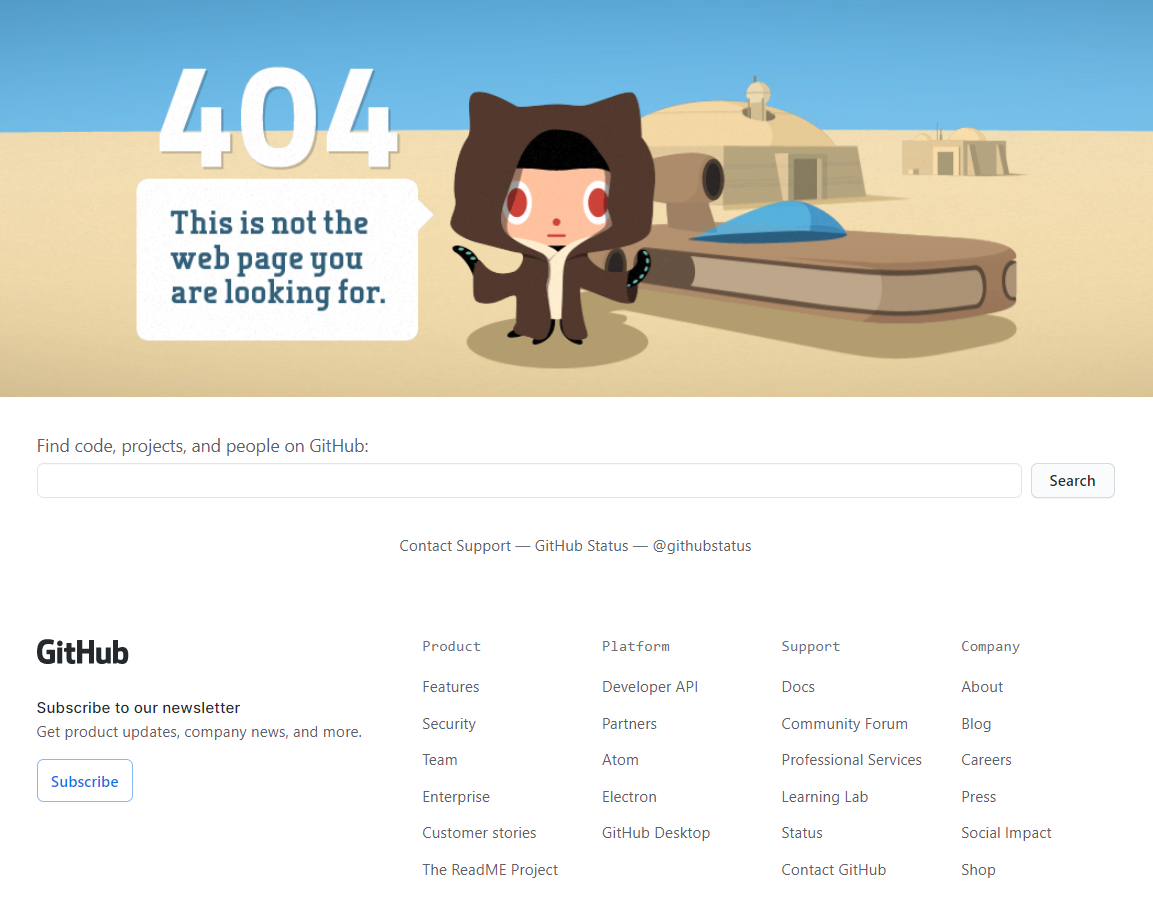

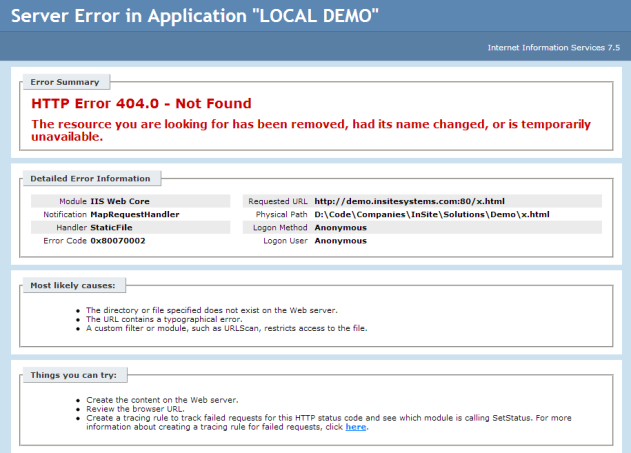

404 Not Found Page doesn't exist

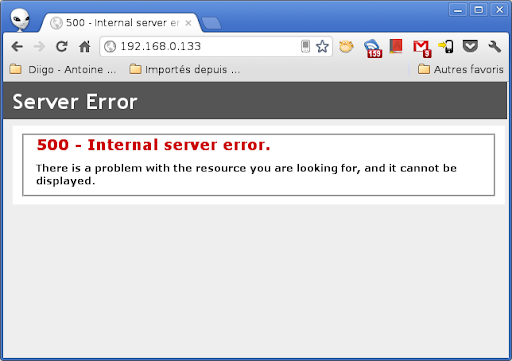

500 Internal Server Error Usually the application or server is broken or misconfigured.

https://developer.mozilla.org/en-US/docs/Web/HTTP/Status

What is REST and CRUD?

Abstraction of HTTP methods that applies to resources

REST (or RESTful, REST-like, etc.) APIs have:

  1. HTTP is the transport for the API request
  2. HTTP verbs (GET, POST, etc.) map to operations
  3. Use HTTP status codes to determine result(s)
HTTP Verb Operation
POST Create
GET Read
PUT/PATCH Update
DELETE Delete

Application

Specific Example

CREATE

READ

UPDATE

DELETE

Conceptual Example

Contact List

Endpoint Description
/contacts List of contacts
/contacts/123 Contact with ID 123
/contacts/123/notes Notes for contact with ID 123
/contacts/123/notes/567 Get note with ID 567 that belongs to contact 123

Conceptual Example

Contact List

Endpoint Description
POST /contacts Create a new contact
GET /contacts/123 Read contact 123
PUT /contacts/123 Update contact 123
DELETE /contacts/123 Delete contact 123

RECAP

Things you should remember

  • API is a generic description for software/hardware specifications
  • Web/REST API's build on HTTP (like normal web browsing) are the most popular public API type
  • HTTP API will send a request and receive a response that includes a Status Code

Request and Responses

Let's take a look at requests and responses more in depth.

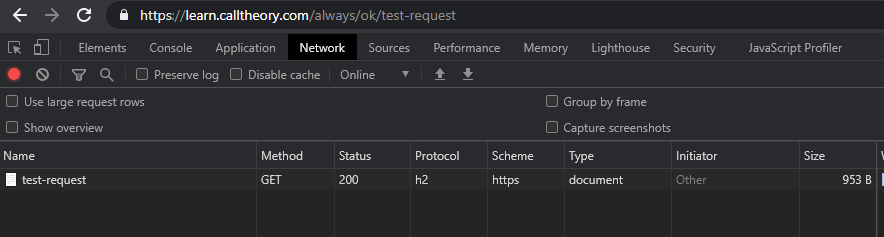

GET requests

Request URL: https://learn.calltheory.com/always/ok/test-request
Request Method: GET
Status Code: 200
Remote Address: 206.189.228.103:443
Referrer Policy: strict-origin-when-cross-origin

Request

GET response

What the server

responds with

access-control-allow-origin: *
cache-control: no-cache, private
content-encoding: gzip
content-type: application/json
date: Sun, 10 Jan 2021 21:36:14 GMT
server: nginx/1.15.8
vary: Accept-Encoding
x-content-type-options: nosniff
x-frame-options: SAMEORIGIN
x-xss-protection: 1; mode=block

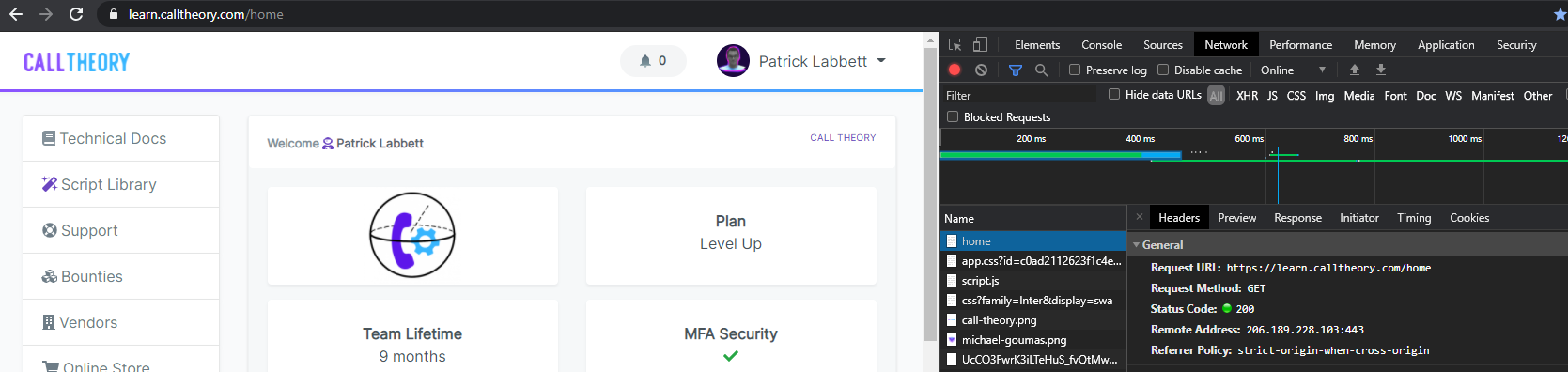

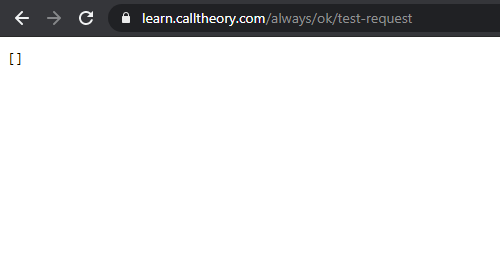

GET request (browser)

<!DOCTYPE html>
<html lang="en">
<head>
    <!-- Meta Information -->
    <meta charset="utf-8">
    <meta name="csrf-token" content="ti3Bj2NzvpqyLYxechHKyot2uka9mEmNNPjUjkuO">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <meta name="theme-color" content="#8c52ff" />

    <title>Call Theory</title>
</head>
<body>

   <!-- Website goes here -->

</body>
</html>
cache-control: no-cache, private
content-encoding: gzip
content-type: text/html; charset=UTF-8
date: Sun, 10 Jan 2021 23:36:57 GMT
server: nginx/1.15.8
vary: Accept-Encoding
x-content-type-options: nosniff
x-frame-options: SAMEORIGIN
x-xss-protec

Response Header

Response Body

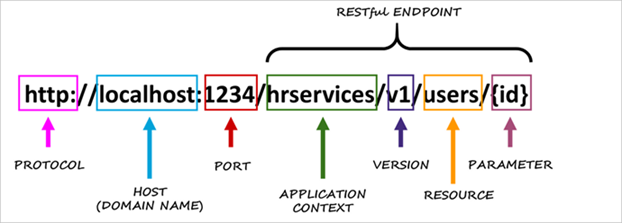

Anatomy of an HTTP API Request/Response

http://apps.lansa.com/LearnLANSARESTAPI/index.html#!Documents/urlanatomy.htm

http://localhost:1234/hrservices/v1/users?id=1

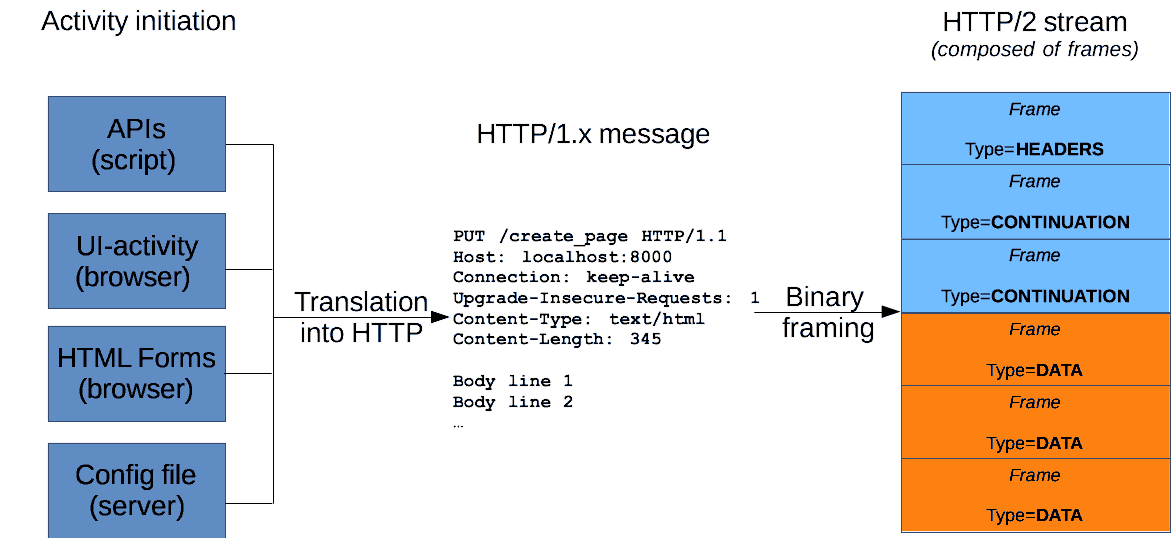

More anatomy

https://developer.mozilla.org/en-US/docs/Web/HTTP/Messages

Response Content

{"menu": {
  "id": "file",
  "value": "File",
  "popup": {
    "menuitem": [
      {"value": "New", "onclick": "CreateNewDoc()"},
      {"value": "Open", "onclick": "OpenDoc()"},
      {"value": "Close", "onclick": "CloseDoc()"}
    ]
  }
}}
<menu id="file" value="File">
  <popup>
    <menuitem value="New" onclick="CreateNewDoc()" />
    <menuitem value="Open" onclick="OpenDoc()" />
    <menuitem value="Close" onclick="CloseDoc()" />
  </popup>
</menu>

JSON response

XML response

Wrap Up

A quick recap

  • Web/REST APIs are the most common
  • They use HTTP like a web-browser
  • They strip out all of the "pretty-factor"
  • And communicate based on a set of specifications agreed to by client/server
  • The most common are GET and POST
  • You can send parameters and data using them
  • The web is everywhere

API Workflow

  1. Read the docs
  2. Compose the request
  3. Handle the response
  4. Test the integration
  5. Go to step 1.

(Sorry, no cool mnemonic)

Popular APIs will great documentation.

Useful Tools

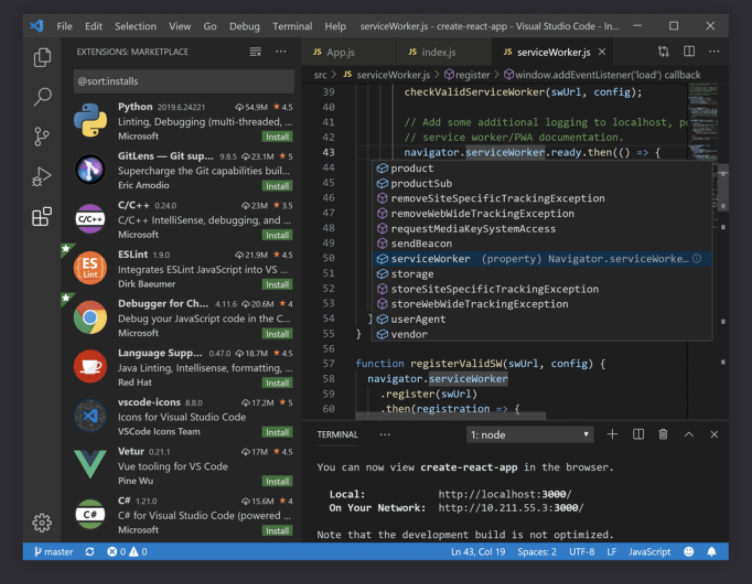

https://code.visualstudio.com/

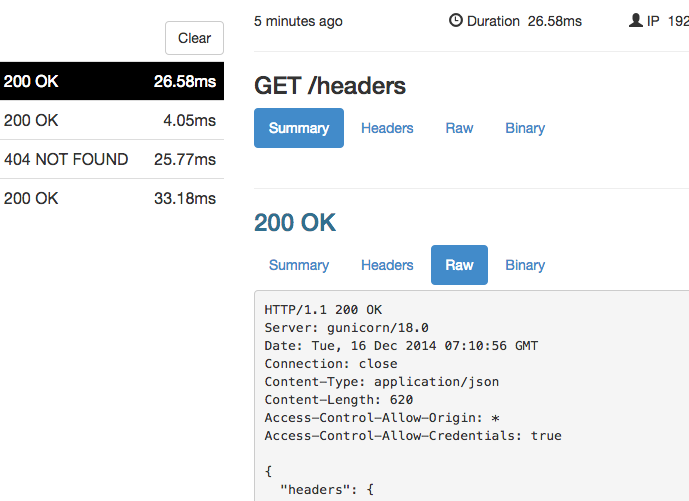

https://ngrok.com/

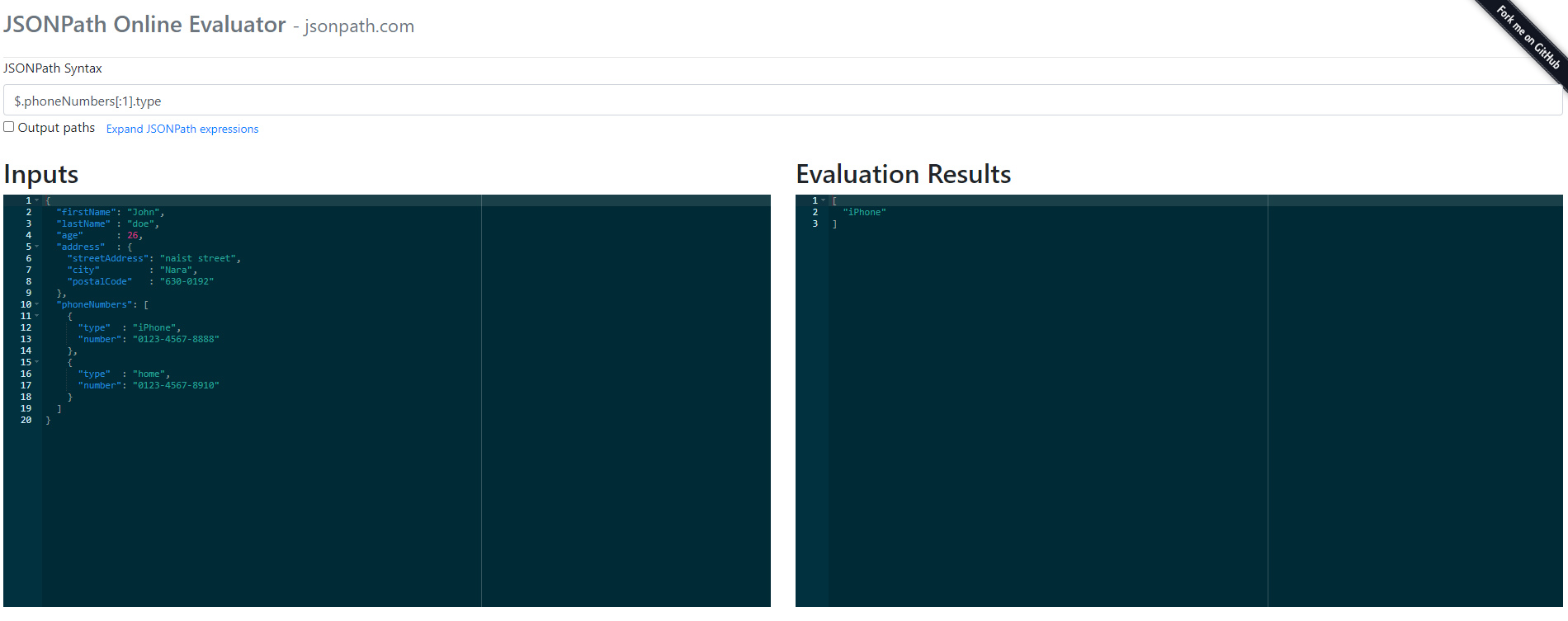

https://jsonpath.com/

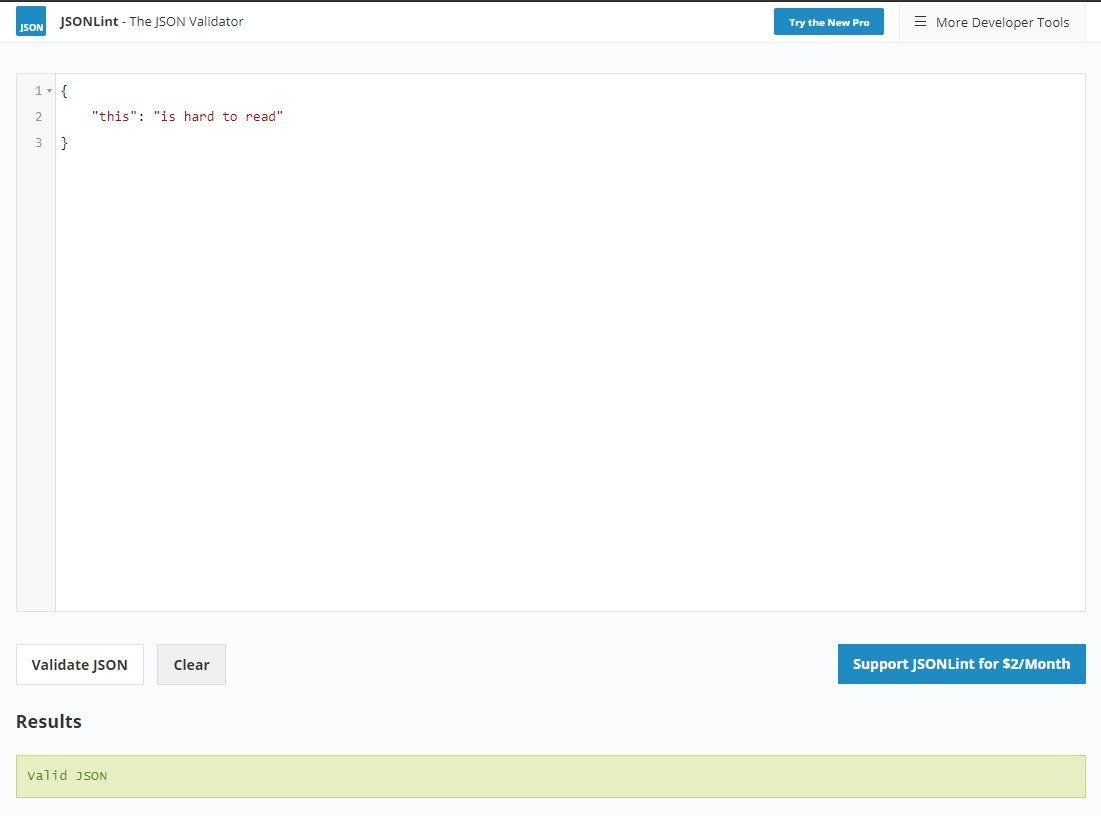

https://jsonlint.com/

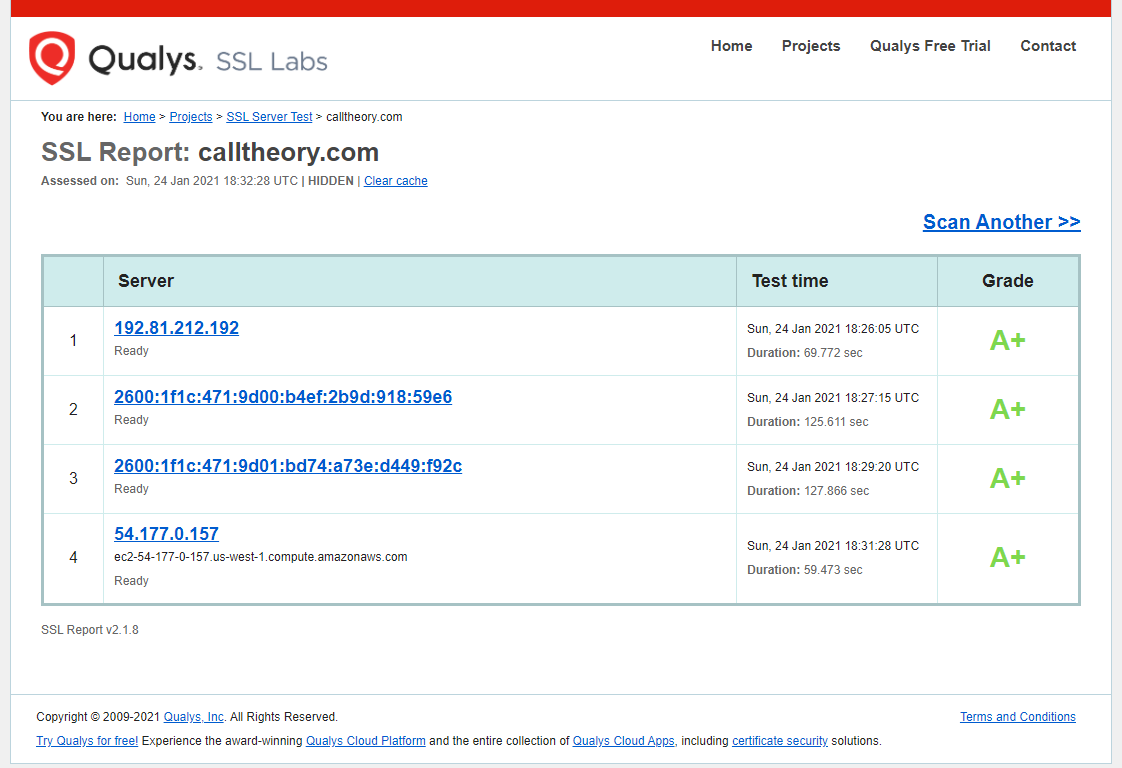

https://www.ssllabs.com/ssltest

Join

#workshop

and ask questions!
