I am telling you 3 things about Chatbot

(so you don't have to learn it the hard way)

Cheuk Ting Ho

@cheukting_ho

Cheukting

About me

Co-organizer of

Open Source contribution

Creator of

Volenteer of

Chatbot?

What is a chatbot?

A computer program designed to simulate conversation with human users, especially over the Internet. - Oxford Dictionaries

What is Turing test?

A person talks to both the person and the computer. The goal is to find out who his interlocutor is — a person or a machine.

Chatbot in business



  • Find out the weather 
    What’s the weather today?
  • Find your way home
    Navigate home.
  • Ask Google questions
    How many kilometres in a mile?
  • Play music 
    Play some Jazz music.
  • Ask for a joke
    Tell me a joke.

Chatbot in business

  • Answer questions about what is around you

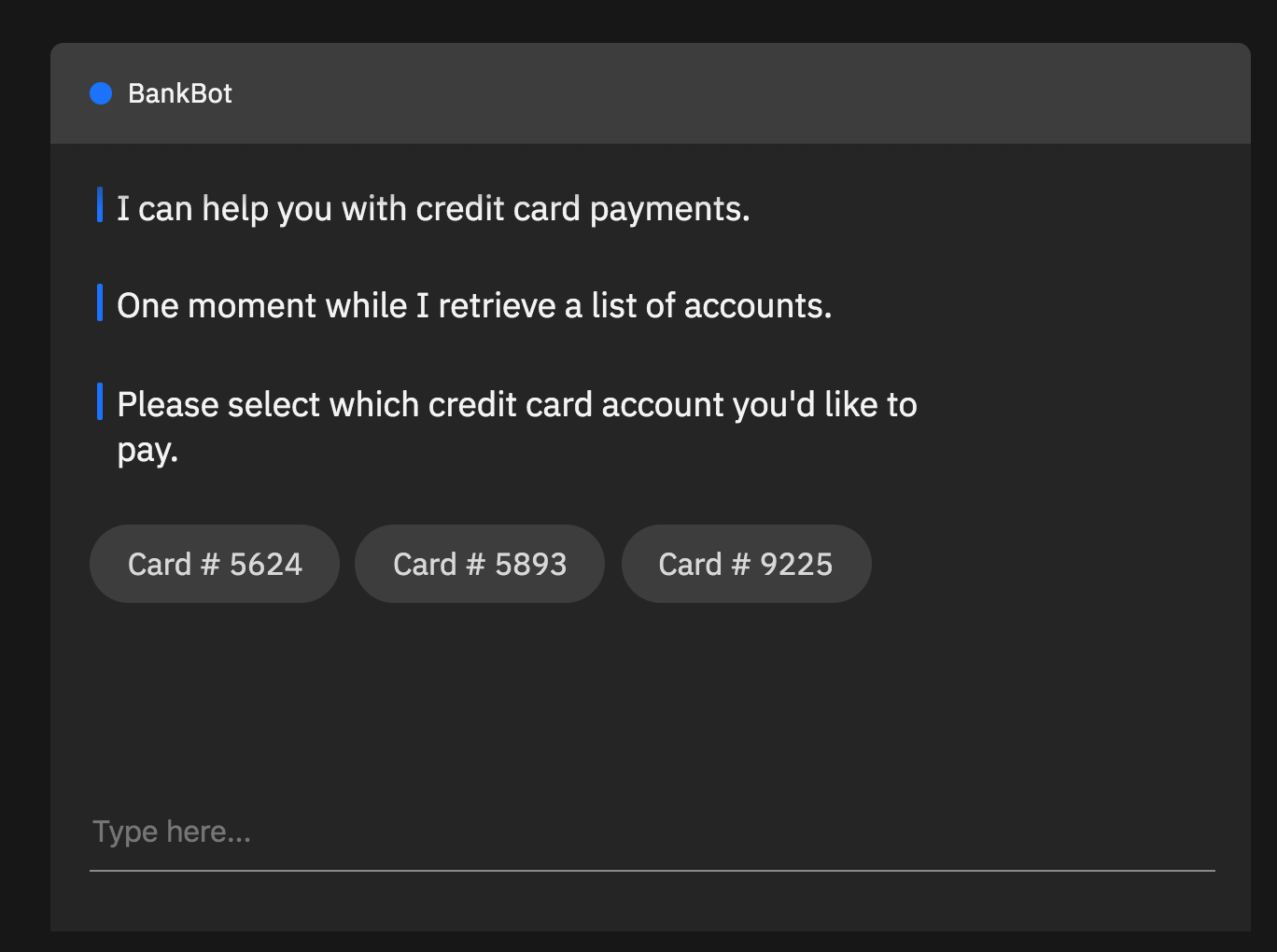

  • Transferring money

  • Censorship — Avoids saying certain sensitive words

Chatbot in business

  • Healthcare — Symptom Checker Chatbot.

  • Provide relevant health and triage information based on symptoms;

  • However, the reliability has been challenged.

Chatbot in business

  • Rita — Revolut’s Intelligent Troubleshooting Assistant

  • For customer support

  • However, I prefer a real person

1. main components of a chatbot

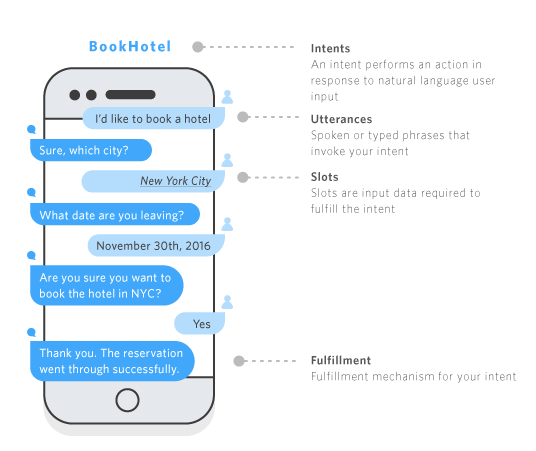

4 Main components

  1. Natural language processing
    - Understanding of the user's message
    - Identifying intents and entities


  2. Dialog manager
    - Control the flow of the conversation

  3. Content
    - Scripts of what the chatbot's going to say

  4. Custom integrations / external data
    - Extra functions: e.g. sending data to DB, prompting external informations to users, sentiment analysis

Machine

Learning

App Development

Data Engineering

It's a team work to build chatbot

...from scratch

Luckily we have tools available

2. what a chatbot can and cannot do

1. Trying too hard

for passing the Turing test

Trying too hard to pass the Turing test

  • Pretend to be human
    - User feels that they are fooled

  • Handel too many things
    - User feels frustrated

  • End up passing back the conversation to a human to handle

  • Better be clear that user is chatting to a bot

2. Lack of clear dialog flow

Lack of Clear dialog flow

  • The best commercial bots will try to redirect conversation back to the planed dialog flow
    - aim to collect certain information form user

  • Handle one thing at a time

  • Minimize chitchat
    - which is not the chatbot's purpose and strength

  • User learn how to communicate with the bot

3. Not smart enough

Not Smart Enough

  • Not enough training data
    - Bad NLU model

  • Not enough content diversity
    - Not content generative model
    - Conversation feels dull

  • Avoid decision-tree types of bots
    - User rather fill in a form

Good Examples

Good Examples

  • Good NLP capability
    - multiple entirety extraction
    - adding event in iCalander
    - content extraction in Gmail

  • Tell users that they are chatting to an assistant (bot, not human)

  • Be clear what is wanted form the user

  • Fail gracefully
    - Redirect conversation vs asking for repeat

3. which one to choose

Rasa

  • Open Source

  • Community support

  • Fully customisation
    - pipeline, model, functionality

  • Own deployment

  • Enterprise version available

Watson

  • IBM

  • Slack community

  • SDK for building with Watson API

  • Free version: 10,000 free API calls a month

  • Different pricing for different plans

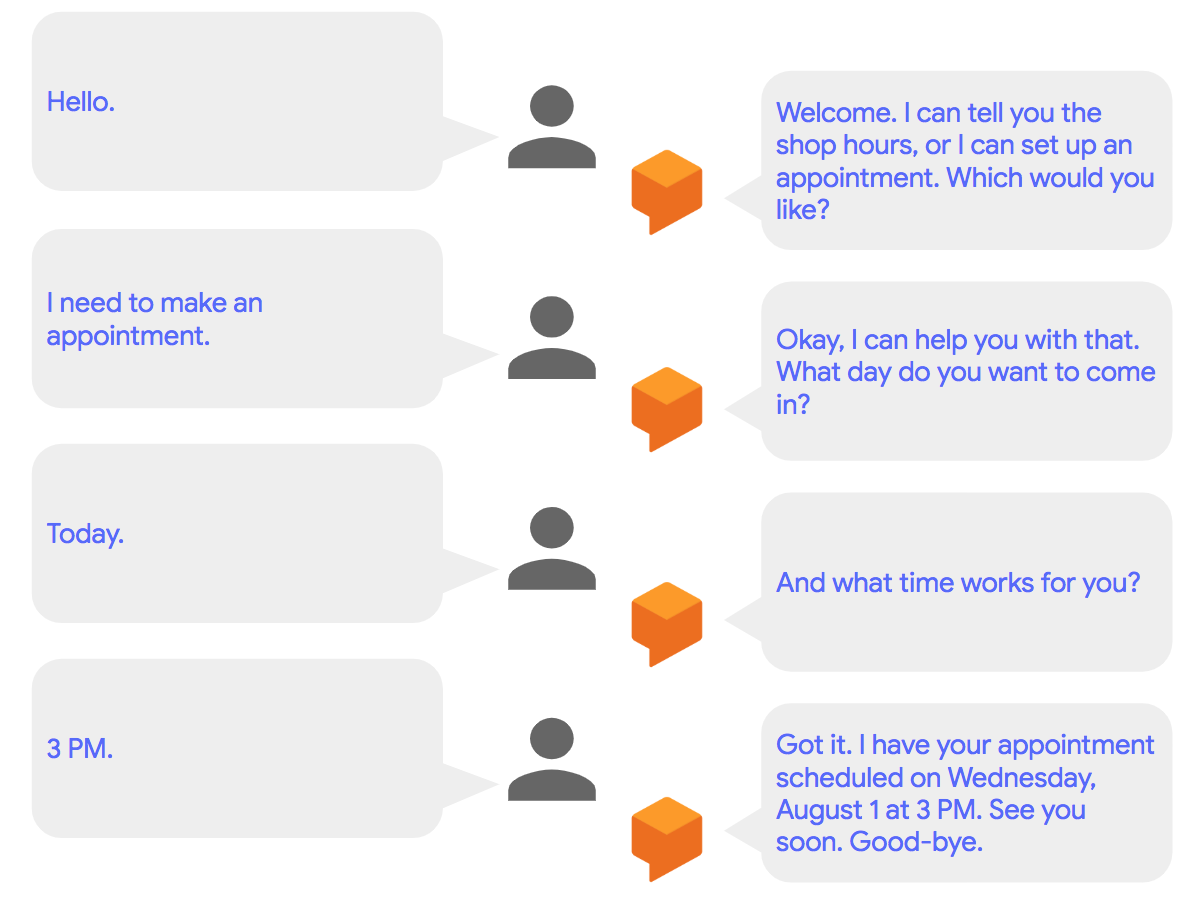

Dialogflow

  • Google

  • Dialogflow Google Group

  • SDK and code example available on GitHub

  • Free Standard Edition

  • Pay as you go Enterprise Edition

Lex

  • Amazon Web Service

  • Amazon Lex forums

  • SDKs: Java, JavaScript, Python, CLI, .NET, Ruby on Rails, PHP, Go, and CPP

  • Limited usage via AWS Free Tier

  • Or pay only for what you use

Comparison

Documentation Configuration Testing
Rasa 😀😀😀😀 😀 😀😀
Watson 😀😀😀 😀😀😀😀😀 😀😀😀😀
Dialogflow 😀😀😀😀😀 😀😀😀 😀😀😀😀
Lex 😀 😀😀😀 😀😀😀😀

Comparison

Flexibility Difficulty Price
Rasa 😀😀😀😀😀 😀 😀😀😀😀😀
Watson 😀😀 😀😀😀😀 😀😀
Dialogflow 😀😀 😀😀😀😀 😀😀
Lex 😀😀 😀😀😀 😀😀

My 2 cents

  • What is the purpose of your chatbot?

  • What resources do you have?

  • How you gonna deploy it?

  • What skill level do you have?

  • How much time do you want to invest in it?

Start building a chatbot !!!

@cheukting_ho

Cheukting

I am telling you 3 things about Chatbot

By Cheuk Ting Ho

I am telling you 3 things about Chatbot

Chatbot is cool! Now we can talk to our gadgets as if it’s a real human, right? It also makes you wonder when you chat with the “customer service” online, is that a real person or a robot on the other side? My boss wanted me to build a chatbot, and here’s 3 things that I discovered.
