Linear invariants of tensors

Chris Liu

Colorado State University

July 2025

Tensors are multilinear maps

$ T $ is $ (a \times b \times c) $ grid of numbers

A multilinear interpretation: \[ \langle T \mid - \rangle: K^a \times K^b \times K^c \rightarrowtail K \] where

\[\left\langle T \; \left|\; e_i, e_j, e_k \right.\right\rangle = T_{ijk}\]

Another possible interpretation: $ [T \mid -]: K^a \times K^b \rightarrowtail K^c $, where $ [T \mid e_i,e_j] = \sum_k T_{ijk} e_k $

Example 1: Multiplication

Let $ A $ be a $K$-vector space with bilinear multiplication $ \mu: A \times A \rightarrowtail A $ (a $K$-algebra)

For ordered basis $ (e_1,\ldots, e_n )$ of $A$, coordinatize $\mu$ by a $ (n \times n \times n) $ grid of numbers $T$ satisfying $ \mu(e_i,e_j) = \sum_k T_{ijk}e_k $.

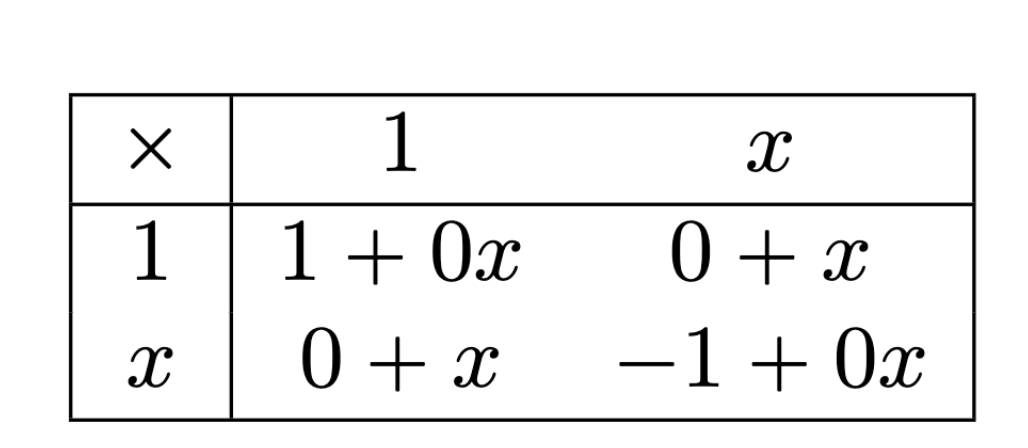

For instance, $A = K[x]/(x^2+1) $, in the basis $ \{1,x\} $

\[T_{\ast\ast 1} = \begin{bmatrix} 1 & \\ & -1\end{bmatrix}, T_{\ast\ast x} = \begin{bmatrix} & 1 \\ 1 & \end{bmatrix}\]

Example 2: Discord chat logs

$\text{Users}$ = $ \mathbb{R}^{\{\text{Alice}, \text{Bob}, \text{Charlie}, \ldots \}} $

$\text{Time}$ = $\mathbb{R}^{\{\text{Monday}, \text{Tuesday}, \ldots, \text{Sunday}\}} $

$\text{Words}$ = $ \mathbb{R}^{\{\text{Math}, \text{Sports}, \text{Movie}, \ldots\}} $

$ T $ is a grid storing number of occurences a user at a time used a word

$ \langle T |: \text{Users} \times \text{Time} \times \text{Words} \rightarrowtail \mathbb{R} $ can be data mined

Example: "weekend hockey group" cluster is a linear combination of Saturday, Sunday for the time axis and Chris & his hockey team in the "users" axis.

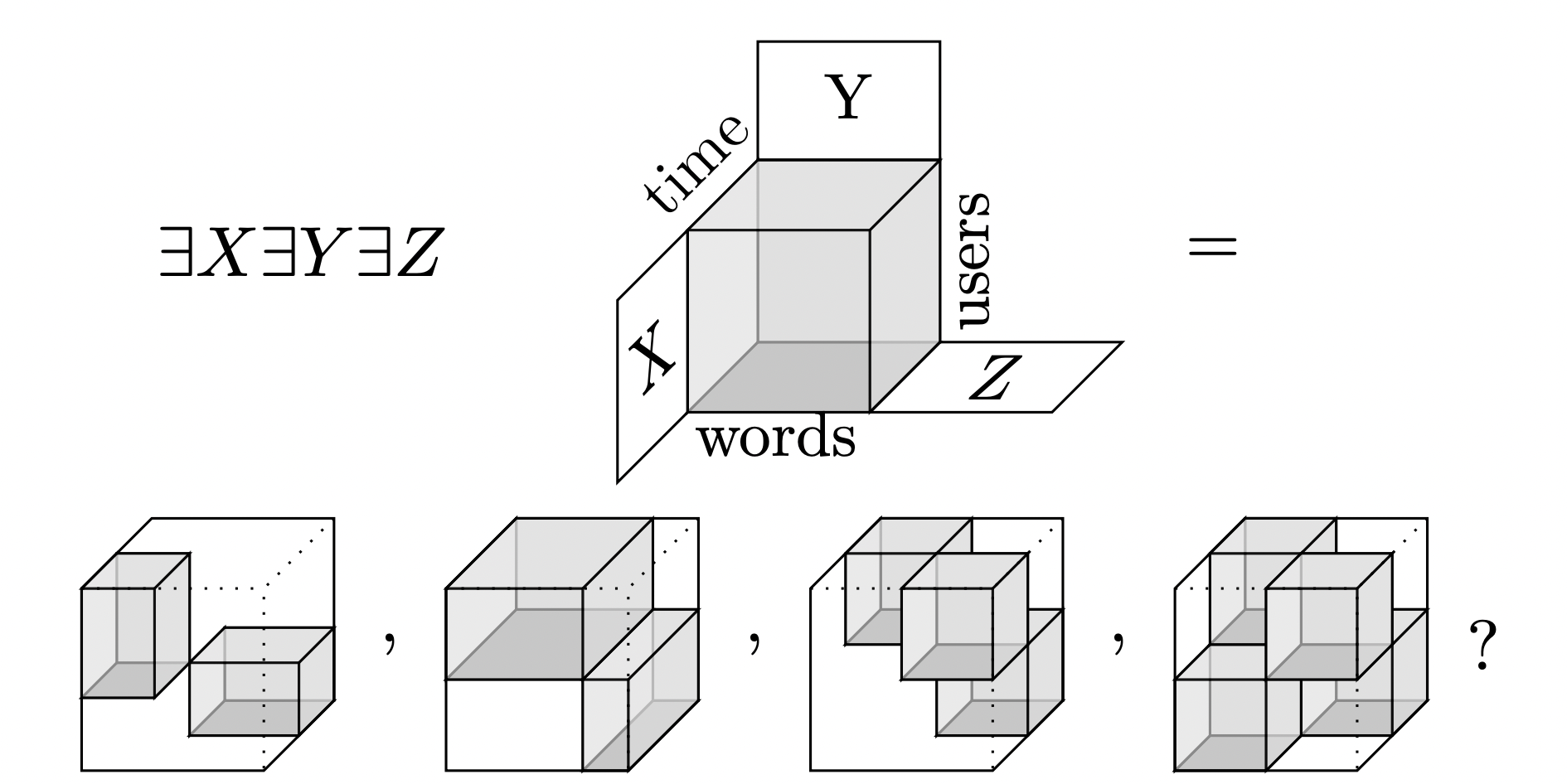

Cluster patterns of tensors from algebra

Source: Optimal Search Spaces for Tensor Problems, Figure 1.1

Myasnikov '90, Wilson '08 and others use the algebra, i.e

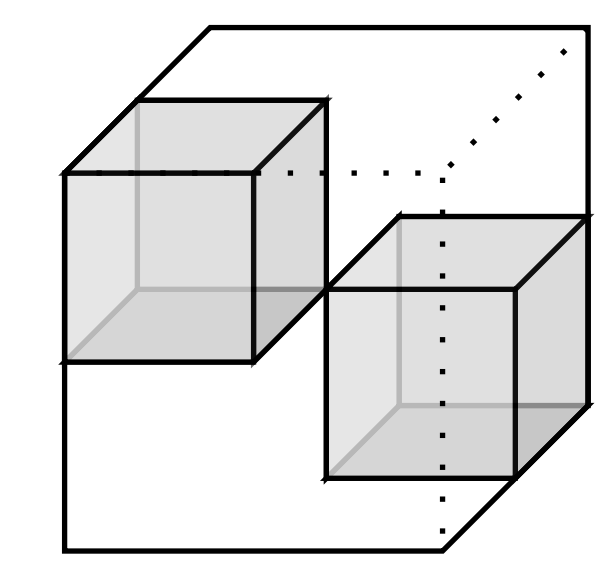

Adjoints detect face blocks

Theorem

Given $ *: U \times V \rightarrowtail W $

$$\operatorname{Adj}(*) = \{(X,Y) \mid (\forall u,v)Xu*v = u*Yv\}$$

Exists $\mathcal{E} = \{e_1,\ldots, e_n \} \subset \text{Adj}(*) $,

$ \sum_i e_i = 1$, and $e_ie_j = e_i $ if $ i = j $, otherwise $0$

if and only if

Exists $\perp$-decomposition, $U := \bigoplus_i U_i$ and $V := \bigoplus_i V_i $,

\[ U_i * V_j = 0, \text{ when } i \neq j \]

Has composition: $ (X,Y), (X',Y') \in \text{Adj}(*) $,

then $ (XX')u \ast v = X(X'u)*v = (X'u)*Yv = u*(Y'Y)v $

Is associative so a lot is known computationally

Example

t_1 = \begin{bmatrix} 978 & 724\\ 700 & 739 \end{bmatrix} \quad t_2 = \begin{bmatrix} 682 & 660 \\ 51 & 689 \end{bmatrix}, T = [t_1, t_2]

entries in $ \mathbb{F}_{997} $

\text{Adj}(t) = \langle (X,Y) \rangle \text{ where} \\ X = \begin{bmatrix} 0 & 1 \\ 481 & 930 \end{bmatrix} \qquad Y = \begin{bmatrix} 465 & 836\\ 648 & 465 \end{bmatrix}

M = \begin{bmatrix} 643 & 1\\ 421 & 1 \end{bmatrix} \quad N = \begin{bmatrix} 111 & 836 \\ 886 & 836 \end{bmatrix}

MXM^{-1} = \begin{bmatrix} 576 & 0 \\ 0 & 354 \end{bmatrix} \qquad NYN^{-1} = \begin{bmatrix} 576 & 0\\ 0 & 354 \end{bmatrix}

Adjoint equation of $ XT = TY $ implies $ MXM^{-1}(MTN^{-1}) = (MTN^{-1})NYN^{-1}$

"First row multipled by 576 is equal to first column multipled by 576"

implies

MTN^{-1} = \begin{bmatrix}* & 0 \\ 0 & *\end{bmatrix}

Diagonalize via

Centroids detect diagonal blocks

Given $ *: U \times V \rightarrowtail W $

$$\operatorname{Cen}(*) = \{(X,Y,Z) \mid (\forall u,v)Xu*v = u*Yv = Z(u*v) \}$$

Derivations detect surfaces

Source: Detecting cluster patterns in tensor data, Figure 3

Given $ *: U \times V \rightarrowtail W $

$$\operatorname{Der}(*) = \{(X,Y,Z) \mid (\forall u,v) \; Z(u*v) = Xu*v + u*Yv \}$$

Is commutative: $ (XX')u * v = X'u * Yv = Z(u*Yv) = Z(Xu*v) = (X'X)u*v $

Is Lie: $ XY-YX \in \text{Der}(s) $ too

Theorem (Brooksbank, Kassabov, Wilson '24)

For $ (u,v,w) $ eigenvectors of $ (X,Y,Z) $ in $ \text{Der}(*) $ with eigenvalues $ (\kappa , \lambda, \rho) $,

\[w^{\dagger}Z(u*v) = w^{\dagger}(Xu*v + u*Yv)\]

\[ \rho w^{\dagger}(u*v)-w^{\dagger}(\kappa u*v + u*\lambda v) = 0\]

By distributive property,

\[ (\rho - \kappa - \lambda) (w^{\dagger}(u *v)) = 0 \]

Conclude either $ \rho - \kappa - \lambda $ is zero or $ w^{\dagger}(u*v) $ is zero.

A tensor $ T $ with coordinates in an eigenbasis of the derivation algebra means "eigenvalues of the derivation satisfy a constraint equation at position $ (i,j,k) $" or $ T_{ijk} = 0 $

Algorithms for computation

(Joint with James B. Wilson, Joshua Maglione on "Simultaneous Sylvester System")

Coordinatized generalized adjoint problem

Such that

(\forall i) \; XA_i + B_iY = C_i

A \in K^{r \times b \times c}\\ B \in K^{a \times s \times c}\\ C \in K^{a \times b \times c}

X \in K^{a \times r}\\ Y \in K^{s \times b}

Given

Same system for module endomorphism, centralizer, and centroid problems

Find

Augmented matrix of size $ (abc) \times (ar + bs) $ in standard form

> t := Random(KTensorSpace(GF(997), [20,20,20]));
> Nucleus(t,1,2);
Constructing a 800 by 8000 matrix over Finite field of size 997.
Computing the nullspace of a 800 by 8000 matrix.
Matrix Algebra of degree 40 with 1 generator over GF(997)

In Magma's multilinear algebra library

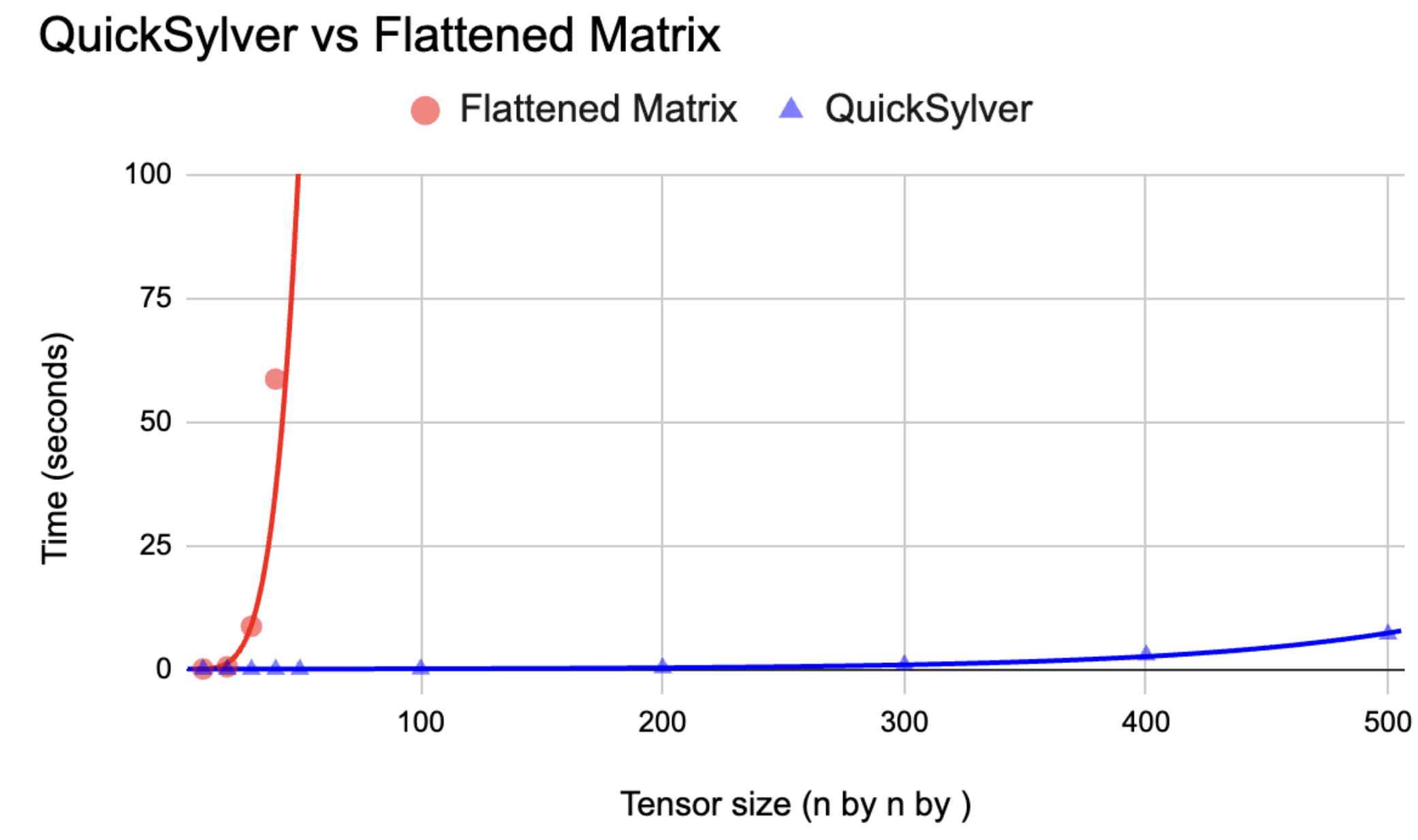

Idea: Avoid augmented matrix altogether with a solve-backsubstitute-check approach

How much to solve depends on an invertibility condition

Theorem (L.-Maglione-Wilson)

Given $ A \in K^{r \times b \times c}$, $B \in K^{a \times s \times c} $, and $C \in K^{a \times b \times c} $ an instance of SSS

If $ \text{HorizontalJoin}(A(:, 1:b', :) ) $ and $ \text{HorizontalJoin}(B(1:a', :, :) $ are full rank

Then a solution is found by solving a linear system of $a'r + b's$ variables followed by backsubstitution

For the roughly cubic ("thick") case, we expect $ a' $ and $ b' $ to be constants as function of $ n $. Reduces solving an $ O(n^2) $ variable system to an $O(n) $ variable system

Because $ \text{Adj}(t) $ is an algebra, a few solutions suffice to generate
Code available in Magma and Julia

Distilling the idea

Let $A,B,C,R,S $ vector spaces, with fixed isomorphisms to dual.

Given
$r : \textcolor{blue}{R} \times B \times C \rightarrowtail K $,
$ s : A \times \textcolor{green}{S} \times C \rightarrowtail K $,
$ t : A \times B \times C \rightarrowtail K $

Find
$ x : A \rightarrow \textcolor{blue}{R}, y : B \rightarrow \textcolor{green}{S} $ such that,

\[ r(x(a),b,c) + s(a,y(b),c) = t(a,b,c)\]

for all $ (a,b,c) $ in $ A \times B \times C $

View $ r: R \rightarrow B \otimes C, s: S \rightarrow A \otimes C $ through isomorphisms to dual

Compute simultaneous sylvester equation restricted to $A'$ and $ B' $

Solve dense system

Backsubstitute for rest of solutions

Use left inverses to isolate unknown

Find subspaces $ A' \leq A, B' \leq B $ of small dimension so $ \tilde{r} : R \hookrightarrow B' \otimes C$ and $\tilde{s} : S \hookrightarrow A' \otimes C $ are injective (left invertible)

r(x'(a'),b'c) + s(a',y'(b'),c) = t(a',b',c)

\text{Find } x': A' \rightarrow R \text{ and }y': B' \rightarrow S \text{ such that } \\

\tilde{r}^{\#} \circ (\tilde{r} \circ x'' + s \circ y') = \tilde{r}^{\#}\circ \tilde{t}\\ \text{hence } x'' = \tilde{r}^{\#} \circ (\tilde{t} - s \circ y')

\text{Given x$'$, y$'$, find } x'': U \rightarrow R \text{ by solving} \\

Derivations are similar!

A \in K^{r \times b \times c}\\ B \in K^{a \times s \times c}\\ C \in K^{a \times b \times t}

X \in K^{a \times r}\\ Y \in K^{s \times b}\\ Z \in K^{t \times c}

Given

Find

Such that

(\forall i) \; XA_i + B_iY = \sum_j C_jZ_{ji}

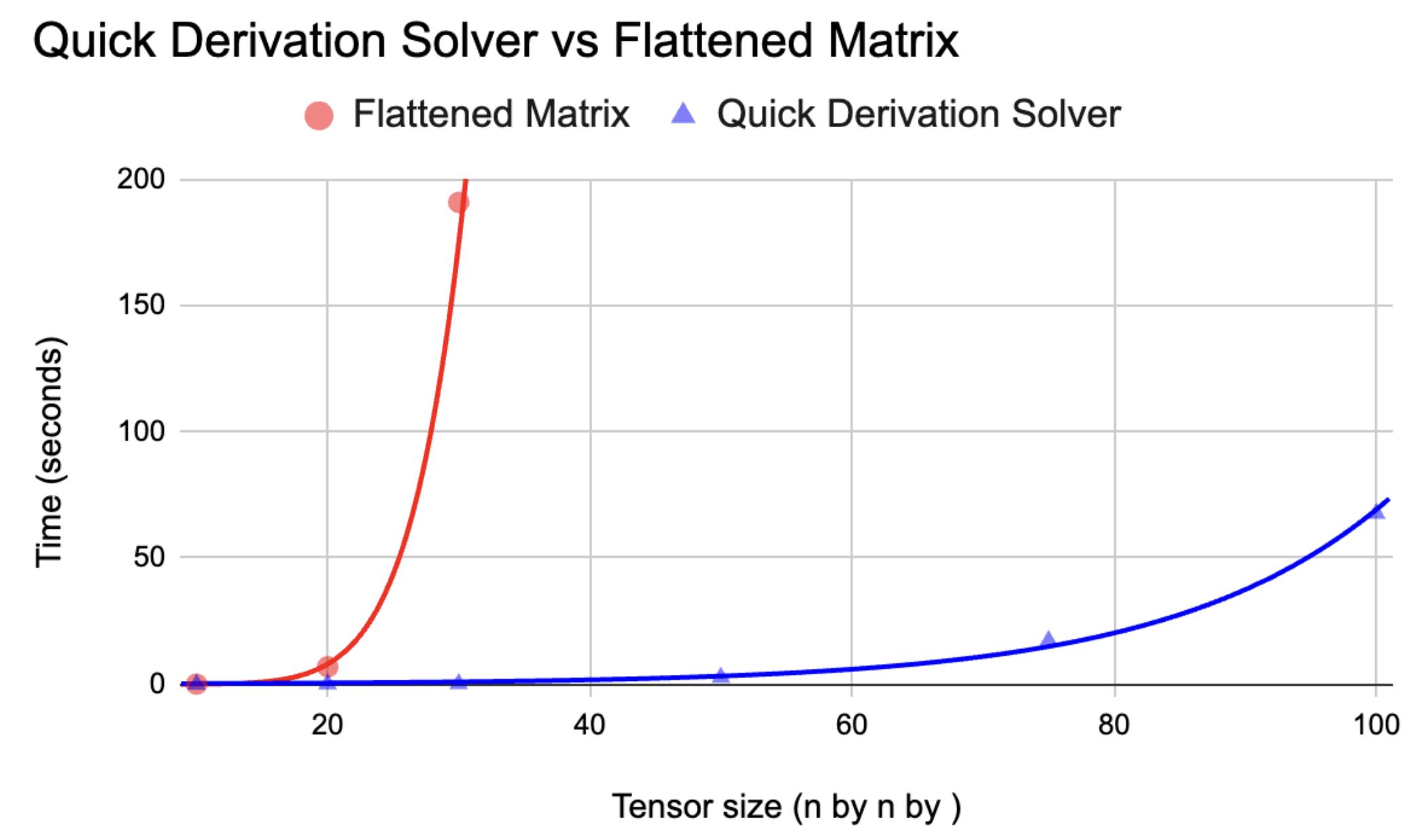

There are strong theoretical reasons that solving this derivation equation captures all information an algebra can see about the tensor. See Theorem A

Augmented matrix of size $ (abc) \times (ar + bs + ct) $

Use idea from adjoint case

Let $A,B,C,R,S, T $ vector spaces, with fixed isomorphisms to dual.

Given
$r : \textcolor{blue}{R} \times B \times C \rightarrowtail K $,
$ s : A \times \textcolor{green}{S} \times C \rightarrowtail K $,
$ t : A \times B \times \textcolor{orange}{T} \rightarrowtail K $

Find
$ x : A \rightarrow \textcolor{blue}{R}, y : B \rightarrow \textcolor{green}{S}, z : C \rightarrow \textcolor{orange}{T} $ such that

\[ r(x(a),b,c) + s(a,y(b),c) = t(a,b,z(c)) \]

for all $ (a,b,c) $ in $ A \times B \times C $

View $ r: R \rightarrow B \otimes C, s: S \rightarrow A \otimes C, t: T \rightarrow A \otimes B $ through isomorphisms to dual

Compute derivation restricted to $A'$, $ B' $, and $ C' $

Solve dense system

Backsubstitute for rest of solutions

Use left inverses to isolate unknown

Find subspaces $ A' \leq A, B' \leq B, C' \leq C $ of small dimension so $ \tilde{r} : R \hookrightarrow B' \otimes C'$, $\tilde{s} : S \hookrightarrow A' \otimes C' $, and $\tilde{t} : T \hookrightarrow A' \otimes B' $ are injective (left invertible)

Code available in Julia and Magma (soon)

Linear invariants of tensor products

Let $ A, B $ be unital associative $ K $-algebras

Observation: $ A \otimes B $ is a K-algebra, with multiplication
\[ (a \otimes b)(c \otimes d) = ac \otimes bd \]

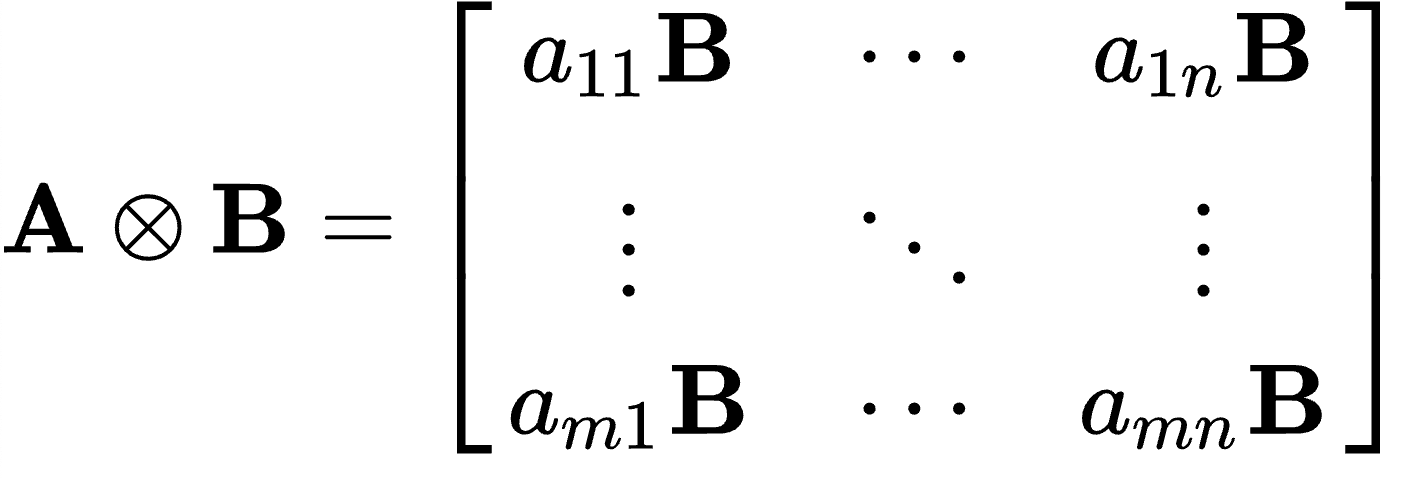

Example: Kronecker product of matricies

Extend to their multiplication tensors

For $ s: A \times A \rightarrowtail A$ and $t: B \times B \rightarrowtail B $, define $ s \otimes t: (A \otimes B) \times (A \otimes B) \rightarrowtail (A \otimes B) $ as

\[ \langle s \otimes t \mid a \otimes b, c \otimes d \rangle = \langle s|a,c\rangle \otimes \langle t|b,d \rangle \]

\begin{array}{|c|cc|} \hline & 1 & x \\ \hline 1 & 1 & x \\ x & x & -1 \\ \hline \end{array} \otimes \begin{array}{|c|cc|} \hline & 1 & y \\ \hline 1 & 1 & y \\ y & y & -5y-10 \\ \hline \end{array} = \begin{array}{|c|cccc|} \hline & 1 & x & y & xy \\ \hline 1 & 1 & x & y & xy \\ x & x & -1 & xy & -y \\ y & y & xy & -5y-10 & -5xy-10x \\ xy & xy & -y & -5xy-10x & 5y+10 \\ \hline \end{array}

Example: Bilinear over a bigger field

r_1 = \begin{bmatrix} 7 & 10 & 4 & 2\\ 10 & 12 & 2 & 5\\ 1 & 7 & 11 & 12\\ 7 & 11 & 12 & 4 \end{bmatrix} \quad r_2 = \begin{bmatrix} 5 & 6 & 1 & 9 \\ 6 & 1 & 9 & 8 \\ 10 & 12 & 6 & 2\\ 12 & 2 & 2 & 9 \end{bmatrix}

Over $K = \mathbb{F}_{13}$, let $r: K^4 \times K^4 \rightarrowtail K^2 $ given by

t_1 = \begin{bmatrix} 10 & 5\\ 5 & 6 \end{bmatrix} \quad t_2 = \begin{bmatrix} 9 & 3\\ 3 & 7 \end{bmatrix}

T gives coordinates of $ K[x]/(x^2+8x+11) \cong \mathbb{F}_{13^2} $ multiplication

in $ \{ 3+4x, 7+10x \} $ basis

Centroid algebra detects $ r $ is $ \mathbb{F}_{13^2} $ bilinear

Hence $r $ is equal to $ s \otimes t $ for $s : K^2 \times K^2 \rightarrowtail K $ and t multiplication in $ \mathbb{F}_{13^2} $. Indeed,

s = \begin{bmatrix} 2 & 3 \\ 4 & 5 \end{bmatrix}

$ \text{Adj}(s \otimes t) = \text{Adj}(s) \otimes \text{Adj}(t) $

$ \text{Der}(s \otimes t) $ = $ \text{Der}(s) \otimes \text{Cen}(t) + \text{Cen}(t) \otimes \text{Der}(s) + \text{Nuc}_{ij}(s \otimes t) $

Linear invariants under tensor products

Theorem (L.)

(Results generalize known results in non-associative algebra, i.e Brešar)

Main ideas

$ \mu \in \text{Adj}(s \otimes t)$ implies $ \mu = \left(\sum_i \sigma^{(2)}_i \otimes \tau^{(2)}_i, \sum_j \sigma^{(1)}_j \otimes \tau^{(1)}_j \right) \in \text{End}(U \otimes X) \times \text{End}(V \otimes Y) $
In Adj means $\langle s \otimes t|\mu = 0$, expand as $\sum_i a_i \otimes b_i = \sum_j c_j \otimes d_j $, where $a_i = \langle s|\sigma^{(2)}_i $ and so forth
Since $ a_i \in \text{span}\{c_j\}$ and $b_i \in \text{span}\{d_j\} $, conclude $ (a_1 \otimes b_1) = (\sum_j \lambda_j c_j) \otimes (\sum_k \rho_k d_k) $
Writes $\mu$ as sum of terms in $ \text{Adj}(s) \otimes \text{Adj}(t)$
For Der, more cases since equation is $ \sum_i a_i \otimes b_i = \sum_j c_j \otimes d_j + \sum_k e_k \otimes f_k $.

Given $ s: U \times V \rightarrowtail W, t: X \times Y \rightarrowtail Z $

$ s \otimes t : (U \otimes X) \times (V \otimes Y) \rightarrowtail (W \otimes Z) $

Definition [Derivation Closure] (First, Maglione, Wilson '20)

$ (| t |) = \{ s: U \times V \rightarrowtail W \mid \operatorname{Der}(t) \subseteq \operatorname{Der}(s) \} $

Theorem (FMW)

Central simple algebras have one dimensional derivation closures

Observation

$ \text{Der}(t) \subset \text{Der}(s)$ implies $ (|s|) \subset (|t|) $

What tensors satisfy some given linear invariant?

Theorem (L.)
$ (| s \otimes t |) = (| s |) \otimes (| t |) $

For $ s: U \times V \rightarrowtail W $ and $t: X \times Y \rightarrowtail Z $

Define $ s \otimes t: (U \otimes X) \times (V \otimes Y) \rightarrowtail (W \otimes Z) $ as
\[ \langle s \otimes t | u\otimes x, v \otimes y \rangle = \langle s | u,v \rangle \otimes \langle t | x,y \rangle \]

Tensor product of bilinear maps

Extend to bilinear maps

End
