SURVEYING-I

UNIT-2

PART-1

Measurement of Angles and direction

• Different types of direction measuring instruments and their uses.
• Reference Meridians.
• Bearings and Azimuths.
• Magnetic Declination and its Variation.
• Use and adjustment of Surveyors and Prismatic Compass.
• Vernier and MIcro-optic Theodolite
• Temporary and Permanent adjustment of Vernier Theodolite.
• Measurement of the Horizontal and Vertical angle by different methods.
• Application of Theodolite in field Problems.

Syllabus of Unit-2

Different types of direction Measuring instruments and their uses.

Compass - used for horizontal angle measurements





Theodolite - used for horizontal and vertical angle measurements

Reference Meridians

A direction of survey line can be defined in two ways-





        1. Relative to each other













       2. Relative to some fixed reference direction













In surveying, this fixed reference direction is called as Meridian

Types of Meridian-

There are 4 types of meridians used in surveying-

1. True Meridian
2. Magnetic Meridian
3. Grid Meridian
4. Arbitrary Meridian

TRUE MERIDIAN

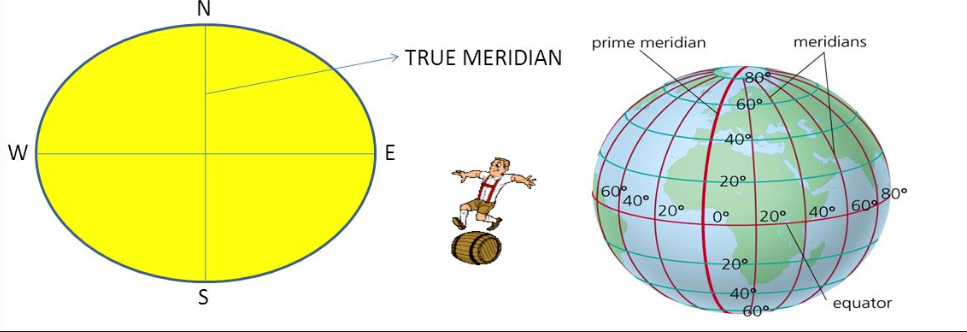

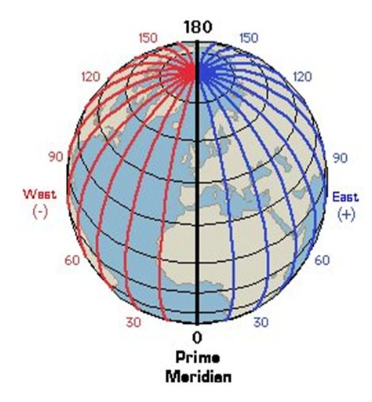

True meridian is a line which passes through a  given point and the geographical north and south poles.

MAGNETIC MERIDIAN

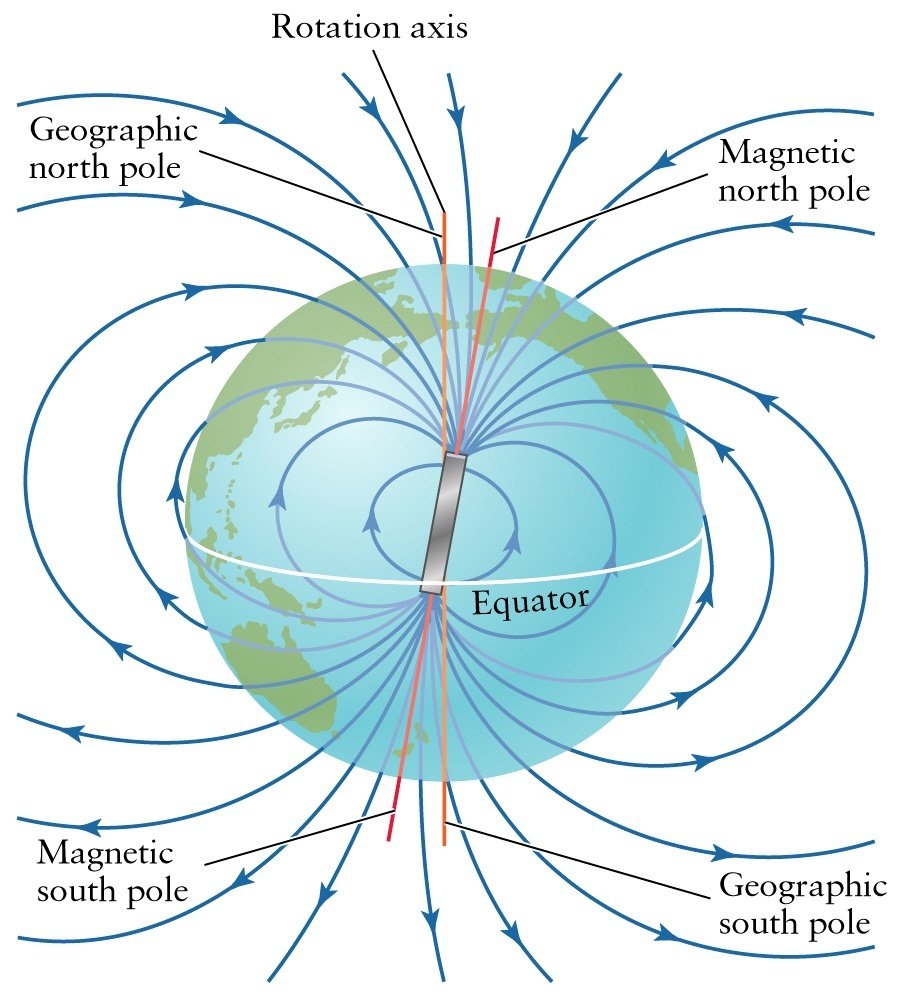

Magnetic Meridian at a point is the direction indicated by a freely suspended magnetic bar at that point.

GRID MERIDIAN

For the survey of a country, the true meridian passing through the central place is called as Grid meridian.

ARBITRARY MERIDIAN

It is the meridian which is taken in any convenient arbitrary direction.

Ex-top of the chimney, church spire or the first traverse line etc.

BEARING OR AZIMUTH

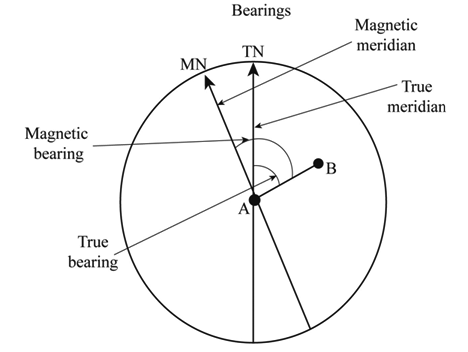

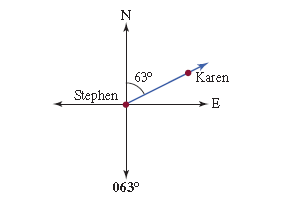

It is the horizontal angle which it makes with reference line i.e. Meridian

Types of Bearings-

• True Bearing
• Magnetic Bearing
• Grid Bearing
• Arbitrary Bearing

                       True Bearing

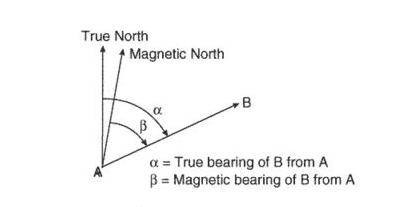

It is the horizontal angle between the true meridian and the line.

Magnetic Bearing

It is the horizontal angle between the magnetic meridian and the line.

Grid Bearing

• It is the horizontal angle between the grid meridian and the line.

Arbitrary Bearing

• It is the horizontal angle between the arbitrary meridian and the line.
