Event Flow in Javascript

Bubbling,Capturing and Delegation

Learning Outcome

6

Apply event delegation and recognize non-bubbling events

5

Differentiate between event.target and event.currentTarget

4

Explain the three phases of event flow: capturing, target, and bubbling

3

Understand why event flow is required in the DOM

2

Explain event handling using JavaScript

1

Define what an event is and how it occurs in the browser

Recall

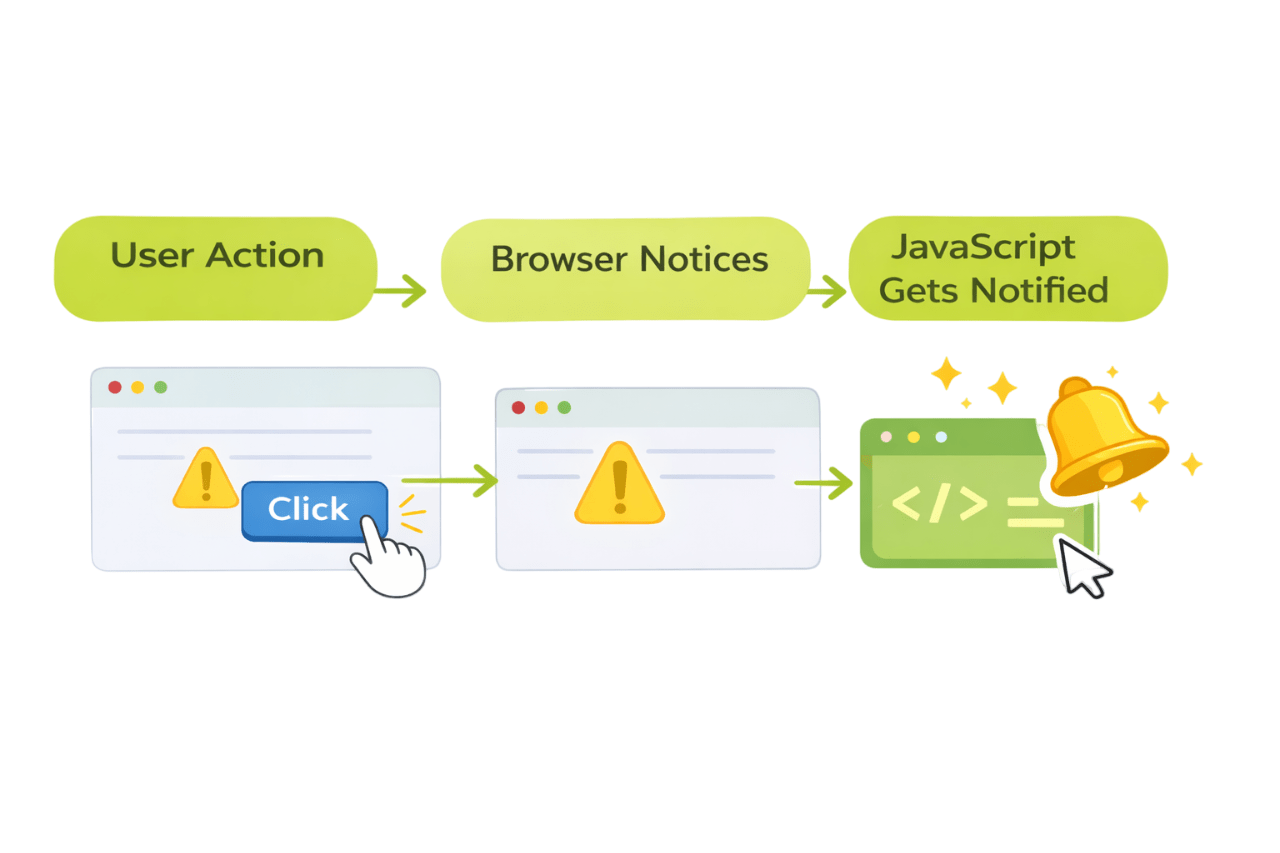

What is Event?

An event is an action in the browser due to user interaction or system activity.

Examples:

  •  Mouse click
  •  key press
  •  Page load
  •  Form submission

Recall

What is DOM?

The DOM is a tree-like structure created by the browser that represents your HTML page so JavaScript can read, change, and interact with it.

What is Event Handling?

Event handling is writing Javascript code that runs when event occurs

  • JavaScript waits

  • When event happens → function executes

Concept

button.addEventListener("click", function () {
  console.log("Button clicked");
});

this topic is covered in last slide deck "DOM Navigation"

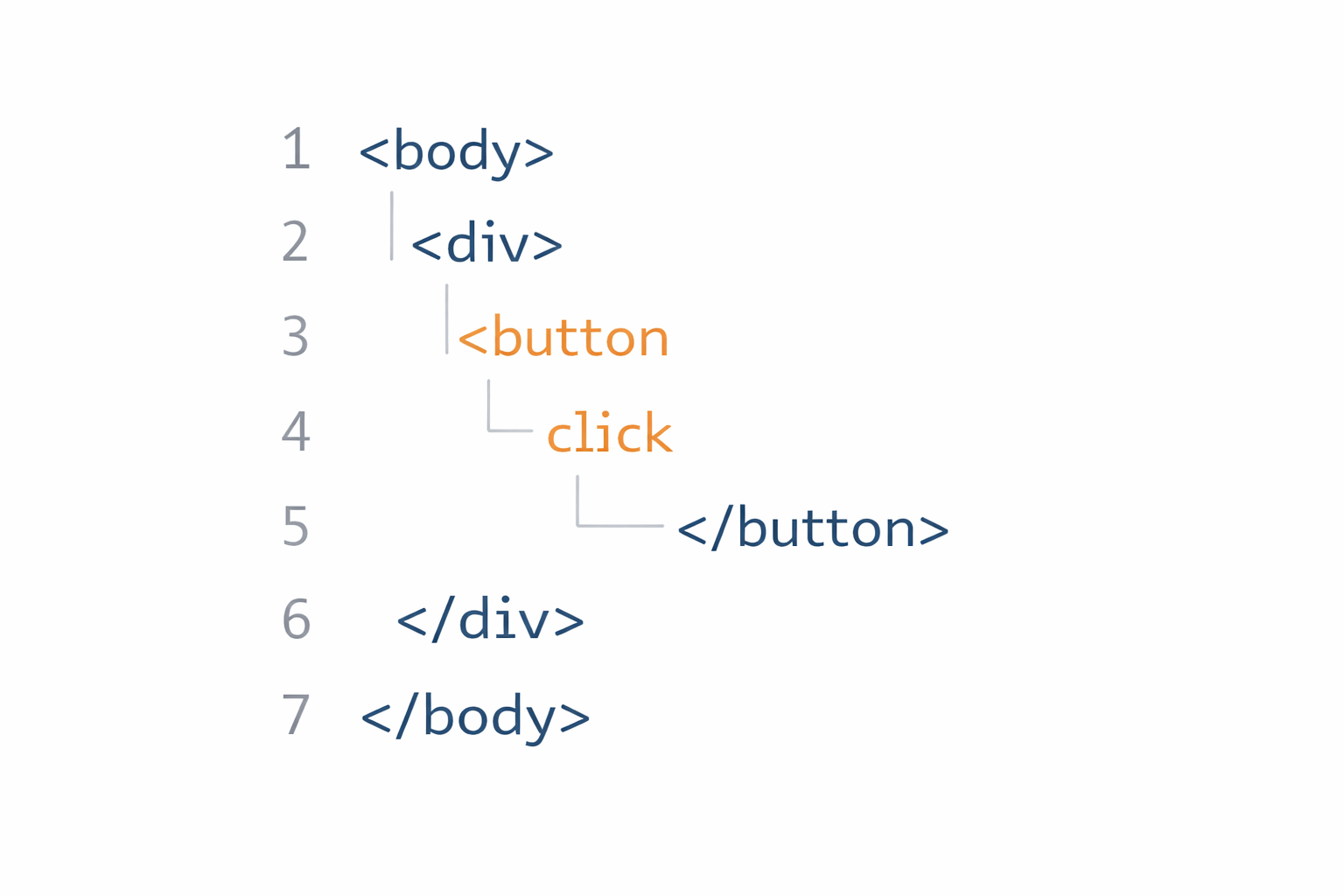

Why Event Flow Exists

<body>
  <div>
    <button>Click</button>
  </div>
</body>

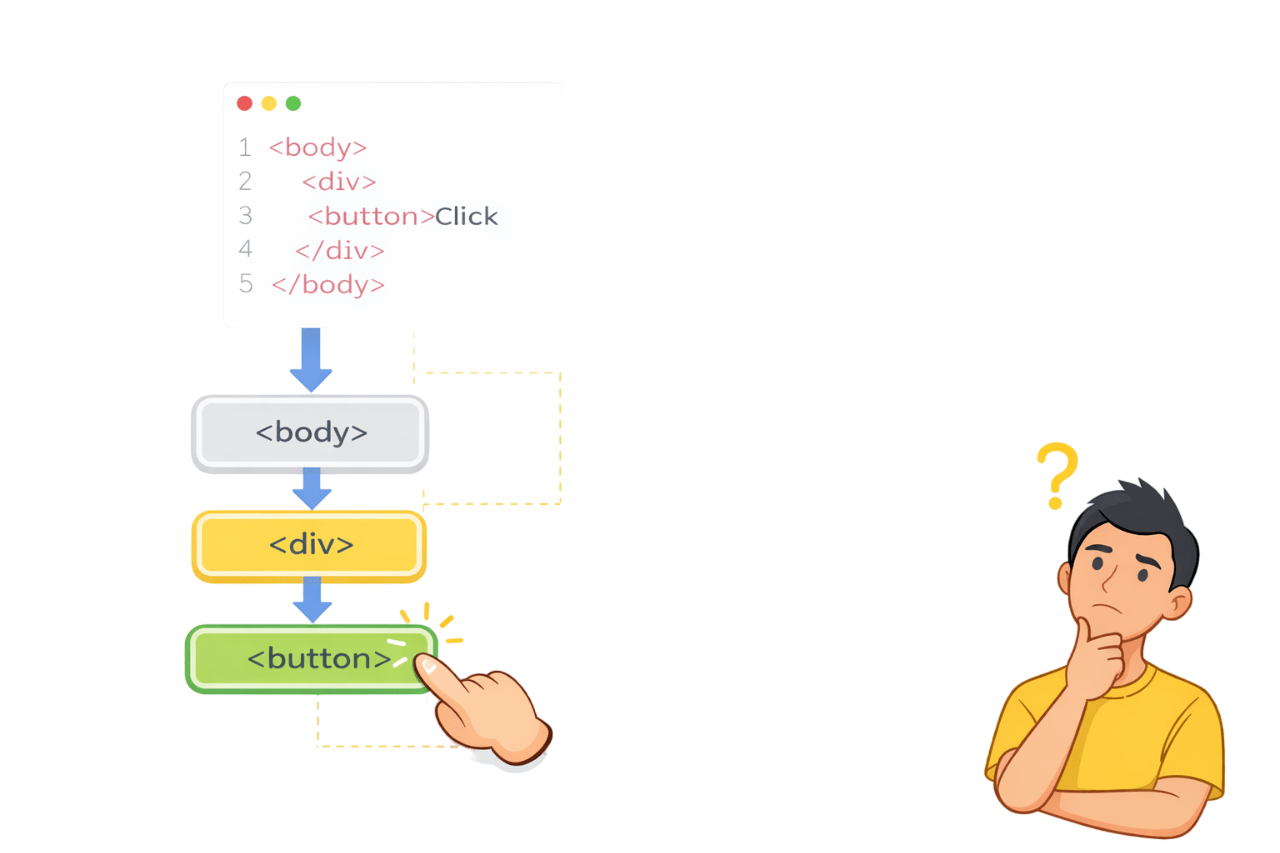

Why Event Flow Exists

<body>

<div>

<button>

When button is clicked

  • Button is involved
  • Div is involved
  • Body is involved

Who should handle the click first?

Event Flow decides this

Event Flow: Definition

Event flow is the order and path through which an event travels across DOM elements.

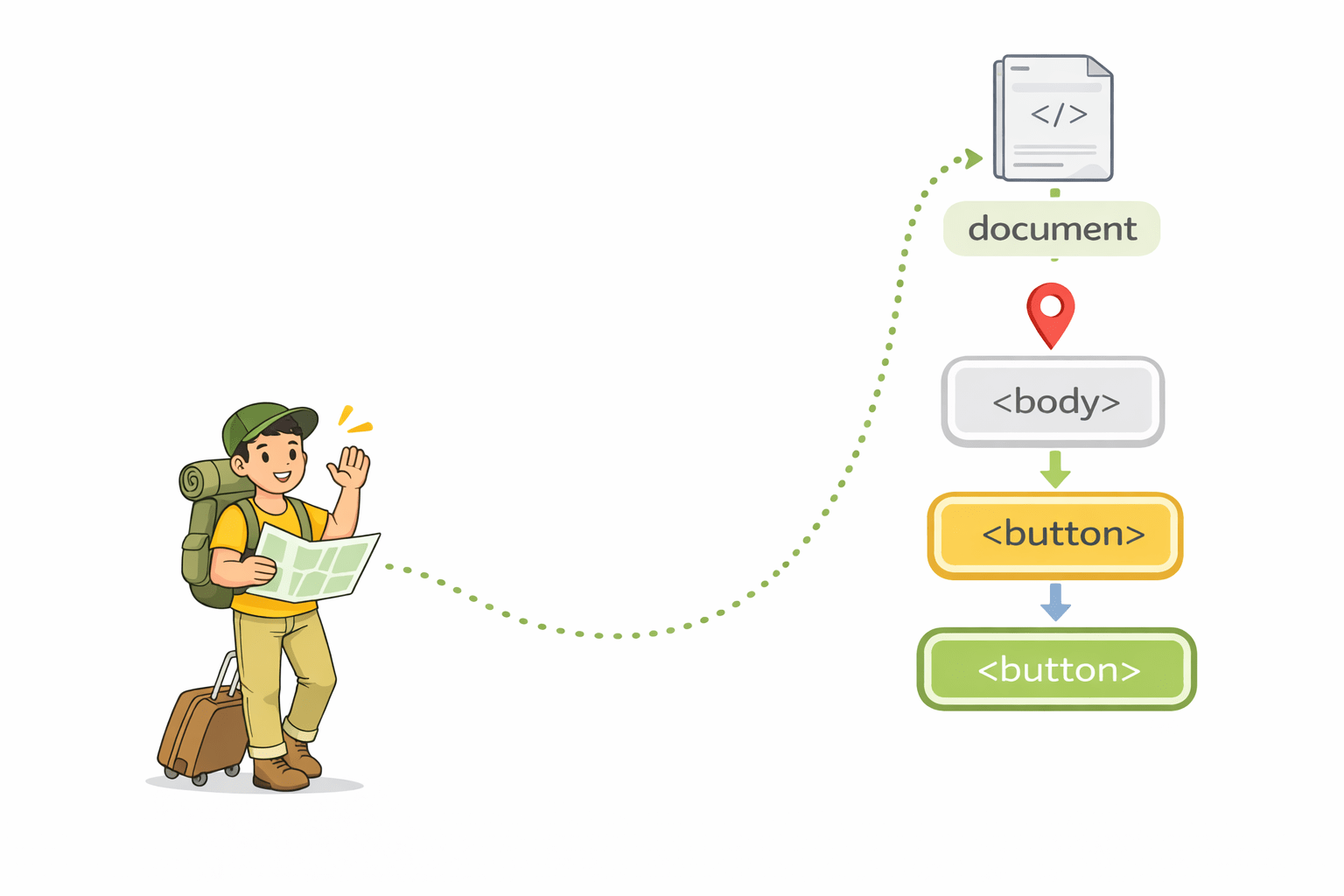

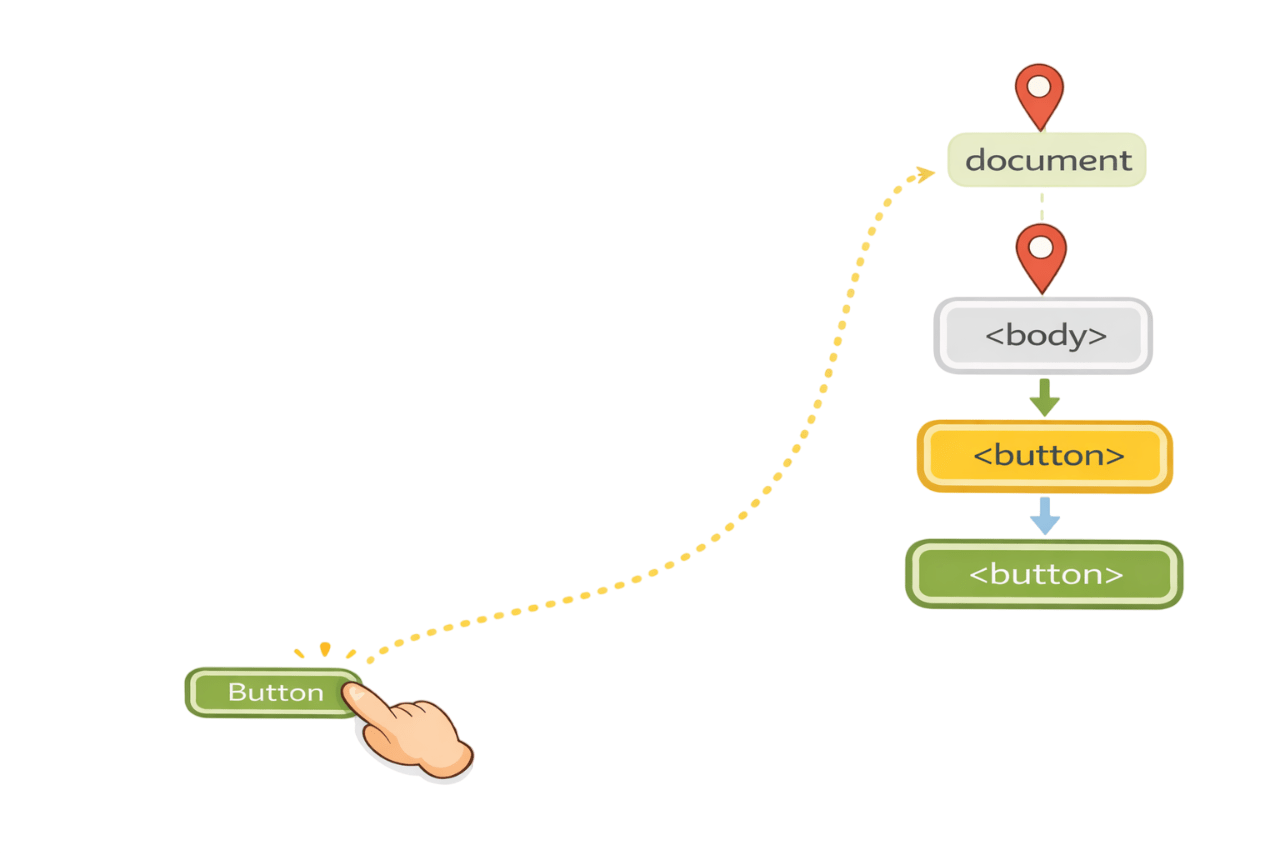

An event is like a traveler moving through the DOM tree.

Event Propagation

Event propagation is the movement of the event through DOM elements.

An event does not stay on one element

It moves step by step

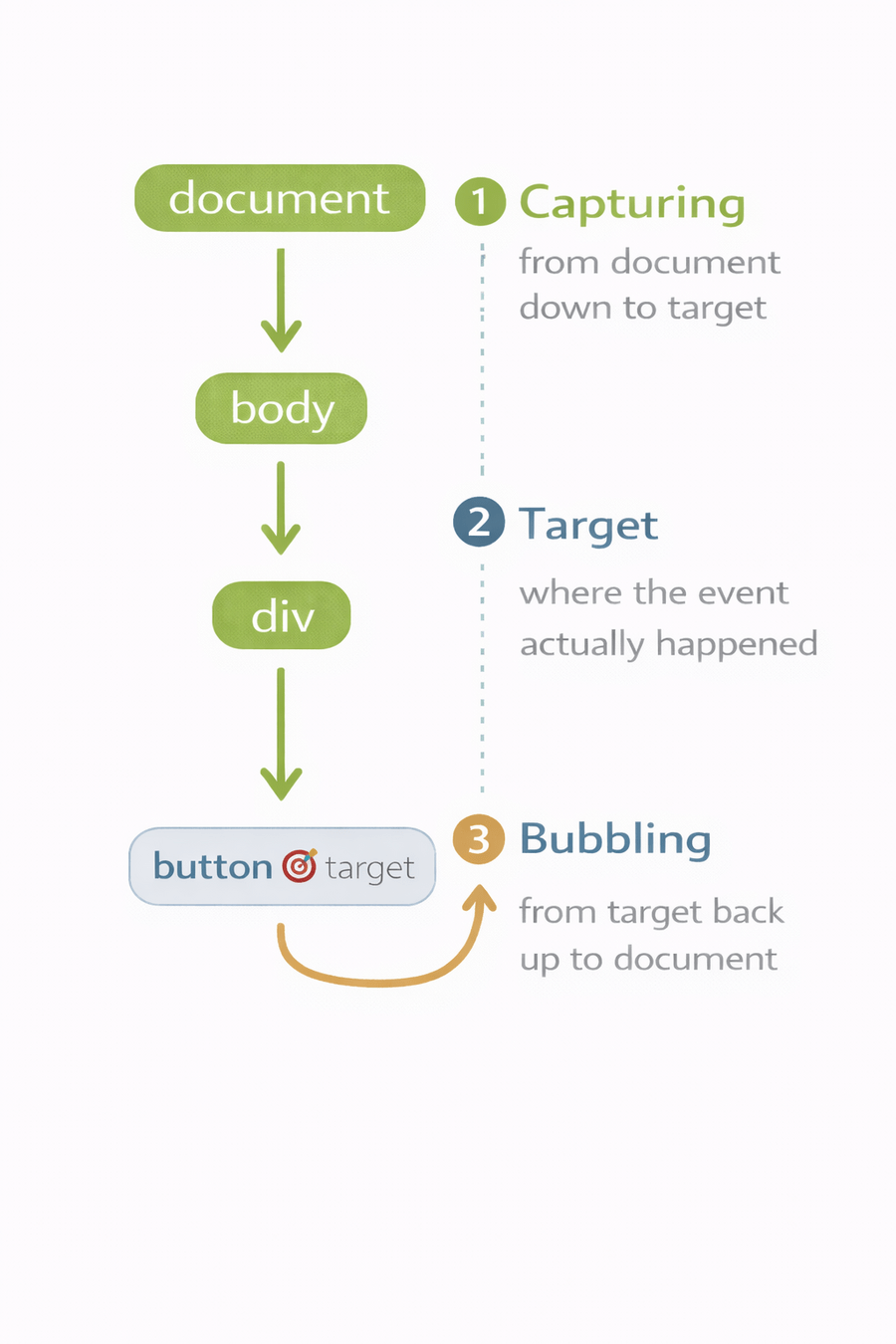

Three Phases of Event Flow

Note:

Every event follows this order.

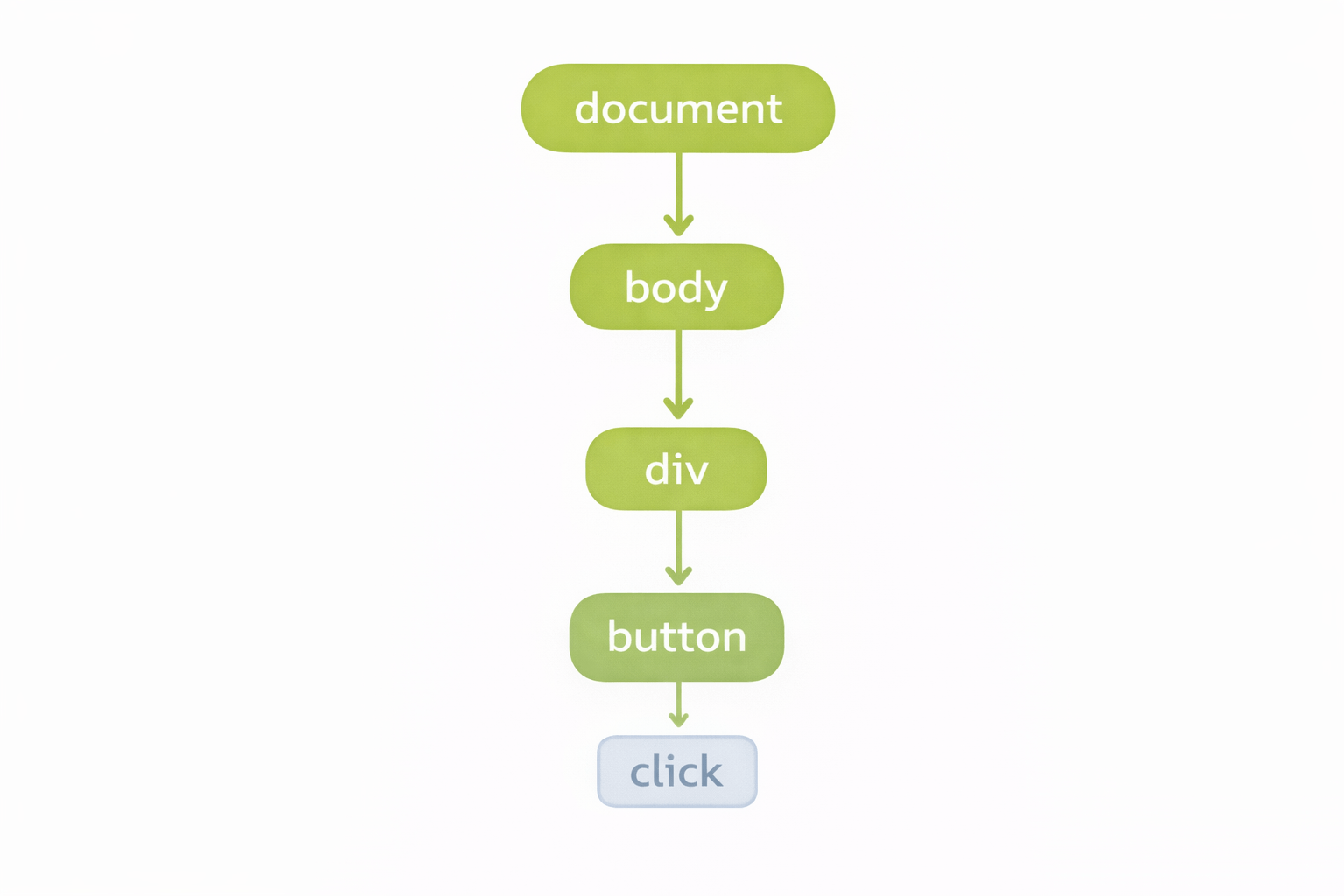

Capturing phase

Event travels from TOP of DOM down to the target

  • Happens before target

  • Not default

  • Must be enabled explicitly

Note:

element.addEventListener("click", handler, true);

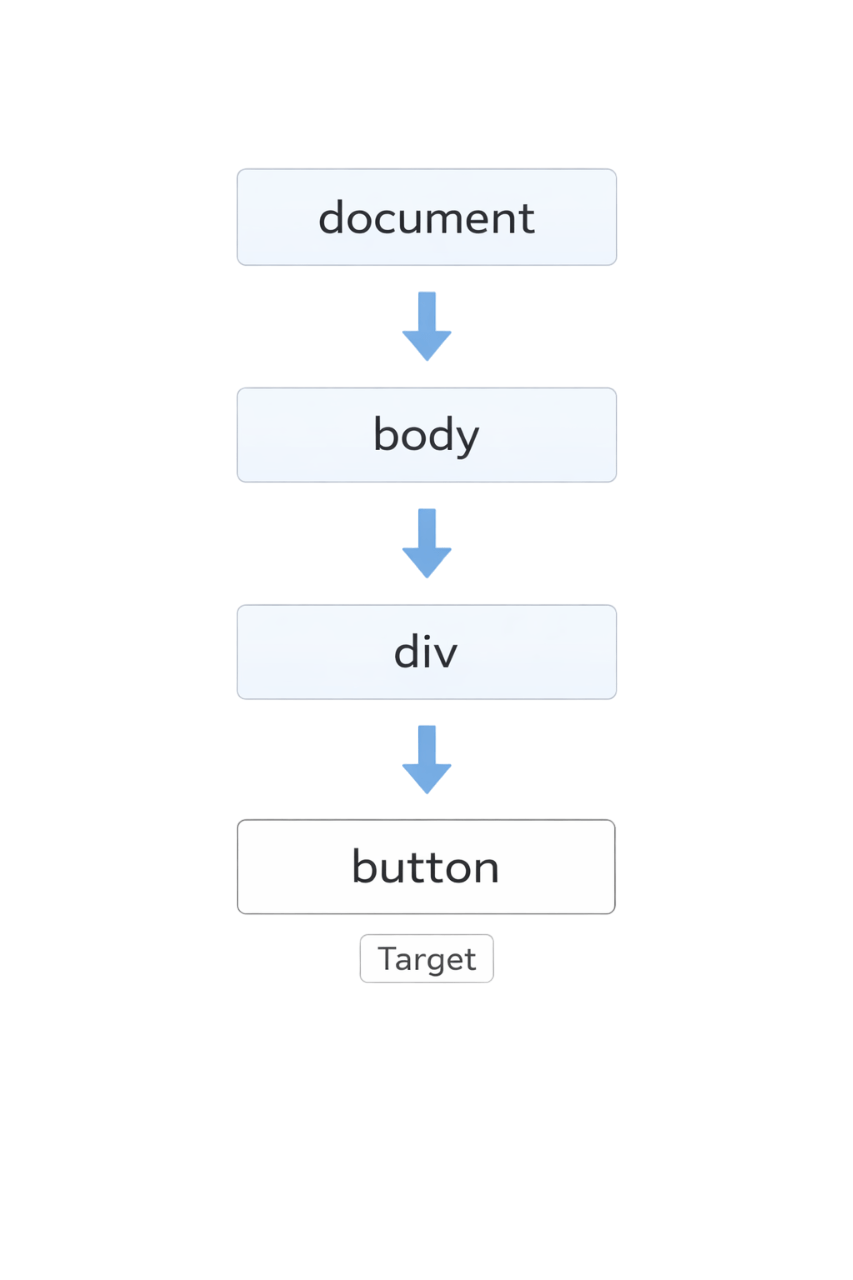

The event starts at the document and travels down to the button through body and div.

Target phase

Event reaches the element where it actually occurred.

Note:

  • Event pauses here

  • Real action happens here

Key property:

event.target

In the target phase, the event reaches the clicked element, known as the target, which is referenced by event.target.

Bubbling phase

Event travels upward from target to top of DOM.

  •  Bubbling is default

  • Most JS logic relies on this

When I click the button, the event starts there and moves up to its parent and grandparent. This is called event bubbling.

<div id="grandparent">
  <div id="parent">
    <button id="child">Click me</button>
  </div>
</div>

onst grandparent = document.getElementById("grandparent");
const parent = document.getElementById("parent");
const child = document.getElementById("child");

/* Capturing phase */
grandparent.addEventListener(
  "click",
  () => console.log("Grandparent - Capturing"),
  true
);

parent.addEventListener(
  "click",
  () => console.log("Parent - Capturing"),
  true
);

child.addEventListener(
  "click",
  () => console.log("Child - Capturing"),
  true
);
/* Target + Bubbling phase */
child.addEventListener("click", () =>
  console.log("Child - Target / Bubbling")
);

parent.addEventListener("click", () =>
  console.log("Parent - Bubbling")
);

grandparent.addEventListener("click", () =>
  console.log("Grandparent - Bubbling")
);

//output

Grandparent - Capturing
Parent - Capturing
Child - Capturing
Child - Target / Bubbling
Parent - Bubbling
Grandparent - Bubbling

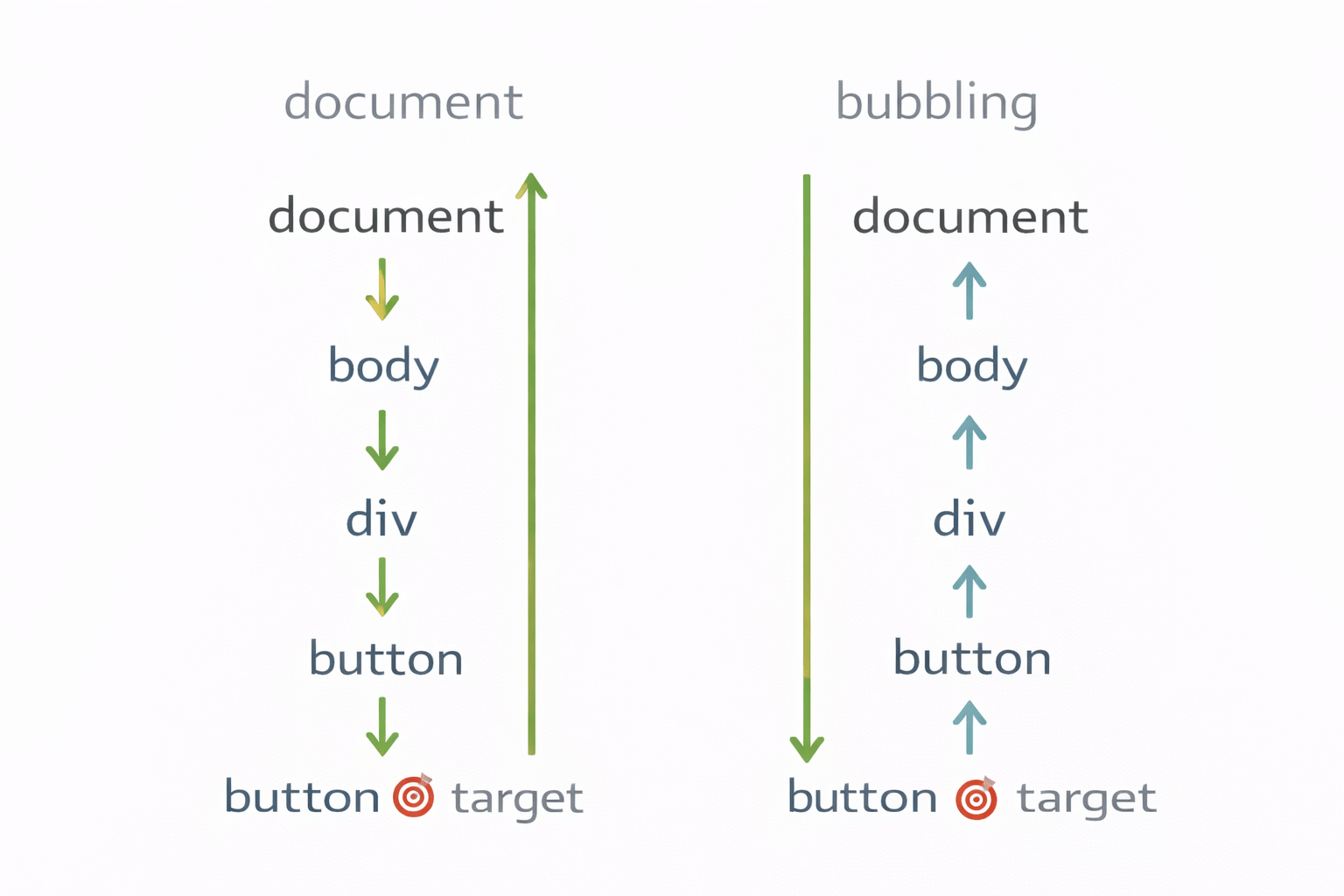

Complete Event Flow

event.target vs event.currentTarget

event.target

Who was clicked?

event.currentTarget

Who is handling the event right now?

  • target → origin

  • currentTarget → listener owner

stopPropagation()

When an event occurs on a child element, it normally bubbles up to Parent elements

stoppropagation() stops this upward movement

When an event occurs on a child element, it normally bubbles up to Parent elements

User clicks on Home

Home handles the click

  • Event bubbles up
  • Navbar receives the click
  • stopPropagation() is called
  • Event stops immediately

Without stopPropagation

With stopPropagation

<div id="navbar">
  <button id="home">Home</button>
</div>

const navbar = document.getElementById("navbar");
const home = document.getElementById("home");

navbar.addEventListener("click", () => {
  console.log("Navbar clicked");
});

home.addEventListener("click", () => {
  console.log("Home clicked");
});

Without stopPropagation

Output

Home clicked

Navbar clicked

home.addEventListener("click", (event) => {
  event.stopPropagation();
  console.log("Home clicked");
});

Output

Home clicked

With stopPropagation

 Navbar does NOT receive the event

Event bubbles from Home → Navbar

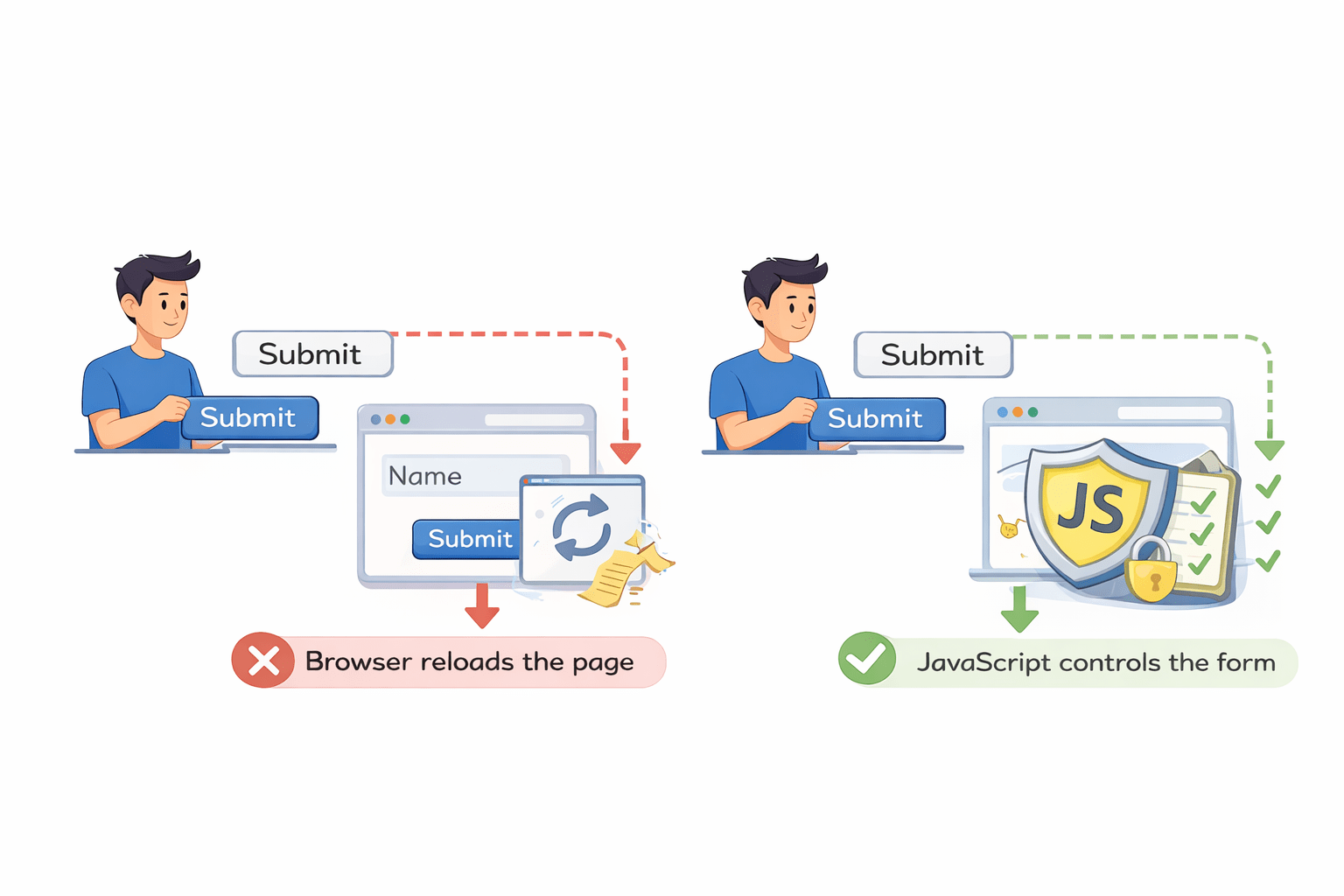

preventDefault()

Prevents browser's default behaviour

Example:

Consider a blank form

<form>
  <input type="text" placeholder="Name" />
  <button type="submit">Submit</button>
</form>

Before PreventDefault()

After PreventDefault()

  • Page reloads
  • Entered data lost
  • Validates data without losing it
  • No Page reloads

preventDefault() stops the default browser action, letting Javascript handle the event.

What is Event Delegation

Event delegation allows a parent element to handle events for its children.

One Listener  -> many elements

How it works

  1. Event occurs on child

  2. Event bubbles up

  3. Parent receives event

  4. Parent checks event.target

ul.addEventListener("click", (e) => {
  if (e.target.tagName === "LI") {
    console.log("Item clicked");
  }
});

Steps:

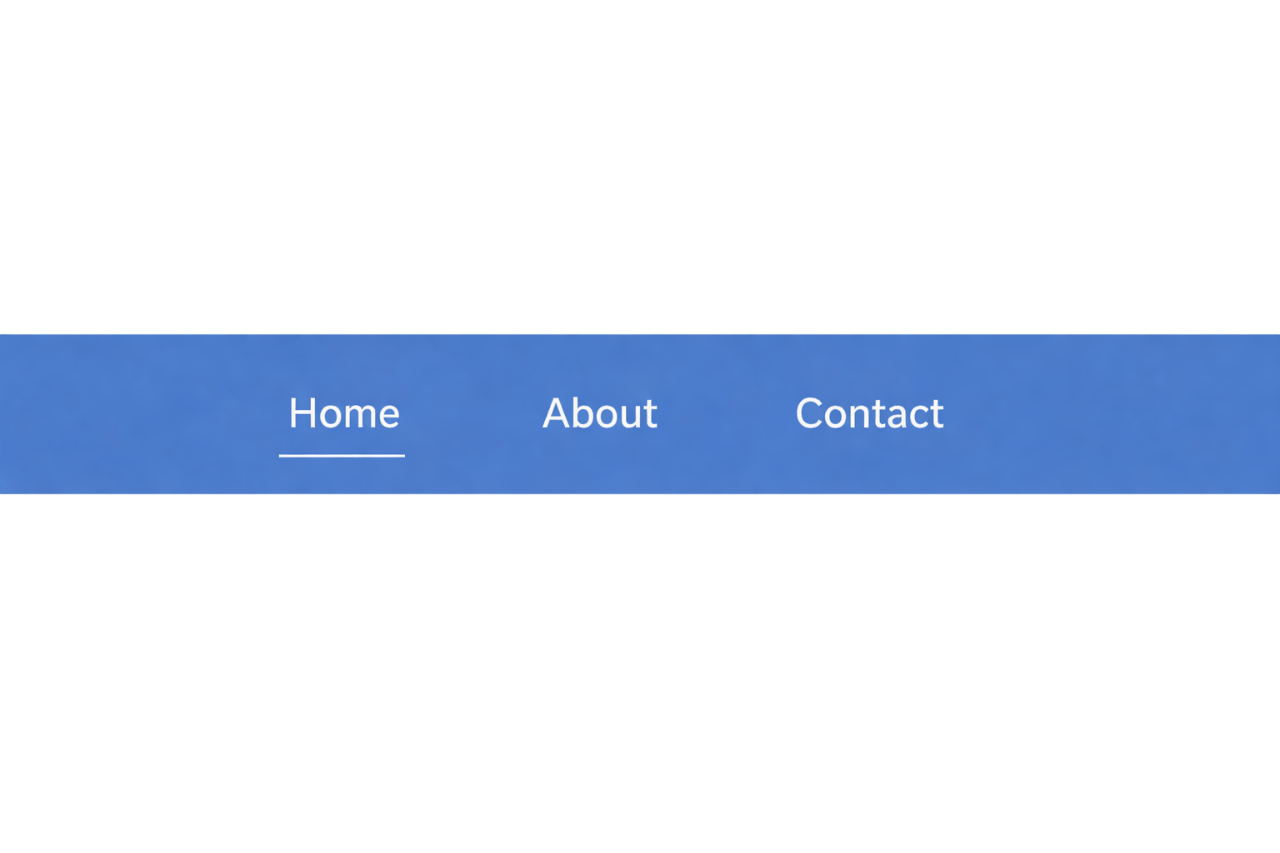

Lets consider Navbar example

<ul id="menu">
  <li>Home</li>
  <li>About</li>
  <li>Contact</li>
</ul>
  • <ul> is parent
  • <li> are children
const menu = document.getElementById("menu");

menu.addEventListener("click", function (event) {
  if (event.target.tagName === "LI") {
    console.log(event.target.textContent);
  }
});
//When user clicks Home

Home

Event That do not bubble

Some events do not bubble.

  • focus

  • blur

  • mouseenter

  • mouseleave

Solution:

Use bubbling alternatives

  • focusin
  • focusout

Example:

Summary

5

Bubbling → Upward

4

Target → Origin

3

Capturing → Downward

2

Event flow defines the path

1

Events are user or system actions

6

Delegation → Efficient handling

Quiz

Which phase is default in event flow?

A. Capturing

B. Target

C. Bubbling

D. Delegation

Quiz

Which phase is default in event flow?

A. Capturing

B. Target

C. Bubbling

D. Delegation

Quiz

Which phase is default in event flow?

A. Capturing

B. Target

C. Bubbling

D. Delegation

Quiz-Answer

Which phase is default in event flow?

A. Capturing

B. Target

C. Bubbling

D. Delegation
