Unlocking Angular's Data Binding Magic

Directives Demystified: Essentials of Angular’s Power Tools

Learning Outcome

4

Implement built-in directives like ngClass and ngStyle

3

Use attribute directives for styling and behavior

2

Identify different types of directives

1

Understand what directives are in Angular

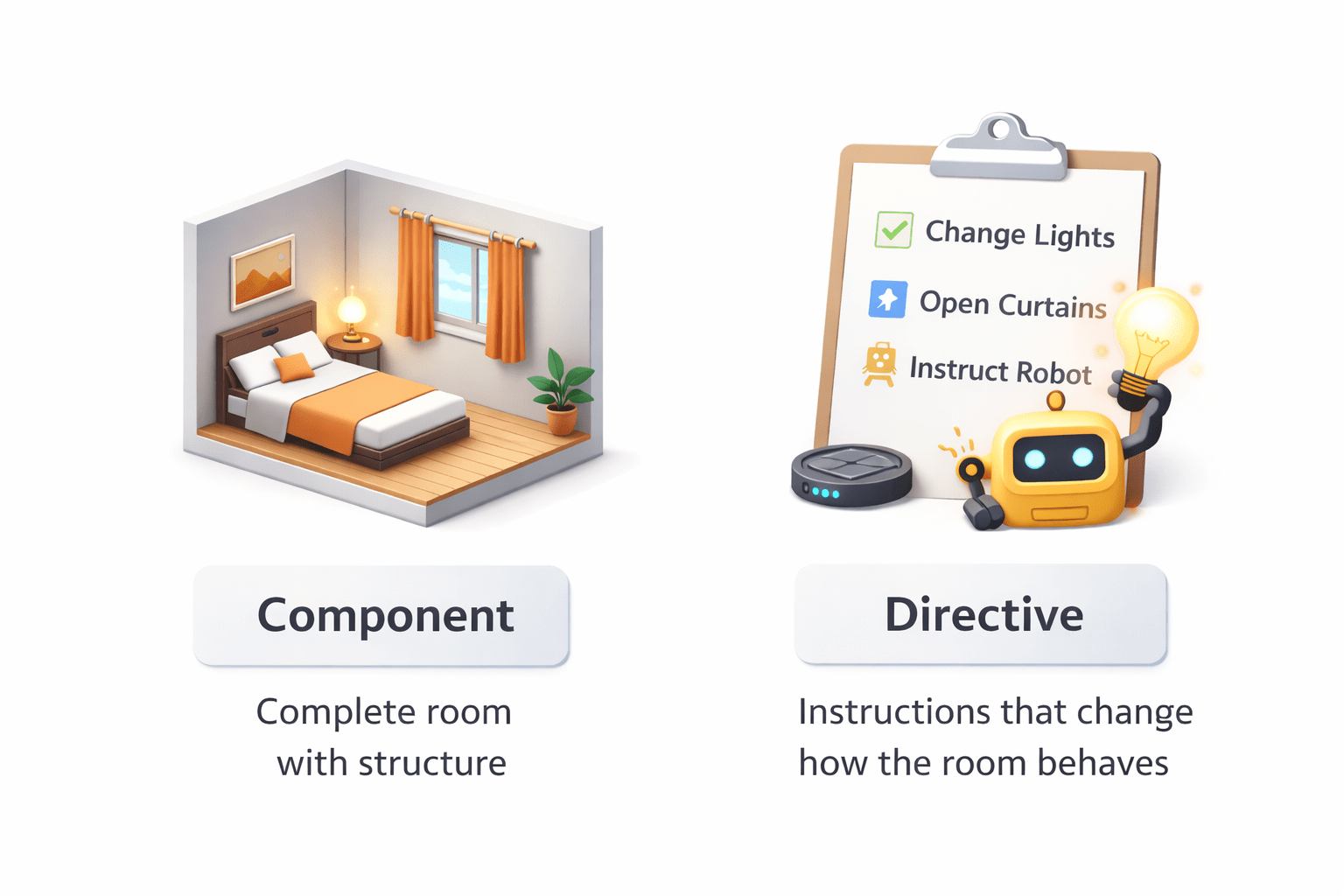

House Analogy

Think of HTML elements as a house

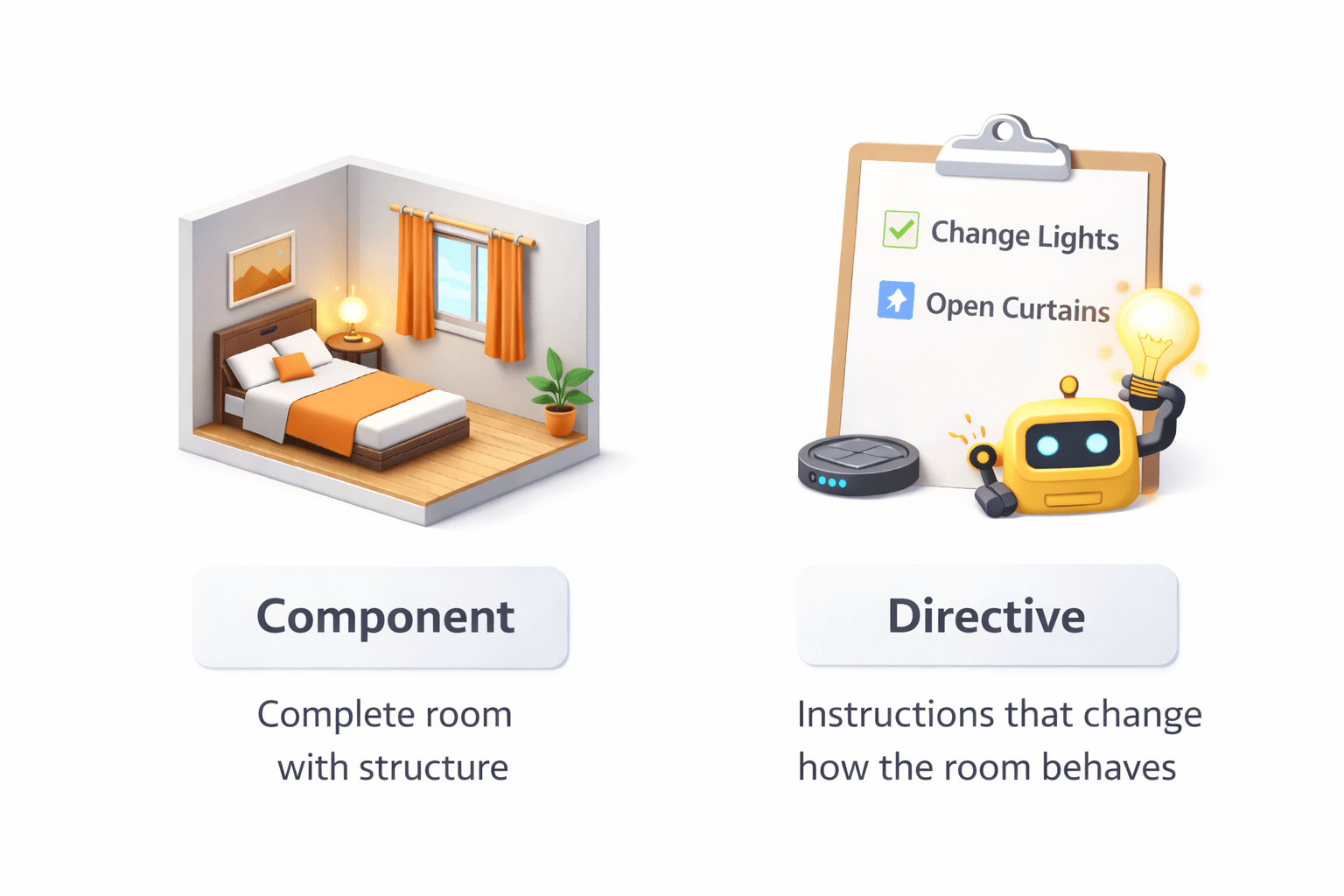

Component → Complete room with structure

House Analogy

Directive → Instructions that change how the room behaves

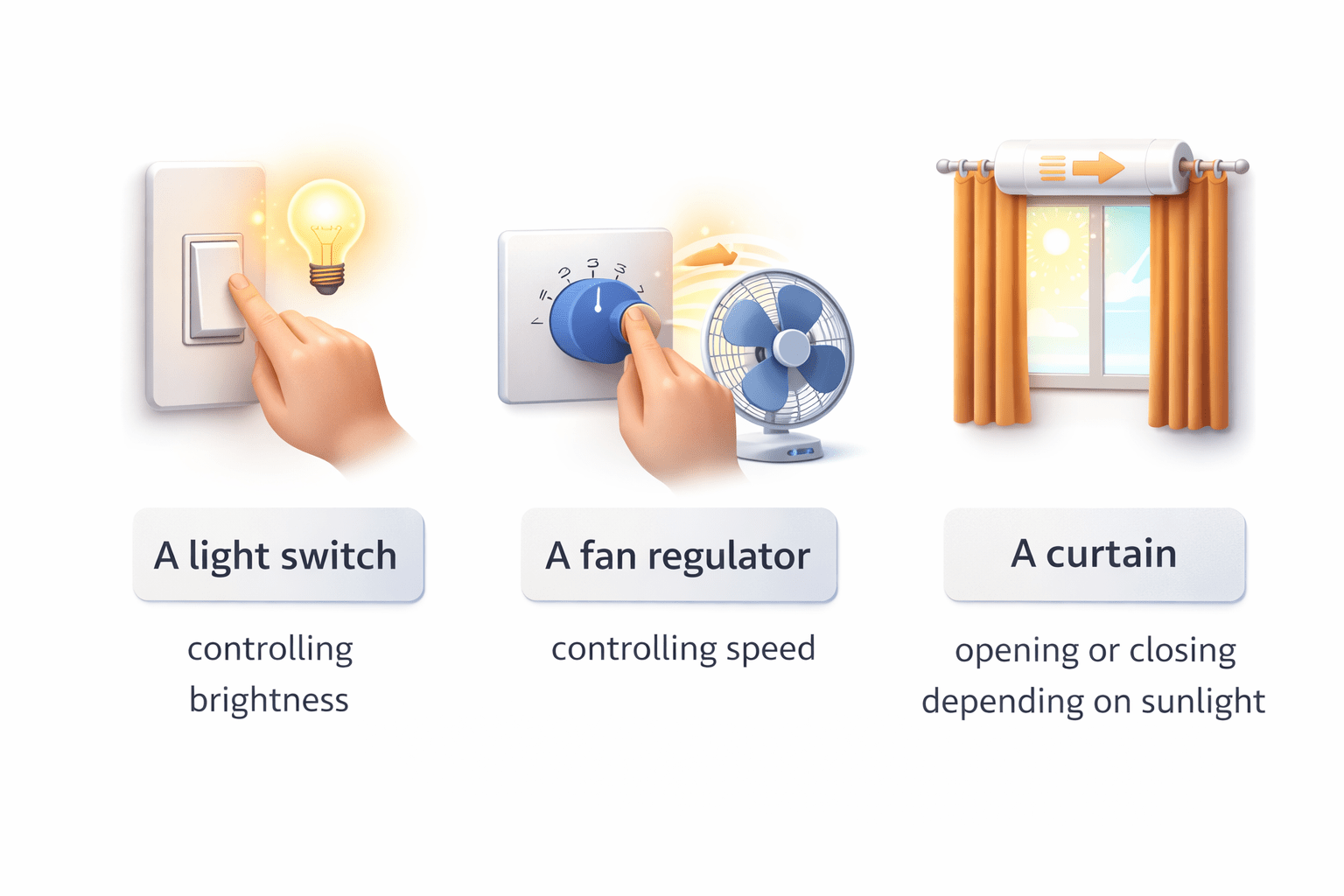

A curtain opening or closing depending on sunlight

A fan regulator controlling speed

A light switch controlling brightness

Like :

House Analogy

Similarly in Angular:

Directives control behavior and appearance of HTML elements without changing their structure.

Why Directives in Angular

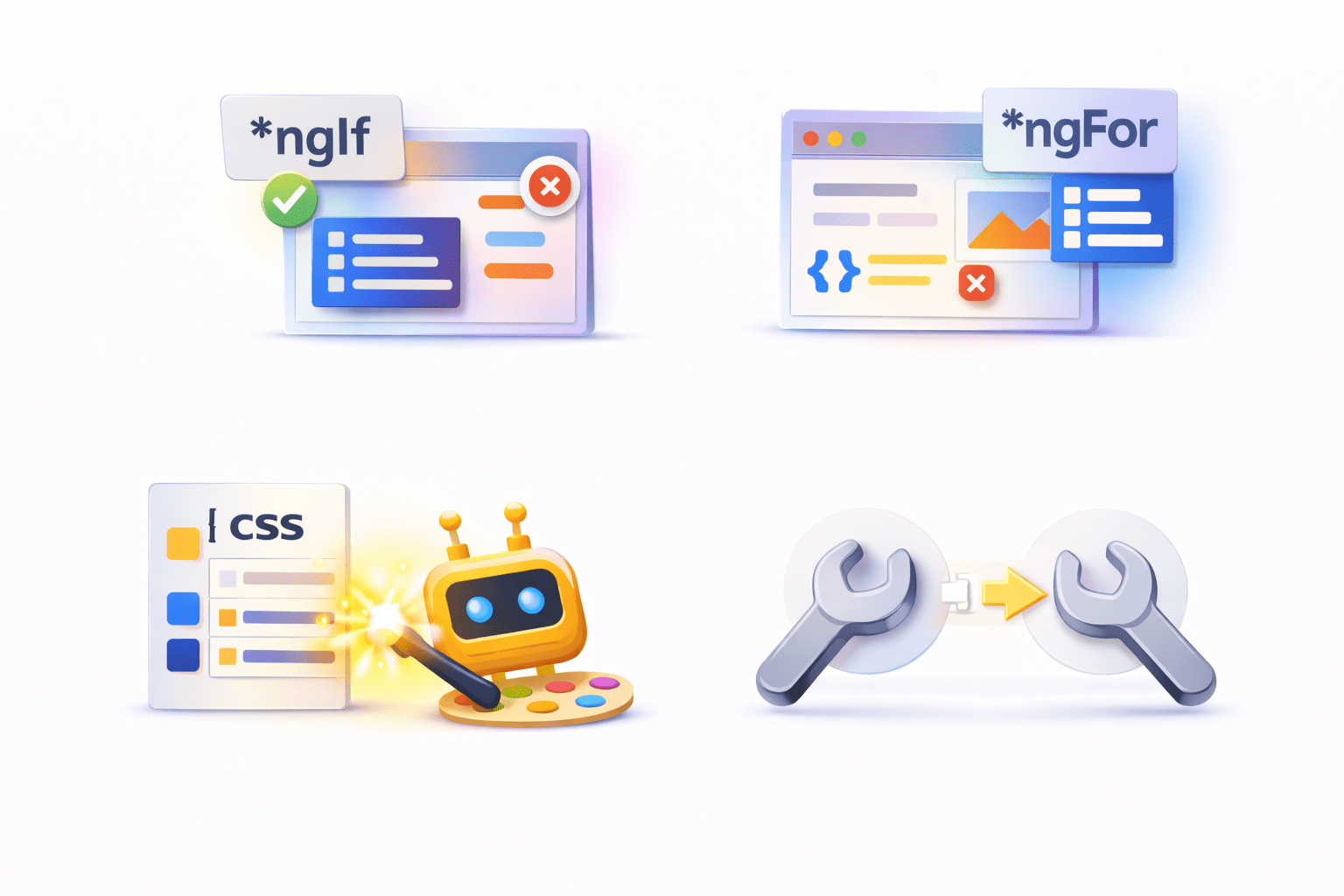

Directives help us:

Modify DOM behavior dynamically

Apply styles conditionally

Control UI rendering easily

Reuse UI logic across components

Instead of manually manipulating the DOM using JavaScript, Angular allows us to use directives

 What are Directives?

Definition :

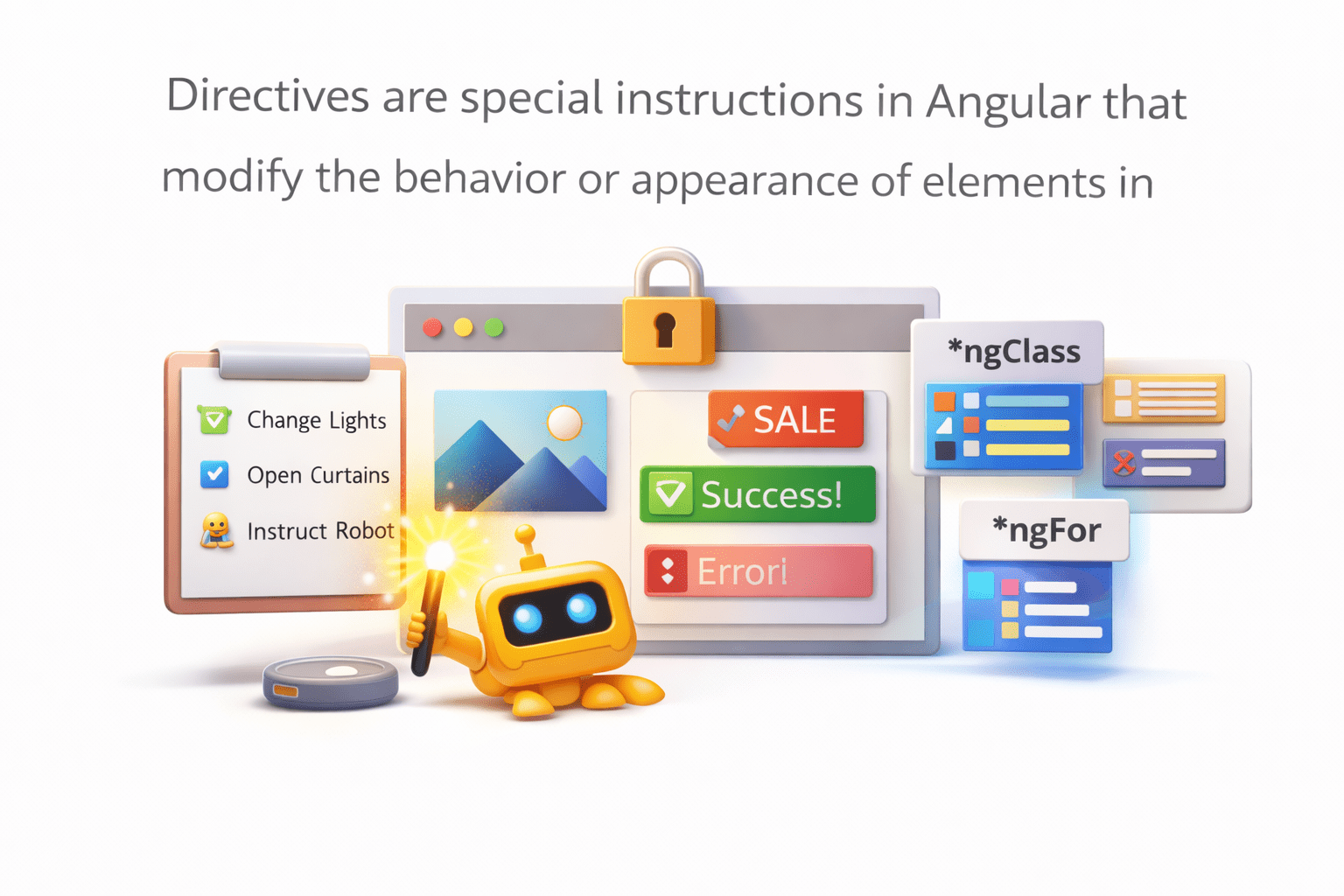

Directives are special instructions in Angular that modify the behavior or appearance of elements in the DOM.

Key Points :

  • Directives extend HTML functionality
  • Used to manipulate DOM structure or styling
  • Help create dynamic UI behavior

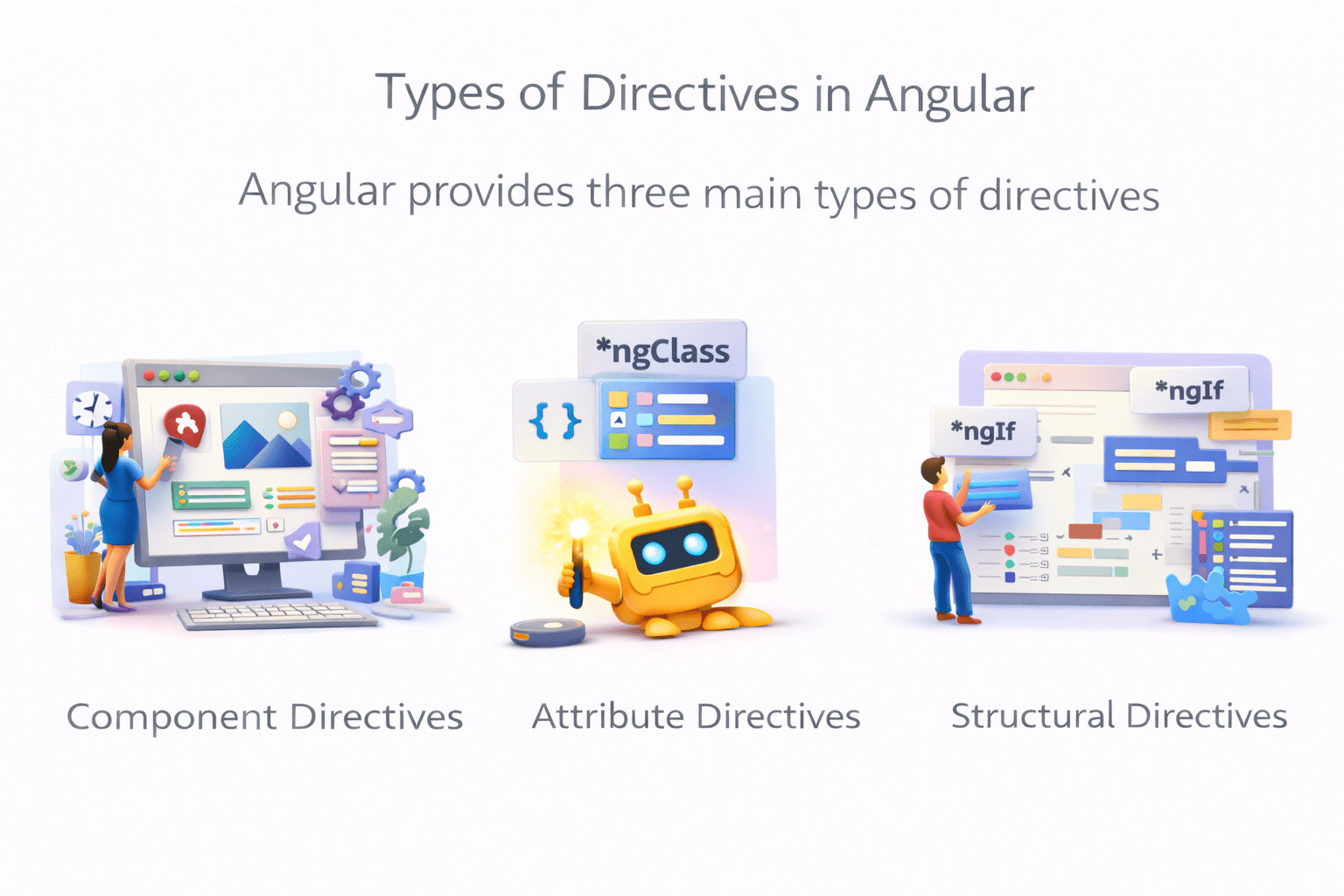

Types of Directives in Angular

Angular provides three main types of directives

Component Directives

Attribute Directives

Structural Directive

In this section we will focus on component and attribute directives

Component Directive

Definition:

A component is a directive that has its own template (view)

Angular replaces this tag with the component's template.

Example :

@Component({
   selector: 'app-header',
   templateUrl: './header.component.html'
})
export class HeaderComponent {}

Usage in HTML:

<app-header></app-header>

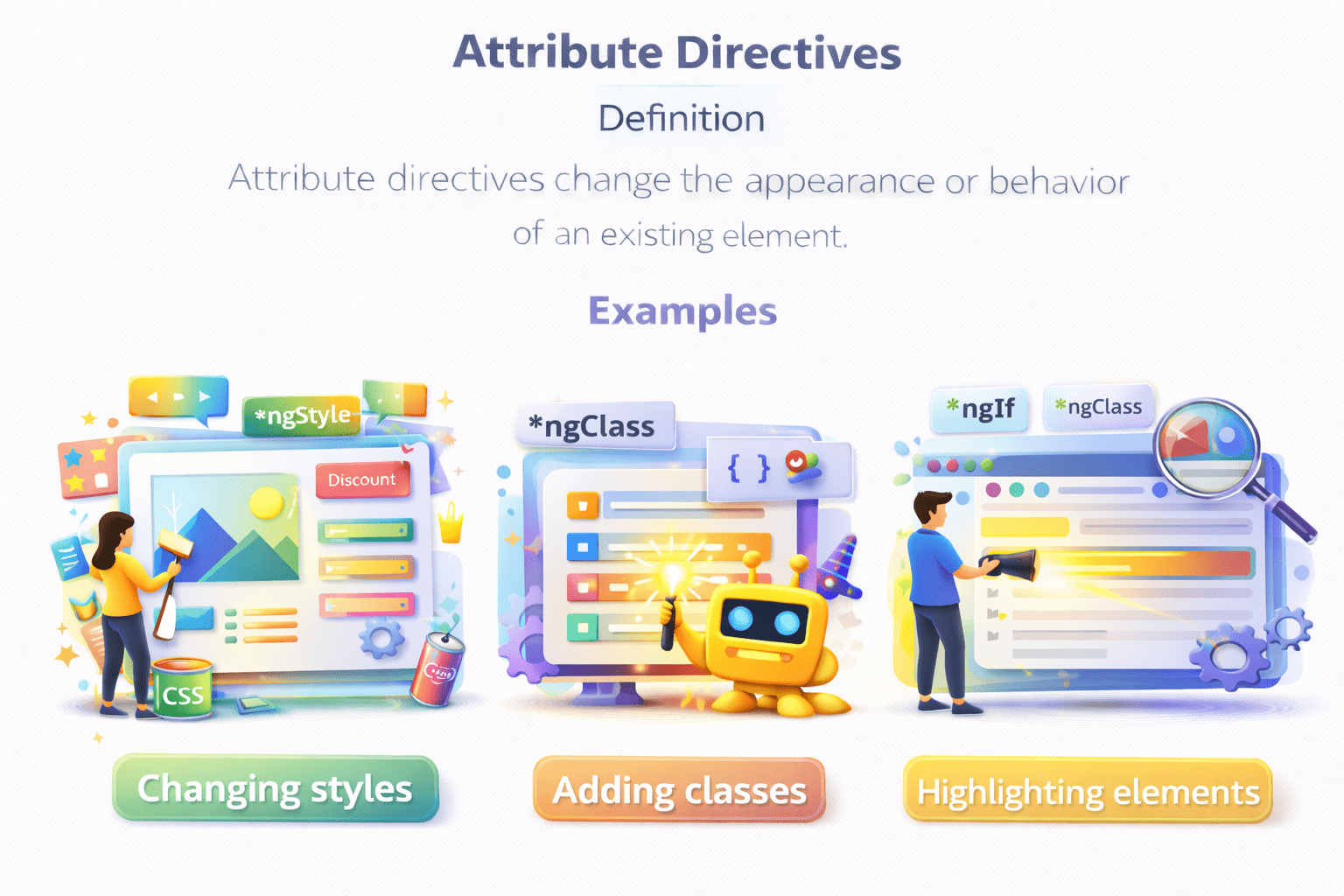

Attribute Directive

Changing styles

Adding classes

Highlighting elements

Example :

These directives allow applying multiple styles and classes dynamically.

Attribute directives change the appearance or behavior of an existing element.

Angular provides built-in attribute directives.

  • ngClass

  • ngStyle

Using ngClass

Example :

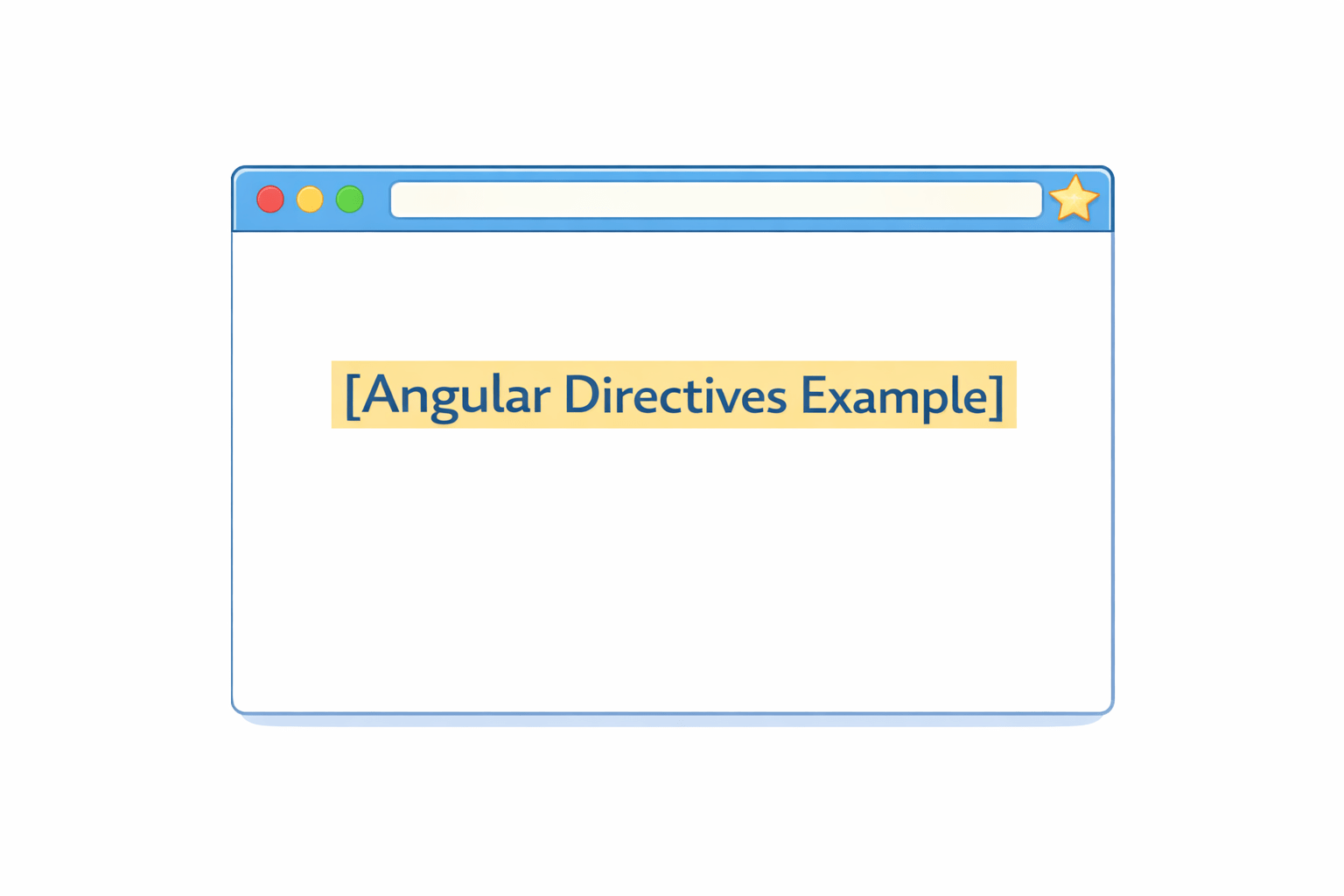

<p [ngClass]="{'highlight': isHighlighted, 'bold': isBold}">
    Angular Directives Example
</p>

ngClass is used to apply multiple CSS classes dynamically.

Component :

isHighlighted = true;
isBold = false;

 Using ngStyle

ngStyle allows dynamic application of multiple styles.

Example :

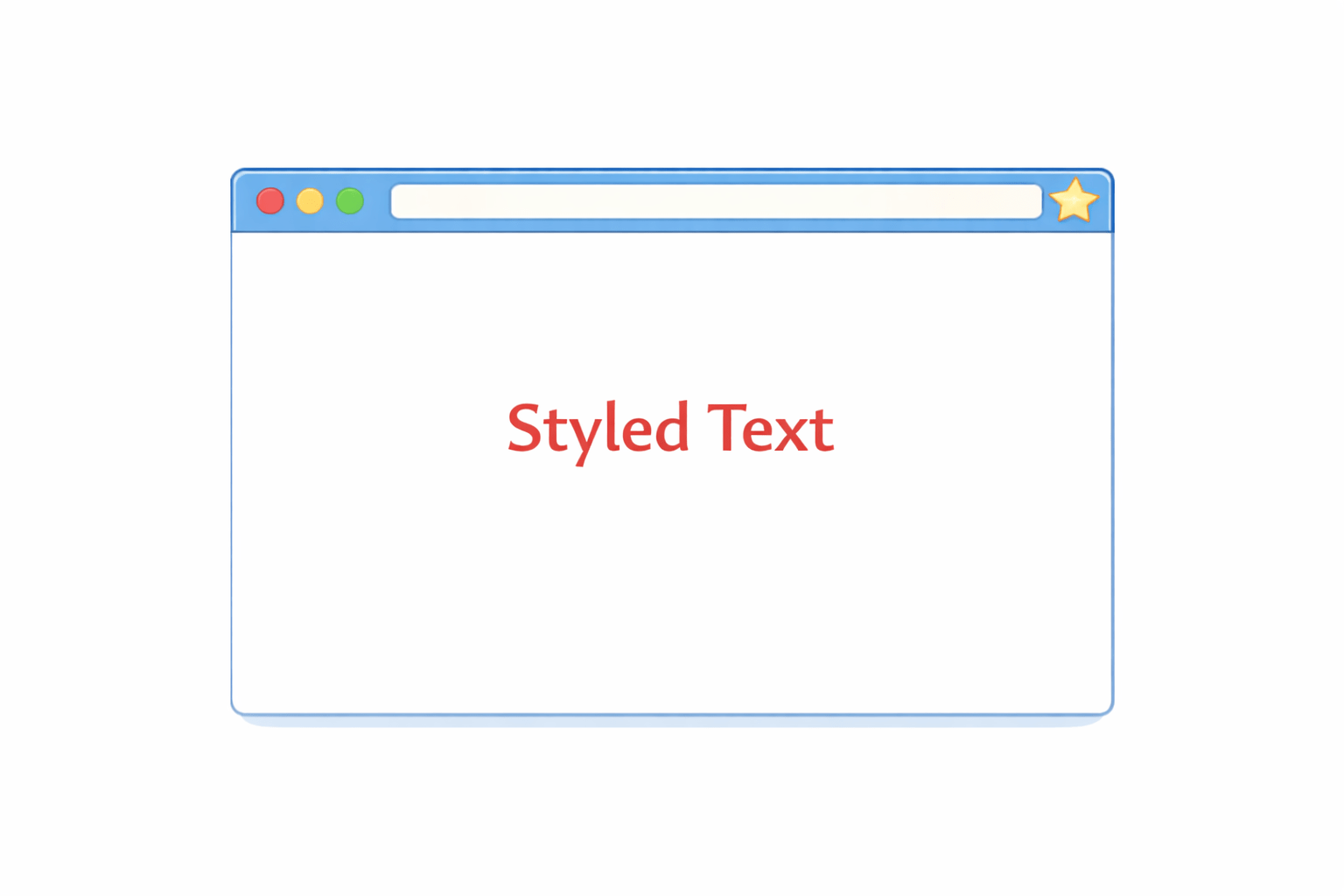

<p [ngStyle]="{'color': textColor, 'font-size': fontSize}">
Styled Text
</p>

Directives are one of the core features that make Angular powerful for building dynamic applications.

textColor = 'red';
fontSize = '20px';

Component :

Summary

4

ngClass and ngStyle apply dynamic classes and styles.

3

Angular provides three types of directives:

2

They modify the behavior and appearance of DOM elements.

1

Directives are used to extend HTML functionality in Angular

Quiz

 What is the main purpose of directives in Angular?

A. Manage routing

B. Modify DOM behavior and appearance

C. Handle HTTP requests

D. Store application data

Quiz-Answer

 What is the main purpose of directives in Angular?

A. Manage routing

B. Modify DOM behavior and appearance

C. Handle HTTP requests

D. Store application data
