Extracting Web Data

Business Scenario

Welcome!

Today is your 17th day as a Junior Data Analyst at the Indian Railways Reservation Department

Previously you used Regular Expressions to validate and extract patterns to automatically detect invalid PNR numbers, seat codes, and fare entries

Today, your manager has given you a new task. The department needs to pull live train schedules, passenger records, and seat availability data directly from the website. Instead of copying data manually, your job is to write Python programs that automatically fetch and extract this data from web pages.

To complete this task successfully, you must use Python to :

  • Fetch train schedule data from a Train Booking System webpage

  • Extract passenger records

  • Read seat availability

  • Automate data collection from web pages

Pre-Lab Preparation

Topic: Extract Web Data for Railway Information

1) Use requests
2) Parse HTML with BeautifulSoup

Git Pull

Click here for previous lab : Python Lab 16

git pull origin branchName

  • Automatically extracting data from websites

  • Reading the HTML content of a web page using Python

  • Useful when data is displayed on a website but not available as a file

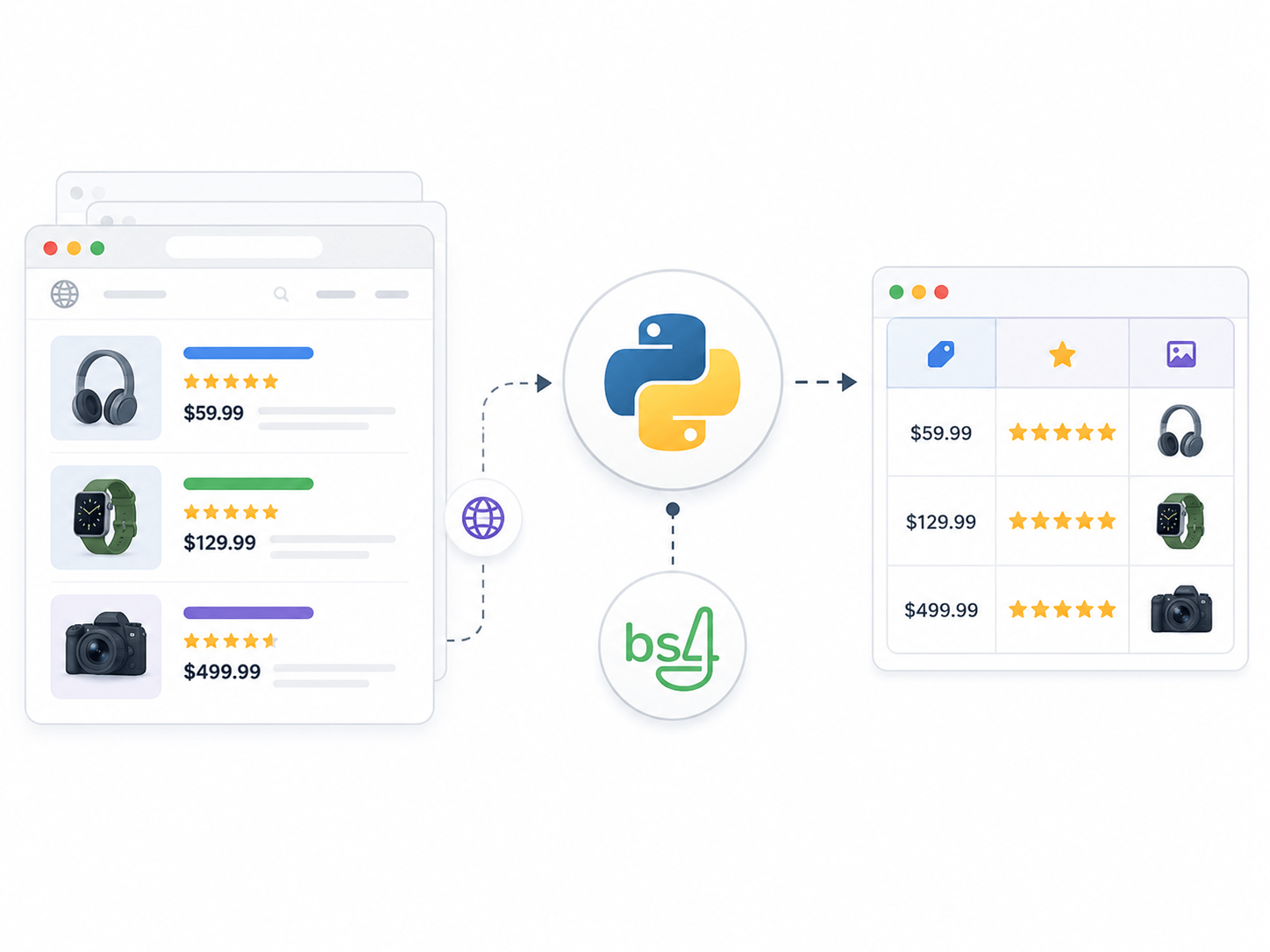

The BeautifulSoup Library

  • Used to parse and navigate HTML content

  • Imported from the bs4 package

  • Converts raw HTML into a searchable Python object

Key BeautifulSoup Methods

  • soup.find(tag) — find the first matching tag

  • soup.find_all(tag) — find all matching tags

  • soup.find(id="...") — find element by id

  • soup.find_all(class_="...") — find all elements by class name

  • .get_text() — extract visible text from a tag

  • tag["attribute"] — read an attribute value from a tag

Website for Webscrapping

Task 1: Fetch the Web Page

import requests
from bs4 import BeautifulSoup

url = "https://contentitvedant.github.io/Railway_Booking/index.html"

response = requests.get(url)

print("Status Code :", response.status_code)
print("Page Fetched Successfully")

Output

Task 2: Extract all Train Numbers

https://contentitvedant.github.io/Railway_Booking/index.html

import requests
from bs4 import BeautifulSoup

url = "https://contentitvedant.github.io/Railway_Booking/trains.html"

response = requests.get(url)
soup     = BeautifulSoup(response.text, "html.parser")

train_numbers = soup.find_all(class_="train-number")

print("Train Numbers on IndRail:")
print("=" * 30)
for item in train_numbers:
    print(item.get_text())

Output

Only first 4 outputs displayed

Task 3: Extract Full Train Schedule as a Table

import requests
from bs4 import BeautifulSoup

url = "https://contentitvedant.github.io/Railway_Booking/trains.html"

response = requests.get(url)
soup     = BeautifulSoup(response.text, "html.parser")

table = soup.find(id="train-schedule-table")
rows  = table.find("tbody").find_all("tr")

print("Train Schedule:")
print("=" * 60)

for row in rows:
    cells      = row.find_all("td")
    train_no   = cells[0].get_text()
    train_name = cells[1].get_text()
    from_stn   = cells[2].get_text()
    to_stn     = cells[3].get_text()
    departure  = cells[4].get_text()
    arrival    = cells[5].get_text()
    duration   = cells[6].get_text()
import requests
from bs4 import BeautifulSoup

url = "https://tathagat-pagare.github.io/Railway_Booking/trains.html"

response = requests.get(url)
soup     = BeautifulSoup(response.text, "html.parser")

table = soup.find(id="train-schedule-table")
rows  = table.find("tbody").find_all("tr")

print("Train Schedule:")
print("=" * 60)

for row in rows:
    cells      = row.find_all("td")
    train_no   = cells[0].get_text()
    train_name = cells[1].get_text()
    from_stn   = cells[2].get_text()
    to_stn     = cells[3].get_text()
    departure  = cells[4].get_text()
    arrival    = cells[5].get_text()
    duration   = cells[6].get_text()

    print(train_no, "|", train_name)
    print("   From :", from_stn, "-> To :", to_stn)
    print("   Departure :", departure, "| Arrival :", arrival, "| Duration :", duration)
    print("-" * 60)

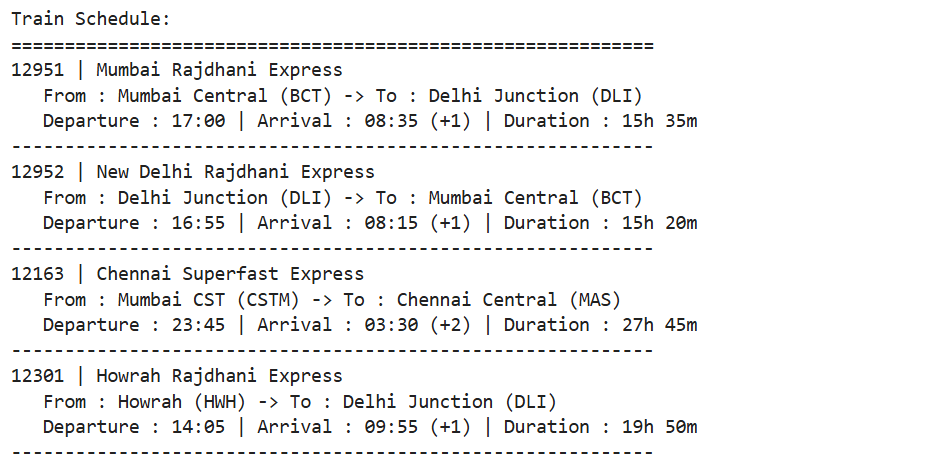

Output

Only first 4 outputs displayed

Task 4: Extract Passenger Records from the Passengers Page

import requests
from bs4 import BeautifulSoup

url = "https://contentitvedant.github.io/Railway_Booking/passengers.html"

response = requests.get(url)
soup     = BeautifulSoup(response.text, "html.parser")

table = soup.find(id="passenger-records-table")
rows  = table.find("tbody").find_all("tr")

print("Passenger Records:")
print("=" * 60)

for row in rows:
    pnr  = row["data-pnr"]
    name = row.find(class_="passenger-name").get_text()
    date = row.find(class_="journey-date").get_text()
    cls  = row.find(class_="travel-class").get_text()
    seat = row.find(class_="seat-number").get_text()
    fare = row.find(class_="fare").get_text()


import requests
from bs4 import BeautifulSoup

url = "https://tathagat-pagare.github.io/Railway_Booking/passengers.html"

response = requests.get(url)
soup     = BeautifulSoup(response.text, "html.parser")

table = soup.find(id="passenger-records-table")
rows  = table.find("tbody").find_all("tr")

print("Passenger Records:")
print("=" * 60)

for row in rows:
    pnr  = row["data-pnr"]
    name = row.find(class_="passenger-name").get_text()
    date = row.find(class_="journey-date").get_text()
    cls  = row.find(class_="travel-class").get_text()
    seat = row.find(class_="seat-number").get_text()
    fare = row.find(class_="fare").get_text()

    print("PNR  :", pnr)
    print("Name :", name)
    print("Date :", date, "| Class :", cls, "| Seat :", seat, "| Fare : Rs.", fare)
    print("-" * 60)

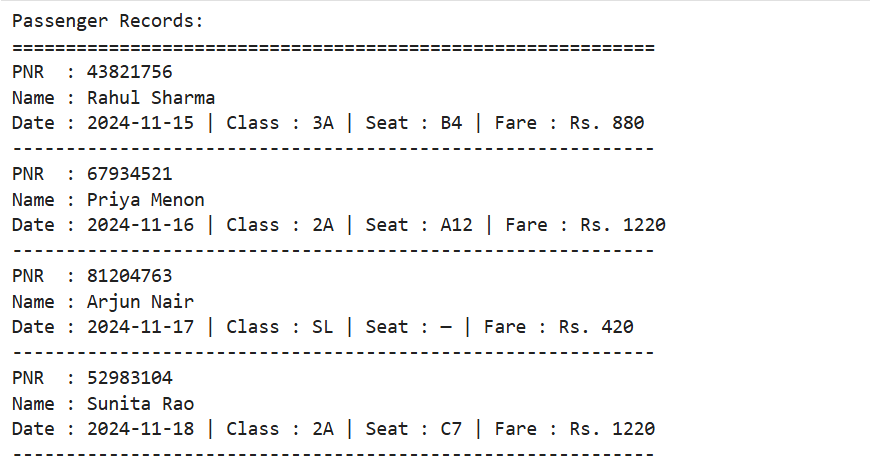

Output

Only first 4 outputs displayed

Task 5: Extract Seat Availability Data

import requests
from bs4 import BeautifulSoup
url = "https://contentitvedant.github.io/Railway_Booking/seat-availability.html"

response = requests.get(url)
soup     = BeautifulSoup(response.text, "html.parser")

table = soup.find(id="seat-availability-table")
rows  = table.find("tbody").find_all("tr")

print("Seat Availability Report:")
print("=" * 60)

for row in rows:
    train_no   = row["data-train"]
    train_name = row.find(class_="train-name").get_text()
    seats_sl   = row.find(class_="seats-sl").get_text()
    seats_3a   = row.find(class_="seats-3a").get_text()
    seats_2a   = row.find(class_="seats-2a").get_text()
    seats_1a   = row.find(class_="seats-1a").get_text()

    print("Train", train_no, "-", train_name)
    print("  SL :", seats_sl, "| 3A :", seats_3a, "| 2A :", seats_2a, "| 1A :", seats_1a)
    print("-" * 60)

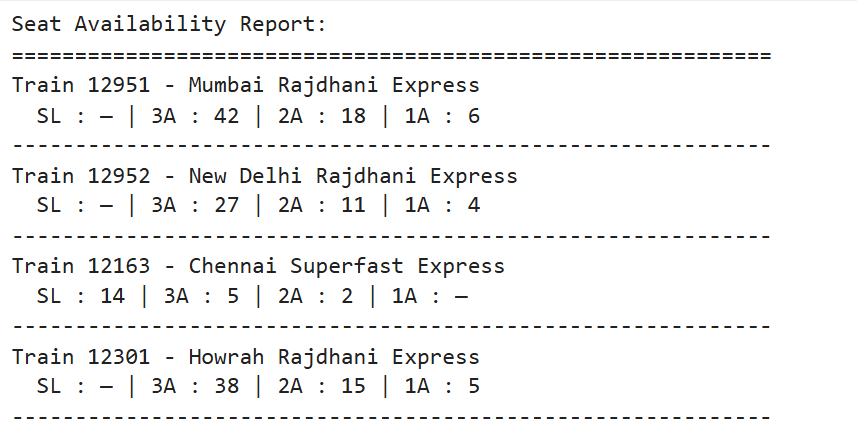

Output

Only first 4 outputs displayed

Task 6: Build Final Railway Data Scraper

Combine everything into one final scraper class that can fetch data page by just passing the page name.

Create the final RailwayScraper class.

1

import requests
from bs4 import BeautifulSoup

class RailwayScraper:

    def __init__(self):
        self.base_url = "https://contentitvedant.github.io/Railway_Booking/"

    def get_soup(self, page):
        url      = self.base_url + page
        response = requests.get(url)
        soup     = BeautifulSoup(response.text, "html.parser")
        print("Fetched :", url, "| Status :", response.status_code)
        return soup

    def get_train_schedule(self):
        soup   = self.get_soup("trains.html")
        table  = soup.find(id="train-schedule-table")
        rows   = table.find("tbody").find_all("tr")
        trains = []

        for row in rows:
            cells = row.find_all("td")
            trains.append({


import requests
from bs4 import BeautifulSoup

class RailwayScraper:

    def __init__(self):
        self.base_url = "https://tathagat-pagare.github.io/Railway_Booking/"

    def get_soup(self, page):
        url      = self.base_url + page
        response = requests.get(url)
        soup     = BeautifulSoup(response.text, "html.parser")
        print("Fetched :", url, "| Status :", response.status_code)
        return soup

    def get_train_schedule(self):
        soup   = self.get_soup("trains.html")
        table  = soup.find(id="train-schedule-table")
        rows   = table.find("tbody").find_all("tr")
        trains = []
        for row in rows:
            cells = row.find_all("td")
            trains.append({
                "train_no"   : cells[0].get_text(),
                "train_name" : cells[1].get_text(),
                "from"       : cells[2].get_text(),
                "to"         : cells[3].get_text(),
                "departure"  : cells[4].get_text(),
                "arrival"    : cells[5].get_text(),
                "duration"   : cells[6].get_text(),
            })
        return trains

    def get_passengers(self):
        soup       = self.get_soup("passengers.html")
        table      = soup.find(id="passenger-records-table")
        rows       = table.find("tbody").find_all("tr")
        passengers = []
        for row in rows:
            passengers.append({
                "pnr"  : row["data-pnr"],
                "name" : row.find(class_="passenger-name").get_text(),
                "date" : row.find(class_="journey-date").get_text(),
                "class": row.find(class_="travel-class").get_text(),
                "seat" : row.find(class_="seat-number").get_text(),
                "fare" : row.find(class_="fare").get_text(),
            })
        return passengers


import requests
from bs4 import BeautifulSoup

class RailwayScraper:

    def __init__(self):
        self.base_url = "https://tathagat-pagare.github.io/Railway_Booking/"

    def get_soup(self, page):
        url      = self.base_url + page
        response = requests.get(url)
        soup     = BeautifulSoup(response.text, "html.parser")
        print("Fetched :", url, "| Status :", response.status_code)
        return soup

    def get_train_schedule(self):
        soup   = self.get_soup("trains.html")
        table  = soup.find(id="train-schedule-table")
        rows   = table.find("tbody").find_all("tr")
        trains = []
        for row in rows:
            cells = row.find_all("td")
            trains.append({
                "train_no"   : cells[0].get_text(),
                "train_name" : cells[1].get_text(),
                "from"       : cells[2].get_text(),
                "to"         : cells[3].get_text(),
                "departure"  : cells[4].get_text(),
                "arrival"    : cells[5].get_text(),
                "duration"   : cells[6].get_text(),
            })
        return trains

    def get_passengers(self):
        soup       = self.get_soup("passengers.html")
        table      = soup.find(id="passenger-records-table")
        rows       = table.find("tbody").find_all("tr")
        passengers = []
        for row in rows:
            passengers.append({
                "pnr"  : row["data-pnr"],
                "name" : row.find(class_="passenger-name").get_text(),
                "date" : row.find(class_="journey-date").get_text(),
                "class": row.find(class_="travel-class").get_text(),
                "seat" : row.find(class_="seat-number").get_text(),
                "fare" : row.find(class_="fare").get_text(),
            })
        return passengers

    def get_seat_availability(self):
        soup      = self.get_soup("seat-availability.html")
        table     = soup.find(id="seat-availability-table")
        rows      = table.find("tbody").find_all("tr")
        available = []
        for row in rows:
            available.append({
                "train_no"   : row["data-train"],
                "train_name" : row.find(class_="train-name").get_text(),
                "seats_sl"   : row.find(class_="seats-sl").get_text(),
                "seats_3a"   : row.find(class_="seats-3a").get_text(),
                "seats_2a"   : row.find(class_="seats-2a").get_text(),
                "seats_1a"   : row.find(class_="seats-1a").get_text(),
            })
        return available

Create Object and call all 3 Methods

2

scraper = RailwayScraper()

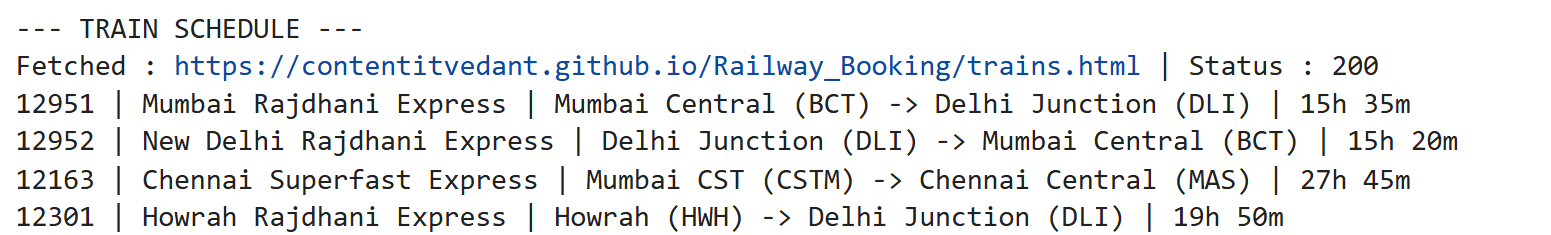

print("\n--- TRAIN SCHEDULE ---")
for train in scraper.get_train_schedule():
    print(
        train["train_no"], "|",
        train["train_name"], "|",
        train["from"], "->", train["to"], "|",
        train["duration"])
scraper = RailwayScraper()
print("\n--- TRAIN SCHEDULE ---")
for train in scraper.get_train_schedule():
    print(
        train["train_no"], "|",
        train["train_name"], "|",
        train["from"], "->", train["to"], "|",
        train["duration"])

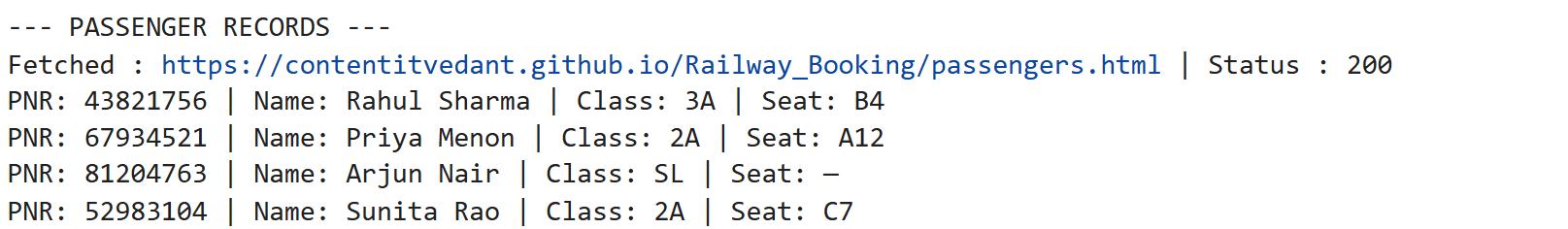

print("\n--- PASSENGER RECORDS ---")
for passenger in scraper.get_passengers():
    print(
        "PNR:", passenger["pnr"], "|",
        "Name:", passenger["name"], "|",
        "Class:", passenger["class"], "|",
        "Seat:", passenger["seat"]
        )

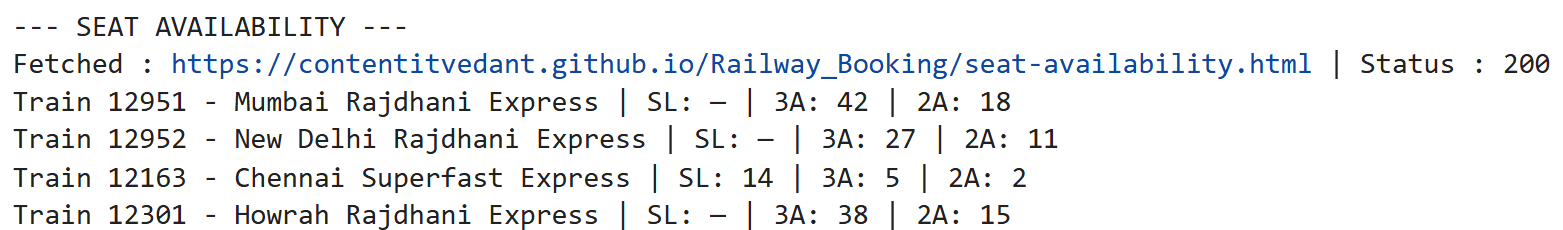

print("\n--- SEAT AVAILABILITY ---")
for seat in scraper.get_seat_availability():
    print(
        "Train", seat["train_no"], "-",
        seat["train_name"], "|",
        "SL:", seat["seats_sl"], "|",
        "3A:", seat["seats_3a"], "|",
        "2A:", seat["seats_2a"]
        )

Output

Only first 4 outputs displayed

Great job!

You have successfully used Web Scraping to fetch live web pages using the requests library from a real booking website and Parsed HTML structure using BeautifulSoup to locate tables, rows, and cells

Checkpoint

Next-Lab Preparation

Topic: Building Complete Railway Reservation System

1) Combine all modules
2) Build full system

   Git Push

git push origin branchName

Python 17

By Content ITV

Python 17

  • 122

More from Content ITV

  • Use OSINT tools to gather and analyze publicly available information.
    Content ITV
    2
  • Fixed Income Portfolio Strategy - Asset Valuation
    Content ITV
    5
  • Fixed Income Portfolio Strategy - Clean vs dirty price
    Content ITV
    2
  • Fixed Income Portfolio Strategy - Coupon, Frequency, Maturity
    Content ITV
    11
