Use OSINT tools to gather and analyze  publicly available information.

Business Scenario

Welcome!

You are working as a Cyber Security Analyst at SecureXit, where you need to perform an OSINT assessment to identify publicly available information about a client's organization.

Your task is to use dnsenum, dnsrecon, dnsmap, lbd, theHarvester, Maltego, and Shodan to gather information, discover exposed services, and analyze the organization's external digital footprint for potential security risks.

Pre-Lab Preparation

Topic : Networking Fundamentals

1) Introduction to Networking.

2) IP Addressing.

3) DNS fundamentals.

4) HTTP/HTTPS protocols.

Task 1: Domain and Email Enumeration

1

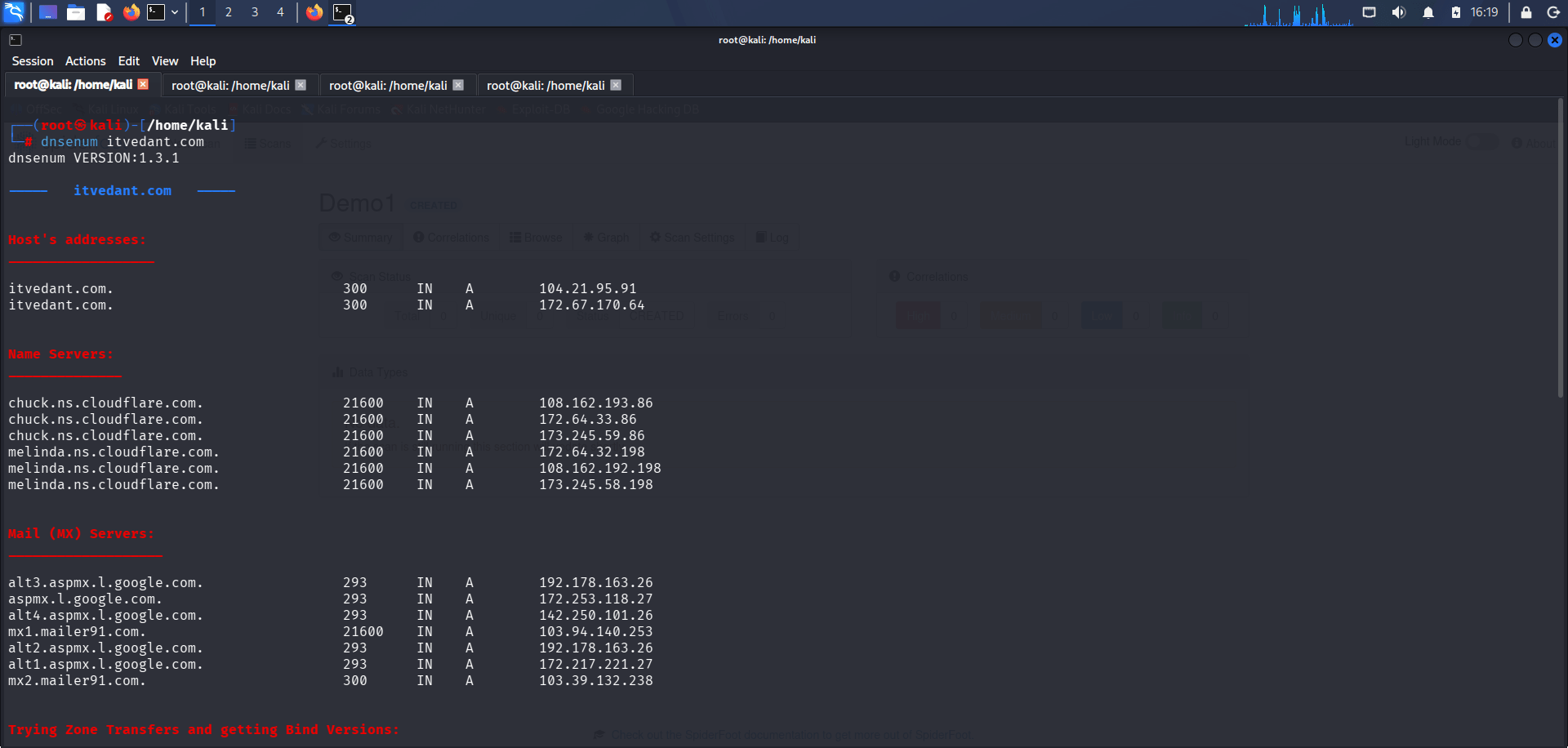

Perform Domain Enumeration Using dnsenum

Open the Kali Linux terminal and run the following command:

dnsenum itvedant.com

2

Enumerate DNS Information Using dnsrecon

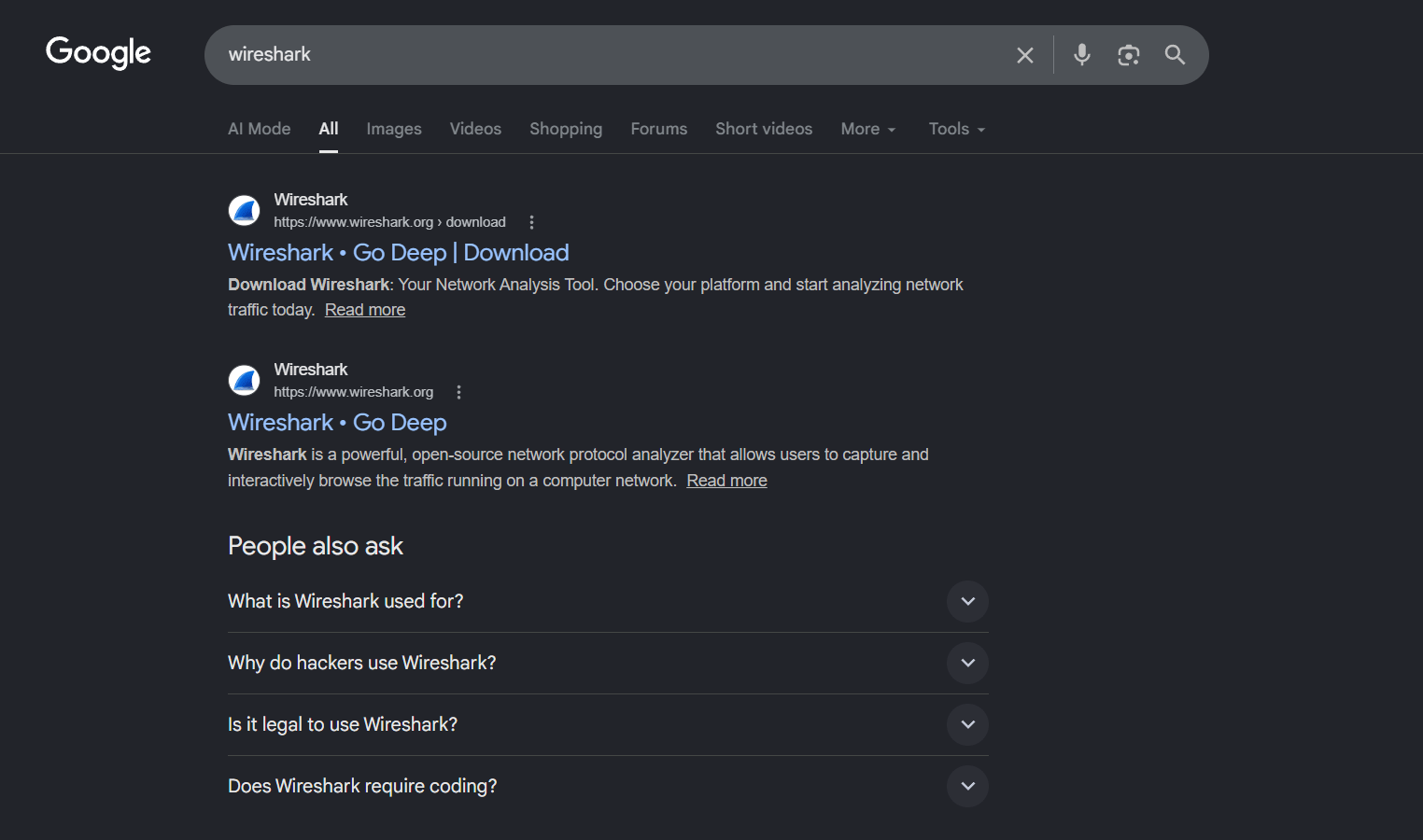

Click on the official Wireshark Download link from the search results.

Review the output and identify DNS records, name servers, and discovered subdomains.

3

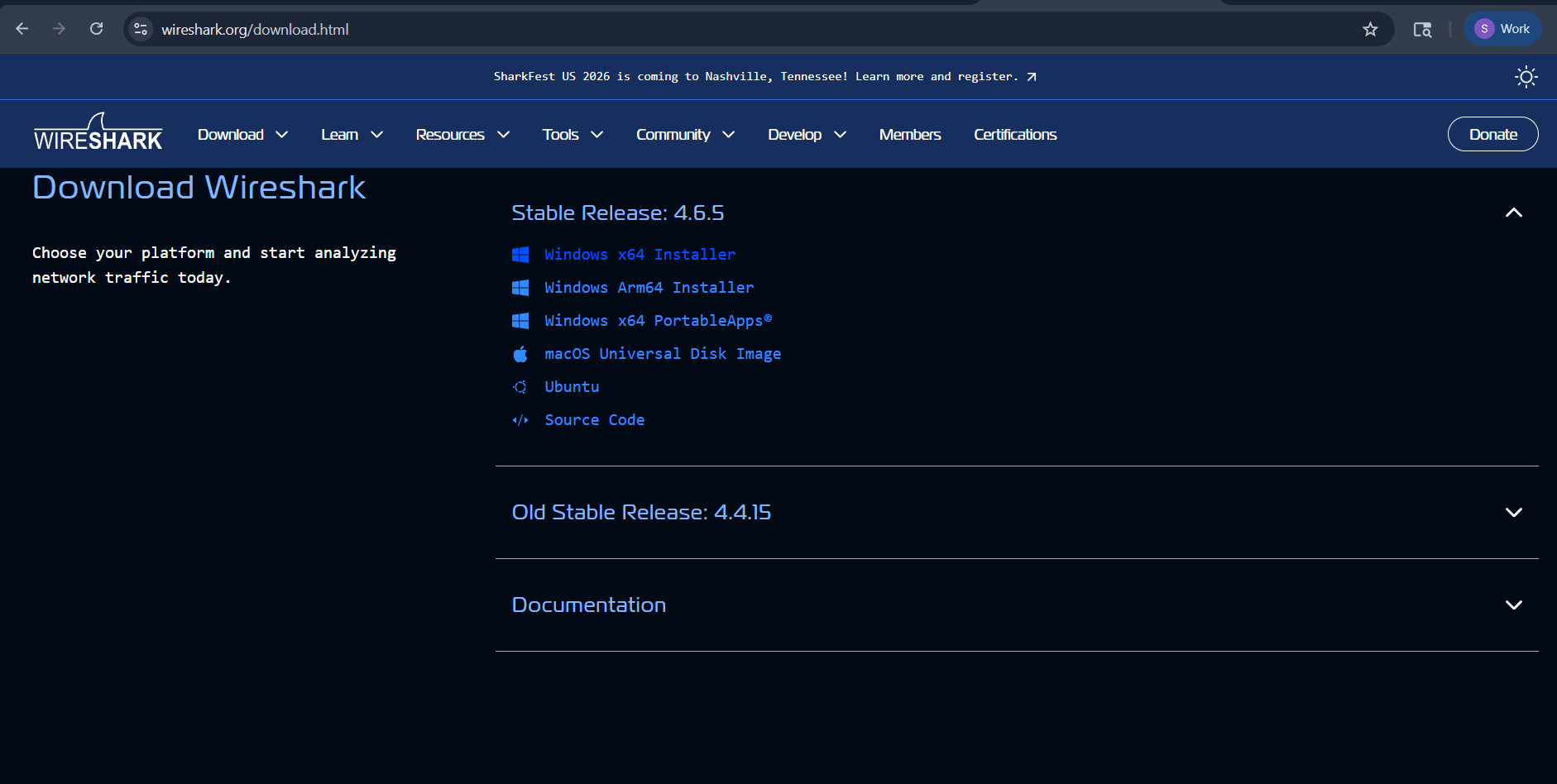

Access the Download Page and  Select Windows Installer

Click on Windows x64 Installer to download the latest Windows version of Wireshark.

4

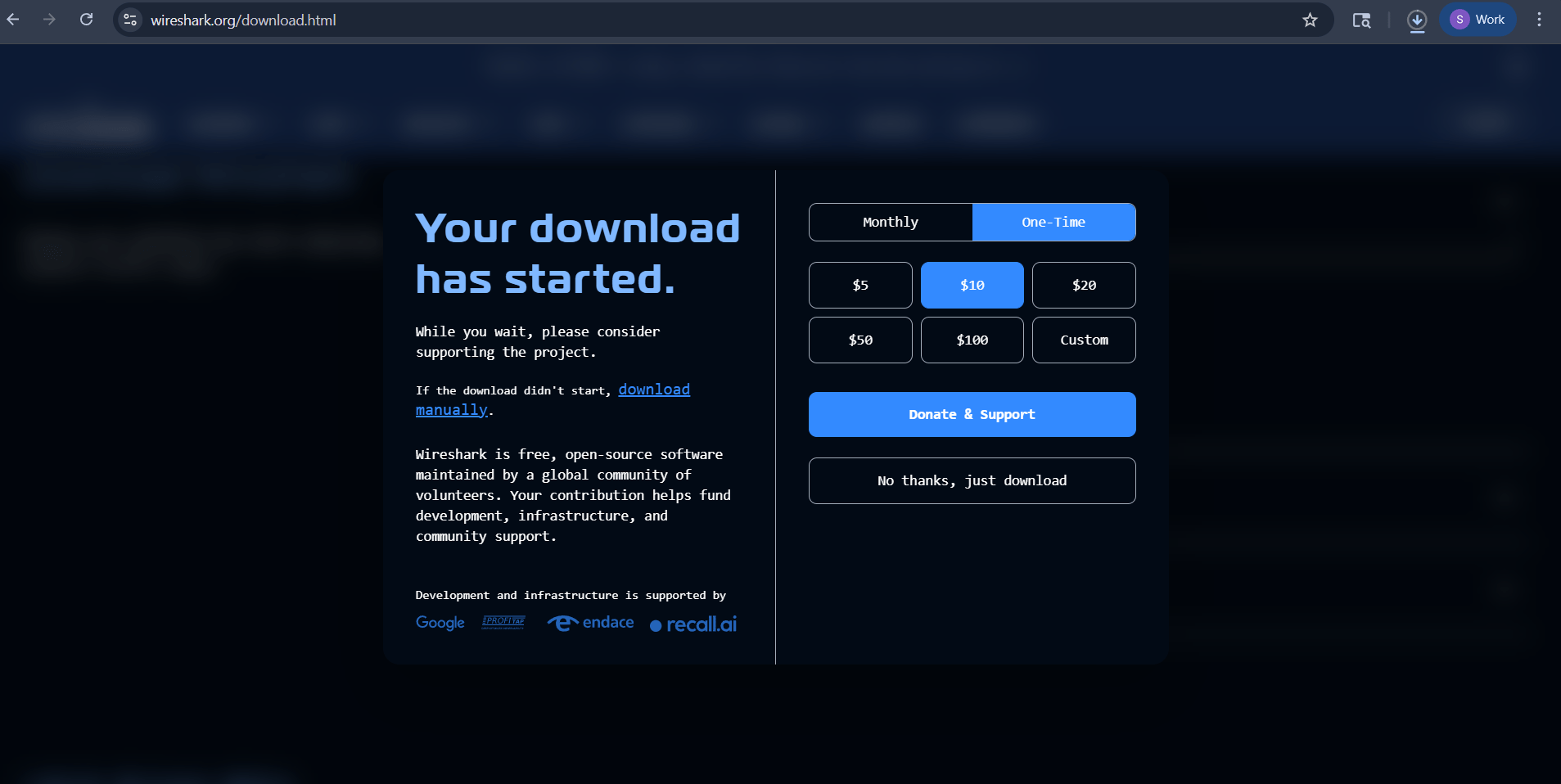

Start the Download

The download begins automatically; click “No thanks, just download” if prompted.

5

Launch the Setup File and Welcome to Setup Wizard

Click Next to continue with the Wireshark installation process.

6

Accept the License Agreement

Read the license agreement and click Noted to proceed.

7

Continue Installation Setup

Click Next on the professional usage information screen.

8

Choose Installation Components

Keep the default selected components and click Next.

9

Select Additional Tasks

Choose shortcut and file association options, then click Next.

10

Choose Installation Location

Select the installation folder or keep the default path and click Next.

11

Install Npcap

Keep Install Npcap selected because it is required for packet capturing.

12

USBPcap Installation Option

Leave USBPcap unchecked unless USB traffic capturing is needed, then click Install.

13

Wireshark Installation Starts

Wait while Wireshark copies files and installs required components.

14

Accept Npcap License Agreement

Click I Agree to continue installing Npcap.

15

Select Npcap Installation Options

Keep the default Npcap settings and click Install.

16

Npcap Installation in Progress

Wait for Npcap installation to complete successfully.

17

Npcap Installation Complete

Click Next after the Npcap installation finishes.

18

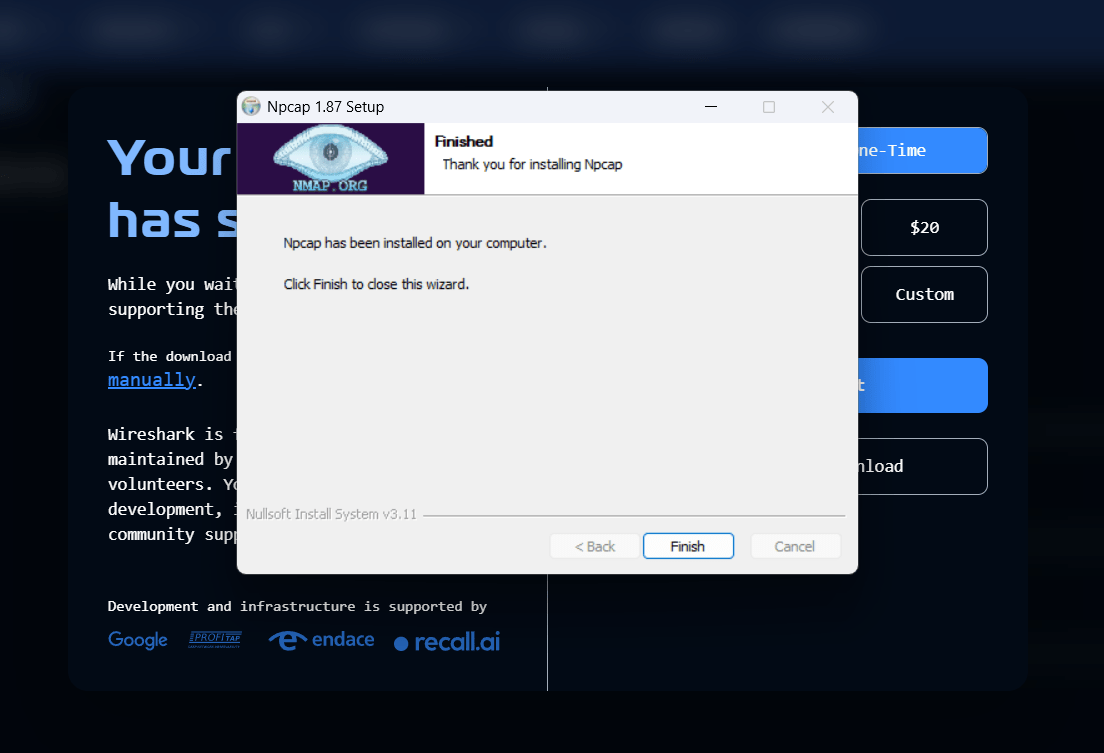

Finish Npcap Setup

Click Finish to close the Npcap installer.

19

Complete Wireshark Installation

Finish the Wireshark setup and launch the application from the desktop.

Task 2: Understand how DNS converts domain → IP

1

 Use nslookup

Open Command Prompt and type:

Observe:

  • DNS Server used

  • IP address of domain





nslookup google.com
nslookup itvedant.com
nslookup facebook.com



       Open Command Prompt and type:

ping google.com
ping itvedant.com
ping instagram.com

Use ping

2

Observe:

  • Domain automatically resolved to IP

  • Response time





Packet Capture (Wireshark)

3

Start Wireshark → select network interface → Start capture

a

Apply filter:  dns

b

Now open browser and visit: any Website

c

Observe:

  • DNS Query (A record request)

  • DNS Response (IP returned)

Task 3: DNS Practical Lab – Understanding DNS Records

  • ​  Identify different DNS record types (A, AAAA, MX, NS)

  •   Verify IP addresses and services linked to a domain







Open DNS Lookup Tool

1

Open browser (Chrome/Edge)

a

Go to: DNSChecker

b

 Enter Domain

2

In Enter any Valid URL, type:  google.com

a

Select: Record Type = ALL

b

Click:  Lookup DNS

c

 You will see:

3

Domain input box

a

Record type options (A, AAAA, MX, NS, etc.)

b

When a user types google.com:

  • DNS query is sent

  • NS server responds

  • A/AAAA record gives IP

  • System connects to server

This is called DNS Resolution Process.



Task 4: Observe HTTP vs HTTPS communication Analyze real web traffic

 Visit HTTP Site

1

Open Website : testaspnet.vulnweb.com

a

Enter Username and Password

b

Observe:

  • Plain text requests

  • GET request visible

  • No encryption

Open the Wireshark In filter search -  http

 Visit HTTPS Site

2

Open Website : https://google.com

a

Open the Wireshark and Apply filter: tls

b

Observe:

  • TLS handshake

  • Encrypted packets

  • No readable content



Great job!
You have successfully completed your lab on DNS and Secure Web Communication.

In this lab, you have: Understood DNS Resolution (Domain → IP), Used nslookup and ping tools, Captured traffic using Wireshark, Compared HTTP (Insecure) vs HTTPS (Encrypted) communication

You are now ready to move to the next stage of Network Security Analysis

Checkpoint

Next-Lab Preparation

Topic : Core Internet Technologies

1) TCP/IP And OSI Model
2) Ports and common network protocols

Use OSINT tools to gather and analyze publicly available information.
