Selenium WebDriver Basics

Locators – ID, Name, XPath, CSS

Learning Outcome

Apply common actions such as click, sendKeys, clear, and getText

Write simple automation scripts to interact with web elements

Locate web elements using ID, Name, XPath, and CSS selectors

Understand the basic concepts and functionality of Selenium WebDriver

Handle element properties and states to build reliable automation scripts

Recall

1. Click buttons, links, checkboxes, and radio buttons.

2. Enter text into input fields or text areas.

3. Select options from dropdown menus, checkboxes, or radio buttons.

4. Read text, labels, messages, or notifications displayed on the page.

5.Navigate between pages using links, menus, or buttons

In manual testing, we interact with web elements of software applications by performing actions just like an end user would:

In automation testing,

We cannot interact with web elements manually. To automate actions, we must precisely locate each web element on the web page.

Selenium locators are the key concept for this. They allow us to identify and access elements so that automated scripts can perform actions like click, type, select, or read text reliably.

Mastering locators is essential for building robust and maintainable automation tests.

Imagine a huge office building with thousands of rooms.

Web page = office building

Each room represents a web element.buttons, text boxes, links, checkboxes.

They need the exact room number, floor, and directions.

Web elements = rooms

If a visitor (automation script) wants to reach a specific room, just knowing the building is not enough.

Without locators, the script is like a visitor wandering aimlessly, unable to perform any meaningful action.

Selenium locators serve this purpose—they act as the precise coordinates that guide the script to the exact element.

Selenium locators = room numbers / addresses

With locators, the script can interact efficiently, click buttons, type text, and read information—just like a visitor reaching the right office without confusion.

Automation script = visitor navigating to the room

Why Do We Need Selenium Locators?

Automation scripts cannot see the page visually like humans.

To interact with elements (buttons, text boxes, links), scripts need their exact location.

Locators act as the address to find web elements on a page.

Using locators ensures that scripts can:

Click buttons and links accurately

Enter text in input fields

Read labels, messages, and other content

Without locators → scripts fail;

with locators → scripts are reliable and maintainable

What are Selenium Locators?

Selenium locators are strategies used to uniquely identify and locate web elements on a web page, enabling automation scripts to interact with them accurately and efficiently.

They act as a bridge between the automation script and the web elements, allowing actions such as clicking, typing, selecting, and retrieving data.

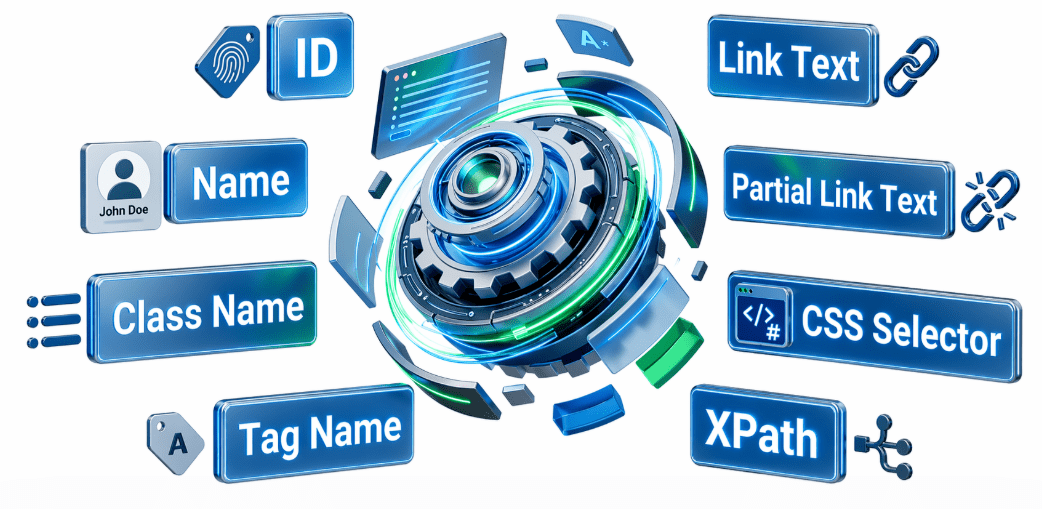

List of Selenium Locators

Selenium provides the following types of locators to identify web elements:

The ID locator is used to find a web element using its id attribute in HTML.

Since IDs are unique for each element (in most cases), this is the most preferred and fastest locator in Selenium.

ID Locator

Why Use ID Locator?

Unique – Each element usually has a unique ID

Fast – Direct access, no complex search

Reliable – Less chance of failure (if ID is stable)

Locating Username Field

<input type="text" id="username" name="user" placeholder="Enter Username">

Locating button

<button id="loginBtn">Login</button>

Example 1 :

Example 2 :

The Name locator identifies web elements using the name attribute defined in HTML.

It is commonly used in forms where input fields like username, password, search boxes, etc., are assigned a name.

Name Locator

Why Use Name Locator?

Easy to use and understand

Works well when name is unique

Note

May not be reliable if multiple elements share the same name

Selenium will always pick the first one

Example

To locate Elements from Form.

<form>

<input type="text" name="username" placeholder="Enter Username">

<input type="password" name="password" placeholder="Enter Password">

<input type="text" name="username" placeholder="Re-enter Username">

<button name="loginBtn">Login</button>

</form>

The ClassName locator identifies web elements using their HTML class attribute.

In HTML, a class is often used to group elements with similar styling or behavior.

Multiple elements can share the same class.

Selenium uses the class name to find and return elements in the DOM.

ClassName Locator

Example

<form>
<input type="text" class="input-field" name="username" placeholder="Enter Username">
<input type="password" class="input-field" name="password" placeholder="Enter Password">
<button class="btn-login">Login</button>
<button class="btn-login">Cancel</button>
</form>

When to Use ClassName Locator ?

When ID or Name is not available

When dealing with multiple elements of the same type

Iterating over lists, tables, or repeated fields

Limitations

Cannot handle multiple class names with spaces directly

→ Must use CSS Selector or XPath instead.

<input type="text" class="input-field form-control">

May select the wrong element if the class is shared widely

Not suitable for unique element interactions

NOTE

Best applied when you need to work with multiple similar elements rather than interact with a single unique element.

Limitations

The TagName locator identifies web elements using their HTML tag name such as input, button, a, div, span, etc.

Unlike ID or Name locators, TagName does not guarantee uniqueness, so its use requires careful consideration.

Selects first matching element only.

TagName Locator

Example

Only the first <input> is selected. If there are multiple inputs

NOTE

<form>
<input type="text" id="username" placeholder="Enter Username">
<input type="password" id="password" placeholder="Enter Password">
<button type="submit">Login</button>
<a href="#">Forgot Password?</a>
</form>

The LinkText locator is used to identify hyperlink (<a>) elements using the exact visible text of the link.

Unlike ID or Name locators, TagName does not guarantee uniqueness, so its use requires careful consideration.

LinkText Locator

Example

<a href="home.html">Home</a>

<a href="about.html">About Us</a>

<a href="contact.html">Contact</a>

How It Works

Selenium searches the DOM for an <a> tag where the visible text exactly matches the string you provide.

If no exact match is found → NoSuchElementException is thrown.

The PartialLinkText locator is similar to LinkText but uses part of the visible text to identify a hyperlink.

Example

<a href="services.html">Our Services</a>

<a href="products.html">Our Products</a>

<a href="contact.html">Contact Us</a>

Services" matches “Our Services”

Useful when text may change slightly or is long

PartialLinkTextLocator

cascading style sheet are used to create webpages in a stylish way hence can be effective medium to locate various web elements

These days webpages are design dynamically ,so its challenging to get unique id ,name ,classname to locate element.

cssSelector can be alternative & faster way compared to another locator

1. By ID

CssSelector Locator

Types of CSS Selectors

Free and Open Source

#elementId

Free and Open Source

5. By Partial Attribute Match

Starts with: [attribute^='value']
Ends with: [attribute$='value']
Contains: [attribute*='value']

Free and Open Source

4. By Attribute

3. By Tag and Class

2. By Class

tagName[attribute='value']

tagName.className

.className

Example XML:

Example XPath:

<bookstore>
 <book>
   <title>Harry Potter</title>
   <price>29.99</price>
 </book>
</bookstore>

XPath Locator

/bookstore/book/title

XPath (short for XML Path Language) is a query language used to navigate and select elements or attributes in an XML (or HTML) document.

It’s widely used in web scraping, automation tools like Selenium, and XML parsing.

XPath works like a path to locate nodes in a document structure.

Types of xpath

Absolute xpath

Relative xpath

Begins from the root of the HTML document and specifies the complete path to the element.

It’s not as flexible and can break if the page structure changes.

It is a direct way to find webelement as it starts with single forward slash[/].It can select webelement from root node.

Absolute xpath

If there are any changes made in absolute path the xpath get Fail

Example

Disadvantage

 /html/body/div[1]/div/div[3]/div[2]/div[2]/form/div[2]/input

It Starts from a specific element and navigates through the DOM hierarchy to locate the desired element.

It’s more flexible and resilient to changes in the page structure.

It starts from double forward slash[//] which mean it can search webelement from anywhere on webpage starts in between HTML DOM Structure concise in size.

Example

Relative Xpath

//*[@id="txtPassword"]

Example

Relative Xpath

//*[@id="txtPassword"]

Relative XPath Starts from a specific element and navigates through the DOM hierarchy to locate the desired element.

It’s more flexible and resilient to changes in the page structure.

It starts from double forward slash[//] which mean it can search webelement from anywhere on webpage starts in between HTML DOM Structure concise in size.

Common XPath Locator Strategies

1. By Attribute

//tagname[@attribute='value']

Example

2. By Text

//tagname[text()='Login']

Free and Open Source

3. By Contains

//tagname[contains(@attribute,'value')]

Free and Open Source

Example

//div[contains(@class,'header')]

//input[@id='email']

//input[starts-with(@name,'user')]

5. Using AND / OR

Free and Open Source

4.By Starts-with

//input[@type='text' and @name='username']

6. Using Index

(//input[@type='text'])[1]

Common XPath Locator Strategies

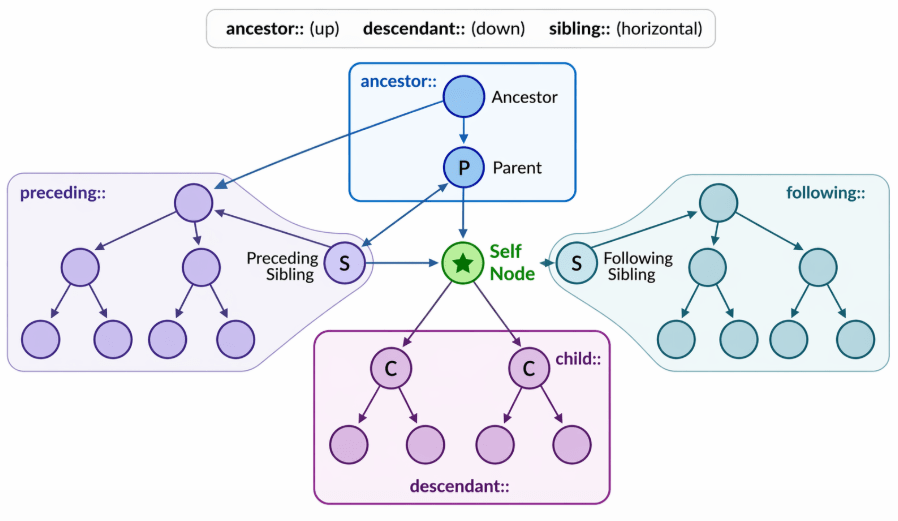

By using Xpath axes we can navigate throughout the DOM page like top to bottom and bottom to top and we can find any elements on the web page even though we don’t have the attribute .

Following are terminologies.

Xpath axes
