Supervised Learning – Classification
Support Vector Machine
Learning Outcome
5
Explain how the 'C' parameter (Soft Margin) prevents overfitting.
4
Recognize the limitation of flat data and how the "Kernel Trick" solves it.
3
Distinguish between Linear and Non-Linear SVMs.
2
Identify the anatomy of SVM (Hyperplane, Margin, and Support Vectors).
1
Understand the core goal of SVM: maximizing the margin.
Two rival medieval factions (Red Knights and Blue Knights) set up camps in a massive field
Scenario:
Human Intuition
A thin chalk line? Dangerous if someone steps over.
The Safest Border
A wide, empty "No Man's Land" (DMZ) between camps
Machine's Logic
SVM Maximizes the Margin
Not just separation—maximum safety for future predictions

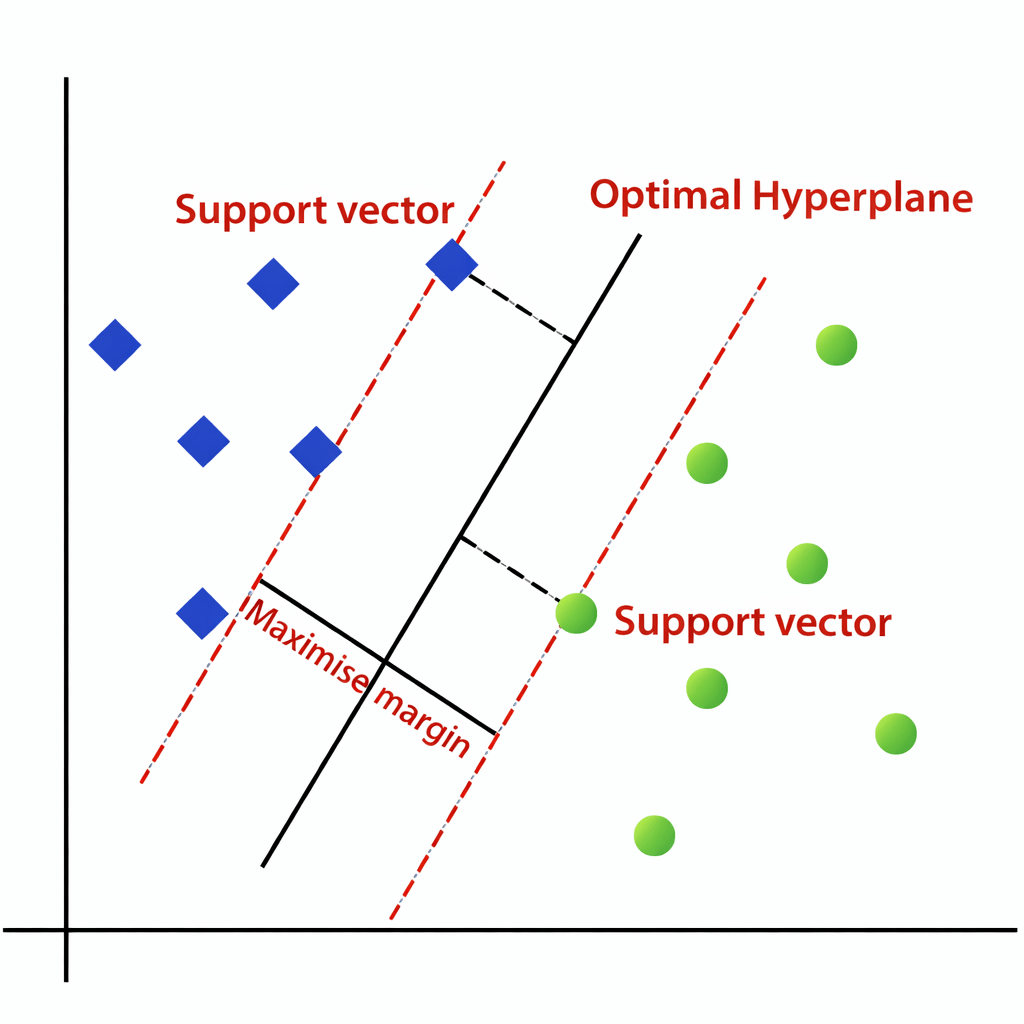

The Anatomy of SVM
The Hyperplane:
The exact center line. In 2D, it's a line. In 3D, it's a flat sheet.
The Margin:
The width of the "No Man's Land." The goal: make it as wide as possible.
The Support Vectors:
Data points on the very edge of the margin. The only points that matter.
Types of SVM: Linear vs. Non-Linear

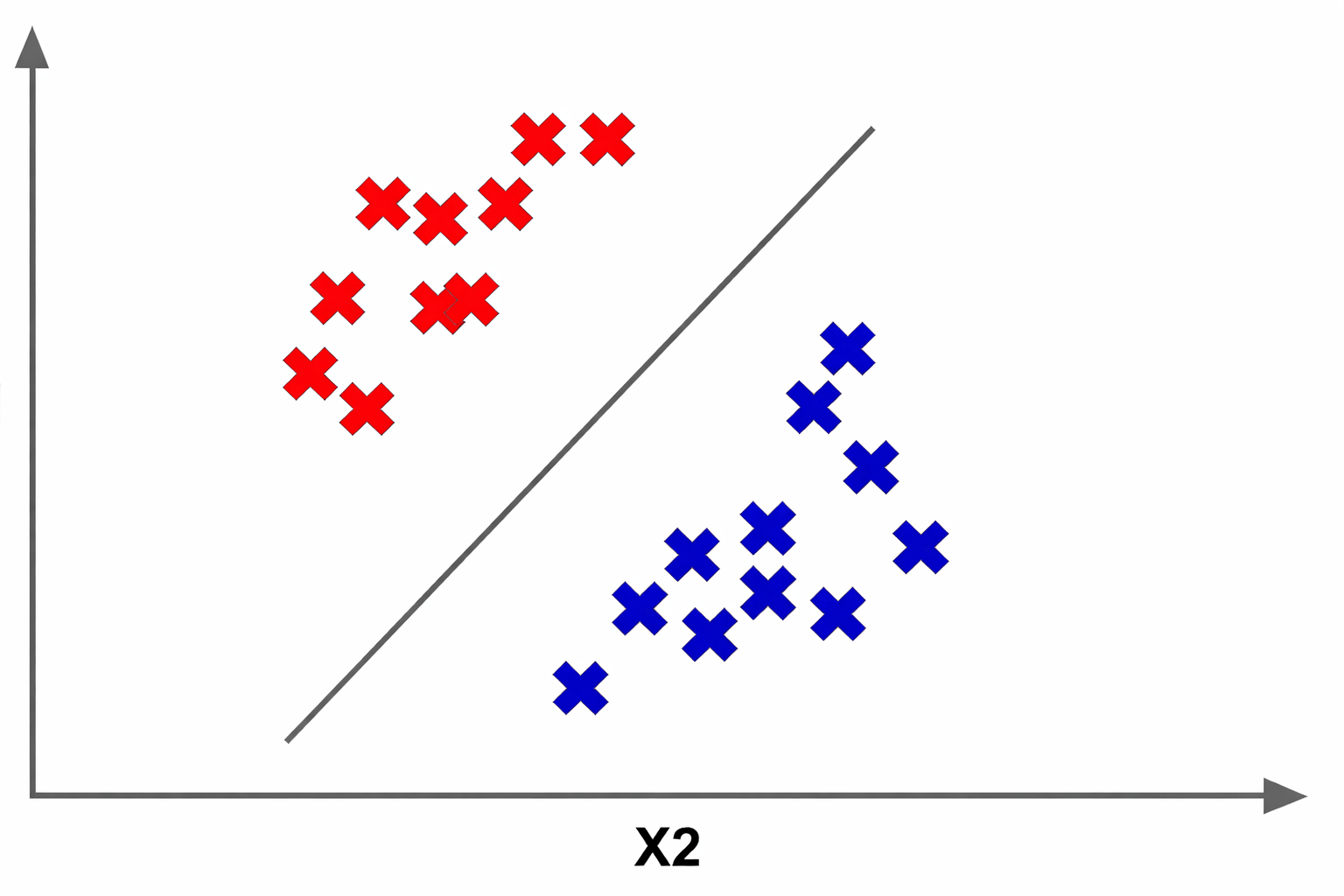

Linear SVM:
Data is clean and distinct. Easily slice with a single, straight ruler.
The Limitation (Non Linear Data):
What if Red Knights set up camp in a circle, and Blue Knights surround them in a ring?
The Problem: Cannot draw a straight line through a circle without crossing into enemy territory. A standard linear boundary fails.
The Problem: You cannot draw a straight line through a circle without crossing into enemy territory. A standard linear boundary fails.

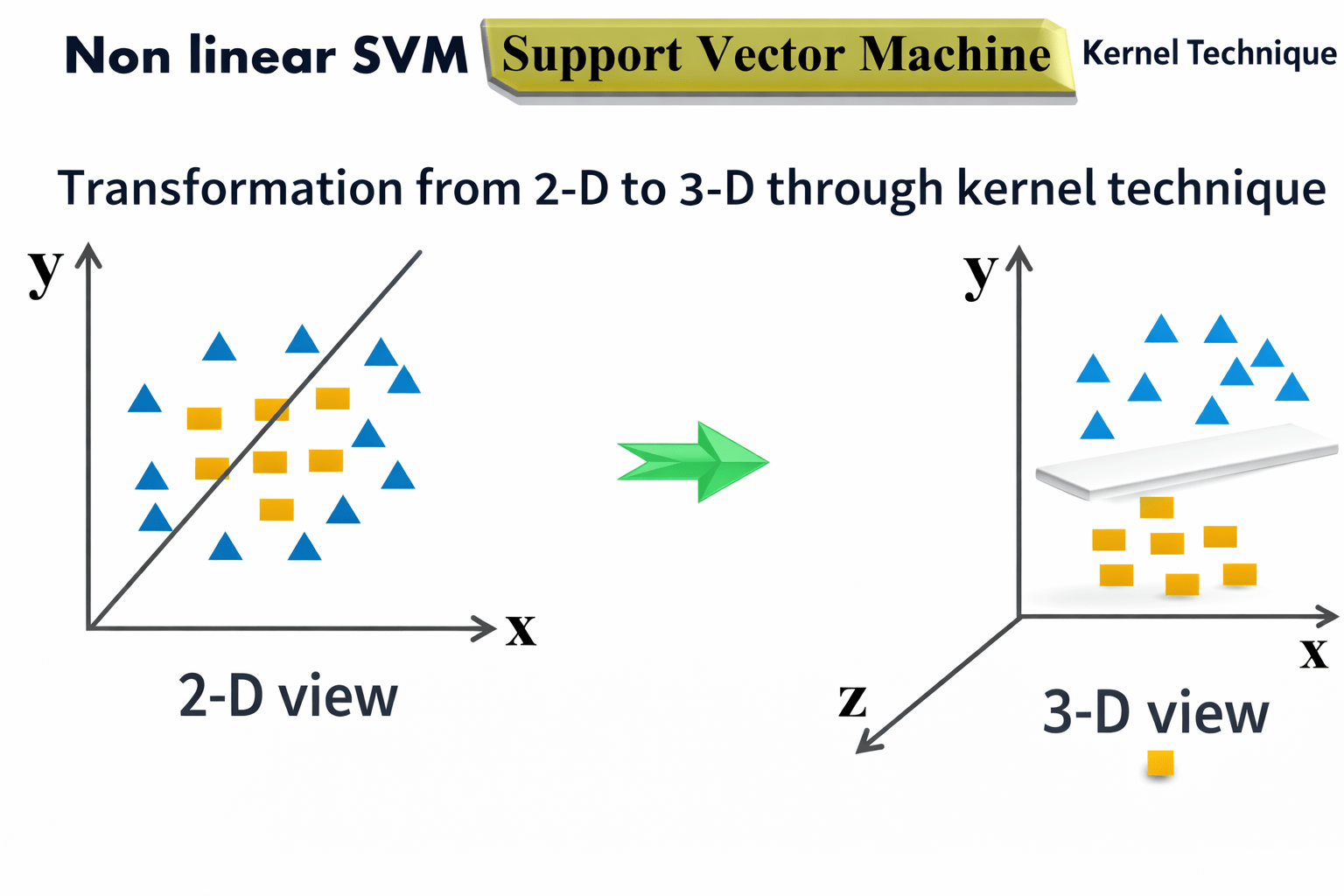

The Solution: "The Kernel Trick"
Imagine circular camps on flat paper. Can't separate with a straight line.
Now punch the center upward, creating a 3D mountain!
The Red Knights are now at the peak, and the Blue Knights are in the valley.
Now, you can just slide a flat, straight sheet of glass right through the middle of the mountain!
The Kernel Trick:
Mathematically transforms tangled 2D data into higher 3D dimension for easy slicing.
The Kernel Trick:
Mathematically transforms tangled 2D data into higher 3D dimension for easy slicing.
The Second Limitation: Messy Data & Overfitting
Core Concepts (.....Slide N-3)
Summary
4
C parameter controls fit vs generalization (hard vs soft margin)
3
Kernel trick handles non-linear data
2
Boundary depends on support vectors (edge points)
1
SVM finds a hyperplane that maximizes margin
Quiz
In a Support Vector Machine, what happens to the optimal hyperplane if you delete 50% of the data points that are situated far away from the margin boundary?
A. The hyperplane shifts dramatically
B. The algorithm crashes due to missing data
C. Absolutely nothing changes
D. The model switches from Linear to Non-Linear
Quiz-Answer
In a Support Vector Machine, what happens to the optimal hyperplane if you delete 50% of the data points that are situated far away from the margin boundary?
A. The hyperplane shifts dramatically
B. The algorithm crashes due to missing data
C. Absolutely nothing changes
D. The model switches from Linear to Non-Linear
