Level Up Your HomeLab Without Kubernetes

About Me

  • UVU Computer Science alumnus
  • Network Security Engineer
  • Homelab hobbyist
  • A bunch of spare equipment lying around
  • Too much free time

Follow
Along!

Contact:
saintcon@cronocide.com

@cronocide

Daniel Dayley

  • Some history and impetus for this talk
  • TrueNAS quick setup on Proxmox
  • Build consistent VMs with Packer
  • Keep track of your growing service collection with Consul
  • Codify your your workloads with Nomad
  • Secure your secrets with Vault and 1Password

Overview

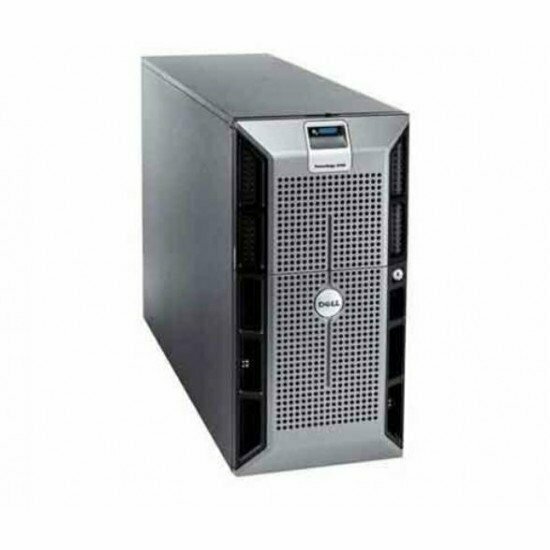

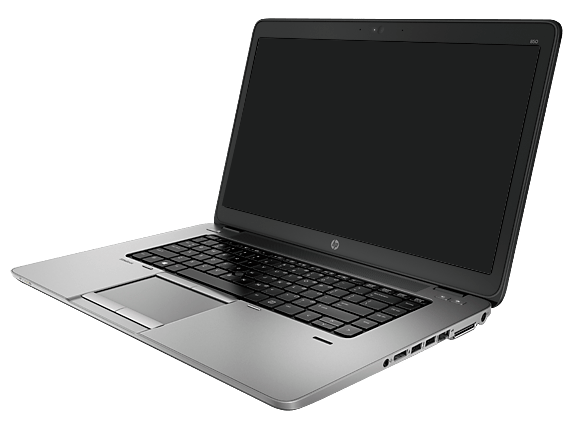

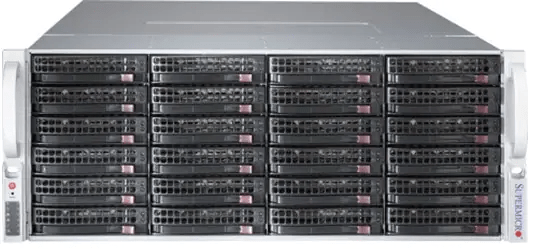

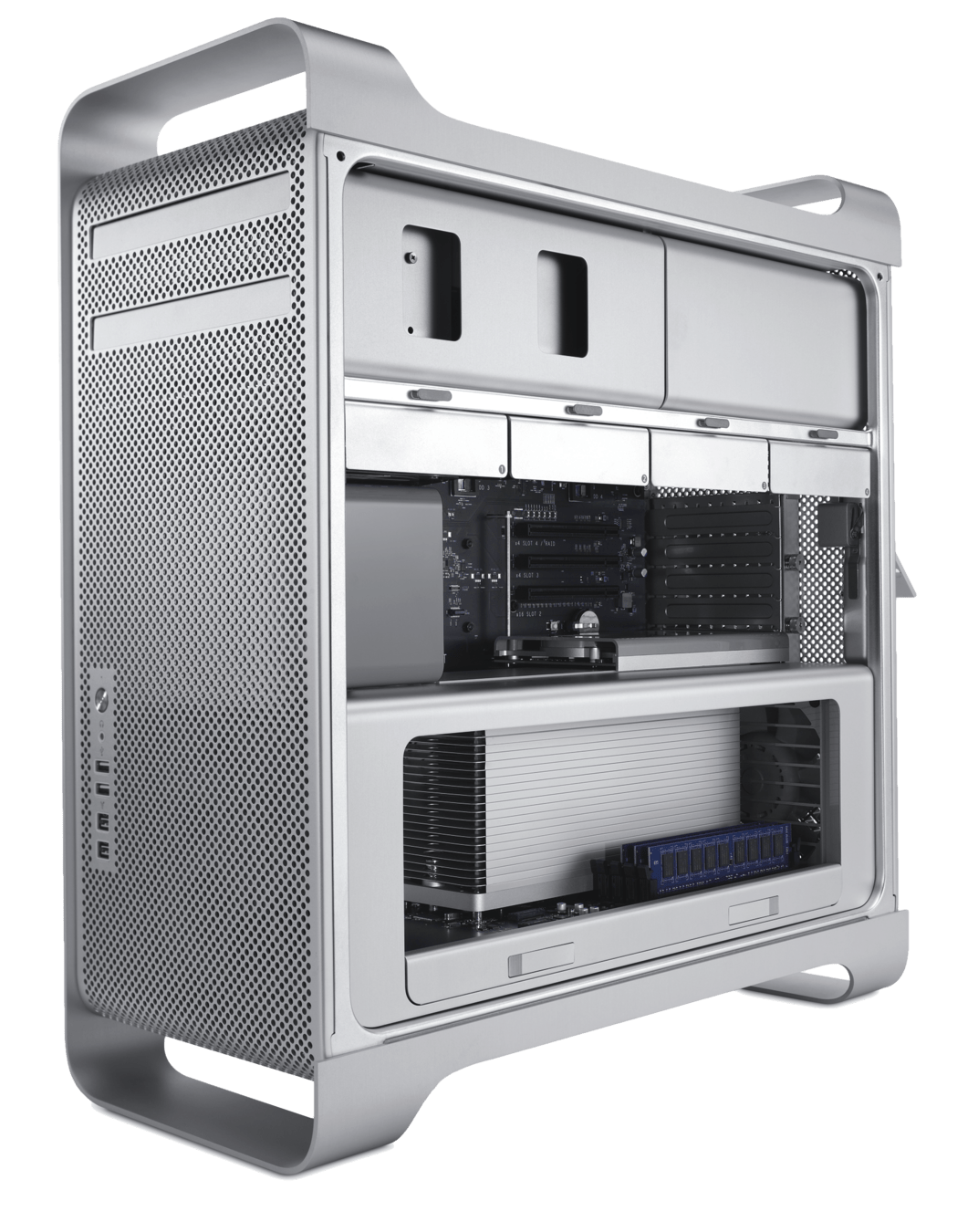

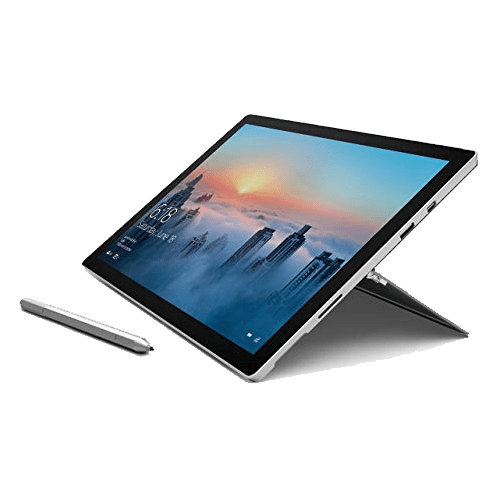

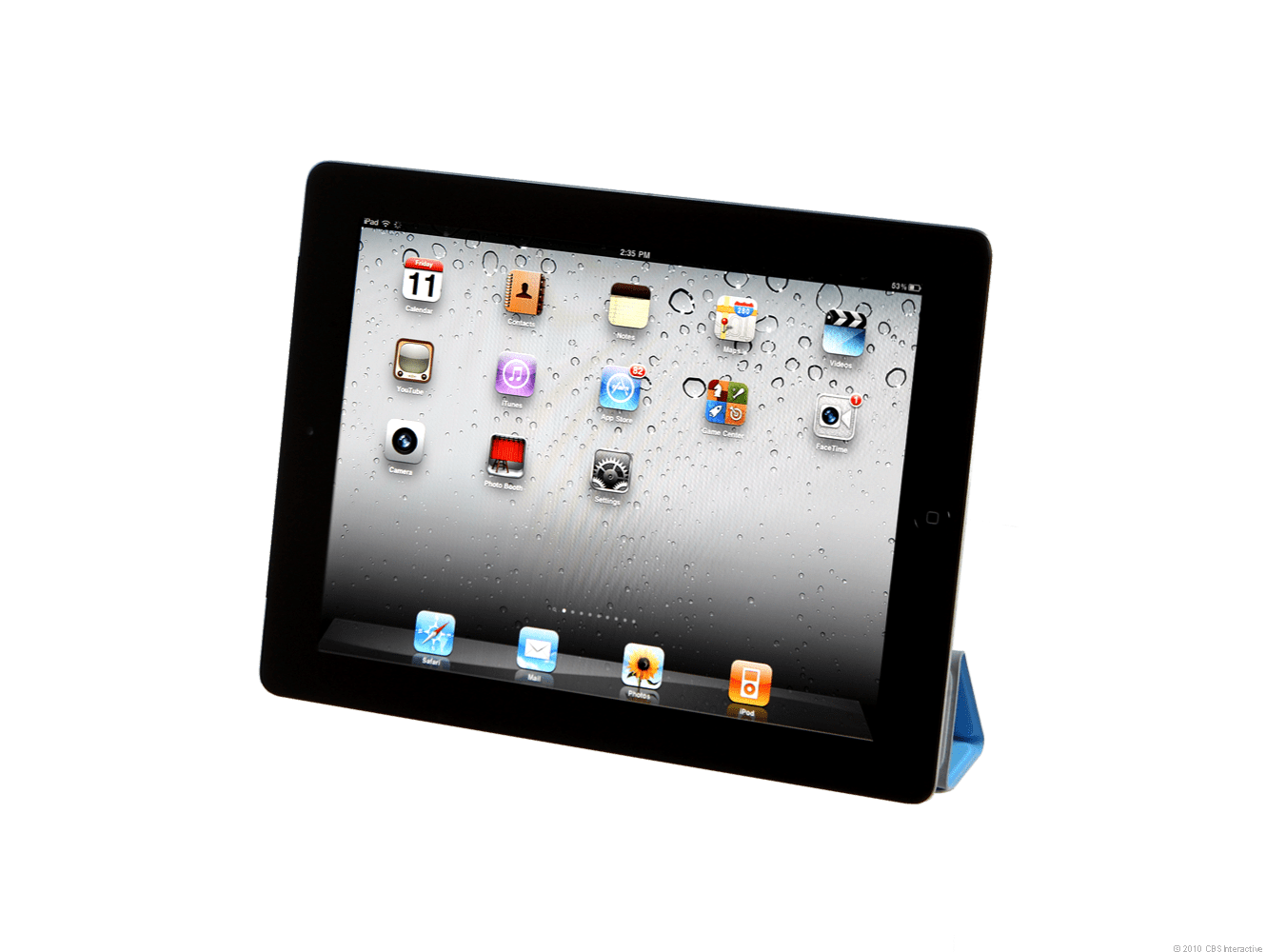

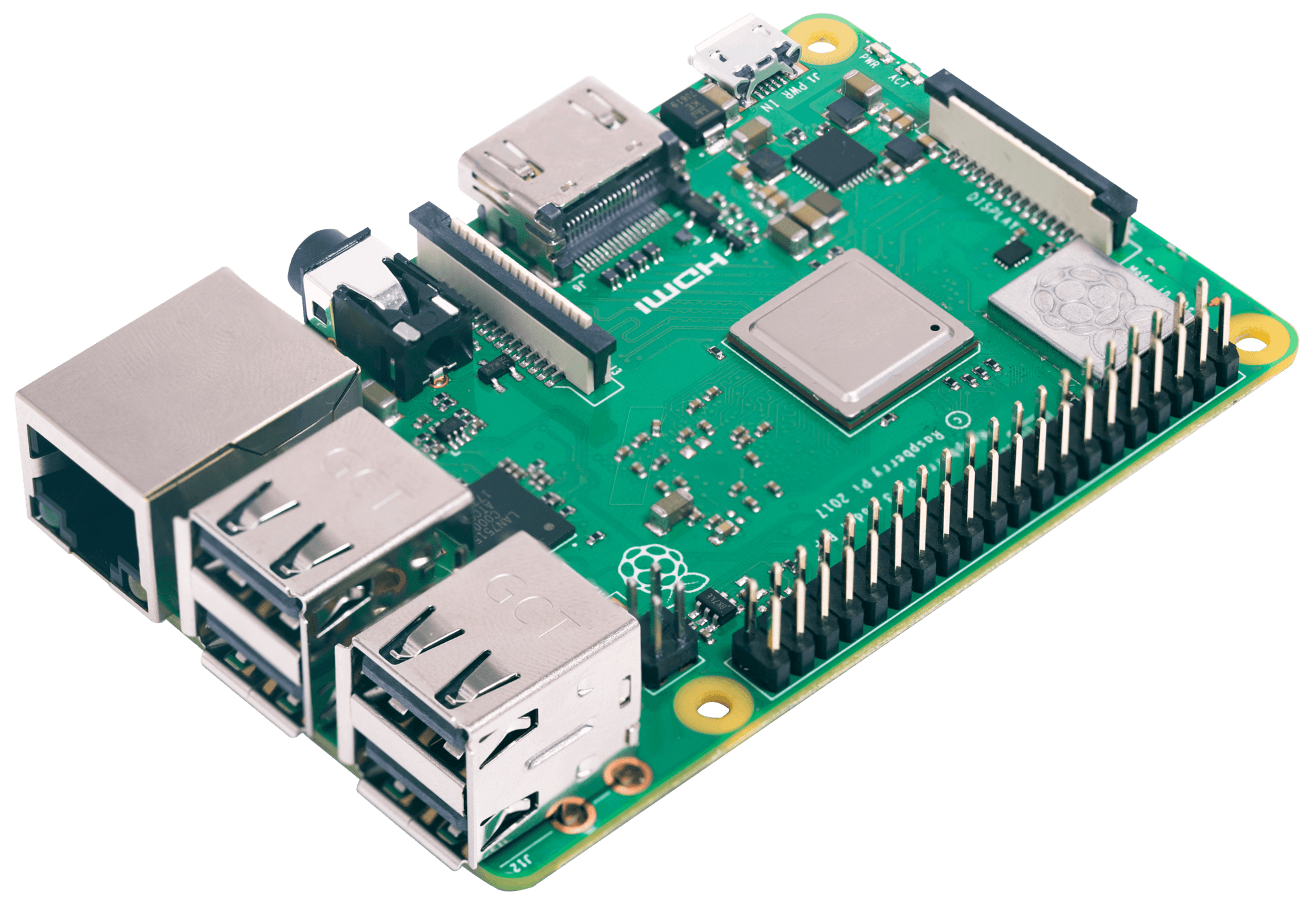

My Homelab Experience

My Homelab Experience

Problems

  • Storage & Backups
  • Reproducibility
  • Velocity
  • Secrets and
    Configuration
    Management

Problems

  • Storage & Backups
  • Reproducibility
  • Velocity
  • Secrets and
    Configuration
    Management

Kubernetes

  • High availability and redundancy
  • Best-in-Class container orchestration
  • Highly declarative IAC
  • Many Out-of-Box solutions for bootstrap
  • Excellent SaaS quality of life

Kubernetes

  • Not every workload is a container
  • Bootstrapping still requires other tools
  • Homelab components are loosely coupled
  • Learning components individually is easier than learning the platform all at once

Storage & Backups

  • Centralized
  • Resilient
  • Easy access control
  • Easy backups
  • Easy disaster recovery

Storage & Backups

  • Centralized
  • Resilient
  • Easy access control
  • Easy backups
  • Easy disaster recovery

Reproducibility & Velocity

  • Homelab-as-Code (HaC)
  • Plug-N-Play hardware expansion
  • Automatic hardware/software alignment
  • Easy to tear down and rebuild
  • Documentable

Reproducibility & Velocity

  • Homelab-as-Code (HaC)
  • Plug-N-Play hardware expansion
  • Automatic hardware/software alignment
  • Easy to tear down and rebuild
  • Documentable

Secrets & Configuration
Management

  • Defense In Depth
  • Consolidated
  • Access-controlled

Secrets & Configuration
Management

  • Storage & Backups
  • Reproducibility
  • TrueNAS quick setup on Proxmox
  • Build consistent VMs with Packer
  • Keep track of your growing service
    collection with Consul
  • Codify your your workloads
    with Nomad
  • Secure your secrets with Vault
    and 1Password

How-To Demos

https://github.com/Cronocide/hashistack_demo

Demo
Code

Untitled Diagram (1)

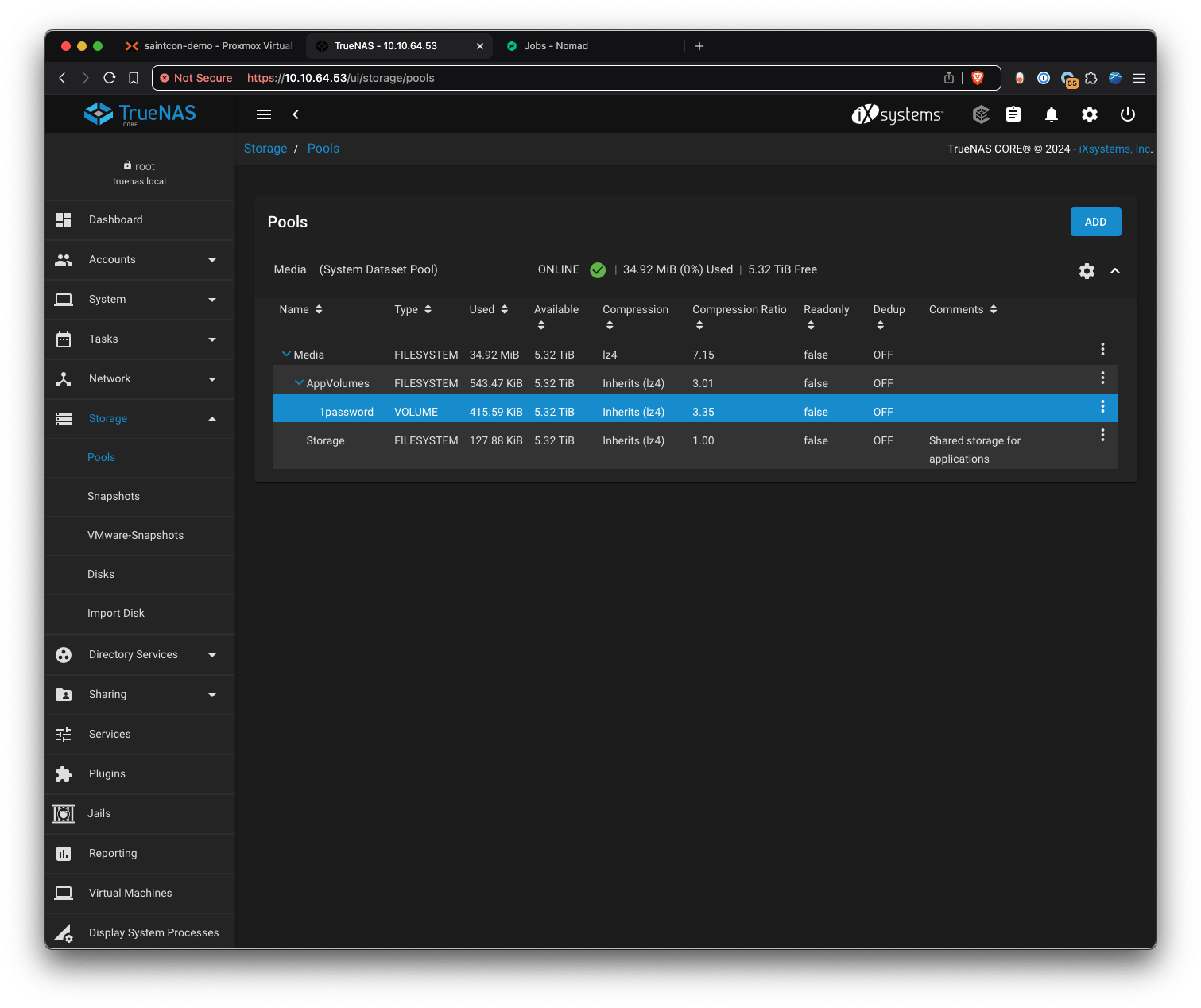

TrueNAS Setup

Untitled Diagram (1)

NFS

ISCSI

NFS Setup

Untitled Diagram (1)

VM

VM

ISCSI

NFS

VM

ISCSI Setup

Packer

Make VM's Automatically!

Packer on Proxmox

Untitled Diagram (1)

ISCSI

NFS

Server
Template
Worker
Template

HCL

option = "value"
# HCL supports comments on their own line
service "named service" {
    arguments = [
        "list_item_1", "list_item_2"
    ]
    boolean_key = true
    another_key = "String"
}
another_app_specific_key = "value"
configurable_via_var = "${variable}"
/* Multi-line comments,
like this one,
are also available. */

Hashicorp
Configuration
Language

YAML that

tastes like

JSON!

Packer Repo

📁 hashistack_demo
┗ 📁 packerfiles
     ┗ proxmox.pkr.hcl

┗  📁 scripts
     ┗ install_apps.sh
     ┗ setup_network.sh

┗  📁 nomad
┗  📁 consul
┗  📁 vault
           ...etc

Packer files, read by Packer

Shell scripts sent to the VM and ran

Folders sent to the VM containing anything the scripts need

Packerfiles

build {
  sources = ["source.proxmox-iso.saintcon-packer-demo"]

  provisioner "file" {
    destination = "/tmp"
    source      = "consul"
  }

  provisioner "file" {
    destination = "/tmp"
    source      = "nomad"
  }

  provisioner "file" {
    destination = "/tmp"
    source      = "vault"
  }

  provisioner "file" {
    destination = "/tmp"
    source      = "keepalived"
  }

  provisioner "file" {
    destination = "/tmp"
    source      = "netplan"
  }

  provisioner "file" {
    destination = "/tmp"
    source      = "firstrun"
  }

  provisioner "shell" {
    environment_vars  = ["ROLE=${var.ROLE}", "NFS_MOUNTS=${var.NFS_MOUNTS}", "USERNAME=${var.USERNAME}", "USER_KEY=${var.USER_KEY}", "SETUP_USER=${var.SETUP_USER}"]
    execute_command   = "echo '${var.SETUP_USER}' | {{ .Vars }} sudo --stdin --preserve-env sh -eux '{{ .Path }}'"
    expect_disconnect = true
    scripts          = ["scripts/setup_user.sh", "scripts/install_apps.sh", "scripts/install_vault.sh", "scripts/configure_network.sh", "scripts/cleanup.sh"]
  }

}
source "proxmox-iso" "saintcon-packer-demo" {
  bios         = "ovmf"
  boot_command = [
                  "<wait><shift><wait><shift><wait><shift><shift><shift><wait><shift>",
                  "<wait>e<down><down><down><down><left><bs><bs><bs> ",
                  "autoinstall ds='nocloud;seedfrom=http://{{ .HTTPIP }}:{{ .HTTPPort }}/' ---<wait>",
                  "<f10><wait>"
                 ]
  boot_wait    = "10s"
  communicator = "ssh"
  sockets      = "1"
  cores        = "4"
  cpu_type     = "host"
  efi_config {
      efi_storage_pool = "local-zfs"
  }
  boot_iso {
      iso_file             = "local:iso/ubuntu-24.04.1-live-server-amd64.iso"
      iso_checksum         = "e240e4b801f7bb68c20d1356b60968ad0c33a41d00d828e74ceb3364a0317be9"
      type                 = "ide"
      unmount              = true
  }
  http_directory           = "./cloudinit"
  insecure_skip_tls_verify = true
  memory                 = "16384"
  node                   = "saintcon-demo"
  proxmox_url            = "https://10.10.64.205:8006/api2/json"
  qemu_agent             = true
  ssh_username           = "${var.SETUP_USER}"
  ssh_password           = "${var.SETUP_USER}"
  ssh_timeout            = "30m"
  ssh_read_write_timeout = "30m"
  tags                   = "${var.ROLE}"
  template_description   = "# ${var.ROLE} VM\n### Built by Packer\n\n| | |\n|--------------|-----------|\n| **User** | ${var.USERNAME}"
  template_name          = "${var.ROLE}-${local.timestamp}"
  username               = "packer@pam!build"
  token                  = "c3f30982-42c2-4dae-a1ca-ef788eba25bb"
  vm_name                = "${var.ROLE}-${local.timestamp}"
  network_adapters {
    bridge   = "vmbr0"
    firewall = true
    model    = "e1000"
  }
  disks {
    disk_size         = "32G"
    format            = "raw"
    storage_pool      = "local-zfs"
    type              = "ide"
  }
}

Source

Build

Run Packer

Consul

Service Catalag

Service Catalag

  • Plex (10.10.64.10:32400)
  • Home Assistant (10.10.64.10:8123)

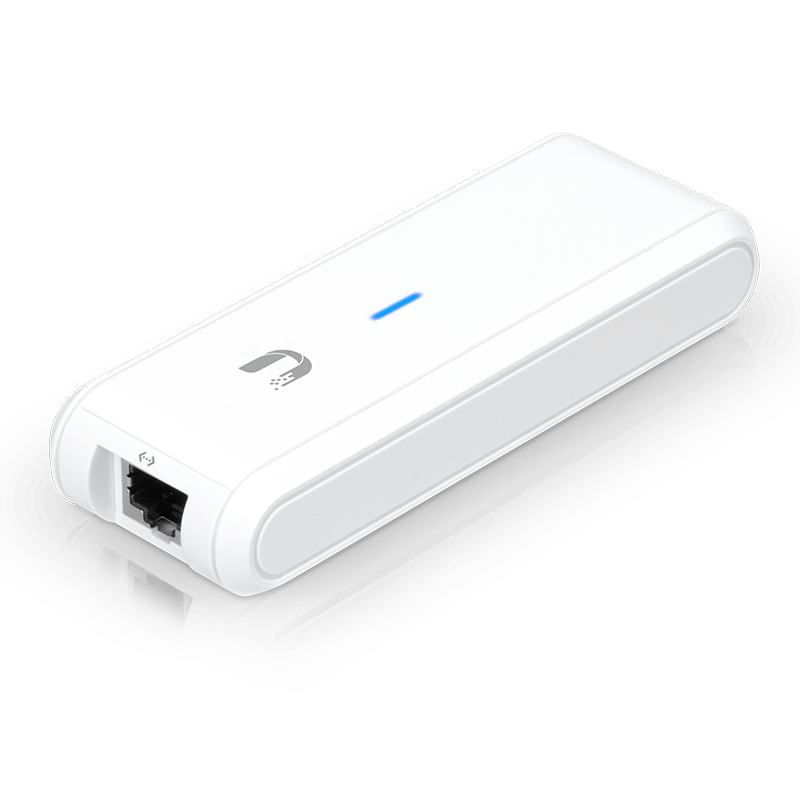

  • Unifi (10.10.64.1:443)
  • Proxmox (10.10.64.205:8006)

Service Catalag

  • Plex
  • Home Assistant
  • Unifi
  • Proxmox
$> dig -t srv proxmox.service.consul
proxmox.service.consul. 0 IN SRV 1 1 8006 0a0a0b2e.addr.saintcon.consul.



plex.service.consul
ha.service.consul
unifi.service.consul
proxmox.service.consul

Service Files

# proxmox.hcl
service {
	name = "proxmox"
	tags = ["management","https"]
	address = "10.10.64.205"
	port = 8006
	check {
		interval = "1m"
		failures_before_critical = 1
		http = "https://10.10.64.205:8006"
		tls_skip_verify = true
	}
}
# truenas.hcl
service {
	name = "truenas"
	tags = ["management","https"]
	address = "10.10.64.53"
	port = 443
	check {
		interval = "1m"
		failures_before_critical = 1
		http = "https://10.10.64.53:443"
		tls_skip_verify = true
	}
}

📁 /etc/consul.d/

Consul Template

plex.service.consul
ha.service.consul
unifi.service.consul
proxmox.service.consul
Service plex is located at 10.10.64.10:32400
Service ha is located at 10.10.64.10:8123
Service unifi is located at 10.10.64.1:443
Service proxmox is located at 10.10.64.205:8006

+

# template.txt
{{range services}}{{range $service:=service .Name}}
Service {{.Name}} is located at {{.Address}}:{{.Port}}{{end}}{{end}}

Consul Cluster

Consul

Nomad

Job

Job

Job

Job

Job

Nomad

  • Docker
  • containerd
  • podman
  • qemu
  • libvirt
  • exec
  • raw exec
  • ...and more!

Drivers

  • service
  • batch
  • system
  • sysbatch

Schedules

Nomad Jobs

  • Architecture
  • Cores
  • RAM
  • Hardware
  • Networking
  • Software Versions
  • Custom metadata

Constraints

  • exec
  • batch

Schedule

  • RAM

Constraints

Drivers

# hello_world.hcl
job "hello-world" {
  type = "batch"
  group "primary" {
    task "hello-world" {
      driver = "exec"
      config {
        command = "echo"
        args = ["Hello World!"]
      }
      resources {
        memory = 128
      }
    }
  }
}

Nomad Jobs

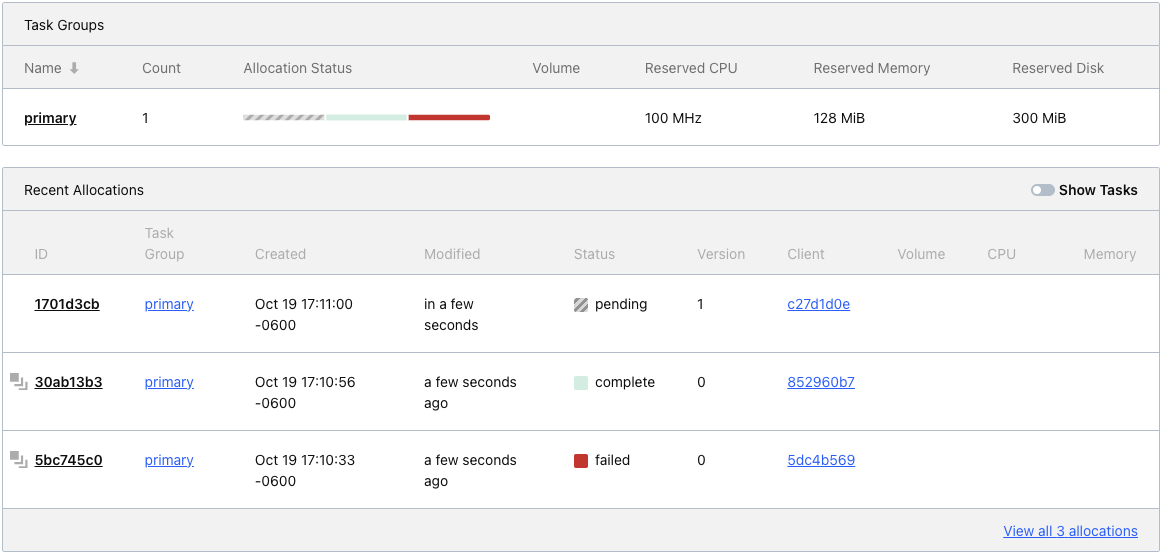

Job Allocations

New Run

Done

Failed to Run

Job Allocations

Where job

was run

Job Allocations

Nomad Cluster

Nomad Cluster

Nomad Cluster

Vault

Vault Access

Secret Engine

Policy

Policy

Role

Role

Role

Token

Auth Method

vault-policy-for-nomad-jobs.hcl

vault-role-for-nomad-jobs.hcl

vault-auth-method-jwt-nomad.json

vault.hcl

Vault Access

┗ vault-policy-for-nomad-jobs.hcl

┗ vault-role-for-nomad-jobs.hcl

┗ vault-auth-method-jwt-nomad.json

┗ vault.hcl

📁 hashistack_demo

┗ 📁 vault

Bootstrapping

#!/bin/bash
# Suppress vault address and TLS warnings by setting the VAULT_ADDR and VAULT_CACERT
export VAULT_ADDR="https://127.0.0.1:8200"
export VAULT_CACERT="/opt/vault/tls/tls.pem"
# Initialize Vault with a file backend. This is usually fine as long as you trust the server vault is running on.
init_result=$(vault operator init -n 1 -t 1 -ca-cert /opt/vault/tls/tls.pem -format=json)
# Get the unseal key (needed to unseal the vault for use)
unseal_key=$(echo "$init_result" | jq -r '.unseal_keys_b64[0]')
[ -z "$unseal_key"] && echo "Unable to initizlize vault." && exit 1
# Get the root login token (needed to log in and make changes to vault)
root_token=$(echo "$init_result" | jq -r '.root_token')
# Unseal the vault
echo -e "UNSEAL KEY IS \033[1;31;44m$unseal_key\033[00m"
vault operator unseal "$unseal_key"
# Write the unseal token to disk for auto-unsealing
echo "UNSEAL_KEY=$unseal_key" > /etc/default/vault
echo "VAULT_ADDR=https://127.0.0.1:8200" >> /etc/default/vault
echo "VAULT_CACERT=/opt/vault/tls/tls.pem" >> /etc/default/vault
# Login as root
vault login "$root_token"
# Install and configure the 1Password plugin for Vault
op_connect_shasum=$(shasum -a 256 /etc/vault.d/plugins/op-connect | cut -d " " -f1)
vault write sys/plugins/catalog/secret/op-connect sha_256="$op_connect_shasum" command="op-connect"
vault secrets enable --plugin-name='op-connect' --path="op" plugin
# Write the 1Password API Token to Vault
vault write op/config @/etc/vault.d/opconfig.json
# Enable jwt authentication for Nomad
vault auth enable -path 'jwt-nomad' 'jwt'
# Enable the traditional KV store for vault
vault secrets enable -version '2' 'kv'
# Write our config for nomad-jwt authentication
vault write auth/jwt-nomad/config '@/etc/vault.d/vault-auth-method-jwt-nomad.json'
# Write our config for Nomad jobs
vault write auth/jwt-nomad/role/nomad-jobs '@/etc/vault.d/vault-role-for-nomad-jobs.json'
# Get our Nomad auth method's unique ID to create an access policy
auth_methods=$(vault auth list -format=json)
accessor=$(echo "$auth_methods" | jq -r '."jwt-nomad/".accessor')
# Insert our accessor into our access policy
sed -i "s#AUTH_METHOD_ACCESSOR#$accessor#g" /etc/vault.d/vault-policy-for-nomad-jobs.hcl
# Write our policy to vault
vault policy write 'nomad-jobs' '/etc/vault.d/vault-policy-for-nomad-jobs.hcl'

1Password Connect

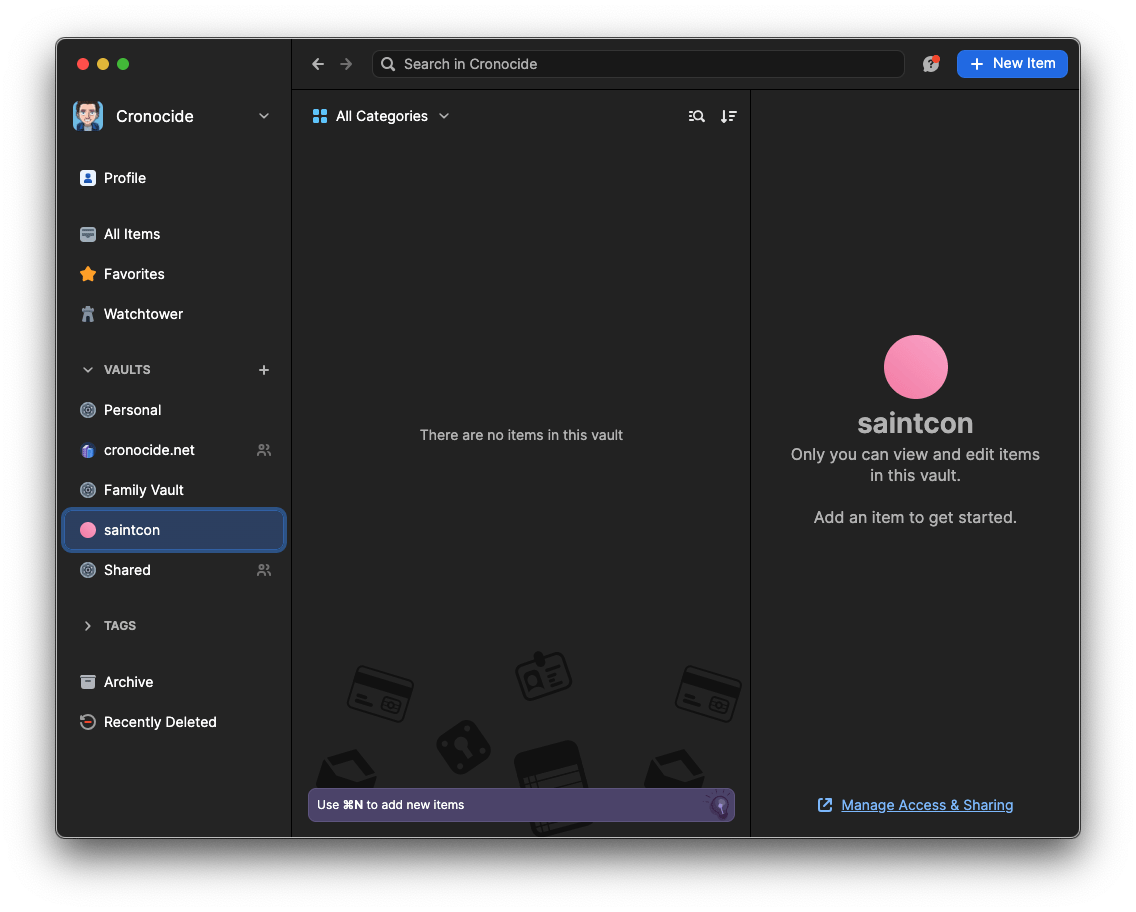

1Password Vault

1Password Vault

Vault

# opconfig.json
{
	"op_connect_host": "http://1password-connect.service.consul:8482",
	"op_connect_token": "<YOUR 1PASSWORD-CONNECT TOKEN HERE>"
}
#> vault write op/config @opconfig.json
Success! Data written to: op/config

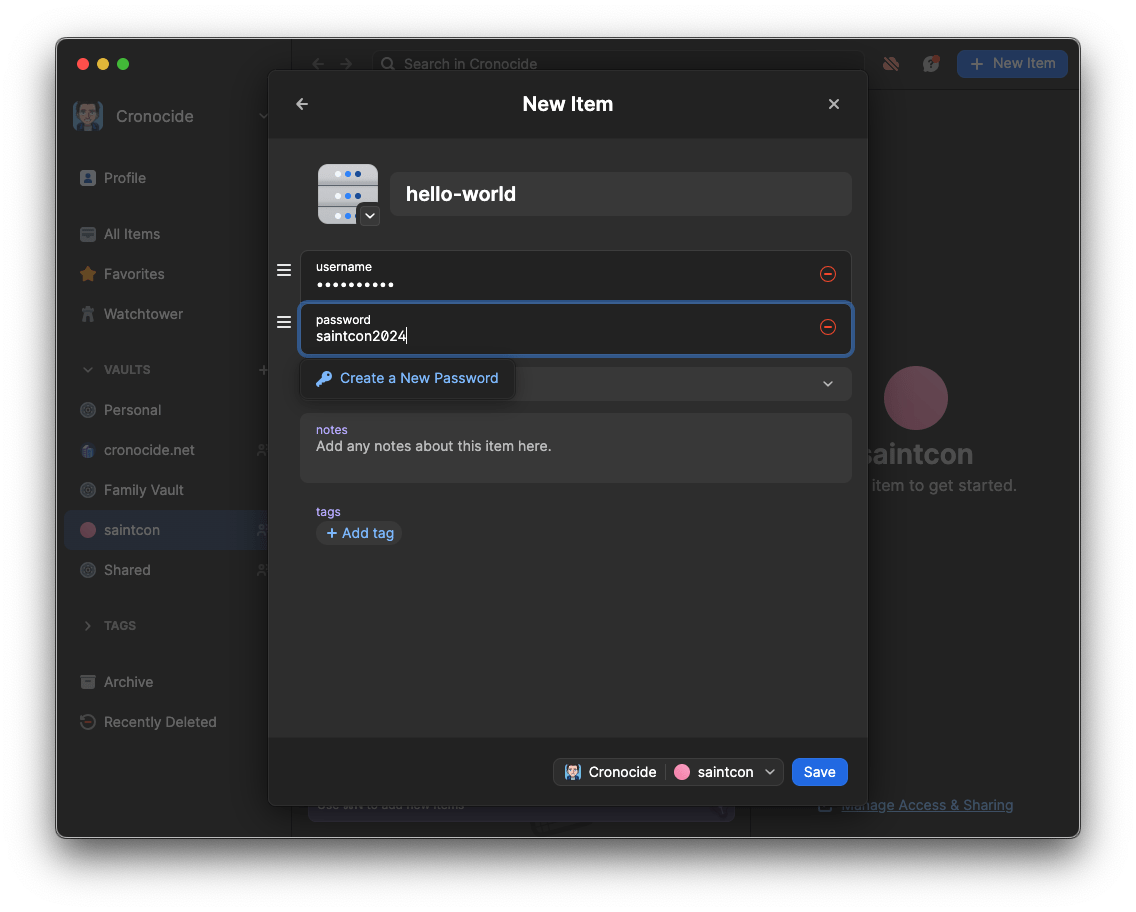

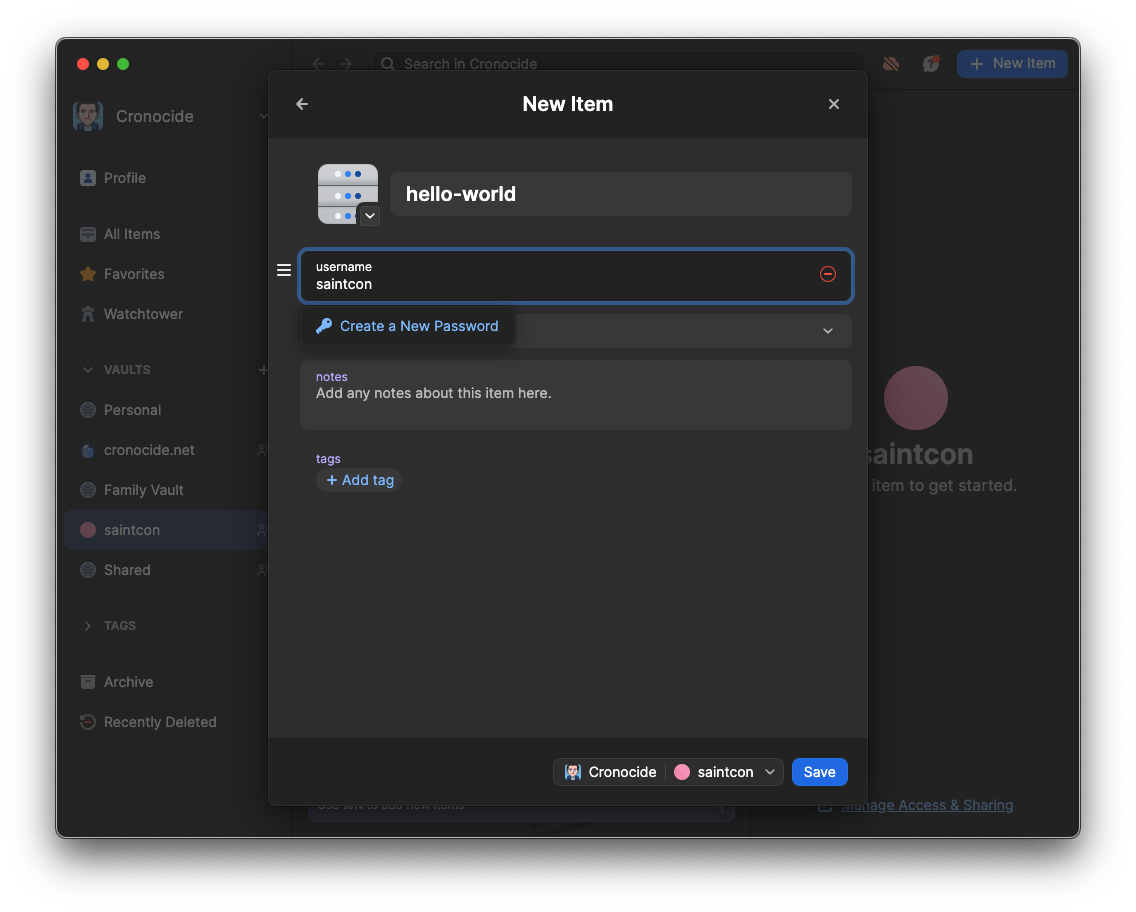

Inserting Credentials

#> nomad volume create /etc/nomad.d/jobs/1password.volume
Created external volume 1password with ID 1password
#> sudo iscsiadm --mode node --targetname \
iqn.2005-10.org.freenas.ctl:1password --portal 10.10.64.53 --login
Login to [iface: default, target: iqn.2005-10.org.freenas.ctl:1password, portal: 10.10.64.53,3260] successful.
#> sudo mkfs.ext4 /dev/sdb
Creating filesystem with 262144 4k blocks and 65536 inodes
Writing superblocks and filesystem accounting information: done
#> sudo mkdir /mnt/tmp && sudo mount /dev/sdb /mnt/tmp
#> sudo cp 1password-credentials.json /mnt/tmp/
#> sudo umount /dev/sdb
#> sudo iscsiadm --mode node --targetname \
iqn.2005-10.org.freenas.ctl:1password --portal 10.10.64.53 --logout







Using 1Password

job "hello-world" {
  type = "batch"
  group "primary" {
    vault {}
    task "hello-world" {
      driver = "docker"
      config {
      	image = "busybox:latest"
        command = "sh"
        args = ["/local/entrypoint.sh"]
      }
      template {
        destination = "/local/entrypoint.sh"
        data =<<EOF
#!/bin/sh
{{with secret "op/vaults/saintcon/items/hello-world"}}
echo "The username is {{.Data.username}} and the password is {{.Data.password}}"
{{end}}
EOF
      }
      resources {
        memory = 128
      }
    }
  }
}

Further Reading

Slides

Code

Level Up Your HomeLab Without Kubernetes

@cronocide

Level Up Your Homelab Without Kubernetes

By Cronocide

Made with Slides.com

Level Up Your Homelab Without Kubernetes

Homelabs are an excellent way to become familiar with new technologies and learn enterprise-grade tools. The faster you can deploy and get started with new tools, the faster you'll learn. While Kubernetes is a great tool for enterprise workload orchestration, it's usually overkill for accomplishing these goals. In this talk I'll introduce Nomad, Consul, Vault, and Packer: tools from Hashicorp that dramatically simplify the growth of your homelab that allow your infrastructure to grow as you do.

  • 175

More from Cronocide
