Cristian Spinetta
Software developer.
Monitoring a !little ecosystem
Cristian Spinetta
@cebspinetta
@cspinetta
Outline
Despegar Infra
Observability
Logging
Metrics
Distributed tracing
A bit of context...
First productive datacenter
Miami region
Private cloud based on Openstack
Self-administrated by devs via Cloudia, an in-house solution developed for creating VMs, load balancers, storage, traffic rules...
A lot of VMs distributed in 2 datacenters:
~8K nodes
AWS
Contingency region
Active mode with productive traffic
~1.4K nodes
~500 deploys per day
What happens internally?
The 3 Pillars of Observability
Logging
Logging

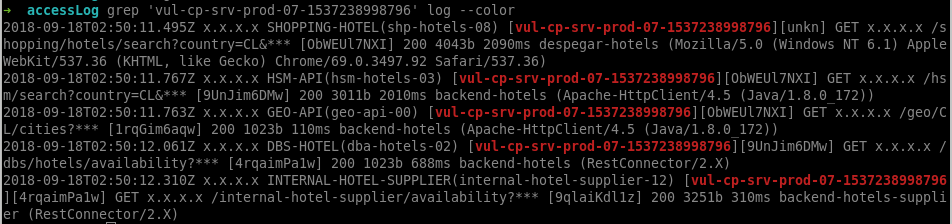

Centralizing at least the access log
Logging with context: you need to correlate logs and see the causality between services
Metrics
Metrics
For reliability and trending in use:
What is happening right now?
What will happen next?
To measure the impact of a change:
Aggregated Data
How is doing before the change?
How is doing after the change?
Metrics
Reliability is not just about throughput and latency
There are a lot of extra effects to consider
Metrics

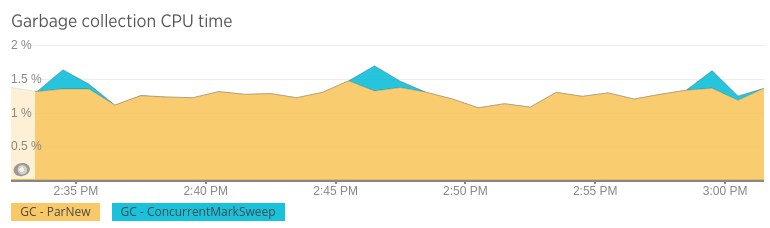

Garbage collection
Metrics

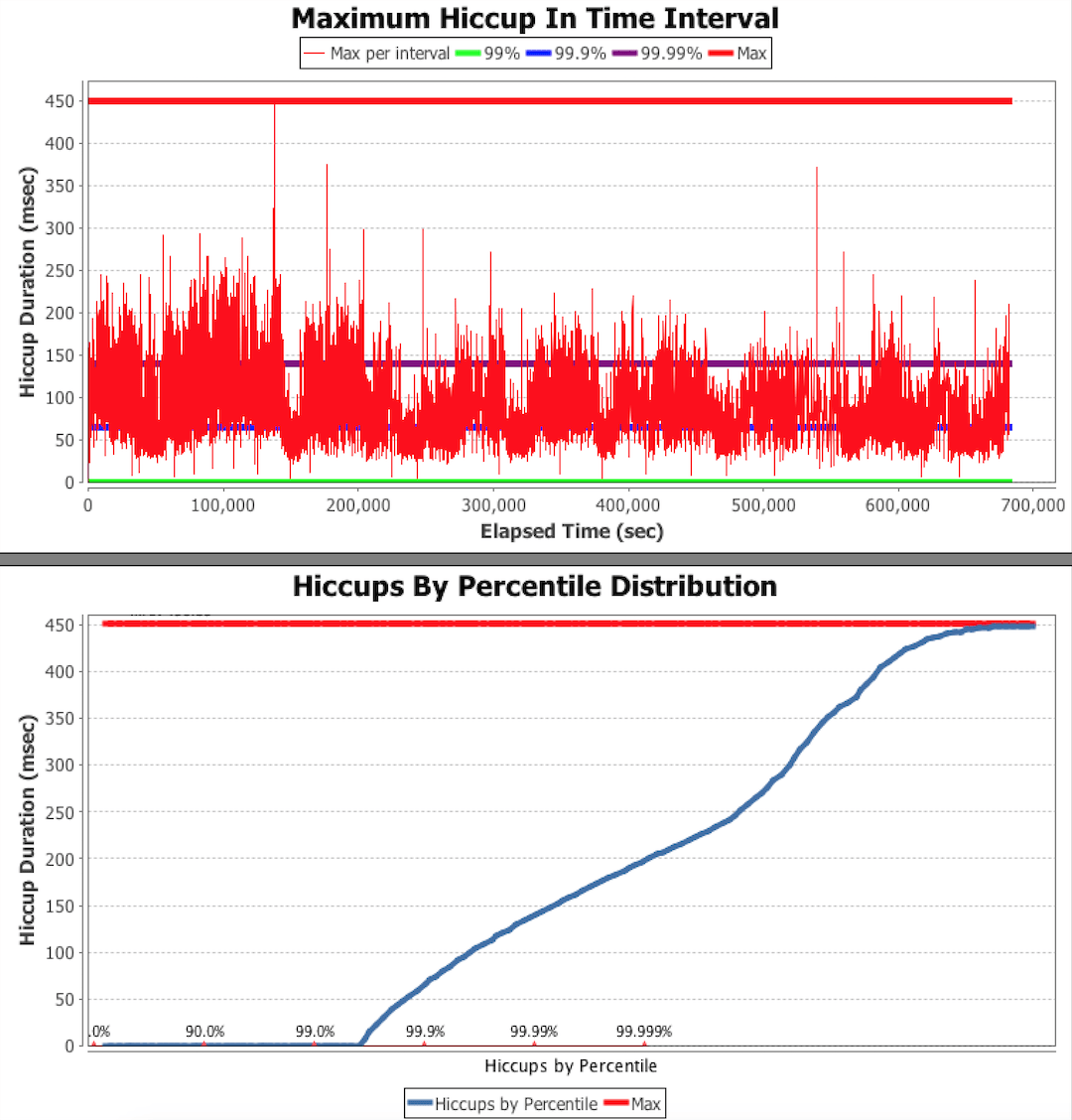

What about aggregated effects introduced by underlying platform?
Metrics
Never use averages

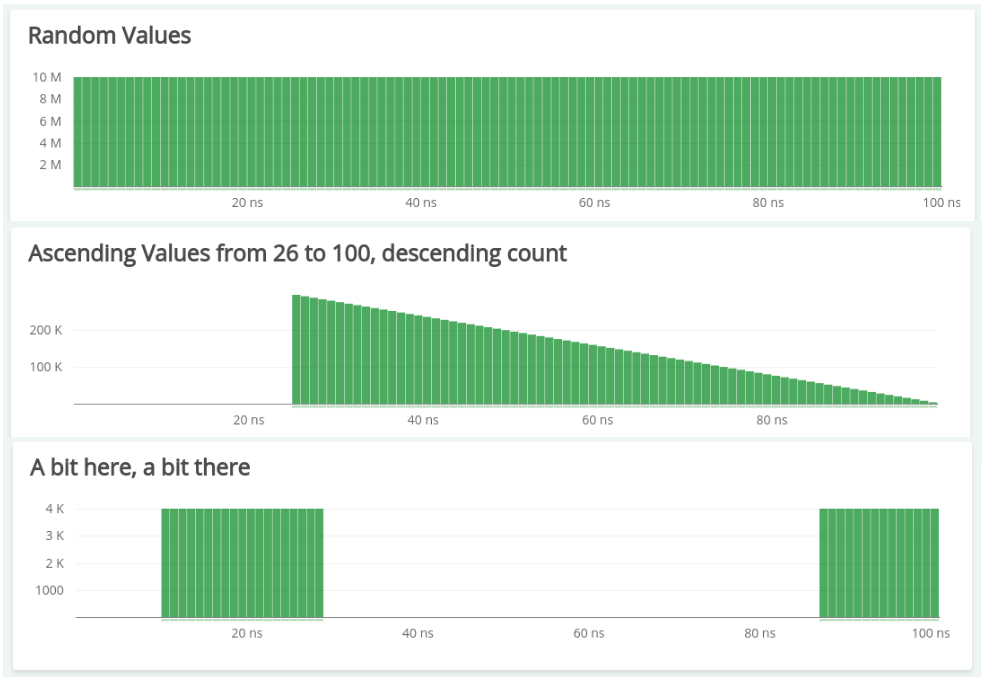

What do they have in common?
Metrics
For all of them, the average is ~50ns
Don't be fooled by the average
you'll be blinded!!
Metrics

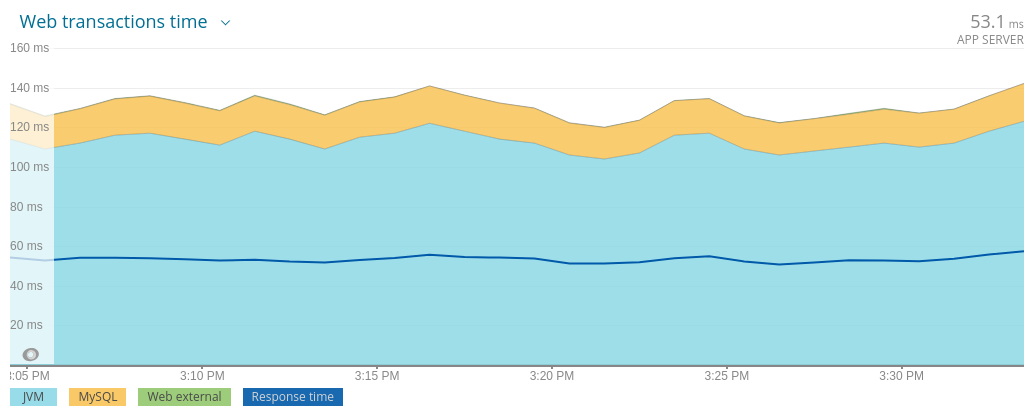

Average says:
Response time: ~55ms
Metrics

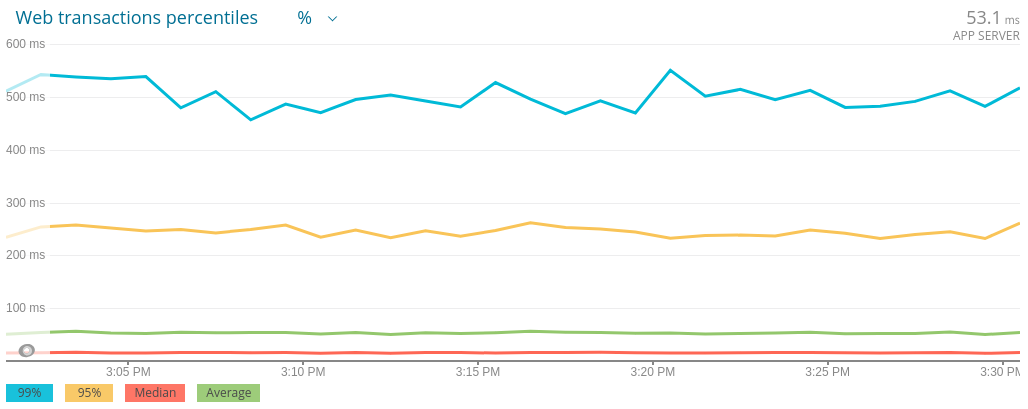

Percentiles say:
Avg: ~55ms | P95: ~250ms - P99: ~550ms
Metrics

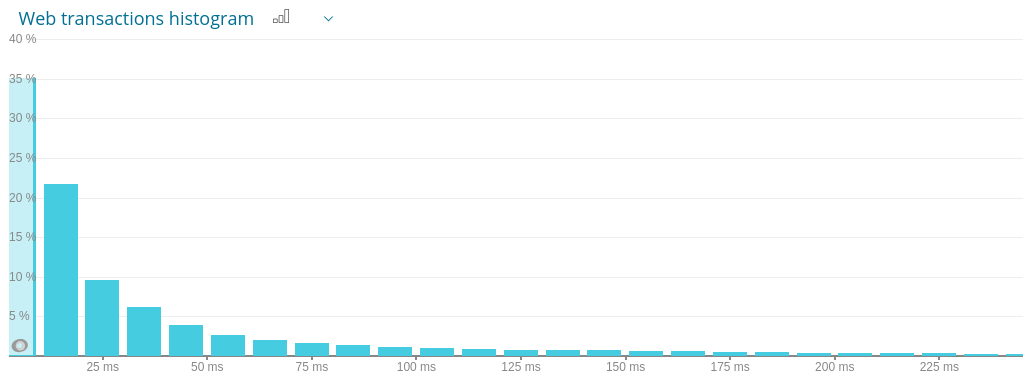

Actual latency
It could be a lot of requests with high values
It's a system optimized for handling time series data (usually an array of long indexed by time).
Prometheus
InfluxDB
Time series databases
Graphite
Datadog
Khronus
OpenTSDB
Be careful or you'll be lying to yourself
Averages lie! Percentiles are good option
Things To Keep In Mind
Neither percentiles nor average can be aggregated
Remember the external effects: hypervisor, jvm, networking...
Get to know your tools. Don't believe to anyone!
Distributed Tracing
Distributed Tracing
Which services did a request pass through?
Where are the bottlenecks?
How much time is lost due to network lag during communication between services?
What occurred in each service for a given request?
A few of the critical questions that DT can answer quickly and easily:
Distributed Tracing Example
- There are two services involved in serving the /users endpoint of this system.
- There are three HTTP calls made from Service A to Service B and happen in parallel.
- Storing the session token happens after all HTTP calls to Service B have completed.
- A substantial amount of time was spent on storing the session token.
Distributed Tracing Components
- A Span represents a logical unit of work.
- Tags and Marks add extra information to spans.
Distributed Tracing Components
- A Trace is a end-to-end latency graph, composed of spans.
Distributed Tracing
Brave
Things To Keep In Mind
Sampling reduces Overhead
Observability tools are unintrusive
Instrumentations can be delegated to commons frameworks
Don't trace every single operation
Zipkin
Distributed Tracing System
Based on Google Dapper (2010)
Created by Twitter (2012)
OpenZipkin (2015)
Active Community
Zipkin UI
Jaeger
Distributed Tracing System
Based on Google Dapper (2010)
Inspired by OpenZipkin
Created by Uber
Jaeger UI
Tracers
Distributed Tracing, Metrics and Context Propagation for application running on the JVM.
- Observability SDK(metrics, tracing).
Trace instrumentation API definitions.
- OpenZipkin's java library and instrumentation.
Brave
Thanks for Coming!
Questions?
Monitoring a !little ecosystem
By Cristian Spinetta
Monitoring a !little ecosystem
In an environment made up of thousands of instances, how do we identify which one a request passed through? Which one failed or slowed the rest? Come to learn how Despegar faces these challenges!
