GIT

 Free and open source distributed version control system

O/

Đặng Văn Đại @daikk115

Members of VietOpenStack

Nguyễn Trọng Vĩnh @tovin07

        What will we discuss today?


  • Git
  • Github, Bitbucket and Gitlab
  • Commands
  • Practice

        What will we NOT discuss today?



  • Compare GIT with other systems

What is git?



  • Version control system
  • Distributed
  • Free & opensource
  • Written in C
  • Developed in April 2005 by Linus Torvalds
  • Compatiable with Mac, Linux, Windows

Git vs Github-Bitbucket-Gitlab





GIT 2005

Distributed version control system

Gitlab 2011

Git repository management

Bitbucket 2008

Web-based Git repository, distributed revision control + source code management

Github 2007

Git  + hub, web-based Git repository

Git vs Github-Bitbucket-Gitlab

Gitlab :

  • An application
  • Provides Git repository management with fine grained access controls, code reviews, issue tracking, activity feeds, wikis, and continuous integration
  • Lauched in 2011
    • GitLab Community Edition (CE)
    • GitLab Enterprise Edition (EE)
    • GitLab.com - free SaaS for public and private repositories, support can be purchased
    • GitHost.io - a private single-tenant GitLab instance run by Gitlab Inc.

Why Version Control?

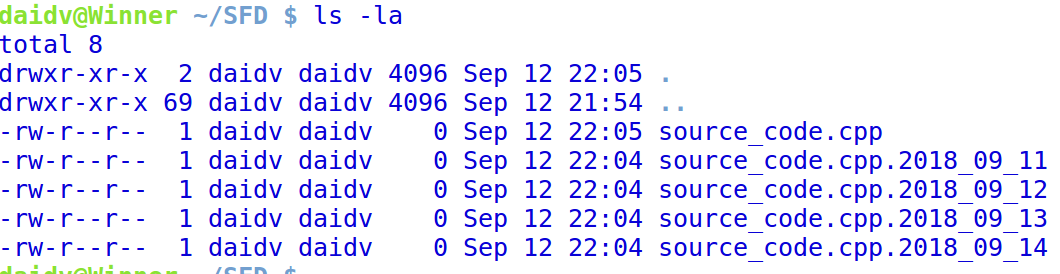

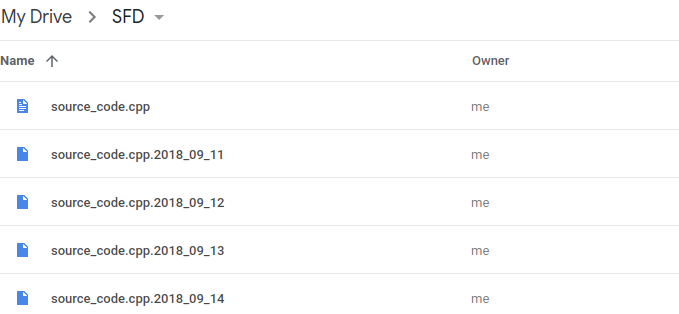

Normal way to keep old versions?

Why Version Control?



Normal way to keep old versions?

Why Version Control?



Why Version Control?

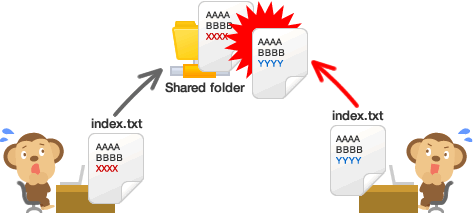

Conflict changes?

Install GIT on Ubuntu





  • Install GIT
    • sudo apt-get install git
  • Try these commands
    • cd ~/Desktop
    • mkdir project && cd project
    • git init
    • touch abc.txt
    • git add abc.txt
    • git commit -m "test"

Create GitHub Account





https://github.com/

Push source code to GitHub





  • git config --global user.name "Dai, Dang Van"
  • git config --global user.email "your_email"
  • git remote add origin <url>
  • git push origin master

Git Glossary

Commit: a revision, an individual change to a file (or set of files)



Git Glossary

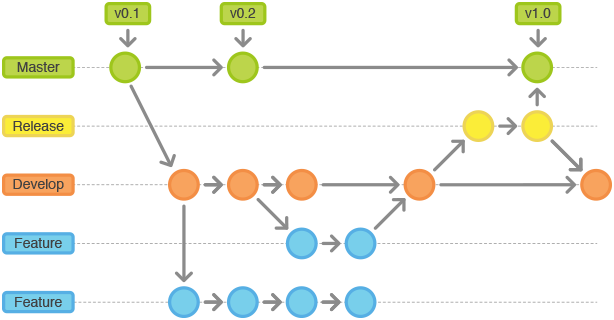

Branch: ~ link list, represents an independent line of development

Tag: mark a particular point in the commit chain, not update

Git Glossary

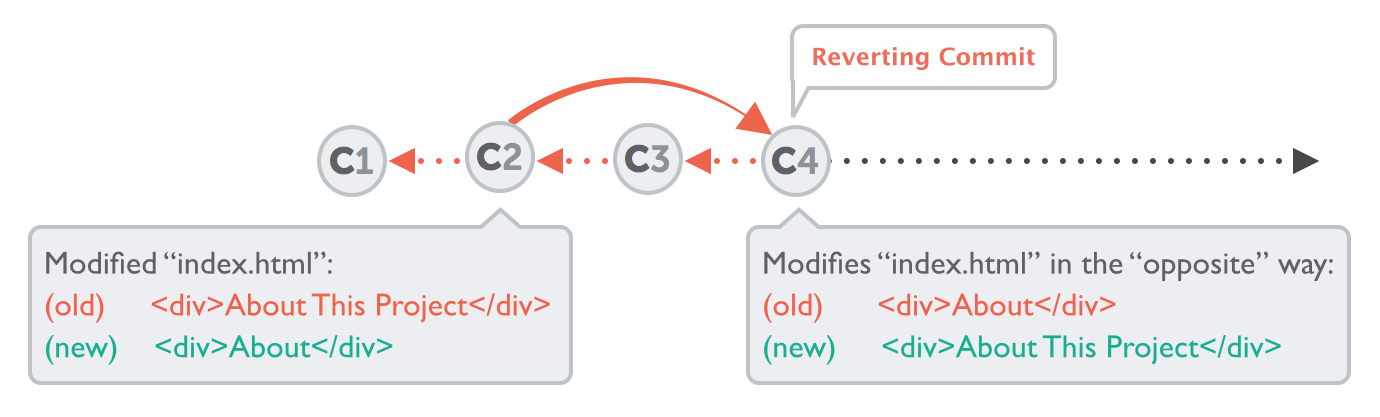

Revert: revert the effects of a certain commit, effectively undoing it

Git Glossary

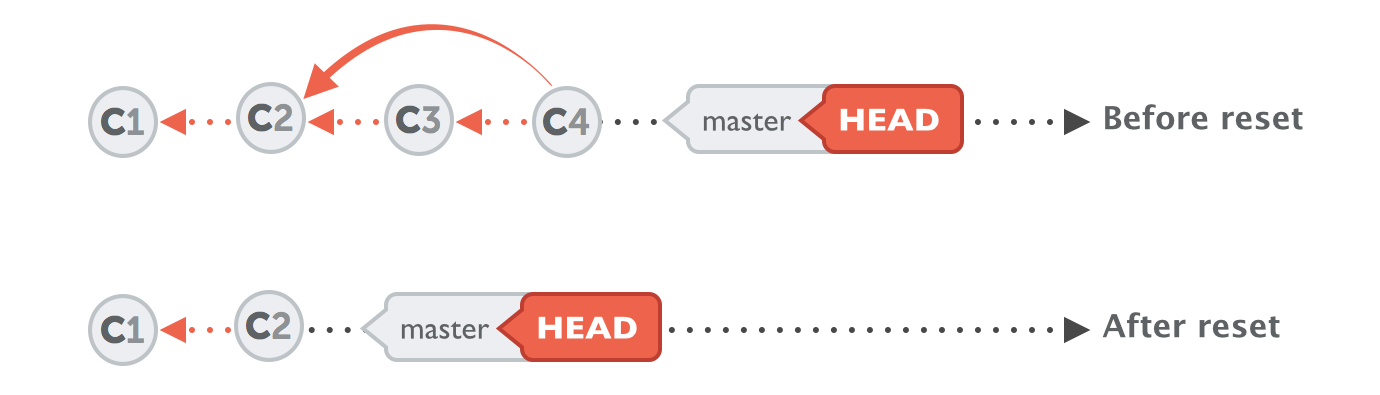

Reset: "roll back" to that older revision

Git Glossary

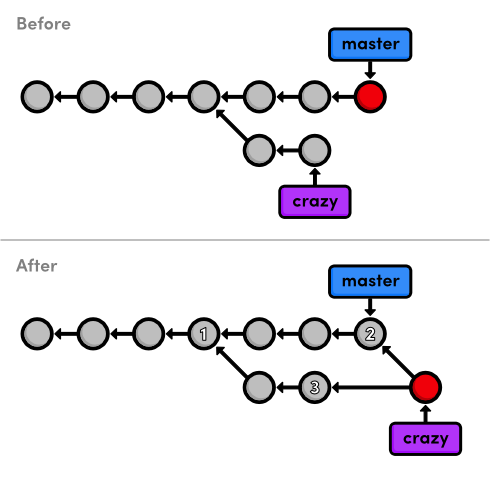

Merge: takes the changes from one branch and applies them into another



Git Glossary

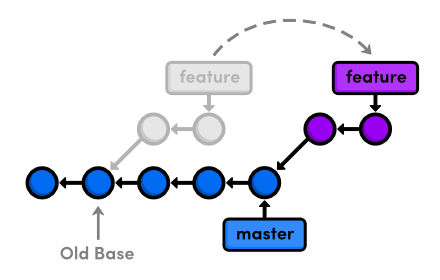

Rebase: based on the other branch



Git Glossary



Cherry-pick: apply some commit from one branch into another branch



Git common commands



IDENTITY





CREATING A REPOSITORY




CLONING A REPOSITORY


$ git config --global user.name "DVD"
$ git config --global user.email test@example.com

$ git init
$ git clone https://github.com/account/repo.git

Git common commands



ADD NEW FILE



REMOVE FILE







CHECK STATUS




COMMIT CHANGES


$ git add newfile.py
$ git rm dontneed.py
$ git status
$ git commit -m 'First commit'

Git common commands



UNMODIFY MODIFIED FILE






REVERT A COMMIT





RESET A COMMIT



$ git checkout -- changed.py
$ git reset <commit ID>
$ git push -f
$ git revert <commit ID>

Git common commands

CREAT NEW BRANCH





SWITCH BRANCH



DELETE BRANCH




$ git branch test
$ git checkout -b test master
$ git branch -d test
$ git push origin :test
$ git checkout test

Git common commands



EDIT COMMIT MESSAGE










## For latest commit
$ git commit --amend

## For old commit

$ git rebase -i HEAD~X
# X is the number of commits to go back

# Move to the line of your commit, change pick into edit,
# then change your commit message:
$ git commit --amend

# Finish the rebase with:
git rebase --continue

Git common commands



SHOW LOG





SHOW COMMITS


SHOW DIFFERENT


$ git log
$ git log --pretty=oneline
$ git diff
$ git diff <file name>
$ git show

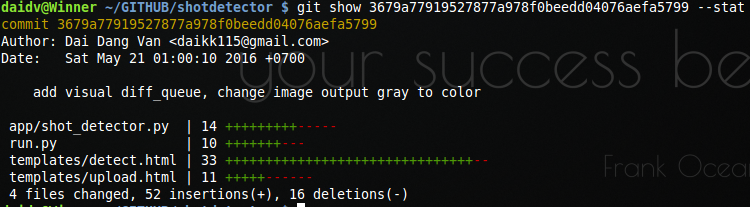

$ git show <commit id> --stat

Git common commands



VIEW REMOTE




CHANGE REMOTE




ADD REMOTE

$ git remote -v
$ git remote set-url origin http://github.com/repo.git
$ git remote add rname https://github.com/user/repo.git

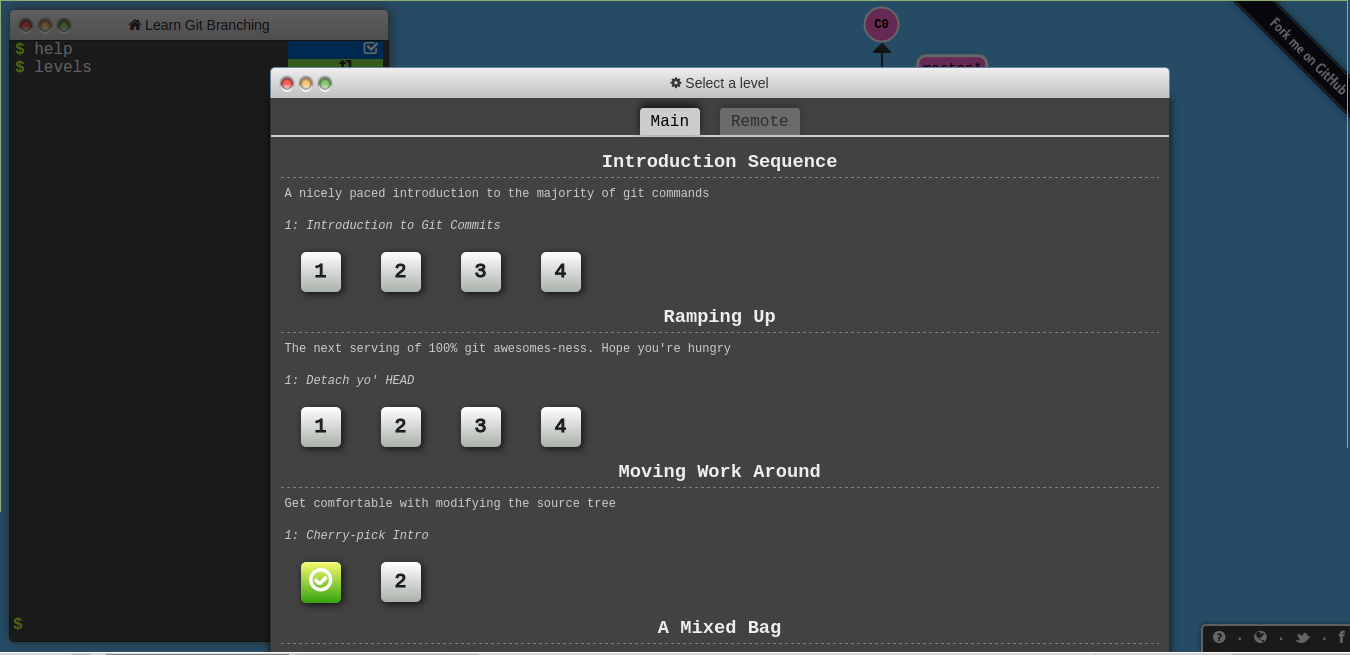

Great tool to learn git

http://learngitbranching.js.org/

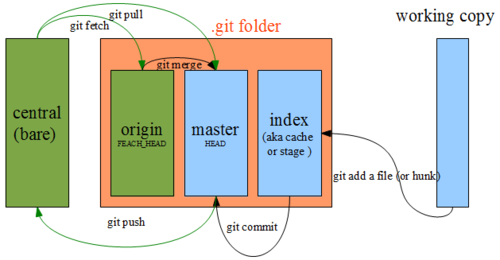

Git common commands

PUSH TO REMOTE



FETCH AND MERGE





MERGE


$ git push origin branch_name
$ git fetch [remote] [branch]
$ git pull [remote] [branch]
$ git merge origin master

Git common commands

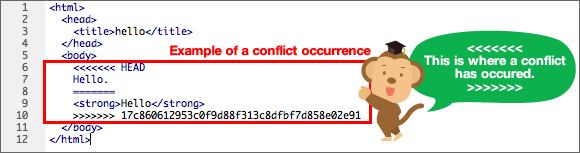

MERGE CONFLICT







>>> remove somethings



$ git merge origin master
$ git add ...
$ git commit ...
$ git push ...

Git common commands



REBASING





CHERRY-PICK




$ git rebase master
$ git rebase -i branch
$ git cherry-pick <commit id 1> <commit id 2>

Git common commands



RENAME BRANCH










$ git branch -m oldname newname
$ git push -f --mirror

    References



  • https://orga.cat/posts/most-useful-git-commands
  • https://backlogtool.com/git-guide/en/
  • https://www.sitepoint.com/git-for-beginners/
  • https://git-scm.com/
  • https://www.atlassian.com/git/tutorials/what-is-git/
  • https://gitlab.com/
  • https://bitbucket.org/
  • https://smusamashah.blogspot.com/2016/09/how-do-you-explain-basics-of-git-in.html

What is git (More)?



  • A content-addressable filesystem. It means that at the core of Git is a simple key-value data store

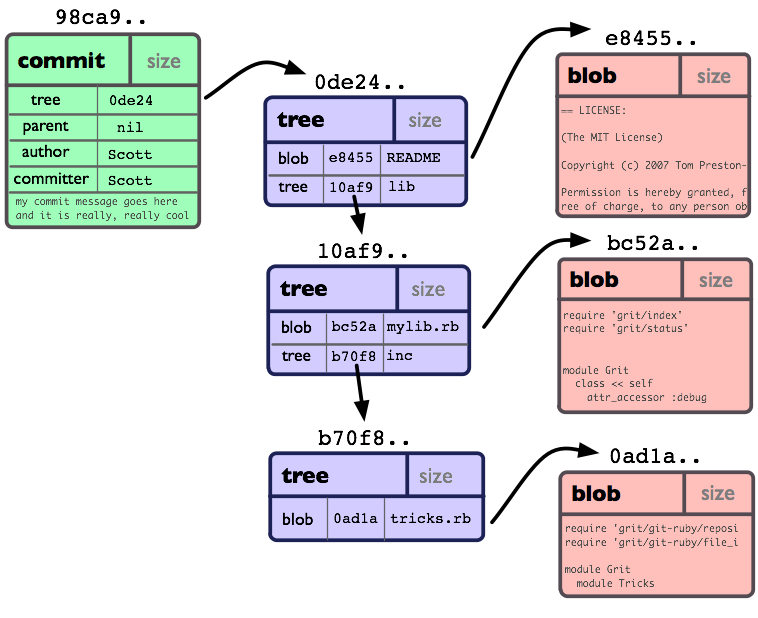

Git Objects



  • SHA1 40-digit "object name"
  • Object database stores it in .git/objects
  • Every object consists of three things: type, size and content.
  • Four different types of objects: "blob", "tree", "commit", and "tag".

Git Objects



"blob" is used to store file data

Git Objects



"tree" is basically like a directory

Git Objects



"commit" points to a single tree, marking it as what the project looked like at a certain point in time



Git Objects





Git Objects



"tag" is a way to mark a specific commit as special in some way.
