A flexible collaboration tool for multimodal and multiscalar 3D data exploitation.

Matthieu Thivet

Quentin Verriez

Damien Vurpillot

What is Aspectus?

A digital workspace to visualize and annotate multimodal and multiscalar 3D data, for archaeology and cultural heritage.

Mixing a professionnal social network interface with highly efficient web visualization tools.

reflections on complete workflow to manage archeaological digital data from field to archiving, dissemination and valorization

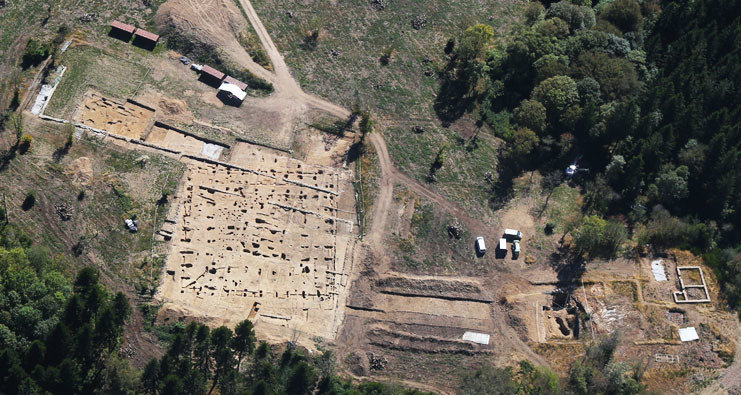

a site (since XIXe)

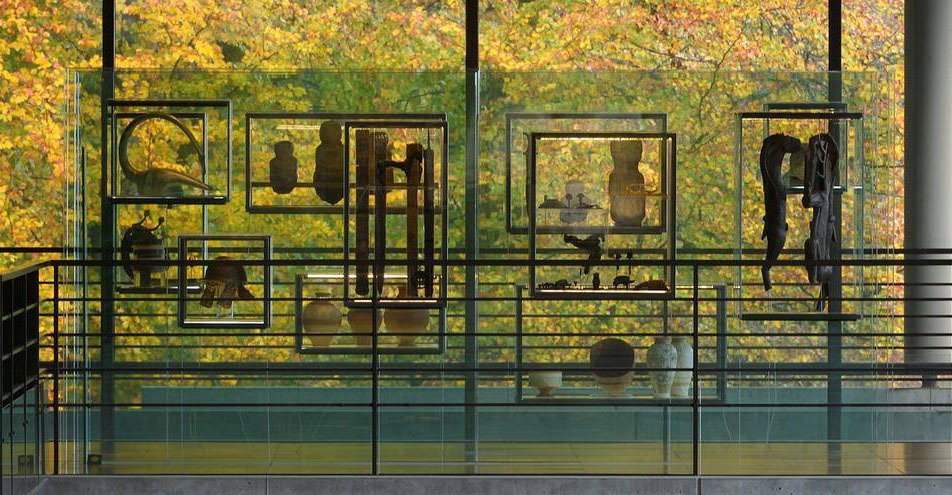

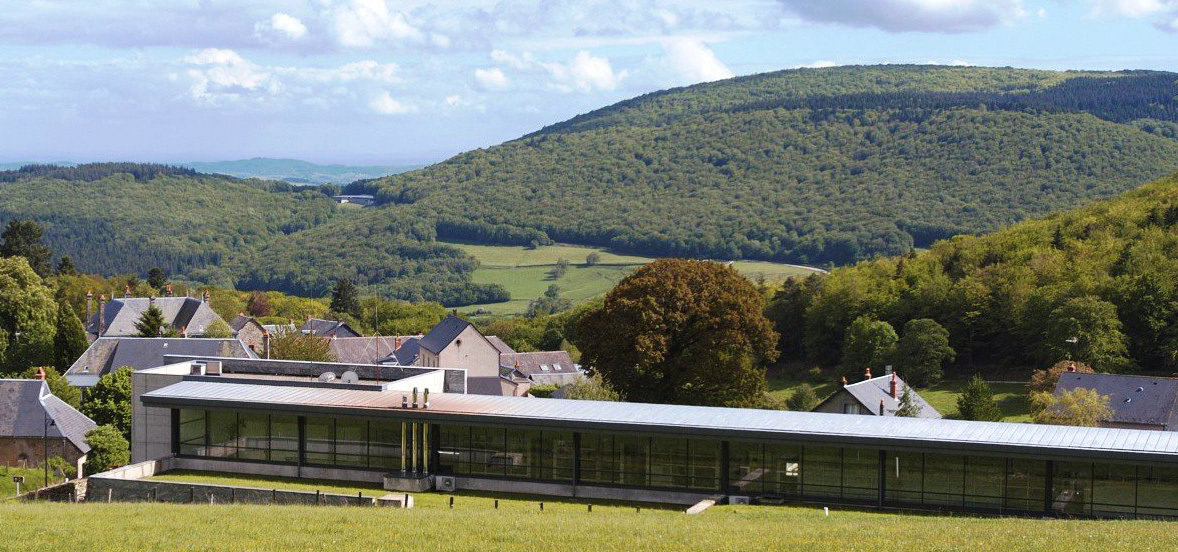

a museum (1996)

a research centre (1995)

Accumulation of digital data since 20 years

Bibnum :

Photos : A. Mailler, Bibracte

Domus PC2 :

state of the art

a domus in urban district

excavated in 1882

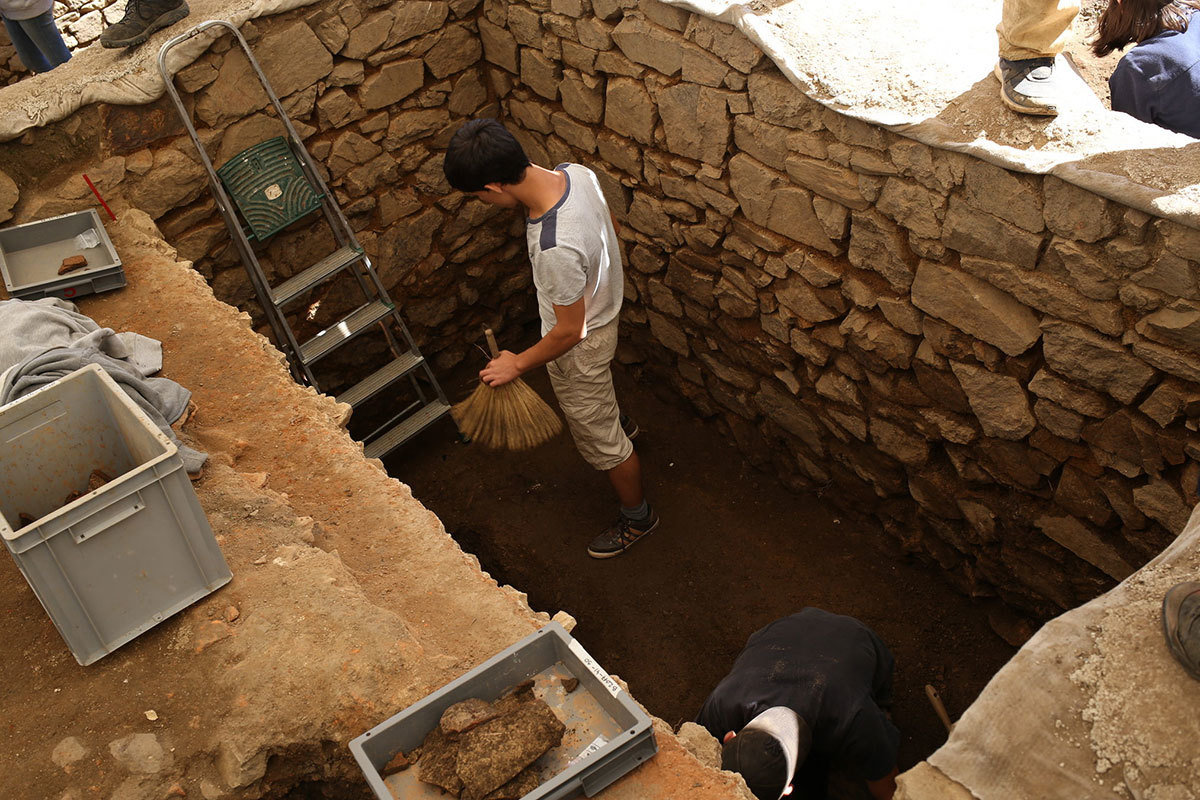

initiation excavation for young people

F. Meylan, 2005

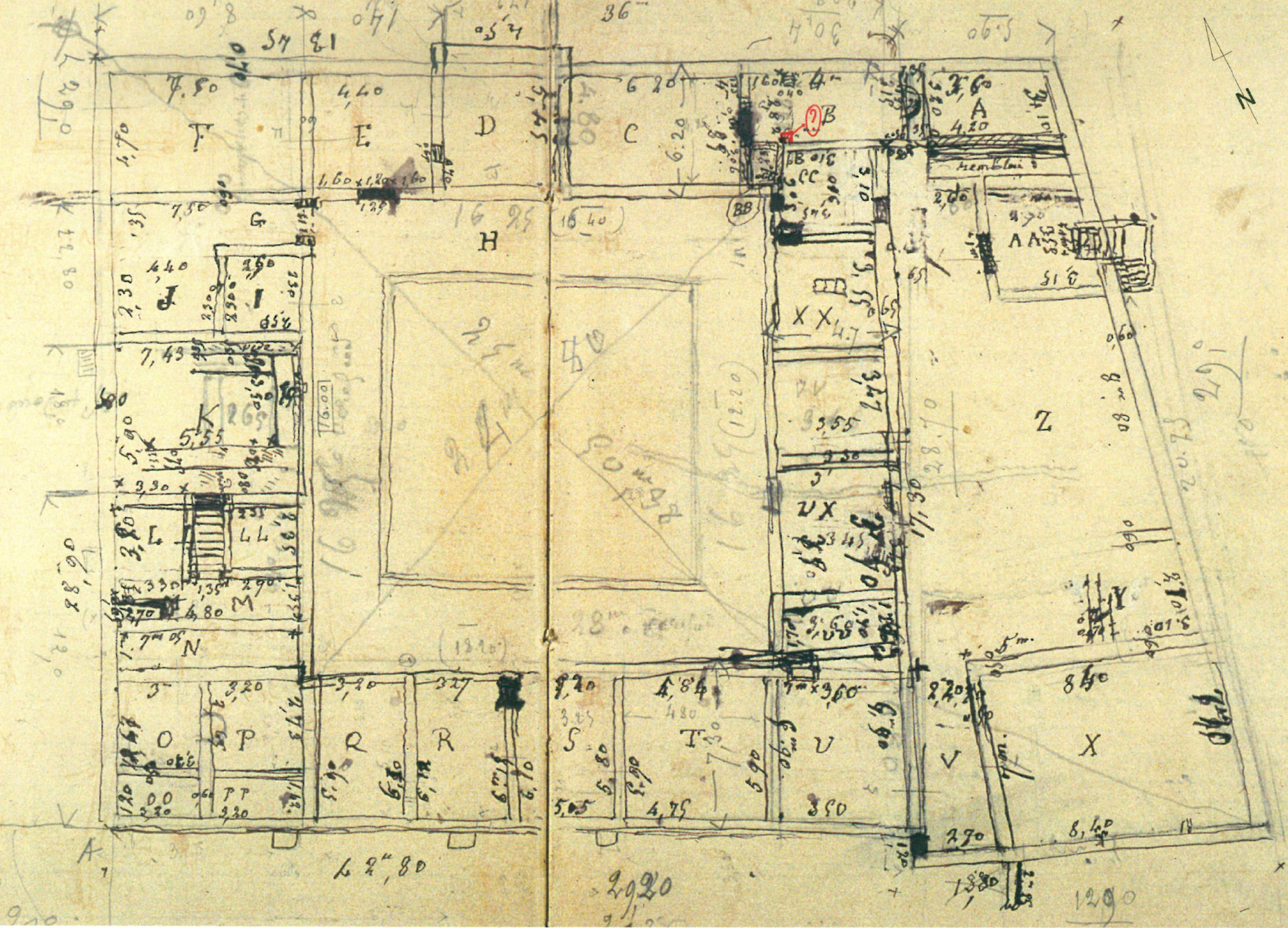

J.-G. Bulliot, 1882

Digital data:

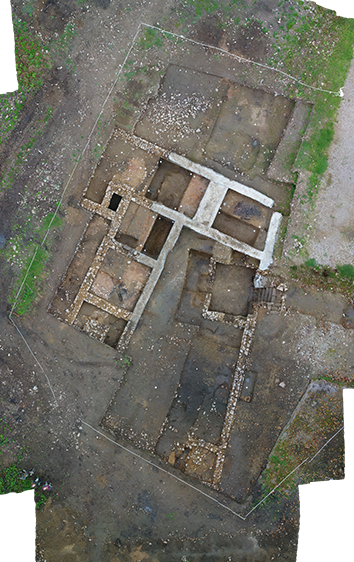

Photogrammetry :

acquisition parameters

Each layer (424m²)



Adaptive methode to area



1mm/pix resolution



42 acquisitions for 92gb

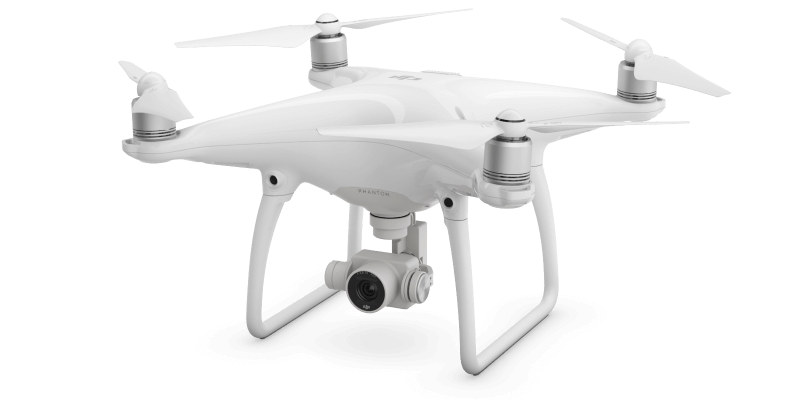

Dji Phantom 4 pro

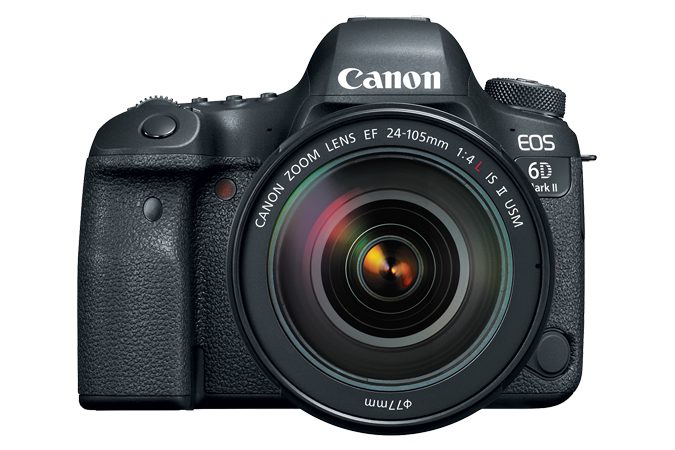

Canon Eos 6D

10m

2m

Technical insights, feeding the front end

.assessing and processing 3D spatial data

Test: Spatial footprint, density, homegeneity
Cleaning: SOR filter, density threshold (relative to the object and its size)

Indexing

if massive (>200M?) = Entwine

else .laz or .pnts

big files

performance

light files

less efficient

Mesh

hierarchical LOD glTF 2.0

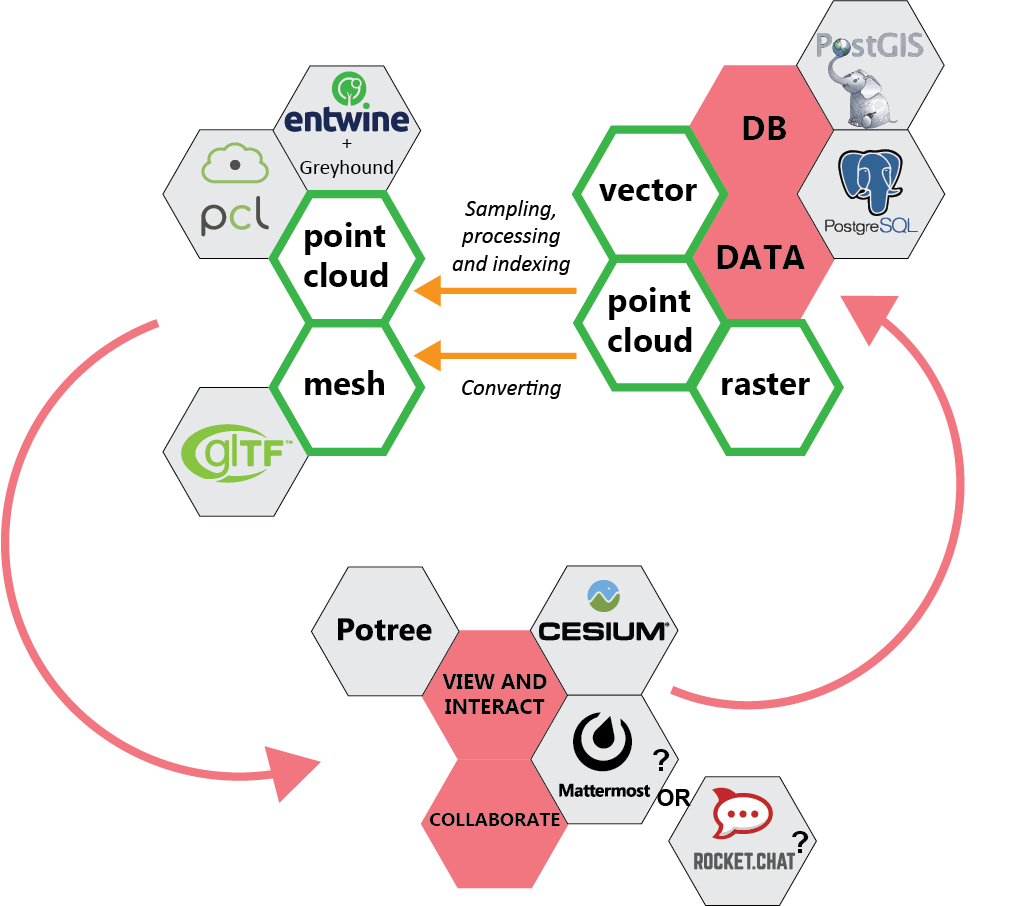

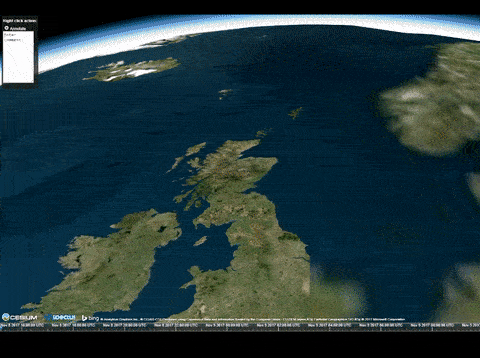

.multimodal and multiscalar front end

glTF (3Dtiles)

Entwine, laz,

pnts (3Dtiles)

geojson, kml, czml

(spatial data)

scale1

scale2

scale2

(new isolation window)

Potree (new isolation window

for metrologic insights)

asynchronous

collaborative

tools

Live demo: back to Bibracte PC2

Cooking the back end and ideas

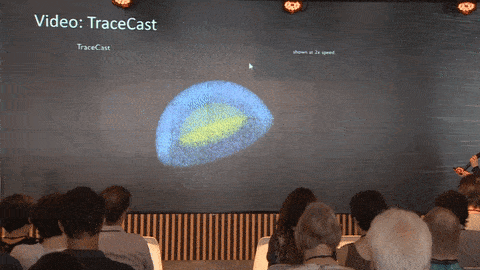

Integration of cutting-edge point cloud interactive selection and annotation (maybe derived from astrophysics tools).

https://www.youtube.com/watch?v=GlyNswoGVWE

Context-Aware Selection Techniques and Visual Storytelling

Lingyun Yu (Rijksuniversiteit Groningen​)

Cooking the back end and ideas

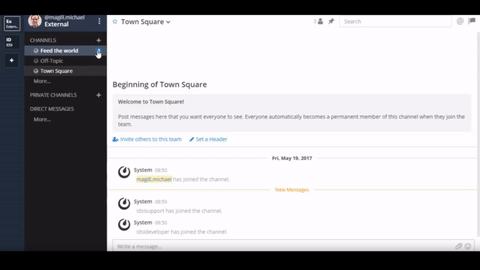

Exploring available open source web based collaboration tools.

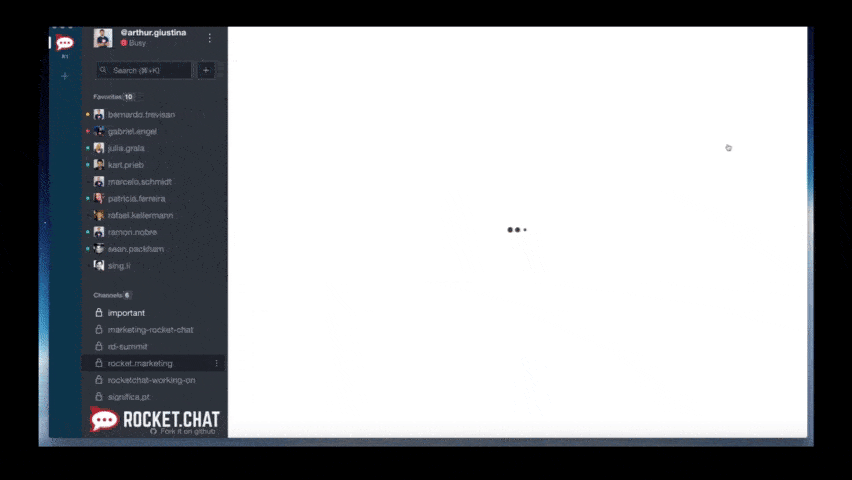

https://rocket.chat/
https://about.mattermost.com/

Cooking the back end and ideas

A flexible collaboration tool for multimodal and multiscalar 3D data exploitation.

Matthieu Thivet (matthieu.thivet@univ-fcomte.fr)

Quentin Verriez (qverriez@gmail.com)

Damien Vurpillot (damien.archeo@gmail.com)

Vienna 11 2017
