Using React Native in a Polyglot App Ecosystem

Who am I?

David Guijarro

Team Lead Frontend & Mobile at Nect GmbH

@davguij // guijarro.dav@gmail.com

What do we do at Nect?

React Native

"Learn once, write anywhere"

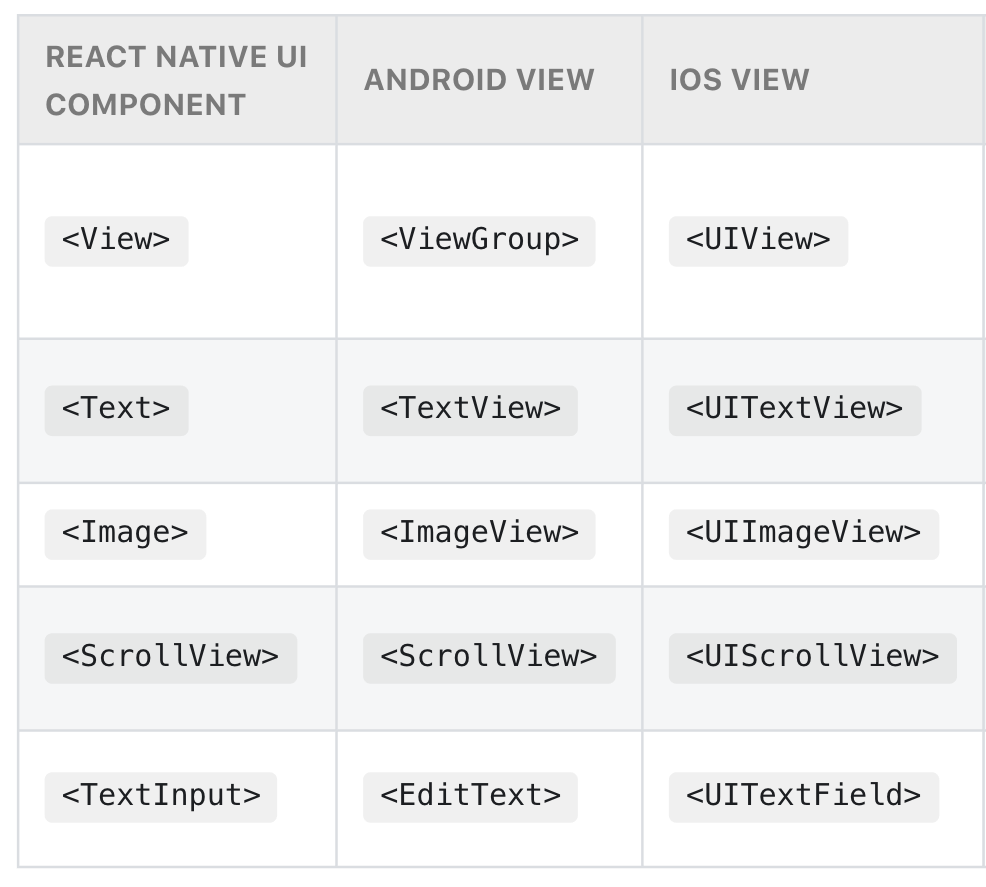

Core components

Transformed into native components

More https://reactnative.dev/docs/components-and-apis

import React from 'react';
import { Text, View } from 'react-native';

const HelloWorldApp = () => {
  return (
    <View style={{
        flex: 1,
        justifyContent: 'center',
        alignItems: 'center'
      }}>
      <Text>Hello, world!</Text>
    </View>
  );
}

export default HelloWorldApp;

But...!

Code is still JavaScript, running on a JS engine
Updates to components run on the JavaScript side, and need to be sent "across the bridge"

Updates to native views

serialized as JSON objects
batched together
sent over to the native side at the end of each iteration of the event loop

The Three Threads

Main thread (UI thread)

JavaScript thread

Shadow thread

JavaScript thread

Shadow thread

Native side

Event

The React Native Bridge

Asynchronous message broker (event-driven architecture)
Written in C++

Native modules

React Native consumer app

iOS

Android

JavaScript facade

Native modules

npx react-native-builder-bob init

Getting started

Native modules

JavaScript facade

import { NativeModules } from "react-native";
const { MyAwesomeModule } = NativeModules;

interface MyAwesomeModuleInterface {
  doSomethingCool(oneArgument: string, anotherArgument: boolean): void;
}

export default MyAwesomeModule as MyAwesomeModuleInterface;

Native modules

Android implementation

// android/app/src/main/java/com/davguij/my-awesome-module/MyAwesomeModule.java

package com.davguij.my-awesome-module;

import com.facebook.react.bridge.NativeModule;
import com.facebook.react.bridge.ReactApplicationContext;
import com.facebook.react.bridge.ReactContext;
import com.facebook.react.bridge.ReactContextBaseJavaModule;
import com.facebook.react.bridge.ReactMethod;
import java.util.Map;
import java.util.HashMap;

public class MyAwesomeModule extends ReactContextBaseJavaModule {

  // constructor
  MyAwesomeModule(ReactApplicationContext context) {
    super(context);
  }
}

Native modules

Android: getName()

// android/app/src/main/java/com/davguij/my-awesome-module/MyAwesomeModule.java

(...)

  @Override
  public String getName() {
    return "MyAwesomeModule";
  }

(...)

Native modules

Android: expose a method

// android/app/src/main/java/com/davguij/my-awesome-module/MyAwesomeModule.java

(...)

  @ReactMethod
  public void doSomethingCool(String oneArgument, Boolean anotherArgument) {
    // Implementation!
  }

(...)

Native modules

Android: register the module

// android/app/src/main/java/com/davguij/
// my-awesome-module/MyAwesomePackage.java

package com.davguij.my-awesome-module;
import com.facebook.react.ReactPackage;
import com.facebook.react.bridge.NativeModule;
import com.facebook.react.bridge.ReactApplicationContext;
import com.facebook.react.uimanager.ViewManager;

import java.util.ArrayList;
import java.util.Collections;
import java.util.List;

public class MyAwesomePackage implements ReactPackage {

  @Override
  public List<ViewManager> createViewManagers(
          ReactApplicationContext reactContext) {
    return Collections.emptyList();
  }

  @Override
  public List<NativeModule> createNativeModules(
          ReactApplicationContext reactContext) {
    List<NativeModule> modules = new ArrayList<>();

    modules.add(new MyAwesomePackage(reactContext));

    return modules;
  }

}

// android/app/src/main/java/com/davguij/
// my-awesome-module/MainApplication.java

import com.davguij.my-awesome-module.MyAwesomePackage;

(...)

  @Override
  protected List<ReactPackage> getPackages() {
    List<ReactPackage> packages = new PackageList(this).getPackages();
    packages.add(new MyAwesomePackage()); // <---
    return packages;
  }
};

Native modules

Android: instantiate the module

Native modules

Done!

Native modules

iOS implementation

// ios/MyAwesomeModule/MyAwesomeModule.h

#import <React/RCTBridgeModule.h>

@interface MyAwesomeModule : NSObject <RCTBridgeModule>
@end

---

// ios/MyAwesomeModule/MyAwesomeModule.m

#import "MyAwesomeModule.h"

@implementation MyAwesomeModule
RCT_EXPORT_MODULE();
@end

Native modules

iOS: Custom module name

@implementation MyAwesomeModule

// export the name of the native module as
// 'MyAwesomeModule' since no explicit name is mentioned
RCT_EXPORT_MODULE();

// export the module using a custom name
RCT_EXPORT_MODULE(MyIncredibleModule);

Native modules

iOS: expose a method

// ios/MyAwesomeModule/MyAwesomeModule.m

#import "MyAwesomeModule.h"

@implementation MyAwesomeModule
RCT_EXPORT_MODULE();

RCT_EXPORT_METHOD(doSomethingCool:(NSString *)oneArg anotherArg:(BOOL *)anotherArg)
{
  // do your magic here!
}

@end

Native modules

Done!

Native modules

Distribution

npm package

Public

Private

@ namespaced

Registry (npm, GitHub...)

Native modules

Build, version and release

yarn publish
npm run publish

release-it

Test

Build

Bump version

Create Git tag

Generate changelog

Publish

Native UI components

Android: create/import a View

// MyAwesomeView.java

public class MyAwesomeView extends RelativeLayout {
  (...)
 }

Native UI components

Android: implement the ViewManager

// MyAwesomeViewManager.java

package com.davguij.my-awesome-ui-component

import com.facebook.react.uimanager.SimpleViewManager

public class MyAwesomeViewManager extends SimpleViewManager<MyAwesomeView> {

  public static final String COMPONENT_NAME = "MyAwesomeComponent";

  @Override
  public String getName() {
    return REACT_CLASS;
  }

}

Native UI components

Android: implement createViewInstace()

// MyAwesomeViewManager.java

(...)

import com.facebook.react.uimanager.ThemedReactContext

public class MyAwesomeViewManager extends SimpleViewManager<MyAwesomeView> {

  (...)
  @Override
  public MyAwesomeView createViewInstance(ThemedReactContext reactContext) {
    return new MyAwesomeView(reactContext);
  }

}

Native UI components

Android: expose props setters

// MyAwesomeViewManager.java

(...)

public class MyAwesomeViewManager extends SimpleViewManager<MyAwesomeView> {

  (...)

  @ReactProp(name = "floatProp", defaultFloat = 0f)
  public void setFloatProp(MyAwesomeView view, float floatProp) {
    // do the magic!
  }

}

Native UI components

Android: register the ViewManager

// MyAwesomePackage.java

package com.davguij.my-awesome-module;
import com.facebook.react.ReactPackage;
import com.facebook.react.bridge.ReactApplicationContext;
import com.facebook.react.uimanager.ViewManager;


public class MyAwesomePackage implements ReactPackage {

  @Override
  public List<ViewManager> createViewManagers(
          ReactApplicationContext reactContext) {
    return Arrays.<ViewManager>asList(
      new MyAwesomeViewManager(reactContext)
    );
  }

  (...)
}

Native UI components

Android: Done!

Native UI components

iOS: extend the React ViewManager class

// MyAwesomeViewManager.m

#import <React/RCTViewManager.h>

@interface MyAwesomeViewManager : RCTViewManager
@end

Native UI components

iOS: expose the module

// MyAwesomeViewManager.m

(...)

@implementation MyAwesomeViewManager

RCT_EXPORT_MODULE(MyAwesomeView)

@end

Native UI components

iOS: implement the view() method

// MyAwesomeViewManager.m

(...)

@implementation MyAwesomeViewManager

RCT_EXPORT_MODULE(MyAwesomeView) // Used later to refer to the component

- (UIView *)view
{
  return [[MyAwesomeView alloc] init];
}

@end

Native UI components

iOS: expose prop setters

// MyAwesomeViewManager.m

(...)

@implementation MyAwesomeViewManager

(...)

RCT_EXPORT_VIEW_PROPERTY(isReallyAwesome, BOOL)

@end

Native UI components

iOS: Done!

Native UI components

Wrap it with JavaScript

// MyAwesomeView.ts

import React from 'react';
import { requireNativeComponent, ViewProps } from 'react-native';

interface NativeComponentProps {
  isReallyAwesome: boolean;
}

const MyAwesomeViewRaw = requireNativeComponent<NativeComponentProps>('MyAwesomeView');

type MyAwesomeViewProps = ViewProps && NativeComponentProps;

export const MyAwesomeView: React.FC<MyAwesomeViewProps> = (props) => {
  return <MyAwesomeViewRaw {...props} />;
}

Using React Native in an existing app

Directory structure

project
- index.js
- package.json
- (...)
- iOS
  - Copy iOS project here
- Android
  - Copy Android project here

Using React Native in an existing app

💡 Use Git submodules!

💡create-react-native-app

Using React Native in an existing app

Install JS dependencies

yarn add react-native react

Using React Native in an existing app

Install native dependencies

// build.gradle

dependencies {
    (...)
    implementation "com.facebook.react:react-native:+"
    implementation "org.webkit:android-jsc:+"
    (...)
}

allprojects {
    repositories {
        maven {
            // All of React Native (JS, Android binaries) is installed from npm
            url "$rootDir/../node_modules/react-native/android"
        }
        maven {
            // Android JSC is installed from npm
            url("$rootDir/../node_modules/jsc-android/dist")
        }
        (...)
    }
    (...)
}

Using React Native in an existing app

Allow non-https traffic

// AndroidManifest.xml

<!-- ... -->
<application
  android:usesCleartextTraffic="true" tools:targetApi="28" >
  <!-- ... -->
</application>
<!-- ... -->

For the app to connect to the Metro server and be served the RN code

Using React Native in an existing app

Build RN view

// index.js

import React from 'react';
import {
  AppRegistry,
  Text,
  View
} from 'react-native';

class MyAwesomeRNApp extends React.Component {
  render() {
    return (
      <View>
        <Text>
          Awesome, right?
        </Text>
      </View>
    );
  }
}

AppRegistry.registerComponent(
  'MyAwesomeRNApp',
  () => MyAwesomeRNApp
);

Using React Native in an existing app

The magic: ReactRootView

public class MyReactActivity extends Activity implements DefaultHardwareBackBtnHandler {
    private ReactRootView mReactRootView;
    private ReactInstanceManager mReactInstanceManager;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
		(...)
        mReactRootView = new ReactRootView(this);
        List<ReactPackage> packages = new PackageList(getApplication()).getPackages();
        // Packages that cannot be autolinked yet can be added manually here, for example:
        // packages.add(new MyReactNativePackage());
        // Remember to include them in `settings.gradle` and `app/build.gradle` too.

        mReactInstanceManager = ReactInstanceManager.builder()
                .setApplication(getApplication())
                .setCurrentActivity(this)
                .setBundleAssetName("index.android.bundle")
                .setJSMainModulePath("index")
                .addPackages(packages)
                .setUseDeveloperSupport(BuildConfig.DEBUG)
                .setInitialLifecycleState(LifecycleState.RESUMED)
                .build();

      	mReactRootView.startReactApplication(mReactInstanceManager, "MyAwesomeRNApp", null);

        setContentView(mReactRootView);
    }

    @Override
    public void invokeDefaultOnBackPressed() {
        super.onBackPressed();
    }
}

Nect app example

export default function isDeviceCompatible() {
  DeviceCompatibilityBridge.isBackCameraCompatible((err, isCompat) => {
    // callback
    if (isCompat === false) {
      AnalyticsSrv.emit('UNSUPPORTED_CAMERA', {caseUuid, deviceInfo});
      (...)
    }
  });
}

package api_client;

public class DeviceCompatibilityBridgeModule extends ReactContextBaseJavaModule {

  (...)

  @ReactMethod
  public void isBackCameraCompatible (Callback callback) {
    try {
      final String[] cameraList = cameraManager.getCameraIdList();

      for (final String cameraId : cameraList) {
        final CameraCharacteristics chars
                = cameraManager.getCameraCharacteristics(cameraId);

        final Integer facing = chars.get(CameraCharacteristics.LENS_FACING);

        if(facing == CameraCharacteristics.LENS_FACING_BACK){
          final boolean hasProfile = CamcorderProfile.hasProfile(Integer.parseInt(cameraId));

          if (!hasProfile && cameraList.length > 1) {
            continue;
          }

          CamcorderProfile backCameraProfile = CamcorderProfile.get(Integer.parseInt(cameraId));

          if(backCameraProfile.hasProfile(CamcorderProfile.QUALITY_720P) && backCameraProfile.get(CamcorderProfile.QUALITY_720P).videoFrameRate > 23){
            callback.invoke(null, true);
            return;
          }
        }
      }
    } catch (Exception e) {
      e.printStackTrace();
      callback.invoke(e.getMessage());
      return;
    }

    callback.invoke(null, false);
  }
}

The future

TurboModules

No more Bridge!

Questions?

Using React Native in a polyglot app ecosystem

By David Guijarro

Using React Native in a polyglot app ecosystem

Using React Native in a Polyglot App Ecosystem

Who am I?

David Guijarro

Team Lead Frontend & Mobile at Nect GmbH

What do we do at Nect?

React Native

"Learn once, write anywhere"

Core components

But...!

Updates to native views

The Three Threads

The React Native Bridge

Native modules

Native modules

Native modules

Native modules

Native modules

Native modules

Native modules

Native modules

Native modules

Native modules

Native modules

Native modules

Native modules

Native modules

Native modules

Native UI components

Native UI components

Native UI components

Native UI components

Native UI components

Native UI components

Native UI components

Native UI components

Native UI components

Native UI components

Native UI components

Native UI components

Using React Native in an existing app

Using React Native in an existing app

Using React Native in an existing app

Using React Native in an existing app

Using React Native in an existing app

Using React Native in an existing app

Using React Native in an existing app

Nect app example

The future

TurboModules

Questions?

Using React Native in a polyglot app ecosystem

More from David Guijarro
