Using Statistical Inference to Enhance Link Recovery in Software Traceability

David N. Palacio

enthusiastic developer

assigned

new Webex requirement

checks

repos

Where does our enthusiastic dev start at?

enthusiastic developer

assigned

new Webex requirement

checks

implements

repos

A Comprehension Problem

assigned

new Webex requirement

checks

implements

repos

Which artifacts are being affected by the req?

architecture team

assigned

new Webex requirement

checks

implements

repos

An Impact Change Problem

affects a set of artifacts

architecture team

inspects

new Webex requirement

checks

repos

What if instead of the developer, an analyst is assessing the security impact of the requirement?

affects a set of artifacts

inspects

new Webex requirement

checks

is the new req security related?

repos

A Security Problem

affects a set of artifacts

Stakeholders

  • Managers
  • Data Scientists
  • Testers

Imagine other roles in the company related to the new req

Source Code

Test Cases

Bug Reports

Requirements

Software Artifacts and their nature

Source Code

Test Cases

Bug Reports

Requirements

Software Artifacts and their nature

Software Team Assessment

How can we automatically identify if the source code is related to a specific requirement?

Software Data Mining or Traceability is the mechanism to uncover implicit relationships among software artifacts

Why should we run Traceability Analyses for CI?

Continuous Integration enables maintainability

Traceability eases change impact and program comprehension during maintainability

Some consequences:

  • Errors
  • Software Decay
  • Vulnerability Proneness
  • Wasted Effort

Researchers have shown that engineers who have little knowledge of the code tent to apply changes to inadequate code locations (P. Mader, et al; 2011).

Agenda

  • Software Traceability Background (~10 min)
  • The probabilistic nature of the link recovery problem (~5 min)
  • A HierarchiCal PrObabilistic Model for SoftwarE Traceability. A COMET's Tutorial (~15 min)

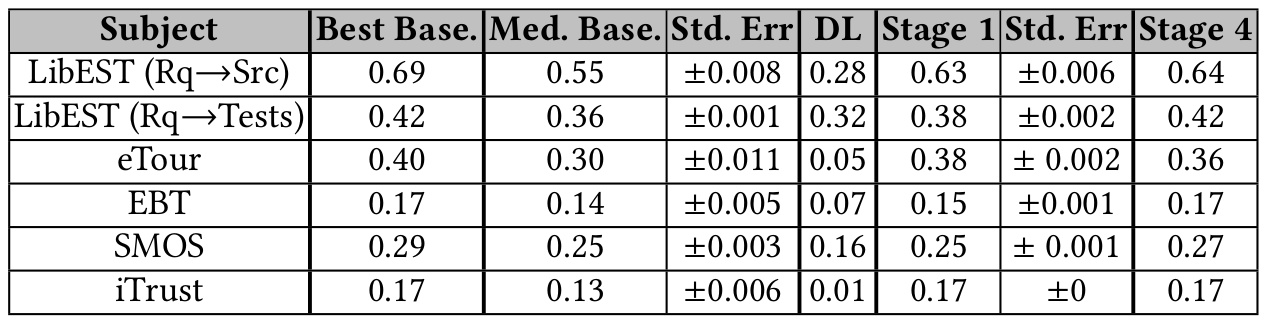

  • The probabilistic approach vs. The deterministic approach (~ 5 min)

Software Traceability Background

Source File

Requirement (Issue) File

Software Traceability is the mechanism to uncover implicit relationships among software artifacts

How deep are the artifacts correlated?

Source File

Requirement (Issue) File

Test File

How deep are the artifacts correlated?

Source File

Requirement (Issue) File

Test File

Is it feasible to manually recover trace links? How do you assess the quality of those manual links?

Assuming that the artifacts of a software system are text-based (e.g., requirements, source code, or test cases), what type of automation techniques can be employed to uncover hidden links?

\theta

Trace Link (Similarity) Value [0,1]

S_n

Source Artifacts (i.e., requirement files)

T_n

Target Artifacts (i.e., source code files)

\theta = f_{IR/ML}(S_n, T_n) = dist(S_n,T_n)

Information Retrieval (IR) or Machine Learning (ML) techniques help to vectorize text-based artifacts and perform a distance metric

S_n
T_n
\theta = dist(S_n,T_n)

The Probabilistic Nature of The Link Recovery Problem

The link recovery problem is the fundamental problem in Software Traceability; it consists of automatically establishing the relationships of artifacts allowing for the evolution of the system (maintainability)

Source File

Requirement File

\theta

The link recovery problem: How would you compute θ ?

\theta

Trace Link (Similarity) Value [0,1]

\theta_n

Trace Link from Requirement to Test Case

Exec_n

Execution Trace from Source Code to Test Case

S_n

Source Artifacts (i.e., requirement files)

T_n

Target Artifacts (i.e., source code files)

Source File

Requirement File

Test File

\theta = ?
Exec_1

How do we enhance link recovery with recent IR/ML approaches?

Source File

Requirement File

Test File

\theta = ?
Exec_1
\theta_1

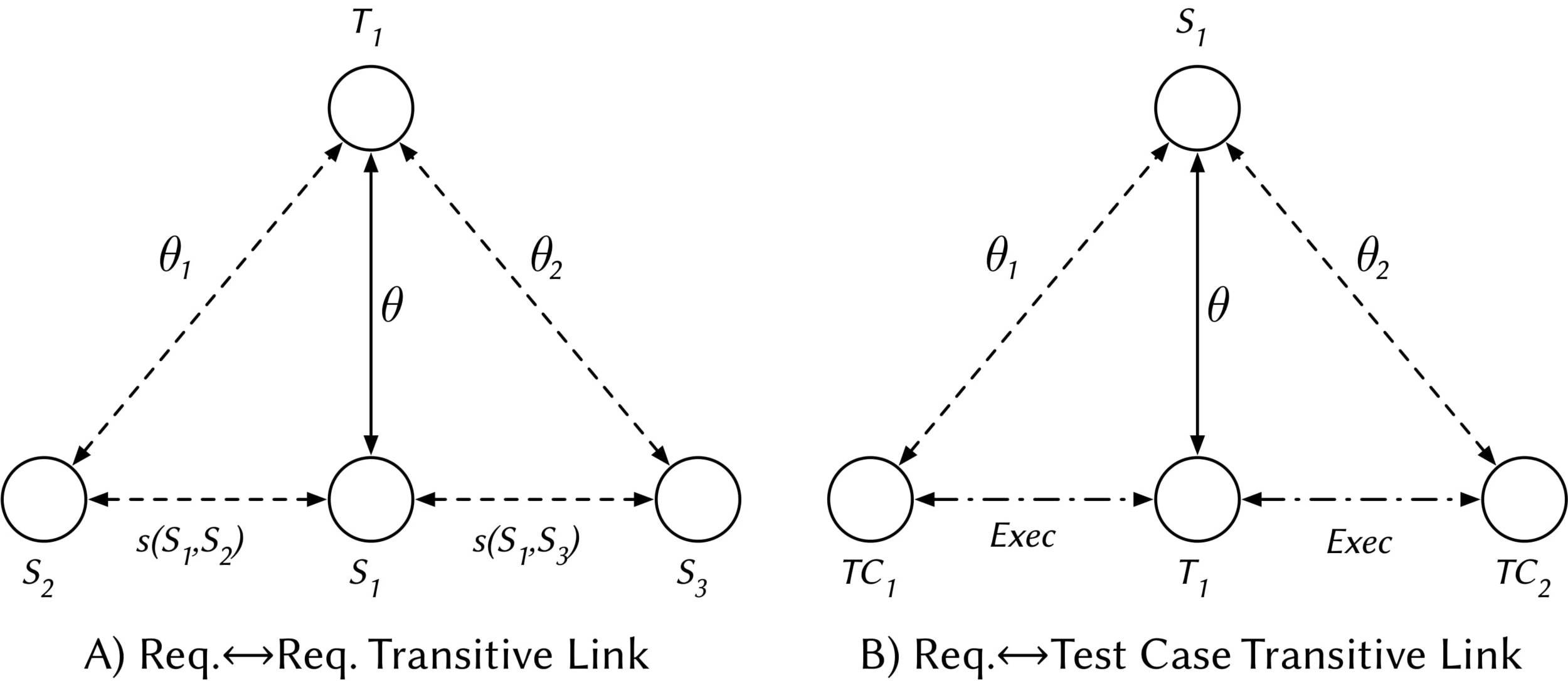

What if we compute a second θ for ReqTc? Is the initial θ affected?

Source File

Requirement File

Test File

Test File

\theta = ?
Exec_2
Exec_1
\theta_1
\theta_2

And what if we add more information?

Prediction

Inference

Use the model to predict the outcomes for new data points

Use the model to learn about the data generation process

Prediction

Statistical Inference Methods:

  • Probabilistic Inference or Bayesian Inference
  • Causal Inference

Inference

Learning Process:

  • Machine Learning
  • Deep Learning

Source File

Requirement File

Test File

Test File

\theta = ?
Exec_2
Exec_1
\theta_1
\theta_2

Do we use Inference or Prediction to compute θ?

\theta \approx P(H|O) = \frac{P(O|H)\cdot P(H)}{P(O)}

The link recovery problem is a Bayesian Inference Problem since we want to uncover a probabilistic distribution throughout a reasoning process

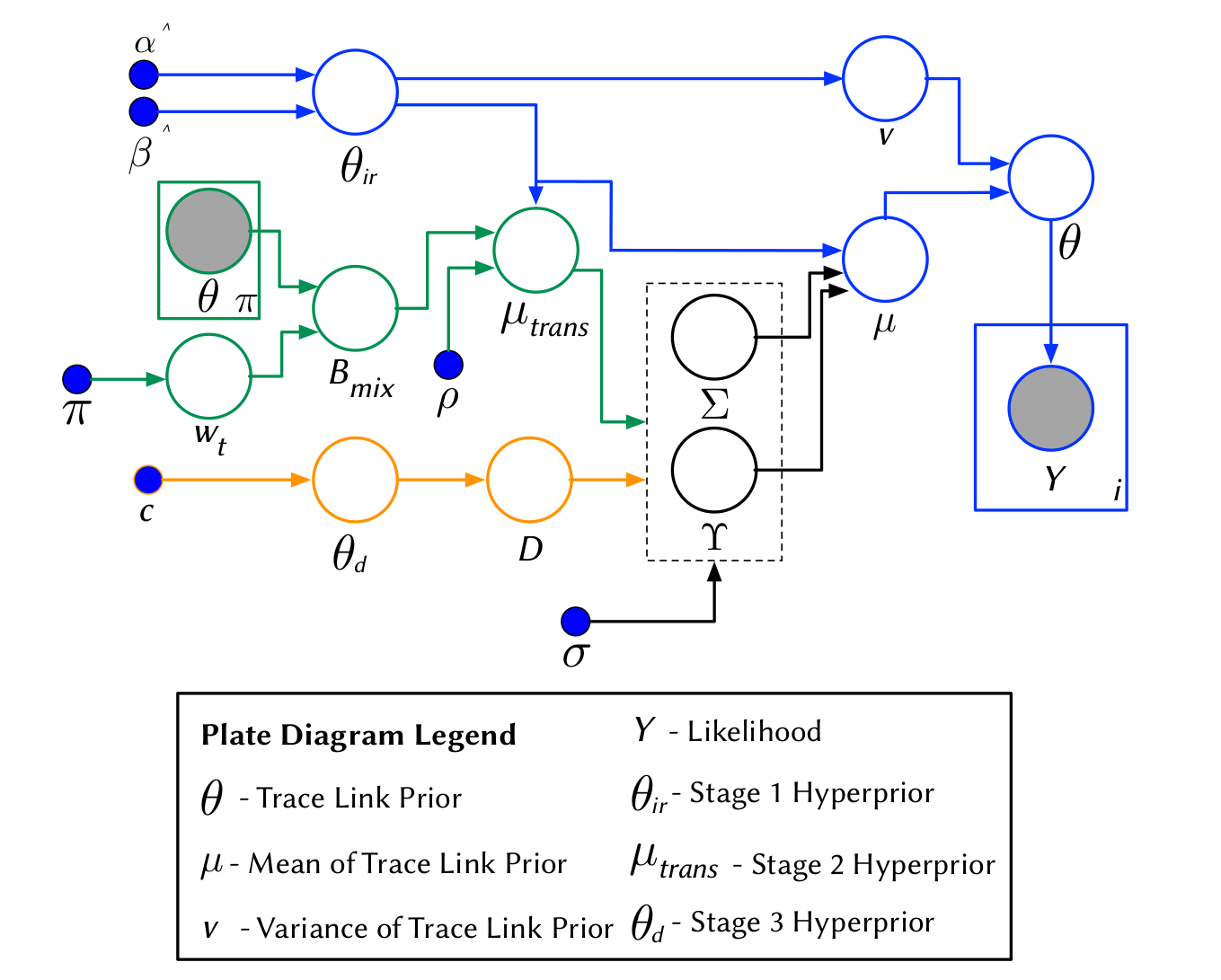

A HierarchiCal PrObabilistic Model for SoftwarE Traceability

The General Model

Bayesian Inference Traceability

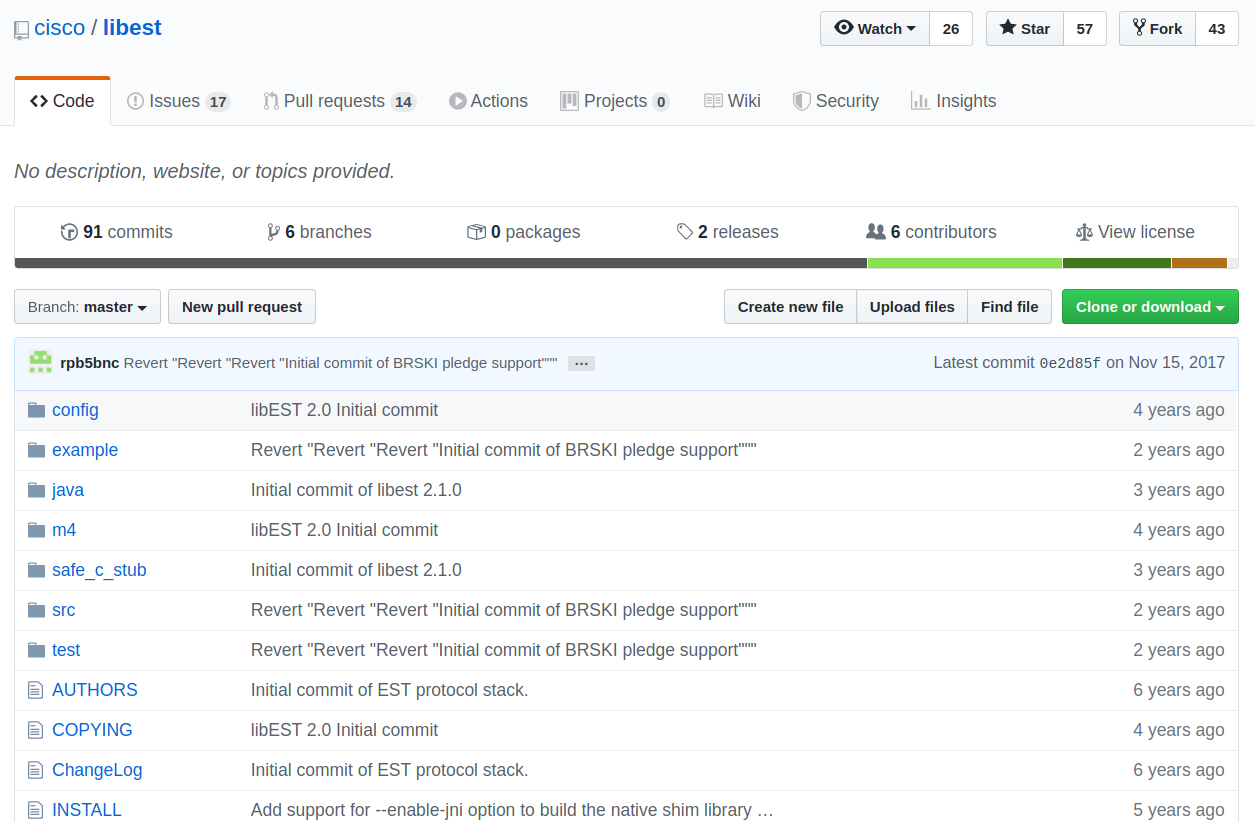

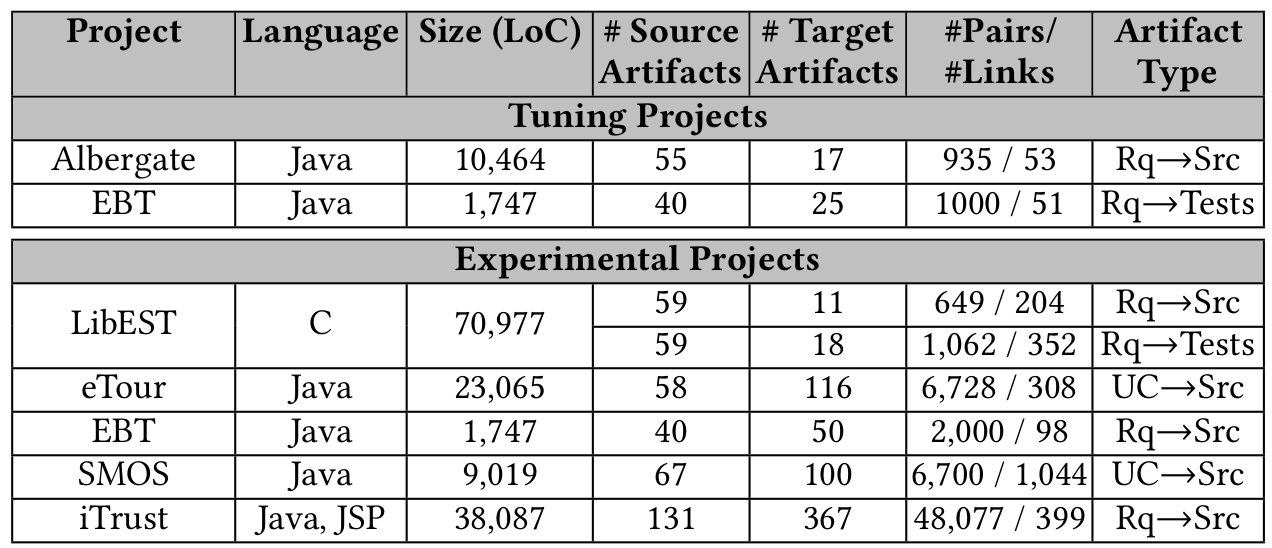

Examples from cisco/LibEST

(``RQ_4", ``est\_ossl\_util.c")

REQUIREMENT 4: OBTAINING CA CERTIFICATES:



The EST client can request a copy of the current EST CA certificate(s) from the EST server. The EST client is assumed to perform this operation before performing other operations.
/*****************************************************************************************
* Authorization routines
*****************************************************************************************/
int ossl_verify_cb (int ok, X509_STORE_CTX *ctx)
{
    int cert_error = X509_STORE_CTX_get_error(ctx);
    X509 *current_cert = X509_STORE_CTX_get_current_cert(ctx);

    EST_LOG_INFO("enter function: ok=%d cert_error=%d", ok, cert_error);

    if (!ok) {
        if (current_cert) {
            X509_NAME_print_ex_fp(stdout,
                                  X509_get_subject_name(current_cert),
                                  0, XN_FLAG_ONELINE);
            printf("\n");
        }
        EST_LOG_INFO("%serror %d at %d depth lookup:%s\n",
                     X509_STORE_CTX_get0_parent_ctx(ctx) ? "[CRL path]" : "",
                     cert_error,
                     X509_STORE_CTX_get_error_depth(ctx),
                     X509_verify_cert_error_string(cert_error));
        switch (cert_error) {
        case X509_V_ERR_UNABLE_TO_GET_CRL:
            /*
             * We've enabled CRL checking in the TLS stack.  If
             * the application hasn't loaded a CRL, then this
             * verify error can occur.  The peer's cert is valid,
             * but we can't confirm if it was revoked.  We'll
             * warn the application.
             */
            EST_LOG_WARN("No CRL loaded, TLS peer will be allowed.");
            ok = 1;
            break;
        case X509_V_ERR_NO_EXPLICIT_POLICY:
        case X509_V_ERR_CERT_HAS_EXPIRED:

        /* since we are just checking the certificates, it is
         * ok if they are self signed. But we should still warn
         * the user.
         */

        case X509_V_ERR_DEPTH_ZERO_SELF_SIGNED_CERT:
        /* Continue after extension errors too */
        case X509_V_ERR_INVALID_CA:
        case X509_V_ERR_INVALID_NON_CA:
        case X509_V_ERR_PATH_LENGTH_EXCEEDED:
        case X509_V_ERR_INVALID_PURPOSE:
        case X509_V_ERR_CRL_HAS_EXPIRED:
        case X509_V_ERR_CRL_NOT_YET_VALID:
        case X509_V_ERR_UNHANDLED_CRITICAL_EXTENSION:
        case X509_V_ERR_CERT_REVOKED:
        default:
            EST_LOG_WARN("Certificate verify failed (reason=%d)",
                         cert_error);
            break;
        }
        return ok;
    }
    return (ok);
}
/*
 * This function is used to load an X509_STORE using raw
 * data from a buffer.  The data is expected to be PEM
 * encoded.
 *
 * Returns the number of certs added to the store
 */
static int ossl_init_cert_store_from_raw (X509_STORE *store,
                                           unsigned char *raw, int size)
{
    STACK_OF(X509_INFO) * sk = NULL;
    X509_INFO *xi;
    BIO *in;
    int cert_cnt = 0;

    in = BIO_new_mem_buf(raw, size);
    if (in == NULL) {
        EST_LOG_ERR("Unable to open the raw CA cert buffer\n");
        return 0;
    }

    /* This loads from a file, a stack of x509/crl/pkey sets */
    sk = PEM_X509_INFO_read_bio(in, NULL, NULL, NULL);
    if (sk == NULL) {
        EST_LOG_ERR("Unable to read PEM encoded certs from BIO");
        BIO_free(in);
        return 0;
    }
    BIO_free(in);

    /* scan over it and pull out the CRL's */
    while (sk_X509_INFO_num(sk)) {
        xi = sk_X509_INFO_shift(sk);
        if (xi->x509 != NULL) {
            EST_LOG_INFO("Adding cert to store (%s)", xi->x509->name);
            X509_STORE_add_cert(store, xi->x509);
	    cert_cnt++;
        }
        if (xi->crl != NULL) {
            EST_LOG_INFO("Adding CRL to store");
            X509_STORE_add_crl(store, xi->crl);
        }
        X509_INFO_free(xi);
    }

    if (sk != NULL) {
        sk_X509_INFO_pop_free(sk, X509_INFO_free);
    }
    return (cert_cnt);
}
/*
 * This function is used to populate an X509_STORE structure,
 * which can be used by the OpenSSL TLS stack to verifying
 * a TLS peer.  The X509_STORE should already have been allocated.
 *
 * Parameters:
 *  store   - Pointer to X509_STORE structure to hold the certs
 *  raw1    - char array containing PEM encoded certs to put
 *            into the store.
 *  size1   - Length of the raw1 char array
 */
EST_ERROR ossl_init_cert_store (X509_STORE *store,
                                unsigned char *raw1, int size1)
{
    X509_STORE_set_flags(store, 0);
    int cnt;

    if (raw1) {
        cnt = ossl_init_cert_store_from_raw(store, raw1, size1);
	if (!cnt) {
	    EST_LOG_ERR("Cert count is zero for store");
	    return (EST_ERR_NO_CERTS_FOUND);
	}
    }
    return (EST_ERR_NONE);
}
/*
 * This function can be used to output the OpenSSL
 * error buffer.  This is useful when an OpenSSL
 * API call fails and you'd like to provide some
 * detail to the user regarding the cause of the
 * failure.
 */
void ossl_dump_ssl_errors ()
{
    BIO		*e = NULL;
    BUF_MEM	*bptr = NULL;

    e = BIO_new(BIO_s_mem());
    if (!e) {
	EST_LOG_ERR("BIO_new failed");
	return;
    }
    ERR_print_errors(e);
    (void)BIO_flush(e);
    BIO_get_mem_ptr(e, &bptr);
    EST_LOG_WARN("OSSL error: %s", bptr->data);
    BIO_free_all(e);
}
/*! @brief est_convert_p7b64_to_pem() converts the base64 encoded
    PKCS7 response from the EST server into PEM format.

    @param certs_p7 Points to a buffer containing the base64 encoded pkcs7 data.
    @param certs_len Indicates the size of the *certs_p7 buffer.
    @param pem Double pointer that will receive the PEM encoded data.

    Several of the EST message return data that contains base64 encoded PKCS7
    certificates.  This function is used to convert the data to PEM format.
    This function will allocate memory pointed to by the **pem argument.
    The caller is responsible for releasing this memory.  The return value
    is the length of the PEM buffer, or -1 on error.

    @return int.
 */
int est_convert_p7b64_to_pem (unsigned char *certs_p7, int certs_len, unsigned char **pem)
{
    X509 *x;
    STACK_OF(X509) *certs = NULL;
    BIO *b64, *in, *out;
    unsigned char *cacerts_decoded = NULL;
    int  cacerts_decoded_len = 0;
    BIO *p7bio_in = NULL;
    PKCS7 *p7=NULL;
    int i, nid;
    unsigned char *pem_data;
    int pem_len;

    /*
     * Base64 decode the incoming ca certs buffer.  Decoding will
     * always take up no more than the original buffer.
     */
    b64 = BIO_new(BIO_f_base64());
    if (!b64) {
	EST_LOG_ERR("BIO_new failed");
	return (-1);
    }
    in = BIO_new_mem_buf(certs_p7, certs_len);
    if (!in) {
	EST_LOG_ERR("BIO_new failed");
	return (-1);
    }
    in = BIO_push(b64, in);
    cacerts_decoded = malloc(certs_len);
    if (!cacerts_decoded) {
	EST_LOG_ERR("malloc failed");
	return (-1);
    }
    cacerts_decoded_len = BIO_read(in, cacerts_decoded, certs_len);
    BIO_free_all(in);
    /*
     * Now get the PKCS7 formatted buffer of certificates read into a stack of
     * X509 certs
     */
    p7bio_in = BIO_new_mem_buf(cacerts_decoded, cacerts_decoded_len);
    if (!p7bio_in) {
        EST_LOG_ERR("BIO_new failed while attempting to create mem BIO");
        ossl_dump_ssl_errors();
        free(cacerts_decoded);
        return (-1);
    }
    p7 = d2i_PKCS7_bio(p7bio_in, NULL);
    if (!p7) {
	EST_LOG_ERR("PEM_read_bio_PKCS7 failed");
	ossl_dump_ssl_errors();
        free(cacerts_decoded);
	return (-1);
    }
    BIO_free_all(p7bio_in);
    free(cacerts_decoded);

    /*
     * Now that we've decoded the certs, get a reference
     * the the stack of certs
     */
    nid=OBJ_obj2nid(p7->type);
    switch (nid)
        {
        case NID_pkcs7_signed:
            certs = p7->d.sign->cert;
            break;
        case NID_pkcs7_signedAndEnveloped:
            certs = p7->d.signed_and_enveloped->cert;
            break;
        default:
            EST_LOG_ERR("Invalid NID value on PKCS7 structure");
	    PKCS7_free(p7);
	    return (-1);
            break;
        }

    if (!certs) {
        EST_LOG_ERR("Failed to attain X509 cert stack from PKCS7 data");
	PKCS7_free(p7);
	return (-1);
    }

    /*
     * Output the certs to a new BIO using the PEM format
     */
    out = BIO_new(BIO_s_mem());
    if (!out) {
        EST_LOG_ERR("BIO_new failed");
	PKCS7_free(p7);
	return (-1);
    }
    for (i=0; i<sk_X509_num(certs); i++) {
        x=sk_X509_value(certs, i);
	PEM_write_bio_X509(out, x);
	BIO_puts(out, "\n");
    }
    (void)BIO_flush(out);

    /*
     * Now convert the BIO to char*
     */
    pem_len = (int) BIO_get_mem_data(out, (char**)&pem_data);
    if (pem_len <= 0) {
        EST_LOG_ERR("BIO_get_mem_data failed");
	PKCS7_free(p7);
	return (-1);
    }

    *pem = malloc(pem_len + 1);
    if (!*pem) {
        EST_LOG_ERR("malloc failed");
	PKCS7_free(p7);
	return (-1);
    }
    memcpy_s(*pem, pem_len, pem_data, pem_len);
    (*pem)[pem_len] = 0;  //Make sure it's null termianted
    BIO_free_all(out);
    PKCS7_free(p7);
    return (pem_len);
}

Observe the content of the link:

\theta \approx P(H|O) = \frac{P(O|H)\cdot P(H)}{P(O)}

Traceability as a Bayesian Inference Problem

\theta \approx P(H|O) = \frac{P(O|H)\cdot P(H)}{P(O)}

The likelihood is a fitted distribution for the IR outcomes or observations O, given the probability of H. H is the hypothesis that the link exists.

Traceability as a Bayesian Inference Problem

\theta \approx P(H|O) = \frac{P(O|H)\cdot P(H)}{P(O)}

The prior probability of H. It can be drawn from the factors that influence the traceability: transitive links, other observations of IR values, or developers' feedback.

Traceability as a Bayesian Inference Problem

\theta \approx P(H|O) = \frac{P(O|H)\cdot P(H)}{P(O)}

The marginal likelihood or "model evidence". This factor does not affect the hypothesis H.

Traceability as a Bayesian Inference Problem

\theta \approx P(H|O) = \frac{P(O|H)\cdot P(H)}{P(O)}

The posterior probability that a trace link exits; it can be interpreted as the impact of an observation O on the probability of H

Traceability as a Bayesian Inference Problem

COMET's Tutorial

Estimating the Likelihood

P(O|H)
Y
P(O|H) = Y = p(l_i|\theta_i)= Bern(l_i|\theta_i)
P(O|H) = Y = p(l_i|\theta_i)= Bern(l_i|\theta_i)
l(``RQ_1" \rightarrow ``us895")
Model Observation Linked?
VSM 0.085 0
JS 0.446 1
LDA 0.01 0
k_i > 0.4
P(O|H) = Y = p(l_i|\theta_i)= Bern(l_i|\theta_i)
l(``RQ_1" \rightarrow ``est\_ossl\_util.c")
Model Observation Linked?
VSM 0.119 0
JS 0.457 1
LDA 0.014 0
k_i > 0.4

A Hierarchical Bayesian Network to model priors

P(H)
Y
P(H)

Random factors that influence the probability that a trace link exists in LibEST

  • Textual Similarities among artifacts
  • CISCO Developers feedback
  • Transitive Relationships
P(H)

Textual Similarities

Developers' Feedback

Transtive Links

Textual Similarities

Stage 1

P(H) = \theta
\theta \sim B(\mu, \nu)
Y \sim Bern(l_i|\theta_i)

The BETA distribution is fitted from distinct observations of IR techniques

Developers' Feedback

Stage 2

\theta_{d} \sim B(\mu_{d}=c,sd=0.01)
\theta \sim B(\mu, \nu)
Y \sim Bern(l_i|\theta_i)

A different BETA distribution is fitted from distinct observations of Developers' feedback from the link under study

Transitive Links

Stage 3

Source File

Test File

Test File

\theta
Exec_2
Exec_1
\theta_1
\theta_2
B_{mix} \sim Mix(w_t,\theta_\pi)
\theta \sim B(\mu, \nu)
Y \sim Bern(l_i|\theta_i)

A BETA mixture model is employed to model all transitive (probabilistic) links

The Holistic Model

Stage 4

B_{mix} \sim Mix(w_t,\theta_\pi)
\theta_{d} \sim B(\mu_{d}=c,sd=0.01)
\theta \sim B(\mu, \nu)
Y \sim Bern(l_i|\theta_i)

Inferring the Traceability  Posterior

P(H|O)
P(H|O) = \frac{P(O|H)\cdot P(H)}{P(O)} = p(\Theta|L)
B_{mix} \sim Mix(w_t,\theta_\pi)
\theta_{d} \sim B(\mu_{d}=c,sd=0.01)
\theta \sim B(\mu, \nu)
Y \sim Bern(l_i|\theta_i)
p(\Theta|L)
p(\Theta|L) = \dfrac{p(\Theta)p(L|\Theta)}{\int p(\Theta)p(L|\Theta)d\Theta} \propto p(\Theta) \prod\limits_{i=1}^n p(L_i|\Theta_i)

How do we compute a posterior probability given the traceability hyperpriors?

Good luck!

well actually, we performed...

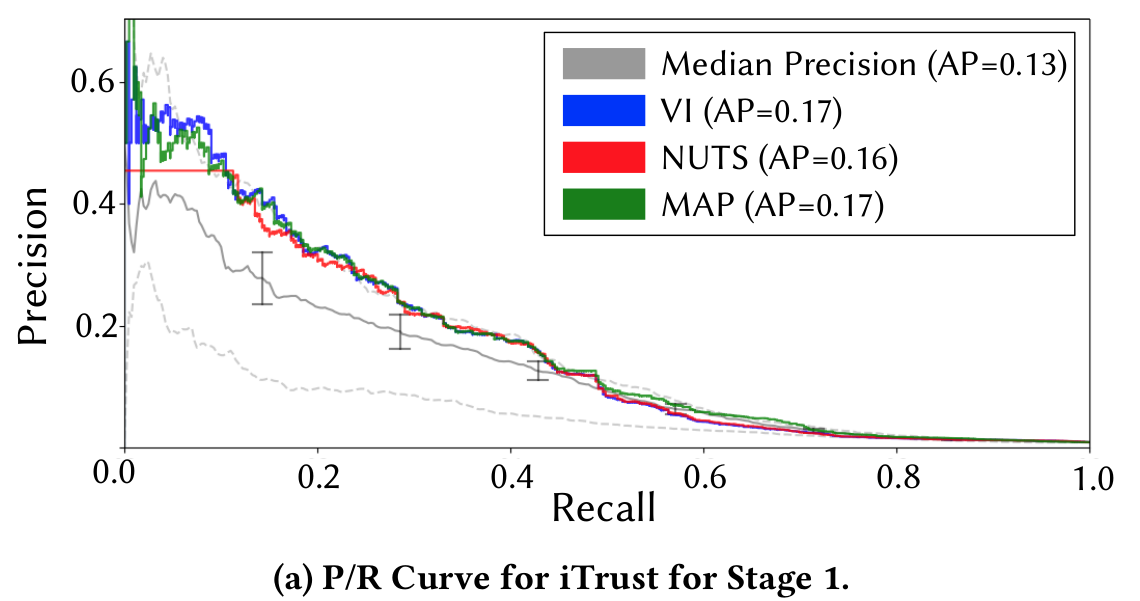

  • Maximum a Posteriori estimation (MAP)
  • Markov Chain Monte Carlo (MCMC) via the No-U-Turn Sampling (NUTs)
  • Variational Inference (VI)

The Probabilistic Approach

vs

The Deterministic Approach

LSTM-based

IRs

COMET

Do you think that the bridge logical/semantic gap among artifacts is solved?

Working on...

  • Causal Inference to answer the causal effect among artifacts: is the granularity affecting the traceability? are the preprocessing strategies influencing the effectiveness?
  • Information Theory Model to explain why traceability is (un)feasible for certain configurations
  • Deep Generative Models that demonstrate that "source code files" can be affected by "requirements" (or disentangling software artifacts!)

From previous results and after running some initial test with unsupervised neural learners, we hypothesized that the information of the artifacts bounds the link recovery

Therefore, we proposed:

Bounding the effectiveness of Unsupervised Software Traceability with Information Decomposition

Therefore, we proposed:

Bounding the effectiveness of Unsupervised Software Traceability with Information Decomposition

But,

We need more datasets to perform an empirical evaluation that supports our claims

On the Use of Information Theory to Interpret Software Traceability

Information Analysis, Transmitted Information, and Clustering

By measuring Shannon Entropy, Extropy, and (Minimum) Shared Information, we are able to understand the limits of traceability techniques

H(req)
H(src)
H(req,src)

Shannon Entropy or Self-Information

H(A) = - \sum_{i=1}^{n}[P(a_i)\log_b P(a_i)]

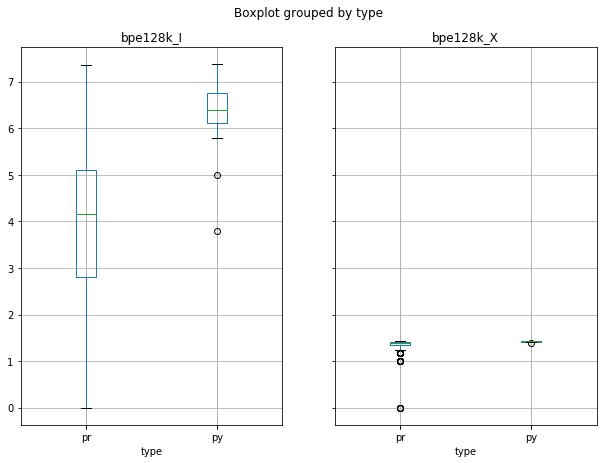

Entropy and Extropy for cisco/SACP

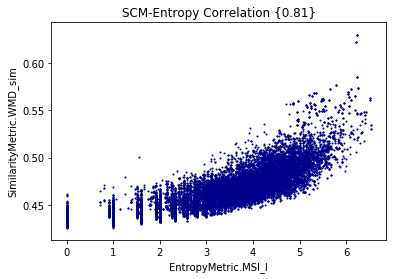

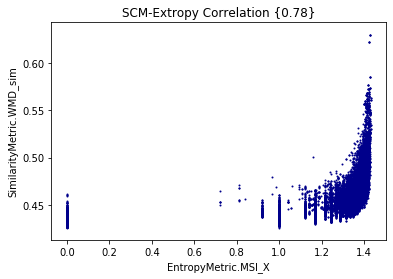

Minimum Shared Information vs WMD for cisco/SACP

Entropy

Extropy

Current Deployment of [CI]T-Miner Tool

Summary

Searching for Software Components

Searching for Software Components

\approx dist(S_n,T_n)

Adapting IR/ML Approaches

Searching for Software Components

\approx dist(S_n,T_n)

Adapting IR/ML Approaches

Defining a Probabilistic View of Traceability

Searching for Software Components

\approx dist(S_n,T_n)

Adapting IR/ML Approaches

Defining a Probabilistic View of Traceability

P(H|O) = \frac{P(O|H)\cdot P(H)}{P(O)} = p(\Theta|L)

Using Probabilistic Reasoning or Bayesian Inference to Approx Link Values

COMET's Tutorial

By David Nader Palacio

COMET's Tutorial

  • 234
