Towards Reconstructing Software Evolution Trends and Artifacts Relationships with Statistical Models

By David A. Nader

Terminology

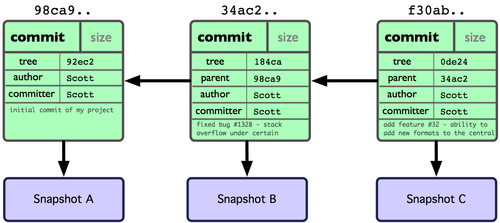

A Software Repository is a storage location where developers can publish or retrieve software artifacts (e.g., requirements, source code, or test code)

Source Files

Requirements

Test

published

retrieved

repos

artifacts

A Software Repository tracks meta-data (e.g., timestamps, ids, or descriptions) of Issues, Commits, and Stakeholders

Issues

Stakeholders

Commits

Open

Close

Assigned

Depending on the state, an issue is tagged in one of three categories: Open (by an analyst), Assigned (by a manager), or Close (by a developer)

Assigned

Open

Software managers usually keep track of Management Metrics: the size of the teams (# of stakeholders), the effort spent in the project (days-person), bug appearance (# of issues), and the size of the software (# of commits)

effort

stakeholders

size

issues

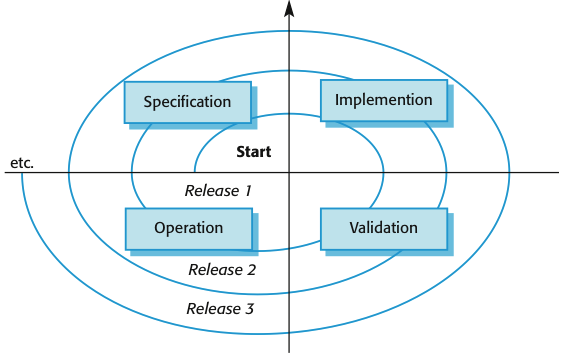

Software Artifacts are continuously modified across the time, such process is known as Software Evolution

Assigned

Open

State-of-the-art

(and aim)

The purpose of this project is to simulate the software evolution process from repos' meta-data

Simulation for Optimization 🡒 Software Management

Data analysis and Simulation have contributed to study the behavior of Time and Software Management Metrics

Simulation for Automation 🡒 Software Maintenance

In the context of Simulation for Optimization, Honsel, et al. (ICSE'14) introduce three software engineering factors

Project Growth Treds

Bug Appearance

Development Strategies

Number of Commits

Number of Issues

Effort

The Problem

tracked in

software evolution

time-dependent metrics

tracked in

retrieved from

software evolution

time-dependent metrics

tracked in

retrieved from

software evolution

generalized

distributions

to what extend can we generalize time-depend metrics by using statistical models?

Hypothesis

Statistical Software Evolution Models are probability distributions over dynamic data stored in repositories to understand and estimate trends in software

trace-driven dynamic data

These trends are behavioral aspects like project growth (number of commits), bug appearance (number of issues), and the developer activity (effort)

Project Growth Treds

Bug Appearance

Development Strategies

Number of Commits

Number of Issues

Effort

We hypothesized that software evolution trends are described by statistical models from data repositories and the software evolution process can be simulated by trace-driven modeling

The Approach

(discrete-event simulation)

[ssq] A single-server node consists of a server and a queue

arrivals

queue

departures

server

service node

job: issue
server: teams or software groups

[msq] A multi-server service node consists of a single queue, and two or more servers operating in parallel

arrivals

queue

...

departures

servers

job: issue
server: teams or software groups

issue-open

issue-close

issue-wait

issue-delay

issue-service

Assigned

Open

a_i

c_i

w_i

d_i

s_i

We can derive five distinct Time Metrics (Discrete-event simulation metrics) based on the repository timestamps of the issues

Datasets & Experiments

We used the MSR’14 dataset that include 90 different projects with their derivations (forks)

The dataset were pre-processed and transformed into time-traces

Experiments

[Exploratory Analysis] Some probability distributions were fitted into the time-traces
[Empirical Analysis & Simulation] It was modeled both a single-server (ssq) and a multi-server queue system (msq) to infer values for time and software metrics

Exploratory Analysis

(results)

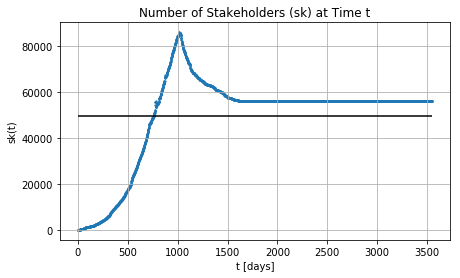

Cumulative Software Metrics: the effort grows faster than the source code

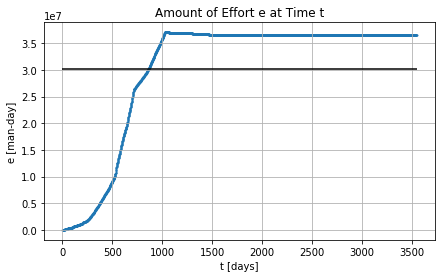

Effort across the time with and without completion times

PDFs vs. Fitted Arrivals and Services [of issues]

Our study demonstrates that the software effort is correlated with the wait (r=.64) and delay (r=0.51) times

Auto-correlation in Time Metrics of Issues

Empirical Analysis & Simulation

(results)

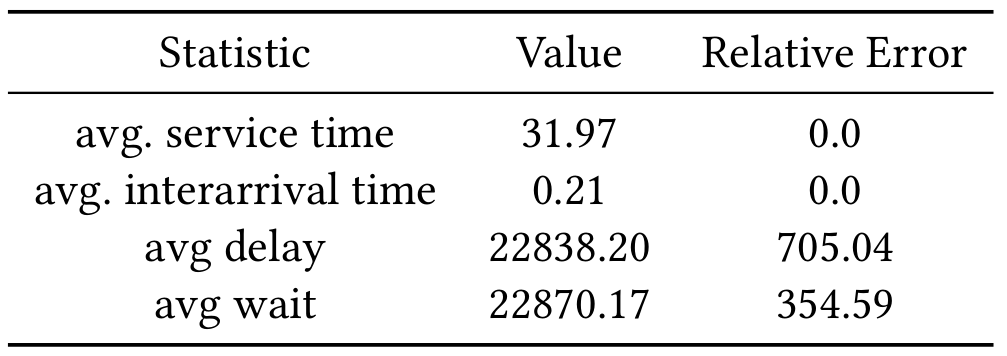

First Order Statistics

from Datasets

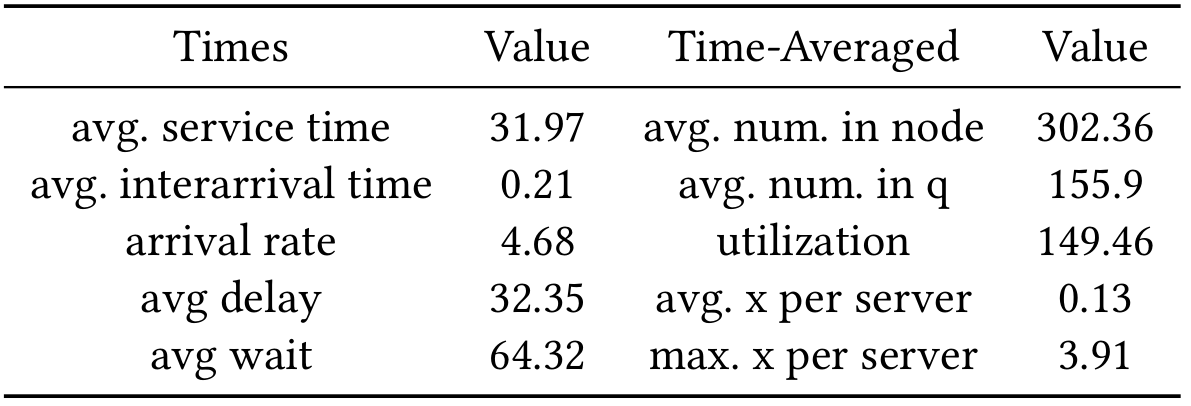

[Empirical] The average service, delay, and interarrival times are 31.9, 32.3, and 0.2 days respectively

[Empirical] Time-Averaged Statistics

[Empirical] Approx Utilization per server

[Empirical] The approximate number of servers is 1177 with an average utilization of 0.13

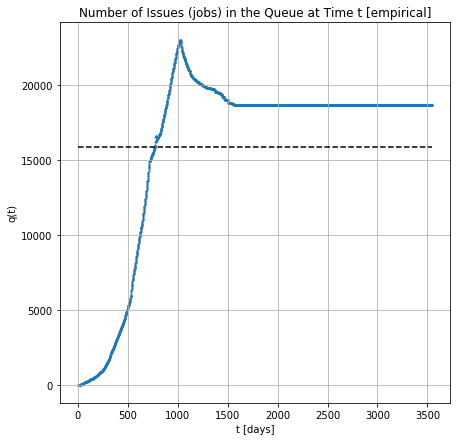

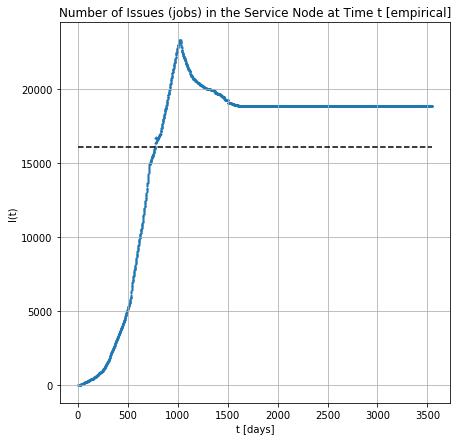

[Empirical] Number of jobs in the Q across the time

q(t)

ssq

[Simulated-ssq] providing arrivals and services for 7326 jobs:

[Simulated-ssq] The average approximation error after 31 runs:

multi-server

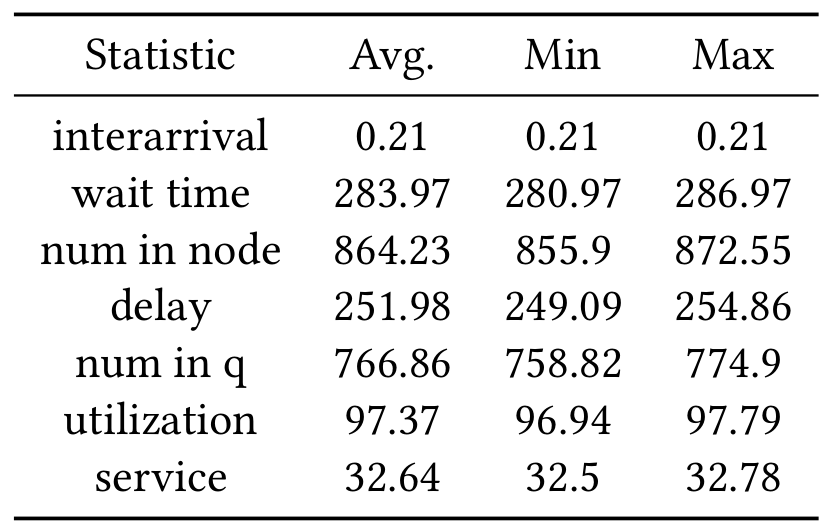

[Simulated-msq] Avg. Approximation Error for msq providing non-stationary arrivals and exponential services

metric	with exponential services	with fitted services	with fitted services and non stationary arrivals (λ_max)	with exponential services and non stationary arrivals (λ_max)	with approx servers
avg wait	3.42	0.87	0.87	0.50	0.50
avg delay	6.79	1.00	1.00	1.00	1.00
avg interarrival	0.00	0.00	3.70	3.70	3.69
avg service	0.02	0.73	0.74	0.02	0.01
utilization	0.35	0.77	0.95	0.80	0.80
avg # in node	1.87	0.89	0.97	0.90	0.90
avg # in q	4.07	1.00	1.00	1.00	1.00

Summary

Simulation for Optimization 🡒 Software Management

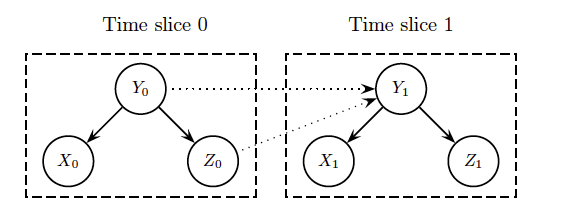

Further work is needed to formulate a Dynamic Bayesian model to map the software evolution

Simulation for Automation 🡒 Software Maintenance

A map is able to point out software artifacts correlations across the time

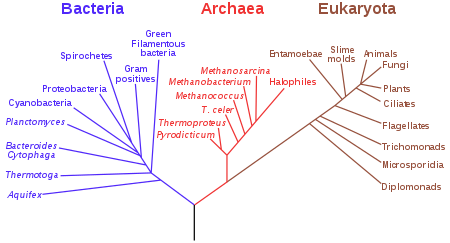

Software Traceability by means of Phylogenetic maps (?)

Simulation for Automation 🡒 Software Maintenance

Simulation for Optimization 🡒 Software Management

Time-dependent Metrics Analysis

Simulation for Optimization 🡒 Software Management

Correlations & Autocorrelations

Effort vs {w_i, d_i}

effort & wait time: [r = 0.64]

effort & delay time: [r = 0.51]

Time-dependent Metrics Analysis

Simulation for Optimization 🡒 Software Management

metric	with exponential services	with fitted services	with fitted services and non stationary arrivals (λ_max)	with exponential services and non stationary arrivals (λ_max)	with approx servers
avg wait	3.42	0.87	0.87	0.50	0.50
avg delay	6.79	1.00	1.00	1.00	1.00
avg interarrival	0.00	0.00	3.70	3.70	3.69
avg service	0.02	0.73	0.74	0.02	0.01
utilization	0.35	0.77	0.95	0.80	0.80
avg # in node	1.87	0.89	0.97	0.90	0.90
avg # in q	4.07	1.00	1.00	1.00	1.00

Empirical & Simulated Values

Avg. Approx. Error (msq better than ssq)

Time-dependent Metrics Analysis

Correlations & Autocorrelations

Effort vs {w_i, d_i}

effort & wait time: [r = 0.64]

effort & delay time: [r = 0.51]

Thank you

Appendix

create or replace view v_processed_issues as select FirstSet.PR, FirstSet.ID,
		FirstSet.open_issue,
        FirstSet.wait_issue,
        SecondSet.delay_issue,
		(FirstSet.wait_issue-SecondSet.delay_issue) as service_issue,
        ThirdSet.stakeholders,
		ceil(FirstSet.wait_issue/ThirdSet.stakeholders) as effort,
        ceil((FirstSet.wait_issue-SecondSet.delay_issue)
            /ThirdSet.stakeholders) as service_effort
from
	(select distinct ISU.id as ID, ISU.repo_id as PR,
	ISU.created_at as open_issue, ISUE.action as AC,
	TIMESTAMPDIFF(DAY, ISU.created_at, ISUE.created_at) as wait_issue
	from msr14.issues as ISU join msr14.issue_events as ISUE on ISU.id = ISUE.issue_id
    where ISUE.action='closed') as FirstSet
inner join
	(select distinct ISU.id as ID, ISU.repo_id as PR,
	ISU.created_at as open_issue, ISUE.action as AC,
	TIMESTAMPDIFF(DAY, ISU.created_at, ISUE.created_at) as delay_issue
	from msr14.issues as ISU join msr14.issue_events as ISUE on ISU.id = ISUE.issue_id
    where ISUE.action='assigned') as SecondSet
on FirstSet.PR = SecondSet.PR and FirstSet.ID = SecondSet.ID
inner join v_issues as ThirdSet
on FirstSet.ID = ThirdSet.IS_ID
having service_issue >= 0
and FirstSet.wait_issue >= 0
and SecondSet.delay_issue >= 0
order by FirstSet.open_issue;

An sql view to create the "Software Evolution Traces"
