Amazon Elastic Block Store Hands-On

Demo

In this demo, we will:

  1. Launch an EC2 instance
  2. Create and attach an EBS volume
  3. Connect to the EC2 instance
  4. Format and mount the EBS volume
  5. Write data to the EBS volume
  6. Create an EBS snapshot
  7. Test the setup
  8. Clean up resources

Agenda

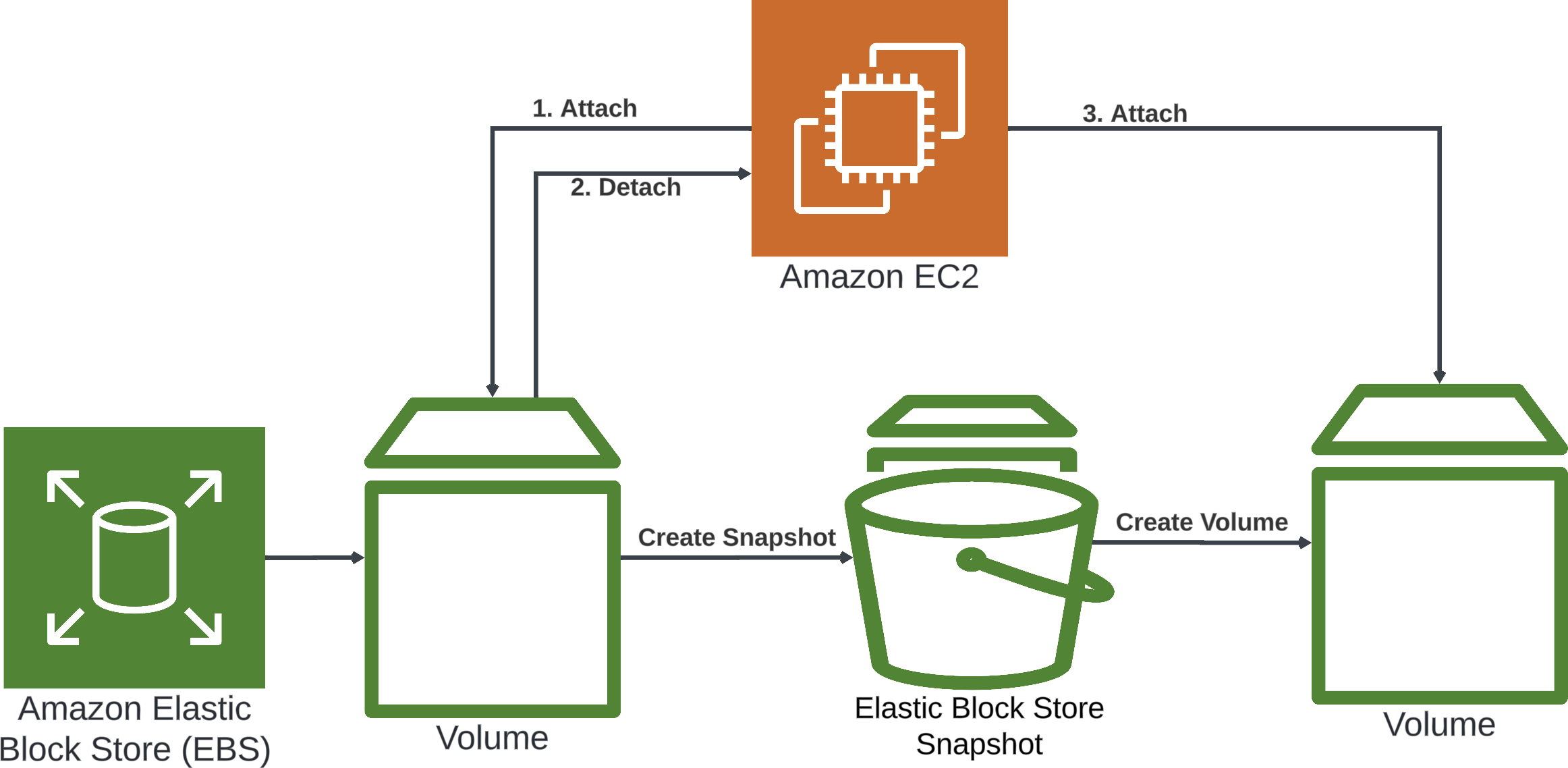

Demo Overview

ebs-demo-1

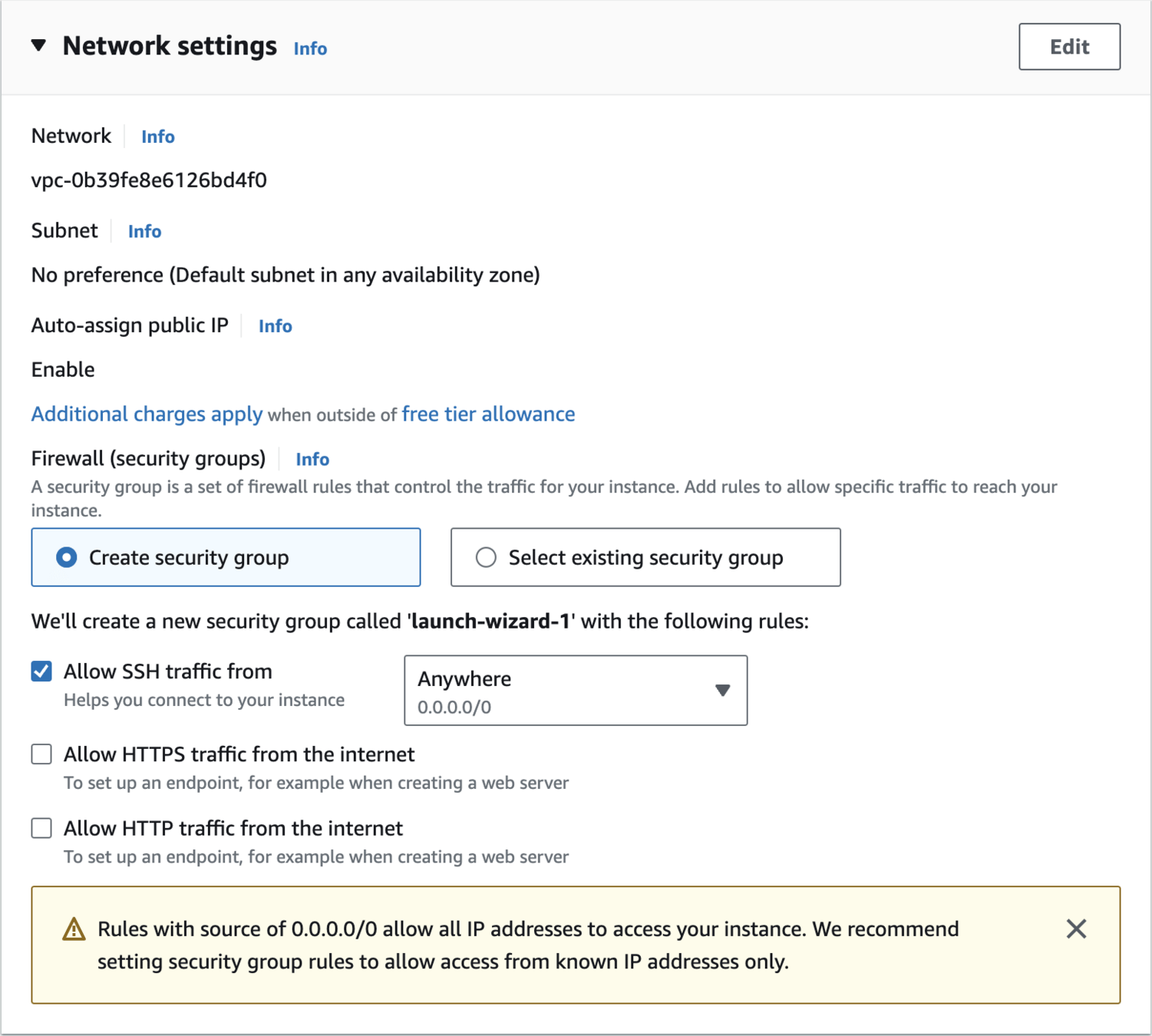

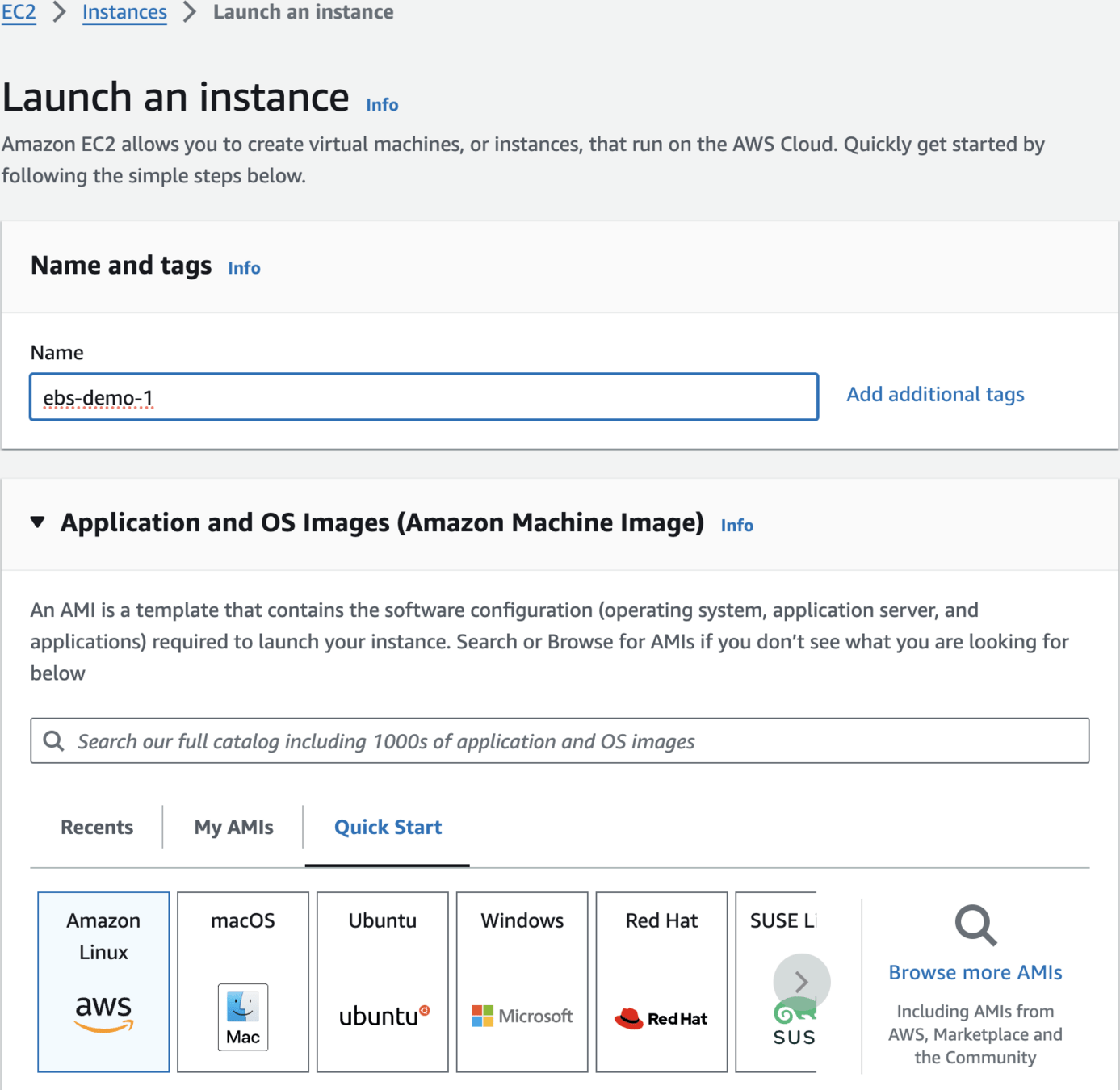

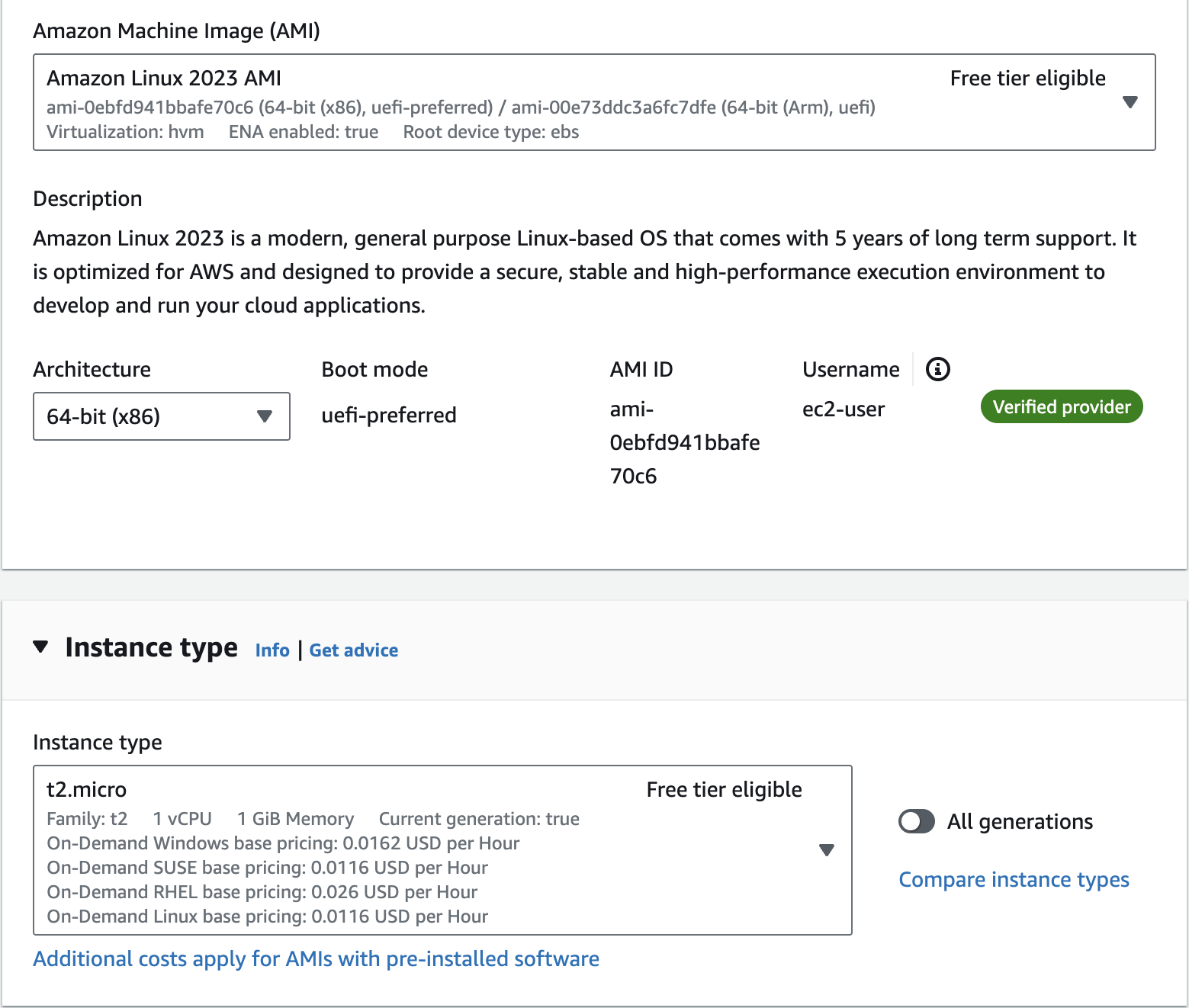

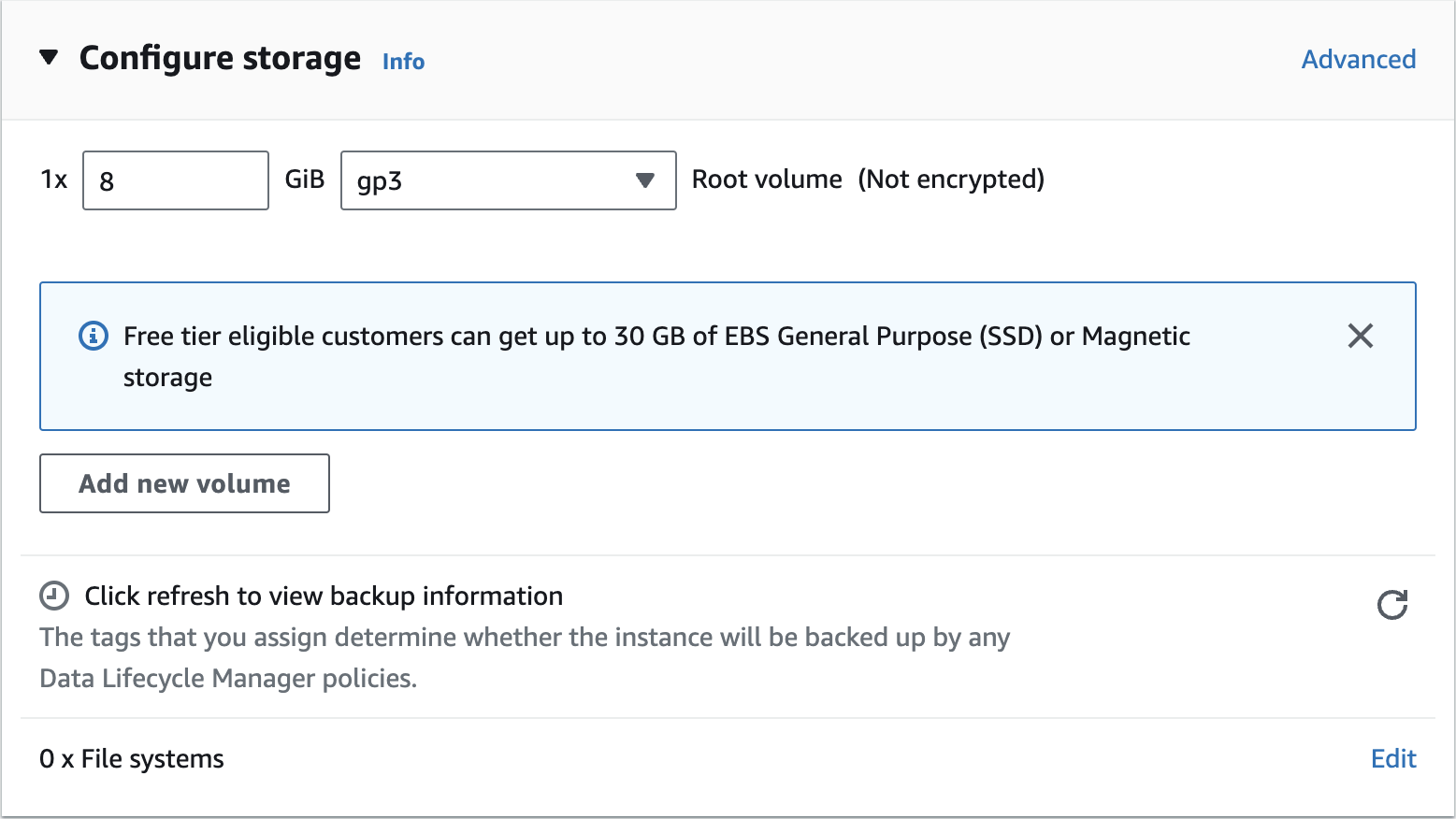

Launch an instance

ebs-demo-key-pair-1

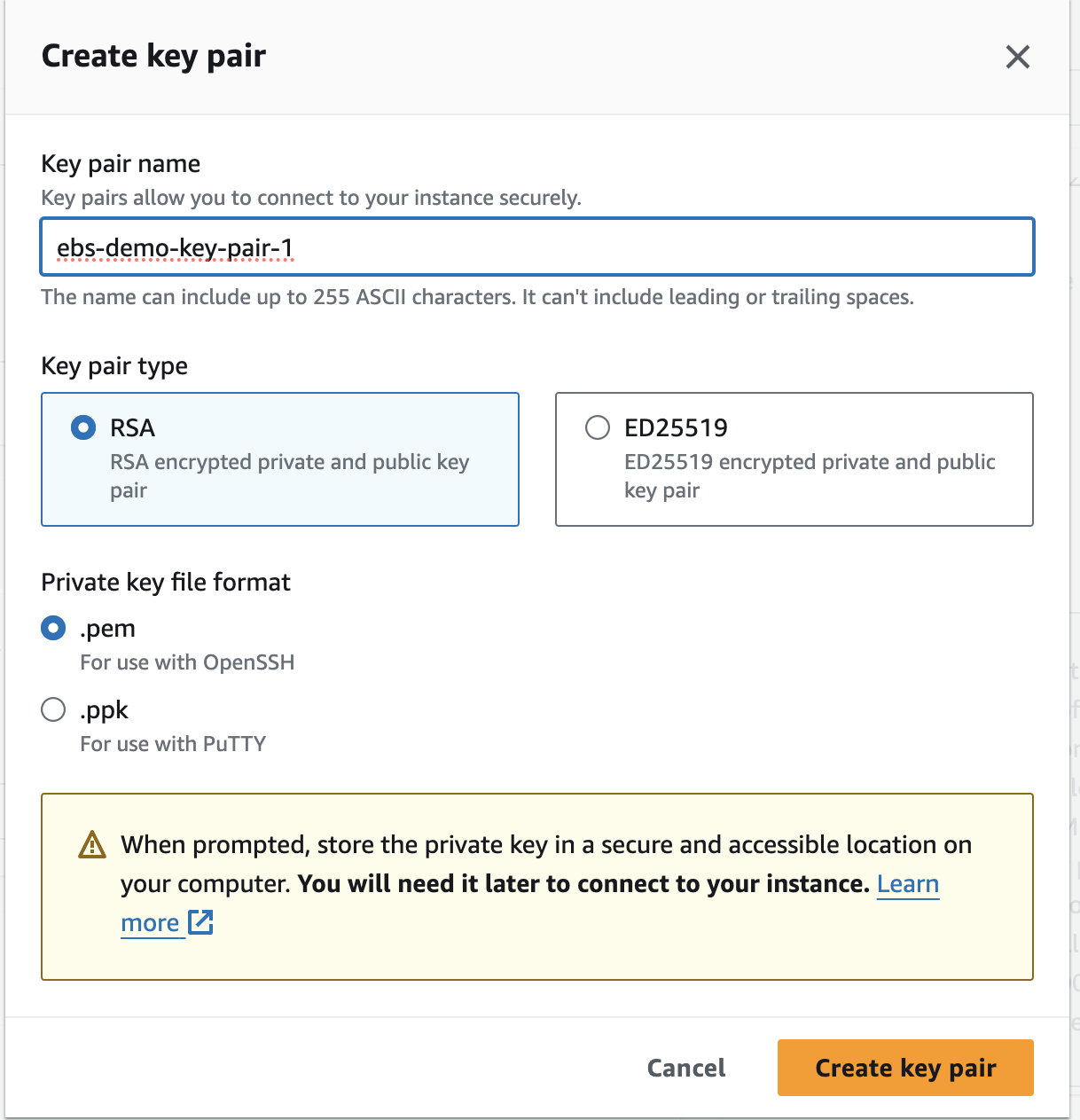

Create key pair

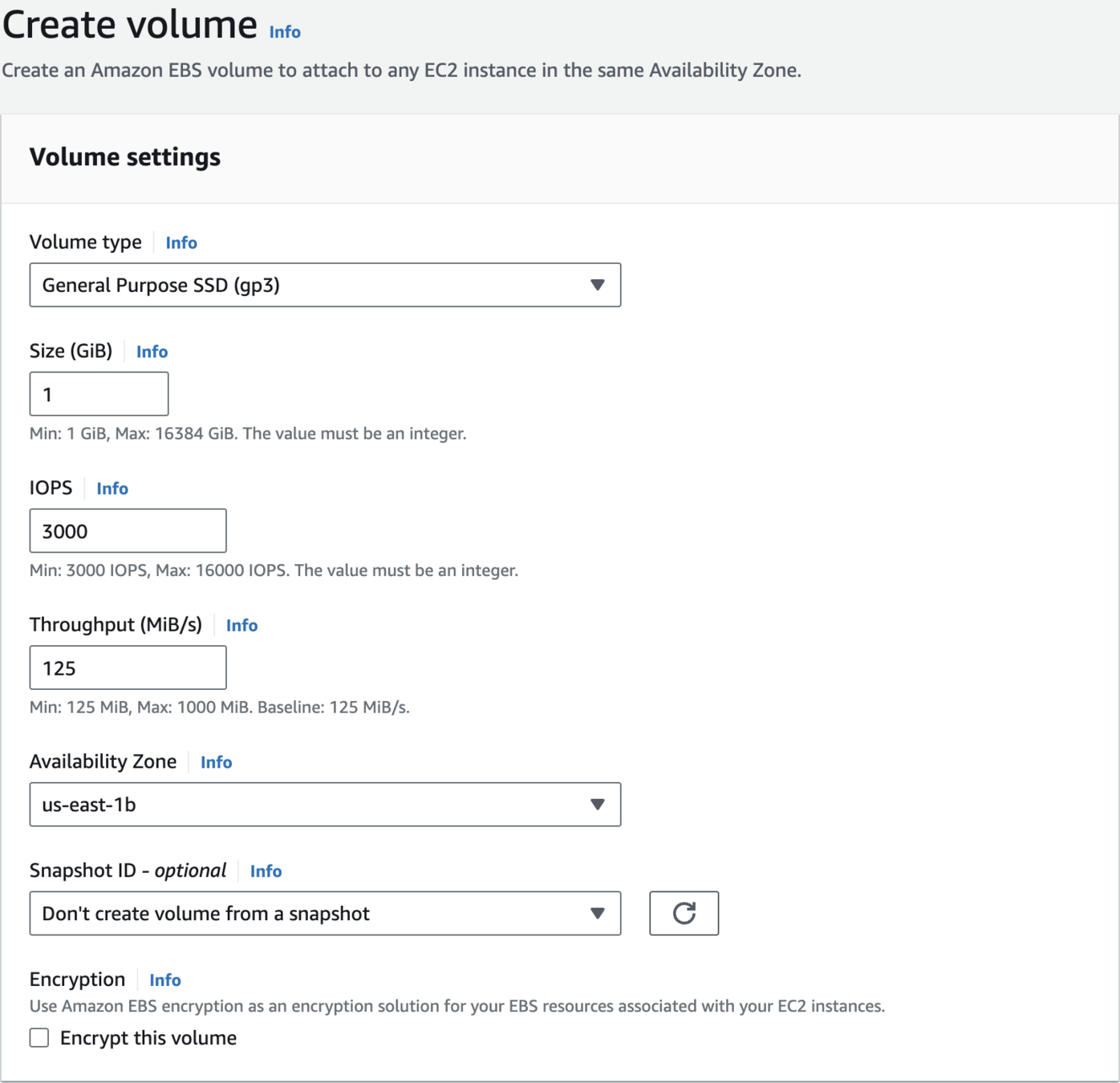

Create EBS volume

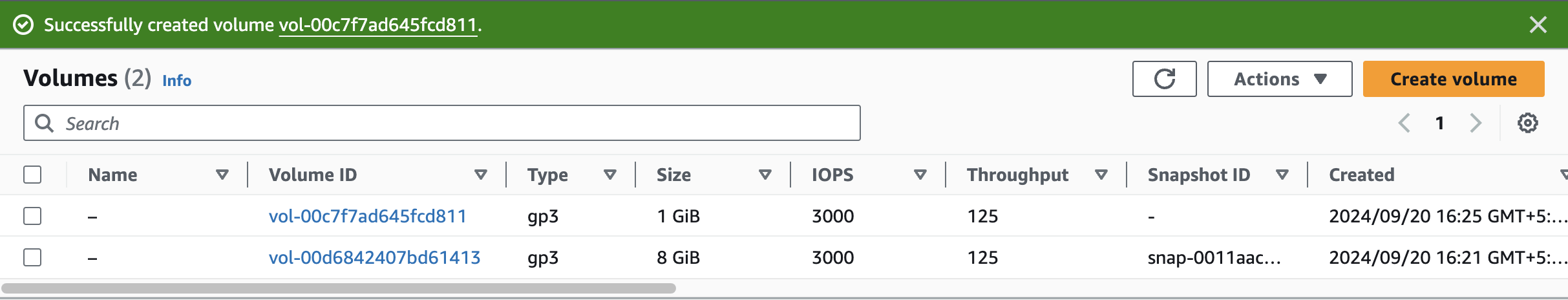

Success

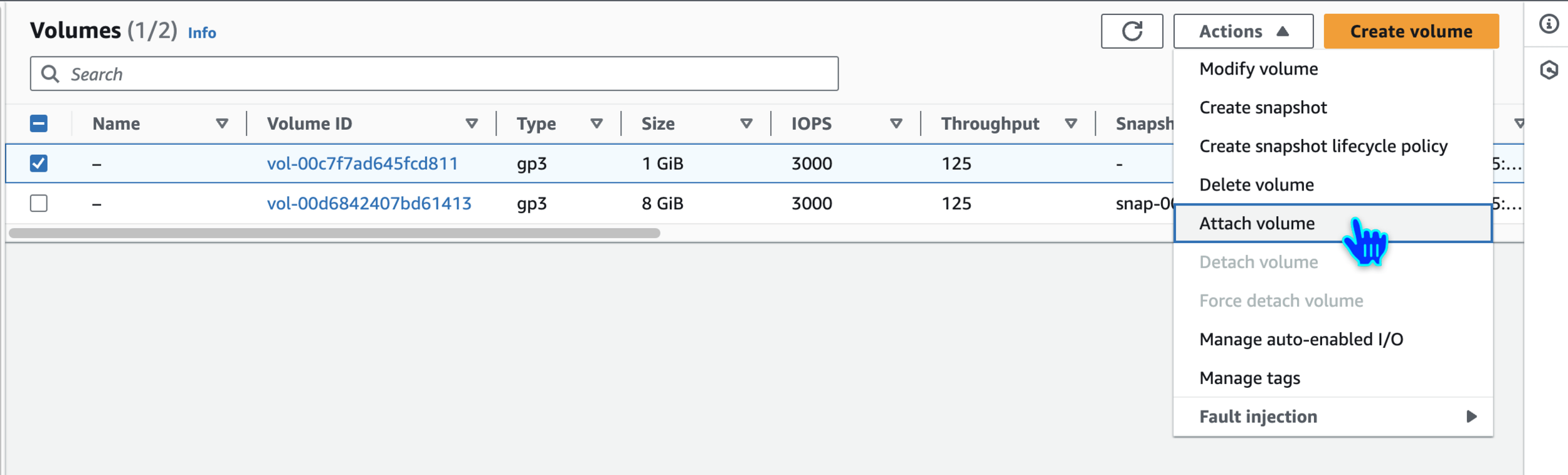

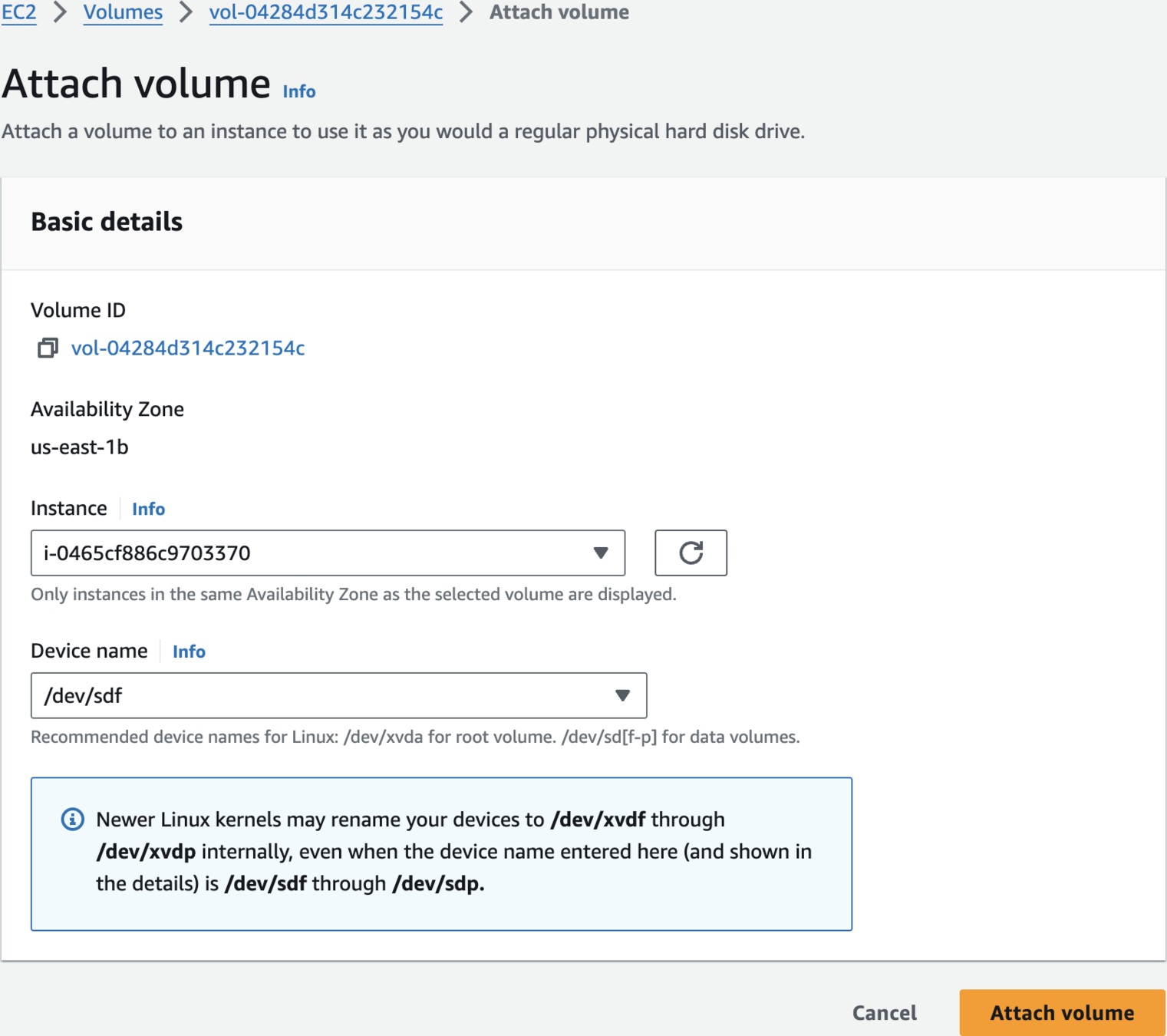

Attach volume

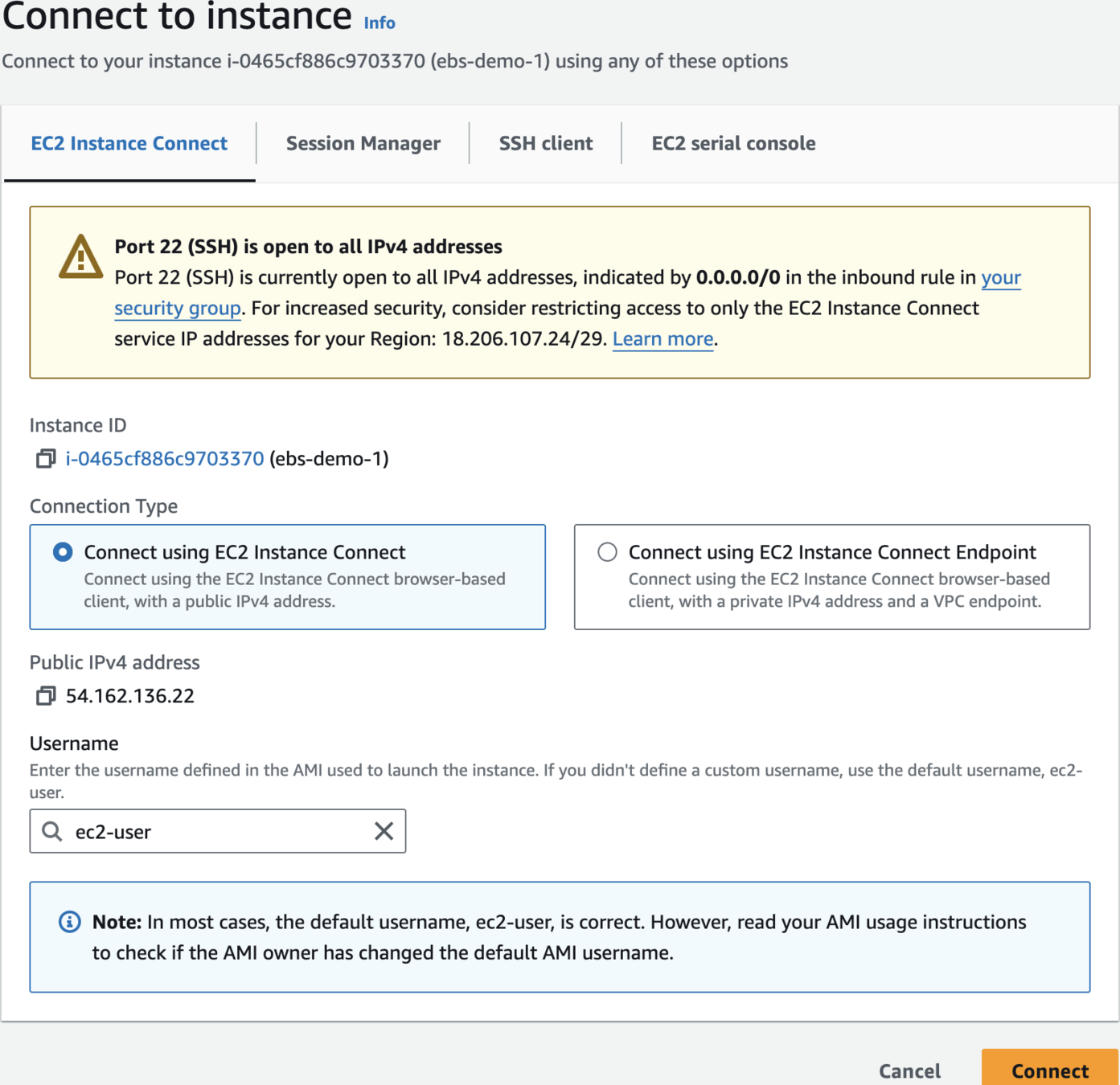

Connect to instance

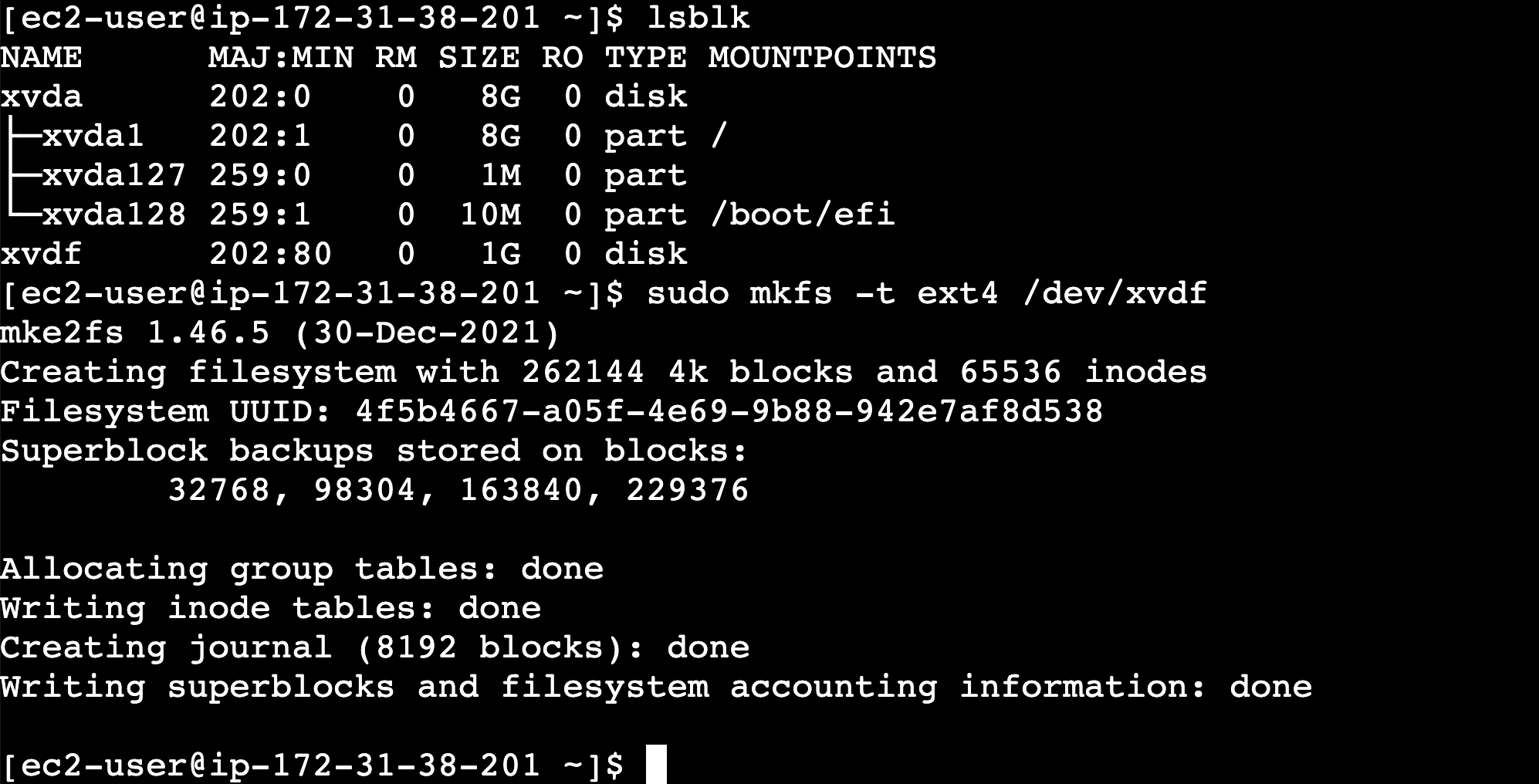

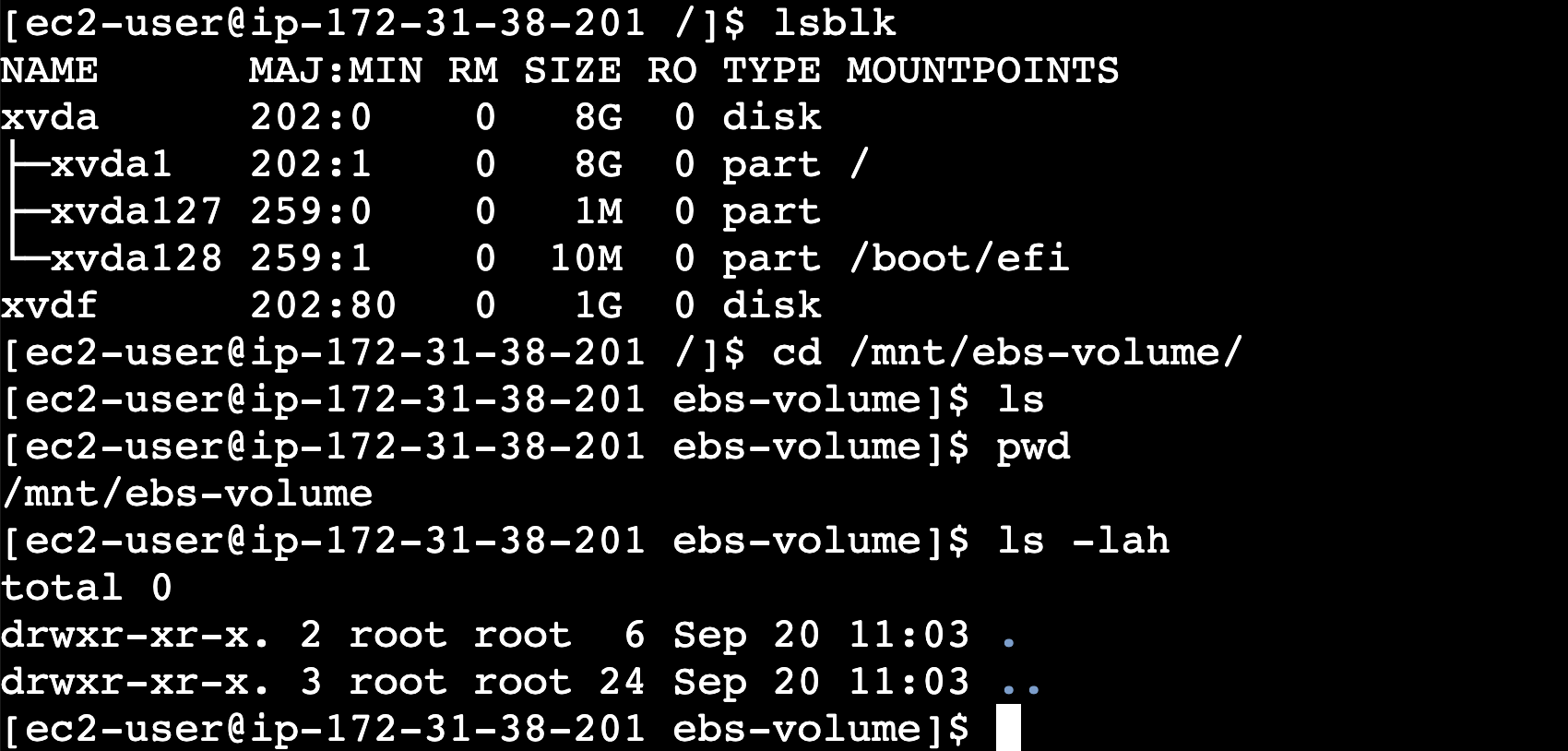

lsblk
sudo mkfs -t ext4 /dev/xvdf

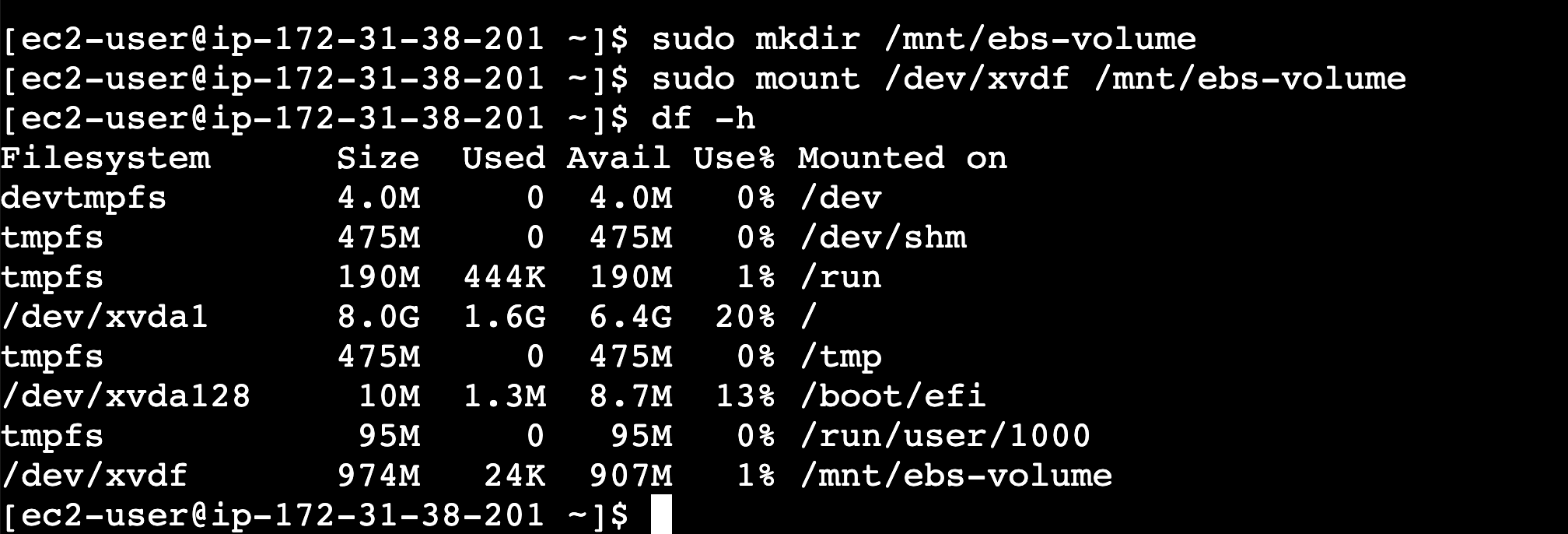

sudo mkdir /mnt/ebs-volume
sudo mount /dev/xvdf /mnt/ebs-volume
df -h
cd /mnt/ebs-volume
cat test_file.txt
sudo chown ec2-user:ec2-user /mnt/ebs-volume
echo 'This is a test file on my EBS volume' > /mnt/ebs-volume/test_file.txt
sudo chmod 755 /mnt/ebs-volume

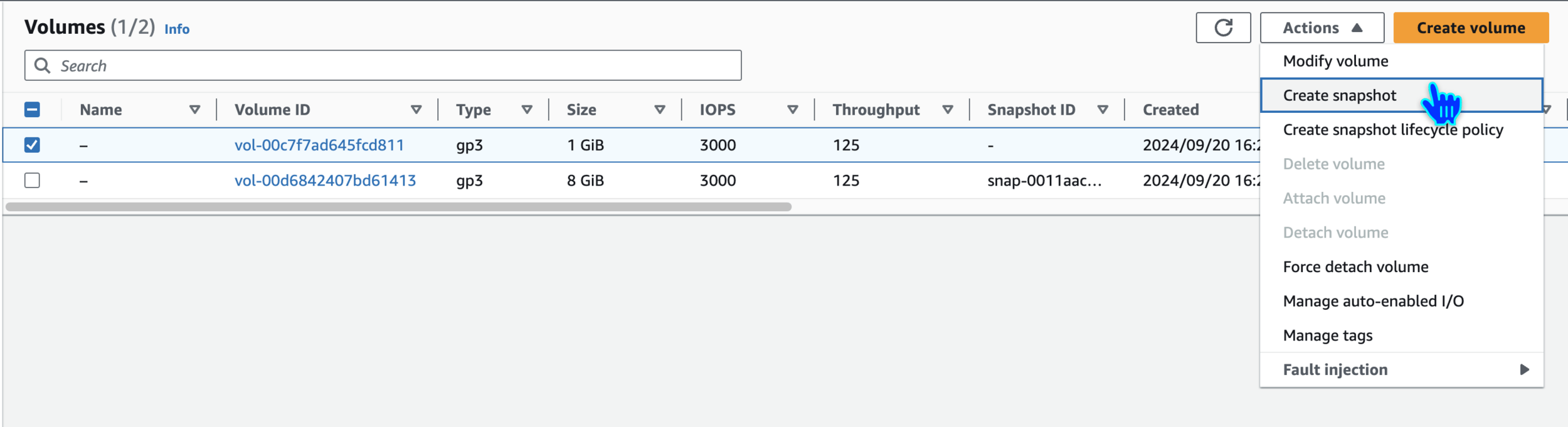

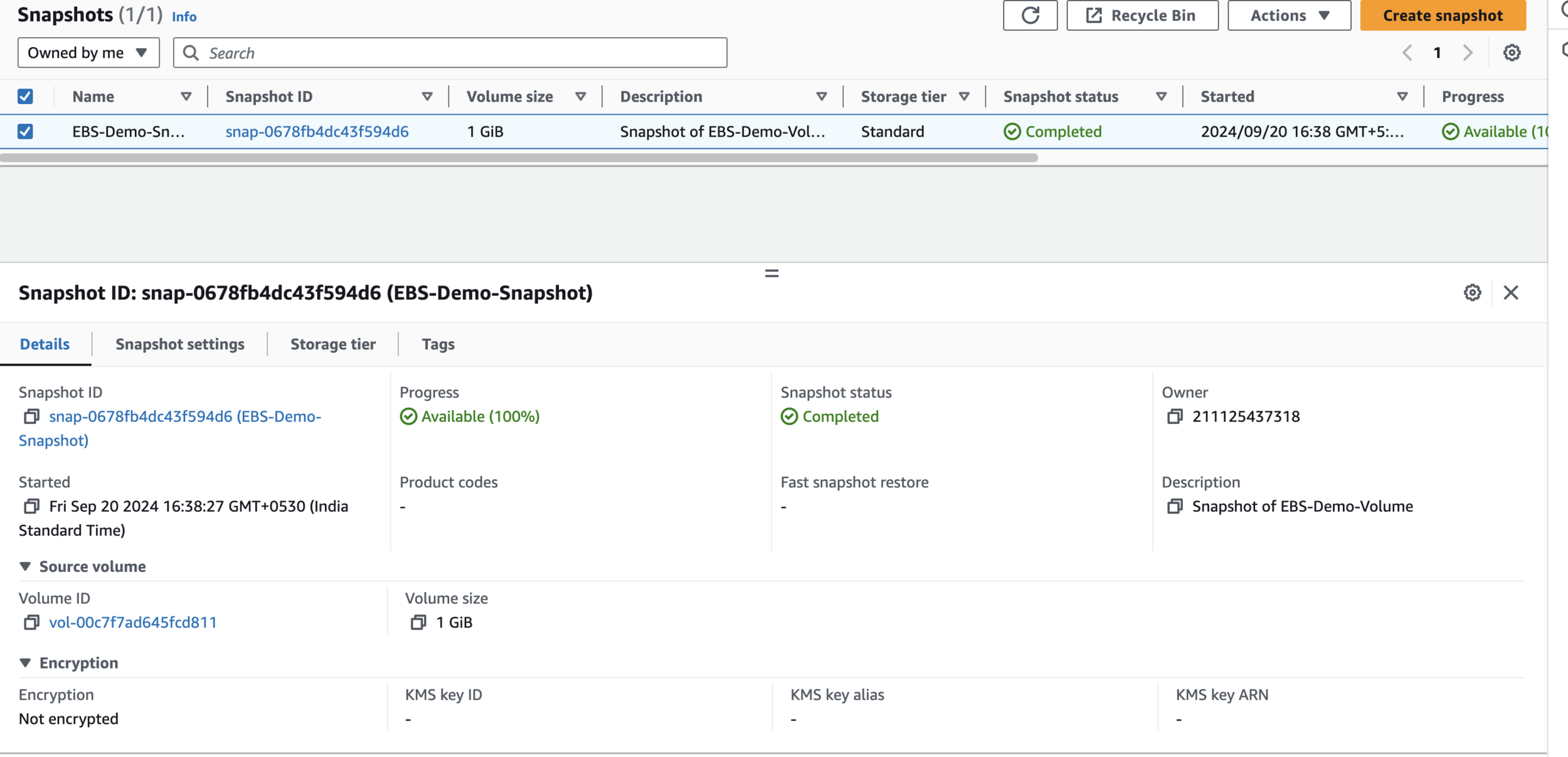

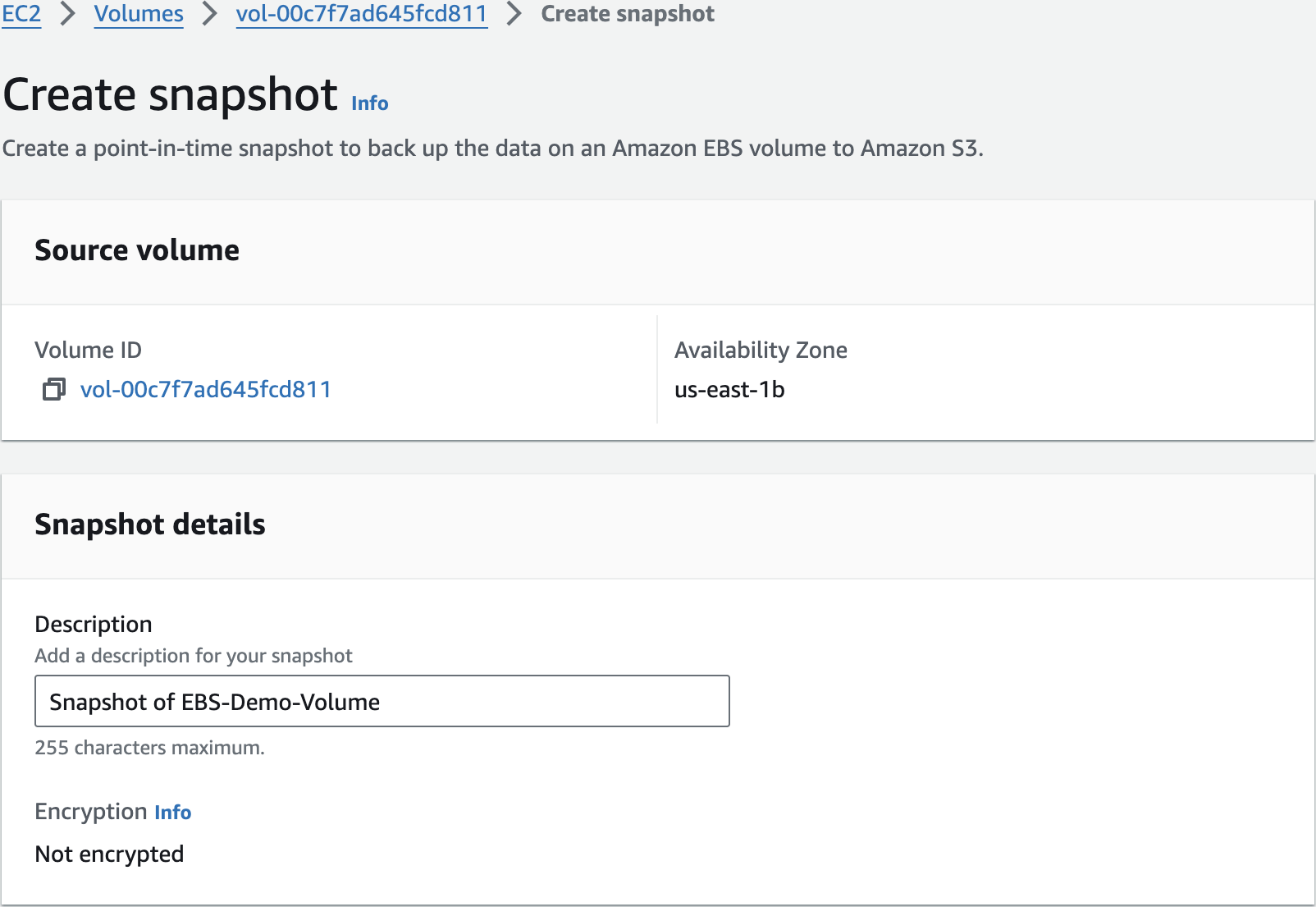

Create snapshot

Snapshot of EBS-Demo-Volume

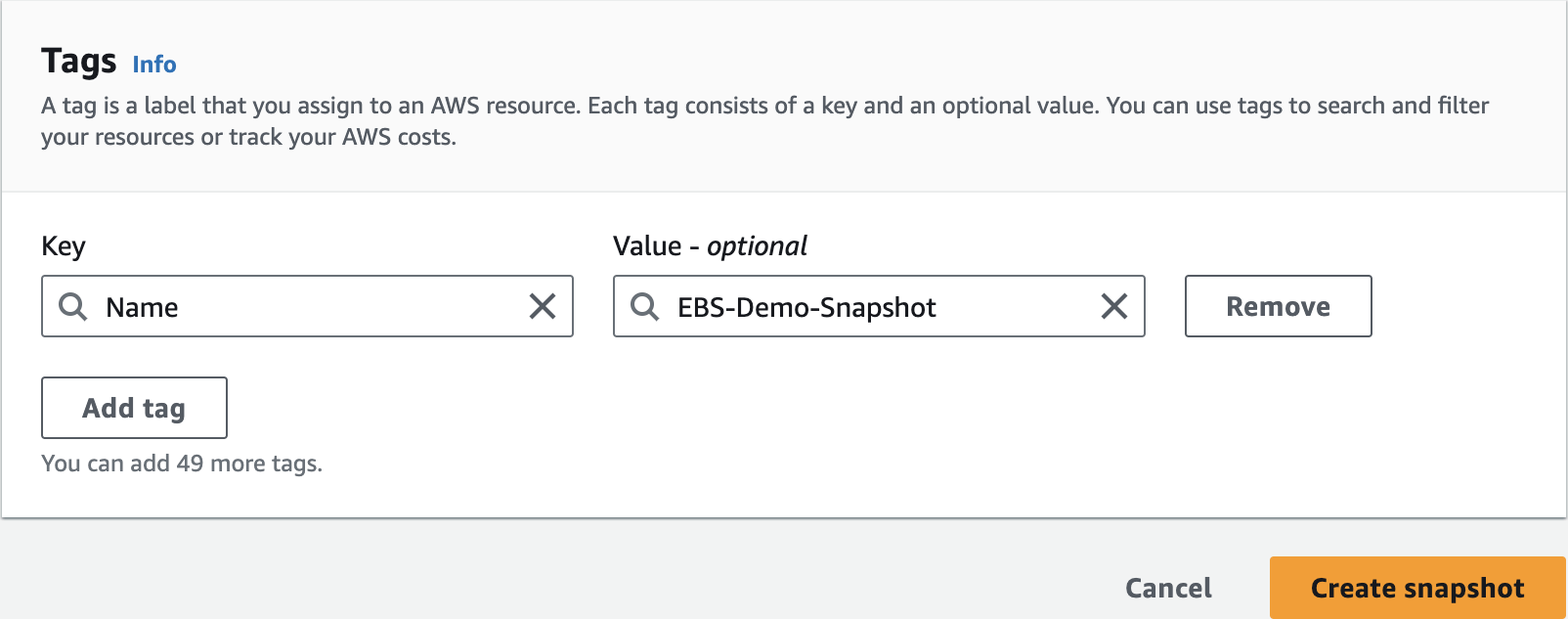

Tags

Name
EBS-Demo-Snapshot

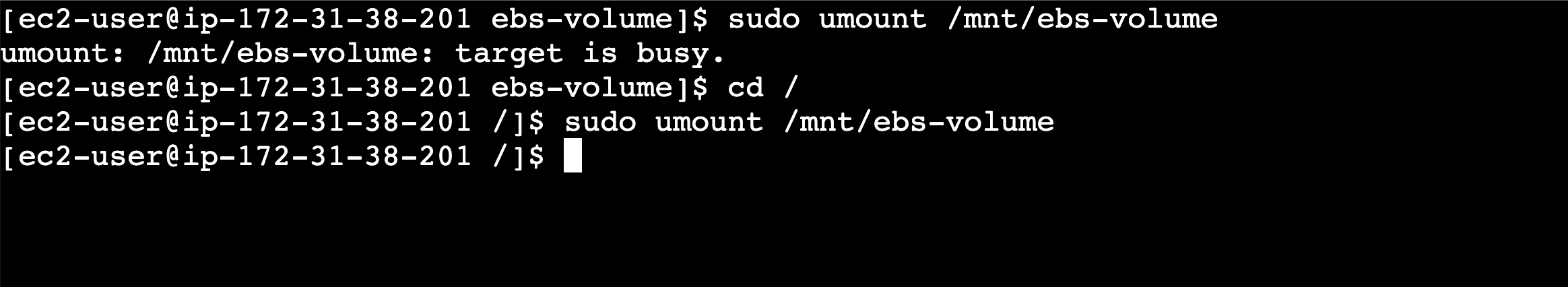

Unmount the existing volume

sudo umount /mnt/ebs-volume

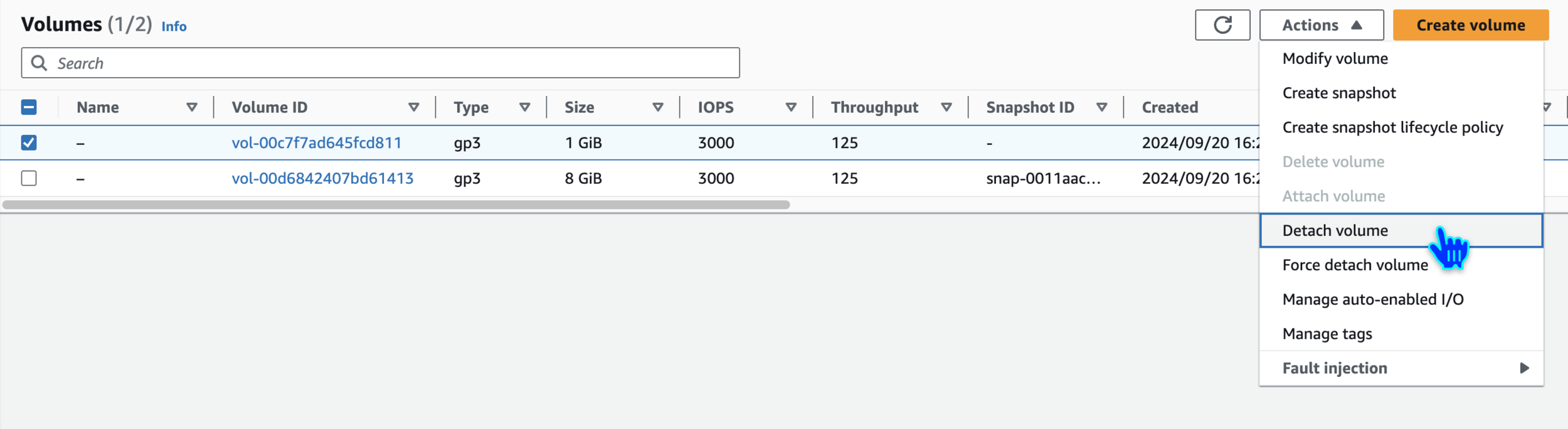

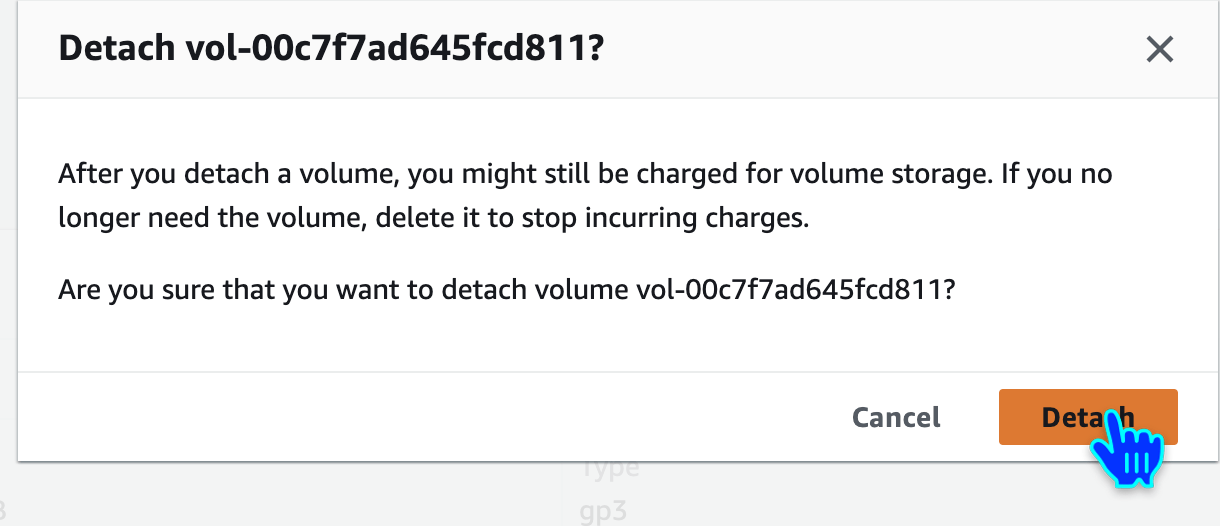

Detach volume

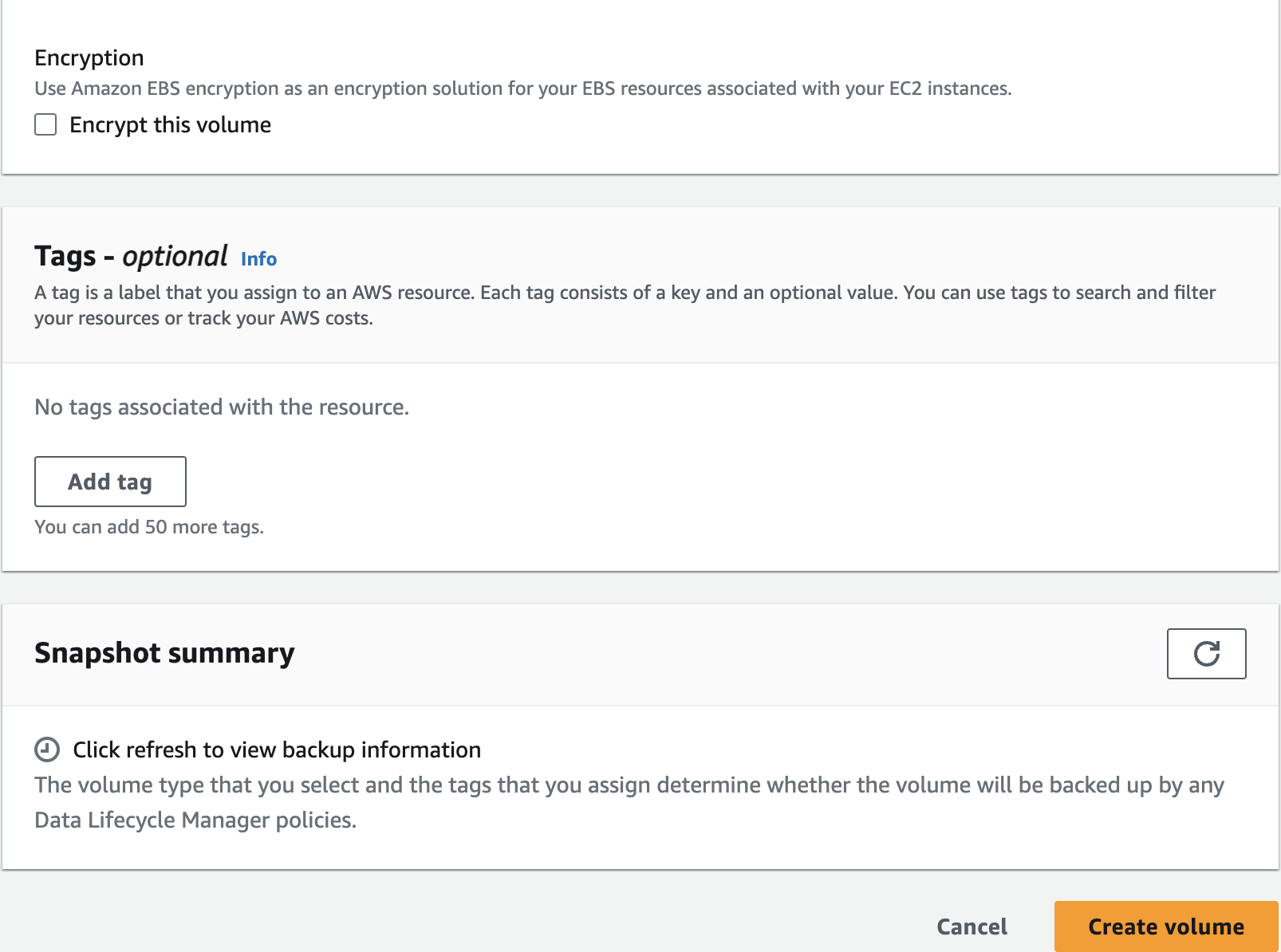

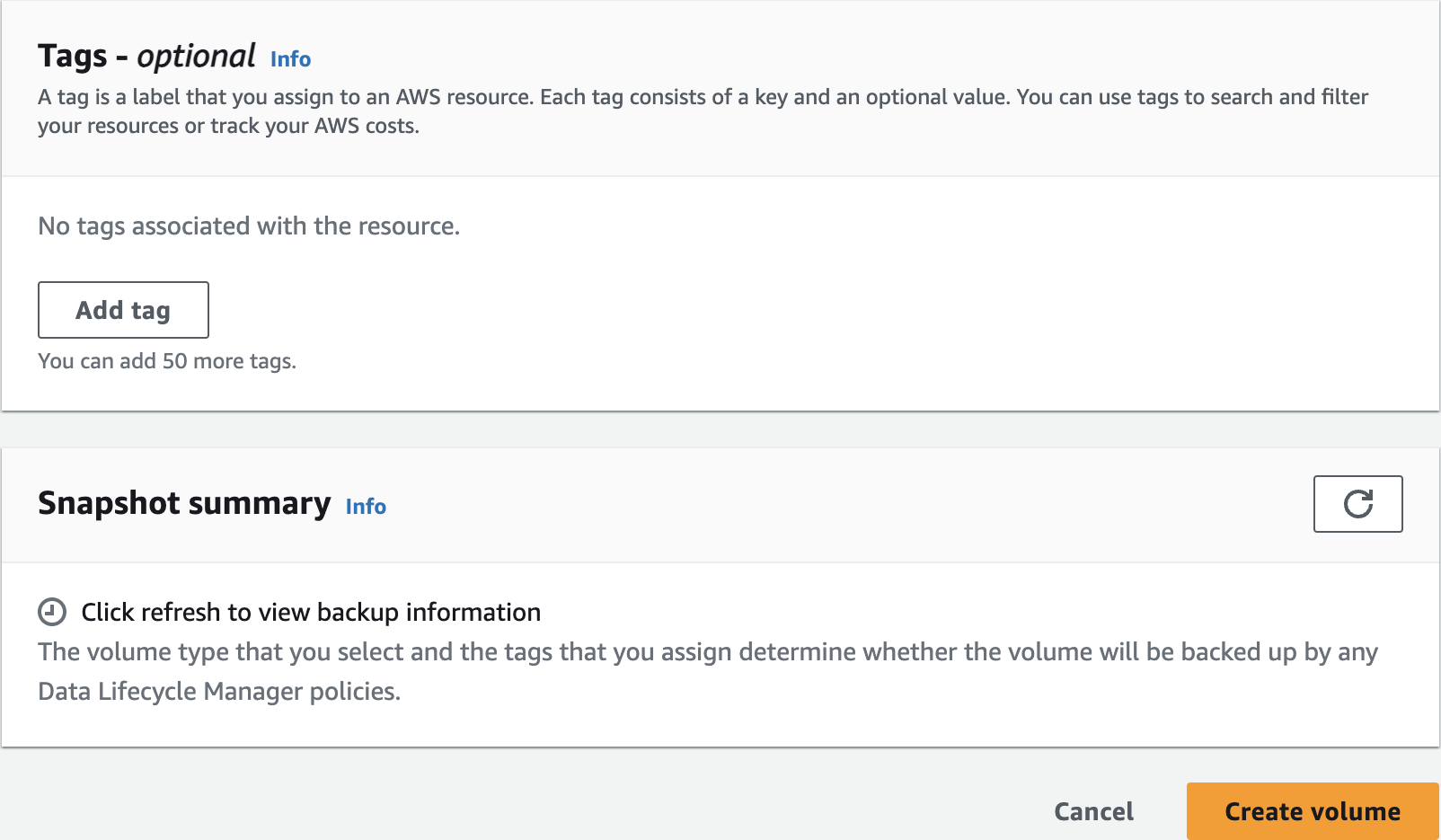

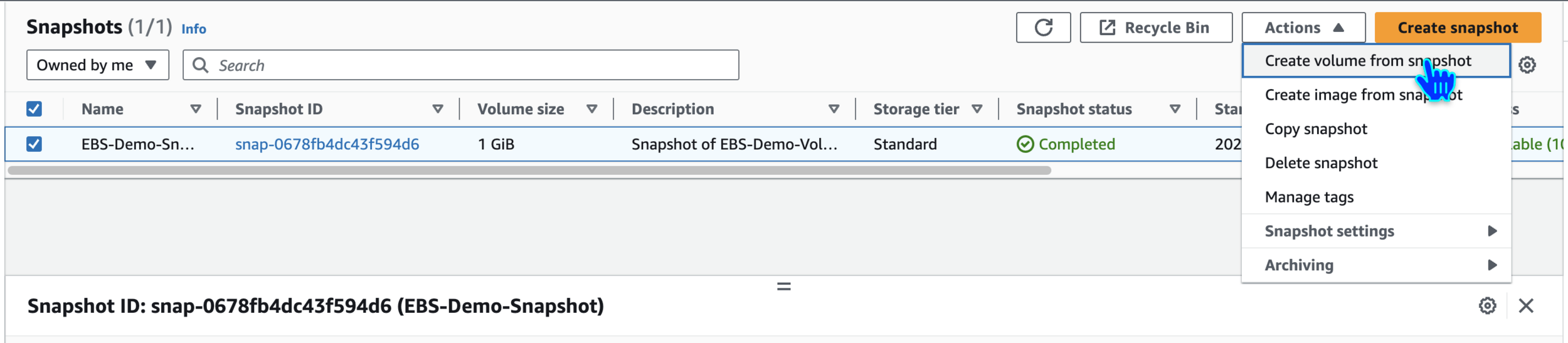

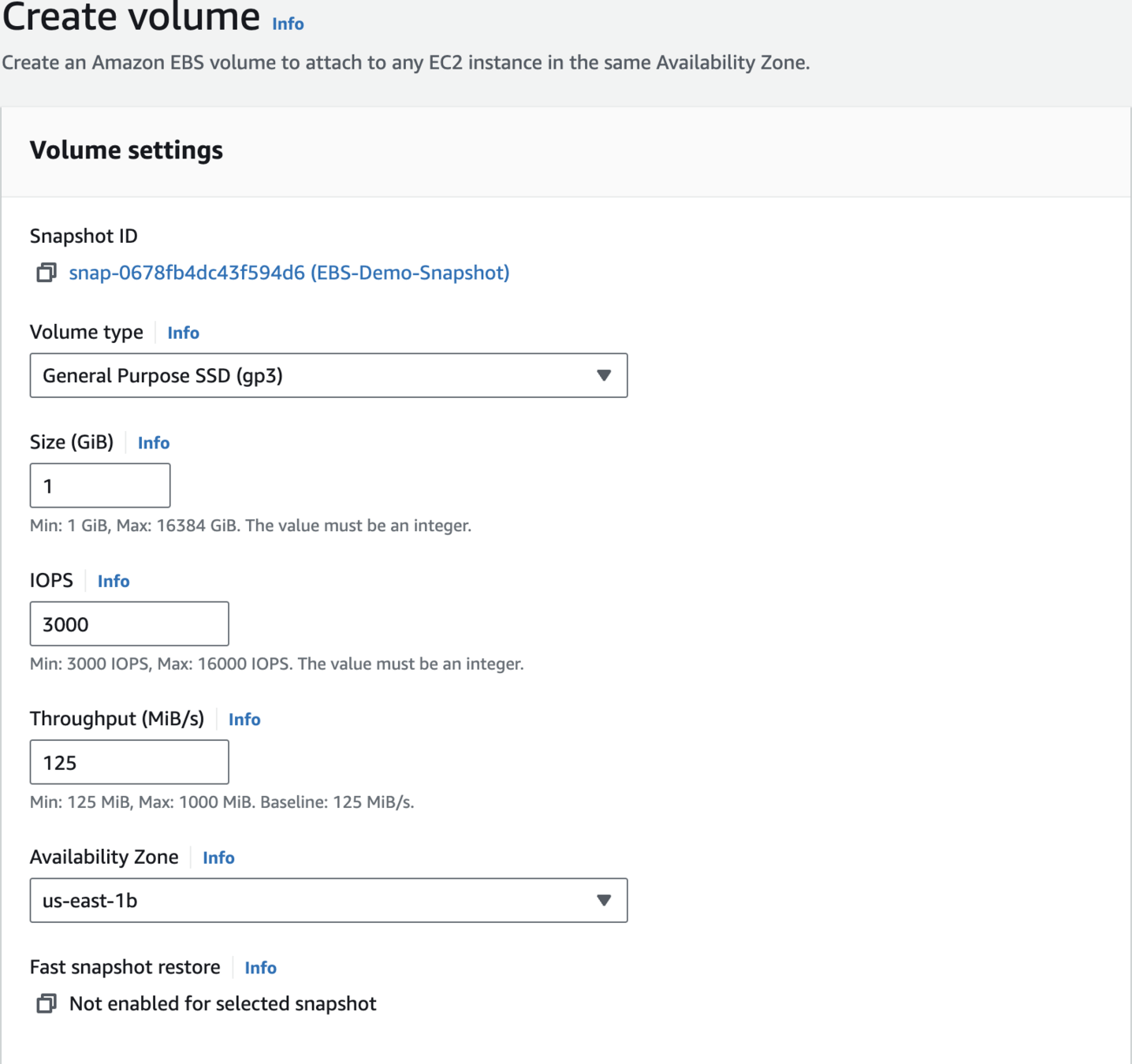

Create volume from snapshot

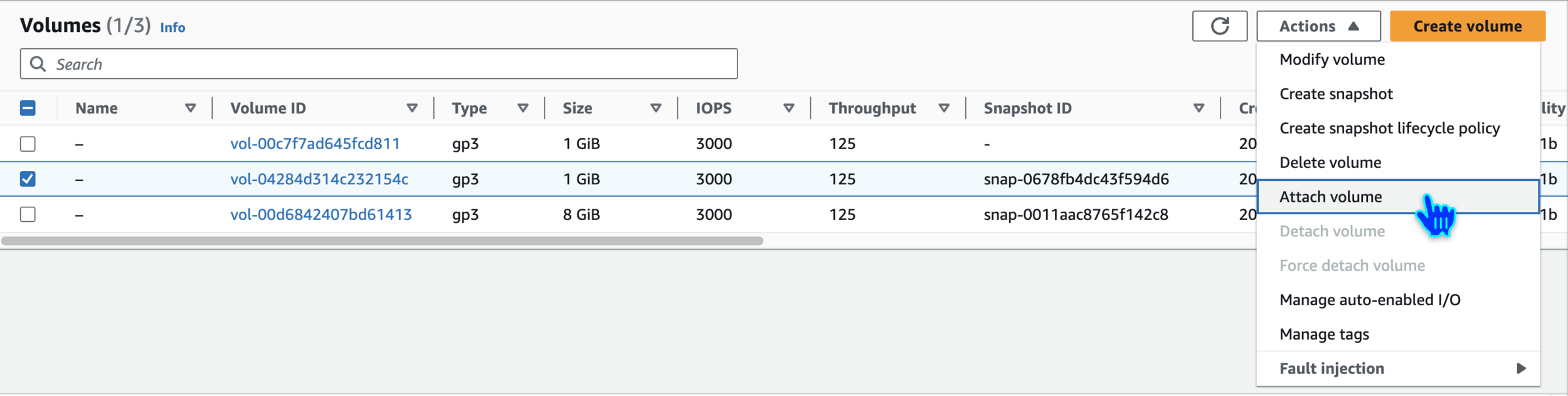

Attach New Volume to EC2

sudo mount /dev/xvdf /mnt/ebs-volume
cat /mnt/ebs-volume/test_file.txt

Clean Up

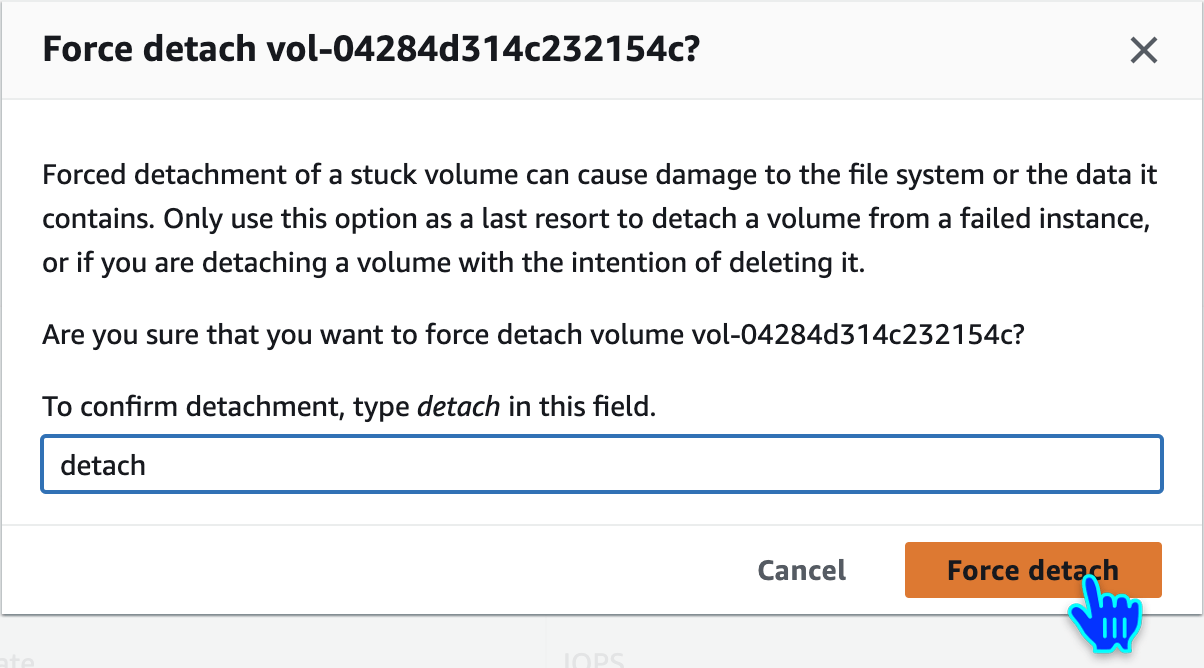

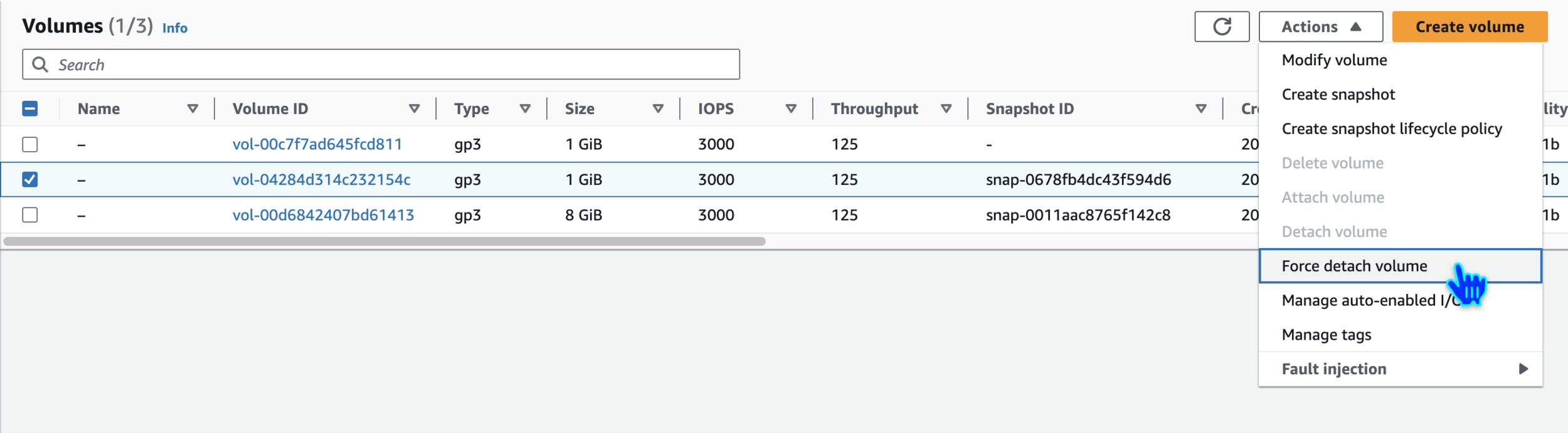

Force detach volume

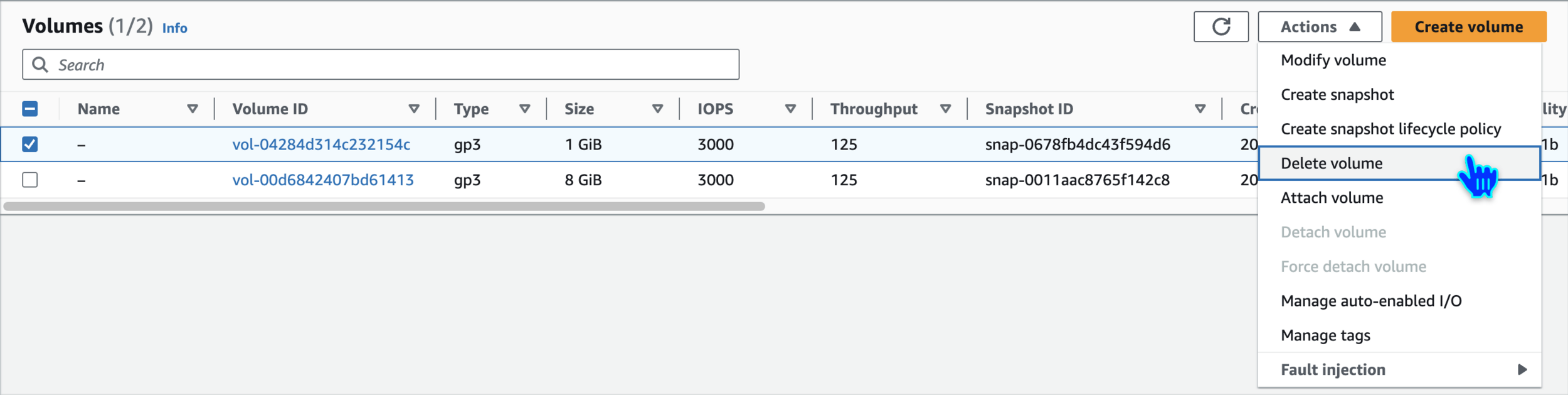

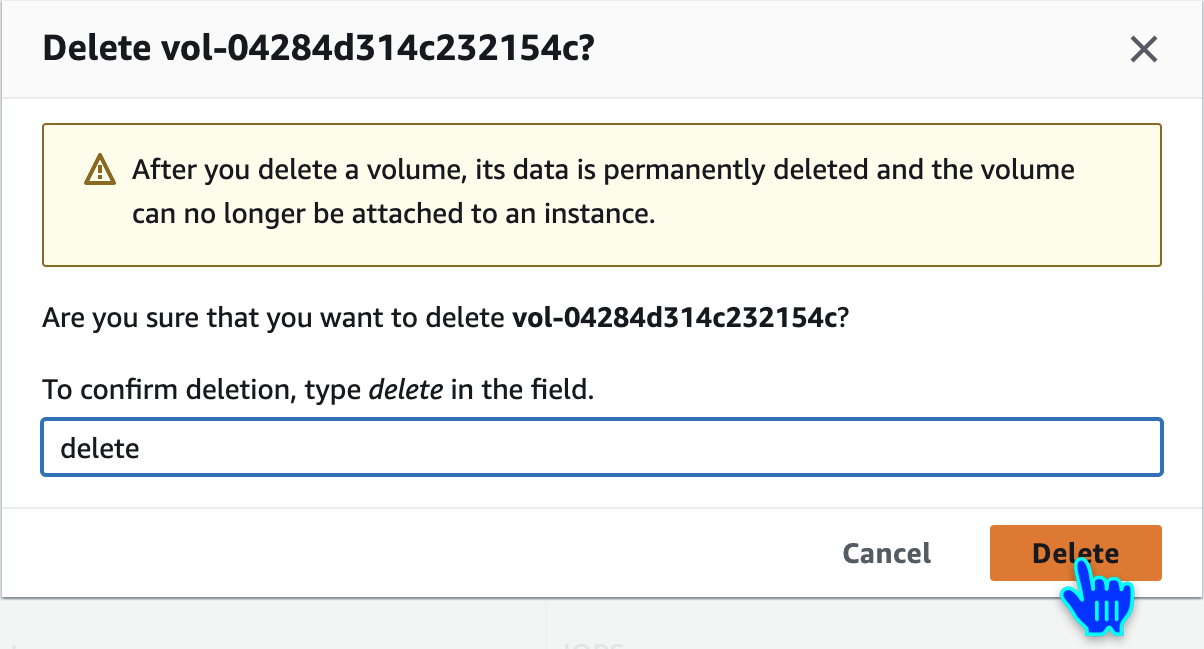

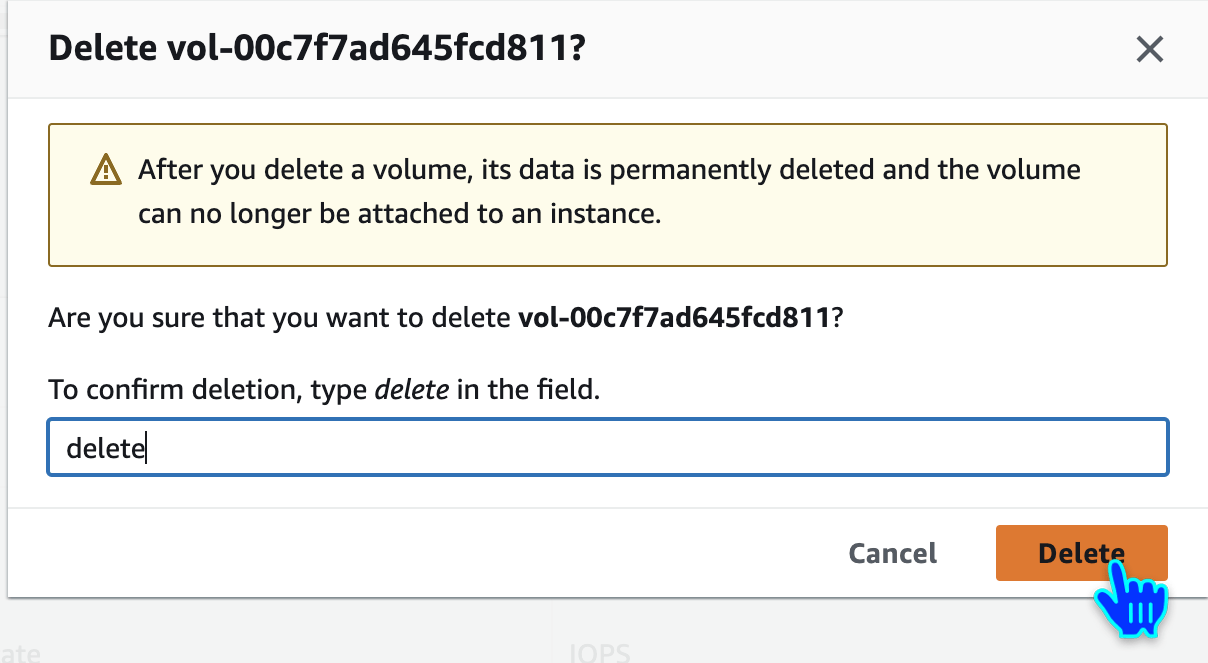

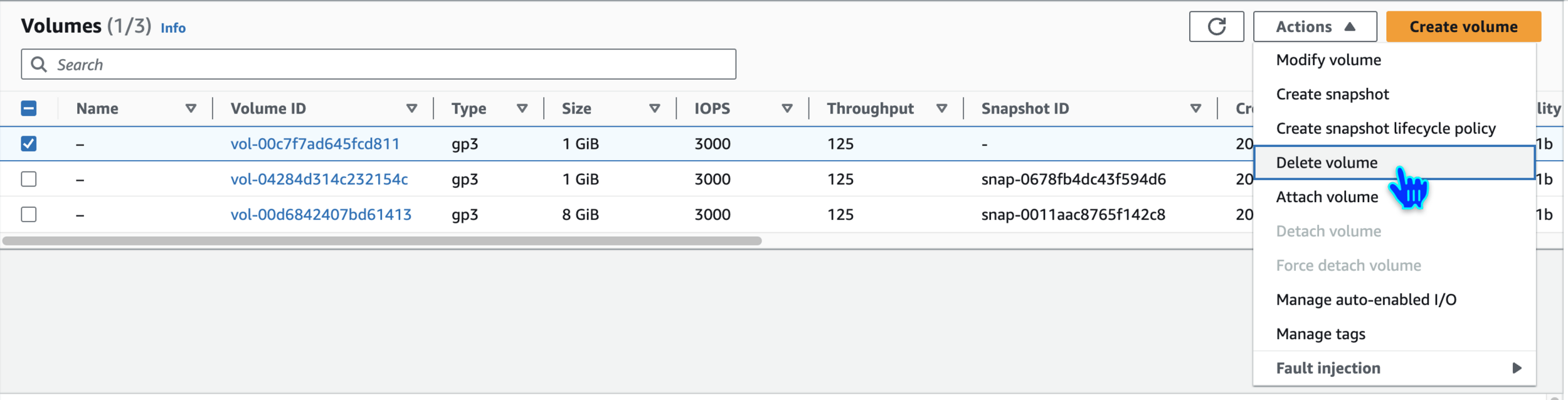

Delete volume

Delete volume

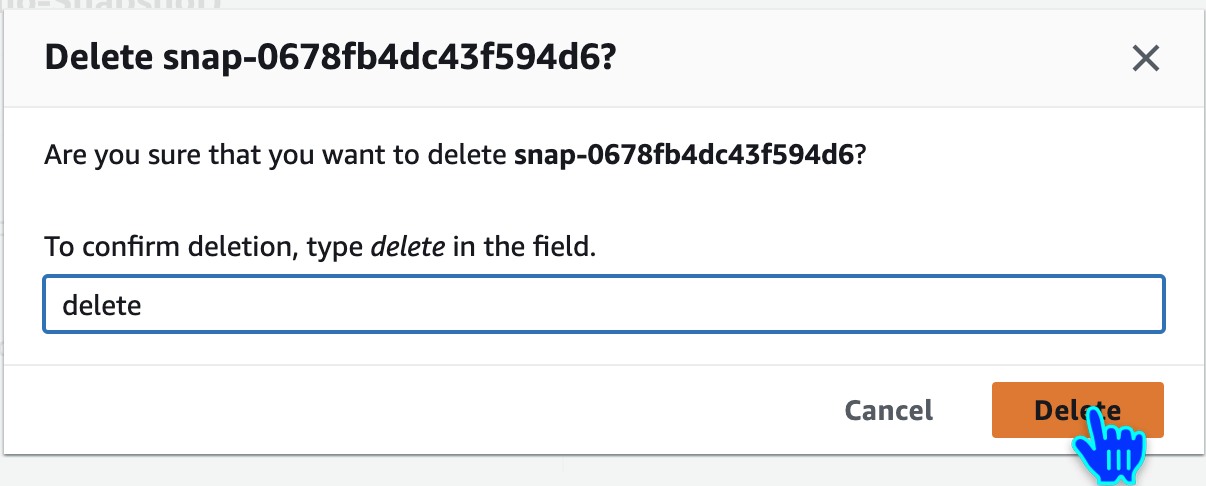

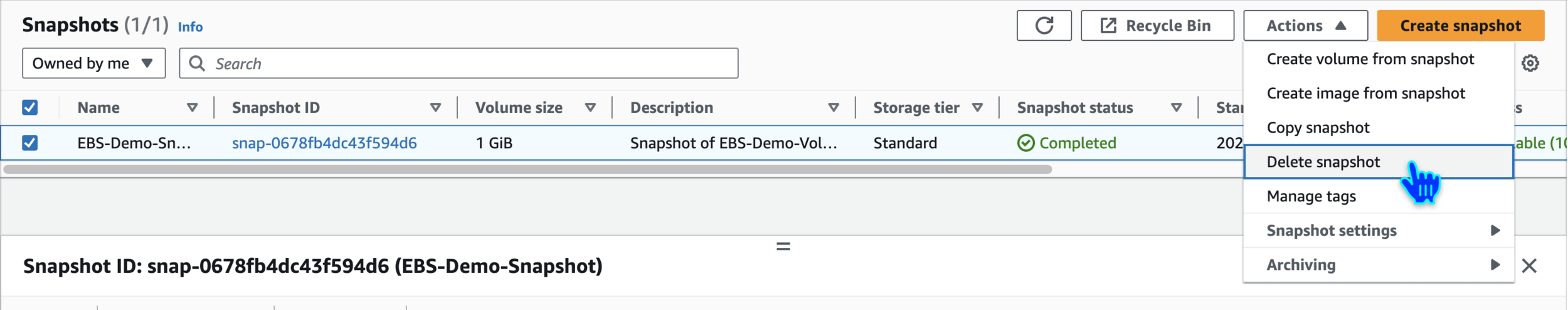

Delete snapshot

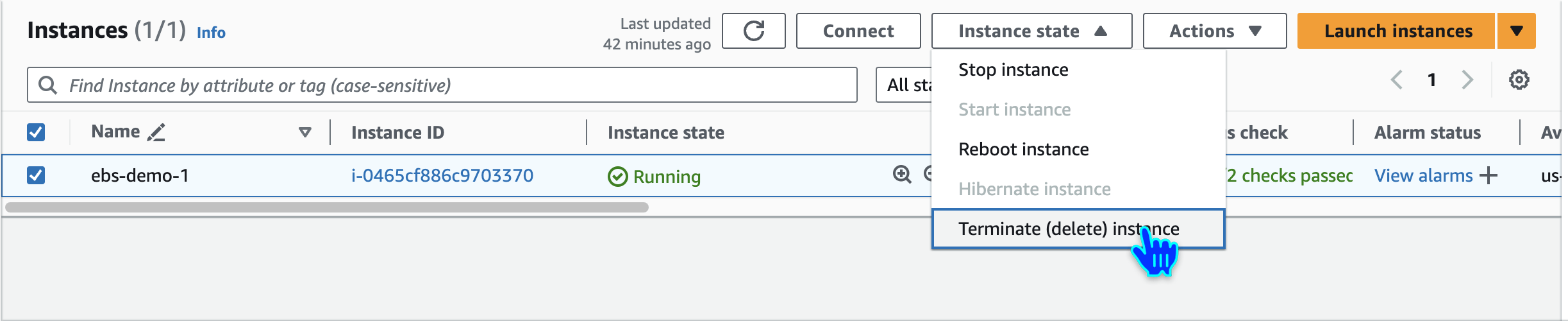

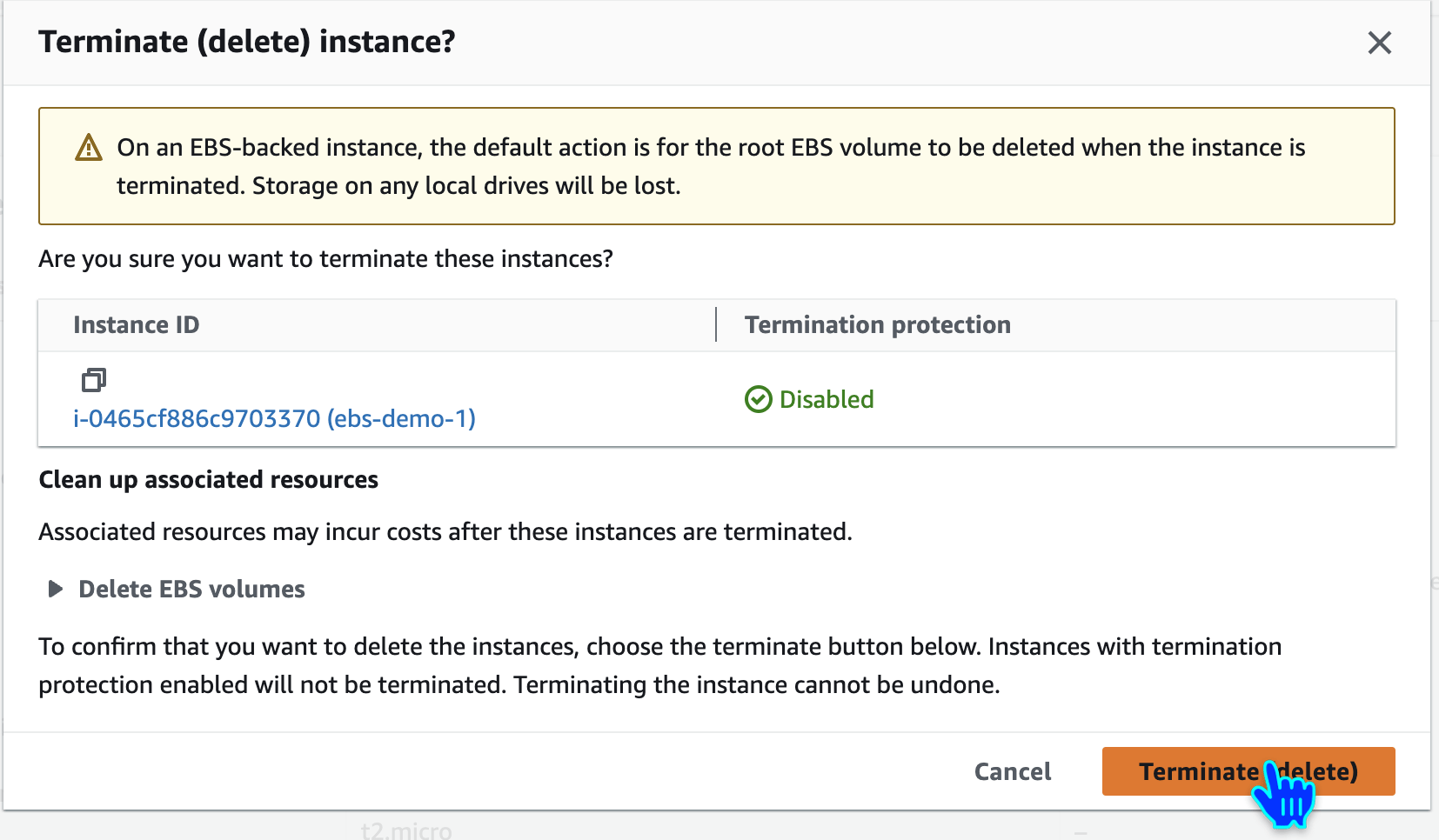

Terminate (delete) instance

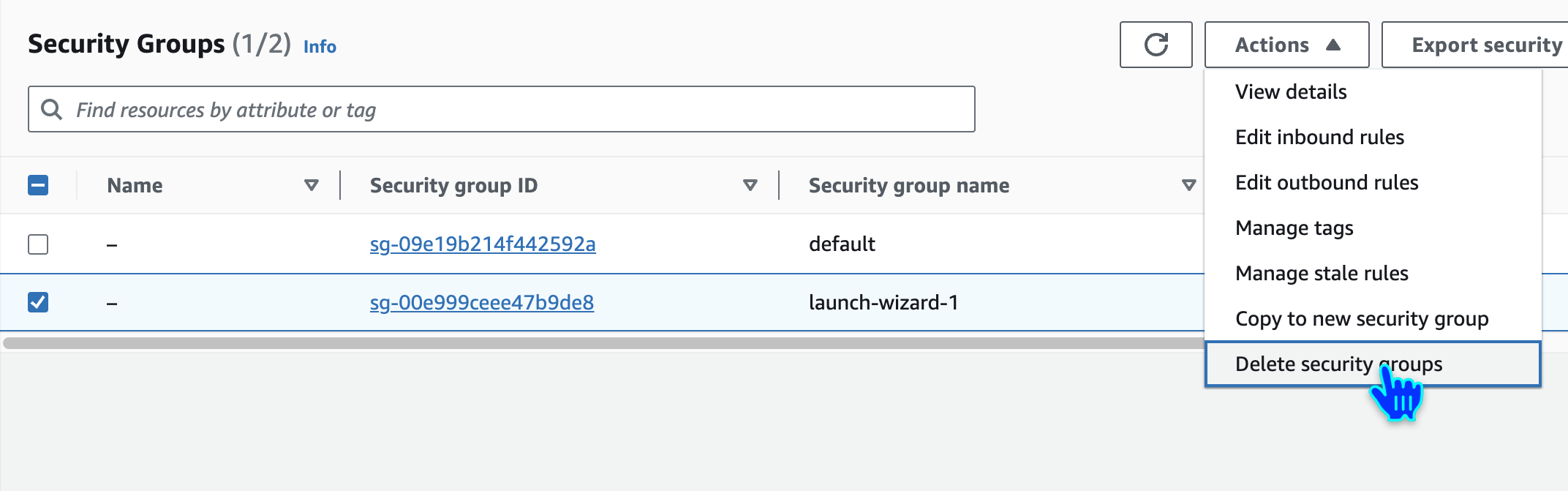

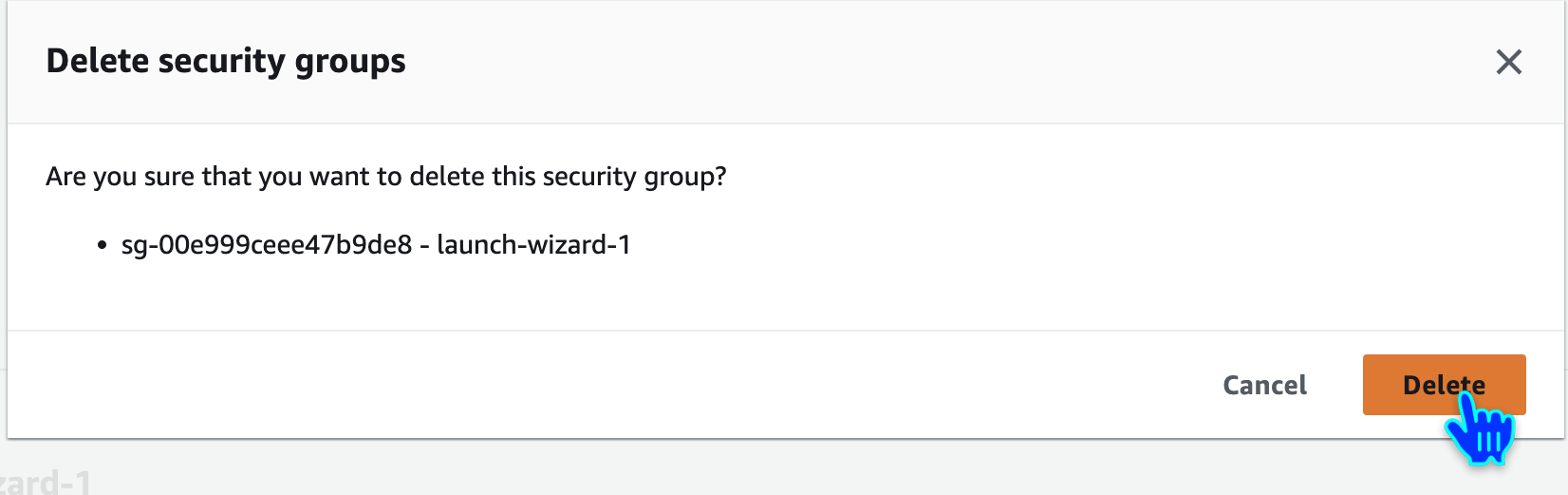

Delete security group

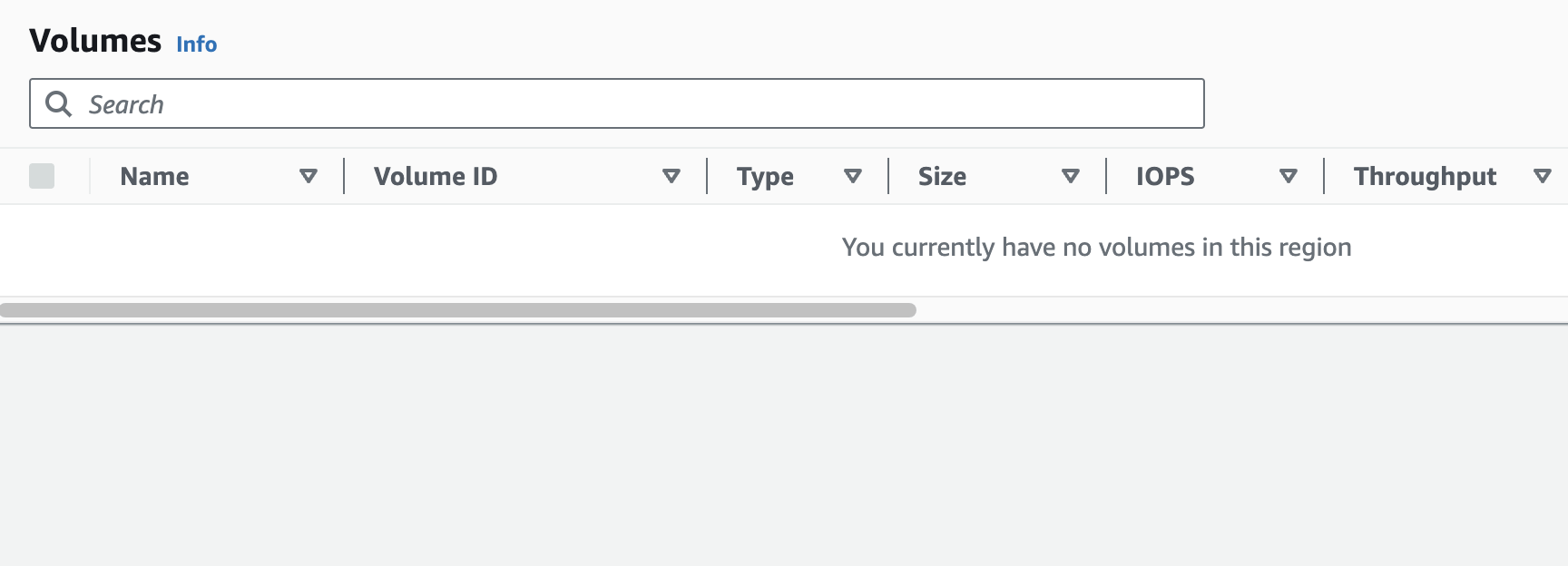

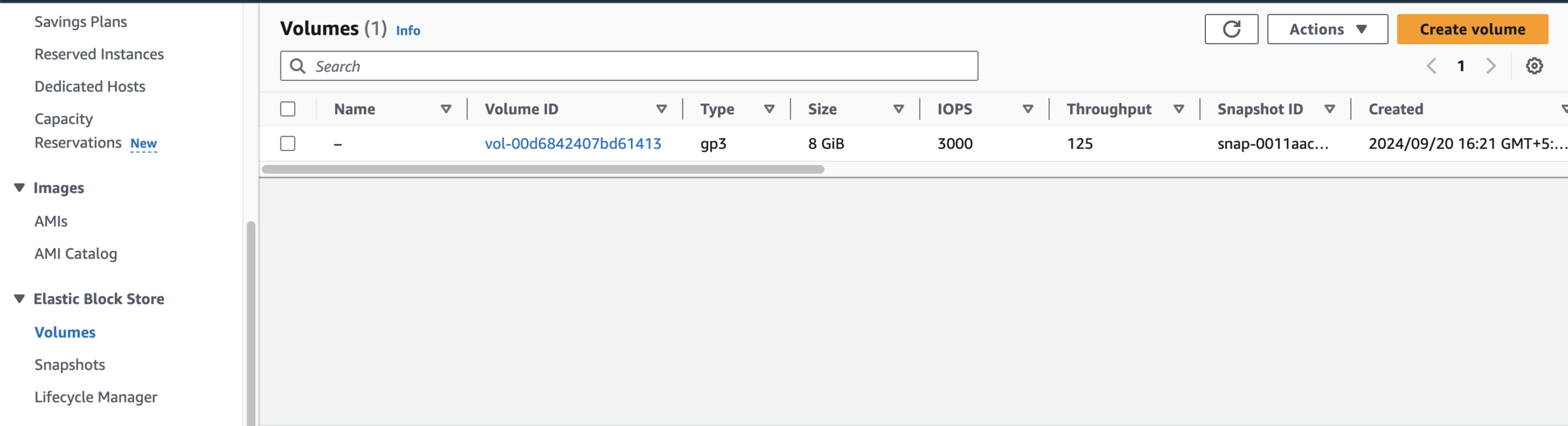

Volumes

🙏

Thanks

for

Watching
