Amazon VPC

Hands-On

Demo

Hands-On Demo Overview

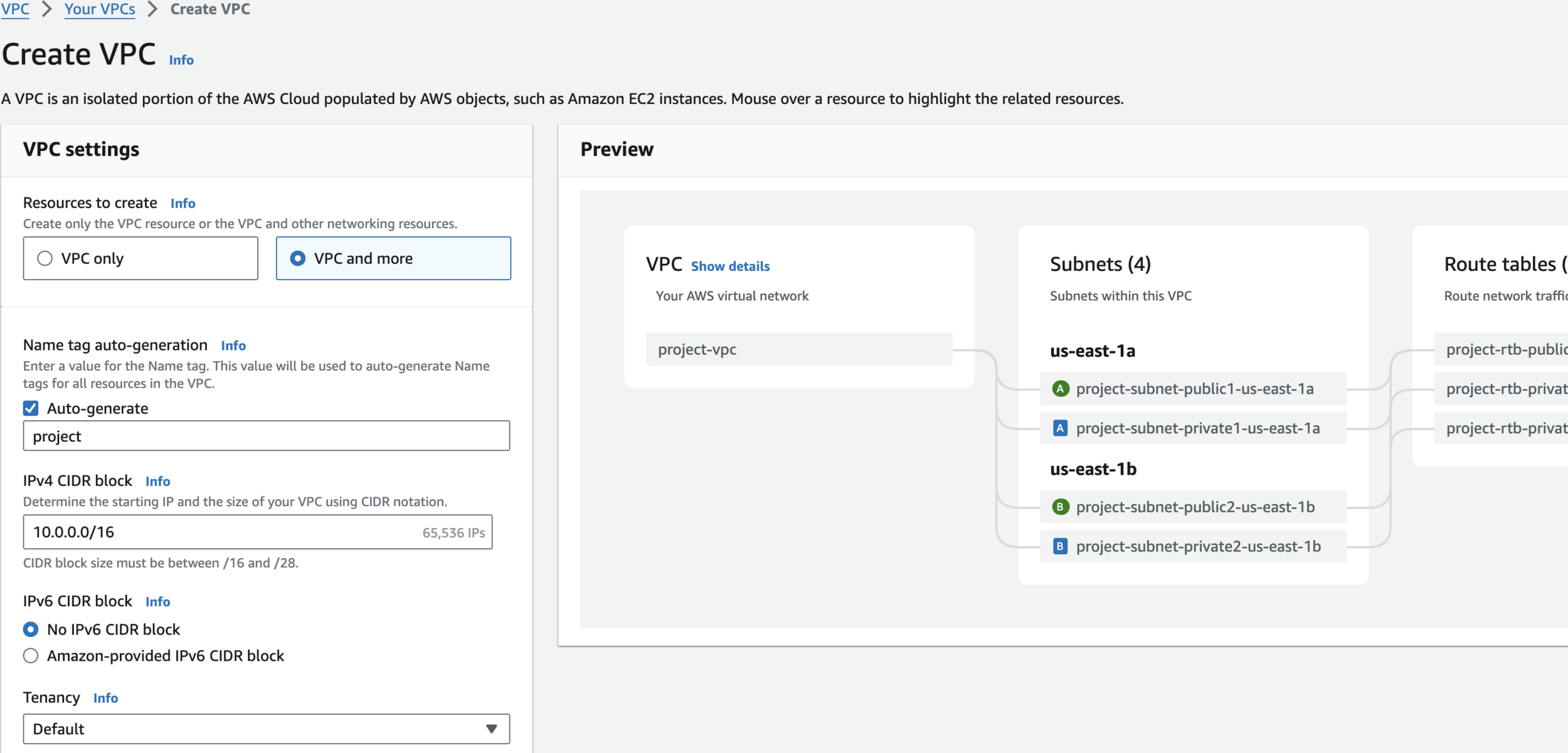

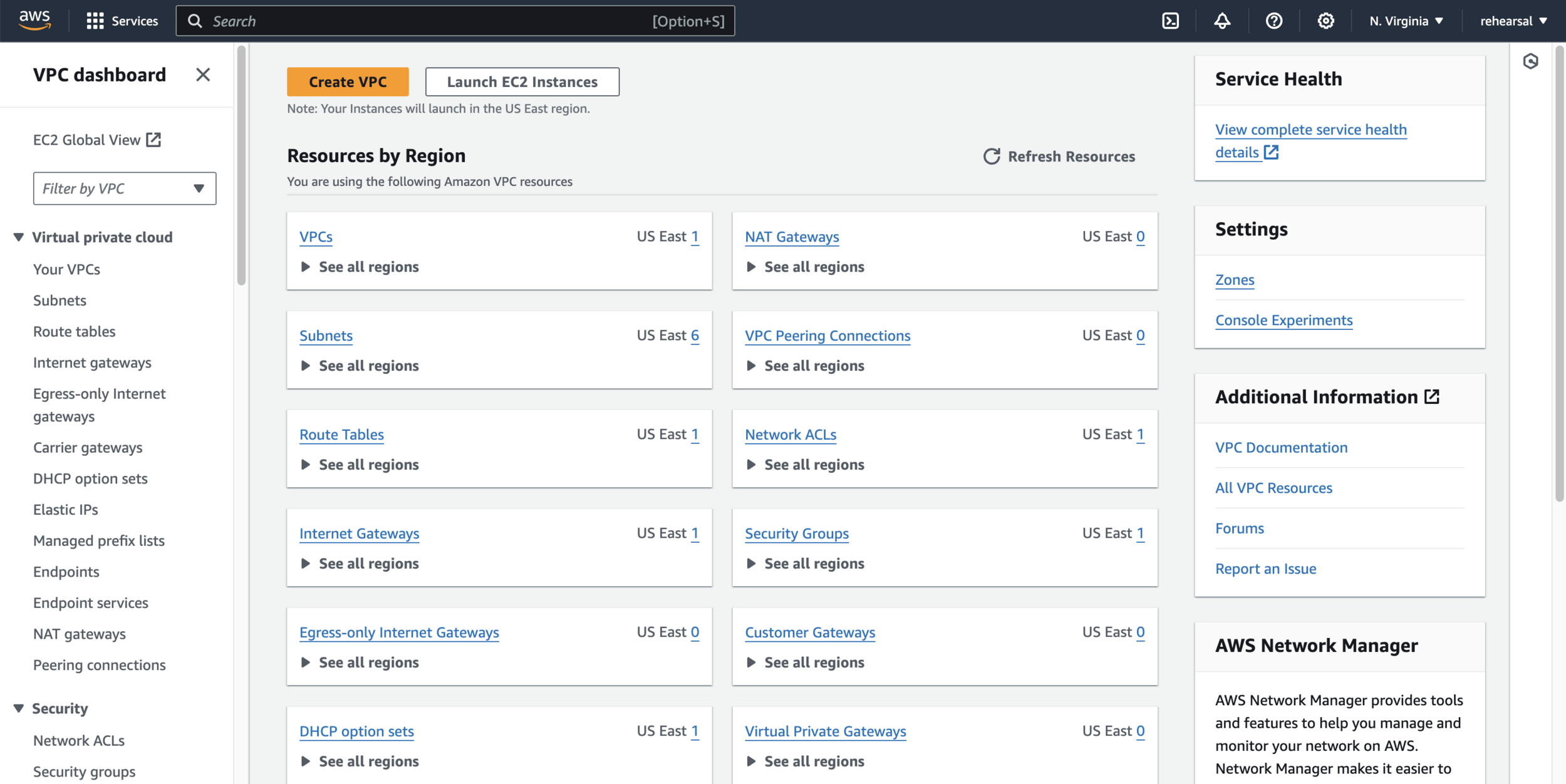

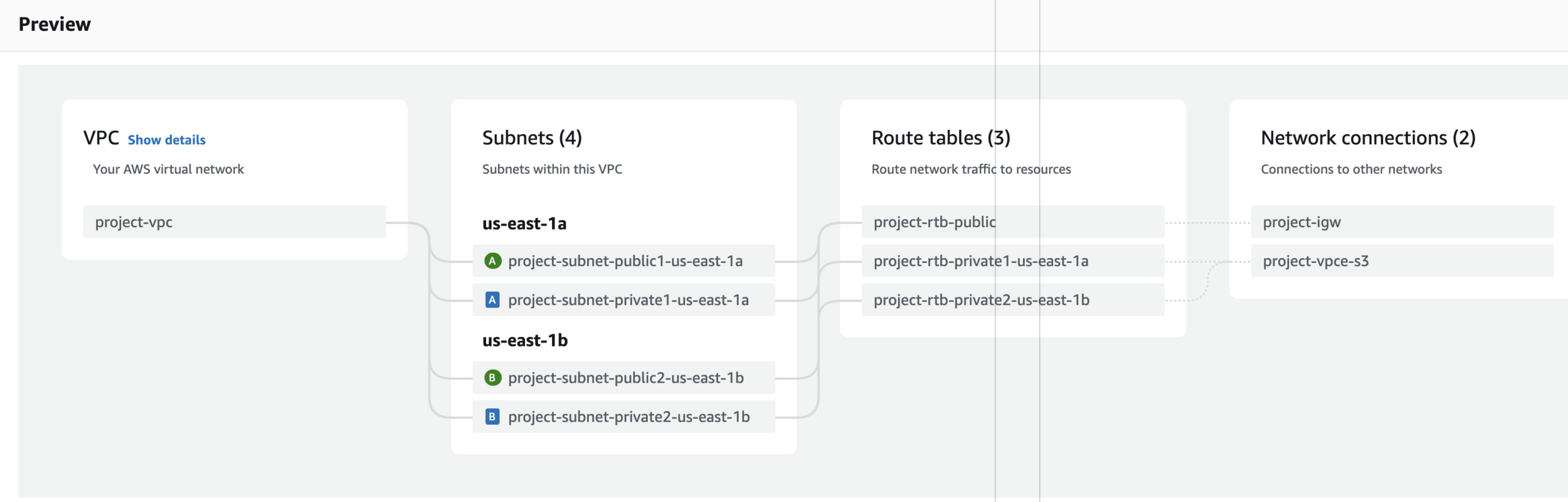

Create Custom VPC

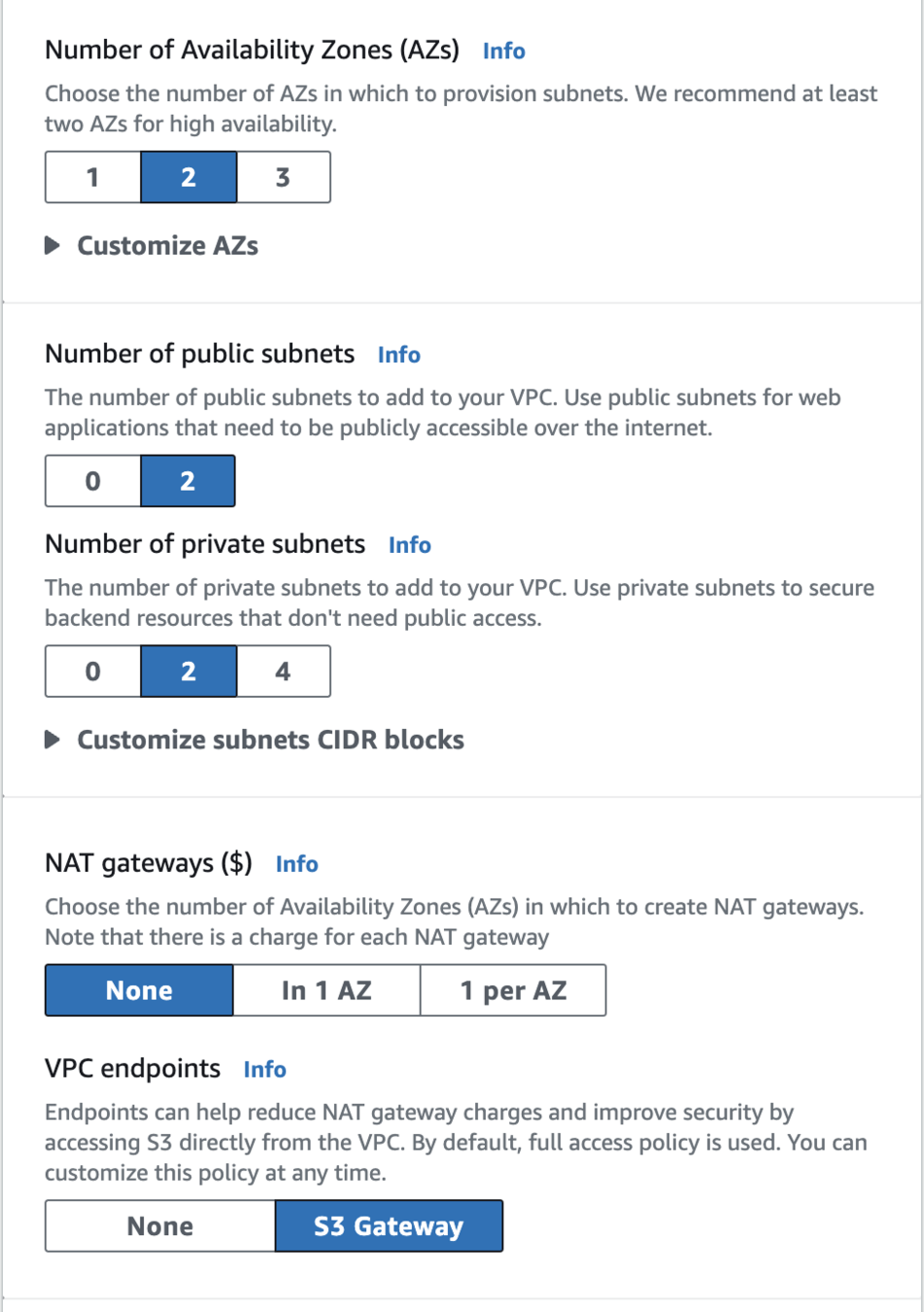

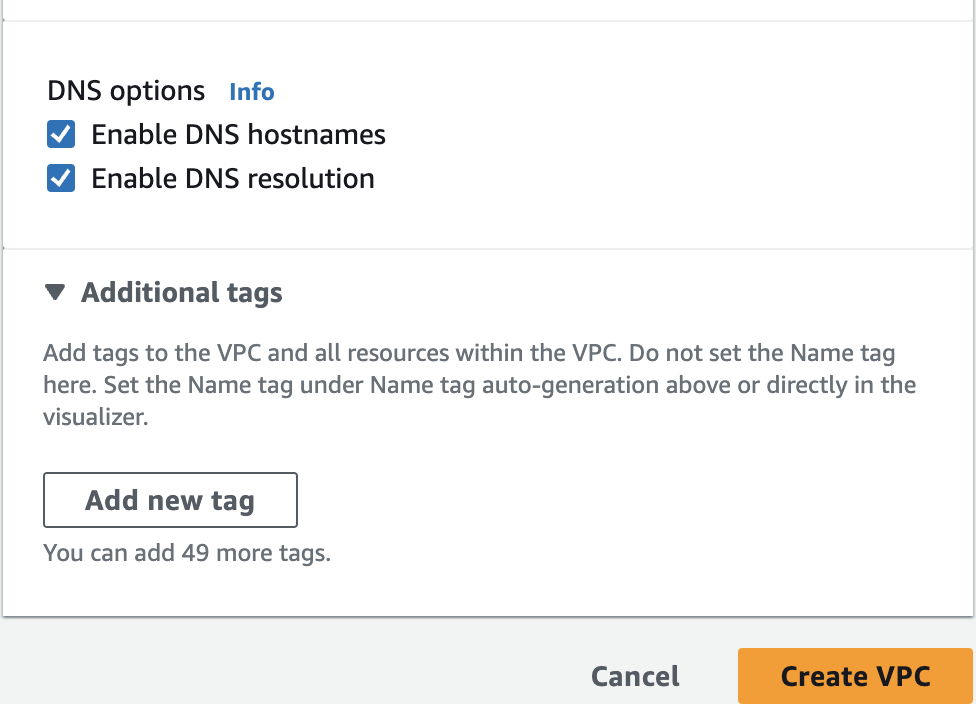

Custom VPC Config

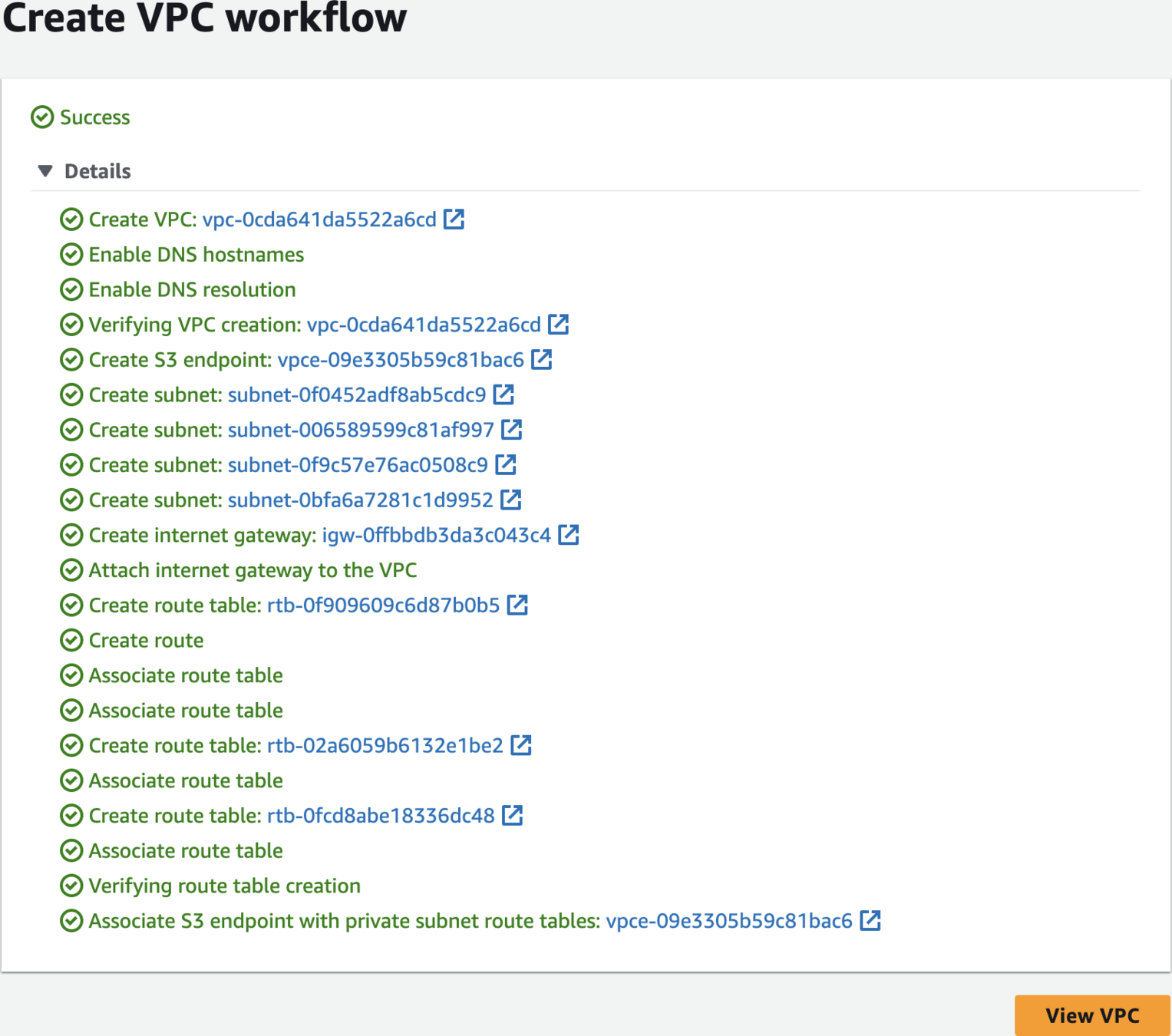

Create VPC workflow - Notice the components created

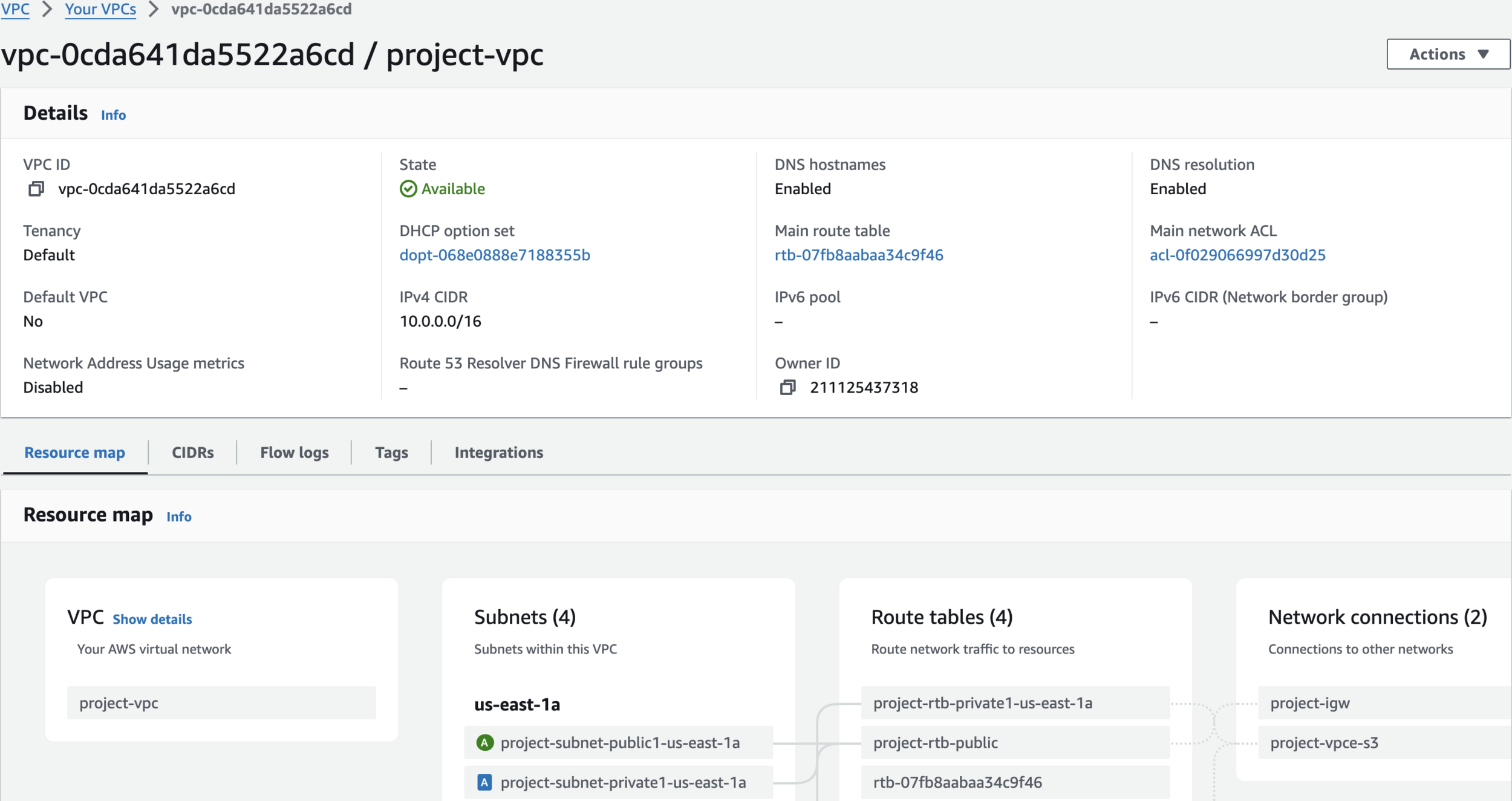

Custom VPC Summary

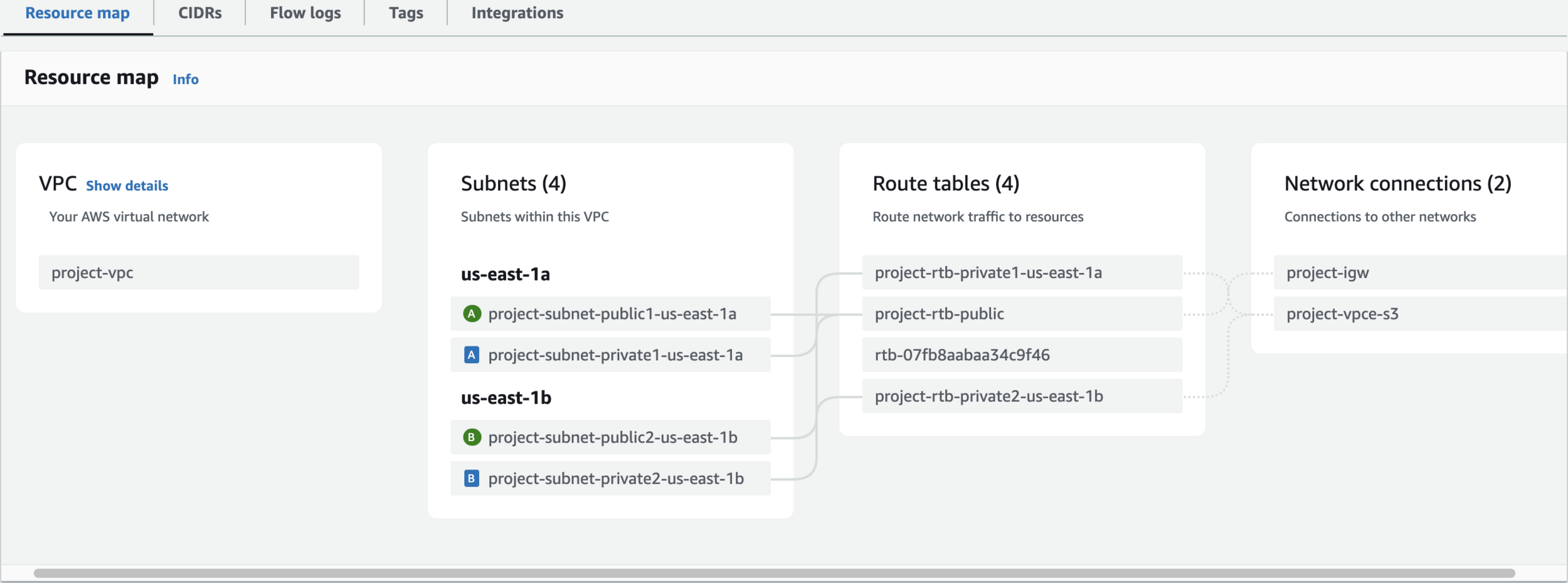

Resource Map View

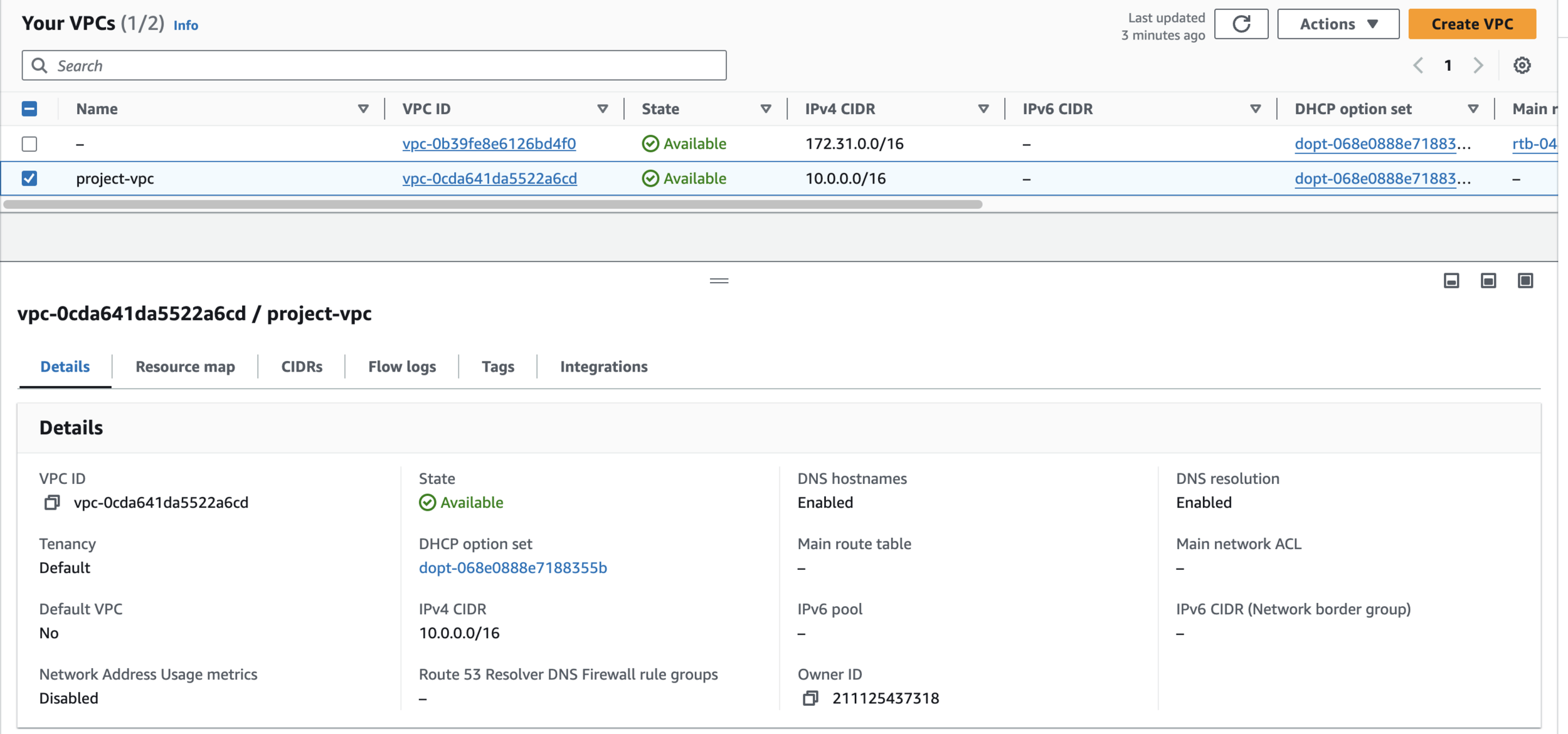

2 VPCs Visible

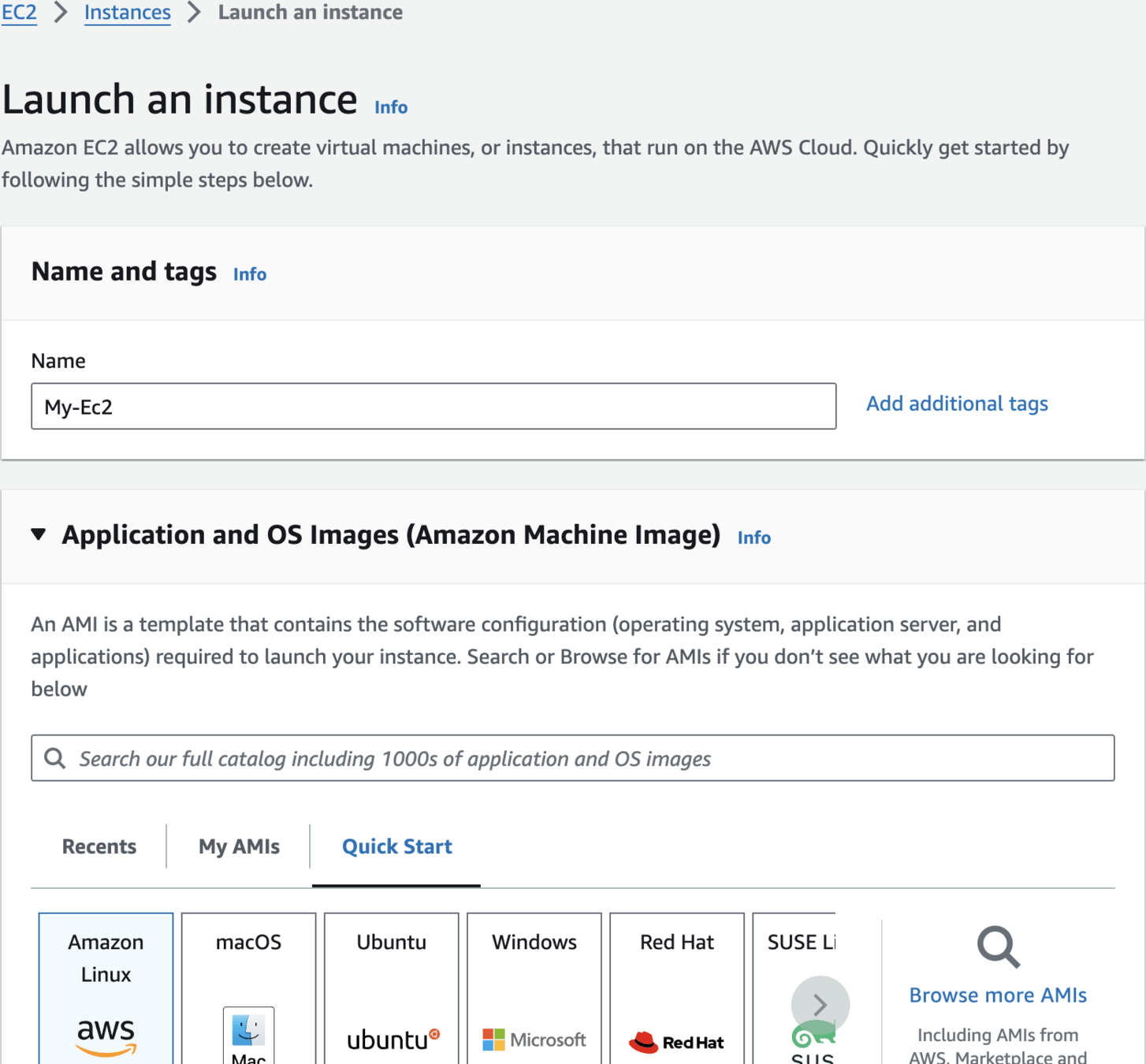

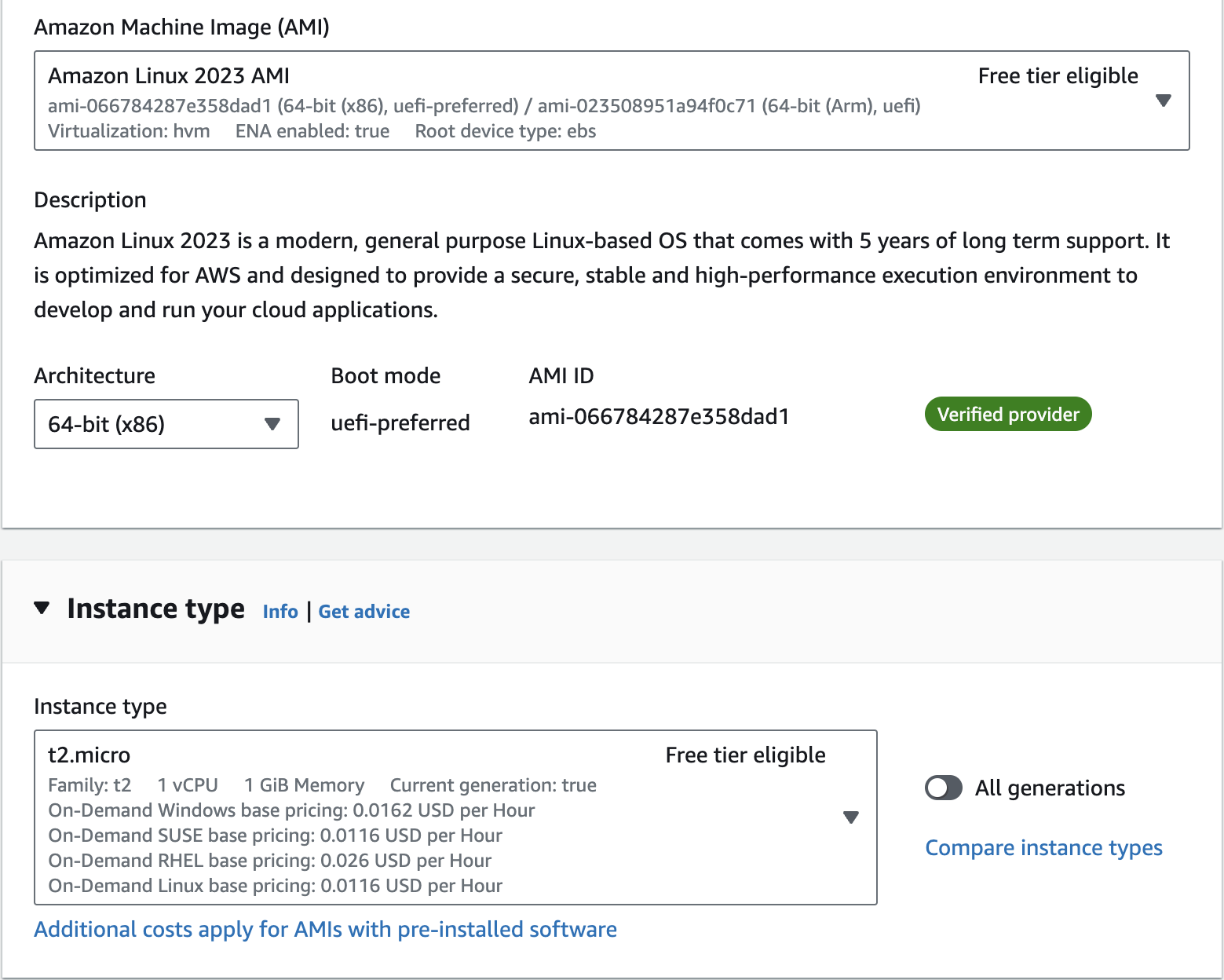

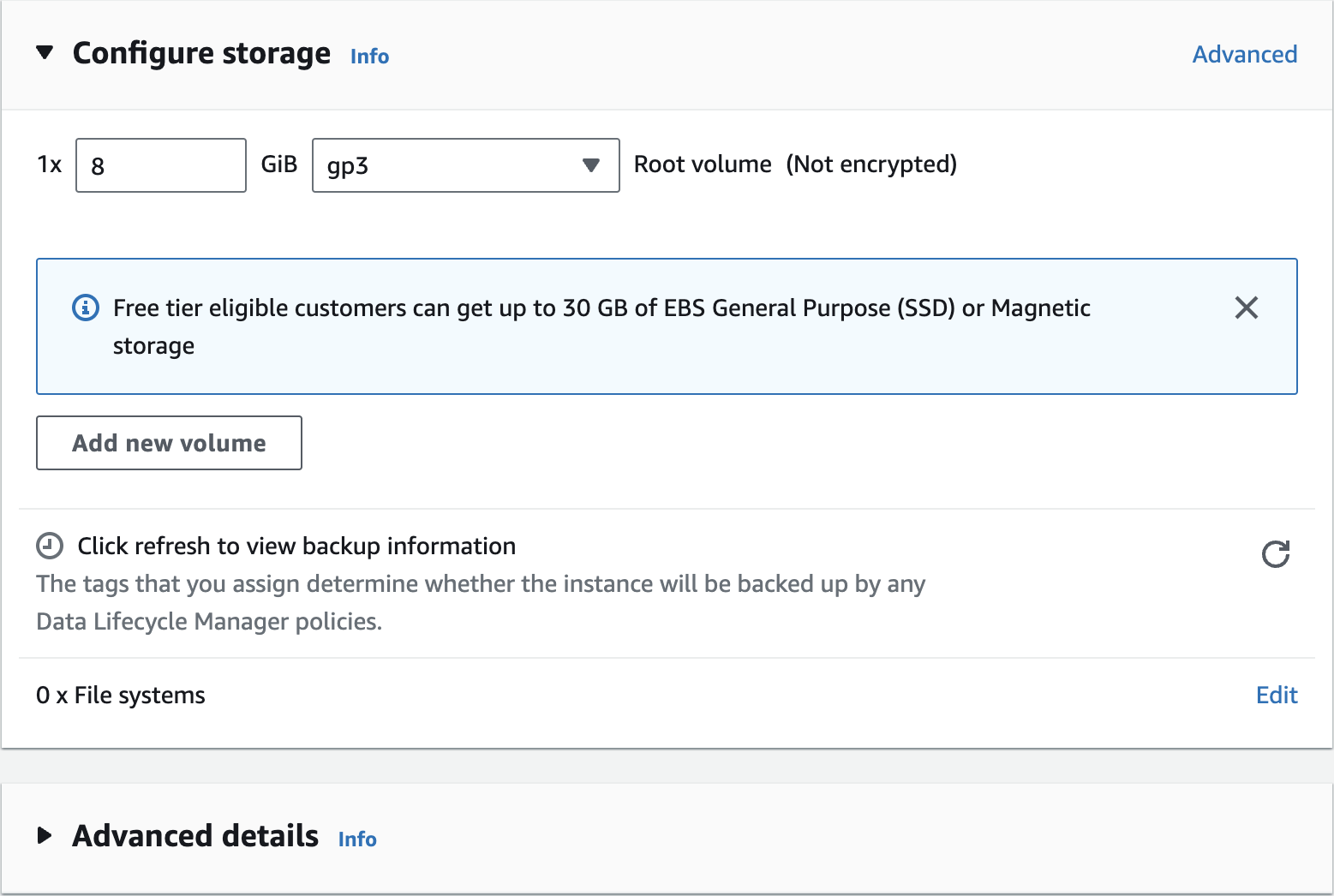

Launch an EC2 Instance in Custom VPC

My-Ec2

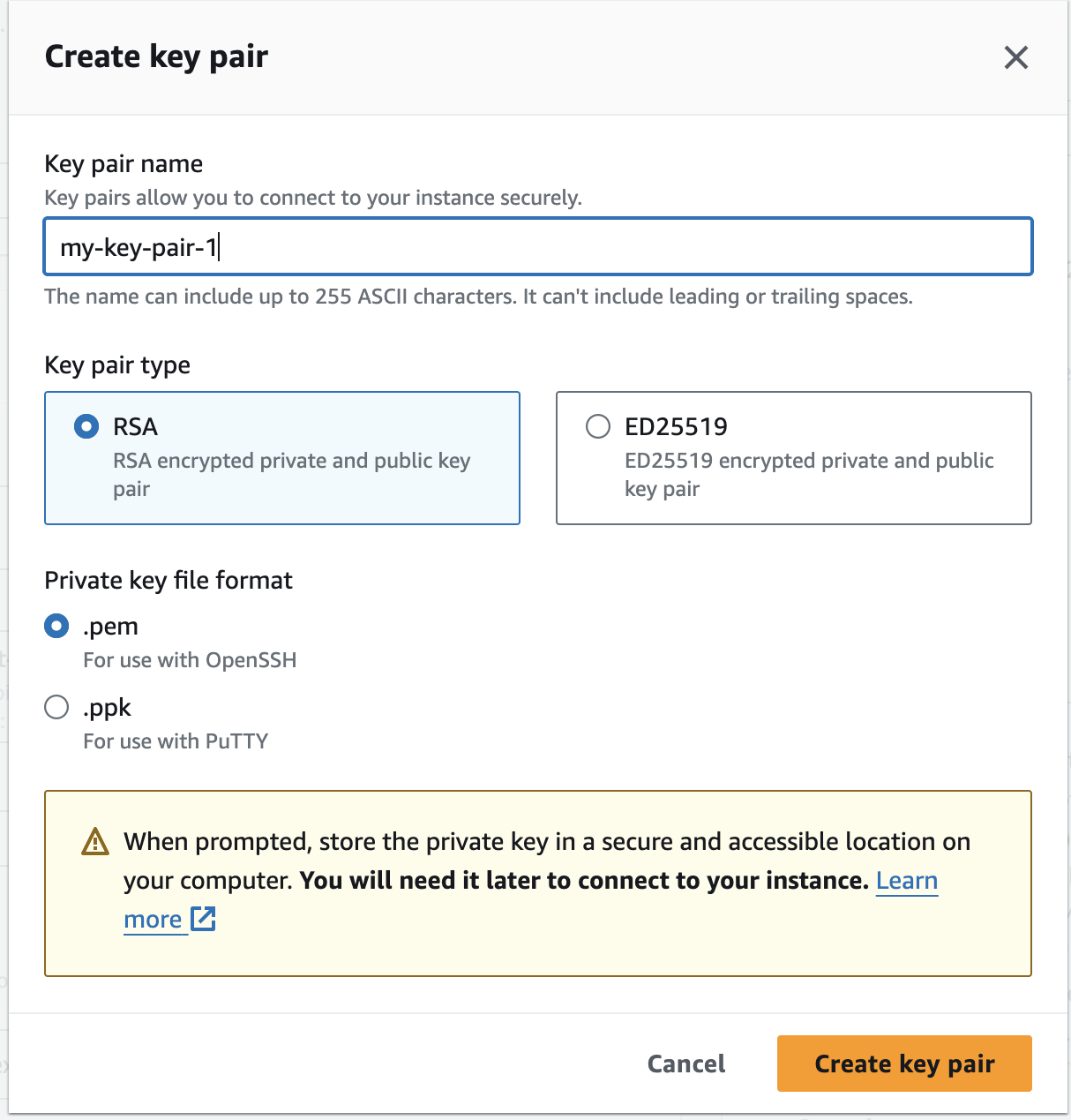

Create a Key Pair to Login into EC2 Instance

my-key-pair-1

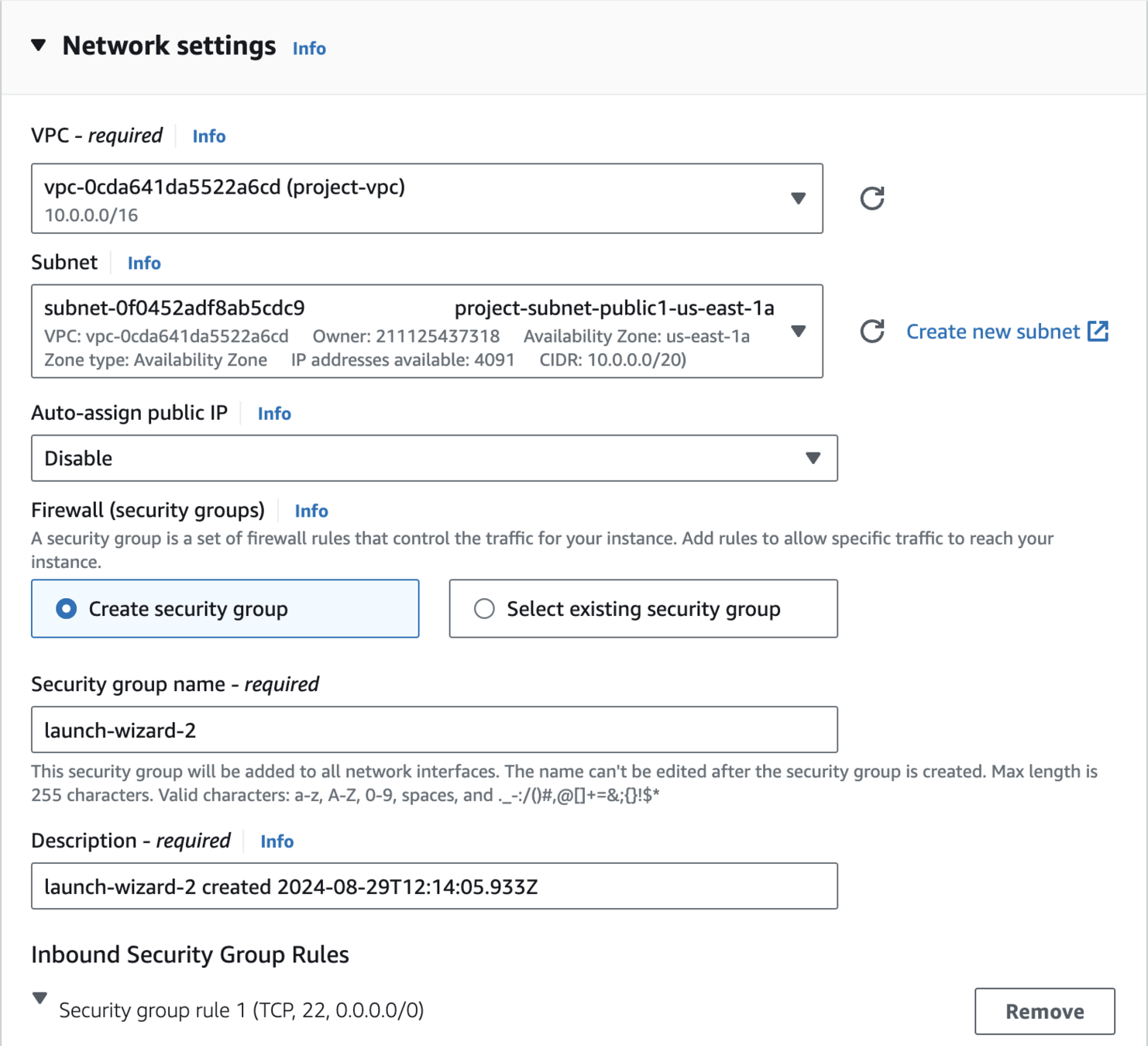

Select Custom VPC - Select 1 Public Subnet from Custom VPC - Auto Assign Public IP - Yes

Enable

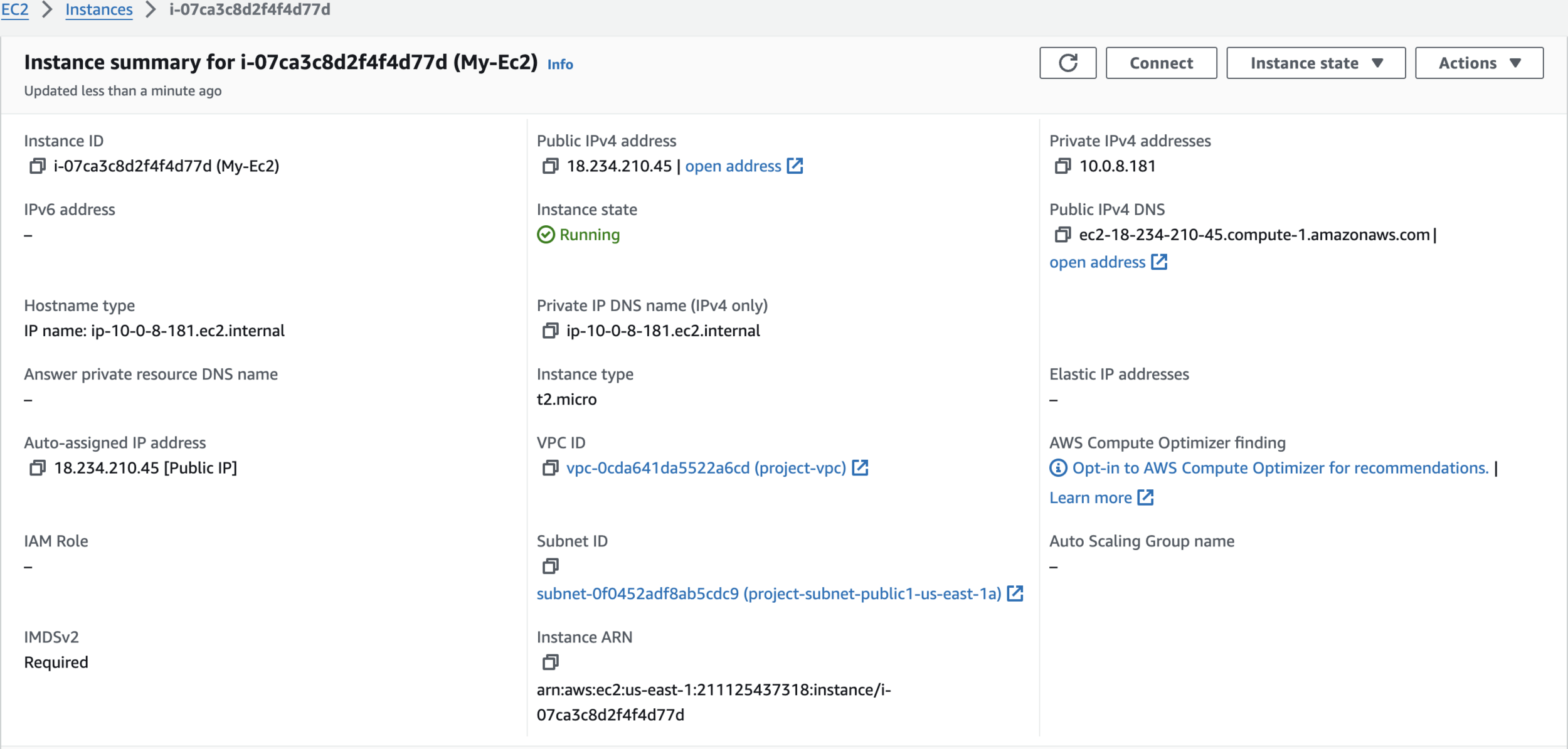

Instance Summary - Note Public IP and Private IP

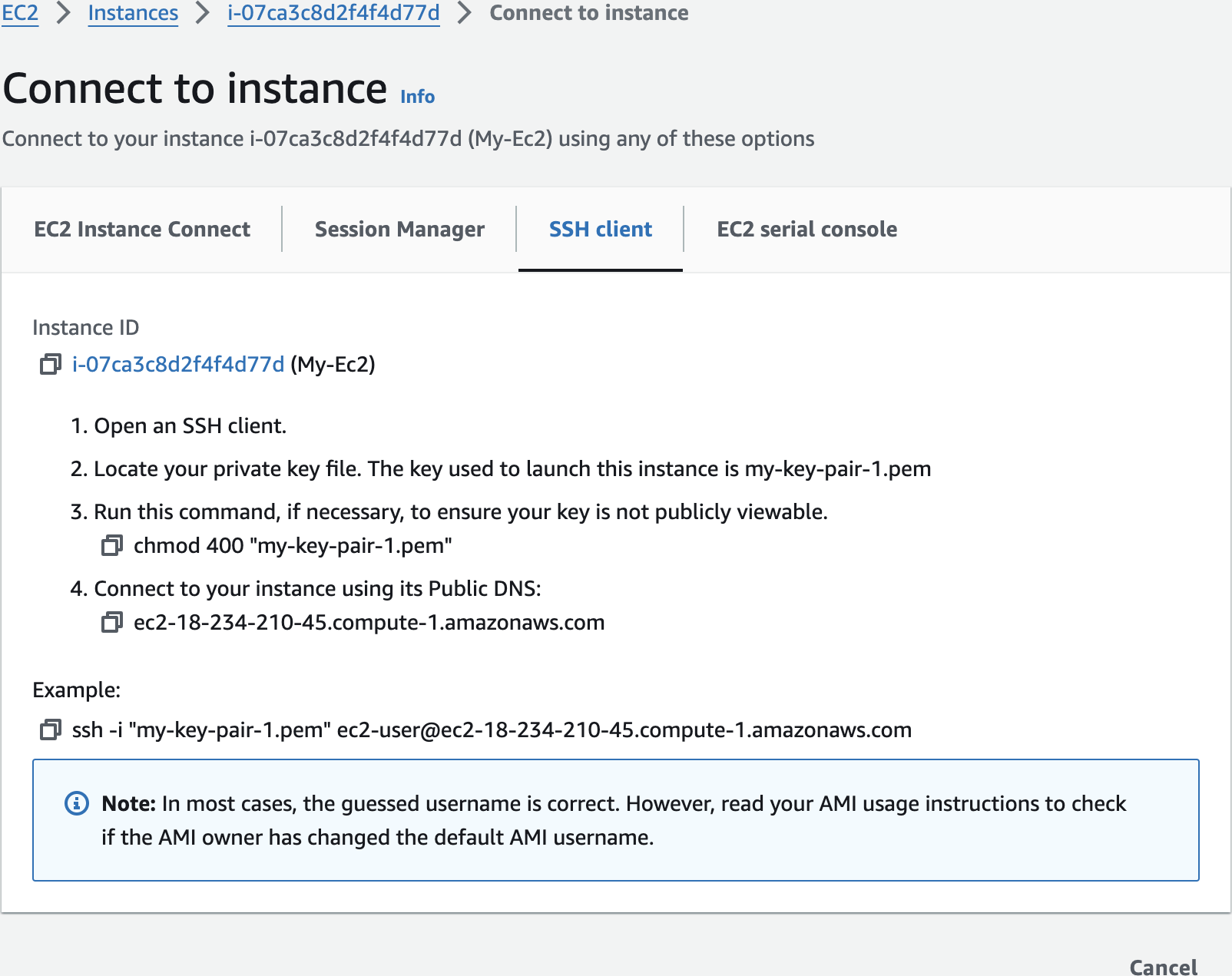

Connect to Instance

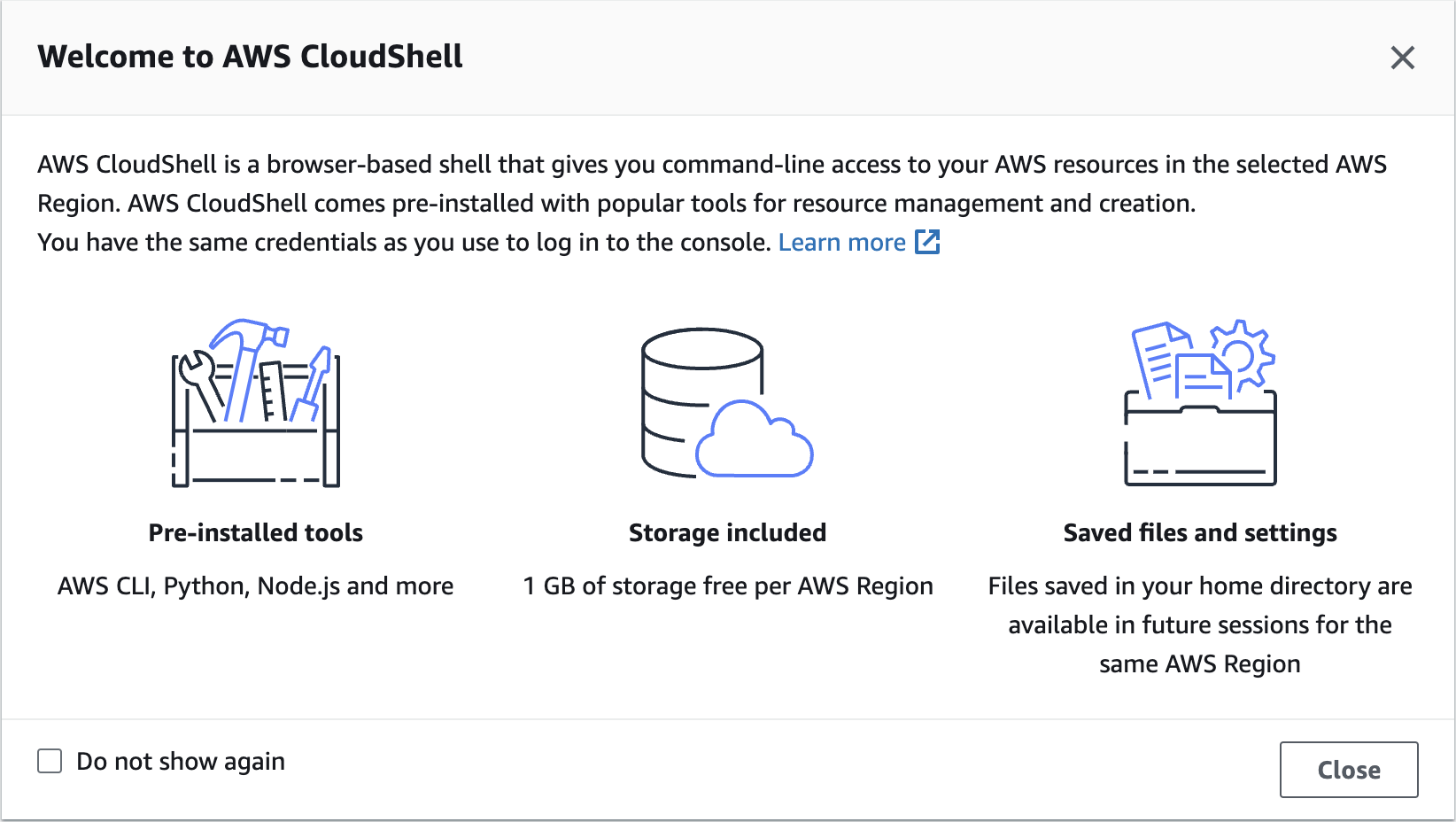

Launch CloudShell

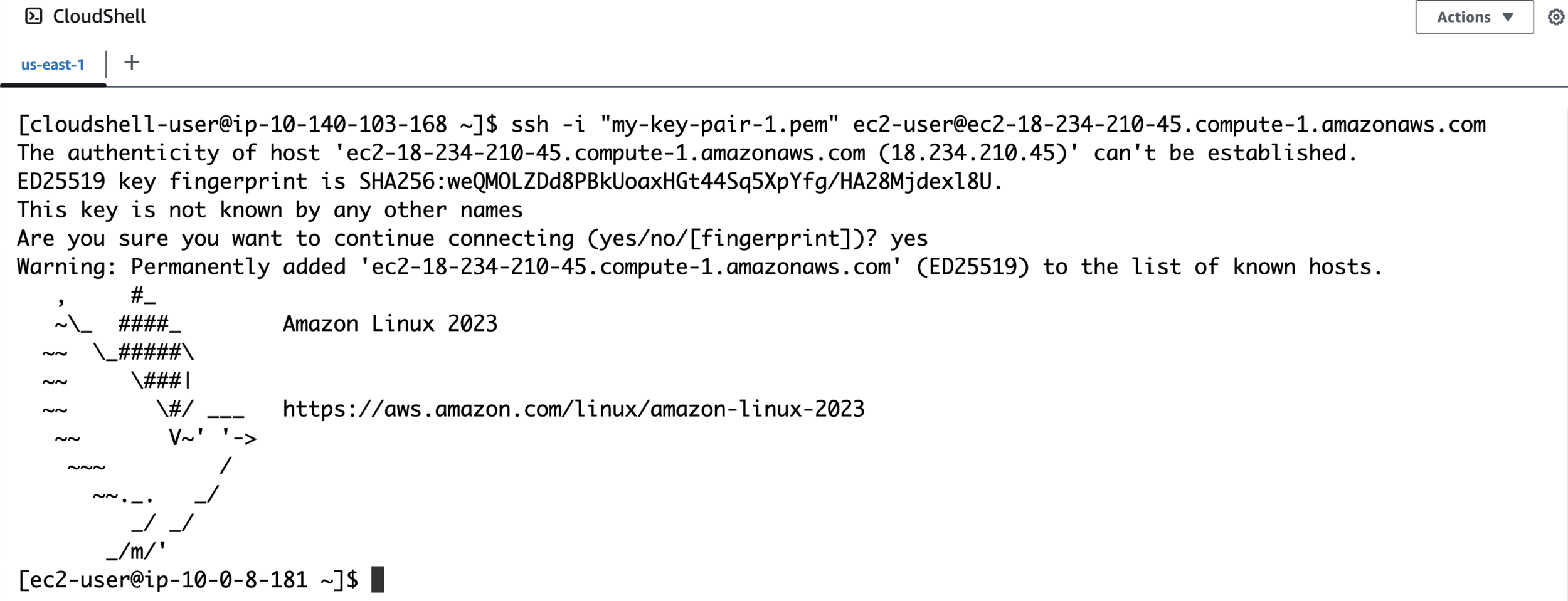

Upload "my-key-pair-1.pem" to CloudShell and Connect

chmod 400 my-key-pair-1.pem

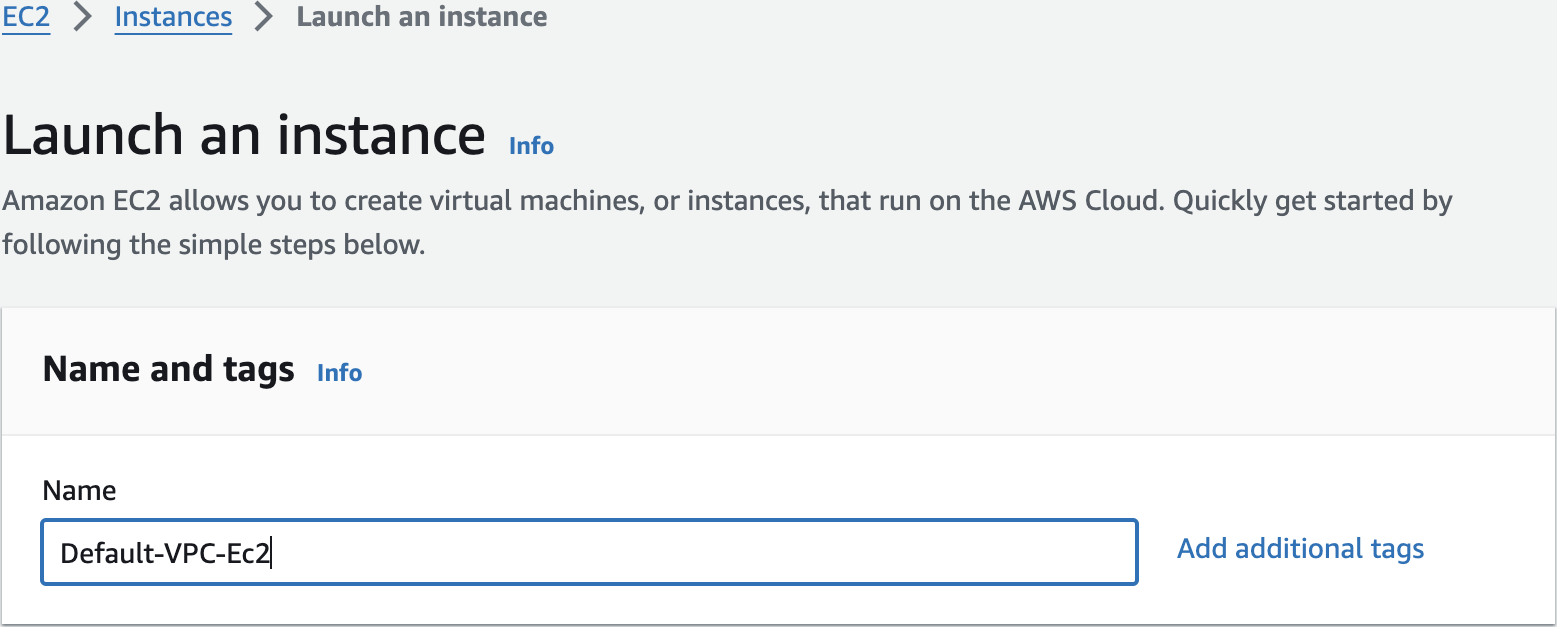

Launch an EC2 Instance in Default VPC

Default-VPC-Ec2
ssh -i "my-key-pair-1.pem" ec2-user@ec2-18-234-210-45.compute-1.amazonaws.com
sudo yum install nc
nc -zv 18.234.210.45 22 # public ip
nc -zv 10.0.8.181 22 # private ip

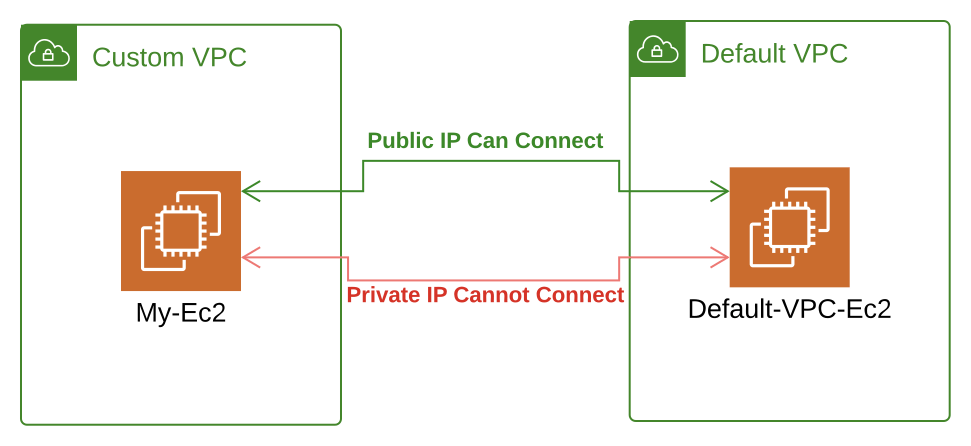

Connectivity Test from Custom VPC to Default VPC

ssh -i "my-key-pair-1.pem" ec2-user@44.203.151.191
sudo yum install nc
nc -zv 44.203.151.191 22  # public ip
nc -zv 172.31.85.240 22  # private ip

Connectivity Test from Default VPC to Custom VPC

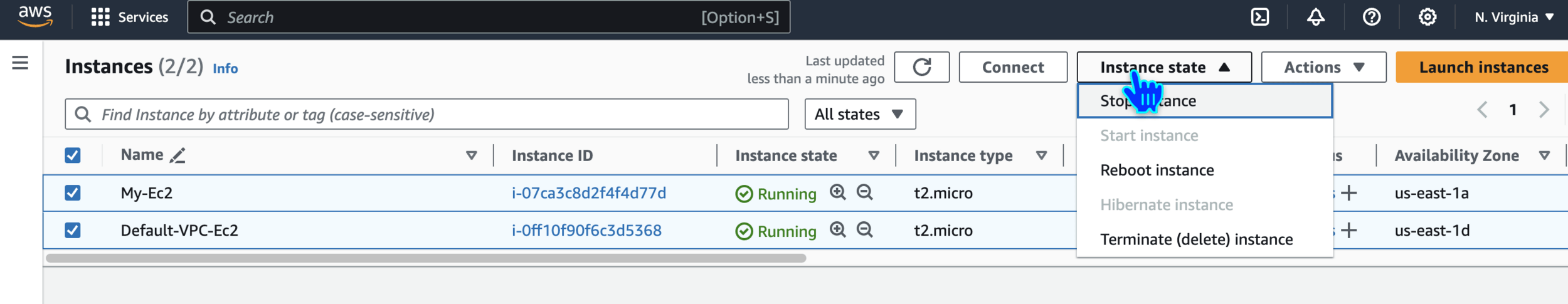

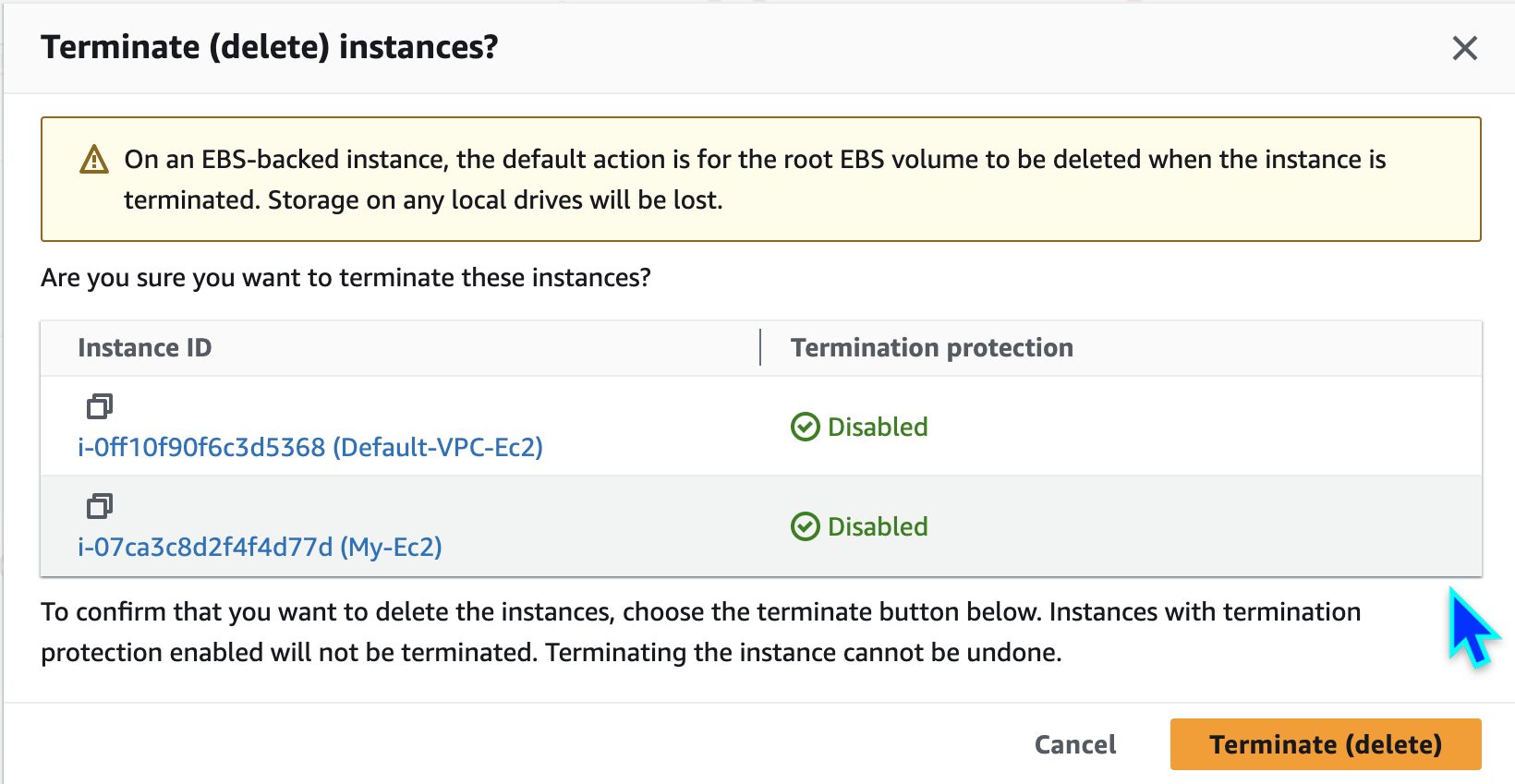

Clean Up - Delete EC2 Instances

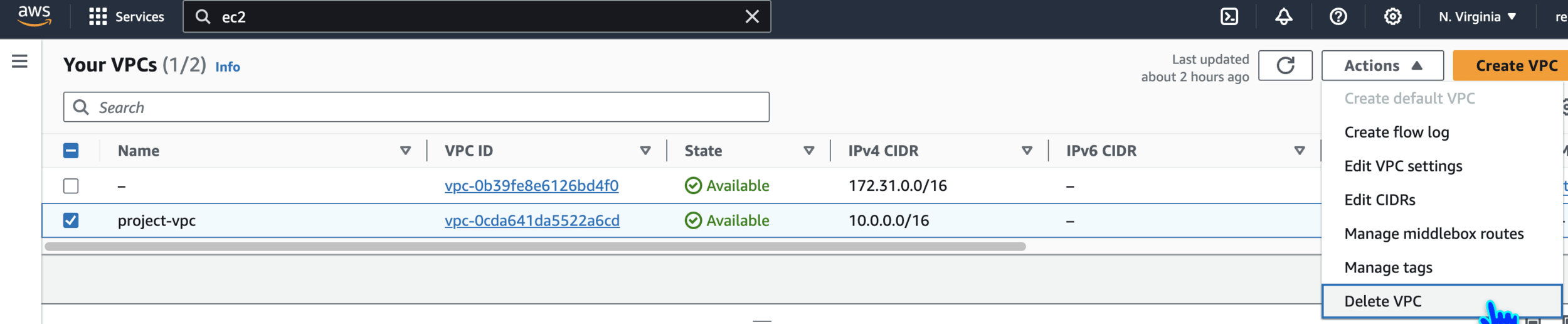

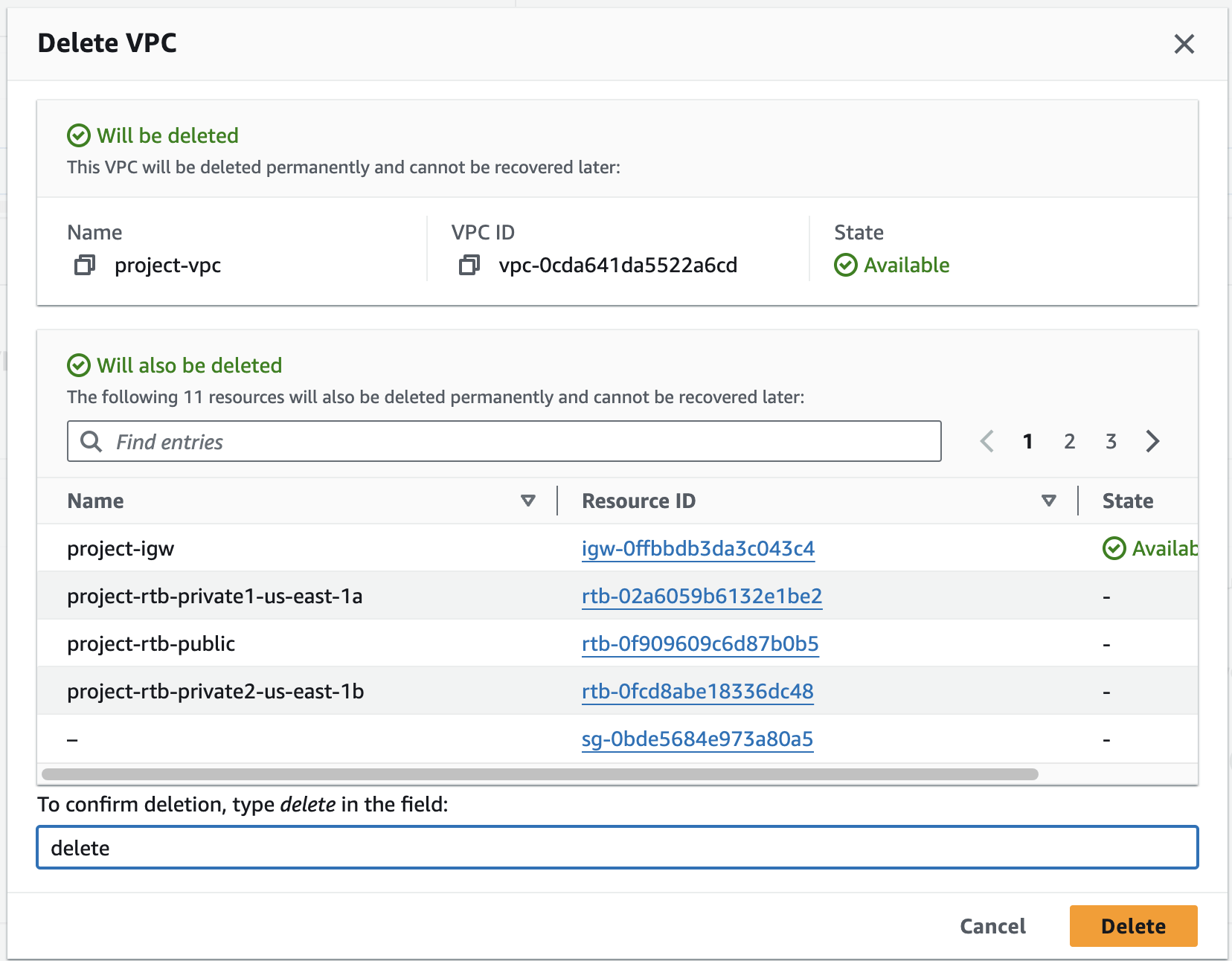

Clean Up - Delete Custom VPC

🙏

Thanks

for

Watching

Amazon VPC Hands-On Demo

By Deepak Dubey
