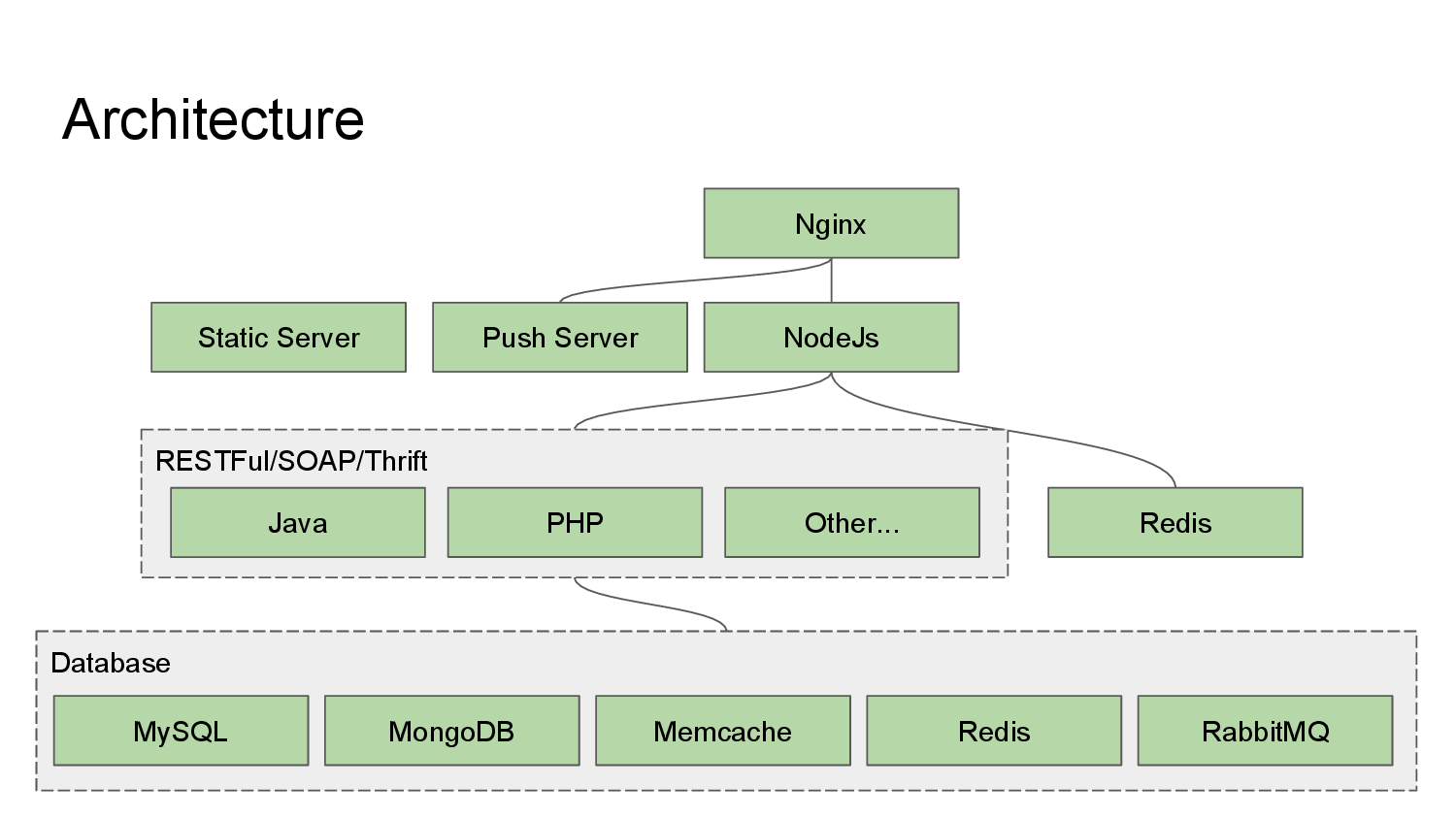

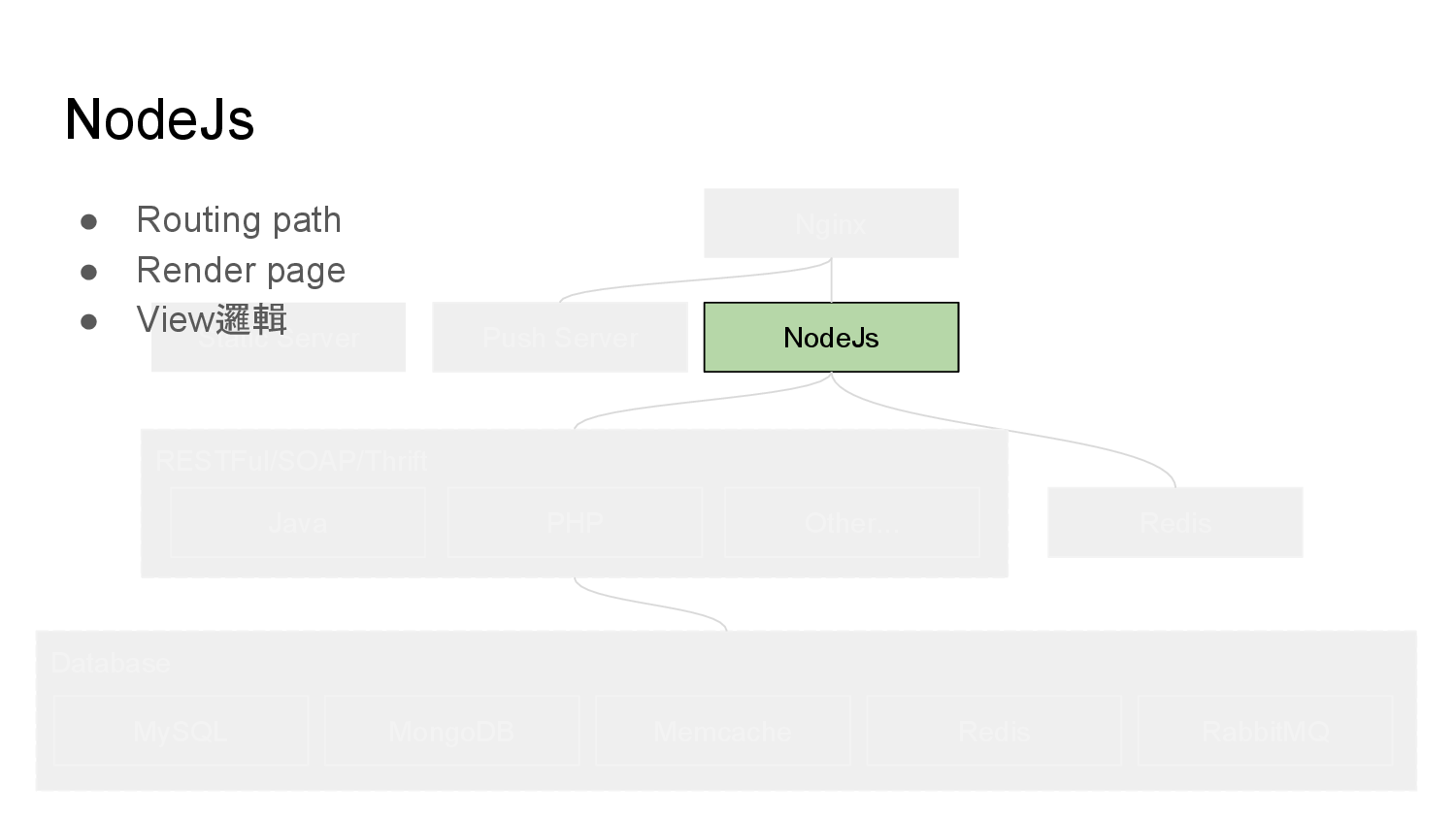

系統架構

System Architecture

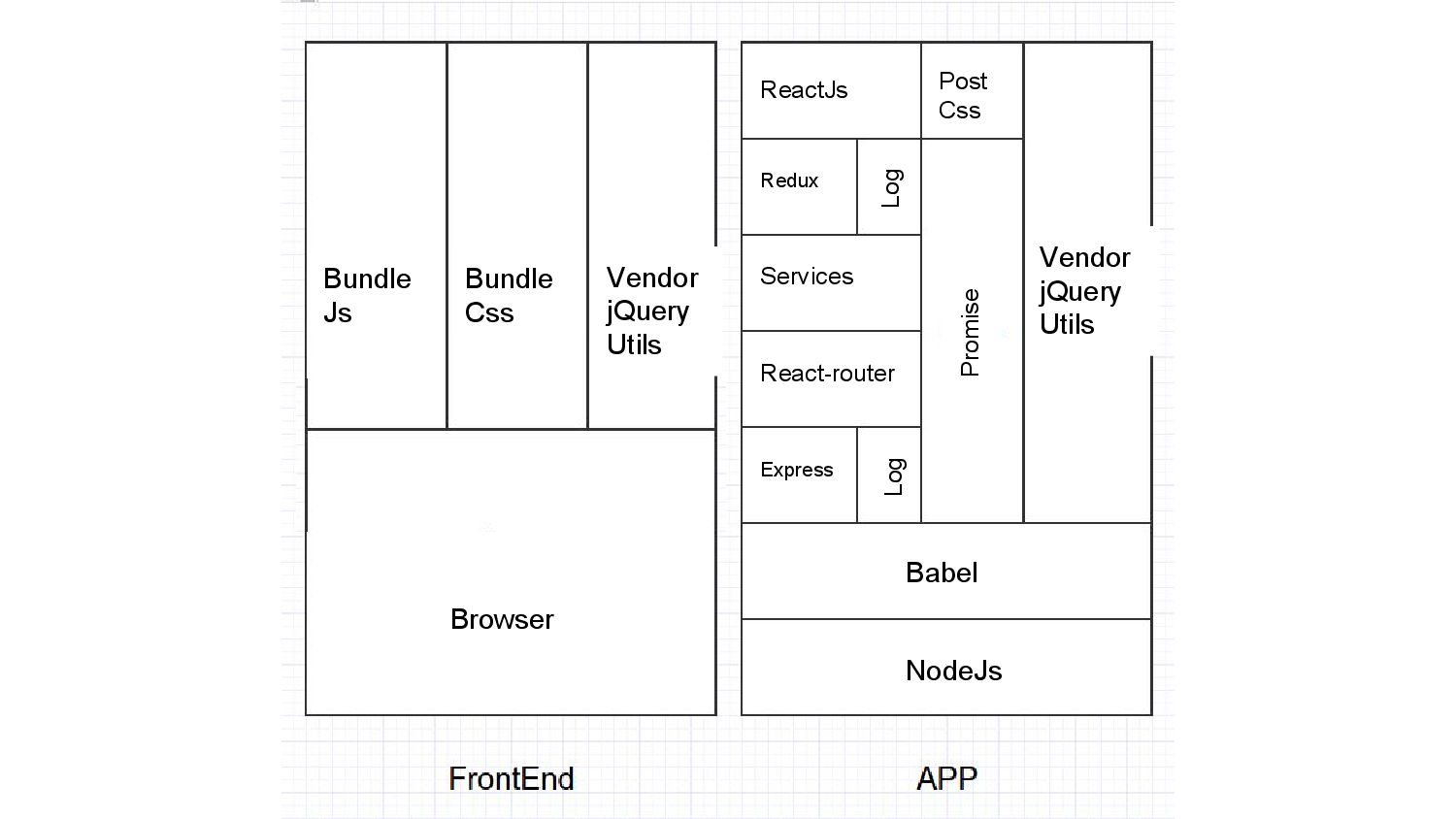

程式架構

Software Architecture

Overview

• Express Server
• Isomorphic rendering
• Babel6 for ES6 & ES2015
• React - Redux
• React-router for routing
• Webpack for bundling
• Editing hot-reload
• Only one node server process
• Css modules for local css
• Json-LD for meta information

Write once, run anywhere

Learn once, run anywhere

開發環境部屬

Clone repo from git

change to project repo

install

Run Client ( for develope)

Build ( only for production )

$npm install

$npm run dev

$npm run build

$cd redux-startkit

https://github.com/rexhome7326/redux-startkit

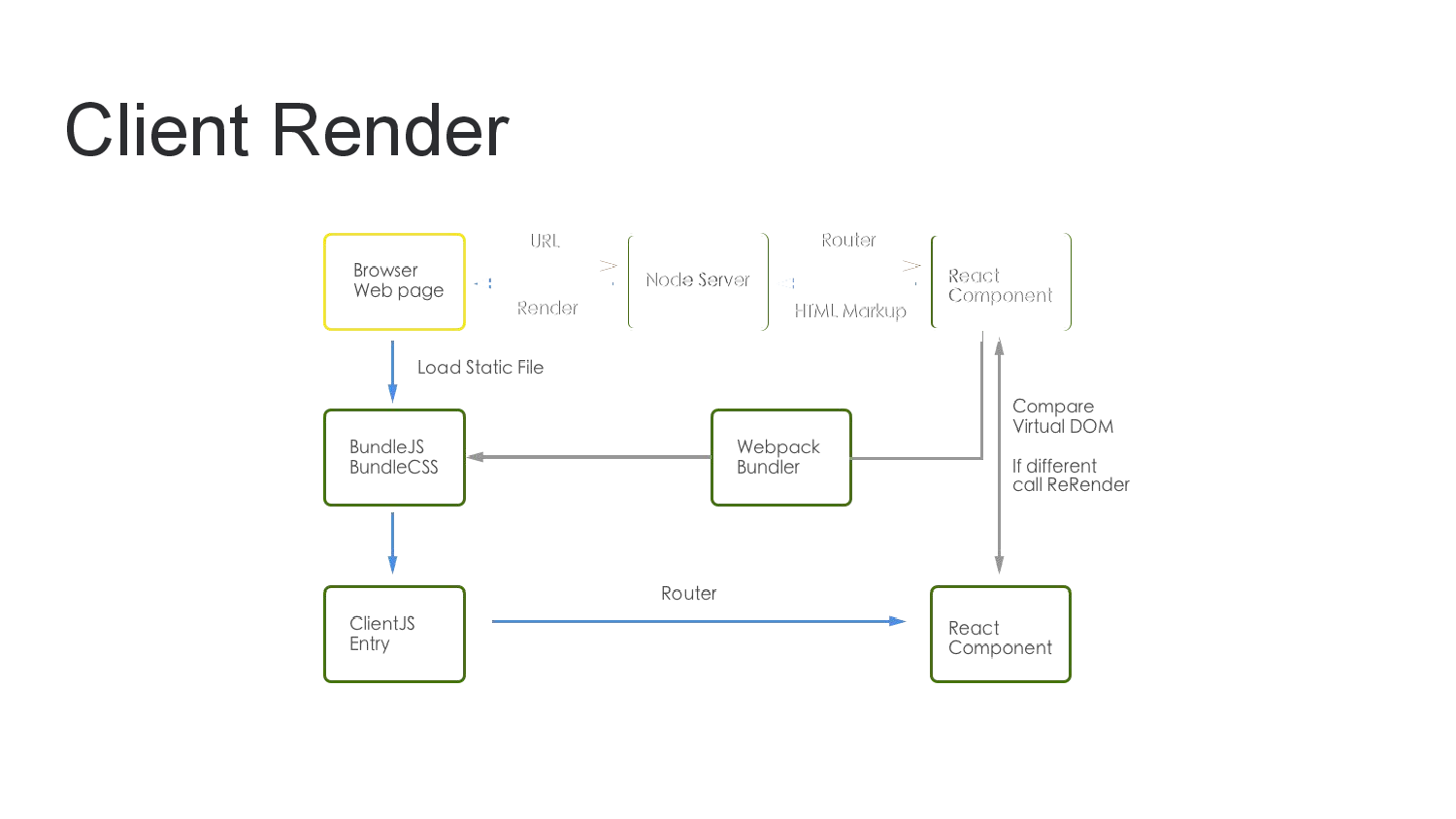

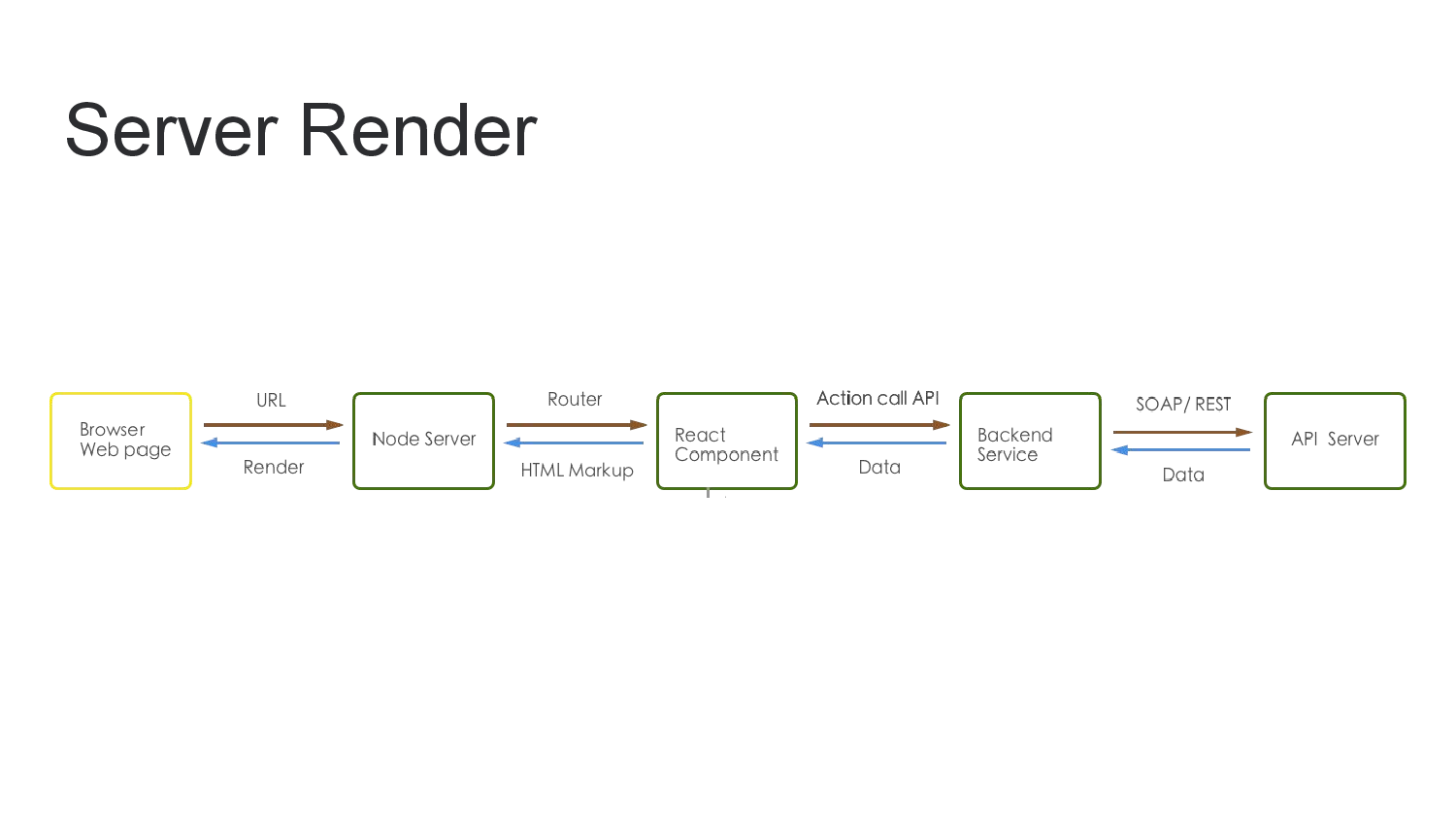

Server Flow

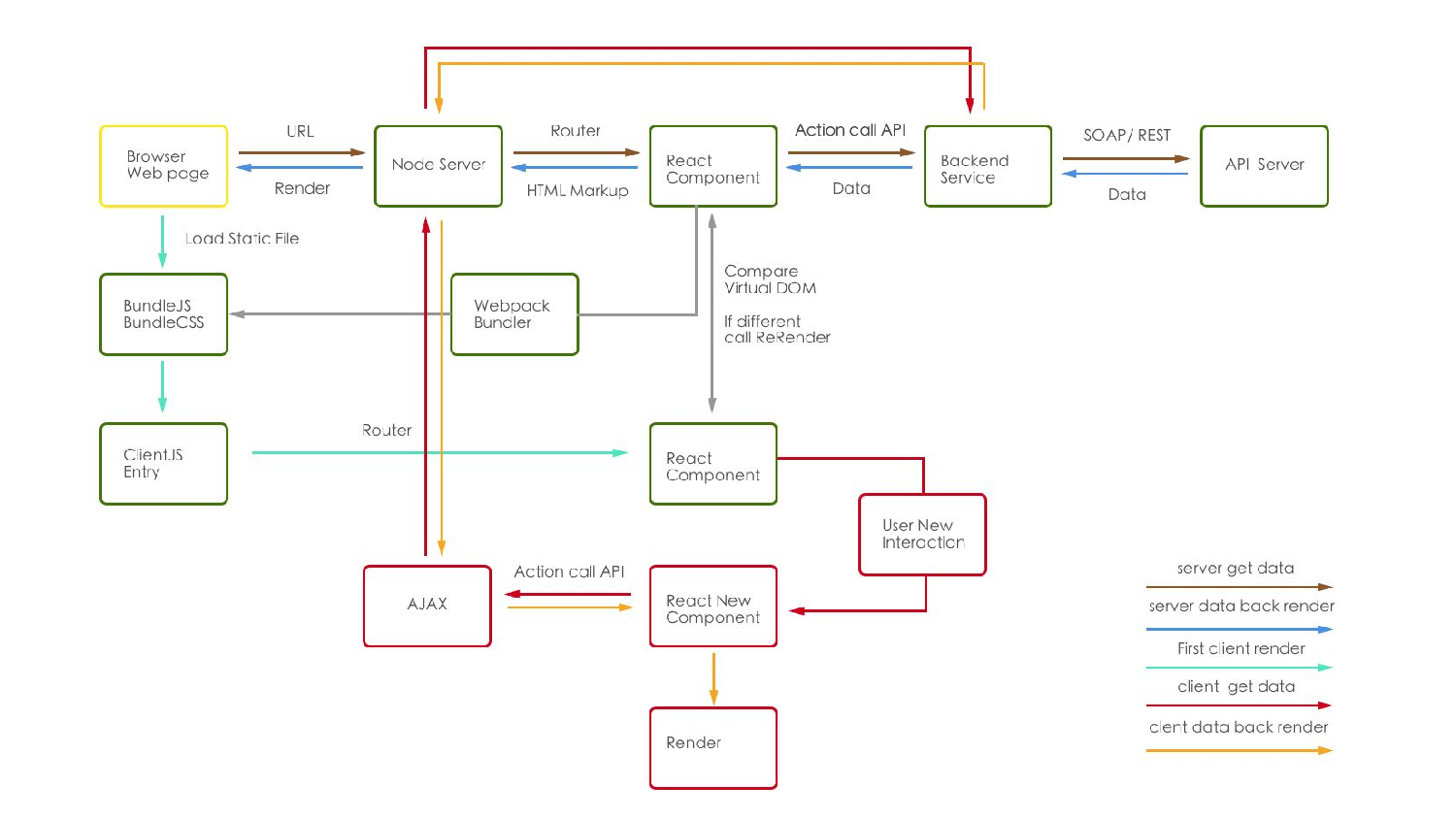

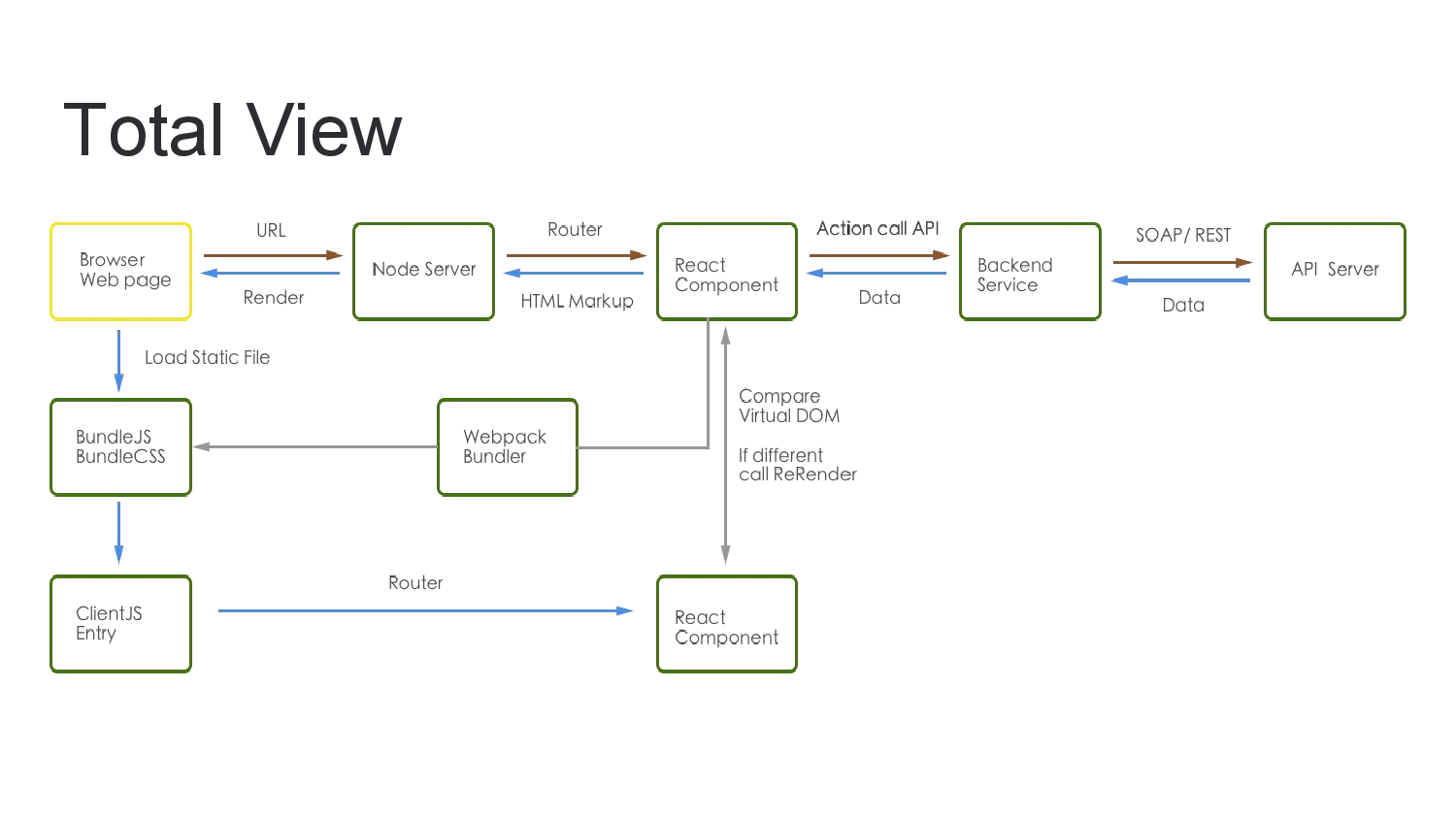

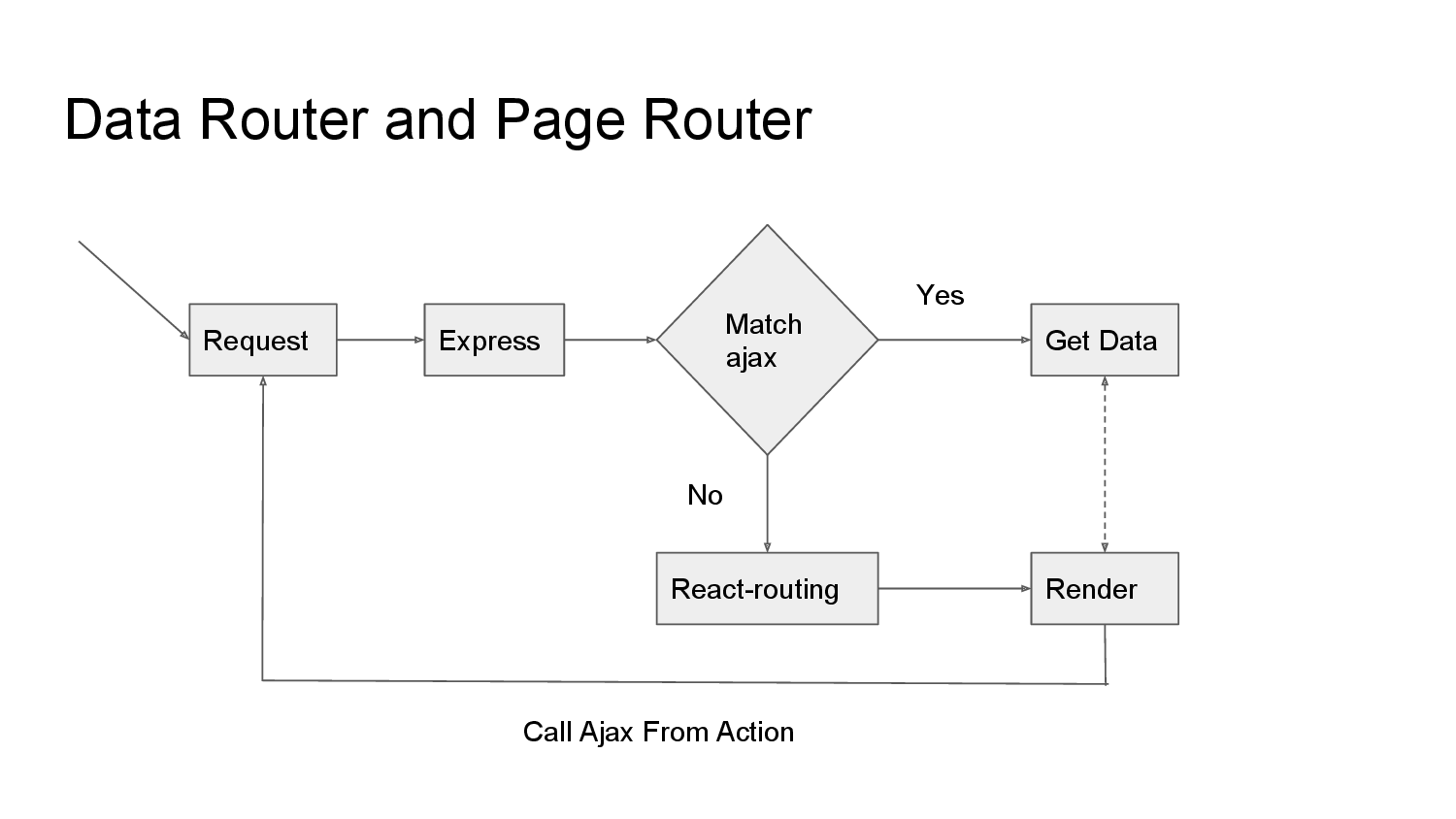

Total Data Flow

Router

React-router

  <Router>
    <Route path="/" component={App}>
      {/* Show the dashboard at / */}
      <IndexRoute component={Dashboard} />
      <Route path="about" component={About} />
      <Route path="inbox" component={Inbox}>
        <Route path="messages/:id" component={Message} />
      </Route>
    </Route>
  </Router>

Basic use

Usage Document

History-npm

HTML5 history API

• createHashHistory
• createBrowserHistory
• createMemoryHistory ( only for test )

• push(location)
• replace(location)
• go(n)
• goBack()
• goForward()

History method

this.props.history.method()

import createBrowserHistory from 'history/lib/createBrowserHistory';

const history = createBrowserHistory();

<Router history={history}>
    <Route path="/" component={App}>
    </Route>
</Router>

Using History

Need DOM node =>

• Only use on client
• ComponentDidMount

app.use((req, res, next) => {
    let history = createMemoryHistory();
    let routes = pageRoutes(history);
    let location = createLocation(req.url);
    match({ routes, location }, (error, redirectLocation, renderProps) => {
        if (redirectLocation) {
            res.redirect(301, redirectLocation.pathname + redirectLocation.search)
        } else if (error) {
            res.status(500).send(error.message);
        } else if (renderProps == null) {
            res.status(404).send('Not found');
        } else {
	    res.status(200).send(renderToString(<RouterContext {...renderProps} />))
	}
    });
});

Status routing

CSS Modules

React CSS Resolution

Before..

Traditional CSS：

• css by page  需要引入很多css檔案
• 模組化困難、重用性低
• 上線前需要壓縮的程序
• css命名易衝突 （Global namespace）
• 階層過多降低效率

SASS..

很好很強大..但仍有以下問題

• import file 目錄結構複雜
• 仍然有Global namespace的問題
• 需要另外起compiler且效能低落
• 可怕的巢狀命名，編譯出來的code效能慘烈
• 有很多很好的撰寫規範...可是最後發現沒有人在遵守

CSS in JS

• Component with style
• object syntax
• inline style kill everything
• make CSSer crazy

POSTCSS

POST-processor : just write css

Plugin

• auto-prefixer  自動加上瀏覽器前綴
• cssnext  使用css4等下世代的css語法
• stylelint  幫你找出不好的css寫法
• doiuse   檢查css語法在瀏覽器上的支援度
• CSS Modules

Plugins :

Local CSS

假如我們今天要有一個button擁有四種狀態

而在不同的頁面又有不同的顏色的話，CSS該怎麼寫呢？

In SCSS

.button{
    //button 共用屬性
    &.button-special {
        //button-special 共用屬性
        &.normal { ... }
        &.disabled { ... }
        &.touched { ... }
    }
    &.button-normal {
        //button-normal 共用屬性
        &.disabled { ... }
    }
}

.PageA{
    .button { ... }
    .button-special { ... }
    .button-normal { ... }
}
.PageB{
    .button { ... }
    .button-special { ... }
    .button-normal { ... }
}

button.scss

page.scss

CSS modules

.button{
    //button 共用屬性
}
.normal { ... }
.disabled { ... }
.touched { ... }

button.css

//依據使用者行為切換state狀態
return(
    <button styleName="button
                     { this.state.buttonState }">
    </button>
)

button.jsx

MIXIN/EXTEND?

Using compose

.common { /* font-sizes, padding, border-radius */ }
.normal { composes: common; /* blue color, light blue background */ }
.error { composes: common; /* red color, light red background */ }

.components_submit_button__common__abc5436 { /* font-sizes, padding, border-radius */ }
.components_submit_button__normal__def6547 { /* blue color, light blue background */ }
.components_submit_button__error__1638bcd { /* red color, light red background */ }

Benefit

• Local NameSpace
• Component with Style, no interrupt
• No fxxking slow Compiler
• Less CSS rule to follow
• Class naming is very easy

BUT....

Thinking

In

CSSModules Way

Is

REALLY HARD

SO....

• Re-structuring your old css code
• Have good web component thinking
• separate CSS into Global and Local

• ASK PARTNER
• CODE REVIEW

Usage

Install

{
    test: /\.css$/,
    loader: "style-loader!css-loader?modules&localIdentName=[name]__[local]___[hash:base64:5]",
    include: __dirname
}

Loader

npm install style-loader --save-dev
npm install css-loader --save-dev
npm install react-css-modules --save-dev
npm install css-module-require-hook --save-dev

Require-hook ( for isomorphic )

import CSSModules from 'react-css-modules';

export default connect(mapStateToProps, { loadDemo })(CSSModules(Demo,style));

Composed component

( using styleName syntax )

hook({
    generateScopedName: '[name]__[local]___[hash:base64:5]',
});

We commend :

Using  <className="name"> for Global CSS

Using <styleName="name"> for LOCAL CSS
