Pato Vargas

Software Engineer @ThisDot

pato_codes

devpato

Enterprise Angular App

Type

E-V-E-R-Y T-H-I-N-G

pato_codes

Typescript Entities

classes
enums
interfaces (and types)

pato_codes

NEVER USE ANY

tasks$: Observable<Task[]>;

tasks$: any;

tasks$: Observable<any[]>;

DO IT

DON'T IT

pato_codes

Angular Entities

modules, components, directives, services, pipes, and guards

SearchComponent we want to its files search.component.ts, search.component.html and search.component.scss

You can achieve this by using the Angular CLI

pato_codes

Feature Modules

pato_codes

Shared Code

2 kinds

App Shared Code

Projects Shared Code

pato_codes

App Shared Code

pato_codes

Projects Shared Code

NPM Enterprise Registry

pato_codes

Wait what!!

pato_codes

Libraries, Monorepos and Microfrontends

pato_codes

Angular Libraries

Where search-lib is the name of your library

ng generate library search-lib

pato_codes

Angular Libraries

PROS

We need to think and build these modules with reusability in mind.

Publish and share these libraries with other teams or projects.

pato_codes

Angular Libraries

CONS

Link your library to your main project and rebuild it for every change.

You will need to keep syncing your project with the latest version of the library.

pato_codes

Angular Monorepos

Monorepos are a source control pattern where essentially all the codebase lives in the same repository. All projects will always use the latest version of the code.

What is a Monorepo?

pato_codes

Angular Monorepos

Same library version for every app.

Ease of maintenance: when you update a shared library, you update it for all apps.

No conflicts between versions.

PROS

Angular Microservices

microfrontend allows large applications to be split into smaller apps in their own codebase, maybe using a totally different stack, that can be composed. For example, your search component could be written in Angular and the rest of the app in Polymer and React.

pato_codes

Where should I build my libraries?

All developers of a company are set to work on the same main project, no matter how large, use a monorepo.

If developers are set to work on different projects, teams, locations, and codebases, you may want to build each library in their own repository.

Be careful when using libraries

Every shared lib needs to have its own CI/CD pipeline.

Each CI/CD pipeline should handle versioning of changes.

Every time a new change happens in a shared repo, you need to go to all your projects using this library and update their npm packages.

There can be mismatches with different npm packages for angular projects.

In general, harder to do a cross-cutting change across multiple apps and libs as these are all in their own repository.

pato_codes

Tool for Enterprise

pato_codes

Getting started with Nx

npm install -g @nrwl/schematics

npx create-nx-workspace@latest thisdot

Install Nx globally

Create a Nx Workspace

pato_codes

Create an Nx Workspace

? What to create in the new workspace (Use arrow keys)
❯ empty             [an empty workspace]
  web components    [a workspace with a single app built using web components]
  angular           [a workspace with a single Angular application]
  angular-nest      [a workspace with a full stack application (Angular + Nest)]

  react             [a workspace with a single React application]
  react-express     [a workspace with a full stack application (React + Express)

pato_codes

Create a Nx Workspace

? What to create in the new workspace empty             [an empty workspace]
? CLI to power the Nx workspace       (Use arrow keys)
❯ Nx           [Extensible CLI for JavaScript and TypeScript applications]
  Angular CLI  [Extensible CLI for Angular applications. Recommended for Angular
 projects.]

pato_codes

Nx Workspace structure

Angular apps go here

Libraries used by your Angular apps go here

pato_codes

Creating an App

Add the capability to create Angular applications via:

ng add @nrwl/angular --defaults

Now create your Angular app

ng g @nrwl/angular:application employees

pato_codes

Creating an App

? Which stylesheet format would you like to use?
  CSS
❯ SASS(.scss)  [ http://sass-lang.com   ]
  Stylus(.styl)[ http://stylus-lang.com ]
  LESS         [ http://lesscss.org     ]

? Would you like to configure routing for this application? (y/N) y

pato_codes

Project structure

pato_codes

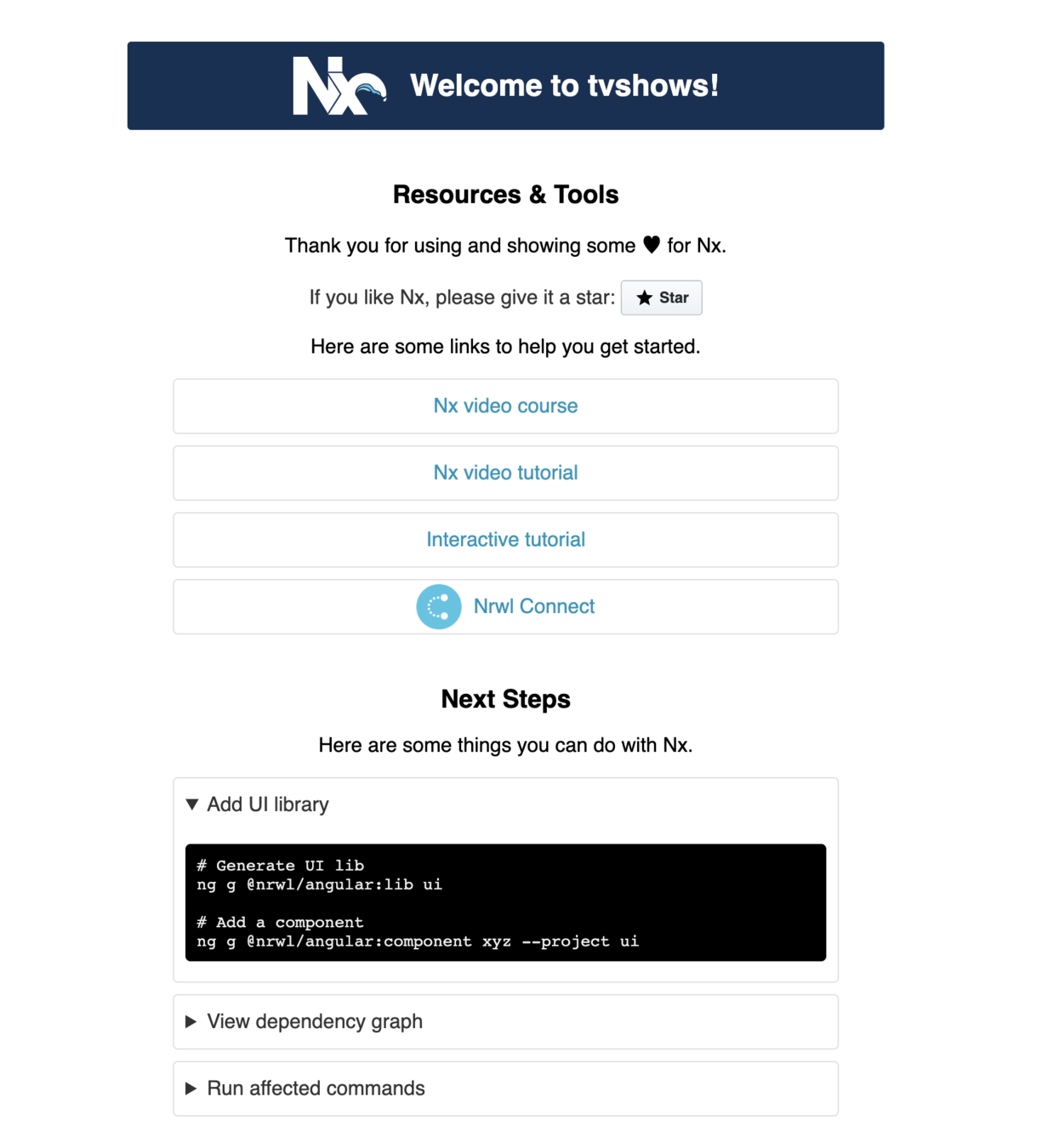

Serve Angular App

ng serve employees

pato_codes

Getting started with Nx

pato_codes

Employee's Interface

In your command line

ng g @nrwl/workspace:lib employee

Go to libs/data/src/lib/employee.ts

export interface Employee {
  id: number;
  name: string;
}

pato_codes

Using our Interface

import { Employee } from '@thisdot/employee';

Note: If you are using VS Code, restart it

pato_codes

Creating a UI Library

ng g @nrwl/angular:lib ui

pato_codes

ui.module.ts

libs/ui/src/lib/ui.module.ts

import { NgModule } from '@angular/core';
import { CommonModule } from '@angular/common';

@NgModule({
  imports: [CommonModule]
})
export class UiModule {}

pato_codes

Component in our Library

ng g component employee-list --project=ui --export

pato_codes

employee-list.component.ts

import { Component, OnInit, Input } from '@angular/core';
import { Employee } from '@thisdot/employee';
@Component({
  selector: 'thisdot-employee-list',
  templateUrl: './employee-list.component.html',
  styleUrls: ['./employee-list.component.scss']
})
export class EmployeeListComponent implements OnInit {
  @Input() employees: Employee[];
  constructor() { }

  ngOnInit() {}

  trackById(employee: Employee) {
    return employee ? employee.id : null;
  }
}

pato_codes

employee-list.component.html

<ul>
  <li *ngFor="let e of employees; trackBy: trackById(e)">{{ e.name }}</li>
</ul>

https://angular.io/api/common/NgForOf

pato_codes

Creating a Service

ng g s employee --project=ui

import { Injectable } from '@angular/core';
import { HttpClient } from '@angular/common/http';
import { Employee } from '@thisdot/employee';
import { Observable } from 'rxjs';

@Injectable({
  providedIn: 'root'
})
export class EmployeeService {
  employees$: Observable<Employee[]>;
  constructor(private http: HttpClient) {
    this.employees$ = this.http.get<Employee[]>(
      'https://my-json-server.typicode.com/devpato/nx-fake-data/employees'
    );
  }
}

pato_codes

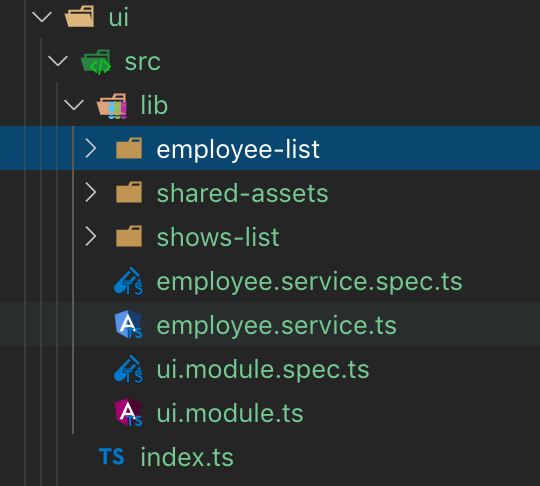

Service file

pato_codes

index.ts file

export * from './lib/ui.module';
export * from './lib/employee.service';

pato_codes

ui.module.ts

import { NgModule } from '@angular/core';
import { CommonModule } from '@angular/common';
import { HttpClientModule } from '@angular/common/http';
import { EmployeeListComponent } from './employee-list/employee-list.component';

@NgModule({
  imports: [CommonModule, HttpClientModule],
  declarations: [EmployeeListComponent],
  exports: [EmployeeListComponent]
})
export class UiModule {}

pato_codes

Time to use

our UI Library

pato_codes

UI Libray

apps/employees/src/app/app.module.ts

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { AppComponent } from './app.component';
import { RouterModule } from '@angular/router';
import { HttpClientModule } from '@angular/common/http';
import { UiModule } from '@thisdot/ui';

@NgModule({
  declarations: [AppComponent],
  imports: [
    UiModule,
    HttpClientModule,
    BrowserModule,
    RouterModule.forRoot([], { initialNavigation: 'enabled' })
  ],
  providers: [],
  bootstrap: [AppComponent]
})
export class AppModule {}

pato_codes

app.component.html

<div class="employees-container">
  <img src="../assets/images/logotdm.png" />
  <h1>Employees</h1>
  <thisdot-employee-list
  [employees]="employeeService.employees$ | async">
  </thisdot-employee-list>
</div>

pato_codes

app.component.ts

import { Component } from '@angular/core';
import { EmployeeService } from '@thisdot/ui';

@Component({
  selector: 'thisdot-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.scss']
})
export class AppComponent {
  constructor(private employeeService: EmployeeService) {}
}

pato_codes

app.component.scss

.employees-container {
  display: flex;
  width: 100%;
  height: 100vh;
  flex-direction: column;
  justify-content: center;
  align-items: center;
  img {
    width: 200px;
  }
}

pato_codes

Share assets

pato_codes

Share assets

"assets": [
             "apps/employees/src/favicon.ico",
              "apps/employees/src/assets",
            {
              "glob": "**/*",
              "input": "./libs/ui/src/lib/shared-assets",
              "output": "./assets"
            }
          ]

pato_codes

RESTAR VS CODE

ng serve employees

pato_codes

Time to test our App!

pato_codes

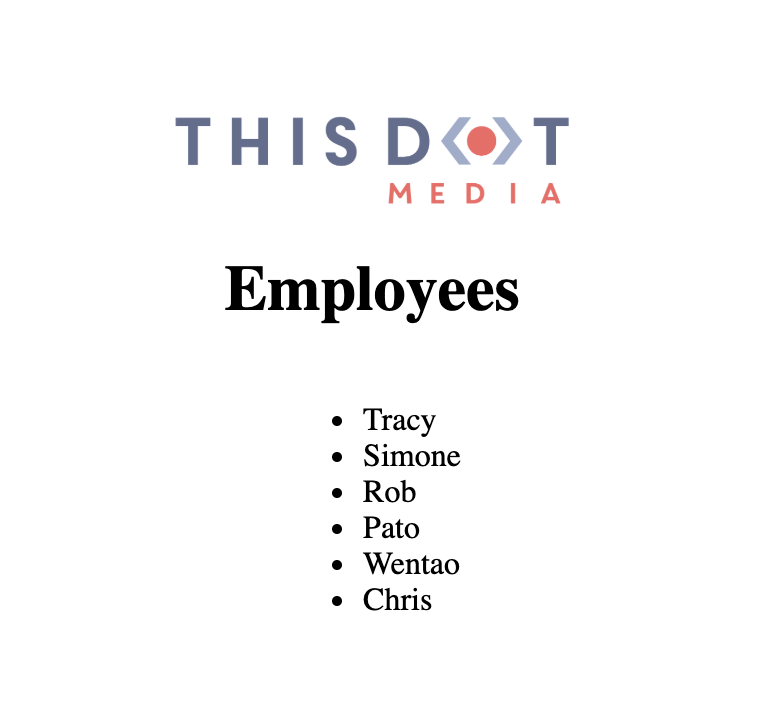

You should see this

pato_codes

RxJS

pato_codes

RxJS

Declarative approach.

Think reactive.

RxJS is your friend.

pato_codes

RxJS Declarative Approach

leverage the power of rxjs observables and operators.

effectively combine streams.

easy share observables.

readily react to user action.

pato_codes

RxJS Declarative Approach

  products$ = this.http.get<Product[]>(this.productsUrl)
    .pipe(
      tap(data => console.log('Products', JSON.stringify(data))),
      catchError(this.handleError)
    );

  // Combine products with categories
  // Map to the revised shape.
  productsWithCategory$ = combineLatest([
    this.products$,
    this.productCategoryService.productCategories$
  ]).pipe(
    map(([products, categories]) =>
      products.map(product => ({
        ...product,
        price: product.price * 1.5,
        category: categories.find(c => product.categoryId === c.id).name,
        searchKey: [product.productName]
      }) as Product)
    ),
    shareReplay(1)
  );

pato_codes

NgRx

pato_codes

Other tools to manage the state

pato_codes

State management

pato_codes

SASS

https://slides.com/patriciovargas/sass/fullscreen

pato_codes

Other things to consider

NGFOR TRACKBY

SUBSCRIBE IN THE VIEW

ONPUSH CHANGE DETECTION

AOT COMPILER

LAZY LAODING

pato_codes

Complete Project

https://github.com/thisdot/angular-enterprise-tutorial

pato_codes

Conclusion

pato_codes

Special Thanks To

-This Dot Labs

-The Nrwl Team for Nx
-FrontEnd Consulting
-Christian Ludman
-Bálint Mérő

pato_codes

Brought to you by

ThisDotMedia

ThisDotLab

Enterprise Angular

By Patricio Vargas

Enterprise Angular

Patricio Vargas

Software Engineer

Pato Vargas

Enterprise Angular App

Type

E-V-E-R-Y T-H-I-N-G

Typescript Entities

NEVER USE ANY

Angular Entities

Feature Modules

Shared Code

App Shared Code

Projects Shared Code

Wait what!!

Libraries, Monorepos and Microfrontends

Angular Libraries

Angular Libraries

Angular Libraries

Angular Monorepos

Angular Monorepos

Angular Microservices

Where should I build my libraries?

Be careful when using libraries

Tool for Enterprise

Getting started with Nx

Create an Nx Workspace

Create a Nx Workspace

Nx Workspace structure

Creating an App

Creating an App

Project structure

Serve Angular App

Getting started with Nx

Employee's Interface

Using our Interface

Creating a UI Library

ui.module.ts

Component in our Library

employee-list.component.ts

employee-list.component.html

Creating a Service

Service file

index.ts file

ui.module.ts

Time to use

our UI Library

UI Libray

app.component.html

app.component.ts

app.component.scss

Share assets

Share assets

RESTAR VS CODE

Time to test our App!

You should see this

RxJS

RxJS

RxJS Declarative Approach

RxJS Declarative Approach

NgRx

Other tools to manage the state

State management

SASS

Other things to consider

NGFOR TRACKBY

SUBSCRIBE IN THE VIEW

ONPUSH CHANGE DETECTION

AOT COMPILER

LAZY LAODING

Complete Project

Conclusion

Special Thanks To

Brought to you by

Enterprise Angular

More from Patricio Vargas
