History

The malware that started the botnet ball rolling; Sub7 and Pretty Park – a Trojan and a Worm respectively. They both introduced the concept of the victim machine connecting to an IRC channel to listen for malicious commands.

First up, the emergence of the Global Threat bot, or GTbot, in 2000. GTbot was based on the mIRC client, which meant that it could run custom scripts in response to IRC

2002 saw a couple of notable evolutions in botnet technology with the release of both SDBot and Agobot. SDBot was a single small binary, written in C++.

Agobot introduced the concept of a modular, staged attack as payloads were delivered sequentially. The initial attack installed a back door, the second attempted to disable antivirus software and the third blocked access to the websites of security vendors; all techniques that should be painfully familiar to anyone that has suffered from malware in the recent past.

Agobot

Spybot in 2003 was an evolution of the earlier SDbot but introduced some important new functionality such as keylogging, data mining, SPIM (Instant Messaging Spam). In the same year we also saw the rise of Rbot which introduced the SOCKS proxy, and included DDoS functionality and information stealing tools. Rbot was also the first family of bots to use compression and encryption algorithms to try to evade detection. 2003 also saw the first manifestation of a peer-to-peer botnet by the name of Sinit, later on Agobot modules were developed to incorporate this peer-to-peer functionality. The following year another Agobot derivative, known as Polybot introduced polymorphism to try to evade detection by changing its appearance as often as possible.

Steadily botnets migrated away from the original IRC Command & Control channel, this port is seldom opened through firewalls and the protocol is easily identified in network traffic. Instead bots began to communicate over HTTP, ICMP and SSL ports, often using custom protocols.

Bobax and Mytobchanged all that for good. Bagle and Bobax were the first spamming botnets and the malware Mytob was essentially a blend of an earlier mass mailing worm MyDoomand SDbot. This enabled criminals to build large botnets and distribute their spamming activities across all their victim PCs,

RuStock dates back to 2006 as does the now infamous ZeuScrimeware family. RuStock was another spamming botnet and ZeuS is an information stealing tool. Since that year ZeuS has probably become the most widely used information stealing criminal tool out there. The creator of ZeuS, has regularly updated, beta tested and released new versions of the toolkit, all the while adding or improving functionality

2007 saw the birth of the famous Stormbotnet along with Cutwail and Srizbi. The following year, Asprox appeared on the scene; and remember, these are just a few of the thousands of botnets out there. Right now, the Shadowserver Foundationis tracking almost 6000 unique command and control servers and even that figure does not represent all the botnets out there.

Centralized Command & Control (C&C) Technique

This C&C technique uses a central high bandwidth host called C&C server to forward messages between various bots. The C&C server in a botnet is a compromised computer that runs certain network services like IRC, HTTP, etc and which rallies the commands issued by the botmaster to each host in the botnet that join the C&C server channel.

The centralized C&C is most predominant C&C technique
and many bots including AgoBot, RBot, SDBot, SpamThru and Zotob use this C&C technique.

The only drawback of centralized C&C technique is that

once the central location is discovered, the entire botnet can be easily neutralized.

Command & control topology

1. Star

2. Multi-server

3. Hierarchical

4. Random

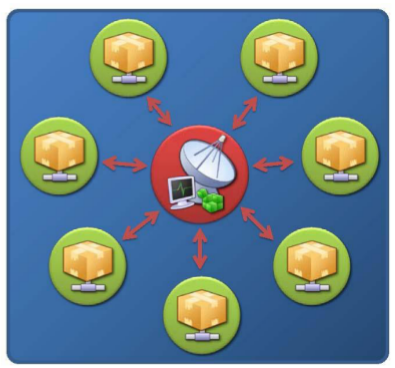

Star Topology

The Star topology relies upon a single centralized C&C resource to communicate with all bot agents. Each bot agent is issued new instructions directly from the central C&C point.

When a bot agent successfully breaches a victim computer, it is normally pre configured to “phone home” to thiscentral C&C, whereupon it registers itself as a botnet member and awaits new instructions.

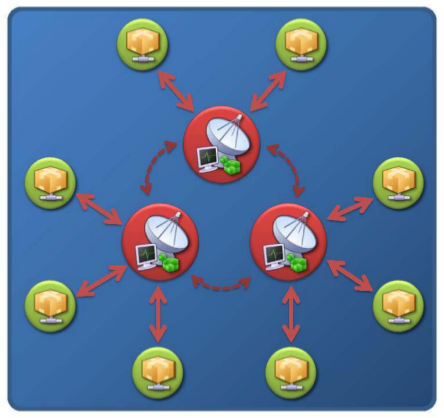

Multi-Server Topology

Multi-server C&C topology is a logical extension of the Star topology, in which multiple servers are used to provide C&C instructions to bot agents. These multiple command systems communicate amongst each other as they manage the botnet. Should an individual sever fail or be permanently removed, commands from the remaining servers maintain control of the botnet.

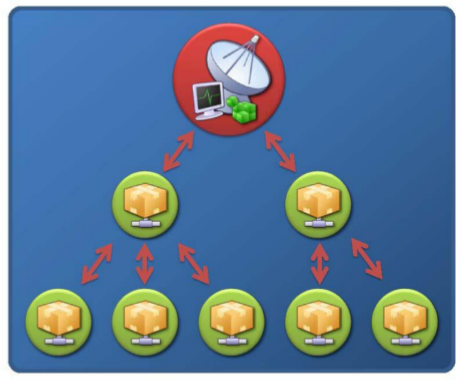

Hierarchical Topology

A Hierarchical topology reflects the dynamics of the methods used in the compromise and subsequent propagation of
the bot agents themselves. Bot agents have the ability to proxy new C&C instructions to previously propagated progeny agents. However, updated command instructions typically suffer latency issues making it difficult for a botnet operator to use the botnet for real-time activities.

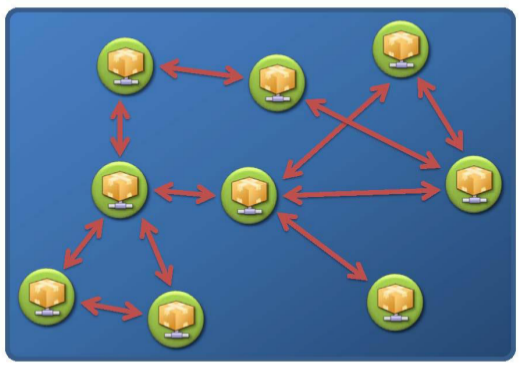

Random Topology

Botnets with a Random topology (i.e., a dynamic master-slave or peer-to-peer relationship) have no centralized C&C infrastructure. Instead, commands are injected in to the botnet via any bot agent. These commands are often “signed” as authoritative, which tells the agent to automatically propagate the commands to all other agents.

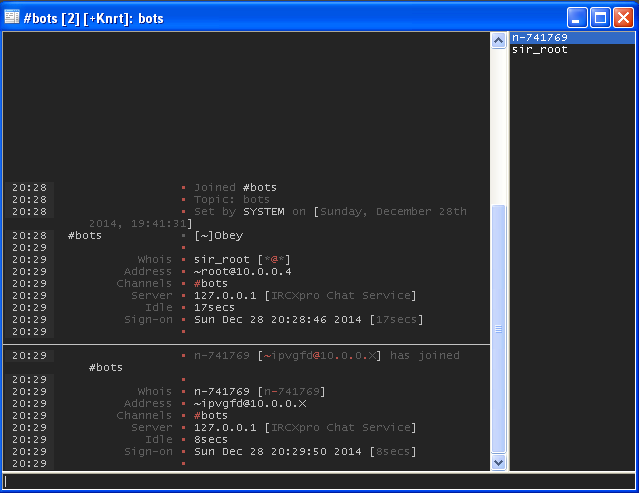

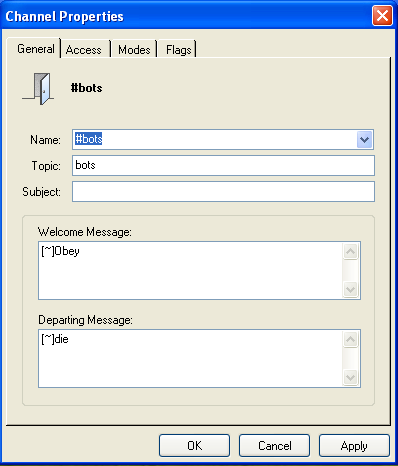

Channel #bots created

Botherder conencting as admin
to the channel using mIRC

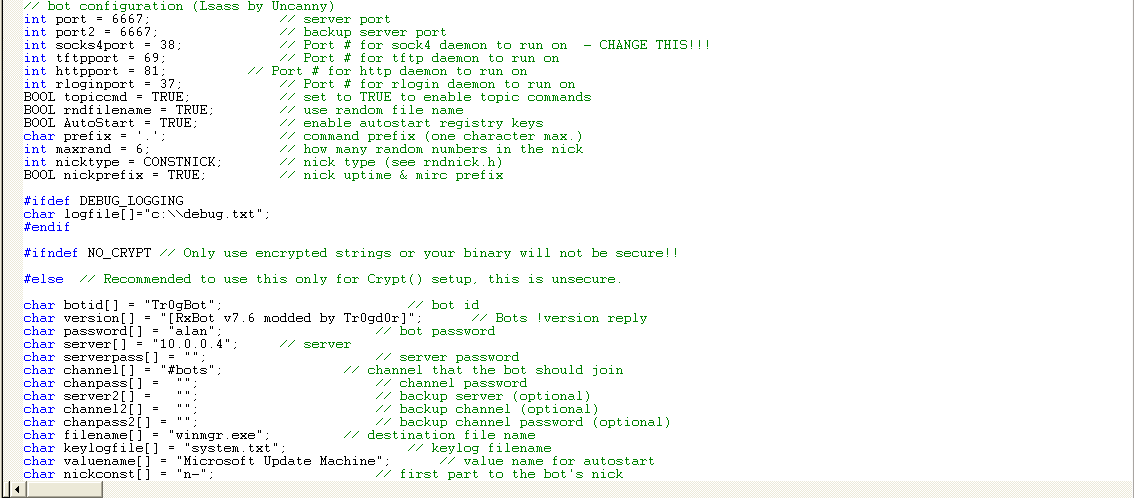

Configuring the Bot


Compiling the Bot
Spreading it

After the Victim Executes it

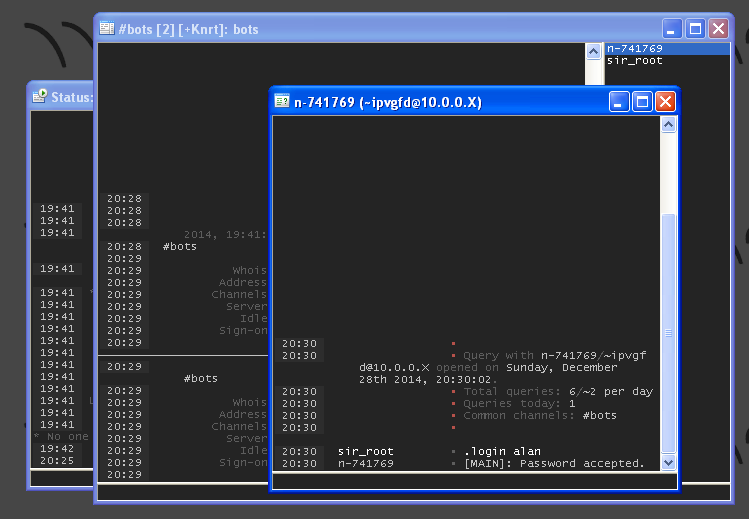

Loging into the connected bot

Some Basic Functions

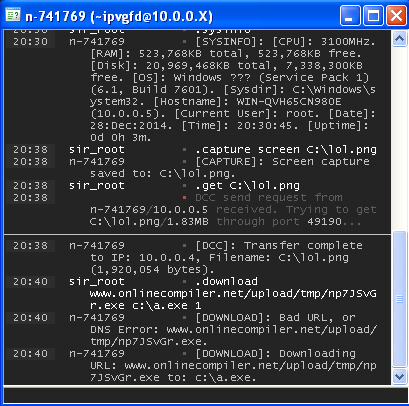

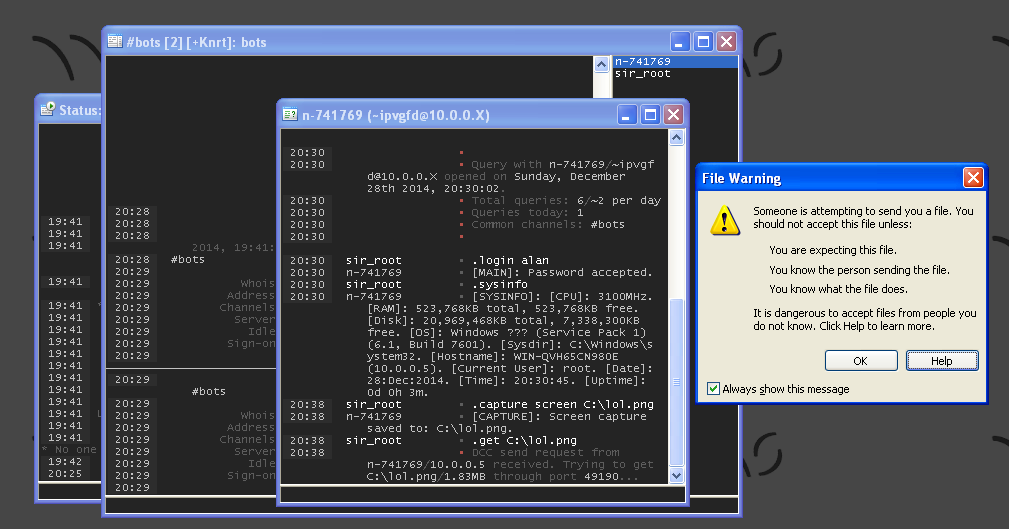

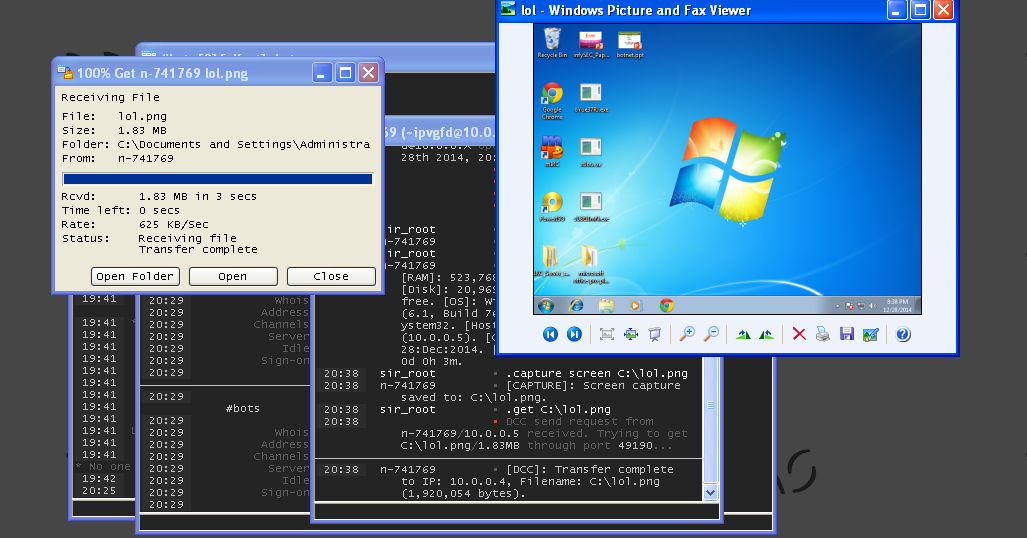

Screen shot

Downloading & Executing a file

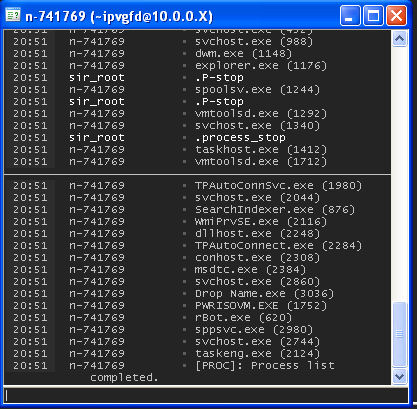

Listing Running Process
