Serverless Architectures

A Practical Introduction - Dan Lindeman

                                            @lindemda

<-You

Code goes ->

Who am I?

Real serverless apps!

  • The Lady of the Lake

  • Search Backends

  • AirBnB-like Backend

  • Data Ingestion Pipelines

Charter

  • Motivations
  • Traditional
  • Serverless
  • Tradeoffs

Definition of Terms

  • serverless vs. Serverless™
  • Thing or Service -> AWS

One Constant

A natural evolution

You're also "Lightly Op'd"

I don't know

I don't know

I don't know

I don't know

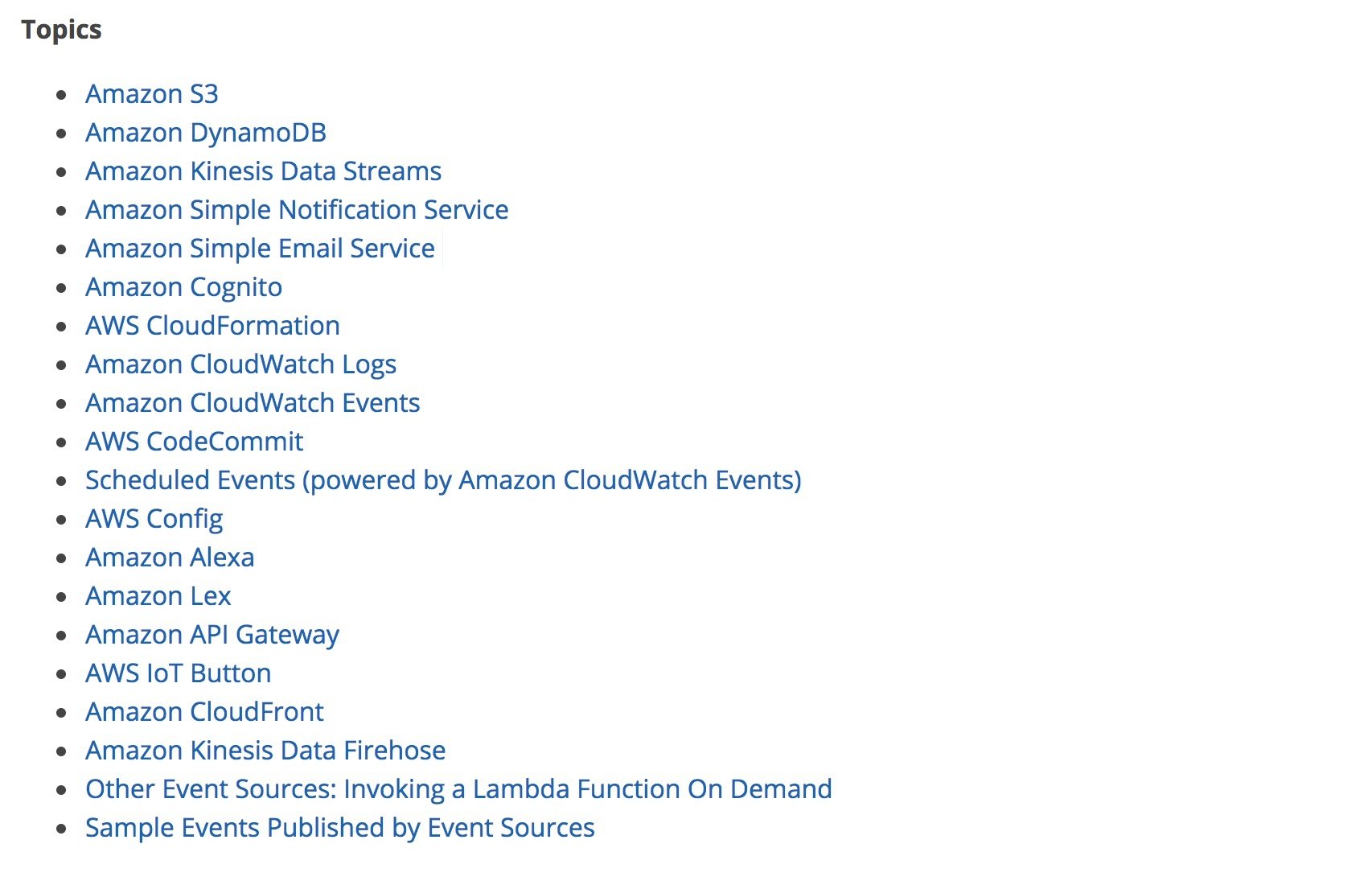

https://docs.aws.amazon.com/lambda/latest/dg/invoking-lambda-function.html

are we making so many

Main Event

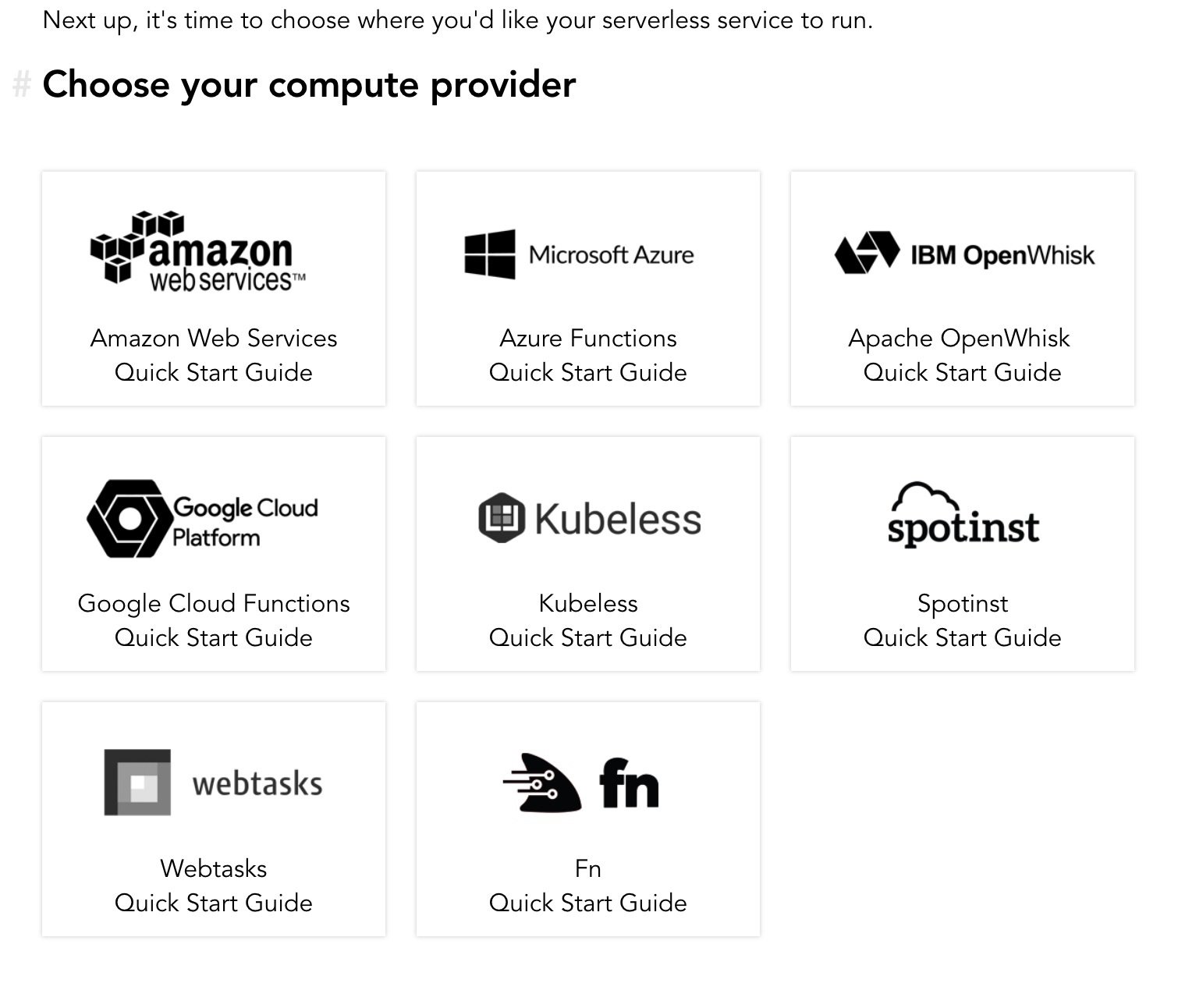

Meet Serverless™

https://serverless.com/framework/docs/getting-started/

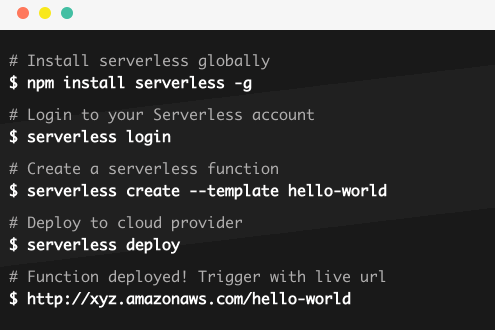

The Promise

A note about vendor lock-in

  • Lambda is hardly to blame
  • Dynamo, SNS, and S3 are.

Two Scoops of Django Flask

Our favorites

data = {
    "dan": "mint chocolate chip",
    "bill": "mint chocolate chip",
    "marija": "mint chocolate chip",
    "liz": "pistachio",
    "shane": "rocky road",
    "andy": "cookie dough",
    "cedric": "cookie dough",
    "eileen": "cookie dough",
}

API

  GET /team

    {
        "andy": "cookie dough",
        "bill": "mint chocolate chip",
        "cedric": "cookie dough",
        "dan": "mint chocolate chip",
        "eileen": "cookie dough",
        "liz": "pistachio",
        "marija": "mint chocolate chip",
        "shane": "rocky road"
    }



   GET /ice-cream/<person>

    {"cookie dough"}

@app.route("/team/")
@jwt_required
def team():
    ...


@app.route("/ice-cream/<person>")
@jwt_required
def lookup(person):
    ...


def authenticate(username, password):
    ...

def identity(payload):
    ...

app = Flask(__name__)
app.debug = True
app.config['SECRET_KEY'] = 'super-secret'

jwt = JWT(app, authenticate, identity)

Now what?

  • Provision a server?
  • Deploy the code?

Two Scoops of Django Serverless

service: flavorless

provider:
  name: aws
  runtime: python3.6
plugins:
  - serverless-python-requirements
  - serverless-kms-secrets

custom:
  pythonRequirements:
    dockerizePip: non-linux
functions:
  team:
    handler: handler.team
    events:
      - http:
          path: /team
          method: get
@app.route("/team/")
def team():
    ...
  lookup:
    handler: handler.lookup
    events:
      - http:
          path: /ice-cream/{person}
          method: get
          request:
            parameters:
              paths:
                person: true
@app.route("/ice-cream/<person>")
def lookup(person):
    ...
def authenticate(username, password):
def identity(payload):
app = Flask(__name__)

jwt = JWT(app, authenticate, identity)
  authorizer:
    handler: handler.authorize
    environment:
      TOKEN_ISSUER: ...
      AUDIENCE: ...
      JWKS_URI: ...

  lookup:
    handler: handler.lookup
    events:
      - http:
          path: /ice-cream/{person}
          method: get
          request:
            parameters:
              paths:
                person: true
          authorizer:
            name: authorizer
            identityValidationExpression: ^Bearer [-0-9a-zA-z\.]*$
def team(event, context):
    ...


def lookup(event, context):
    ...


def authorize(event, context):
    ...

handler.py

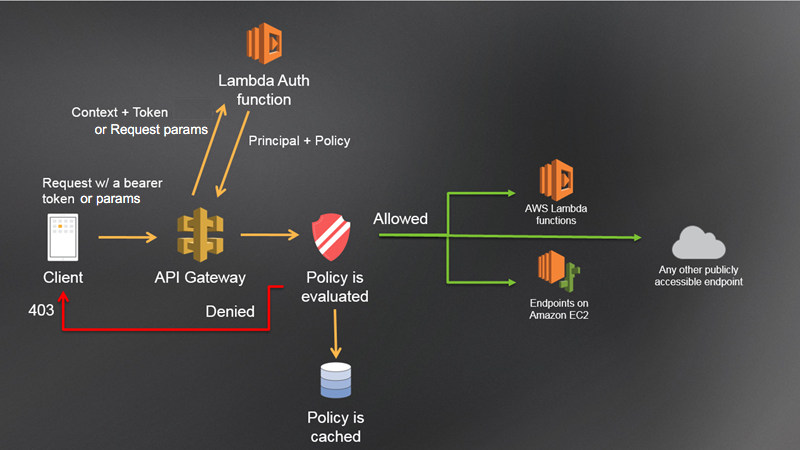

403 Hell

https://docs.aws.amazon.com/apigateway/latest/developerguide/apigateway-use-lambda-authorizer.html

Now what?

  • sls deploy

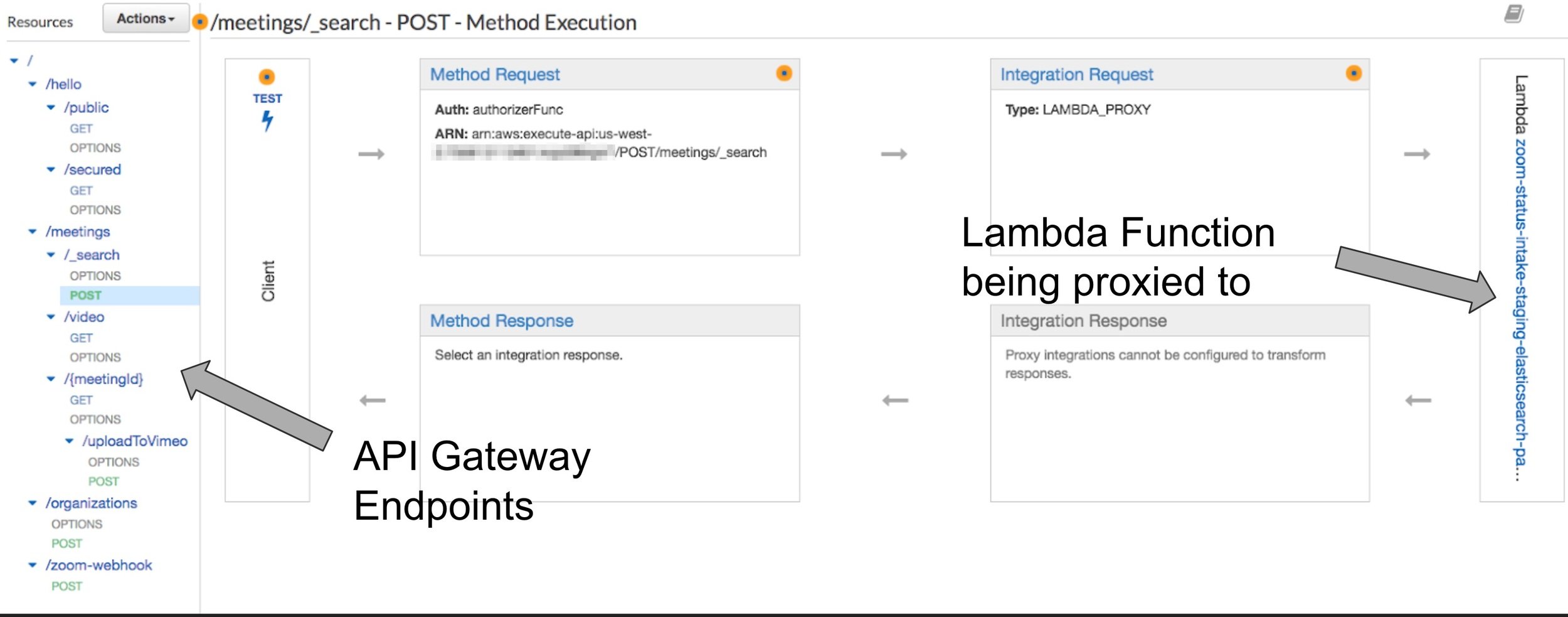

Tour of AWS post-deploy

Logs

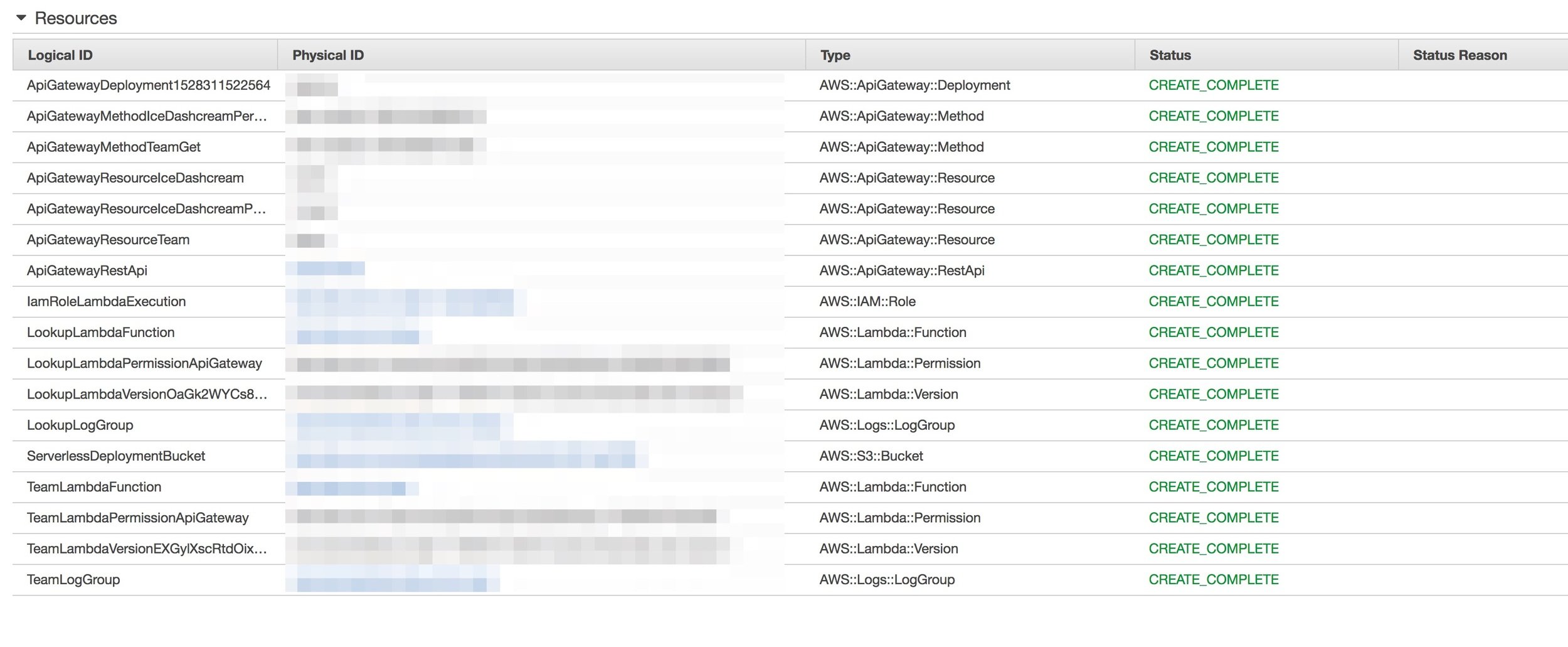

Resources

Side note

What does that get us?

Selfishly

Not-so-great

Never would I ever

https://serverless.com/blog/when-why-not-use-serverless/

Cool highlights and Pro Tips

Service Shoutouts

resources:
  - ${file(../resources/dynamodb.yml)}
  - ${file(../resources/gateway.yml)}

Locally sourced tests

Recap

  • Are there servers?
  • A silver bullet?
  • Reasons to adopt?
    • Functional
    • Non-functional
  • Reasons to not

Getting Started

  • https://serverless-stack.com/
  • https://acloud.guru/

Thank you so very much.
