MISTIQUE: A System to Store and Query Model Intermediates for Model Diagnosis

When we start building a model

Input data

Transform1

Transform2

Transform3

......

TransformN

Result

Model

?

When we start building a model

Input data

Transform1

Transform2

Transform3

......

TransformN

Result

Model

An Iteration

When we try to make a model work

Iteration

Iteration

Iteration

Iteration

......

Iteration

Result

✔️

When we try to make a model work

Iteration

Iteration

Iteration

Iteration

......

Iteration

Result

Time

Time

Time

Time

Time

✔️

Enormous Time

TRAINING!

MODEL'S TRAINING

DATA SCIENTIST

We need model management for diagnosis (to save time)

Current use pattern for model diagnosis

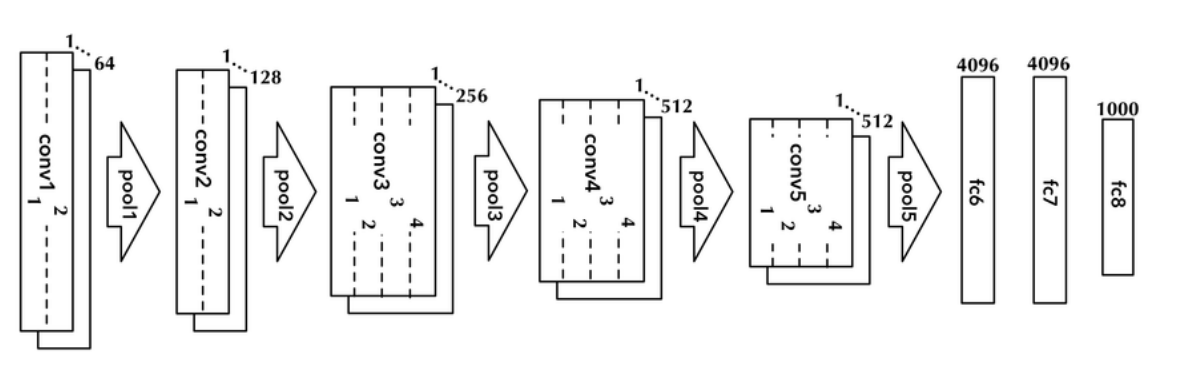

VGG 16 for Image classification

Current use pattern for model diagnosis

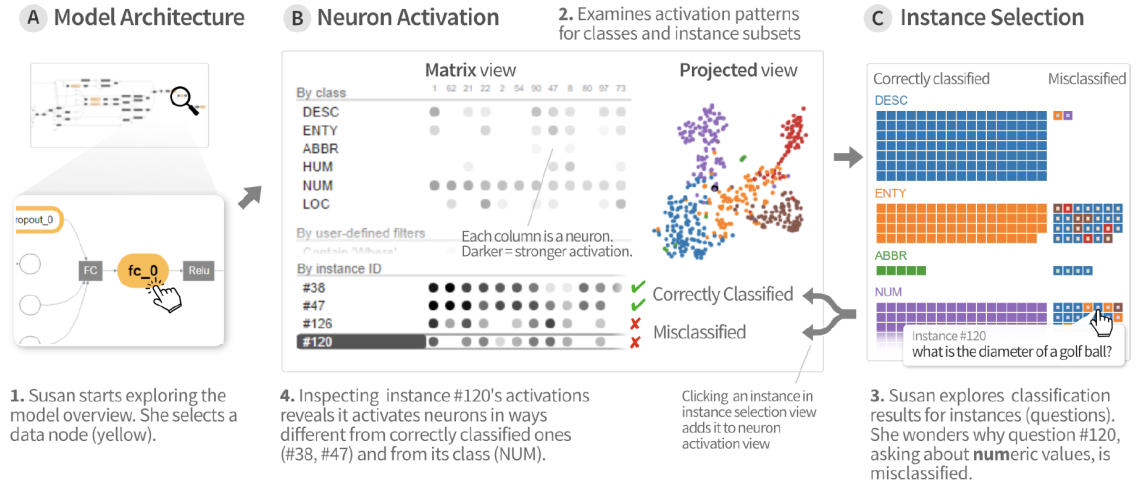

ActiVis: Visualizing activations of an NN

Current use pattern for model diagnosis

Current use pattern for model diagnosis

House price prediction

Current use pattern for model diagnosis

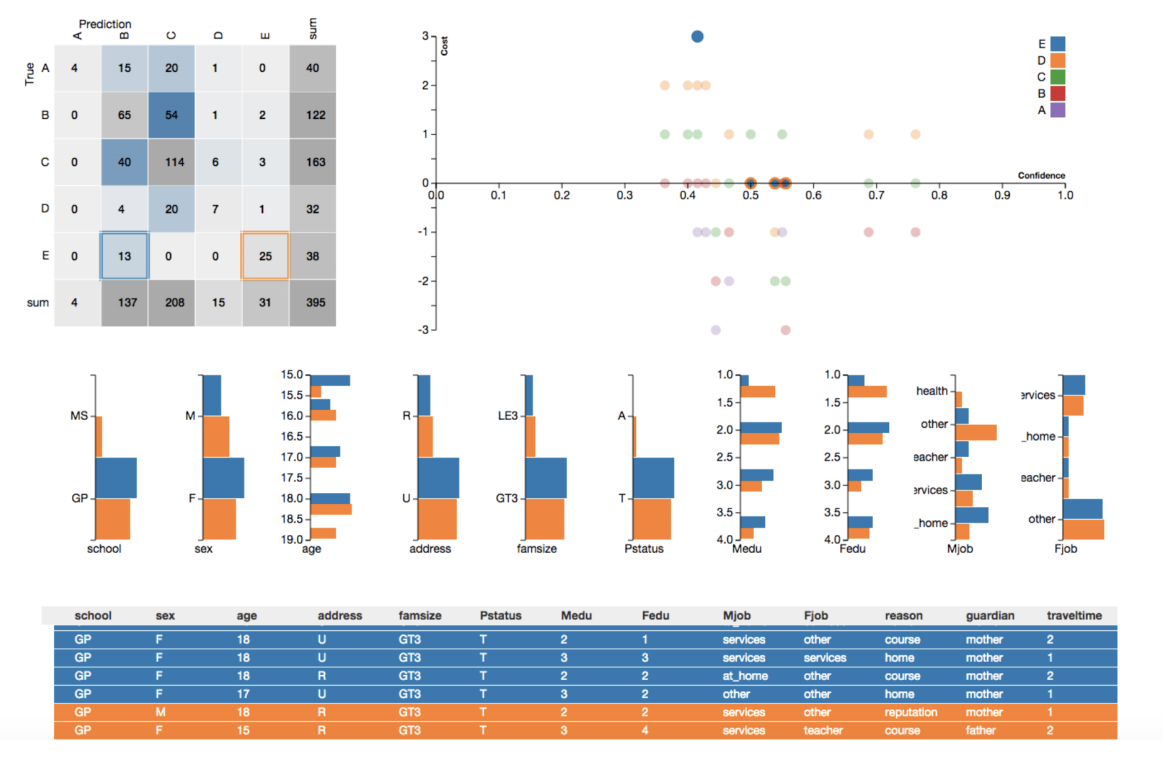

VisML: Visualizing ML Model

Key: Model Intermediates

  • the learned model parameters
  • log files
  • gradient information
  • intermediate datasets produced by different stages of the model

Solution 1: Store everything?

But: storing intermediates for ten variants of the popular VGG16 network on a dataset with 50K examples requires 350GB of compressed storage.

These intermediates could also be generated anew each time, however, this would require running the model >200 times on the full dataset.

Solution 2: Mistique

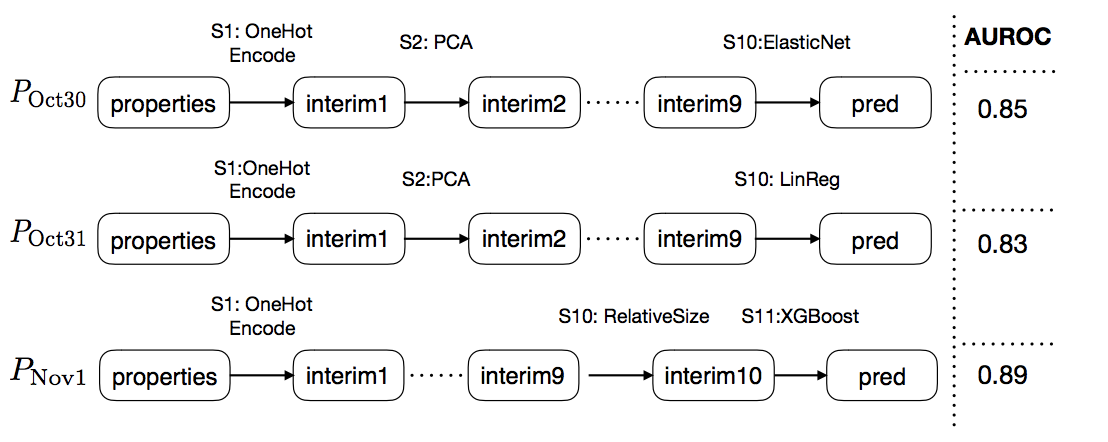

Examples for DNN and traditional ML

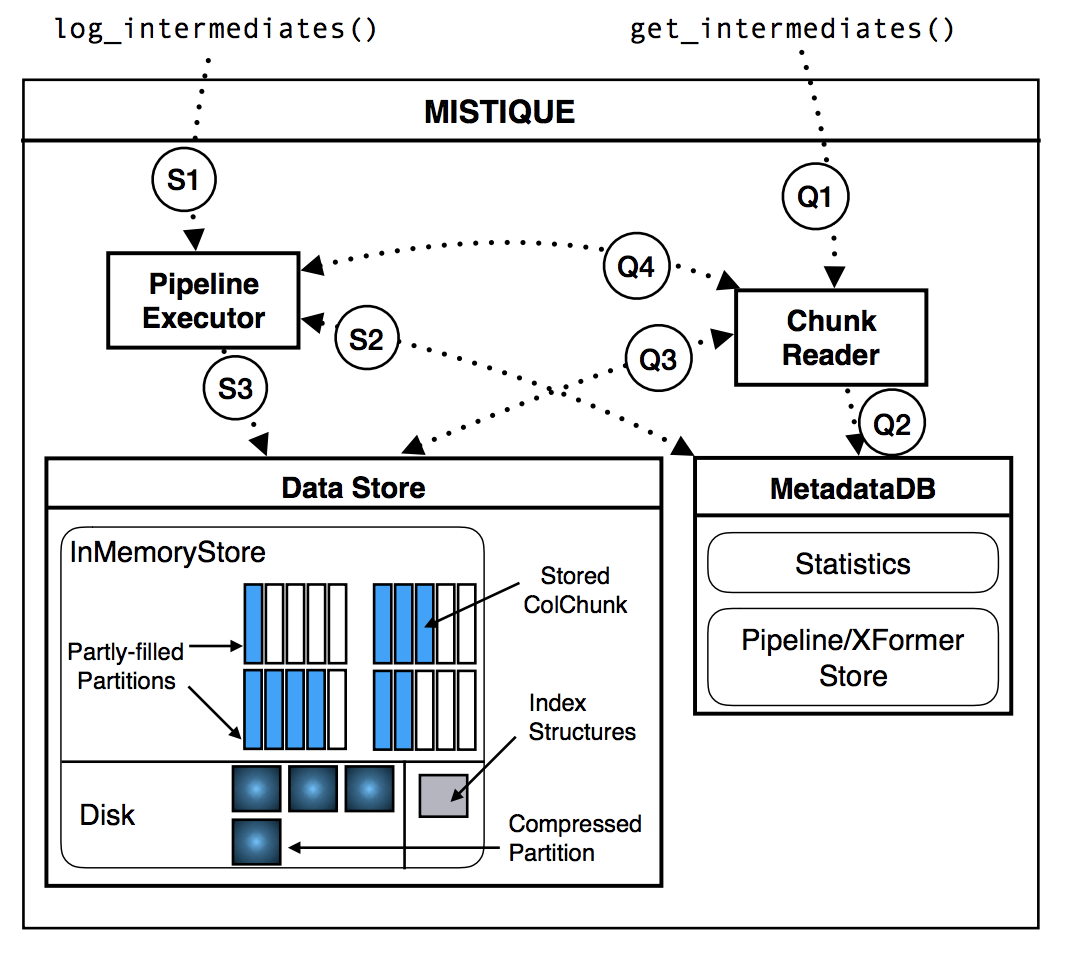

Solution 2: Mistique - System Architecture

  • PipelineExecutor
  • DataStore
  • ChunkReader

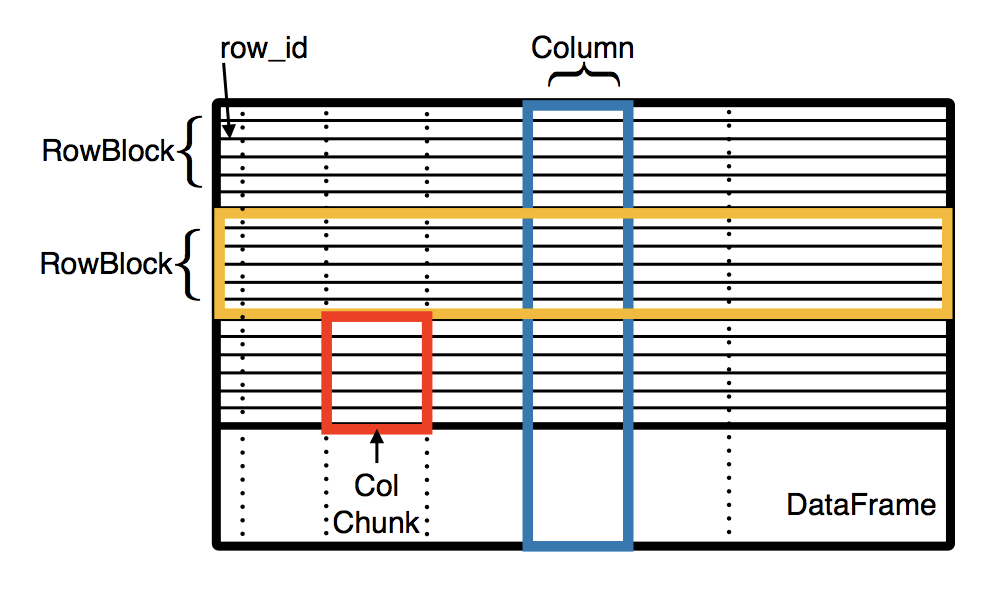

Solution 2: Mistique - DataStore

  • Column based
  • Mem buffered

Solution 2: Mistique - Optimizations

  • Quantization and Summarization
  • Exact and Approximate De-duplication
  • Adaptive Materialization

Quantization and Summarization (NN)

 Observation: only relative values matters

Quantization and Summarization (NN)

 Observation: only relative values matters

  • Lower precision float representation (LP_QT): 2X, 4X reduction
  • k-bit quantization (KBIT_QT): \(o_{bit} \rightarrow b_{bit} \Rightarrow \frac{o}{b}\), \(2^b\) bins

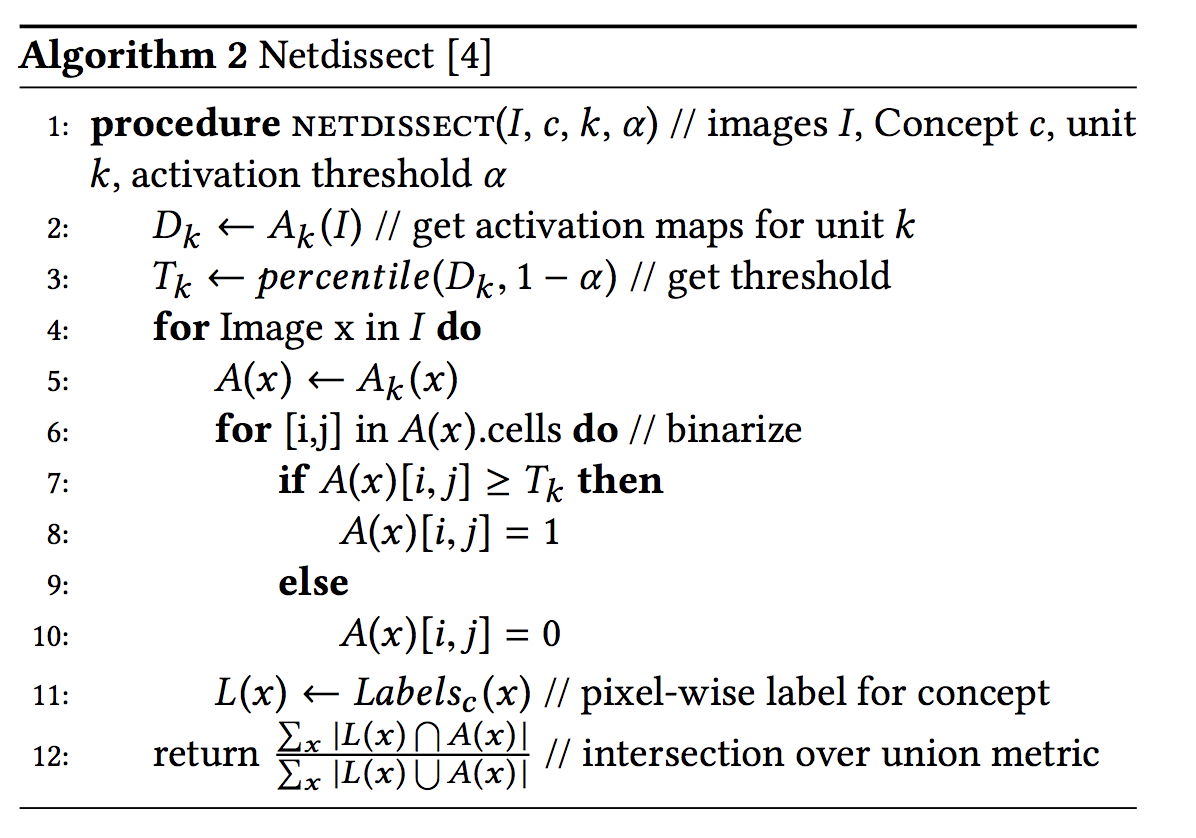

  • Threshold-based quantization(THRESHOLD_QT): just for extreme case (Netdissect)
  • Pooling quantization (POOL_QT): \(S \times S \rightarrow \sigma\times\sigma \Rightarrow \frac{S^2}{\sigma^2}\)

Exact and Approximate De-duplication

 Observation:

  • Intermediates in traditional ML pipelines often have many identical columns
  • TRAD and DNN intermediates often have similar columns

Exact and Approximate De-duplication

  • Identical columns: Hash the ColumnChunk
  • Similar columns: Jaccard similarity over threshold \(\tau\)
  • (DNN): Only Hash and put ColumnChunks from same intermediate into same partition

Adaptive Materialization

Observation:

  • Not all intermediates are visited with same frequency

Adaptive Materialization

Observation: non-uniform frequency

Solution:

  • Trade-off the increase in storage cost (materialization) against recalculating, by comparing the cost \(\gamma\) using a cost function.

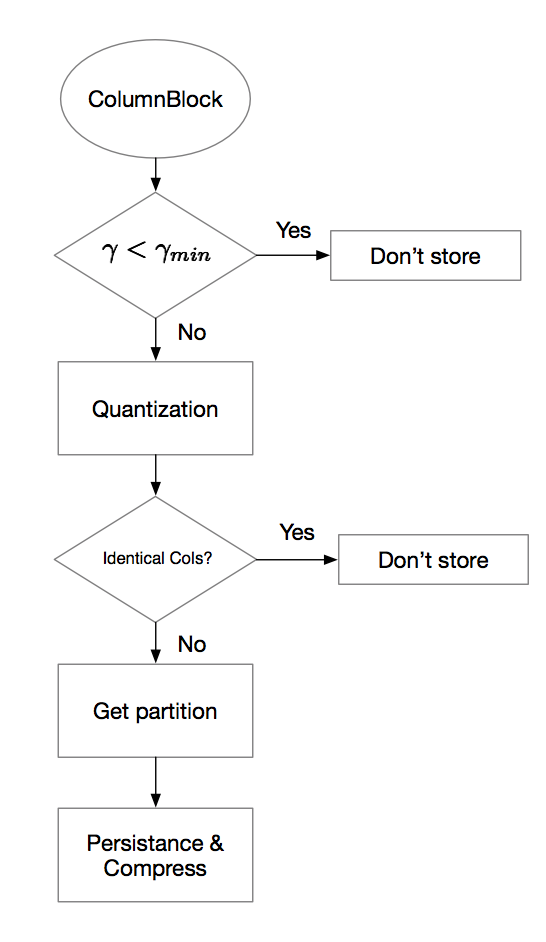

Storage process in a nutshell

Query cost model

\(t_{diag} = t_{fetch} + t_{compute}\)

Time to run a diagnosis

Time to fetch the data, recalculating or from materialization

Time to run the computation

Query cost model

\(t_{diag} = t_{fetch} +\) \(t_{compute}\)

Time to run a diagnosis

Time to fetch the data, recalculating or from materialization

Time to run the computation

SAME

Query cost model

\(t_{i,fetch}\)

\(t_{i,read}\)

\(t_{i,re-run}\)

VS

Query cost model

\(t_{i,fetch}\)

\(t_{i,read}\)

\(t_{i,re-run}\)

VS

\(\sum_{s=0}^i \{t_{read\_xformer}(s) + t_{read\_xformer\_input}(s)+t_{exec\_xformer}(s)\}\)

Query cost model

\(t_{i,fetch}\)

\(t_{i,read}\)

\(t_{i,re-run}\)

VS

\(t_{i,read} = \frac{n_{ex} \cdot sizeof(ex)}{\rho_d}\)

Storage cost model

\(\gamma = \frac{(t_{i,\text{re-run}}-t_{i,read}) \cdot n_{query}(i)}{S(i)}\)

Whether to store the model intermediate?

The unit of \(\gamma\) is sec/GB, indicates the willingness to use storage in exchange of time.

e.g. 0.5 sec/GB means Bob want to use additional 1 GB to save 0.5 second execution time

Experiments

We want to verify:

  • Time speedup
  • Storage gain
  • Quantization effect on accuracy for DNNs
  • Overhead of MISTIQUE vs baseline
  • Adaptive materialization effect on storage and query time

Datasets setting

TRAD: Kaggle Zestimate competition (House price prediciton)

DNN: CIFAR10 image recognition

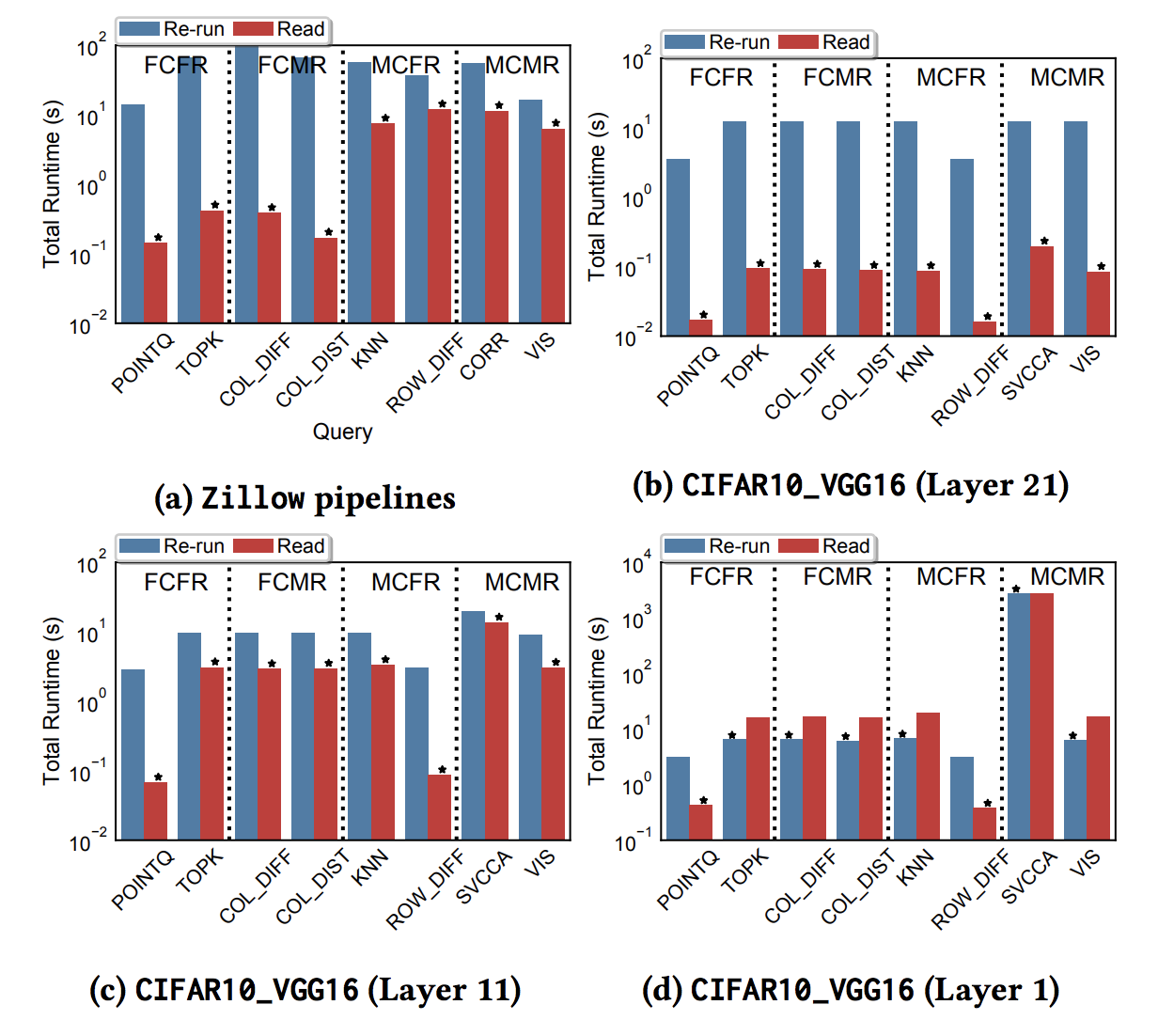

Do we get time speed up?

TRAD: 2.5X-390X

CIFAR10: 2X-210X

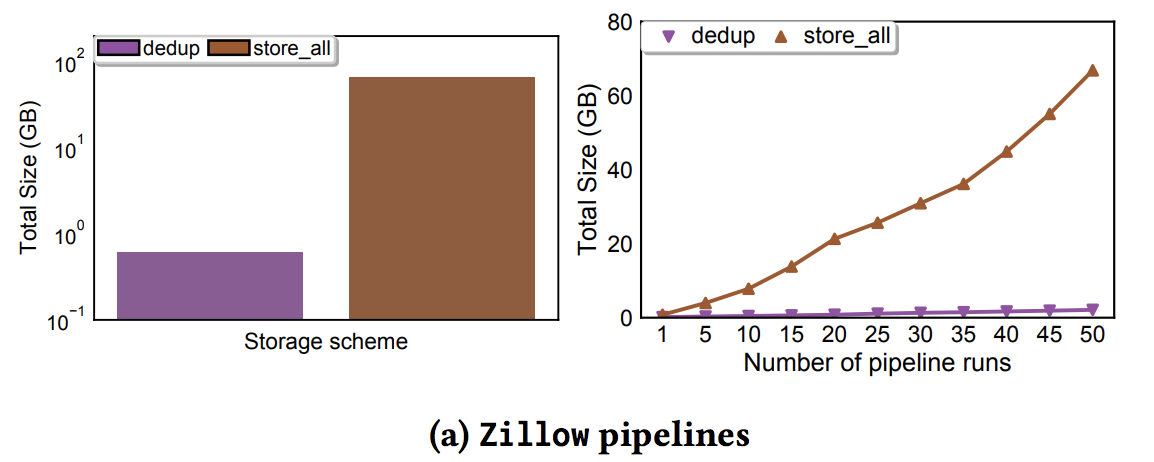

Storage gain pattern

Input 168MB, Store All: 67GB

Traditional pipeline has many columns shared between pipelines.

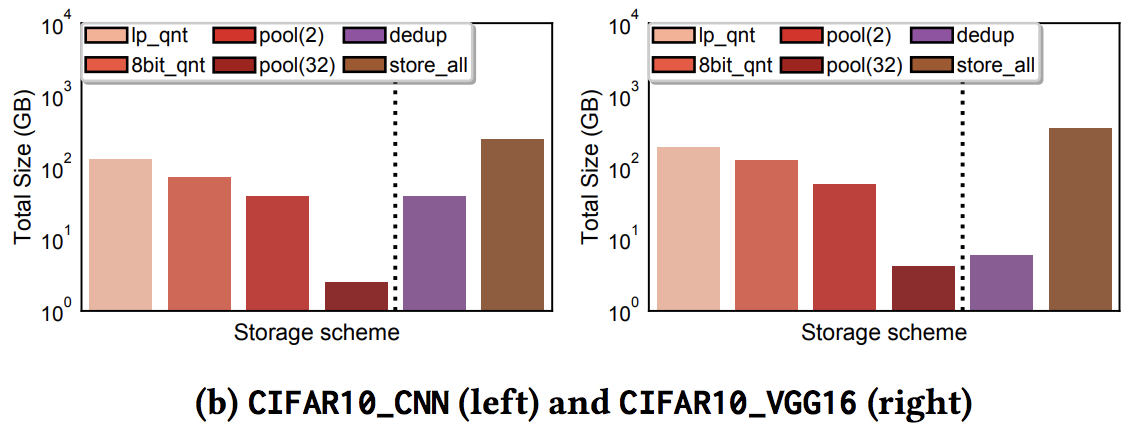

Storage gain pattern

Input 170MB, 10 epoch Store All: 242/350GB

Reducing storage footprint is more essential for DNN

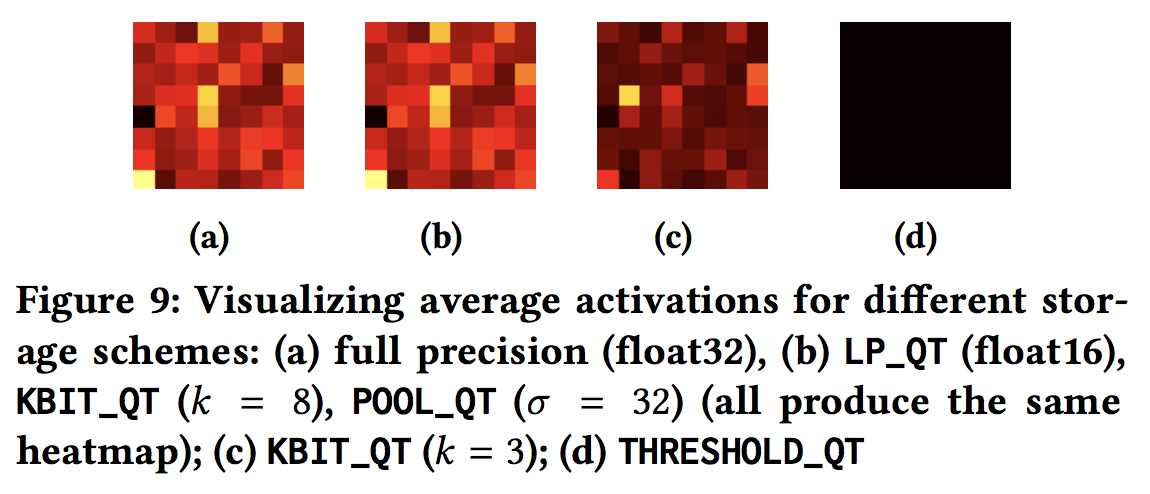

Does quantization affect accuracy?

There's no visual difference between full precision, LP_QT, KBIT_QT(k=8) and POOL_QT, but KBIT_QT(k=3) and THRESHOLD_QT shows clear discrepancies.

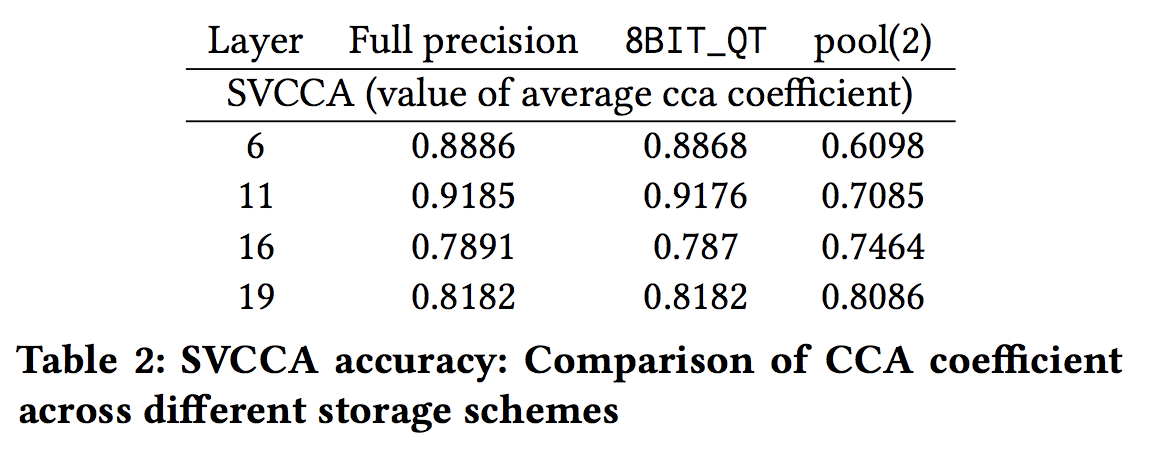

Does quantization affect accuracy?

While 8Bit_QT shows nearly no difference comparing to Full precision, it needs 6X more time and 1.5X storage comparing to pool(2).

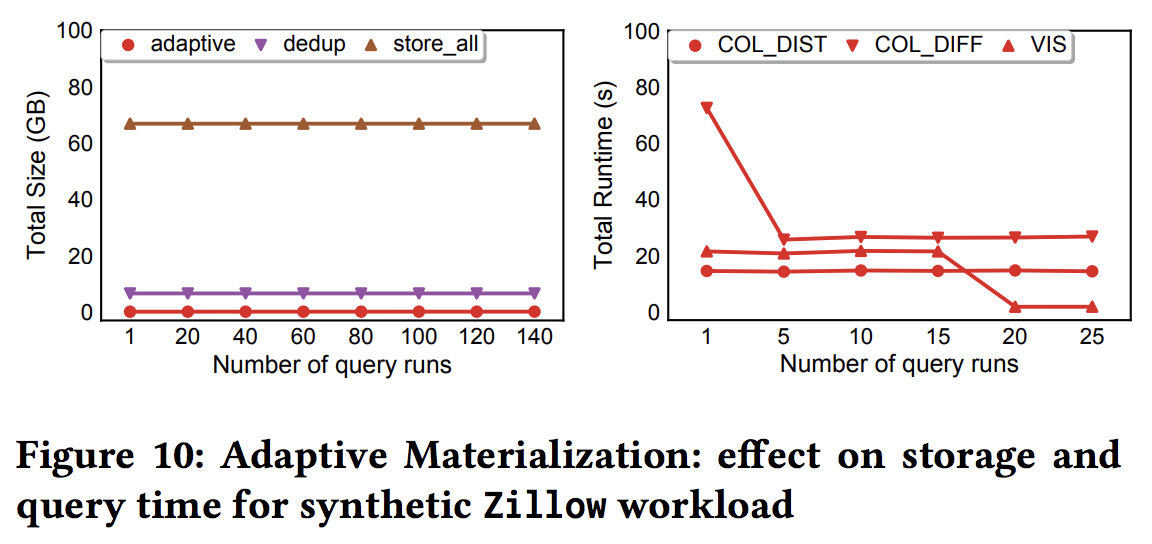

The effect of adaptive materialization

We set γ to 0.5s/KB (i.e., trade-off 1 KB of storage for a 0.5s speedup in query time)

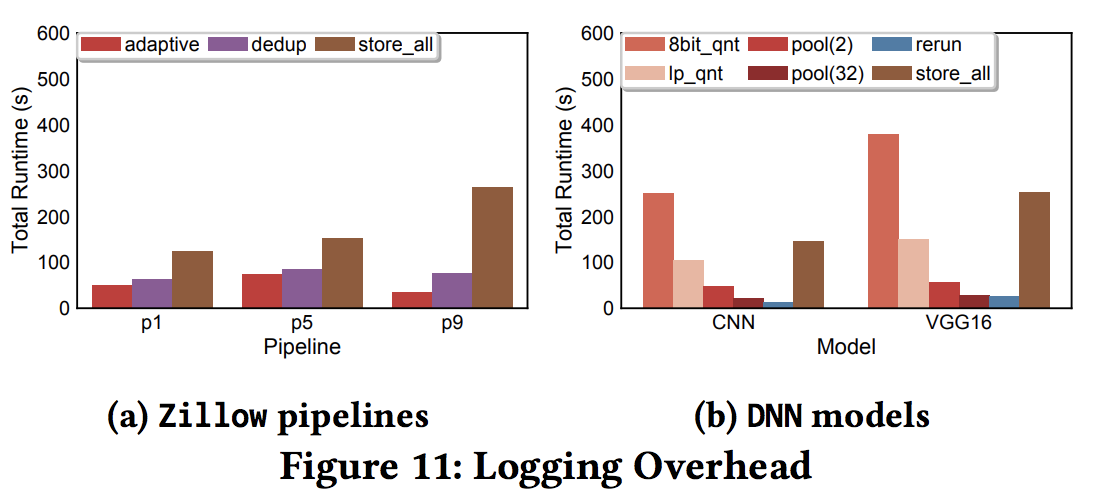

MISTIQUE overhead

Pipeline: speed is correlated to data written

DNN: comparing to training time (>30mins), the overhead of logging is acceptable

Conclusions

MISTIQUE
