HTML5 & CSS3





Dustin Tauer
Easel Solutions
e: dustin@easelsolutions.com
t: @dtauer
http://slid.es/dtauer/

Schedule

  • The Interweb: Past, Present, Future
  • HTML5 Features
  • CSS3 Features
  • Responsive Web Design

Along the way

  • Practical Uses / Fallback Solutions
  • Testing Tools, Generators, Frameworks
  • Resources. Resources. Resources.

Credits



Past | Present | Future

  • 1991: HTML
  • 1994: HTML 2
  • 1996: CSS 1, JavaScript
  • 1997: HTML 4
  • 1998: CSS 2
  • ...[Flash]...
  • 2009: HTML 5 / CSS 3

Note: Aside from adding AJAX in 2005,
JavaScript hasn't changed

Past | Present | Future

  • Built sites with simple HTML & CSS
  • Used JavaScript sparingly
  • browsername=navigator.appName;
if (browsername.indexOf("Netscape")!=-1) {browsername="NS"}
else if (browsername.indexOf("Microsoft")!=-1) {browsername="MSIE"}

browserversion="0";
if (navigator.appVersion.indexOf("2.")!=-1){browserversion="2"};
if (navigator.appVersion.indexOf("3.")!=-1){browserversion="3"};
  • Relied heavily on server-side code for dynamic functionality
  • Used a lot of Flash.  A lot.

Past | Present | Future

  • Sites are being updated to be more "mobile friendly"
  • Sites are replacing Flash content with JavaScript
  • jQuery to the rescue
    • 9800+ lines of code so you can do this:
    • //Load current temperature from an external webservice
//by passing a zipcode...all without reloading the page$.ajax({url: "/api/getWeather", data: {zipcode: 90210},
  success: function( data ) {
    $( "#temp" ).html(data + " degrees" );
  }
});

Past | Present | Future

The Framework Era
  • CSS
    • Twitter Bootstrap, PureCSS
  • CSS Pre-processors
    • Sass, LESS, Compass
  • JavaScript UI
    • jQueryUI, YUI
  • JavaScript Architecture
    • Backbone.js, Knockout
  • Templating
    • Mustache, Underscore

Past | Present | Future


  • Responsive Web Design
  • Mobile-first approach
  • Single page websites
    • AJAX
  • Responsive/Adaptive images
    • For Retina and other high-resolution displays
  • Lighter page load
  • Few "standards"

Past | Present | Future




"Build it in HTML 5"

Past | Present | Future


HTML 5 is not mobile
HTML 5 is not the replacement for Flash


HTML 5 ~= HTML + CSS + JavaScript

Past | Present | Future


  • HTML 5.0: Q4, 2014
    • Yep, it's not done yet
  • HTML 5.1: 2016
  • HTML 5.2: 2018

  • No more "mobile" websites
  • Browser consistency


Past | Present | Future

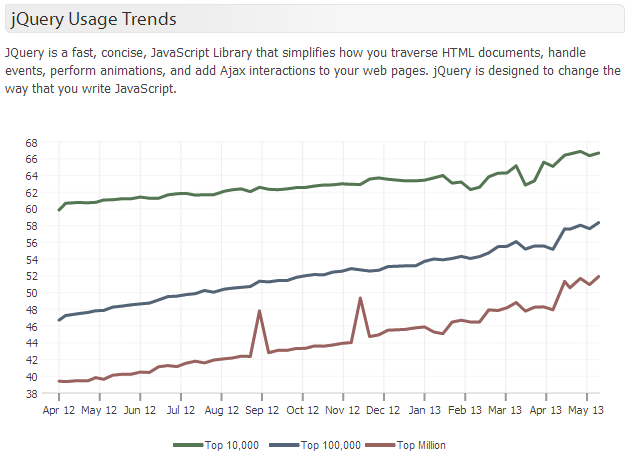

trends.builtwith.com

Past | Present | Future

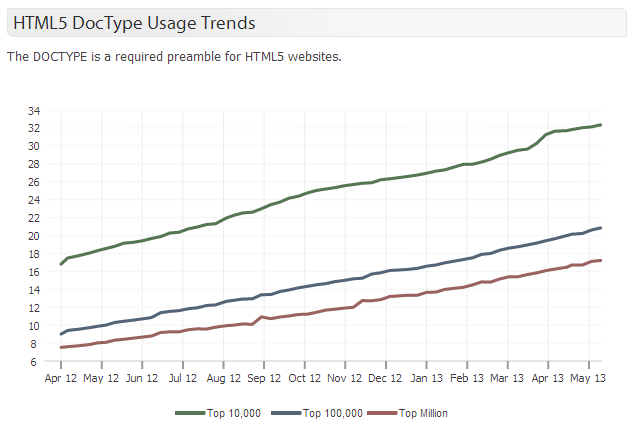

trends.builtwith.com

Past | Present | Future


trends.builtwith.com

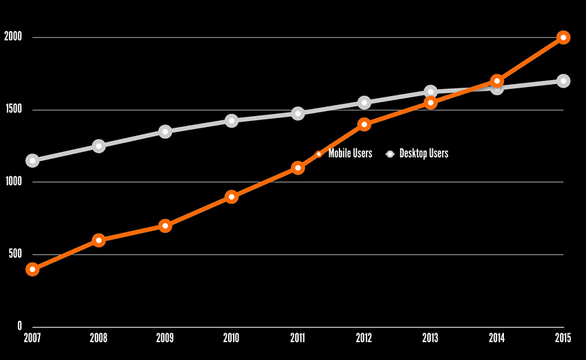

The web is not fixed width

  • 52% of Laptop owners also own a smartphone
  • 31% of smartphone owners also own a laptop
  • 13% own a laptop, smartphone, & tablet


Laptop and Desktop ownership is the
same today as it was in 2007

http://bit.ly/13frzFo

The web is not fixed width



bit.ly/L5cqiO

The purpose of html 5

  • New features should be based on HTML, CSS, DOM, and JavaScript
  • Reduce the need for external plugins (like Flash)
  • Better error handling
  • More markup to replace scripting
  • HTML5 should be device independent
  • The development process should be visible to the public

Before we start

  • Course Files
  • Dreamweaver
    • Source Code Pro font
  • caniuse.com & html5please.com
  • Web developer toolbar
    • Chrome: F12
    • IE: F12
    • Firefox: Install Firebug
    • Safari: Enable in preferences

HTML 5 | Semantics

  • New Structural Tags
    • Polyfills/Shivs
  • Datalist
  • Details/Summary
  • Meter/Progress

HTML 5 | Forms

  • New Types
    • email, tel, number
    • date
    • range
    • search
    • color
  • Attributes:
    • placeholder, required, min/max
  • Validation
  • jQuery Form Widget

HTML 5 | Audio & Video


HTML 5 | Graphics


HTML 5 | Other

  • Offline Applications
  • Local Storage
  • Indexed Database
  • Local File Access
  • Custom Data Attribute

Questions on html 5?

css 3 | vENDOR PREFIXES

CSS 3 | sELECTORS

 li:nth-child(even) {
   color: white;
   background-color: black;
}

CSS 3 | prESENTATION

  • Columns
  • 2d Transforms
  • Flex Box Model
  • Transitions
  • Web Fonts
  • Text Wrapping
  • Animations

CSS 3 | mEDIA qUERIES


 <!-- In your HTML -->
<link media=”(min-width: 480px)” ...
<link media=”screen and (max-width: 1024px)” ...
/* In your CSS */
@media (min-width: 480px) { ... }
@media screen and (max-width: 1024px) { ... }

qUESTIONS ON css 3?

Let's get real


Dont' forget about jQuery

Off Topic

  • CSS Preprocessors
    • Sass/LESS

rwd | rESPONSIVE wEB dESIGN


State of the Union

RWD | RESPONSIVE WEB DESIGN

  1. Fluid foundation (container)
  2. Responsive content
  3. Media Queries

RWD | RESPONSIVE WEB DESIGN


Before we can do anything
 <!-- html -->
<meta
   name="viewport" content="width=device-width; initial-scale=1.0;">
/* CSS */
@-webkit-viewport { width:device-width; }
@-moz-viewport { width:device-width; }
@-ms-viewport { width:device-width; }
@-o-viewport { width:device-width; }
@viewport { width:device-width; }

RWD | RESPONSIVE WEB DESIGN

A responsive formula:

 target / context = %


/* Fixed */
.container{ width: 600px; }
.sidebar{ width: 200px; }
/* Responsive */
.container{ width: 100%; }
.sidebar{ width: 33.33333%} /* 200 / 600 = 33.33333*/

RWD | Four CSS Approaches


1) Single File

  • Simple to implement
  • Single request
  • Doesn’t require a preprocessor
  • Requires JS to serve large layout to old IE if starting with small layouts
  • Large sites can be difficult to maintain because of the size of the single file

Single File Approach


 /* styles.css */
aside { color: #333; width: 100%; }

/* if the viewport width is 40em or greater */
@media (min-width: 40em) {
aside { width: 50%; }
}
/* if the viewport width is 60em or greater */
@media (min-width: 60em) {
aside { width: 30%; }
}

RWD | FOUR CSS APPROACHES


2) Multiple Files

  • Doesn’t require a preprocessor
  • At least two requests
  • Requires you to separate layout from other styles
  • Allows you to start with small layouts and serve a single large layout to old
  • IE without JS
    • Requests go up if you use multiple MQs

Multiple File approach


<link href=”global.css” rel=”stylesheet”>

<link href=”layout.css” media=”(min-width: 40em)” rel=”stylesheet”>
<!--[if (lt IE 9) & (!IEMobile)]>
  <link href=”layout.css” rel=”stylesheet”>
<![endif]-->

RWD | FOUR CSS APPROACHES


3) Breakpoint-based Partials

  • Allows you to start with small layouts and serve large layout to old IE without JS
  • Only 1 or 2 requests
  • Requires preprocessor
  • Maintenance can be complex

breakpoint-based partials

<link href=”base.css” rel=”stylesheet”>
<!--[if (lt IE 9) & (!IEMobile)]>
  <link href=”no-mq.css” rel=”stylesheet”>
<![endif]-->
base.scss /* Sass */
@import “smallest”;

@media (min-width: 40em) {
  @import “40em”;
}

@media (min-width: 60em) {
  @import “60em”;
}no-mq.scss
  @import “40em”;
  @import “60em”;

RWD | FOUR CSS APPROACHES


4) Module-based Approach

  • Single Request
  • Easy Maintenance
  • Allows you to start with small layouts and serve large layout to old IE without JS
  • Single request for all
  • Requires Preprocessor

RWD | Resources

Tools
  • Adobe Edge Reflow
  • Responsive Inspector (Chrome Extension)

Frameworks
Book

RWD | RESOURCES

Twitter
  • @bencallahan
  • @scottjehl
  • @ResponsibleRWD
  • @chriscoyier
  • @rwd
  • @mesh

More Resources

Check for browser compatibility

Course files and slides

You can download the finished files from here (Select File > Download to download everything):

Since the slides are in an HTML format, they aren't downloadable. You are able to embed them via the share button.
