What is a Critical Apparatus, really?

Hugh Cayless (@hcayless)

What is a Critical Apparatus?

Latin: apparatus criticus, pl. apparatūs critici

• “Scholarly editions of texts...often record some or all of the known variations among different witnesses to the text.” — TEI Guidelines
• “[the apparatus]...records the work’s textual history over time” —Eggert (2007)
• “Editors are not always people who can be trusted, and critical apparatuses are provided so that readers are not dependent upon them.” —West (1973)

What is a Critical Apparatus?

A critical apparatus is the set of notes explaining an editor’s (re)construction of a text. These notes may contain the readings of witnesses, conjectures not promoted to the text, explanatory notes, alternative spellings or punctuation, parallels from other works, and in general any information that might help a reader understand the background of the presented text.

What is a TEI Critical Apparatus?

A critical apparatus is the set of notes explaining an editor’s (re)construction of a text.

• In TEI, where these notes present alternate possibilities, they are modeled in such a way that they may be substituted for the readings in the default text.
• The <app>, <lem>, <rdg> structure places variants in parallel with the default readings.
• So in TEI, the apparatus is more than just notes, it is an actionable data structure.

One view:

A TEI app. crit. represents a forking and rejoining of the text stream, a run of text for which there are multiple possibilities.

A: “The quick brown fox ju...”

B: “The quick brown mouse jumps over the lazy cat.”

C: “The quick brown cat jumps over the lazy dog.”

A: “The quick brown fox ju...”

B: “The quick brown mouse jumps over the lazy cat.”

C: “The quick brown cat jumps over the lazy dog.”

We think A and B derive from the archetype via different routes, and C derives from A.

<p>The quick brown <app>
    <lem wit="#A">fox</lem>
    <rdg wit="#B">mouse</rdg>
    <rdg wit="#C">cat</rdg></app> jumps over the lazy <app>
        <lem wit="#C">dog</lem>
        <rdg wit="#B">cat</rdg></app>.</p>

TEI app. crit. as variant graph

Implications

We might decide that, since the transmission of B and C was independent, you can’t have two cats.

”The quick, brown cat jumps over the lazy cat.”

<p>The quick brown <app>
    <lem wit="#A">fox</lem>
    <rdg wit="#B">mouse</rdg>
    <rdg xml:id="C1" wit="#C" exclude="#C2">cat</rdg></app> jumps over the lazy <app>
        <lem wit="#C">dog</lem>
        <rdg xml:id="C2" wit="#B" exclude="#C1">cat</rdg></app>.</p>

Implications

These aren’t simple, independent variations. There can be interdependencies. Imagine a German family of the tradition with two versions:

“Der schnelle braune Fuchs springt über den faulen Hund.”

“Die schnelle braune Katze springt über die faule Katze.”

If you have “Fuchs” the first word must be “Der”, if “Katze” then “Die”. “Die schnelle braune Fuchs...” would be another impossible text.

TEI app. crit. as annotation

<p>The quick brown <app>
    <lem wit="#A">fox</lem>
    <rdg wit="#B">mouse</rdg>
    <rdg xml:id="C1" wit="#C" exclude="#C2">cat</rdg></app> jumps over the lazy <app>
        <lem wit="#C">dog</lem>
        <rdg xml:id="C2" wit="#B" exclude="#C1">cat</rdg></app>.</p>

“A says, and the editor agrees, that the fourth word is ‘fox’. B says that it is ‘mouse’, and C says that it is ‘cat‘.”

Note that the apparatus doesn’t have to be inline. It could be standoff and say the same thing.

TEI app. crit. as (standoff) annotation

<p>The quick brown fox jumps over the lazy dog.</p>
...
<listApp>
  <app from="#match(//p[1],'fox')">
    <lem wit="#A">fox</lem>
    <rdg wit="#B">mouse</rdg>
    <rdg xml:id="C1" wit="#C" exclude="#C2">cat</rdg>
  </app>
  <app from="#match(//p[1],'dog')">
    <lem wit="#C">dog</lem>
    <rdg xml:id="C2" wit="#B" exclude="#C1">cat</rdg>
  </app>
</listApp>

What TEI app. crit. is not

• NOT a superimposition of two or more complete texts.
  • ​You shouldn‘t expect to be able to derive any individual source text from a TEI critical edition.
• Not a tool for comparing versions of a text.
• ​Not particularly automatable—designed to show a (human) editor‘s interpretation of a textual tradition.

All that said, it’s a data structure, and can be repurposed. Collatex uses it as a collation export format, for example.

What it might be—a provocation

If we accept that a TEI critical apparatus can be viewed as a sort of (optionally standoff) assertive annotation, then we might imagine using it to describe things other than textual variation. What about variant markup?

Most annotation formats, including TEI <note> and things like Web Annotation, only allow you to associate the content of the annotation with the thing annotated, not to say something positive about it, like “I think this is a place name”.

I’ll just leave this here...

<div type="textpart" subtype="chapter" n="1" xml:id="c1">
  <p type="textpart" subtype="section" n="1" xml:id="c1s1">
    <seg n="1" xml:id="c1s1p1">Gallia est omnis divisa in partes tres, quarum unam incolunt Belgae, Aliam Aquitani, tertiam qui ipsorum lingua Celtae, nostra Galli appellantur.</seg>...</p></div>...
<standoff>
  <listApp>
    <app from="#match(//seg[@xml:id='c1s1p1'],'Gallia')">
      <rdg><placeName ref="https://pleiades.stoa.org/places/993" source="#Damon">Gallia</placeName></rdg>
    </app>
  </listApp>
</standoff>

“Damon says that ‘Gallia’ in chapter 1, paragraph 1, segment 1 is a place name referencing Pleiades #993.”

This is (not) Spinal Tap:

Modeling to Prioritize Variance

Elisa Beshero-Bondar (@epyllia)

“Spine 2” by Buzz Spector:

polaroid of 33 books aligned at the spines, one per human vertebra

Spine work of a Stand-off Critical Apparatus

• express a holistic view structured according to variant locations

• serve as ”nerve plexus” of data pointers for dynamic coordination of multiple editions

• can be built up from computer-aided collation

• case study (in the following slides) from Frankenstein Variorum project

Variorum - modeling change over time

Inspiration for Frankenstein Variorum: Darwin Online (ed. Barbara Bordalejo), except...

• Frankenstein Variorum only compares five witnesses
• Frankenstein Variorum incorporates two MS witnesses + three print editions
• Frankenstein Variorum integrates by collation earlier digital editions made by others

algorithm for computer-aided collation, developed in 2009 workshop of collateX and Juxta developers.

1. Tokenization :

   • Break down the smallest unit of comparison: (words--with punctuation, or character-by-character): FV tokenizes words and includes punctuation

2. Normalization

   • ​​ ('&' = 'and')

3. Alignment

   • Identify comparable divergence: what makes text sequences comparable units?

   • “Chunking” text into comparable passages (chapters/paragraphs that line up with identifiable start and end points). Collation proceeds chunk by chunk.

4. Analysis

   • ​​ (study output, correct, and re-align after machine process, AND refine automated processing)

5. Visualization

   • ​​ critical edition apparatus, graph displays

Gothenburg Model

FV: Tokenizing/normalizing S-GA diplomatic encoding

• required XSLT resequencing of margin zones  (follow @corresp values to @xml:ids)

• required Python normalizing algorithm to suppress <line> from collation

Why collate the markup?

• Markup expresses conditions relevant for comparing texts

• Genetic markup with critical comparison:
  • genetic markup is not incomparable with markup of print editions
  • genetic markup can answer scholarly research questions at critical scale
    • MWS reworking the text: How guilty does Victor Frankenstein appear in 1816, 1818, 1820s after Percy's death, 1831?
    • Which passages underwent the most intense, ”molten” transformations over time?
    • What kind of influence did Percy Shelley have on Frankenstein‘s print editions?

Preparing marked-up texts for collation

• Determine comparable markup of text structures across Variorum editions:
  • volume (print editions only), letter, chapter
  • paragraph, poetry line-groups and lines
  • notes

• Markup of manuscript events included in Variorum comparison:
  • deletion, insertion, gap

• Normalizing algorithm:
  • ​Decide what marks are equivalent
  • ignore but preserve other markup in collation process, also abbreviations, capitalization.

• ”Chunking” algorithm:  (limit possibility of major misalignments)
  • ​Locate ”seams” where all editions align
  • Divide into ”chunks” at the seams
  • Prep each edition as 33 collation ”chunks”, C01 - C33
  • All files identified as the same chunk are collated together

• output of computer-aided collation (not TEI, but like it)
• build up variorum edition expressed in app-crit with flattened tags

TEI App-Crit on its way to becoming a Spine

TEI advantage: Interchange (cf. Syd Bauman, “Interchange vs. Interoperability”):
​”Human A” reading code written and documented by ”Human B” can understand how to adapt that code without consulting Human B.

TEI Interchangeability :: Collation of Markup

Doing the work of interchange:

• Do you want your critical apparatus to include deleted material?
• Or only the “finished” MS? (Mask the  <del> elements, and preserve the <add> material)

::

• Method 1: produce edition files from the app-crit with XSLT
  • ​Plant TEI element (e.g. <seg>) to indicate variant locations, give each an @xml:id
  • Build Spine by ​generating @target directly accessing <seg> elements
• Method 2: point to pre-existing editions
  • Programmatic search-work to find variant passages (not signalled in the edition markup)
  • Build Spine with XPath and string-range indicators
    • ​See TEI Guidelines 16.2.4.1

XPointer Challenge: find the locations expressed in each app in the original editions

• Flatten markup for computer assisted collation

• Edit the output collation (Gothenberg Model process)

• XSLT Transformation A (pipeline): raise editions with “hotspots”
  • Raise the flattened markup to reconstruct some editions, with marked <seg> elements
  • Deal with overlapping hierarchies: (e.g. Molten passages cross paragraph boundaries): Output editions break into fragments around up-raised markup.
• XSLT Transformation B: construct the standoff spine with pointers:
  • Convert collateX output critical apparatus to ”spine nerve plexus” holding XML pointers
  • These point to the marked hotspots in the editions reconstructed in Pipeline A
  • And point to xml:ids + string-ranges in external editions that were not generated by the process    (e.g. FV pointing to Shelley-Godwin Archive)

Markup is text, after all!

Summary of Spine-Making:

• “Spine” data model = standoff use of TEI critical apparatus:
  • can include processed data, like maximum edit-distance, at each location
  • can include data on normalization: e.g. normalized tokens used in collation process
  • coordinates data on variance,
  • points to specific locations in separate edition files

Comparing five versions of Frankenstein

Legend

MS

Alignments, gaps, and comparative lengths of each collation unit

chapter heading or other structural boundary

For more on our document data modeling,  see

Beshero-Bondar, Elisa E., and Raffaele Viglianti. “Stand-off Bridges in the Frankenstein Variorum Project: Interchange and Interoperability within TEI Markup Ecosystems.”  Balisage Series on Markup Technologies, vol. 21 (2018). https://doi.org/10.4242/BalisageVol21.Beshero-Bondar01.

”Preparing diversely encoded documents for collation challenges us to consider inconsistent and overlapping hierarchies as a tractable matter for computational alignment—where alignment becomes an organizing principle that fractures hierarchies, chunking if not atomizing them at the level of the smallest meaningfully sharable semantic features.”

”We have negotiated interchangeability by cutting across individual text hierarchies to emphasize lateral connections and commonalities—making a new TEI whose hierarchy serves as a stand-off ”spine” or ”switchboard” permitting comparison and sharing of common data. Our goal of pointing to aligned data required us to locate the interchangeable structural markers in our source documents.”

Publishing a Stand-off Critical Apparatus: Leveraging isomorphic representations across text and music notation

Raff Viglianti (@raffazizzi)

songscapes.org

Stand-off apparatus and

the representation of primary sources

BL Add. MS 53723

C 709

Folger L638

Songscapes stand-off collation

TEI (no XPointer in this case)

+

BL Add. MS 53723

+

Folger L638

C 709

Adapted from: https://github.com/EarlyModernSongscapes/songscapes/blob/master/data/collations/Theseus%2C_O_Theseus%2C_hark!.xml

Songscapes stand-off collation

+

BL Add. MS 53723

+

Folger L638

MEI

Adapted from: https://github.com/EarlyModernSongscapes/songscapes/blob/master/data/collations/Theseus%2C_O_Theseus%2C_hark!.xml

Publishing this kind of model

(including Frankenstein Variorum!)

• Typical TEI to HTML transformation would require transforming pointers too.
• Pointers need to be followed in response to user interaction.

?

Isomorphic representations (TEI)

CETEIcean 🐳 (/sɪˈti:ʃn/)     https://github.com/TEIC/CETEIcean

HTML5 Custom Elements

Isomorphic representations (MEI)

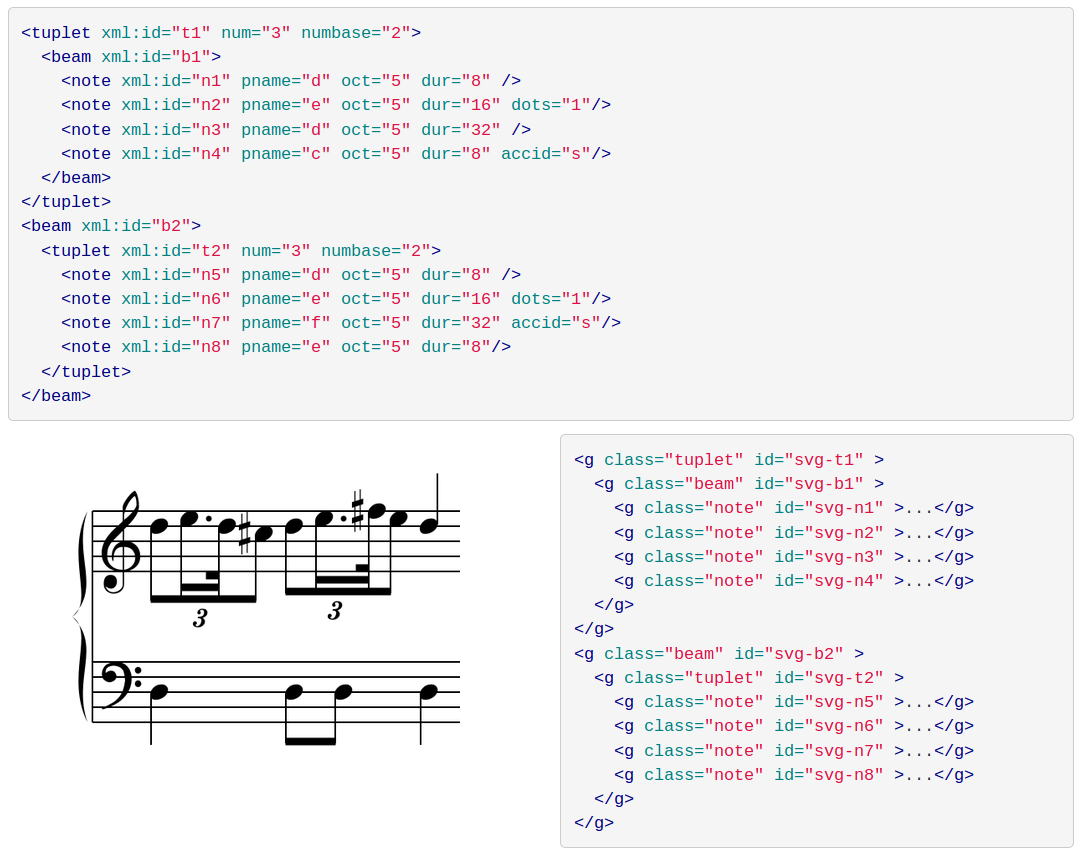

• Verovio: SVG as isomorphic surrogate of MEI

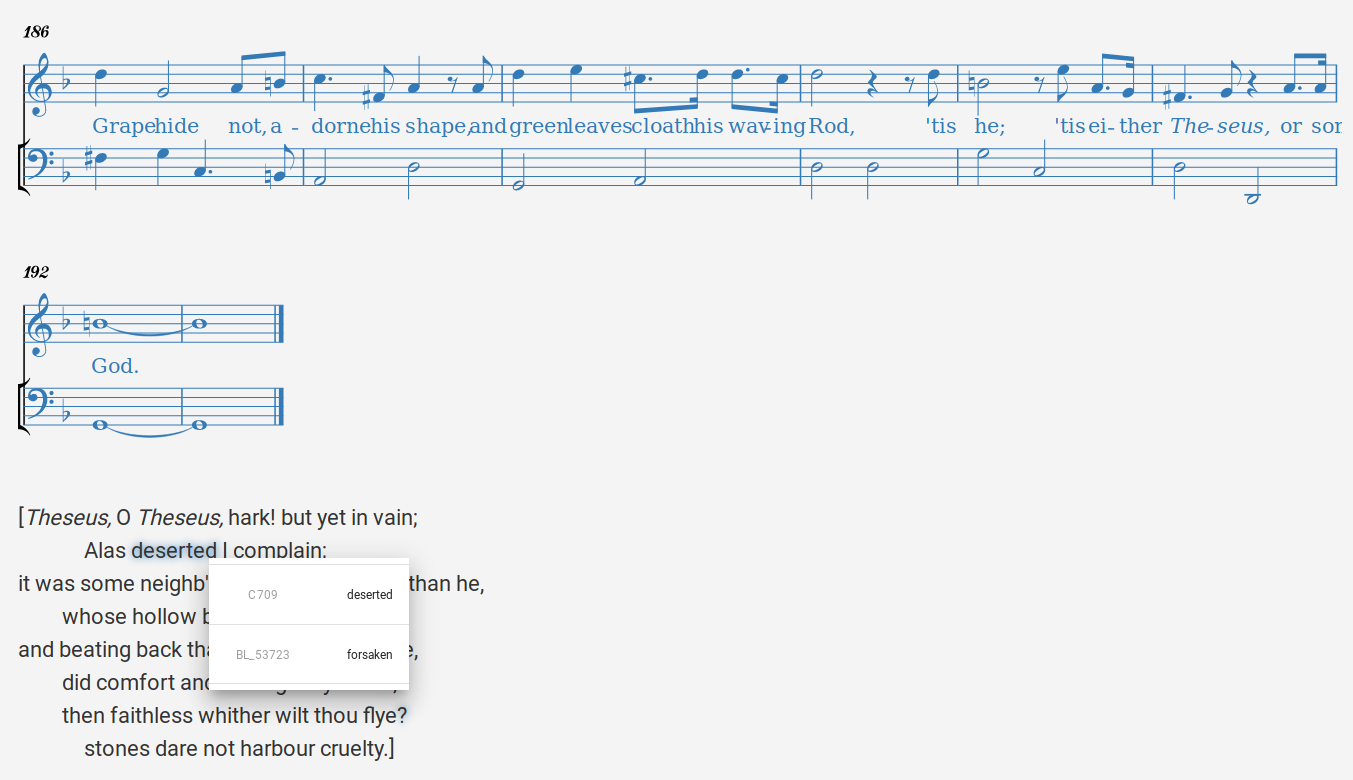

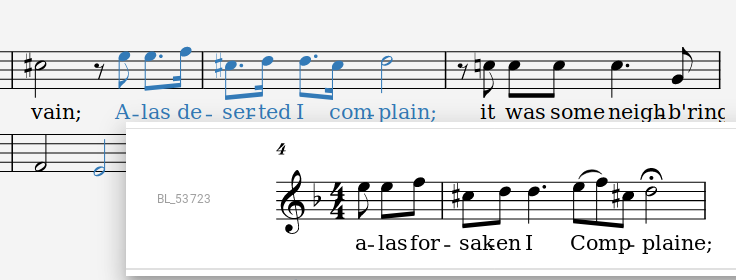

Songscapes viewer

music

text

From: ems.digitalscholarship.utsc.utoronto.ca/islandora/object/ems%3A102

Addressability beyond a single project

• What if a stand-off collation pointed to TEI / MEI resources from other projects?
  • breaking silos (further)
  • building on existing resources / editions
• We need well thought out and flexible stand-off support in TEI

Data models, many-witness texts, and the future of apparatus markup: a response

James Cummings (@jamescummings)

What *really* is a critical apparatus

• Hugh Cayless started us out with an excellent (re-)introduction to critical apparatus and ways to view it specifically:
  • TEI critical apparatus as variant graph
  • TEI critical apparatus as annotation
• He suggested some things TEI critical apparatus is not
• And tried to provoke us with TEI critical apparatus as standoff assertive annotation providing variant markup

A TEI app. crit. represents a forking and rejoining of the text stream, a run of text for which there are multiple possibilities. These possibilities may be constrained by their context.

A TEI app. crit. entry is a type of annotation on the text, asserting that a particular source or authority has a different opinion about the text content.

or...

TEI app. crit. as (standoff) annotation

<p>The quick brown fox jumps over the lazy dog.</p>
...
<listApp>
  <app from="#match(//p[1],'fox')">
    <lem wit="#A">fox</lem>
    <rdg wit="#B">mouse</rdg>
    <rdg xml:id="C1" wit="#C" exclude="#C2">cat</rdg>
  </app>
  <app from="#match(//p[1],'dog')">
    <lem wit="#C">dog</lem>
    <rdg xml:id="C2" wit="#B" exclude="#C1">cat</rdg>
  </app>
</listApp>

What TEI app. crit. is not

• NOT a superimposition of two or more complete texts.
  • ​You shouldn‘t expect to be able to derive any individual source text from a TEI critical edition.
• Not a tool for comparing versions of a text.
• ​Not particularly automatable—designed to show a (human) editor‘s interpretation of a textual tradition.

All that said, it’s a data structure, and can be repurposed. Collatex uses it as a collation export format, for example.

He’ll just leave this here...

<div type="textpart" subtype="chapter" n="1" xml:id="c1">
  <p type="textpart" subtype="section" n="1" xml:id="c1s1">
    <seg n="1" xml:id="c1s1p1">Gallia est omnis divisa in partes tres, quarum unam incolunt Belgae, Aliam Aquitani, tertiam qui ipsorum lingua Celtae, nostra Galli appellantur.</seg>...</p></div>...
<standoff>
  <listApp>
    <app from="#match(//seg[@xml:id='c1s1p1'],'Gallia')">
      <rdg><placeName ref="https://pleiades.stoa.org/places/993" source="#Damon">Gallia</placeName></rdg>
    </app>
  </listApp>
</standoff>

“Damon says that ‘Gallia’ in chapter 1, paragraph 1, segment 1 is a place name referencing Pleiades #993.”

I’ll just change this here...

<div type="textpart" subtype="chapter" n="1" xml:id="c1">
  <p type="textpart" subtype="section" n="1" xml:id="c1s1">
    <seg n="1" xml:id="c1s1p1">Gallia est omnis divisa in partes tres, quarum unam incolunt Belgae.</seg>...</p></div>...
<standoff>
  <listApp>
    <app from="#match(//seg[@xml:id='c1s1p1'],'Gallia')">
      <rdg>
        <div>
         <head>Does standoff have to result in valid TEI?
         Should this only be used for assertive annotation?</head>
            <!-- Lots of random stuff here -->
        </div>
      </rdg>
    </app>
  </listApp>
</standoff>

Reminder: <div> and <floatingText> now allowed inside <rdg>... for better or worse

This is (not) Spinal Tap

• Elisa Beshero-Bondar described the impressive 'nerve plexus' spine as central coordinating structure in Frankenstein Variorum
• How much can be derived? Are general systems for collation spine construction possible?
• Pointer based systems like this highlight the lack of good support for working in stand-off / out-of-line methods in most XML editors
• Worry about fragility of string-ranges, while reasonable in closed ecosystem, how much should we worry about this with networked distributed systems not under our control?

algorithm for computer-aided collation, developed in 2009 workshop of collateX and Juxta developers.

1. Tokenization :

   • Break down the smallest unit of comparison: (words--with punctuation, or character-by-character): FV tokenizes words and includes punctuation

2. Normalization

   • ​​ ('&' = 'and')

3. Alignment

   • Identify comparable divergence: what makes text sequences comparable units?

   • “Chunking” text into comparable passages (chapters/paragraphs that line up with identifiable start and end points). Collation proceeds chunk by chunk.

4. Analysis

   • ​​ (study output, correct, and re-align after machine process, AND refine automated processing)

5. Visualization

   • ​​ critical edition apparatus, graph displays

Gothenburg Model

Collating with markup: "handsome" / "beautiful" passage

Publishing a Stand-off Critical Apparatus

• Raffaele Viglianti provides us with interesting information on the publication of a spine-based model similar to the Frankenstein Variorum but also using Early Modern Soundscapes project
• Important to note separation of encoding choices and editorial decisions from the system of modelling variance
• Useful reminder that critical apparatus might not be of text, but potentially of music, or text&music
• Demonstrates again that we still need much better tools for standOff critical appartus and creating such spines

Songscapes TEI stand-off collation

TEI (no XPointer)

+

BL Add. MS 53723

+

Folger L638

C 709

Adapted from: https://github.com/EarlyModernSongscapes/songscapes/blob/master/data/collations/Theseus%2C_O_Theseus%2C_hark!.xml

Publishing this kind of model

• implications of using a stand-off apparatus for driving a digital publication:
  • typical TEI -> HTML transformation requires transforming pointers too
  • pointers may need to be followed in response to user interaction

Some General Concerns

• Scalability: How do these approaches scale, not only to hundreds of witnesses but to thousands?
• Fragility: For any stand-off solution does how we point to things depend on how likely they are to change, move, or die?
• Practicality: How easy to adopt with less technical burden?
• Readability: Just possible with id-based systems and small number of witnesses, becomes opaque with string-ranges or many witnesses. We need better stand-off encoding software.
• Incompatible granularity: TEI critical apparatus now enables you to have a <rdg> with phrase content next to one with a <div> or <floatingText> inside. Does this cause limitations when making comparisons?
• Future: What is next for TEI critical apparatus? How much should TEI legislate form of particular stand-off approaches? Tradeoffs between flexibility and constraint?
