inSync Cloud & Docker

An experiment in Predictability & Scalability

Faisal Puthuparackat <faisal@druva.com>

Objectives

• Run inSync cloud on your laptop
• Accessible on the local network
• Use Docker to streamline and speed deployment
• Address some issues faced by current inSync Cloud deployments

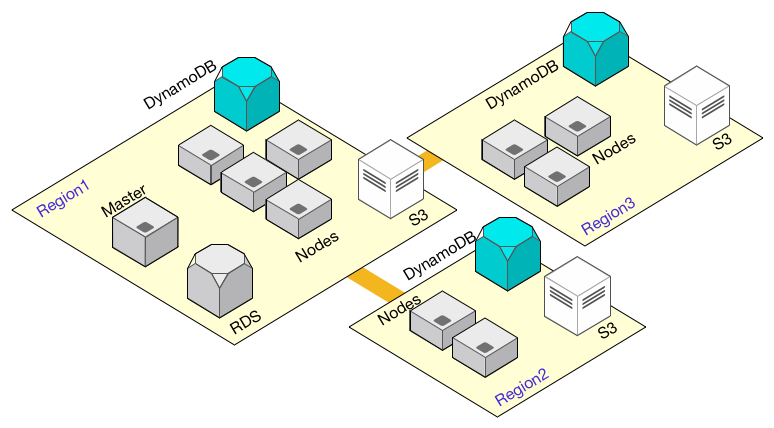

Minimum inSync Cloud

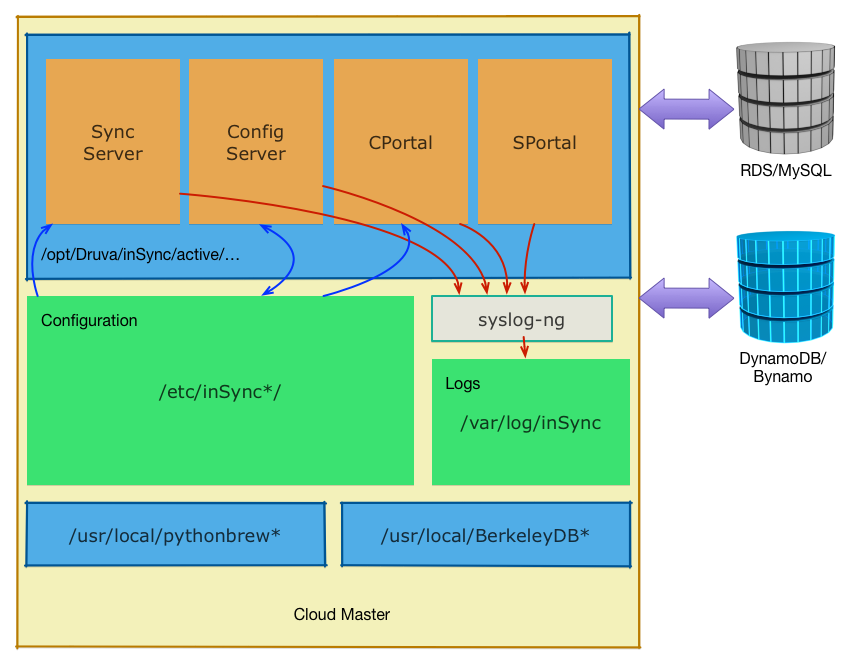

• 2 types of machines: CloudMaster & Nodes
• Needs MySQL or RDS
• Needs DynamoDB or Bynamo
• Needs S3/Object Store/Shared FS

inSync Cloud

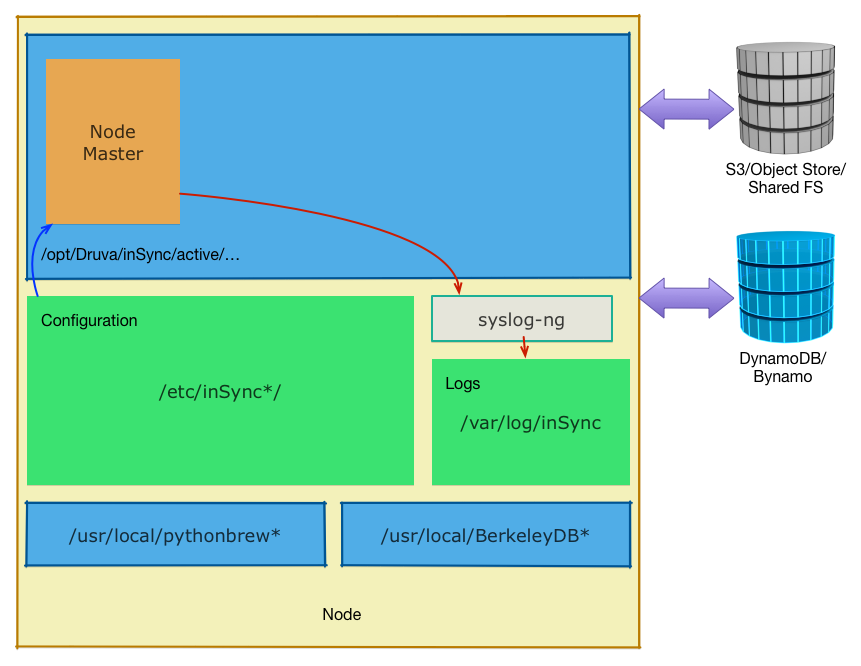

Each Cloud Node...

• Runs Ubuntu 10.04 LTS
• Uses tarballs for python, bdb libs and sources
• Config is stored in /etc/inSync* folders
• App logs => syslog-ng => /var/log
• Python scripts (fabric) for deployment/management
• A machine is one functional unit.

Issues with current inSync Cloud deployments

• Security issues => upgrade packages on machines

• Rolling upgrade of components not possible

• Deployments diverge from each other over time

Enter Docker.

• Containers for virtualization

• Like “chroot” on steroids

• Private namespaces

• Works using filesystem layers

• With COW fs layers on top of that

• FS layers repository

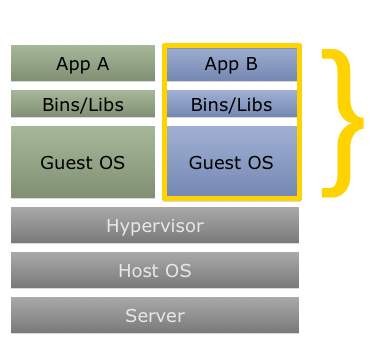

Virtual Machine

• One whole copy of OS runs inside each VM.

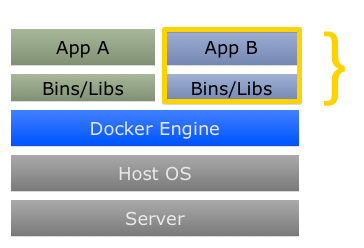

Docker

• Contains just App and dependencies
• Runs in userspace in host OS

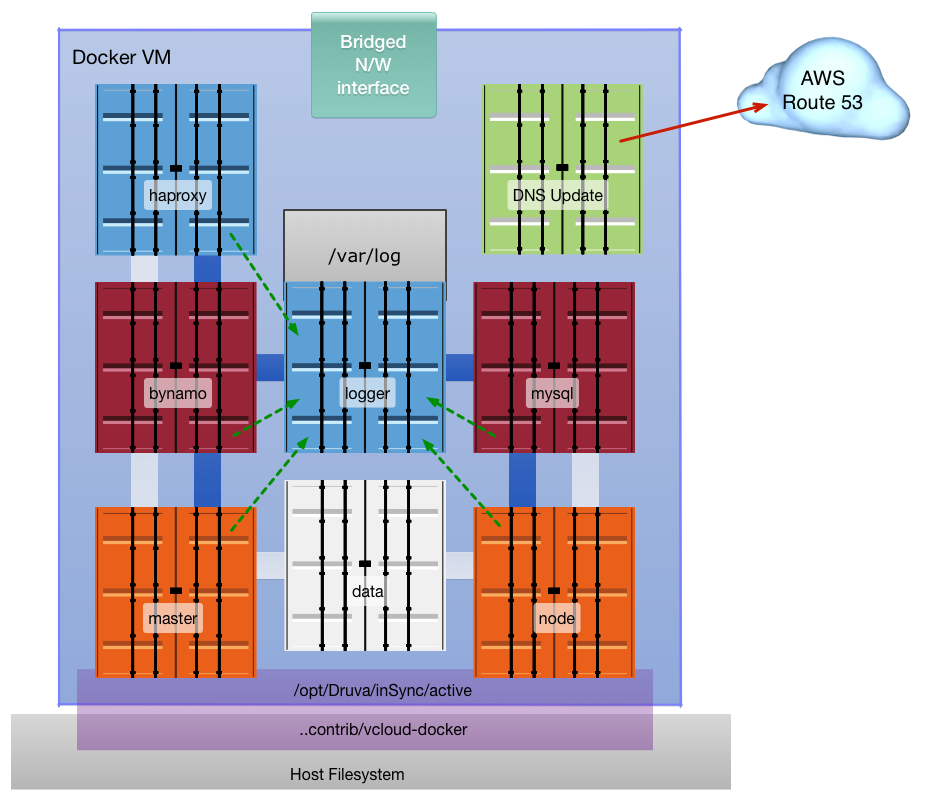

What about the cloud?

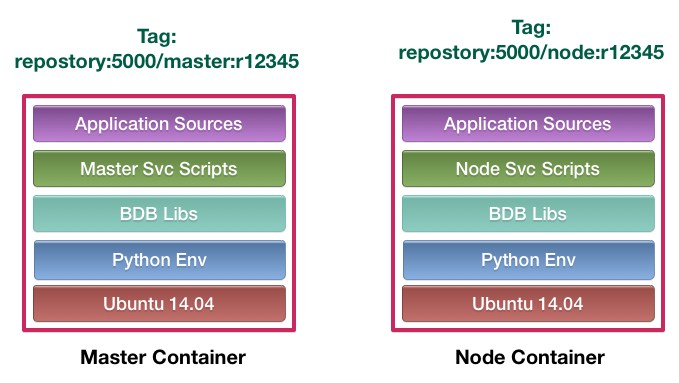

• Each container = OS Base + Libs + Python + Code

• Each docker image tagged by version

• OS/Lib Upgrade handled within container

• Salt-stack has docker support - so everyone’s happy

Pets vs Sheep

You can never truly achieve scale in the cloud unless you can stop treating your servers as pets and start treating them as sheep.

~ Author unknown

Docker is a step in converting our pets into sheep.

I want it now!!!!

Quickstart guide

1. Checkout trunk

2. Set your cloud name: contrib/vcloud-docker/config.rb

$cloudname = "fcloud"

3. Fire up vagrant. Should complete in 2-4 mins...

$ vagrant up
-------------------------------------------------------------------------------
Your cloud name is set to: fcloud.drtst.org
-------------------------------------------------------------------------------
Bringing machine 'default' up with 'virtualbox' provider...
==> default: Importing base box 'http://devsource/lcloud/boxes/boot2docker-1.2.box'...
==> default: Matching MAC address for NAT networking...
==> default: Setting the name of the VM: vcloud-docker_default_1415606582509_8383
==> default: Clearing any previously set network interfaces...
==> default: Preparing network interfaces based on configuration...
    default: Adapter 1: nat
    default: Adapter 2: bridged
-------------------------------- snipped --------------------------------------
==> default: Spinning up container: node
==> default: Spinning up container: master
==> default: Spinning up container: haproxy
$

4. Wait a couple minutes for DNS to propagate. You're done!

For more info...

Please check http://genie/wiki/Your+Cloud for detailed usage information and other tips...

Questions ???
