Previously:

HTML skeleton
Code Editors
Basic HTML Tags (<p> , <a>, <img>)
Converted PDF content into HTML
Published our HTML using FTP client
Setup www.trello.com accounts

Today:

HTML5 Browser Compatibility
HTML 5 Media Tags
Semantic HTML
Intro to HTML Styling

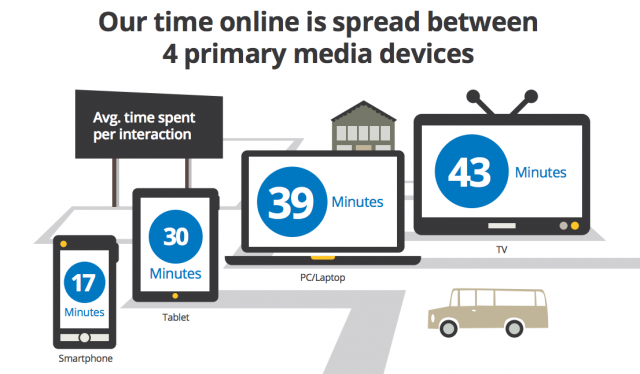

It's a multi-screen/multi-device world!

The dream is...code once, deploy on many devices.

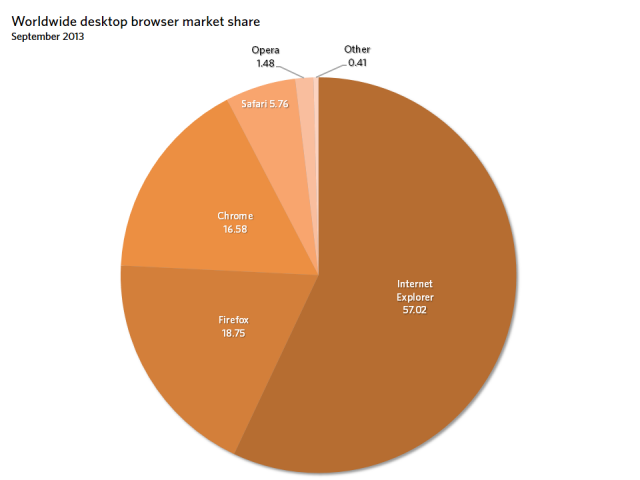

Browser Market share (desktop)

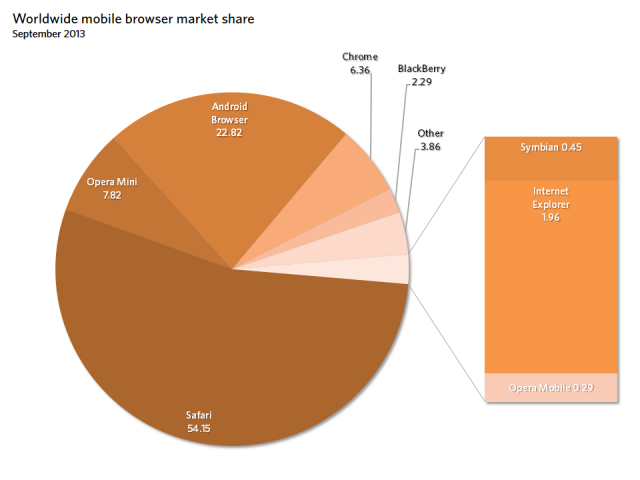

Browser Market share (mobile)

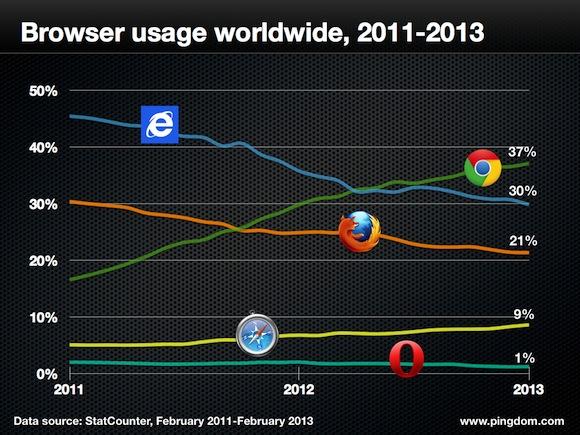

Browser Usage (desktop)

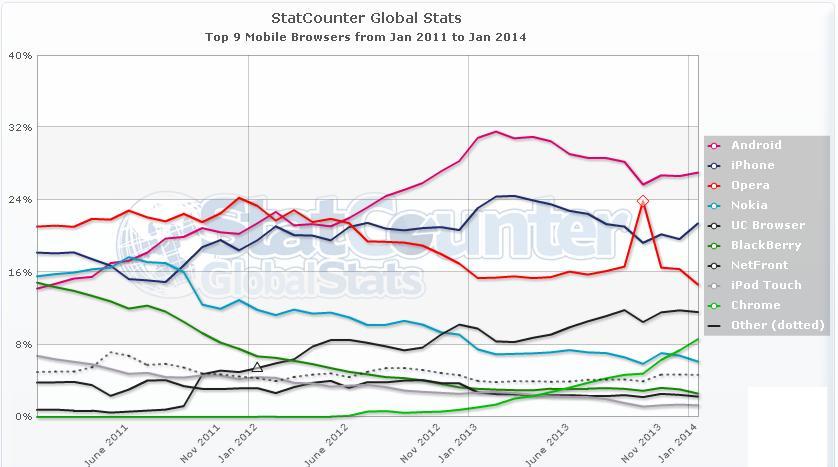

Browser Usage (mobile)

HTML 5 Browser Support

http://html5test.com/

http://caniuse.com/

http://www.w3schools.com/browsers/

HTML 5 <video> tag

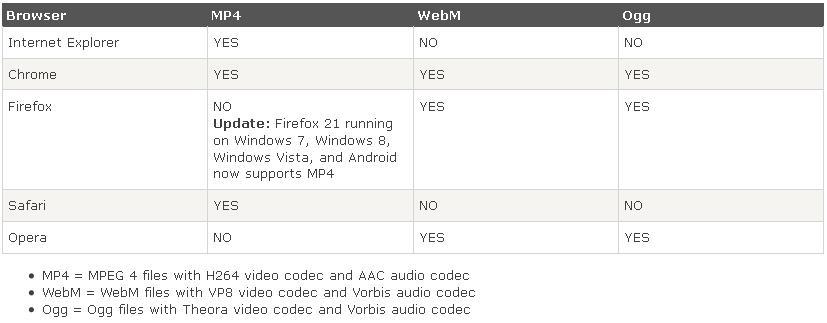

We need to use three file versions of the same video
to ensure compatibility over the different browsers

MP4, WebM and Ogg

Note: Since older browsers don't support the <video> tag,
devs will use a flash video "fallback", so this means
maintaining FOUR versions of a video.

HTML 5 <video> tag

HTML 5 <video> tag

Your browser does not support the video tag.
</video>

Inside the <video> tag we need to define <source> tags

with pathname src and MIME type attributes

HTML 5 <video> tag

<video> attributes that can be set in the opening tag:

autoplay, controls, loop, muted --> doesn't need to assign a value

preload --> "auto", "none", "metadata"

poster -->image filename

height, width --> number of pixels

HTML <iframe> tag for youtube videos

<iframe>, or inline frame element, actually embeds an html document inside another html document

Class Exercise #6

Embed three videos into an HTML document .

Using relative URL's to files
Using absolute URL address
Using a youtube.com URL

HTML 5 <audio> tag

There are 3 supported file formats for the <audio> tag:

MP3, Wav, and Ogg:

Note: HTML <audio> has limitations in manipulating

sounds & effects (panning, environmental processing,

multiple streams not possible)

HTML 5 <audio> tag

<audio controls>
           <source src="sound.mp3" type="audio/mpeg">
           <source src="sound.ogg" type="audio/ogg">
           <source src="sound.wav" type="audio/wav">
            Your browser does not support the audio element.
</audio>

HTML 5 <audio> tag

<audio> attributes that can be set in the opening tag:

autoplay, controls, loop, muted --> doesn't need to assign a value

preload --> "auto", "none", "metadata"

Class Exercise #7

Embed audio files into an HTML document

using relative URL's to the sound files

Class Exercise #8

Embed audio files into an the Animal Jokes HTML

using absolute URL's to the audio files.

(Use just 1 audio file type for this exercise)

www.findsounds.com

Semantic HTML

Providing Context to the Content

Before HTML5, devs would use <div> tags to define

groupings of content <div id="nav">

Semantic HTML

Providing Context, or Meaning, to the Content

LIST of Semantic HTML ElEMENTS

article
aside
figcaption
figure
footer
header
hgroup
mark
nav
section
time

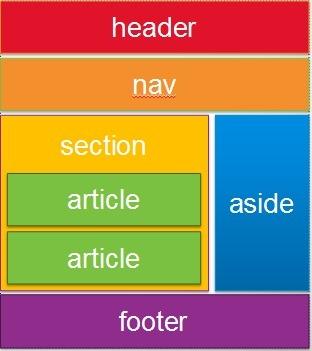

Typical Usage Case of Semantic HTML to group Content

<body>
    <header>
        <hgroup>
            <h1>Header in h1</h1>
            <h2>Subheader in h2</h2>
        </hgroup>
    </header>
    <nav>
        <ul>
            <li><a href="#">Menu Option 1</a></li>
            <li><a href="#">Menu Option 2</a></li>
            <li><a href="#">Menu Option 3</a></li>
        </ul>
    </nav>

Note: The <div> tag is still used in cases where there is not
a Semantic HTML element term to define a grouping

Class Exercise #9

Create Semantic HTML tags for our Animal Jokes HTML.

Make a hyperlink somewhere inside each joke.

Intro to HTML5 Styling

We can style the HTML from the inside the HTML doc.

Using the <style> tag, for a single HTML page is fine.

But to apply or change a style over many HTML pages
then using an external file to reference makes more sense.

Intro to HTML5 Styling

We nest the <style> </style> tags inside the <head></head> tags of the HTML framework

Then we can define the individual style properties of all
the elements inside the HTML page.

Intro to HTML5 Styling

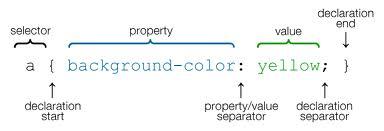

HTML styling format involves 3 parts:

Selector
Property
Value

Intro to HTML5 Styling

<head>
         <style>
                         h1 {   color : red;    }
                         p {   text-align : center }
         </style>
</head>

Class Exercise #10

Create an HTML document using Semantic Tags

for the acidrain PDF document.

Use <Style> tags and the style sheet language

to adjust font colors and adjust text-alignment.

Make a hyperlink for the safety tips.
