Analysing the Convergence and Divergence of Language Models
Introduction
Introduction
Vaswani et al. (2017)
Huh et. al (2024)
Chang and Bergen (2022)
ChatGPT (2022)
Scaling and multi-modal

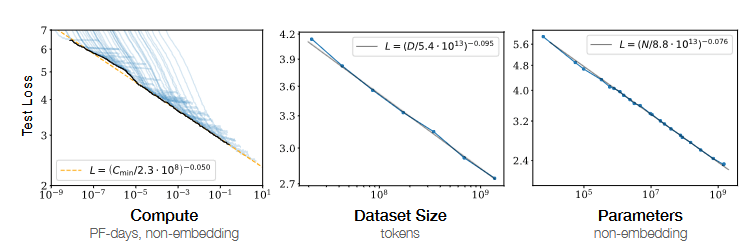

Kaplan/Hennigan et al. (2020)
Objective & Significance
- Analyse convergence of model probabilities
- Quantify impact of different features
- Large(r) randomly initialised models converge during training; behaviour for smaller models is unclear
- Hypothesise different phases of word acquisition
Background
Language Models
Bengio et al. (2003), Mikolov et al. (2013), Vaswani et al. (2017)
p(w_t \mid \textbf{w}_{\lt t}) = \frac{e^{z_{w_t}}}{\sum_{w' \in \mathcal{V}} e^{z_{w'}}}
w \in \mathcal{V}
\mathbf z = f(\textbf{w}_{\lt t})

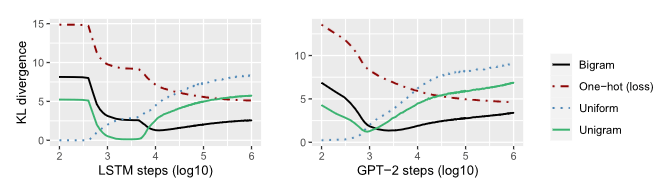

Evolution in Training
Chang and Bergen (2022), Meister et al. (2023), Huh et al. (2024)
p(w_t \mid \textbf{w}_{\lt t}) \approx \mathcal{U} := \frac{1}{|\mathcal{V}|}
\text{Unigram} := p(w_t \mid \textbf{w}_{\lt t}) = \frac{\sum_{w_v \in \mathcal{D}_\mathrm{VAL}} \mathbf 1_{\{w_t=w_v\}}(w_v)}{|\mathcal{D}_\mathrm{VAL}|}
KL divergence between probabilities output and various distributions
Methodology
Kullback Leibler Divergence
Short hand notation between models:
We compute the expectation
by approximating over the samples
\mathbb{E}[D_\text{KL}] \approx \frac{1}{\sum_{\textbf{w} \in \mathcal D} |\textbf{w}|} \sum_{\textbf{w} \in \mathcal D} \sum_{t=1}^{|\textbf{w}|} D_\text{KL}
Cross-Entropy
Definition:
Approximation with validation set samples:
Frequency
Part of Speech
By predicted:
By context:
Begin/End of Word
Experimental Setup

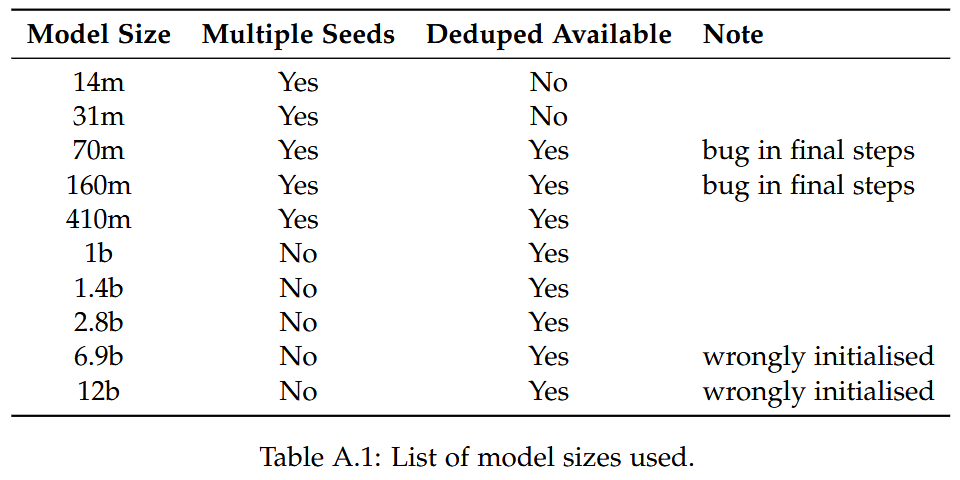

Model Selection
- Pythia models (Biderman et al., 2023)

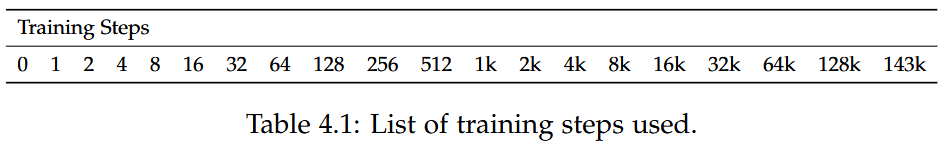

- Logarithmic steps
- Random seeds 1, 3, 5, 7, 9
Model Selection
- Pythia models (Biderman et al., 2023)
- Logarithmic steps
- Random seeds 1, 3, 5, 7, 9
Model Selection
- Pythia models (Biderman et al., 2023)
- Logarithmic steps
- Random seeds 1, 3, 5, 7, 9
Model Selection
- Pythia models (Biderman et al., 2023)
- Logarithmic steps
- Random seeds 1, 3, 5, 7, 9

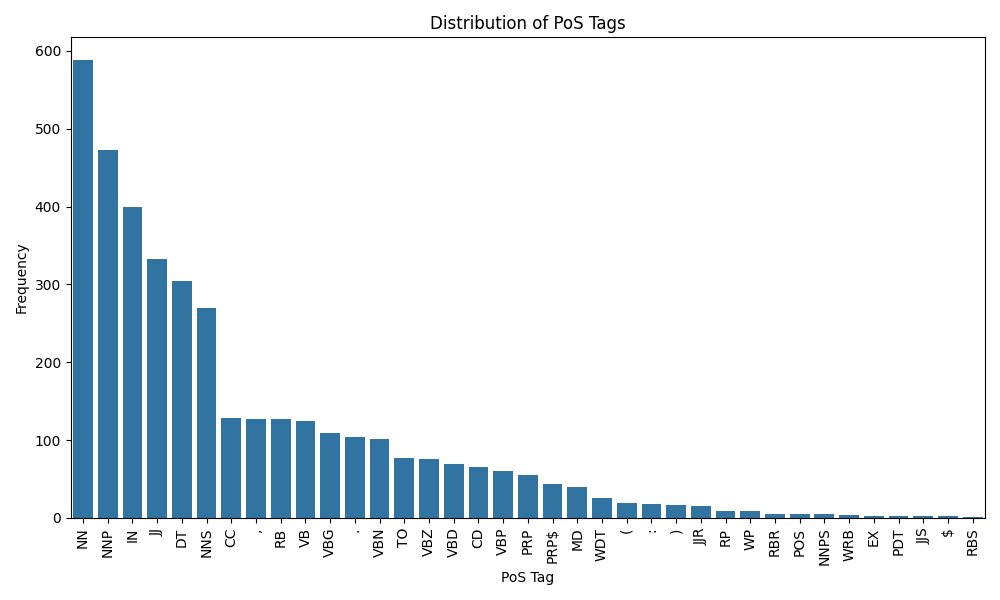

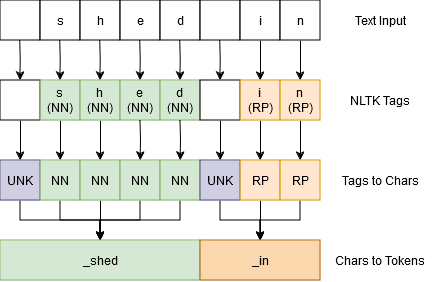

Part of Speech Tagging
Part of Speech Tagging
Part of Speech Tagging
Part of Speech Tagging
Results

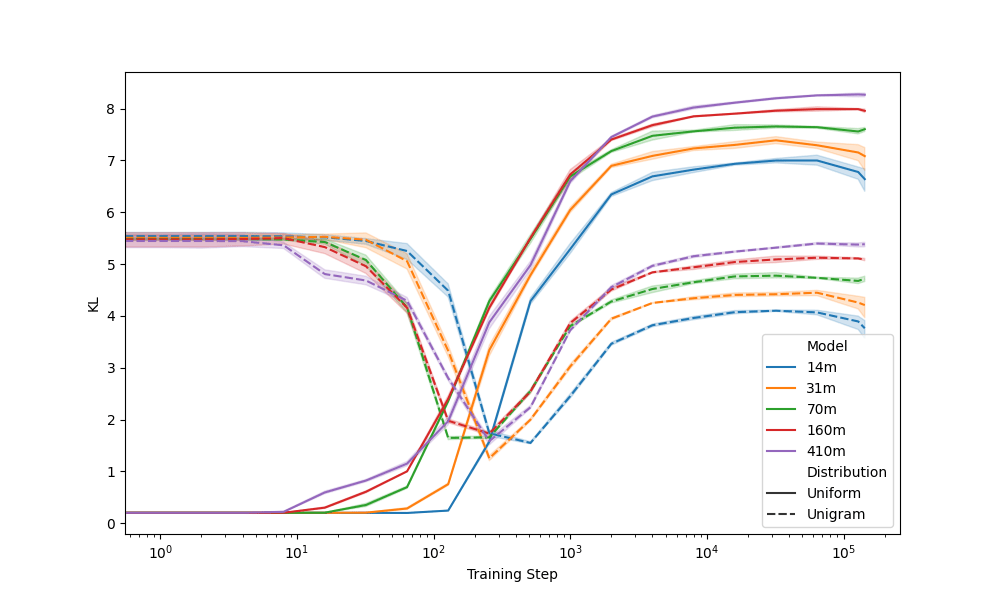

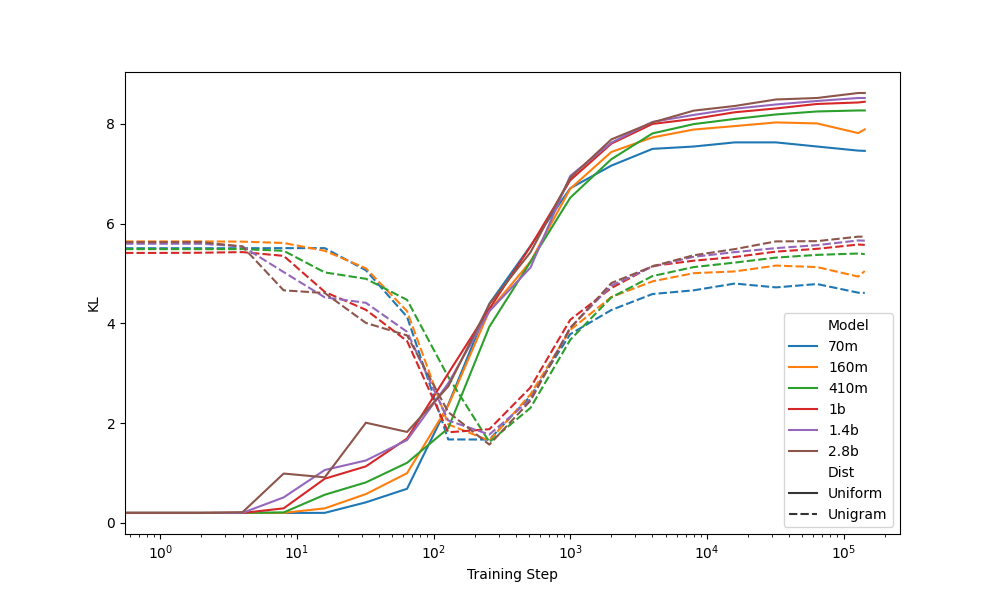

Reference Distributions
Reference Distributions
Reference Distributions
Convergence to unigram around 256 steps
Relative Divergences
Goal: Determine relatively significant P.o.S. at each training step
For predicted token:
For context token:
Looking for outliers =/= 1
Relative Divergences
\sigma_{(t)}
t_2 = t_1^{(+1)} \;\; \mid \;\; m_1=m_2
Relative Divergences
\sigma_{(t)}
t_2 = t_1^{(+1)} \;\; \mid \;\; m_1=m_2
Looking at learnability
Relative Divergences
\sigma_{(t)}
t_2 = t_1^{(+1)} \;\; \mid \;\; m_1=m_2
all, either, every ...
Relative Divergences
\sigma_{(t)}
t_2 = t_1^{(+1)} \;\; \mid \;\; m_1=m_2
all, either, every ...
Trump, Escobar, Zurich
Relative Divergences
\sigma_{(t-1)}
t_2 = t_1^{(+1)} \;\; \mid \;\; m_1=m_2
can, may, need ...
Relative Divergences
\sigma_{(t-1)}
t_2 = t_1^{(+1)} \;\; \mid \;\; m_1=m_2
can, may, need ...
all, either, every, ...
Training Phases
- Uniform Phase (until approx. step 8)
- Functional Universality Phase (approx. step 8 to 64)
- Unigram Transition Phase (approx. step 64 to 1000)
- Contextual Learning Phase (approx. step 1000 onwards)

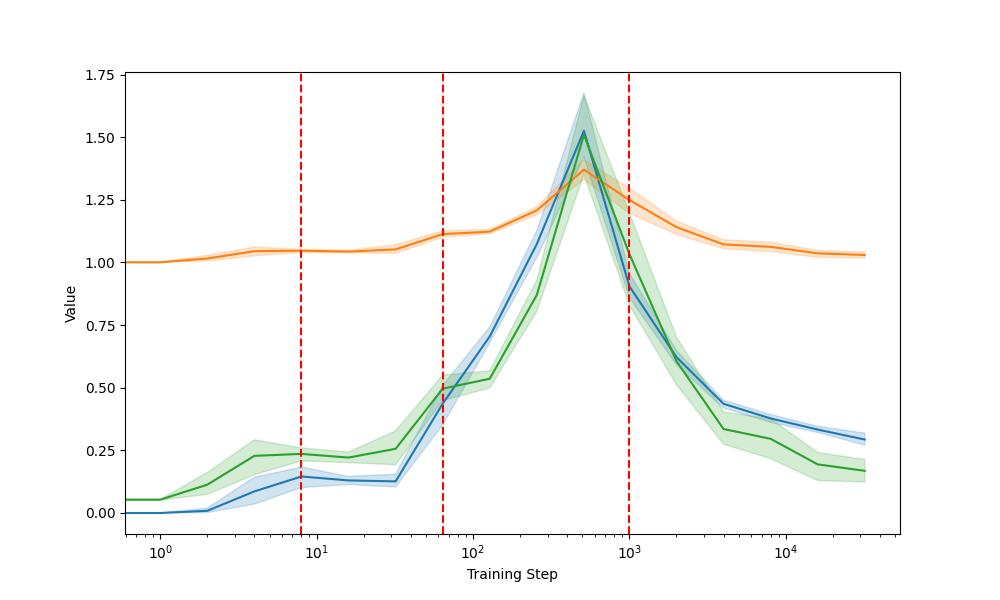

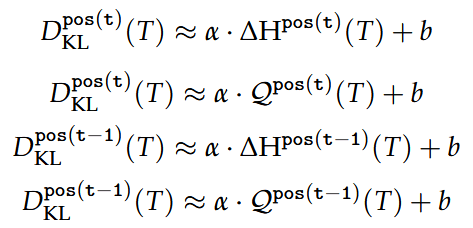

Cross-Entropy Fitting
Cross-Entropy Fitting
pos(t-1); NNP - e.g. Switzerland, Zurich
Cross-Entropy Fitting
pos(t-1); NNP - e.g. Switzerland, Zurich
\mathcal Q
Cross-Entropy Fitting
pos(t-1); NNP - e.g. Switzerland, Zurich
\alpha \cdot \mathcal Q + b
Cross-Entropy Fitting
pos(t-1); NNP - e.g. Switzerland, Zurich
\alpha = 394.09\%
Greater sensitivity is connected to higher divergence in later steps
Cross-Entropy Fitting
pos(t); DT - e.g. all, either, there

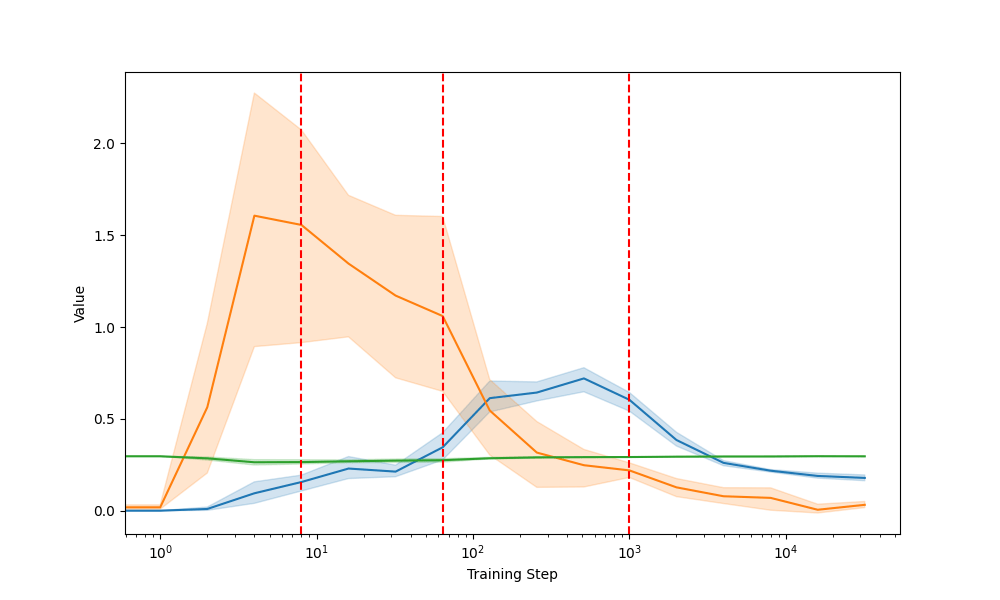

Cross-Entropy Fitting
pos(t); DT - e.g. all, either, there
\Delta H
Cross-Entropy Fitting
pos(t); DT - e.g. all, either, there
\alpha = -2.05\%
For (early) functional linguistic features, KL lags CE

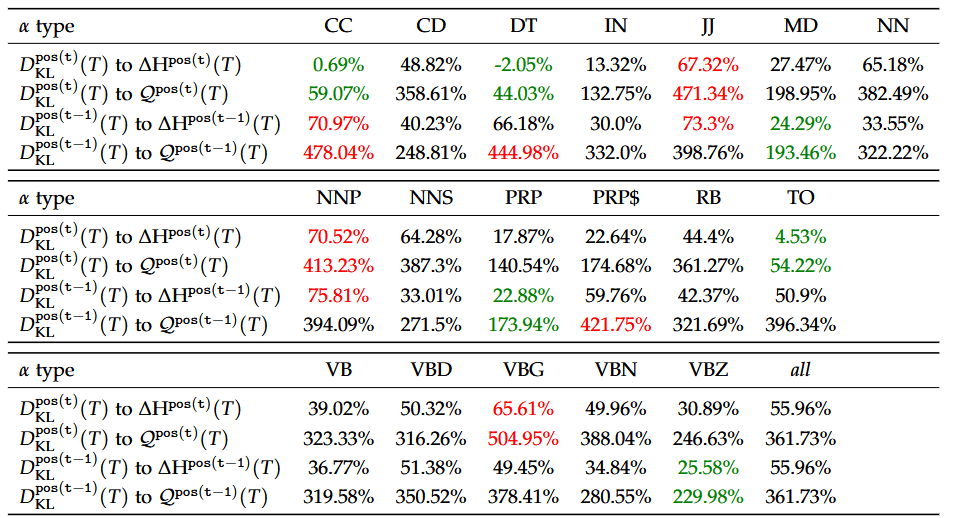

Cross-Entropy Fitting
Holds true for both fitting by ratio / difference

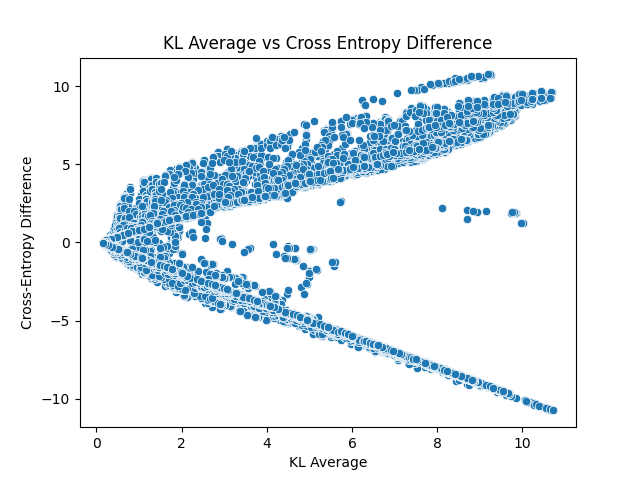

Cross-Entropy Difference
\Delta H = H_{m_1,t_1} - H_{m_2,t_2}
Cross-Entropy Difference
\Delta H = H_{m_1,t_1} - H_{m_2,t_2}
Cross-Entropy Difference
\Delta H = H_{m_1,t_1} - H_{m_2,t_2}
Cross-Entropy Difference
\Delta H = H_{m_1,t_1} - H_{m_2,t_2}
Low cross-entropy difference is a necessary condition for low KL!

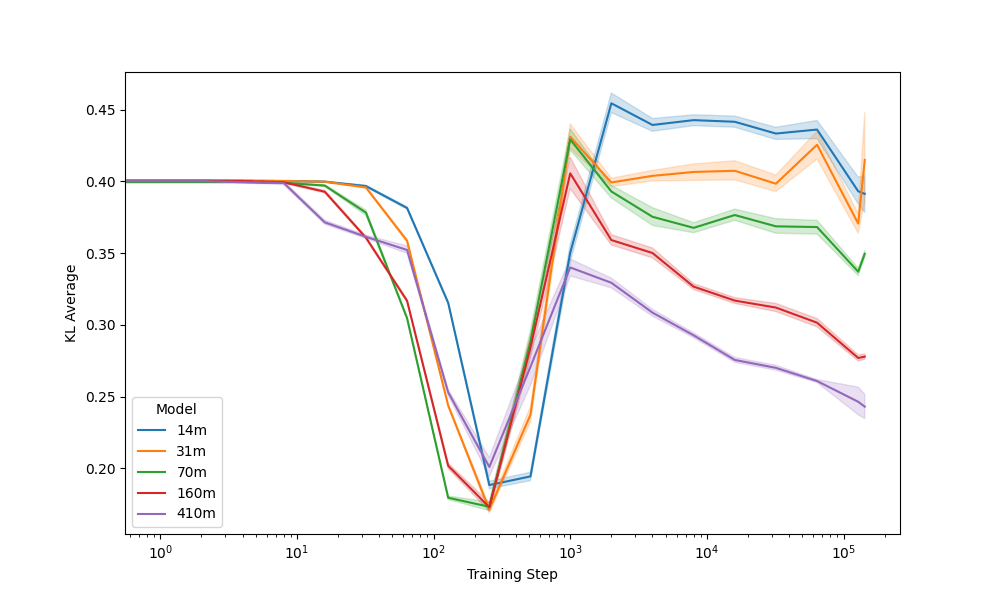

Seed Comparison
Seed Comparison
Seed Comparison
Seed Comparison

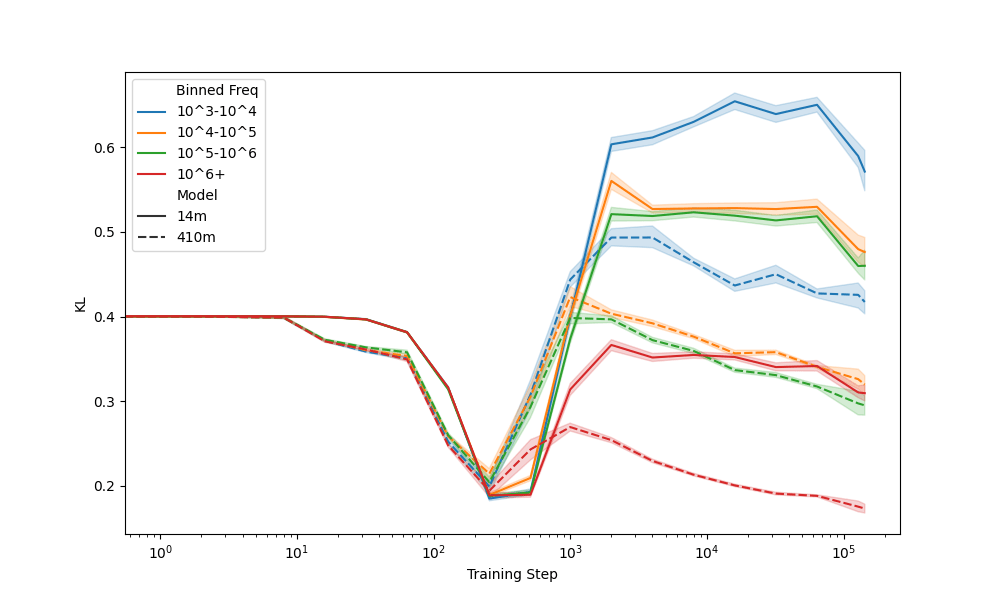

Seeds: Frequency
Seeds: Frequency
Seeds: Frequency
Seeds: Frequency

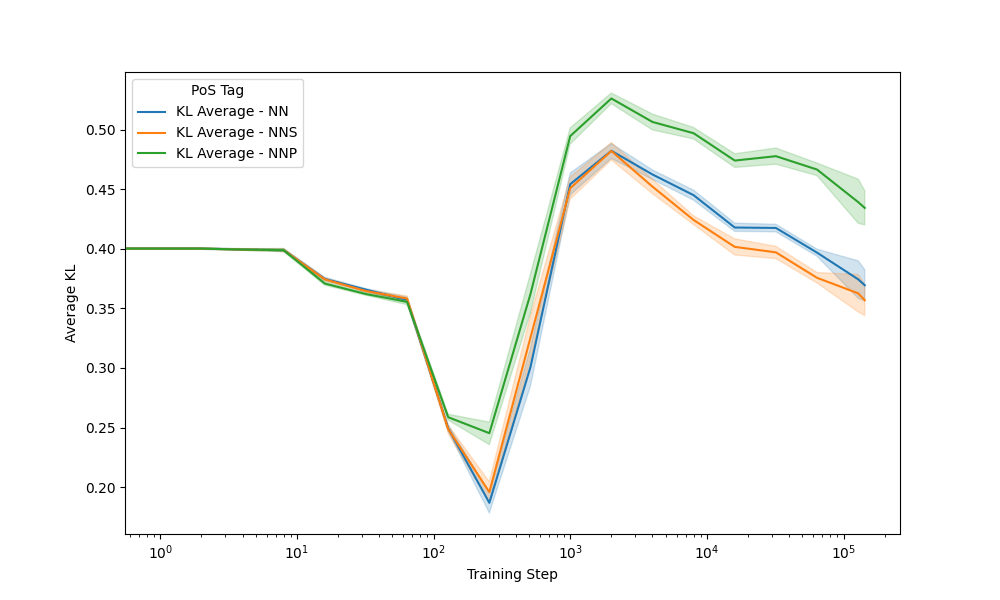

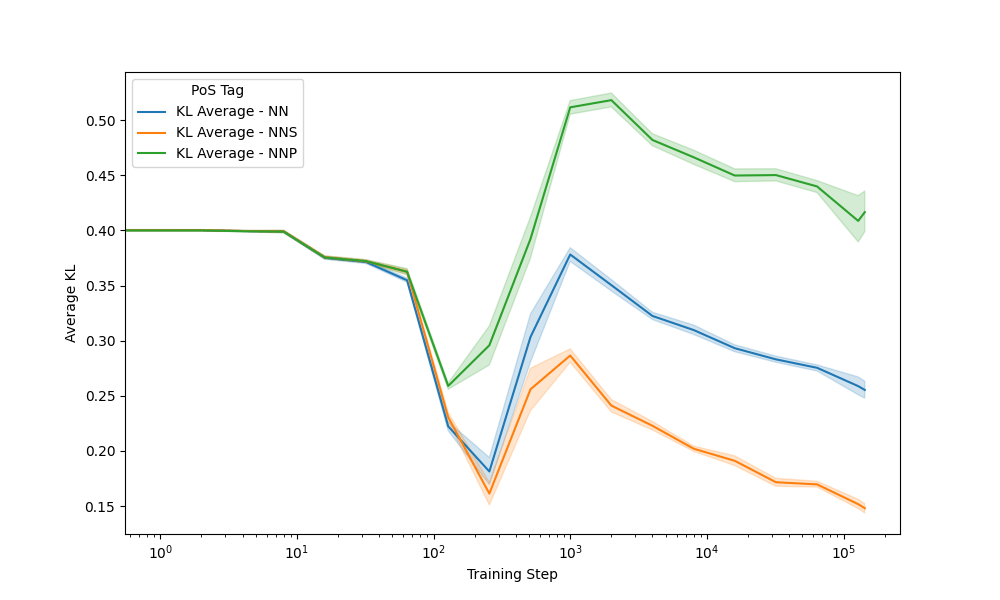

Seeds: Nouns
Context
Prediction
410m model - NN: house, cat, dog - NNP: ETH
Seeds: Nouns
Context
Prediction
410m model - NN: house, cat, dog - NNP: ETH

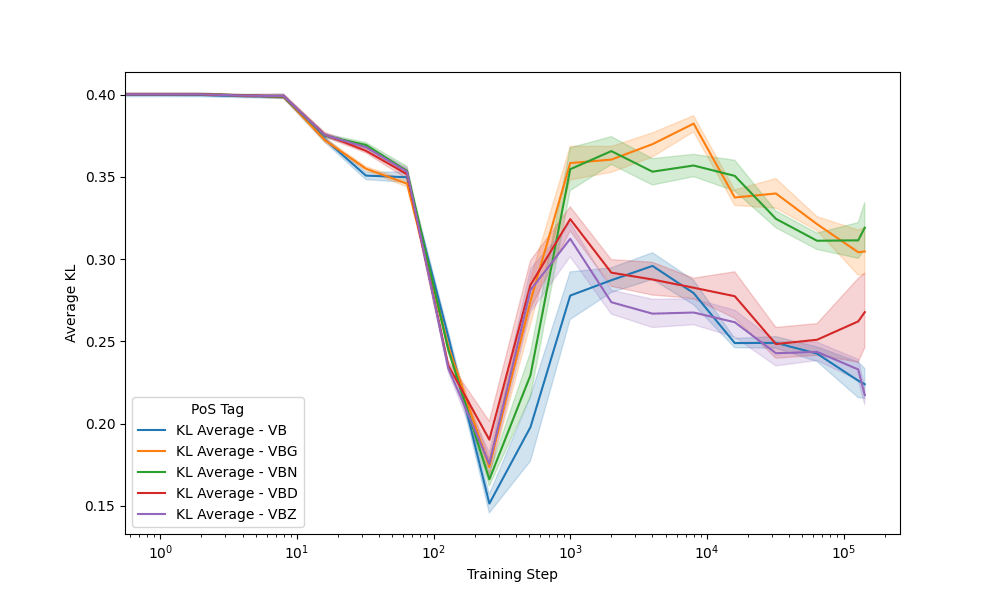

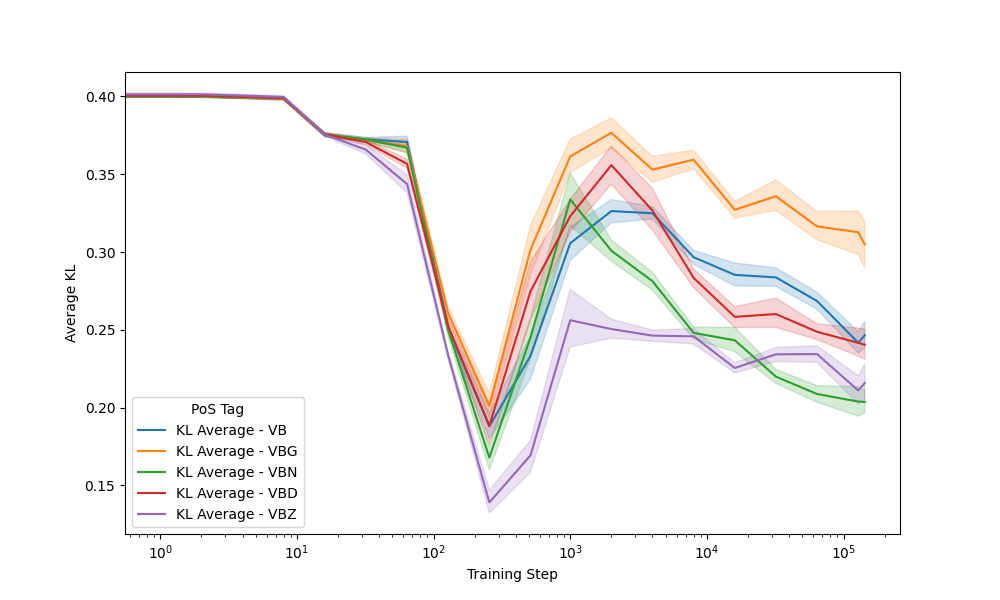

Seeds: Verbs
Context
Prediction
410m model - VBG: eating - VBN: called
Seeds: Verbs
Context
Prediction
410m model - VBG: eating - VBN: called

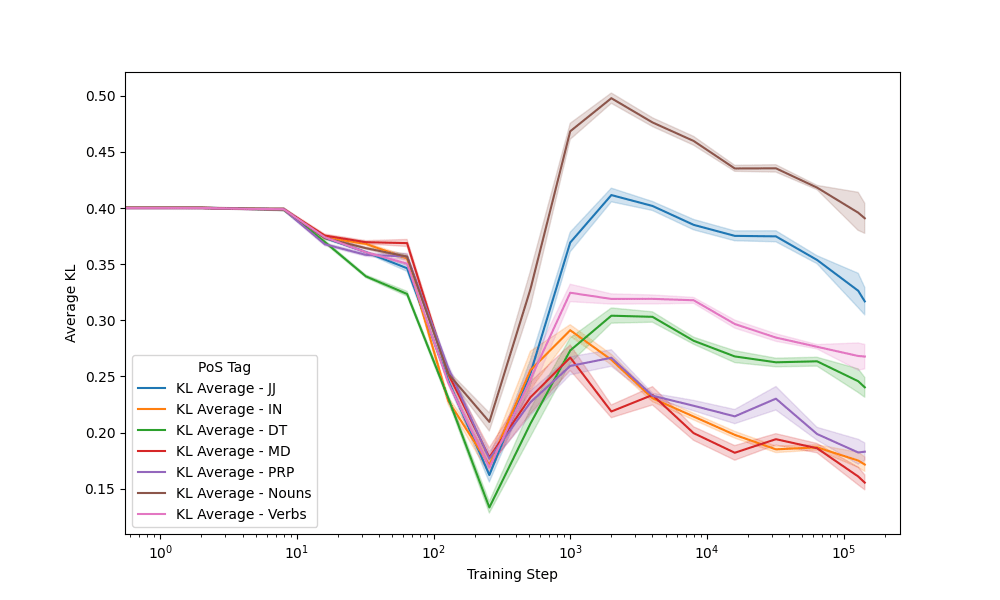

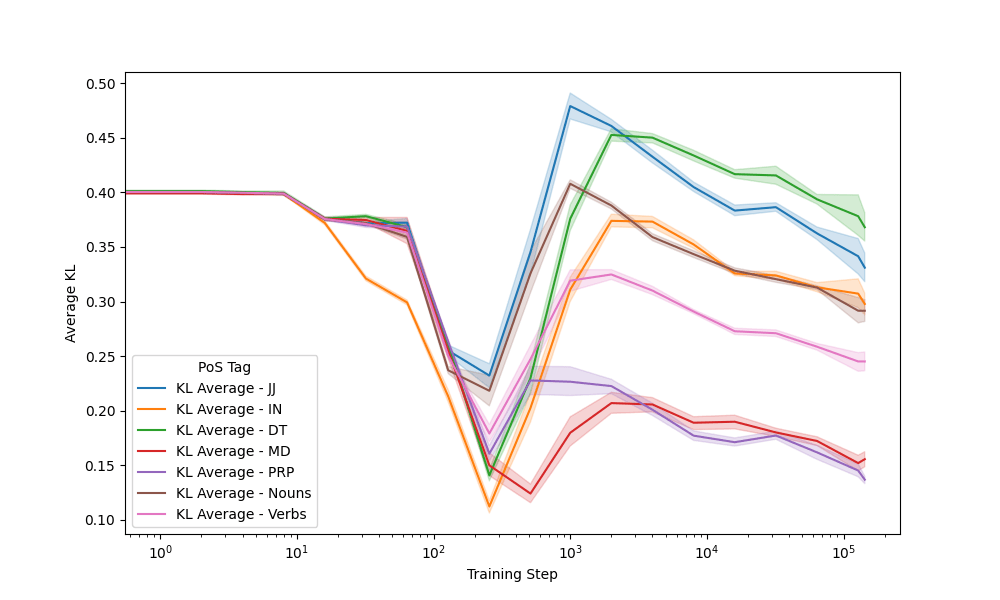

Seeds: Other P.o.S.
Context
Prediction
410m model
Earlier divergence in training correlates to greater stability later on

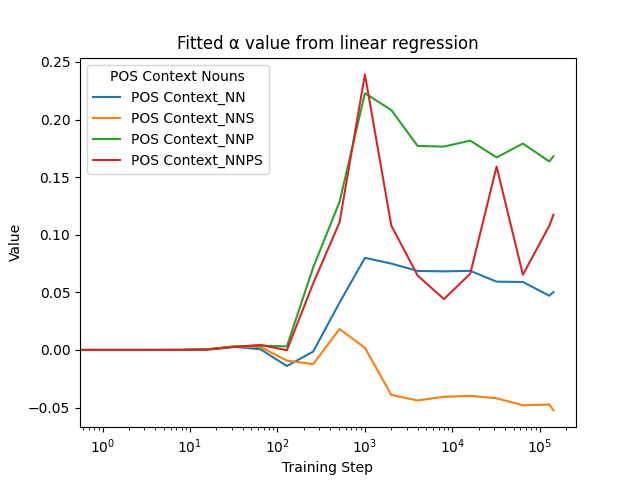

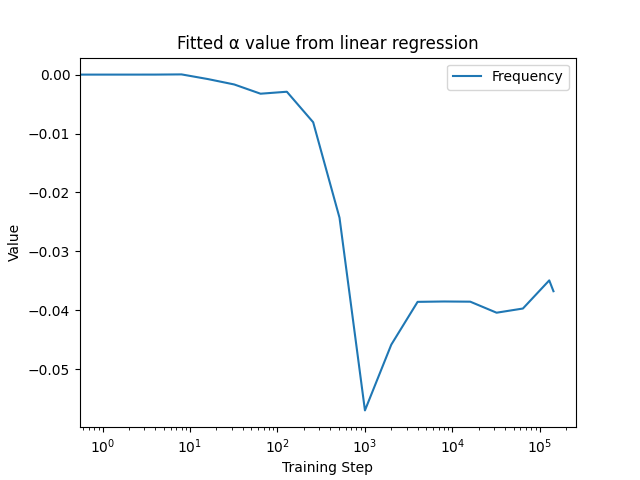

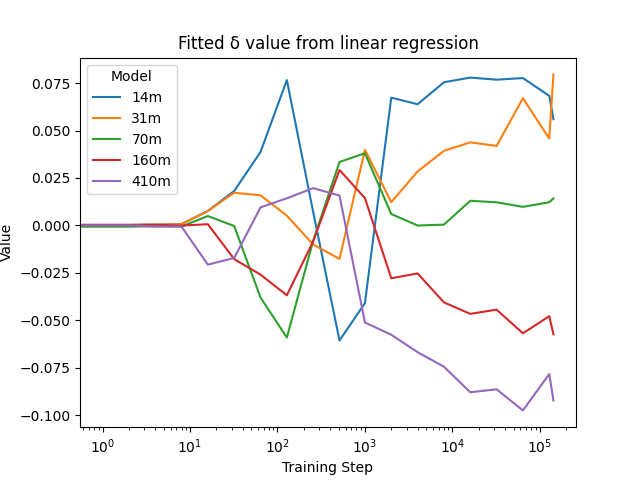

Linear Regression
D_{\text{KL}}(w_t) \approx \alpha \cdot \log(\text{freq}(w_t)) + \sum_{p \in \text{ P.o.S. tags}} \beta_{p} \cdot \mathbf{1}_{\text{tag}(w_t)=p} + \sum_{p \in \text{ P.o.S. tags}} \gamma_{p} \cdot \mathbf{1}_{\text{tag}(w_{t-1})=p} + \sum_{m \in \text{Model Sizes}} \delta_m \cdot \mathbf{1}_{m_1=m2=m}
Linear Regression
D_{\text{KL}}(w_t) \approx \alpha \cdot \log(\text{freq}(w_t)) + \sum_{p \in \text{ P.o.S. tags}} \beta_{p} \cdot \mathbf{1}_{\text{tag}(w_t)=p} + \sum_{p \in \text{ P.o.S. tags}} \gamma_{p} \cdot \mathbf{1}_{\text{tag}(w_{t-1})=p} + \sum_{m \in \text{Model Sizes}} \delta_m \cdot \mathbf{1}_{m_1=m2=m}
Conclusion
Summary
- Trajectory in model training
- Model size's role in enhancing self-consistency
- Significant differences by part of speech
- Efficiency gains can likely be made by adapting model training to linguistic structure
Limitations & Future Work
- Lack of different model architectures
- No variability in tokenisers
- Issues with Pythia model suite
- Improvement by emphasis on unstable linguistic features
- Connection between KL and cross-entropy could help improve model performance
- Focus on multi-lingual P.o.S. features
Q&A
Analysing the Convergence and Divergence of Language Models
By Finlay Fehlauer
Analysing the Convergence and Divergence of Language Models
Presentation about the convergence of LMs
