Clustering Applications, Load Balancing, and General Horizontal Scaling and HA Shenanigans
Eric Fusciardi
Why bother?
-
Higher capacity to handle load
-
Eventually you run out of hardware to throw at a single instance
-
Redundancy for failover
-
Redundancy in general for zero-downtime deployments / restarts
Basic Concepts
Some device that will proxy requests to other devices
Device?
I'm sure you've heard of F5
Software Solution
- Runs on a VM / Blade
- Needs a beefy network link
- Or two.
- Adds an extra hop in total network path (latency, but hopefully measured in ns)
- Dead simple configuration
- No licensing costs
- OS Limited to ~50k concurrent connections per instance.
Hardware Solution
- Can replace a router in network topology
- Integrated, nearly unlimited handling of all aspects of routing / LB
- Shaves a few ms round trip
- Once you buy your magic box, it's a part of your network backbone... forever...
- ... for $200k and $20k/yr support. 2x or more for HA.
Save your money
.. and your sanity
Until you're in the scale of Alexa500, with millions of requests an hour, and 1-2ms latency is the difference between life and death of your servers and customers....
...simpler

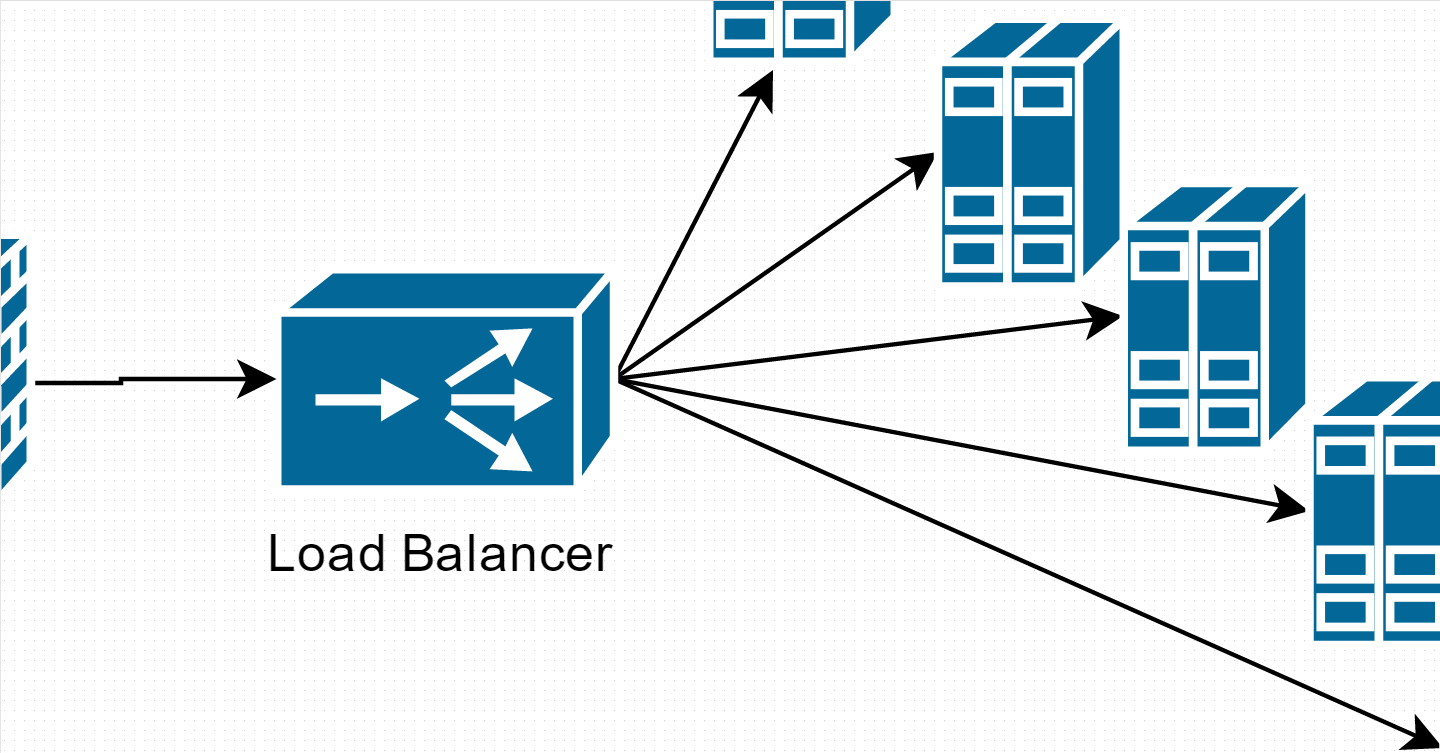

ZOOM! ENHANCE!
Front End
Back End
TCP Client and Server
Front end listening is a basic TCP/HTTP Server
Back end proxying the requests to the final endpoints is a basic TCP/HTTP Client
And then there's some logic between how to forward every front end connection into the correct back end
Text
CONTRAST! TINT!
10.6.4.153
DNS for
agy.sircon.com
points here
10.0.2.11
apsrv11
VERTICAL HOLD!
10.0.2.12
apsrv12
10.0.2.13
apsrv13
10.0.2.14
apsrv14

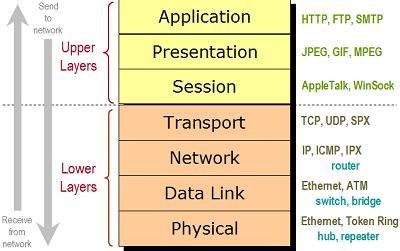

Quick refresher on the OSI network model
Layer 3 Load Balancing
I received a request on my listening (frontend) address.
I'm just gonna toss it to any of these remote (backend) server IP addresses, let them handle it, then send it back.
Doesn't care if it came in on port 80, 443, or if it wasn't a http protocol like ldaps:636, whatever.
Layer 4 Load Balancing
I received a request on my listening (frontend) address on port 80.
I'm just gonna toss it to any of these remote (backend) server IP addresses, but translate it to port 8001, since that's what those webservers are using. I'll let them handle it, then send it back.
If I got a request on a port I wasn't listening on, it's gonna be dropped on the floor or sent to some default handler.
Layer 7 Load Balancing
I received a request on my listening (frontend) address on port 80. It's for http://herpderp.sircon.com
I need to read the request to figure out which backend to send this to. Since it's herpderp.sircon.com, I'll route it to these webservers on 8001 port. If this was a request for undertale.sircon.com or herpderp.sircon.com/blog, I'd have sent it elsewhere. I'll let them handle it, then send it back.
If I got a request on a port for a context I wasn't listening on, it's gonna be dropped on the floor or sent to some default handler.
Layer 7 Load Balancing on steroids
I received a request on my listening (frontend) address on port 80. It's for http://herpderp.sircon.com. This is your second request, and you told me your servers need to retain session state.
I need to read the request to find your source IP or the session cookie I added that identifies the specific backend server I sent you to. I'll send you to them again, let them handle it, then send it back.
So obviously Layer 7 is the most useful
And surprise, it's the most prevalent
Other useful things
SSL offloading
Since the load balancer is both a server and a client, the server can be listening on SSL, translate the request back to clear HTTP, and push that to the webservers.
This allows the load balancer to absorb the overhead of cryptography, before sending the request to the backend servers. Modern systems can have dedicated crypto processors or will delegate to a GPU to efficiently handle these operations. Make sure your Load Balancer supports this, and you're in business.
Other useful things
Load Balance Algorithms
- Round Robin
- Least Connections - Actively assesses which backend host has less connections and uses it
- Sticky via IP - All requests from a client hit the same backend server (until some session timeout)
- Sticky via Cookie - Same as above but supports the notion of NAT IP's (multiple clients at some physical location sharing an interwebs connection) as well as multiple browser tabs
*COUGHING HUMAN NOISES*
Except that magical F5 box you put in your datacenter in place of a nice router (Layer 3)
is now acting at Layer 7 like some sort of monster
not fulfilling what a high performance router would do,
but still somehow chaining you into their vampiric support model
making you learn their crazy language of rule writing
sapping productivity
and wallets
HAPROXY!
Simple, yet deep configuration.
Software based.
Free. (as in beer, and speech)
Simple.
Choose a machine
- Point all your load balanced DNS entries to this guy
Install the package
- yum install haproxy
Edit the config file
- vi /etc/haproxy/haproxy.cfg
Fire it up
- service haproxy start
It's not a webserver. It's a reverse proxy, packed with load balancing flavors.
You can wedge httpd and nginx into the same basic reverse proxy role.
But you'll run into headaches when you start doing anything non-trivial.
Config that isn't stupid
If you've written F5 iRules you know what I'm talking about
IT'S TIME TO MAKE SPAGHETTI DEMO
Surprise, we're using HAproxy right now
svn+ssh://botd-svnsvr.devop.vertafore.com/svn/chef/sircon_weblogic/templates/default/haproxy.cfg.erb
The config file is 222 lines
And it supplies all the routing and load balancing for an entire environment of the Sircon, G2, and supporting systems.
Including context-sensitive routing.
And SSL offloading.
the raw export of f5 for uat is 8k lines of xml fragment garbage
I've been critical of F5
The networking inside of me rages against what it stands for...
... But in reality, it's a super high performance load balancer. It takes all the latency weaknesses of using a host to load balance, and integrates it into the network layer for absolute pinnacle of performance and stability as long as you pay the $$$$.
It shouldn't be heckled like this.
