Continuous Integration

(And the scaffolding for continuous delivery)

Eric Fusciardi

Much wow, many apps.  So automation.



Continuous Integration Goals

  • Include and automate testing into delivery.
  • Fast feedback to failing code.
  • Destroy "But It Works On My Box."
  • Discover new infrastructure requirements early.
  • Capture candidates for release.
  • Enable your software to live a long life thru regression.

CI in your org - Surprisingly, it's not about your language

  • It's a cultural issue, building automated quality checks into your SDLC, so that you can deliver SAFELY faster.
  • Tool selection comes down to the other third party software and toolchains you currently have.
  • Jenkins, Travis, Bamboo, and TFS are popular options.
  • We'll talk more on the tools and their strengths later.

Your build server should be the hardest working server(s) you own*

They should have every compile-time dependency, all test-time dependencies, and ideally all run-time dependencies that production has installed.



Every commit will trigger an enormous event to throw all of the regression you have built against it.

*Except maybe your production systems :)

CI at it's core

Dude, it's just cron and/or events on your SCM tool.



This has been around for a long time.



The structure provided is nice, though.



A Fancy UI, History, and reporting is really nice too.

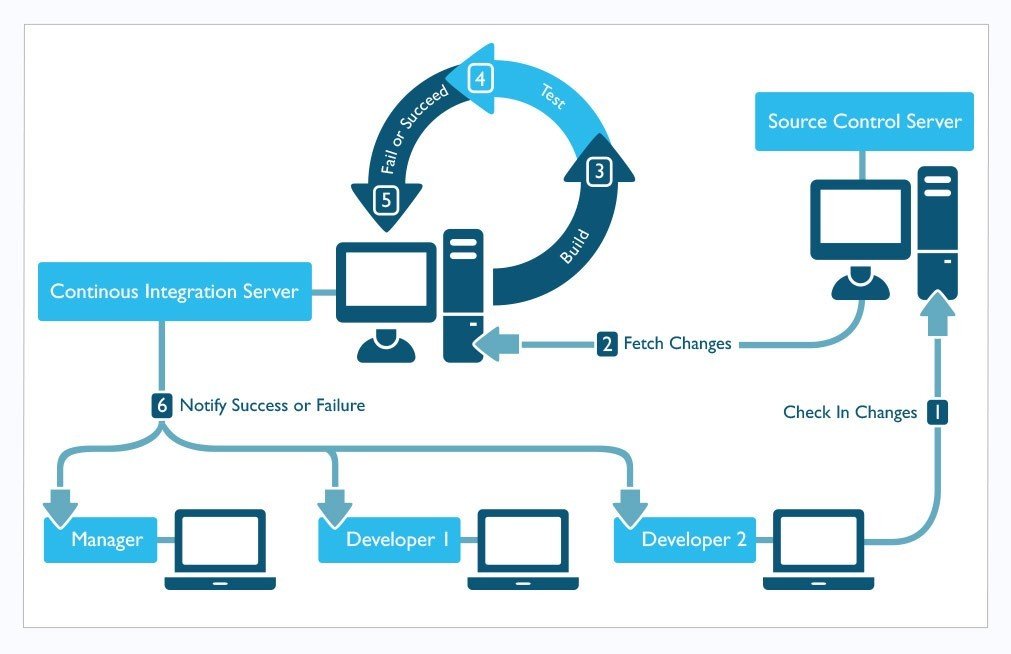

Basic Lifecycle

Pretty much any tool you find works like this and supports these actions

including cron and sendmail lol

Courtesy of CMU

Baseline for your CI

Compile Src

Unit Test

Package

If any of the above fail, reject everything.

Every.  Commit.

Packaging your artifact is often overlooked

Even if you have no intention of indexing your packages or reusing them in your CI yet.



"We're feature complete, Tests pass, let's deploy!"

"...  uh... it failed..."

What do we mean by "Artifact"?

  • Highly interpreted by your language
  • If your project is Java, likely a .war / .ear / .jar
  • If the project is infrastructure, a chef cookbook / salt stack .tar
  • .tar, .zip, etc.  "Stuff", ready to be consumed by your deployment processes.

Side note on Artifacts and Environments

Environmental config is a totally seperate subject worthy of many, many, presentations.  Let's make some assumptions that the thing you create is environmentally agnostic, or is trivially configured.



And this is the start...

  • This is the minimal quality gate
  • Even if there is only one unit test, run it.  Every time.
  • If you can't compile, unit test, and package the app...  What the hell are you doing sending it to production?

Higher Level CI...

The tools:

  • CI Tool of choice
  • Artifact Server

The actions:

  • Check out code
  • Compile
  • Run unit tests
  • Deploy / start app
  • Run integration, performance, etc tests
  • Capture metrics (Coverage, Analysis, Performance, etc)
  • Send artifact to artifact server

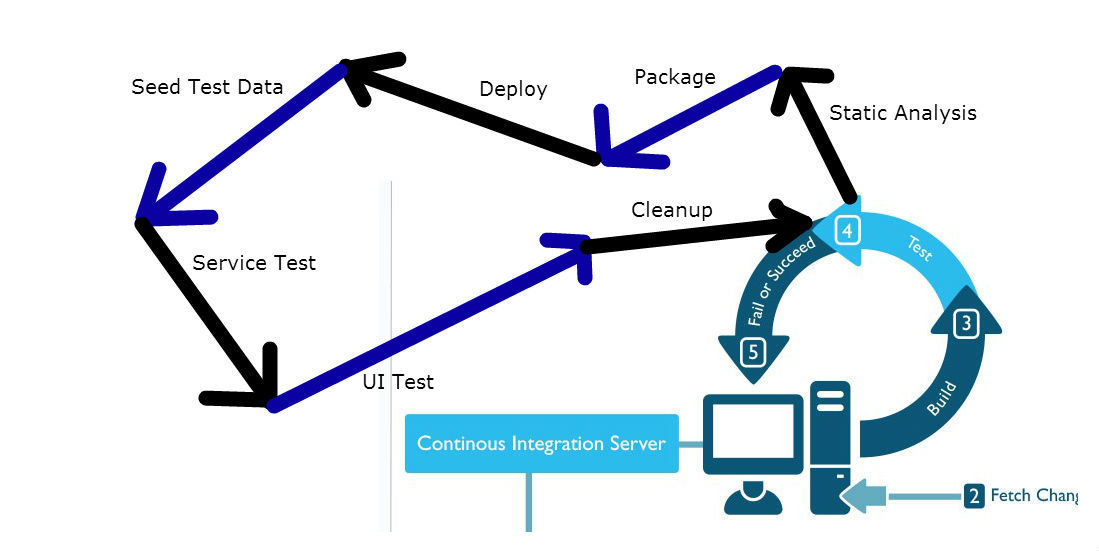

Once you have the basics, keep building

Deploy the code? In CI?

omg spooky

  • At least catch the "Dead on arrival" deployments.
  • Yes, you'll likely need a database
    • You have the scripts to recreate those, right?  :)
  • Yes, you'll likely need to setup the runtime environment
    • You're using Chef/Puppet/Salt, right?  :)
  • Yes, you'll likely need to have something with a UI running some UI driven tests.
    • Your QA's are using Selenium/QTP/RIATest, right?   :)
  • And... yes... it enables further automation to run here...

Any and all regression, create buckets for it, wire those buckets into your CI, and keep moving.

Integration Testing and the CI Feedback Loop

Keep your feedback loop as tight as possible.

Integration testing is EXPENSIVE time-wise compared to unit testing.

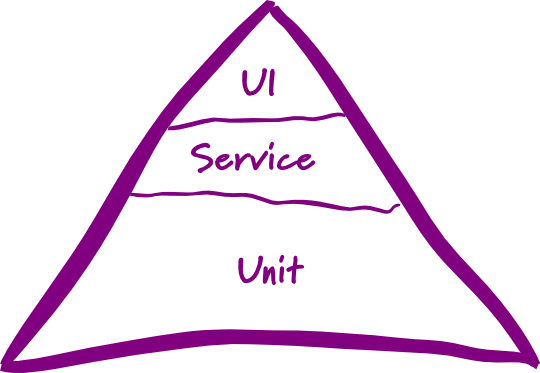

Obligatory Martin Fowler Testing Pyramid

omg lazor fast

incur setup time, still fast, wow

most intense, such slow, so value

Some tools / build systems do this better than others

Failing fast, and giving appropriate feedback to the failure is great

Flaky integration tests are poison

You need some confidence in your automation.  Don't half-ass

your regression.  Many tests, especially UI tests which are end-to-end

will require some TLC.

Remember, this is your safety net, don't build it with popsicle sticks.

So which CI tool?

... and more

  • Free
  • BYOS (Bring your own server(s))
  • Open Source (Java / Scala core)
  • Mature API
  • Very mature and developed 3rd party plugin library
    • Also, most of which are free and Open Source.
  • Scales easily to remote slave machines
    • Remote machines can be Windows / OSX as well, for cross platform or cross browser testing
  • Supports abstract job definitions
  • Can be resource intensive

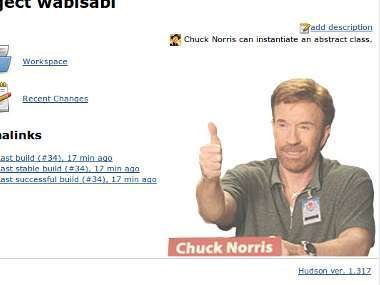

  • Chuck Norris plugin

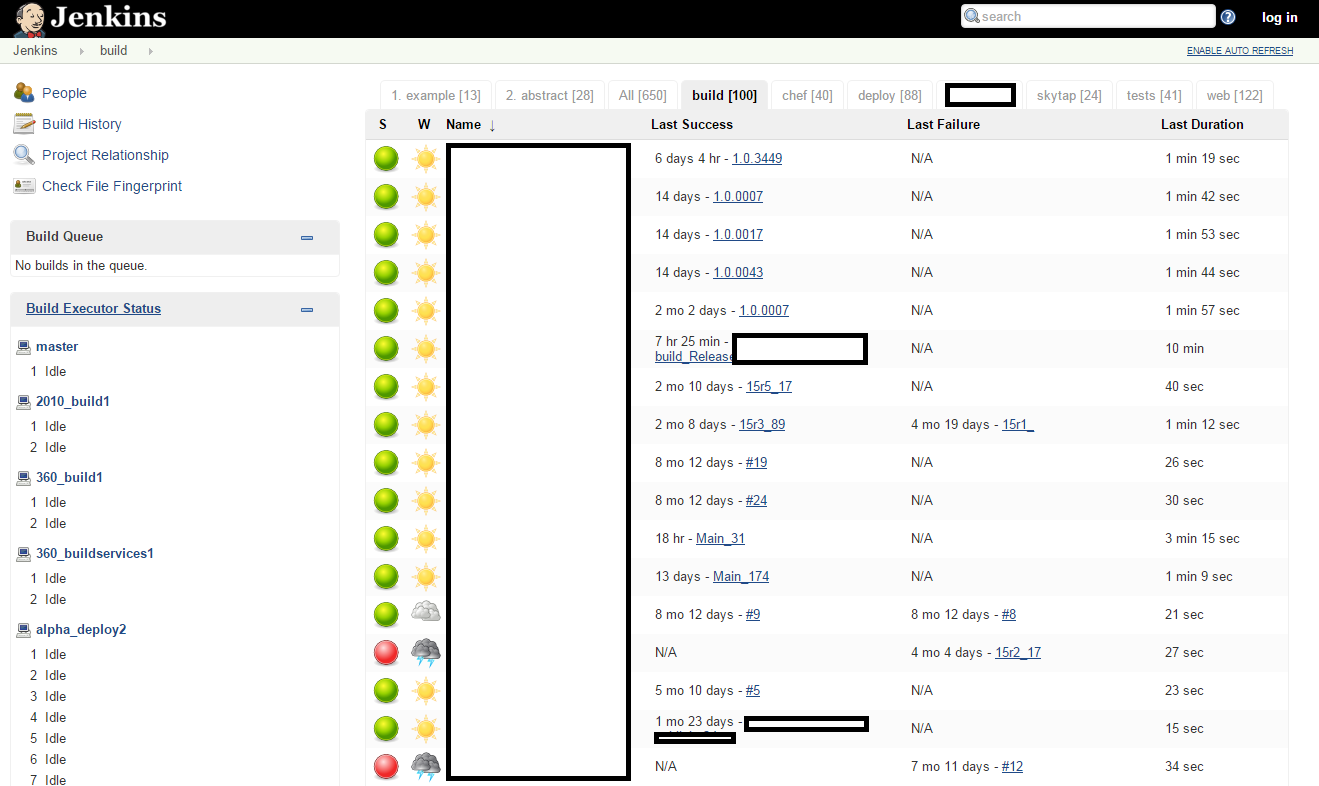

Dashboard

Agents

Jobs

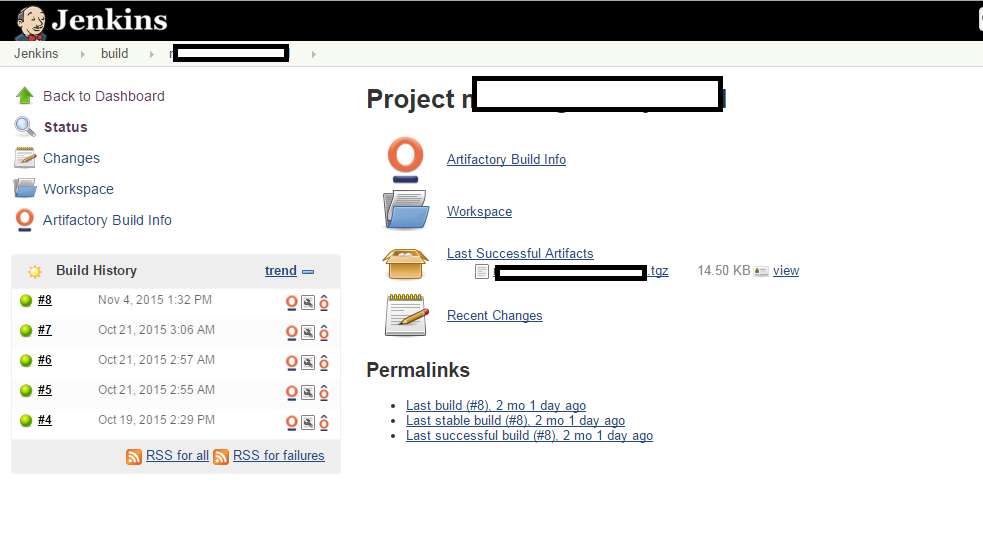

Artifactory plugins

  • Starting at $600-800/yr for non-trivial projects.  ($10 for 10 job pricing exists, but you'll outgrow it quickly.)
  • BYOS and Cloud options available
  • Closed Source (Java core)
  • Mature API
  • Tons of built in features and general polish.
    • Internal repository + deployment features are wonderfully done, embracing normal Continuous Delivery needs.
  • Supports scaling to remote agents of any OS
    • # of Remote agents are the pricing tiers for the product.
  • Reasonable 3rd party plugin library
  • Integrates with all the Atlassian products really well, natively.
  • "Builds" are split into stages and jobs, which allow for seamless control of concurrency and checkpoints.

Obligatory Atlassian Fanboyism Slide

  • JIRA integrates with Bamboo to show issues being validated per build.
  • Crucible integrates with Bamboo to show you which commits validated your review.
  • Stash (GIT) integrates with Bamboo to let you auto-merge successful branch builds into main.
  • If you let Bamboo manage your deployments, it will show you JIRA's completed in the differential between deployed code, warn about outstanding code reviews, etc.
  • It all ties together REALLY nicely.

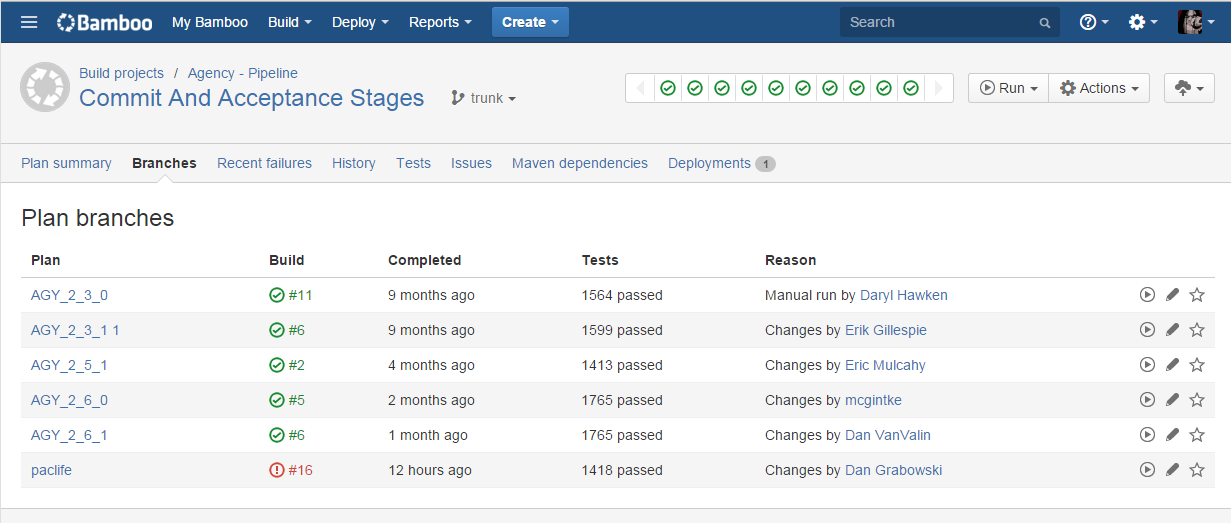

Auto branch management

Plan summary, including deployables

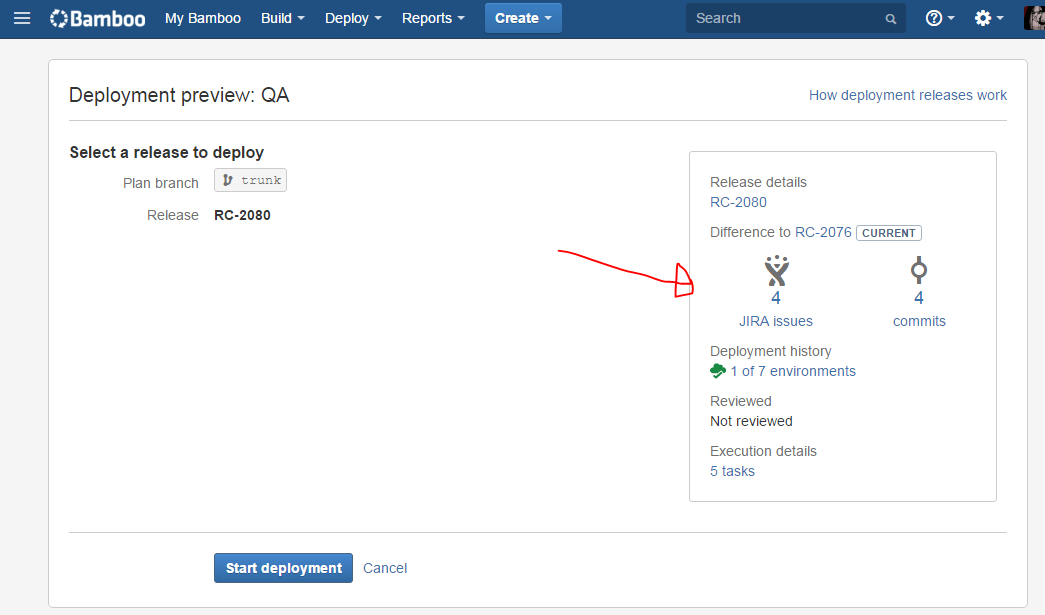

Deploying a build

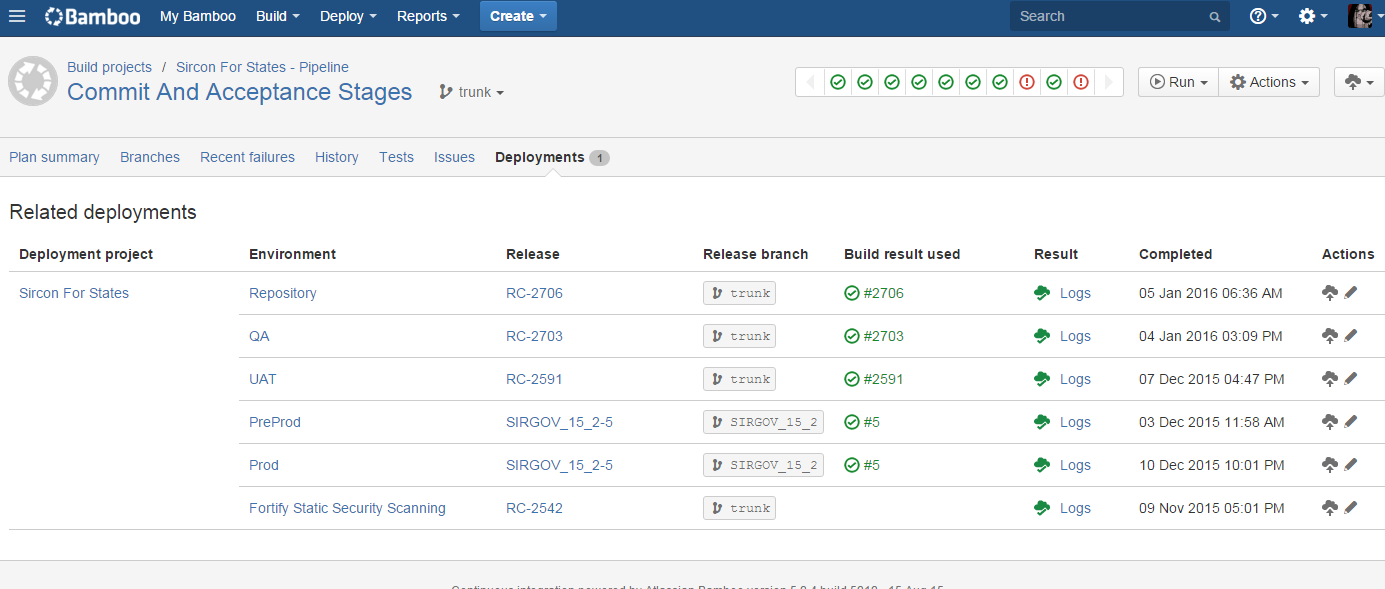

Deployment management and environment state

  • Free for open source projects, starts at $1500/yr for commercial
  • You must use Git as your SCM tool
  • GitHub integrations with Travis are excellent and cloud based.
  • Most of the CI control is thru a file in your repo, not on another CI server somewhere.
  • Uses a lot of "convention over configuration" - so there is minimal setup involved assuming your project is "normal"
    • You will fight it tooth and nail if your project is a snowflake

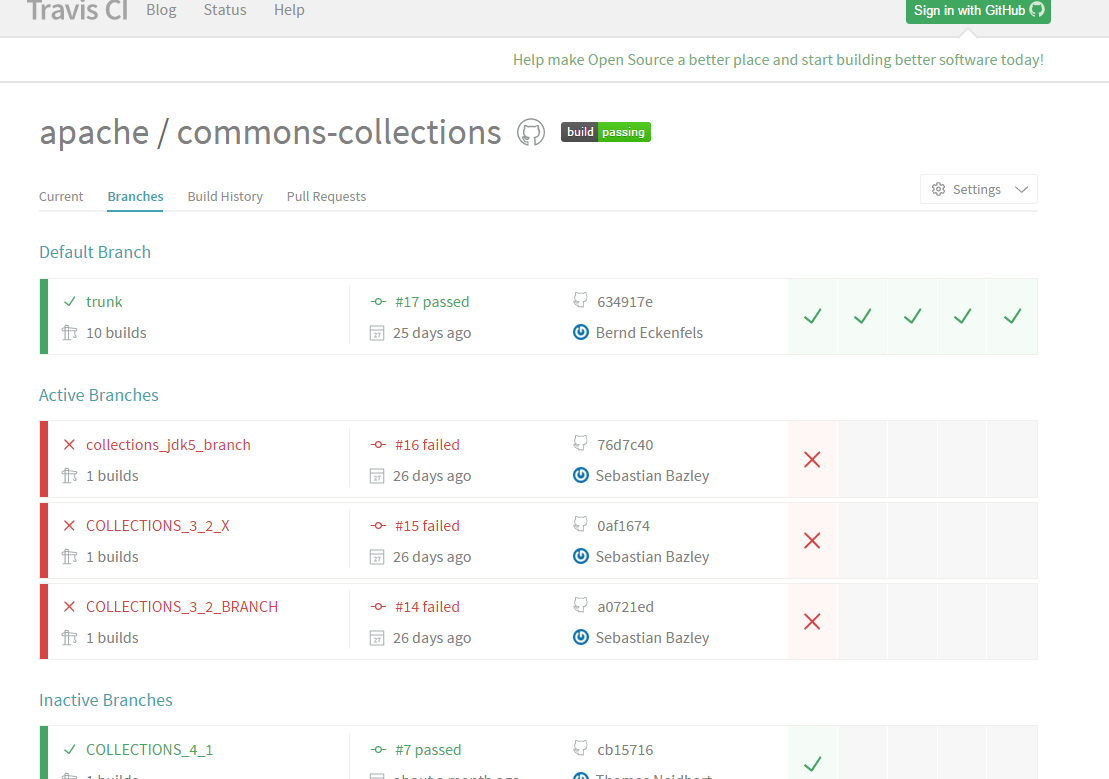

Travis handling git branch workflows

  • Starts at $500/yr+ depending on various VSO account criteria.
  • If you are entrenched in the M$ Stack, you likely already have TFS as your SCM Repo.
  • TFS Provides tools to support CI builds as well
    • Beginning to also provide tooling around CD / deployments
  • Very well integrated into the Visual Studio / TFS toolchain.

Generalalized Opinion

Jenkins Bamboo Travis TFS CI
Cost A+ B A+ Open
C Closed		 C
Plugin Ecosystem A B ??? A
Ease of Implementation C A- A+ B
Integrations and Features (Out of the box) D Vanilla
A Plugin'ed		 A+++ JIRA
B Other		 A+ GitHub
??? Private		 A+ TFS
B Other
Customizability A+ B D B
CD Integrations B A+ B A
UI / Polish D A+ B A
Cross-Platform A+ A F A

A note on ownership

This is really culturally bound, but as a good rule, the same team writing the code should not be the ones in full control of the CI system.



CI should be owned by the delivery, QA, or ops teams.



Server-level changes get discovered there.

I'm out of topics

But not out of opinions

Questions?
