3D City Database v3.0
Felix Kunde
fkunde@virtualcitysystems.de
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/229592/200px-Fossgis14-logo.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/296699/vcs_wortbild_pos_RGB_110px.png)
Shortly
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/254044/logo.jpg)
"The award winning 3D City Database is a free 3D geo database to store,
represent, and manage virtual 3D city models on top of a standard
spatial relational database. The database model contains semantically
rich, hierarchically structured, multi-scale urban objects facilitating
complex GIS modeling and analysis tasks, far beyond visualization" (http://www.3dcitydb.net)
OpenSource under LGPL v3.0
History
2003 - 2005:
-
v1.0 developed
within a pilot project funded by the European Union at the University of Bonn (supported DBMS: Oracle, PostgreSQL)
2007 - 2008:
- v2.0 developed within the framework Europäische Fonds für regionale Entwicklung (EFRE II) the project Geodatenmanagement in der Berliner Verwaltung – Amtliches 3D-Stadtmodell für Berlin at Technsiche Universität Berlin (supported DBMS: Oracle)
2012:
- Oracle Spatial Excellence Award in the field 'Research and education'
- v2.0 ported towards PostgreSQL/PostGIS (http://opus.kobv.de/ubp/volltexte/2013/6365/)
Since 2013:
- Cooperation agreement between TU Munich (new chair of T.H.Kolbe a.k.a. godfather of the 3DCityDB), virtualcitySYSTEMS and M.O.S.S. about the further development
- Steering committee between the three partners takes decisions on the future roadmap
- Cooperation is open for new partners who are using the 3DCityDB and want to develop new features and tools
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/296336/3DCityDB_Partners.png)
Managing 3D City Models
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/296144/3DCityDB_System.png)
Why CityGML?
Other standardization processes for data models concerning 3D buildings like IMGeo (NL), INSPIRE (EU), Adv-Profil (D) etc. are closely related to CityGML. And it's getting more and more...
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/296194/ogc.png)
Why CityGML?
Rich in semantics compared to other 3D formats. Objects know where they are and WHAT they are.
Source: Stadler 2008
Semantic model based on ISO 19109
Geometric model based on ISO 19107
Geometric model based on ISO 19107
Why CityGML?
Hierarchical structure of features and 1 to 5
diffenrent levels of detail (LoD) for each feature. Applicable for many
different scenarios in 3D city modelling.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/296380/lods.png)
Why CityGML?

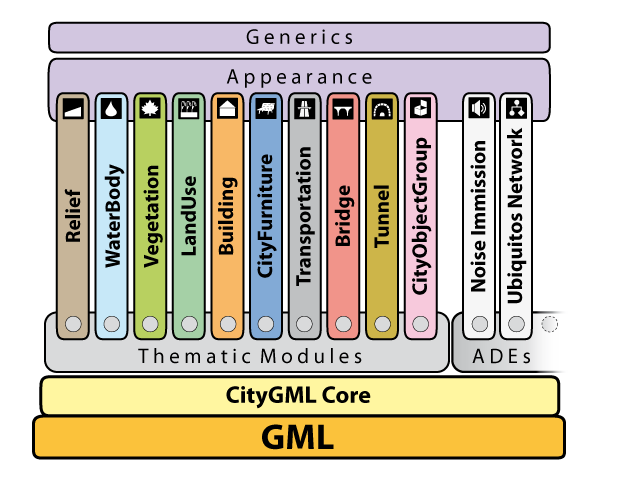

Modular structure of thematic models. Thus users and developers might use only the parts they need. PLUS: The model is extendable via application domain extension (ADE).
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/296163/CityGML-Model_colored.png)
NEW: CityGML 2.0.0 support
http://www.opengis.net/citygml/bridge/2.0
http://www.opengis.net/citygml/tunnel/2.0
Lessons learned
- Schema enhancements to make spatial queries easier
- No more ORDImage data type to store texture files. Instead: BLOB. >> Better support for Oracle Locator.
- Binary data of texture files seperated from surface data information (more suitable for texture atlases)
- Improved stored procedures
Tables and references
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/270969/3dcitydb_v3_postgresql.png)
Geometry storage
- Most Objects can be described by
- a boundary representation
-
NEW: a solid representation (3D)
- an implicit geometry with reference point and transformation matrix (for prototype objects)
- Other geometry types:
- Terrain intersection curves as MultiLinestring
- Masspoint relief as MultiPoint (maybe Pointcloud type in the future)
- Point, Linestring and Collections
Importer/Exporter
- NEW: CityGML 2.0.0 support
-
NEW: Parallel development of Oracle and Postgres branch merged into one master (https://github.com/3dcitydb/importer-exporter)
-
NEW: One adapter interface for databases. Additional support for other DMBS would be more easy to develop
Technical details
- XML binding by citygml4j (https://github.com/citygml4j)
- Database access via JDBC and Tomcat connection pool
- Texture Atlas Creator, a standalone tool and API for creating texture atlases for CityGML files or a set of input images https://github.com/3dcitydb/texture-atlas-creator
- Plugin API to facilitate the development of additional database management functionalities

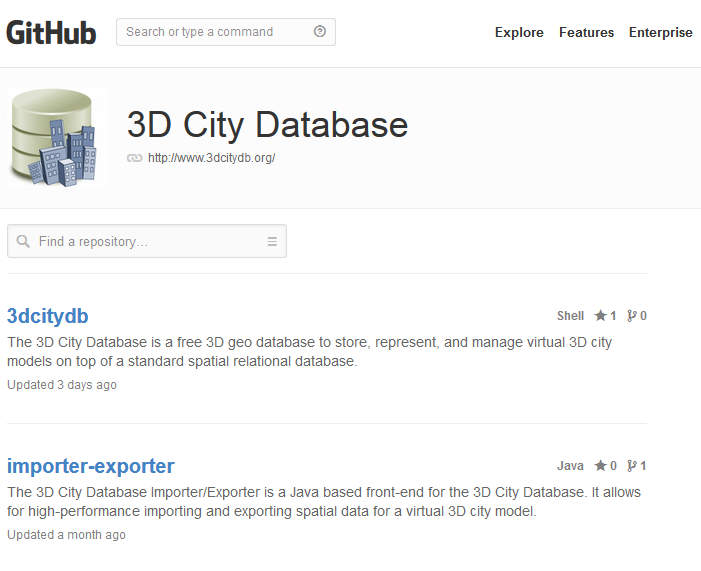

NEW: Follow us on GitHub
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/262542/3dcitydb_github.png)

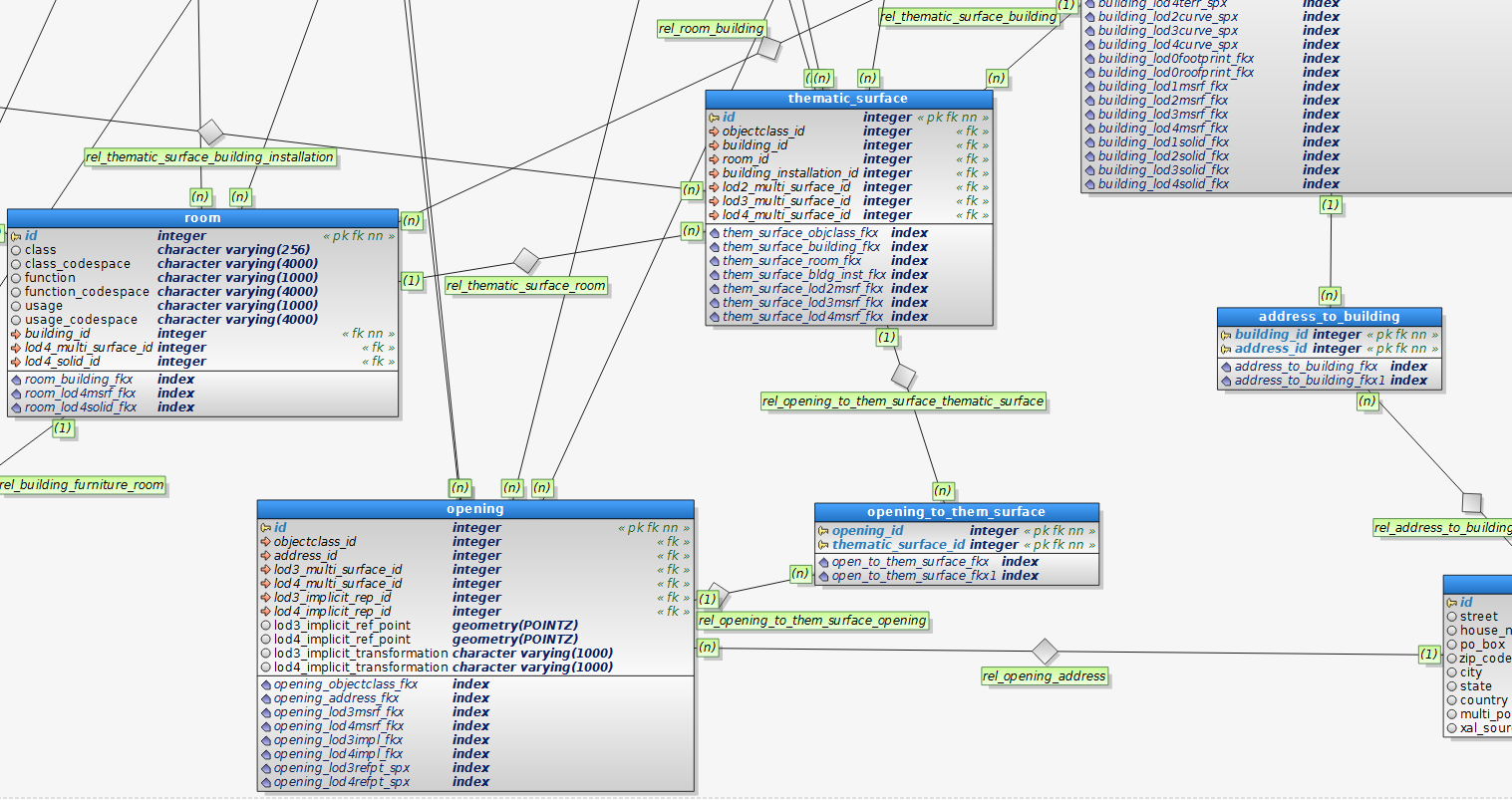

NEW: Create your own database scripts
![](https://s3.amazonaws.com/media-p.slid.es/uploads/fxku/images/296196/3dcitydb_pgmodeler.png)
Oracle > JDeveloper PostgreSQL > pgModeler
NEW: WFS
- Database access via Simple Web Feature Service 2.0 (Basic Conformance Class)
-
Important for INSPIRE-conformant services
- Delivers CityGML v1.0.0 and v2.0.0 documents
-
Accepts only gml:id filtering. More features to come in the future. (And yes, we are talking about WFS-T here!)
NEW: New History Management
exclusively for PostgreSQL
- Logging all changes in a separate table
- Recreate a table or database state with entries of the log table and push it back to your production state
- Runs only on PostgreSQL 9.3+ because of built-in JSON functions
-
Written in PL/pgSQL (get it from github.com/fxku/audit)
Plans for 2014/15
- Complex filtering for imports and exports and extended filter possibilities for WFS
- Support for raster data
- Concepts for an generic CityGML-ADE support
-
Reworked Planning Manager (to manage planning alternatives of a city model)
Showtime!
